Page 2913 of 5127

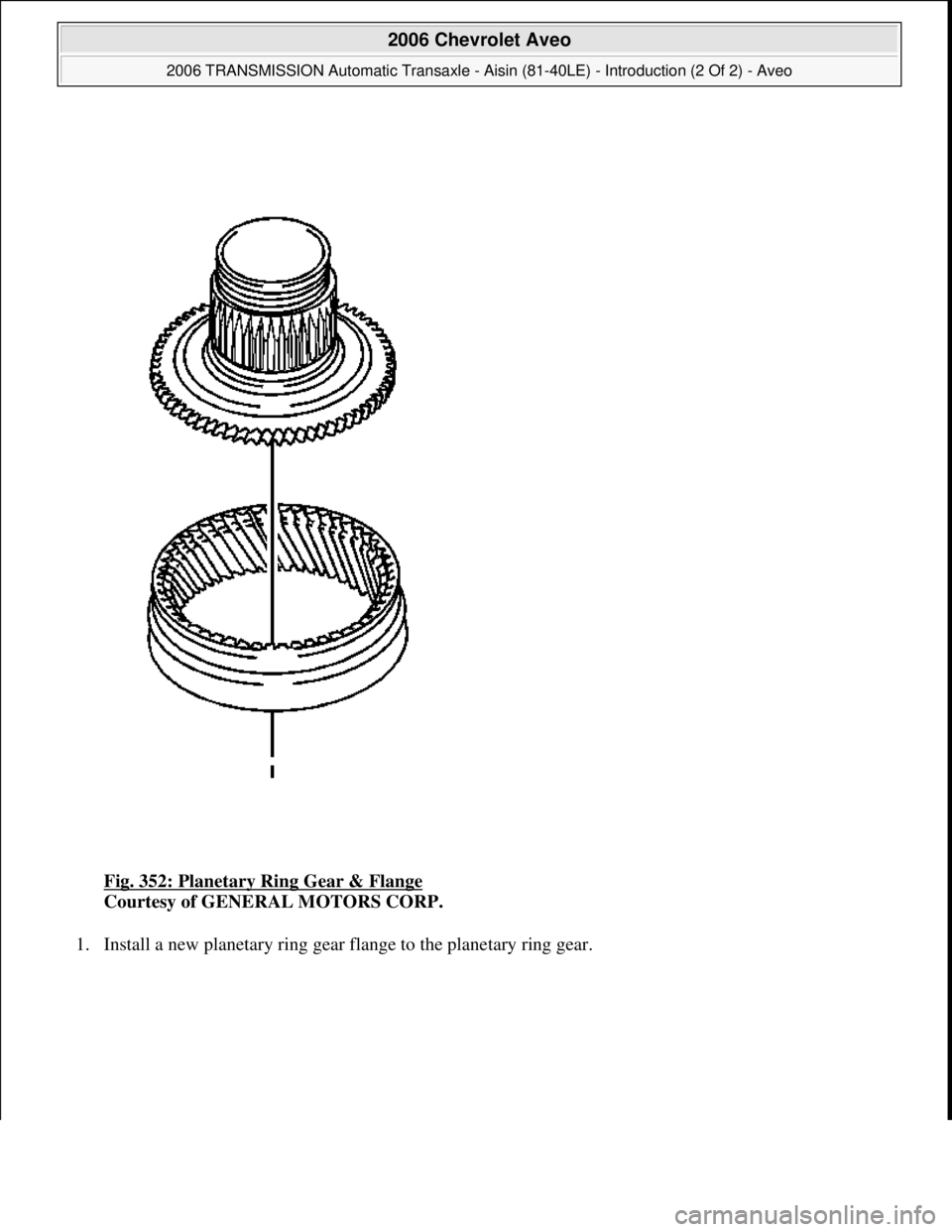

CHEVROLET AVEO 2002 Service Repair Manual Fig. 352: Planetary Ring Gear & Flange Courtesy of GENERAL MOTORS CORP. 1. Install a new planetary ring gear flange to the planetary ring gear. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Tr

Page 2914 of 5127

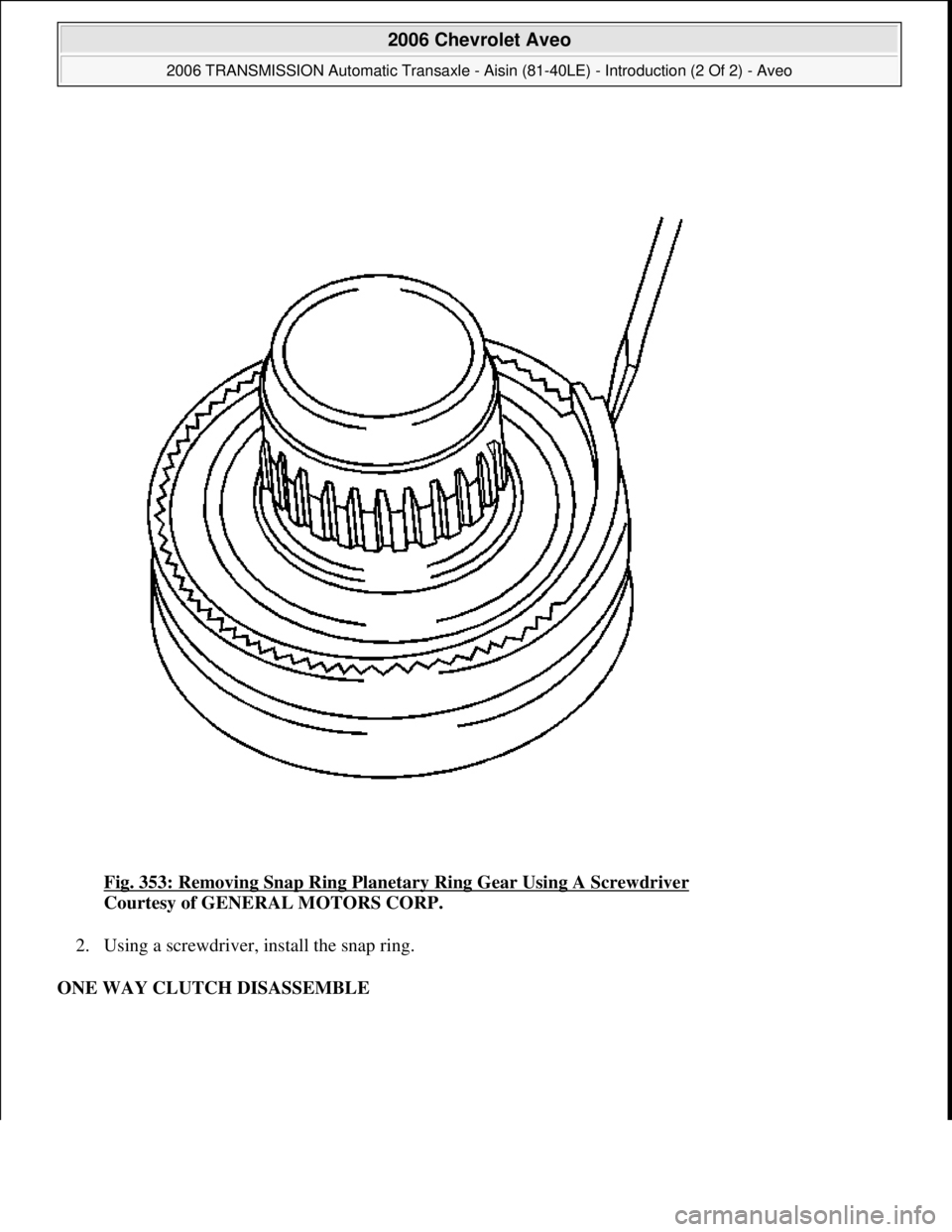

CHEVROLET AVEO 2002 Service Repair Manual Fig. 353: Removing Snap Ring Planetary Ring Gear Using A Screwdriver Courtesy of GENERAL MOTORS CORP. 2. Using a screwdriver, install the snap ring. ONE WAY CLUTCH DISASSEMBLE 2006 Chevrolet Av

Page 2915 of 5127

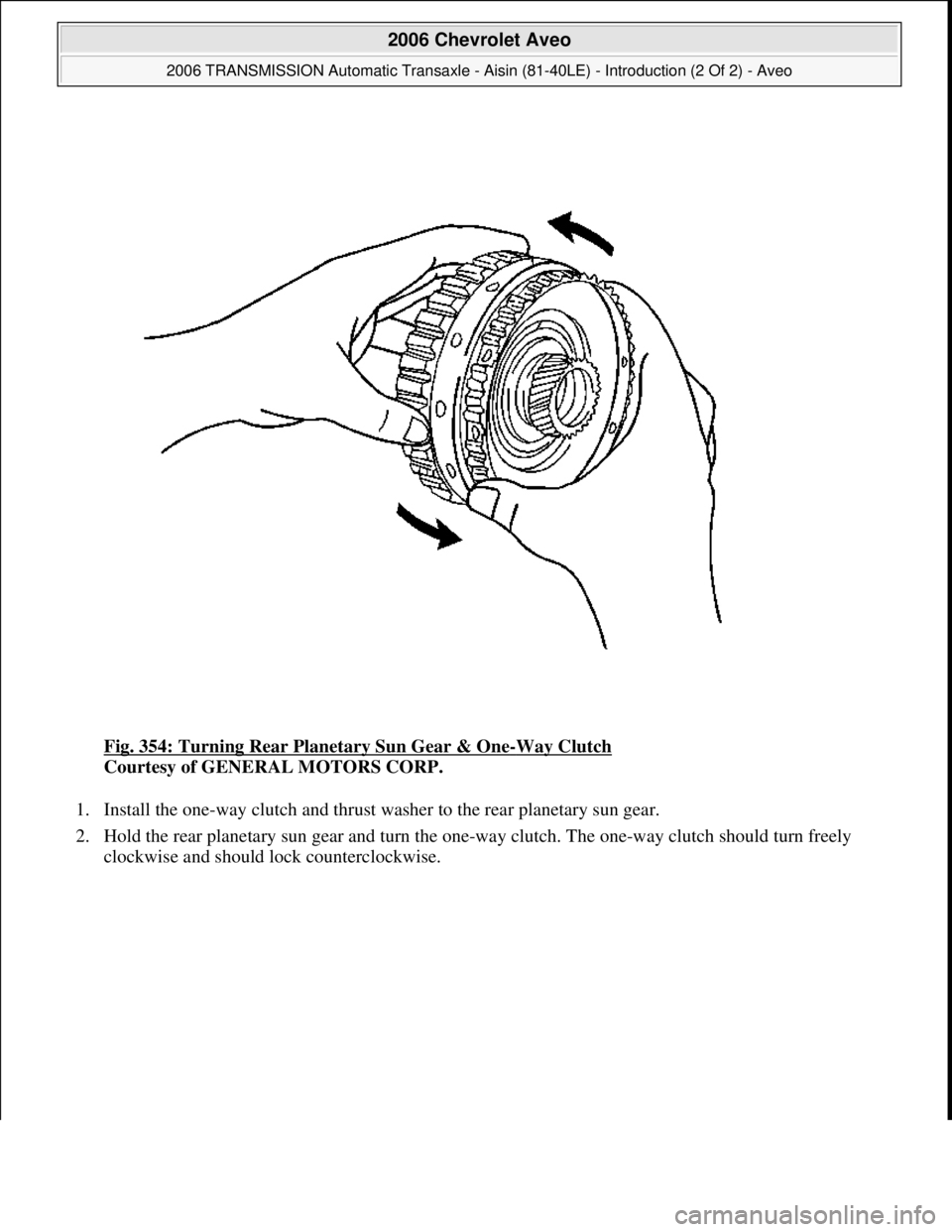

CHEVROLET AVEO 2002 Service Repair Manual Fig. 354: Turning Rear Planetary Sun Gear & One-Way Clutch Courtesy of GENERAL MOTORS CORP. 1. Install the one-way clutch and thrust washer to the rear planetary sun gear. 2. Hold the rear planeta

Page 2916 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 355: Removing Snap Ring From 2nd Brake Hub Using A Screwdriver Courtesy of GENERAL MOTORS CORP. 3. Using a screwdriver, remove the snap ring from the 2nd brake hub. 2006 Chevrolet Aveo 2006

Page 2917 of 5127

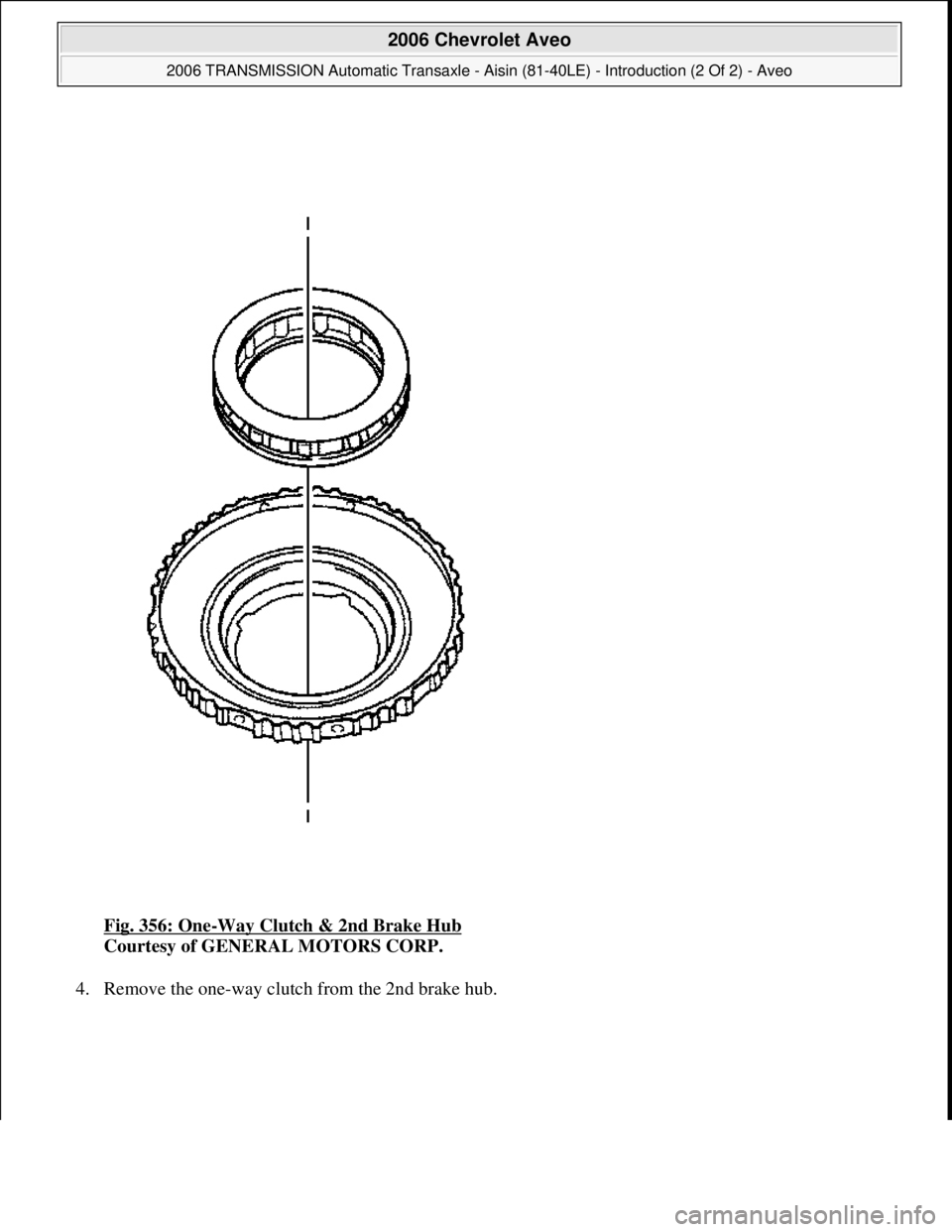

CHEVROLET AVEO 2002 Service Repair Manual Fig. 356: One-Way Clutch & 2nd Brake Hub Courtesy of GENERAL MOTORS CORP. 4. Remove the one-way clutch from the 2nd brake hub. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (

Page 2918 of 5127

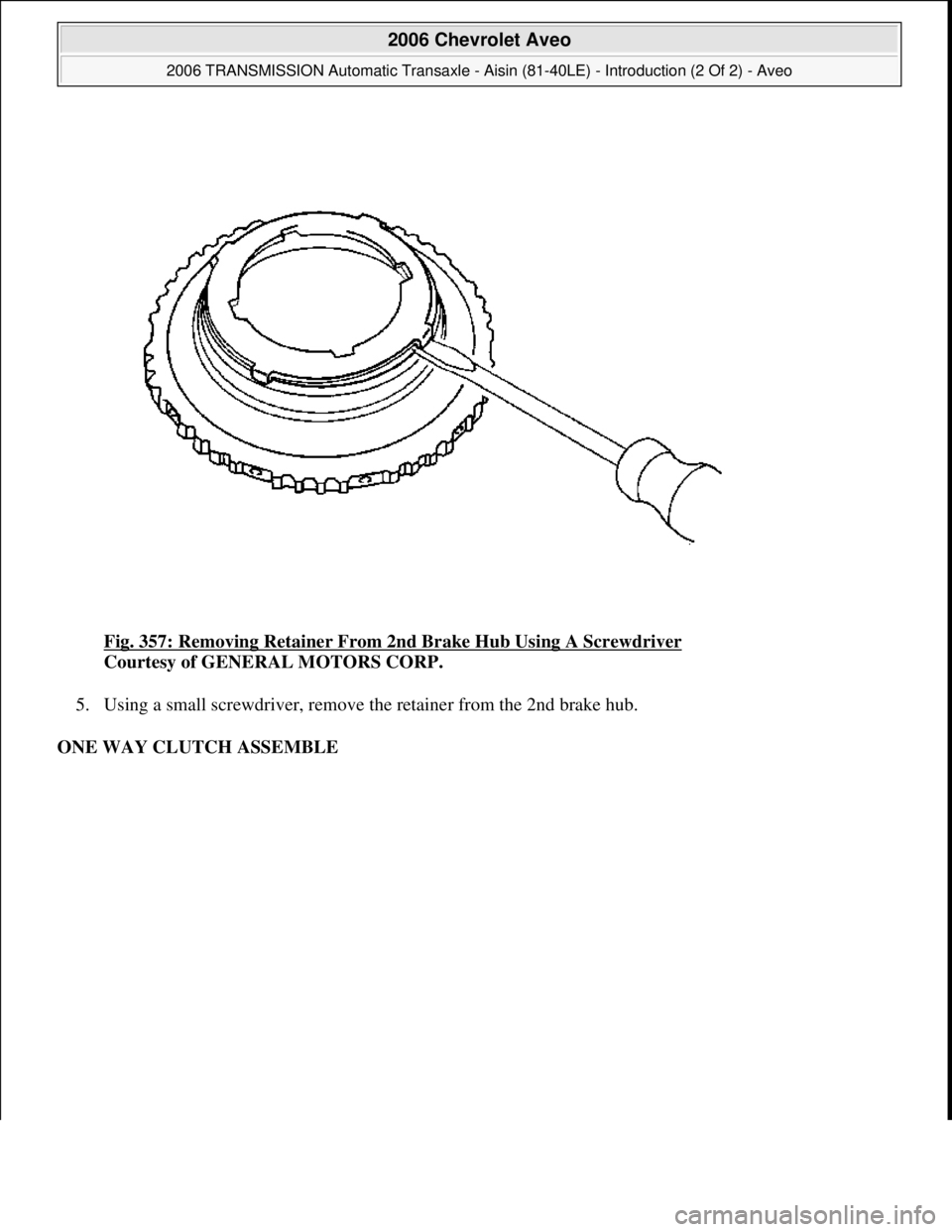

CHEVROLET AVEO 2002 Service Repair Manual Fig. 357: Removing Retainer From 2nd Brake Hub Using A Screwdriver Courtesy of GENERAL MOTORS CORP. 5. Using a small screwdriver, remove the retainer from the 2nd brake hub. ONE WAY CLUTCH ASSEMBL

Page 2919 of 5127

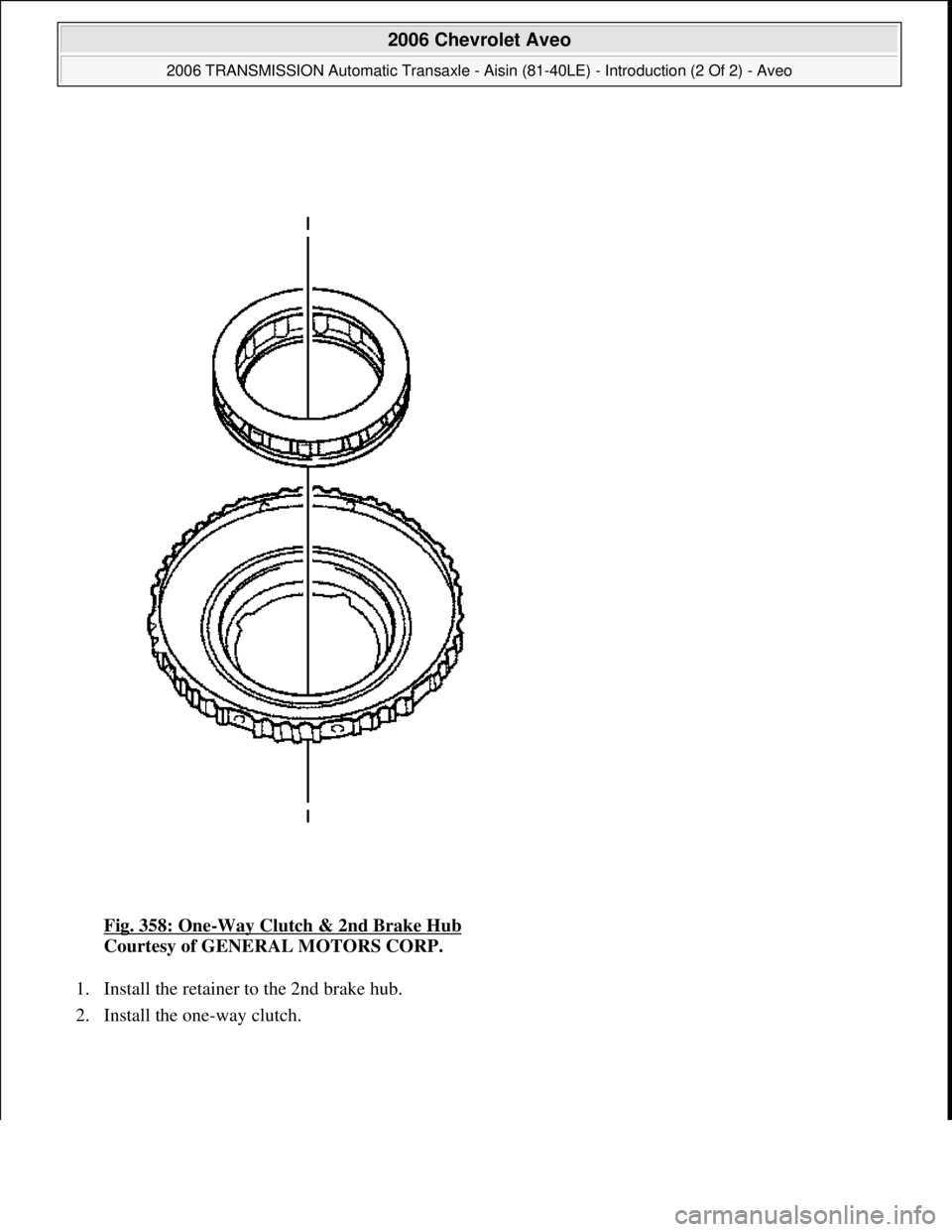

CHEVROLET AVEO 2002 Service Repair Manual Fig. 358: One-Way Clutch & 2nd Brake Hub Courtesy of GENERAL MOTORS CORP. 1. Install the retainer to the 2nd brake hub. 2. Install the one-way clutch. 2006 Chevrolet Aveo 2006 TRANSMISSION Aut

Page 2920 of 5127

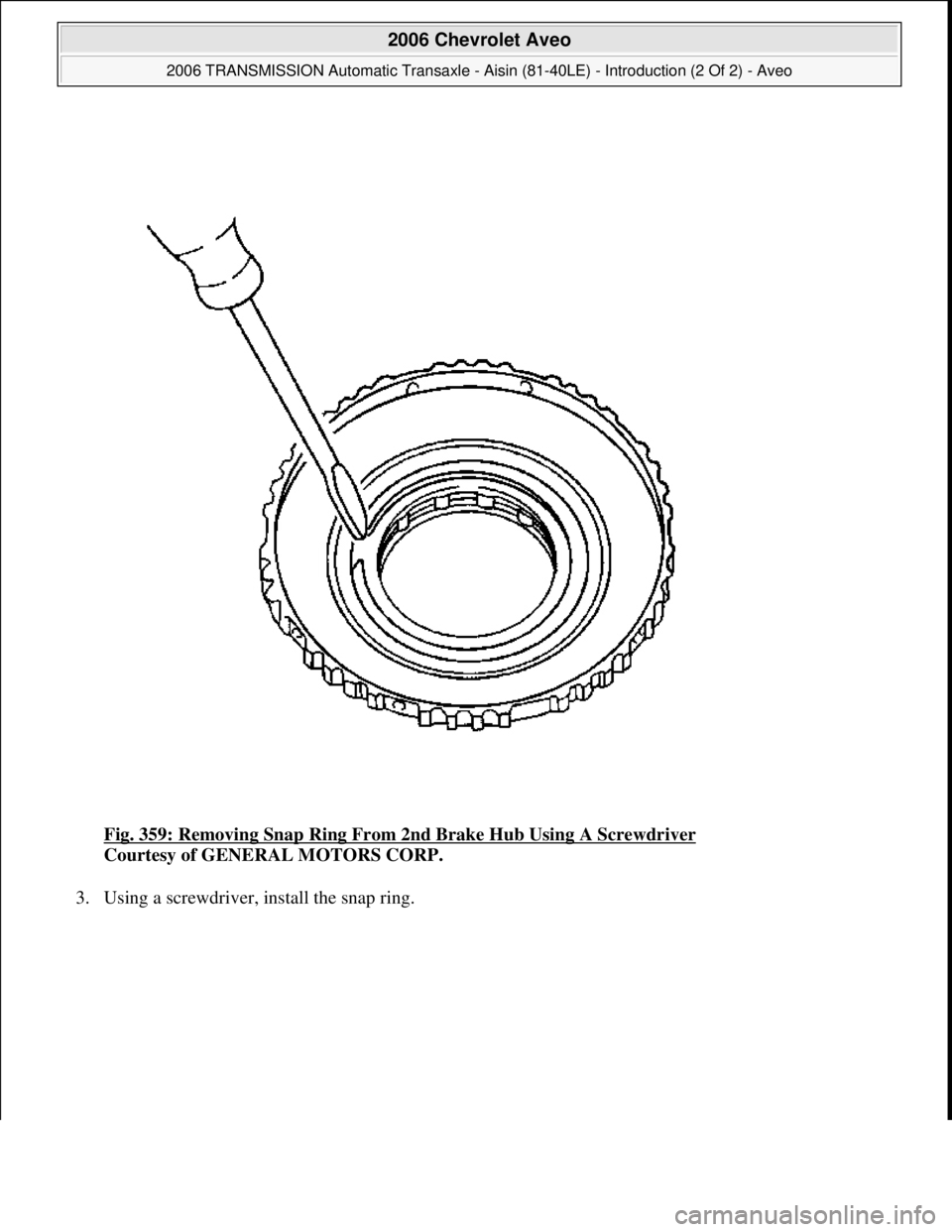

CHEVROLET AVEO 2002 Service Repair Manual Fig. 359: Removing Snap Ring From 2nd Brake Hub Using A Screwdriver Courtesy of GENERAL MOTORS CORP. 3. Using a screwdriver, install the snap ring. 2006 Chevrolet Aveo 2006 TRANSMISSION Automati
