Page 4369 of 5127

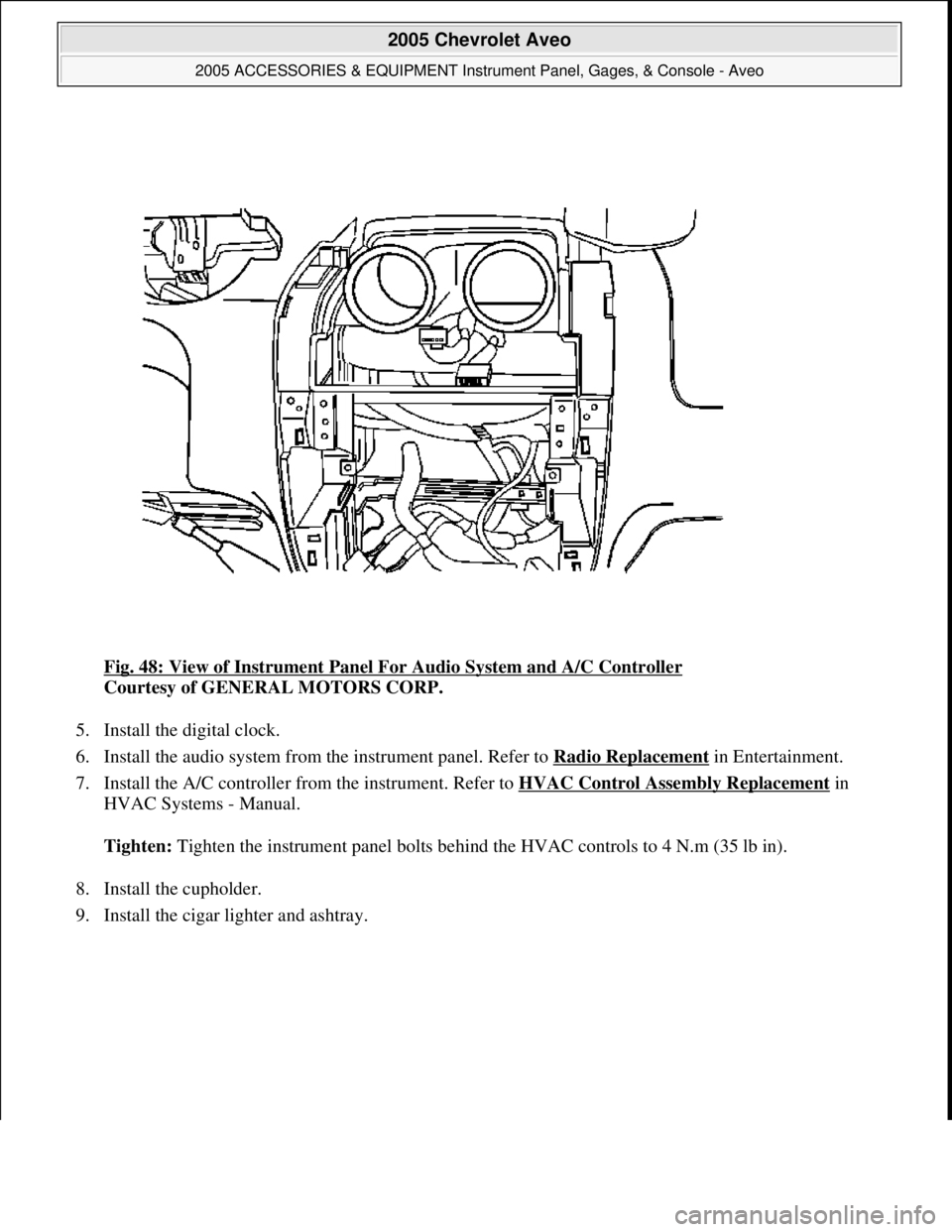

CHEVROLET AVEO 2002 Service Repair Manual Fig. 48: View of Instrument Panel For Audio System and A/C Controller
Courtesy of GENERAL MOTORS CORP.
5. Install the digital clock.
6. Install the audio system from the instrument panel. Refer to

Page 4370 of 5127

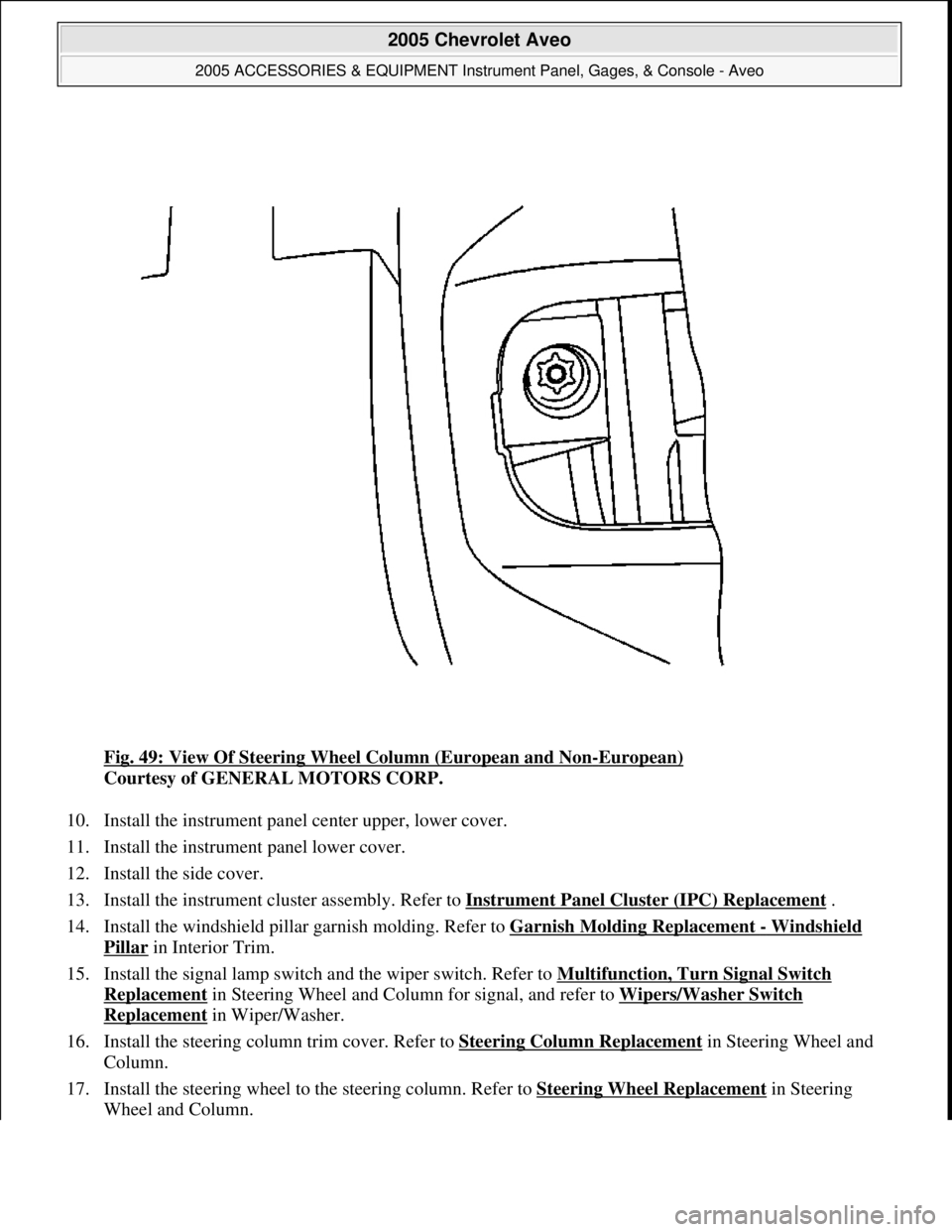

CHEVROLET AVEO 2002 Service Repair Manual Fig. 49: View Of Steering Wheel Column (European and Non-European)
Courtesy of GENERAL MOTORS CORP.
10. Install the instrument panel center upper, lower cover.
11. Install the instrument panel low

Page 4371 of 5127

CHEVROLET AVEO 2002 Service Repair Manual 18. Install the drivers air bag module from the steering wheel, if equipped. Refer to Inflatable Restraint
Steering Wheel Module Replacement in SIR.
19. Connect the negative battery cable.
CLOCK

Page 4372 of 5127

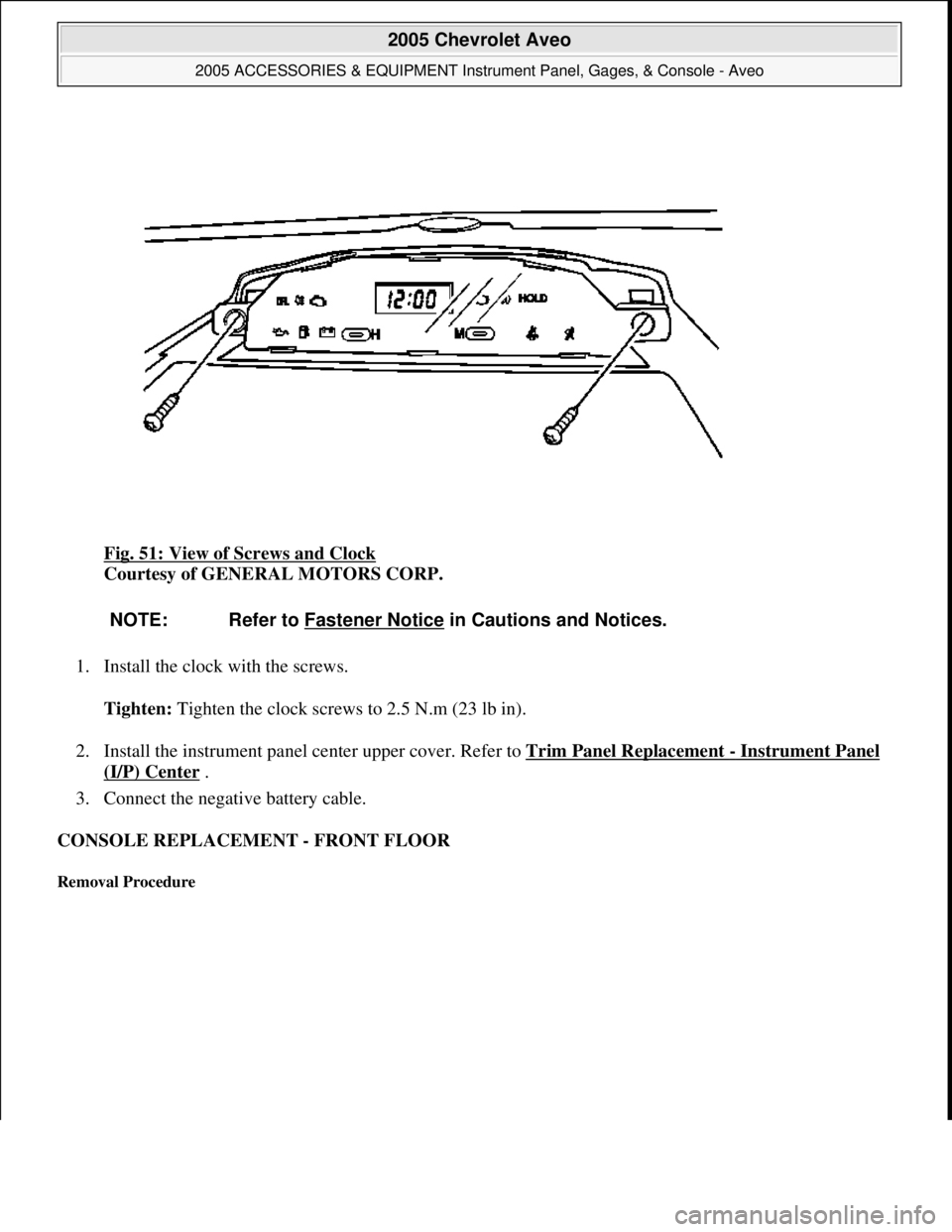

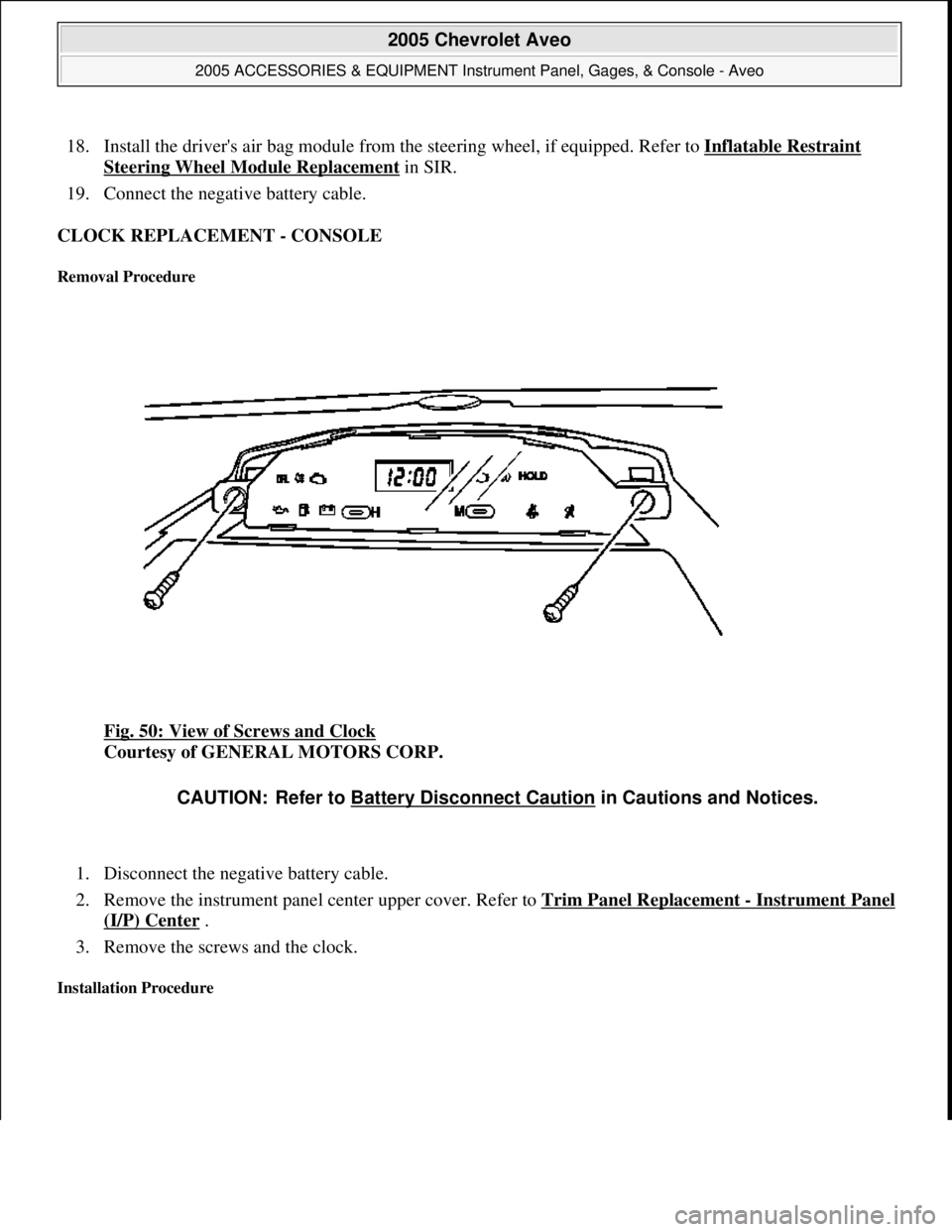

CHEVROLET AVEO 2002 Service Repair Manual Fig. 51: View of Screws and Clock
Courtesy of GENERAL MOTORS CORP.
1. Install the clock with the screws.
Tighten: Tighten the clock screws to 2.5 N.m (23 lb in).
2. Install the instrument panel ce

Page 4373 of 5127

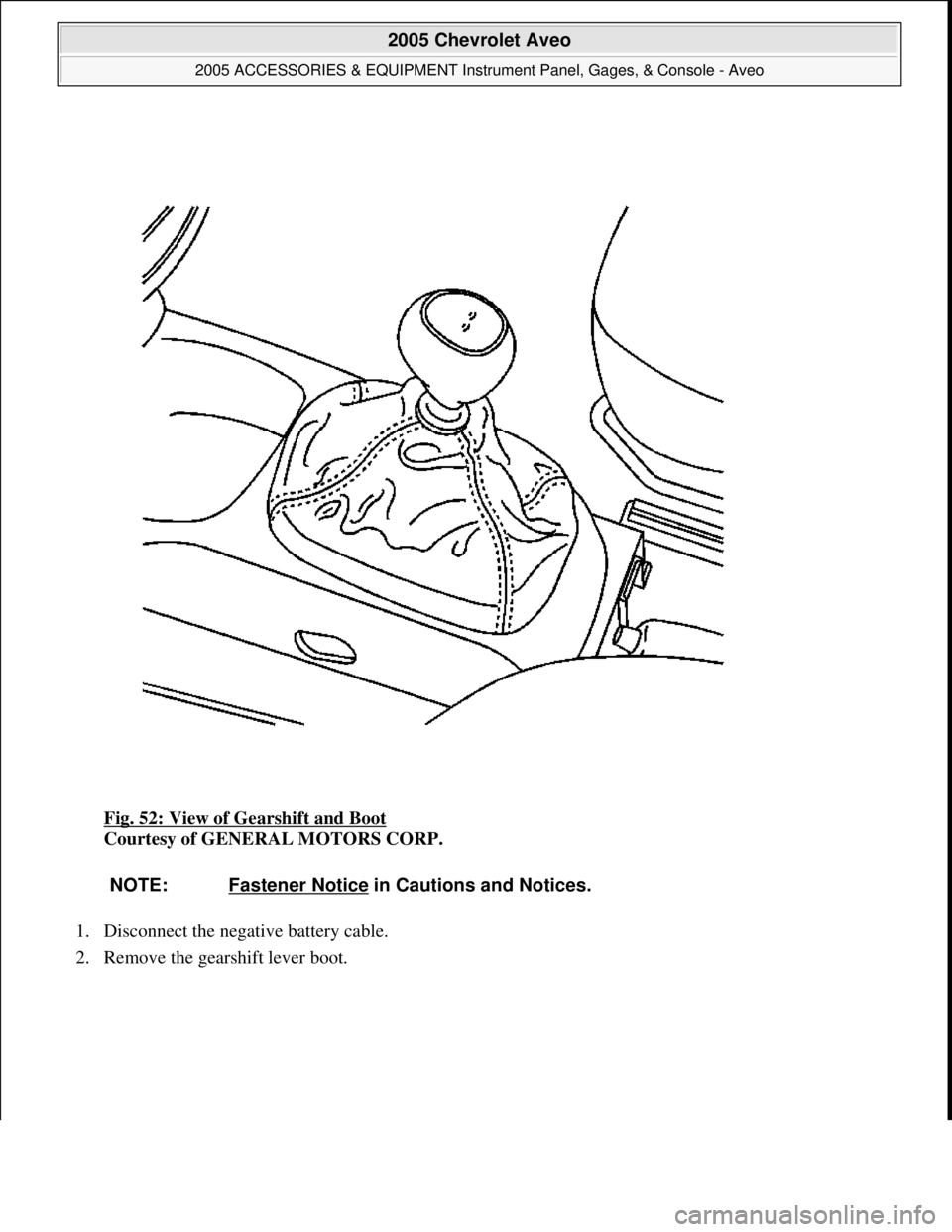

CHEVROLET AVEO 2002 Service Repair Manual Fig. 52: View of Gearshift and Boot
Courtesy of GENERAL MOTORS CORP.
1. Disconnect the negative battery cable.
2. Remove the
gearshift lever boot.
NOTE: Fastener Notice in Cautions and Notices.

Page 4374 of 5127

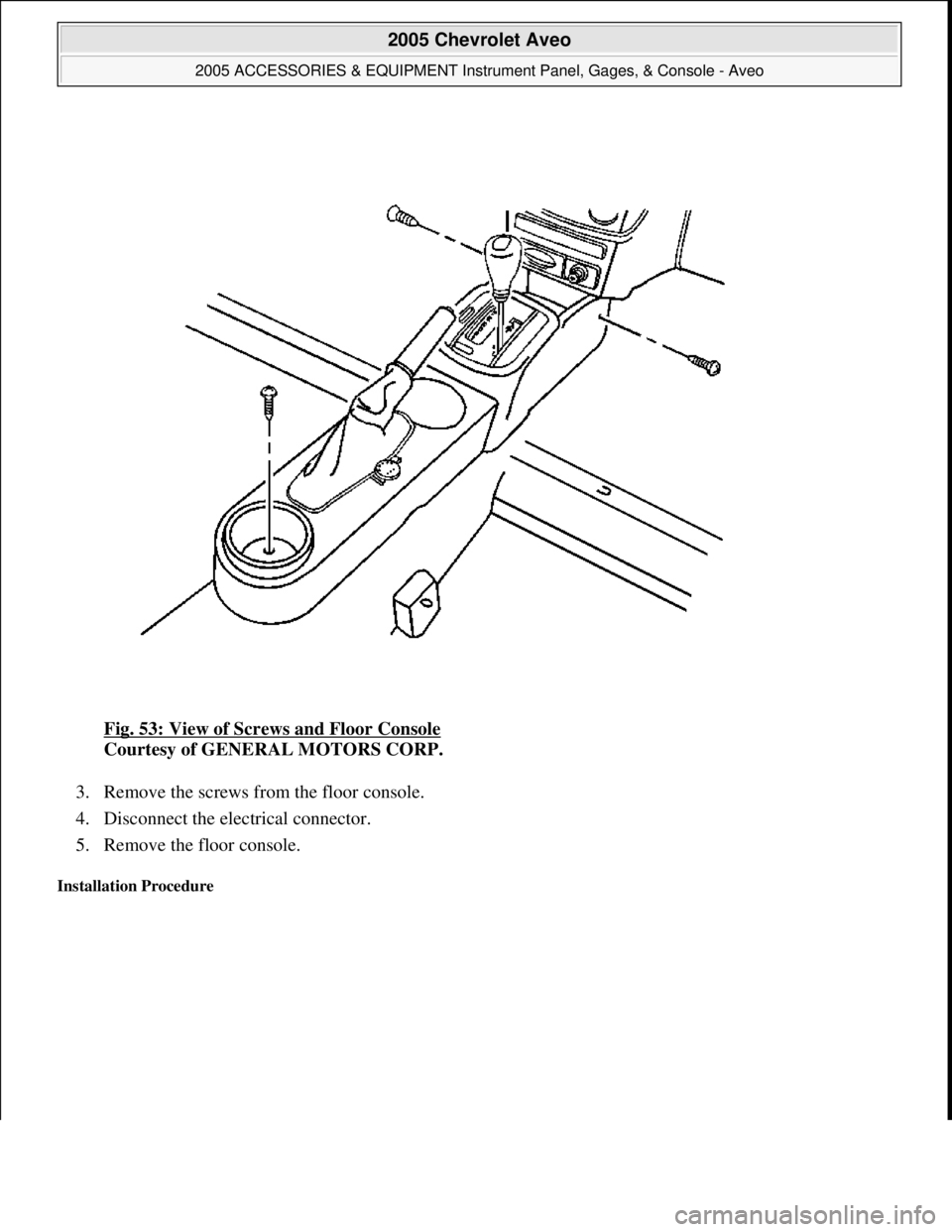

CHEVROLET AVEO 2002 Service Repair Manual Fig. 53: View of Screws and Floor Console
Courtesy of GENERAL MOTORS CORP.
3. Remove the screws from the floor console.
4. Disconnect the electrical connector.
5. Remove the floor console.
Ins

Page 4375 of 5127

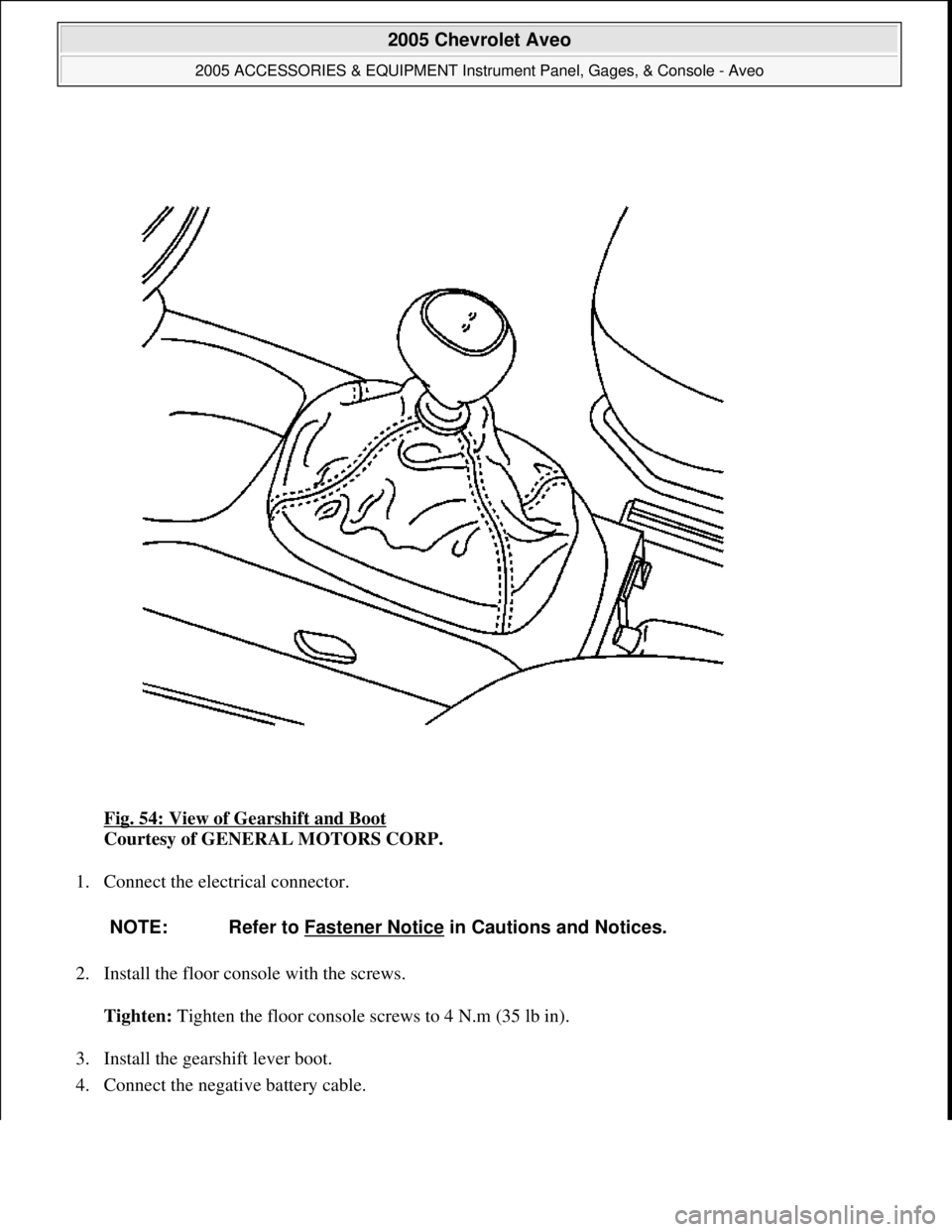

CHEVROLET AVEO 2002 Service Repair Manual Fig. 54: View of Gearshift and Boot
Courtesy of GENERAL MOTORS CORP.
1. Connect the electrical connector.
2. Install the floor console with the screws.
Tighten: Tighten the floor console screws to

Page 4376 of 5127

CHEVROLET AVEO 2002 Service Repair Manual DESCRIPTION AND OPERATION
INSTRUMENT PANEL DESCRIPTION
Cigar Lighter
The cigar lighter is located in the front portion of the floor console. To use the lighter, push it in completely.
When the ligh

DESCRIPTION AND OPERATION
INSTRUMENT PANEL DESCRIPTION
Cigar Lighter
The cigar lighter is located in the front portion of the floor console. To use the lighter, push it in completely.
When the lighter is hot, it will release itself from contact with the heating element. The lighter and the heating
element can be damaged if the lighter is not allowed to release itself fully from the heating element.
Ashtray
The ashtray is located below the audio system. To access the ashtray, pull it out from the center console. The
ashtray lamp will go ON when the parking lamps or the headlamps are turned ON.
Instrument Panel Vents
The center and the side vents in the instrument panel can be adjusted up and down and from side to side. The
side vents can also be aimed toward the side windows in order to defog them.
Glove Box
The glove box can be opened by pulling up on the latch handle. The glove box must be removed in order to gain
access to the passenger's side air bag module.
Digital Clock
The digital clock is located in the instrument panel, above the audio system. The clock is capable of a 12-hour
or a 24-hour display.
Instrument Cluster
The instrument cluster is located above the steering column and in the instrument cluster trim panel. The
instrument cluster contains the instruments that provide the driver with vehicle performance information. The
instrument cluster contains a speedometer, an odometer, a trip odometer, a temperature gage, a fuel gage, and
several indicator lamps. For replacement of the indicator lamp bulbs contained in the instrument cluster, refer to
Bulb Usage Specifications
and Instrument Cluster Lamp Replacement .
Speedometer/Odometer/Trip Odometer
The speedometer measures the speed of the vehicle in km/h (mph). It consists of an instrument cluster gage
connected to the vehicle speed sensor (VSS) on the transaxle output shaft.
The odometer measures in kilometers (miles) the total distance the vehicle has traveled since it was
manufactured. It consists of an instrument cluster gage connected to the VSS on the transaxle output shaft.
The trip odometer measures the distance the vehicle has traveled since the odometer was last reset. It consists of

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Instrument Panel, Gages, & Console - Aveo
Microsoft
Friday, July 31, 2009 1:07:03 PMPage 83 © 2005 Mitchell Repair Information Company, LLC.
