Page 2793 of 5127

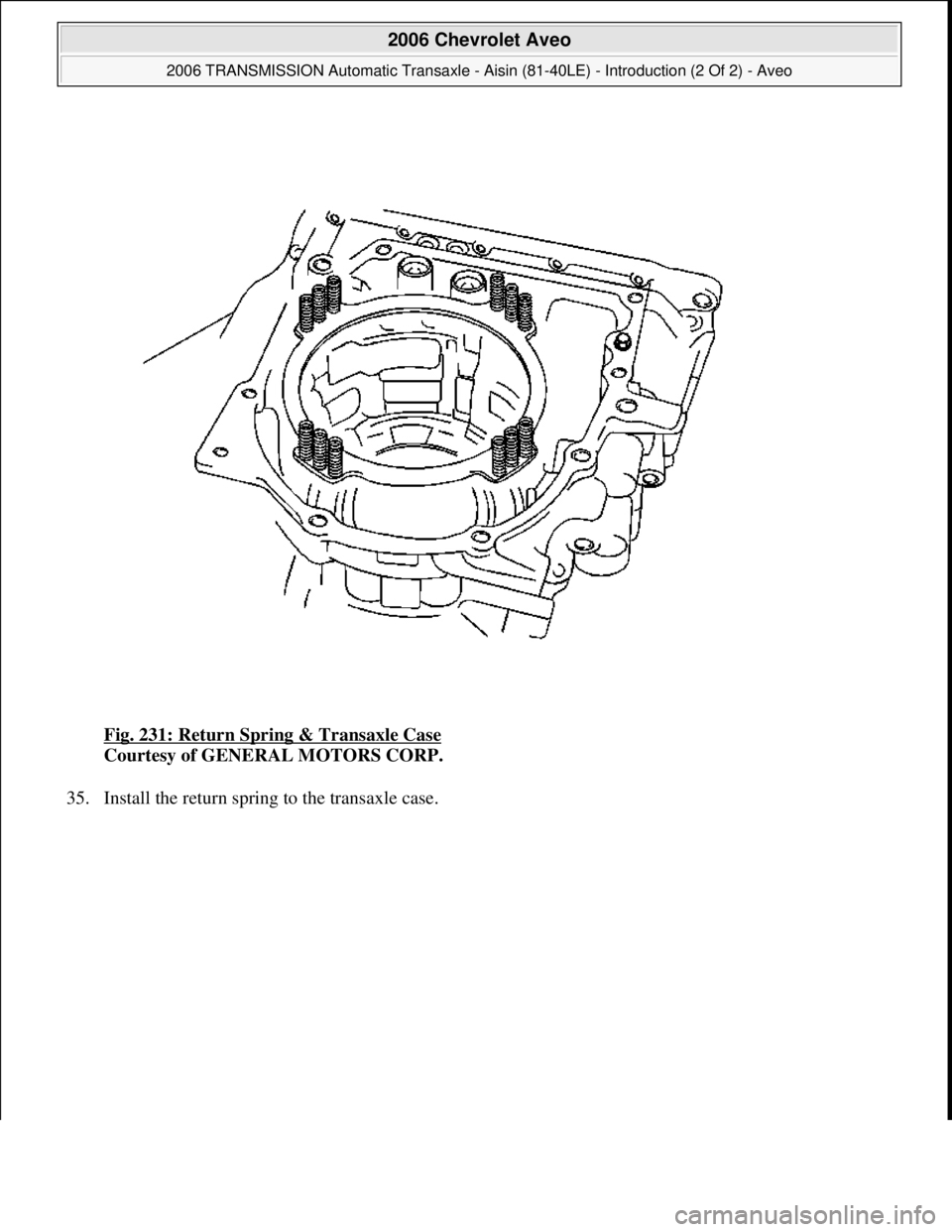

CHEVROLET AVEO 2002 Service Repair Manual Fig. 231: Return Spring & Transaxle Case Courtesy of GENERAL MOTORS CORP. 35. Install the return spring to the transaxle case. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (

Page 2794 of 5127

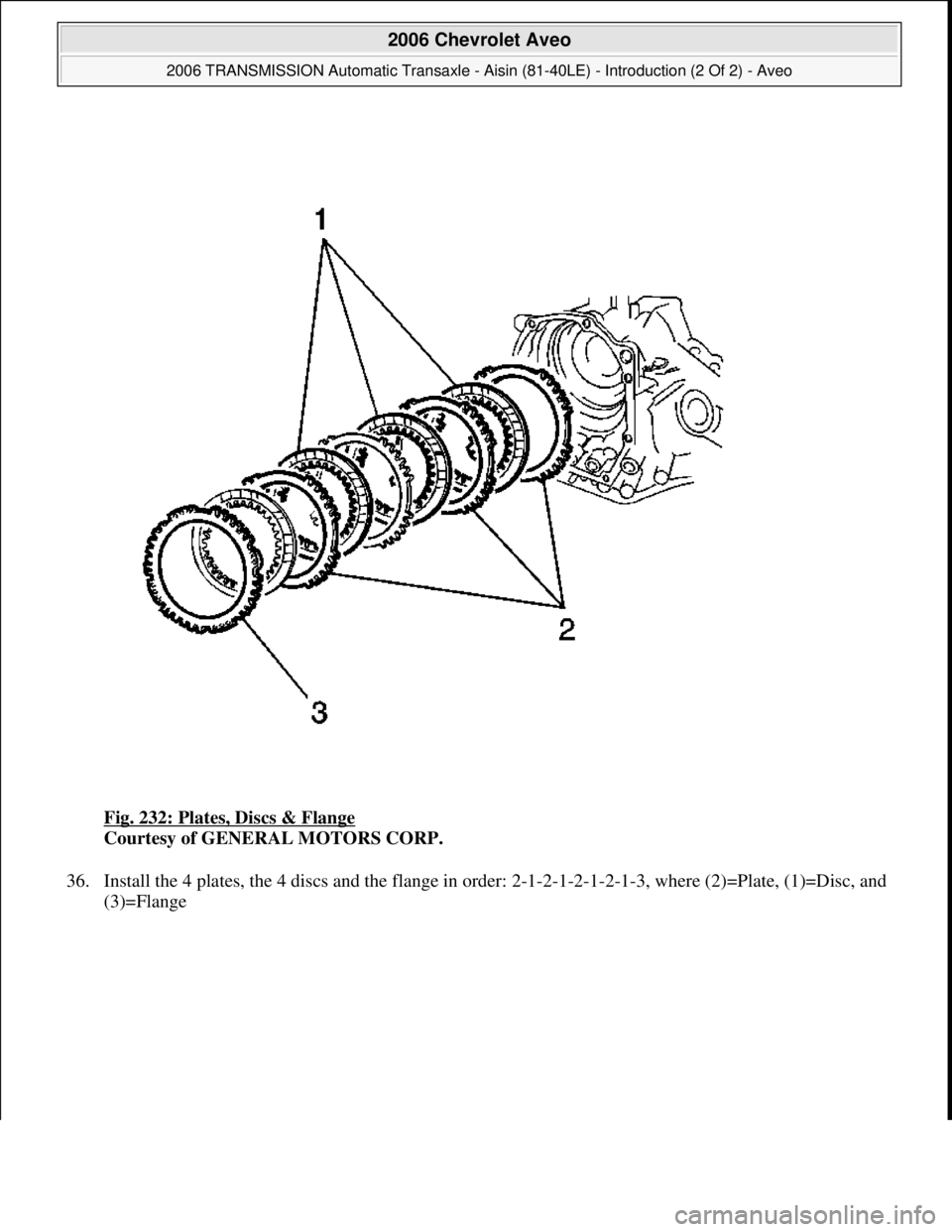

CHEVROLET AVEO 2002 Service Repair Manual Fig. 232: Plates, Discs & Flange Courtesy of GENERAL MOTORS CORP. 36. Install the 4 plates, the 4 discs and the flange in order: 2-1-2-1-2-1-2-1-3, where (2)=Plate, (1)=Disc, and (3)=Flan ge 200

Page 2795 of 5127

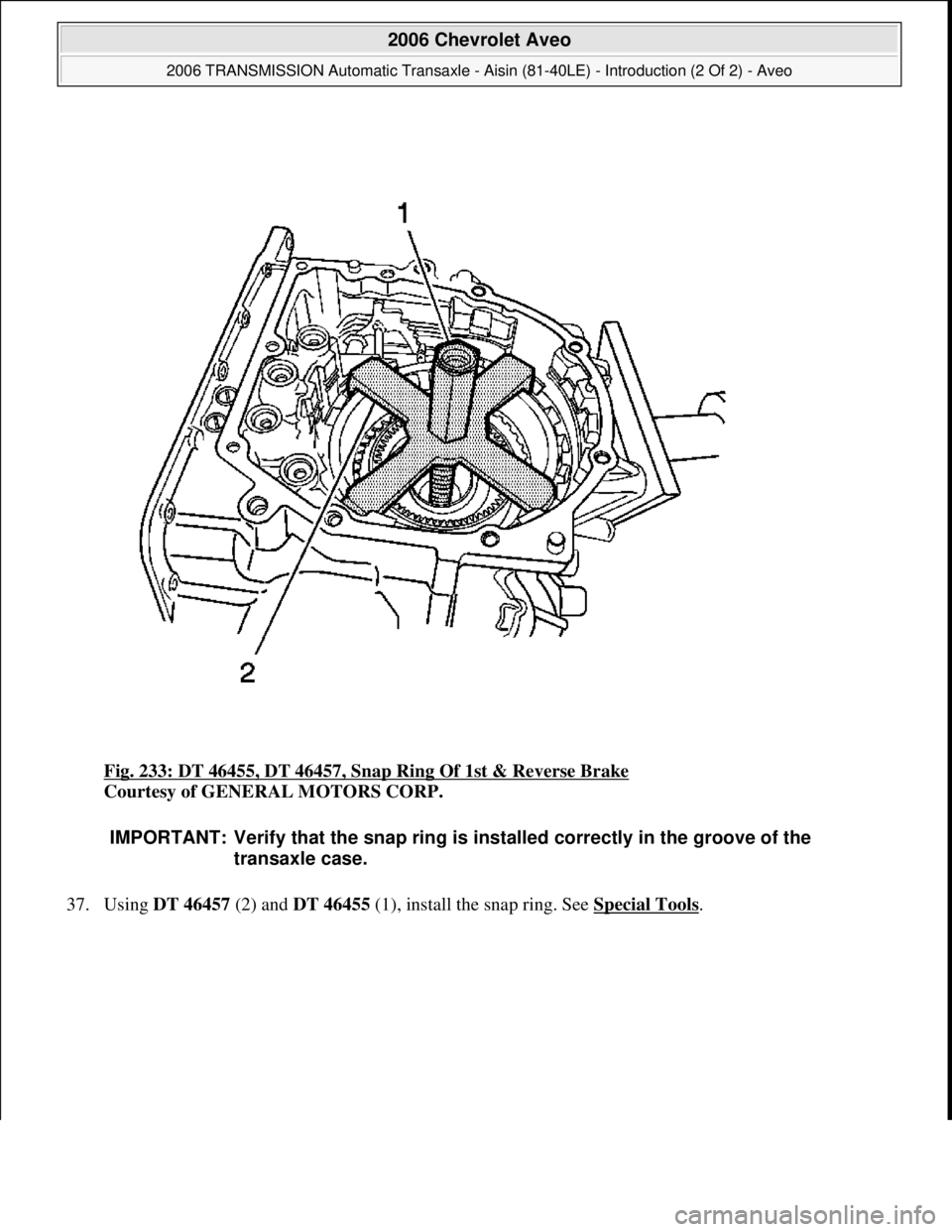

CHEVROLET AVEO 2002 Service Repair Manual Fig. 233: DT 46455, DT 46457, Snap Ring Of 1st & Reverse Brake Courtesy of GENERAL MOTORS CORP. 37. Usin g DT 46457 (2) and DT 46455 (1), install the snap ring. See Special Tools. IMPORTANT: Verify

Page 2796 of 5127

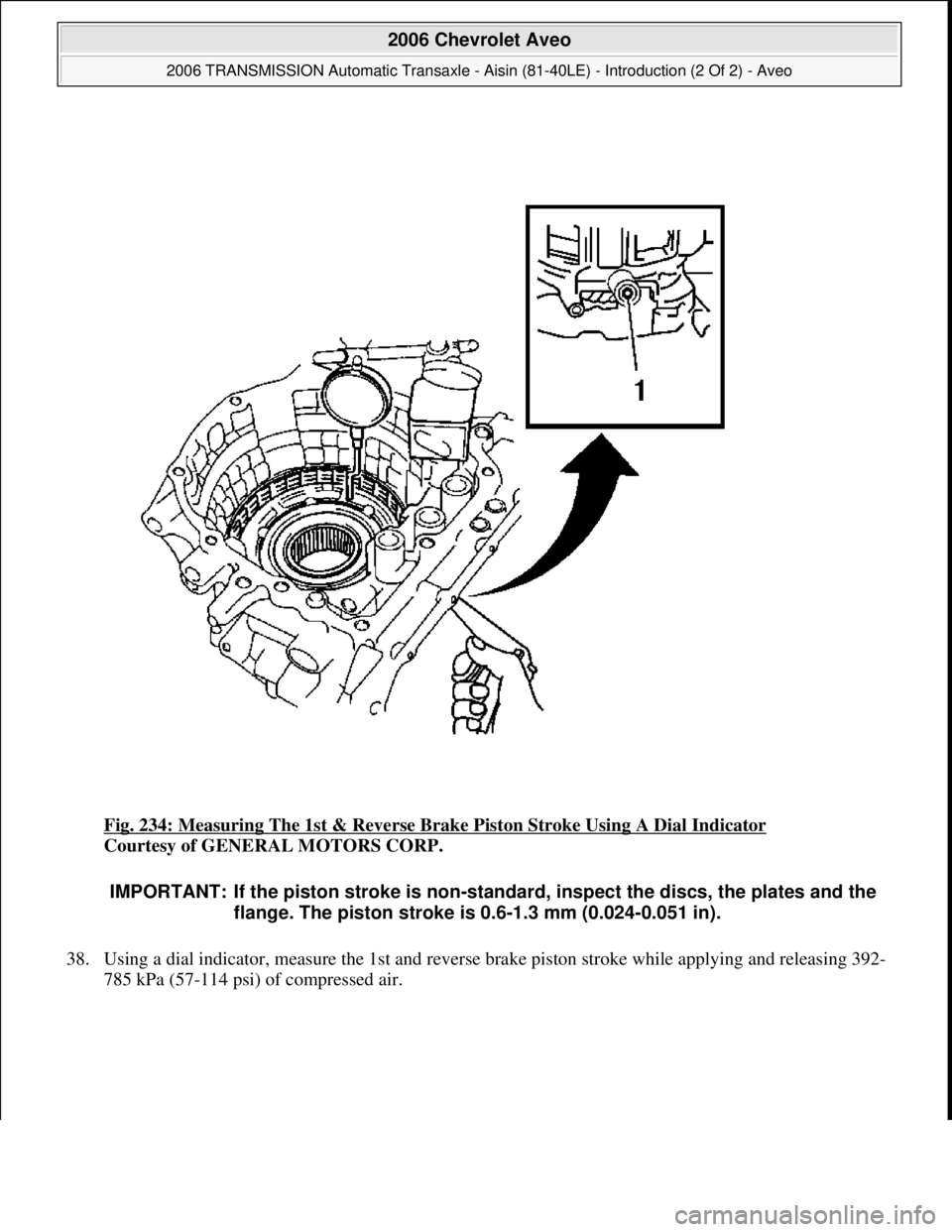

CHEVROLET AVEO 2002 Service Repair Manual Fig. 234: Measuring The 1st & Reverse Brake Piston Stroke Using A Dial Indicator Courtesy of GENERAL MOTORS CORP. 38. Using a dial indicator, measure the 1st and reverse brake piston stroke while ap

Page 2797 of 5127

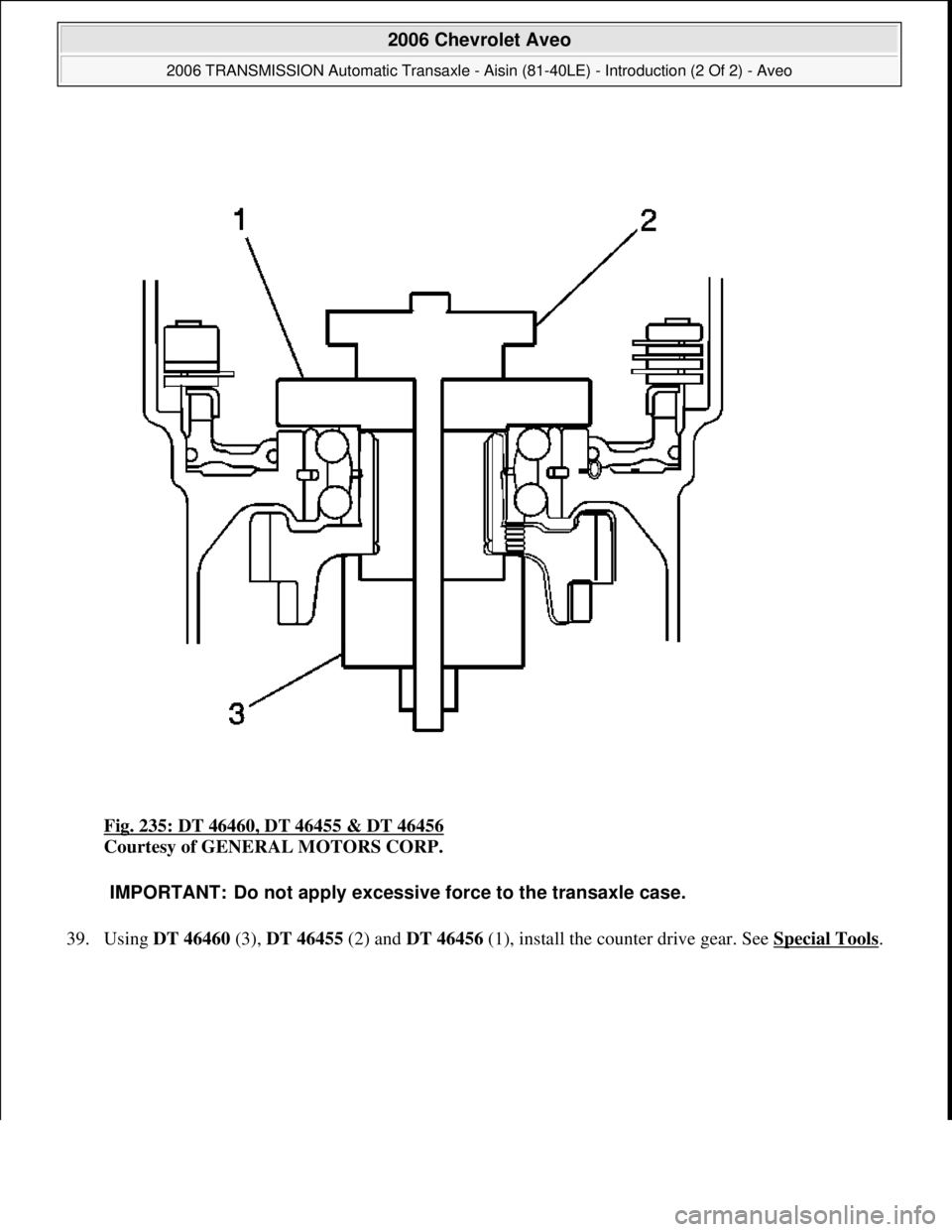

CHEVROLET AVEO 2002 Service Repair Manual Fig. 235: DT 46460, DT 46455 & DT 46456 Courtesy of GENERAL MOTORS CORP. 39. Usin g DT 46460 (3), DT 46455 (2) and DT 46456(1), install the counter drive gear. See Special Tools. IMPORTANT: Do not

Page 2798 of 5127

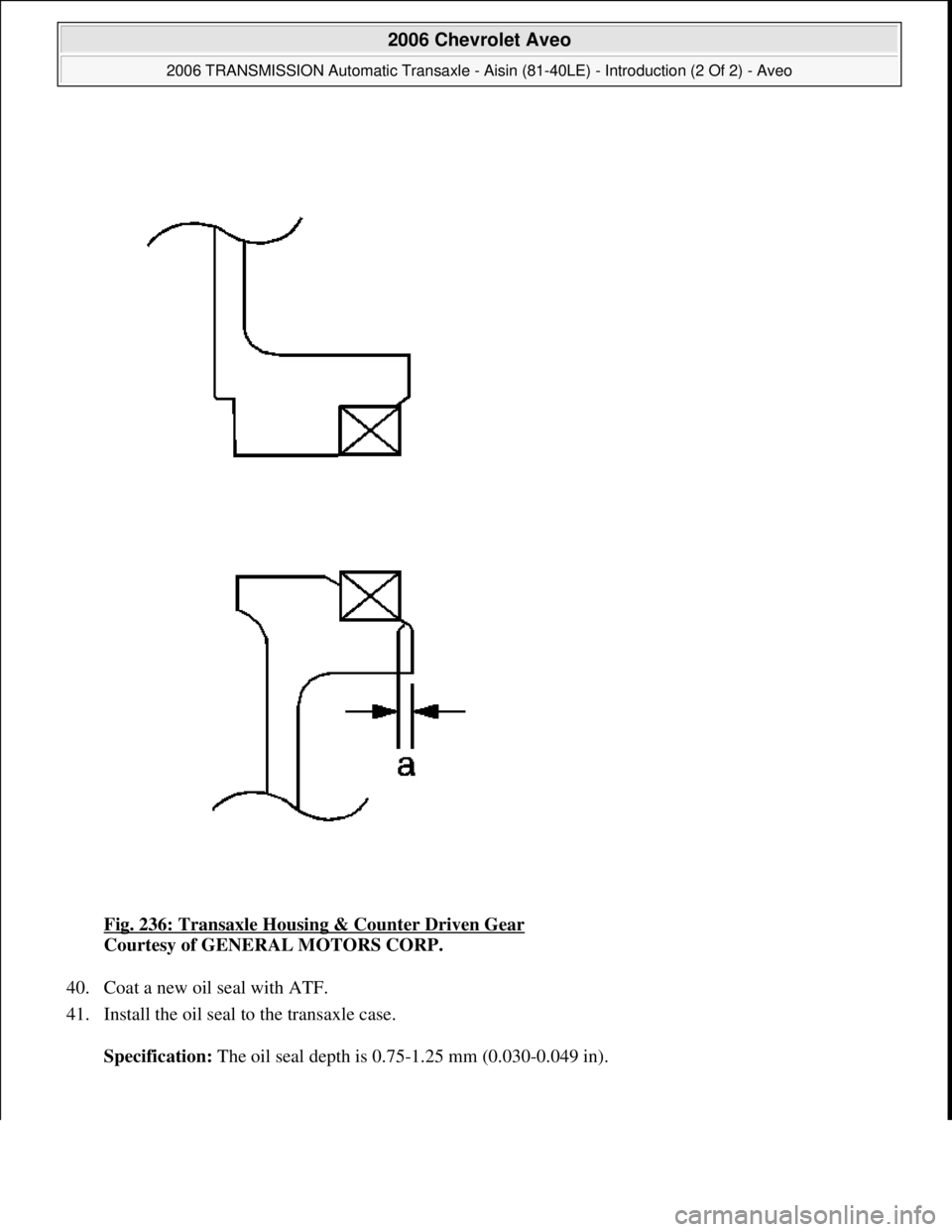

CHEVROLET AVEO 2002 Service Repair Manual Fig. 236: Transaxle Housing & Counter Driven Gear Courtesy of GENERAL MOTORS CORP. 40. Coat a new oil seal with ATF. 41. Install the oil seal to the transaxle case. Specification: The oil seal de

Page 2799 of 5127

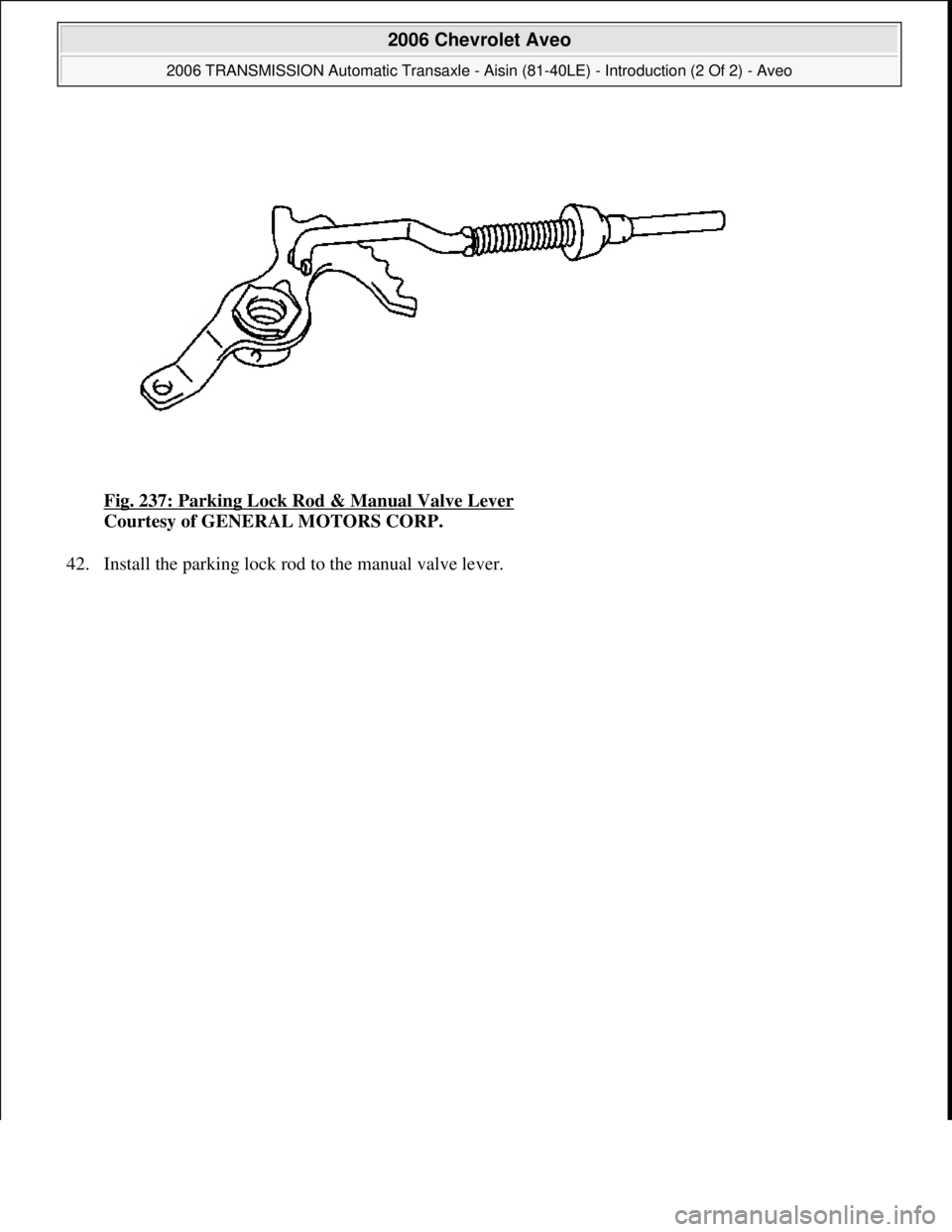

CHEVROLET AVEO 2002 Service Repair Manual Fig. 237: Parking Lock Rod & Manual Valve Lever Courtesy of GENERAL MOTORS CORP. 42. Install the parkin g lock rod to the manual valve lever. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Tran

Page 2800 of 5127

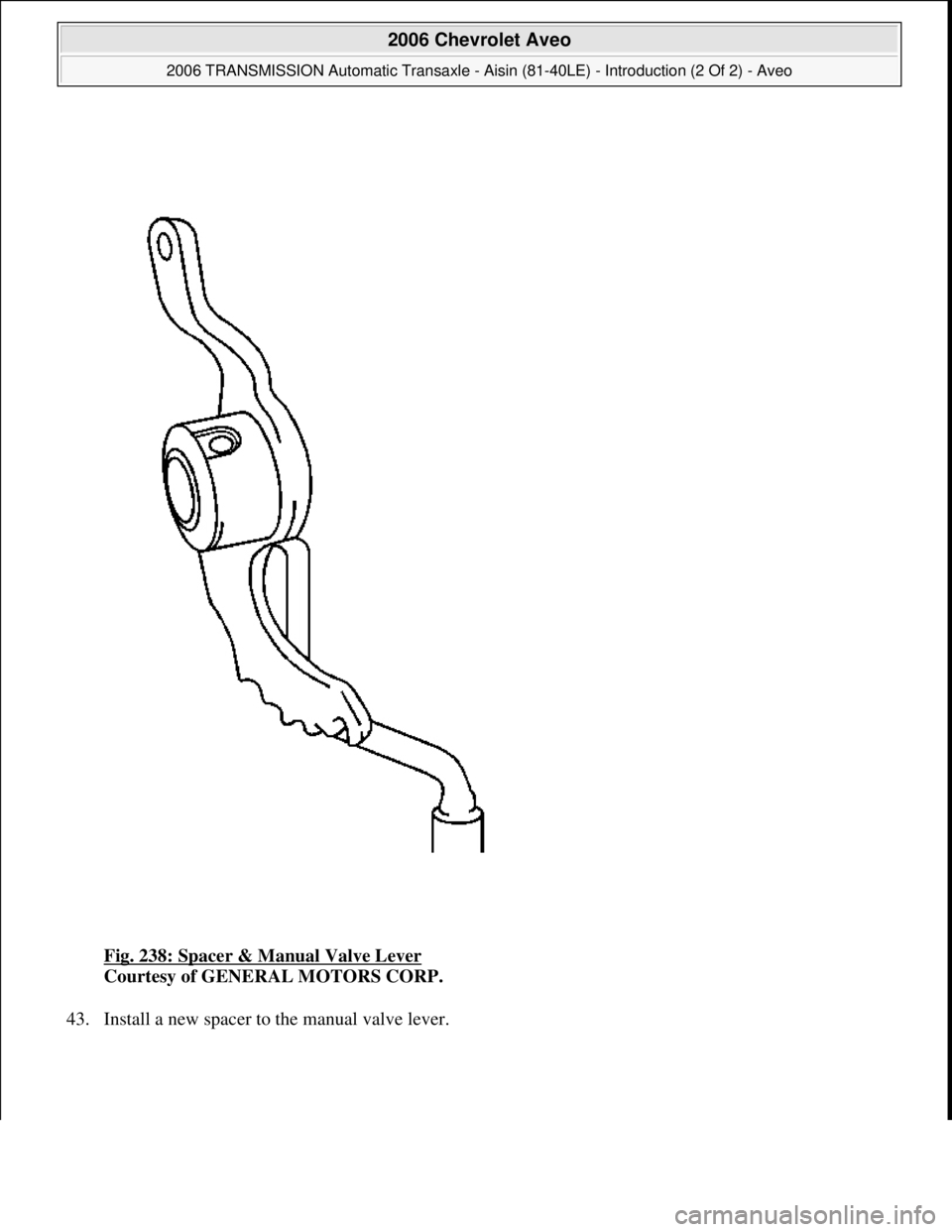

CHEVROLET AVEO 2002 Service Repair Manual Fig. 238: Spacer & Manual Valve Lever Courtesy of GENERAL MOTORS CORP. 43. Install a new spacer to the manual valve lever. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-4
