Page 2745 of 5127

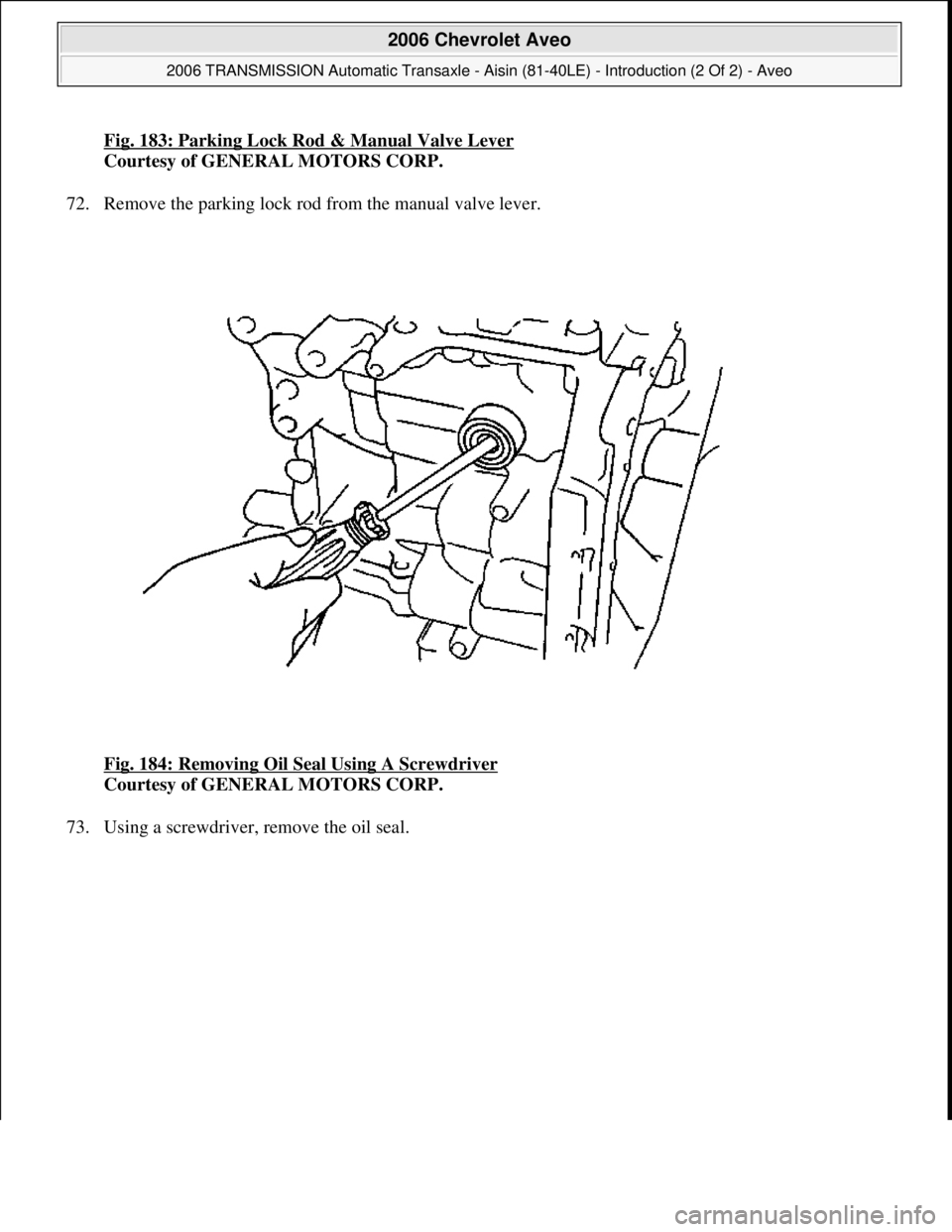

CHEVROLET AVEO 2002 Service Repair Manual Fig. 183: Parking Lock Rod & Manual Valve Lever Courtesy of GENERAL MOTORS CORP. 72. Remove the parking lock rod from the manual valve lever. Fig. 184: Removing Oil Seal Using A Screwdriver Courte

Page 2746 of 5127

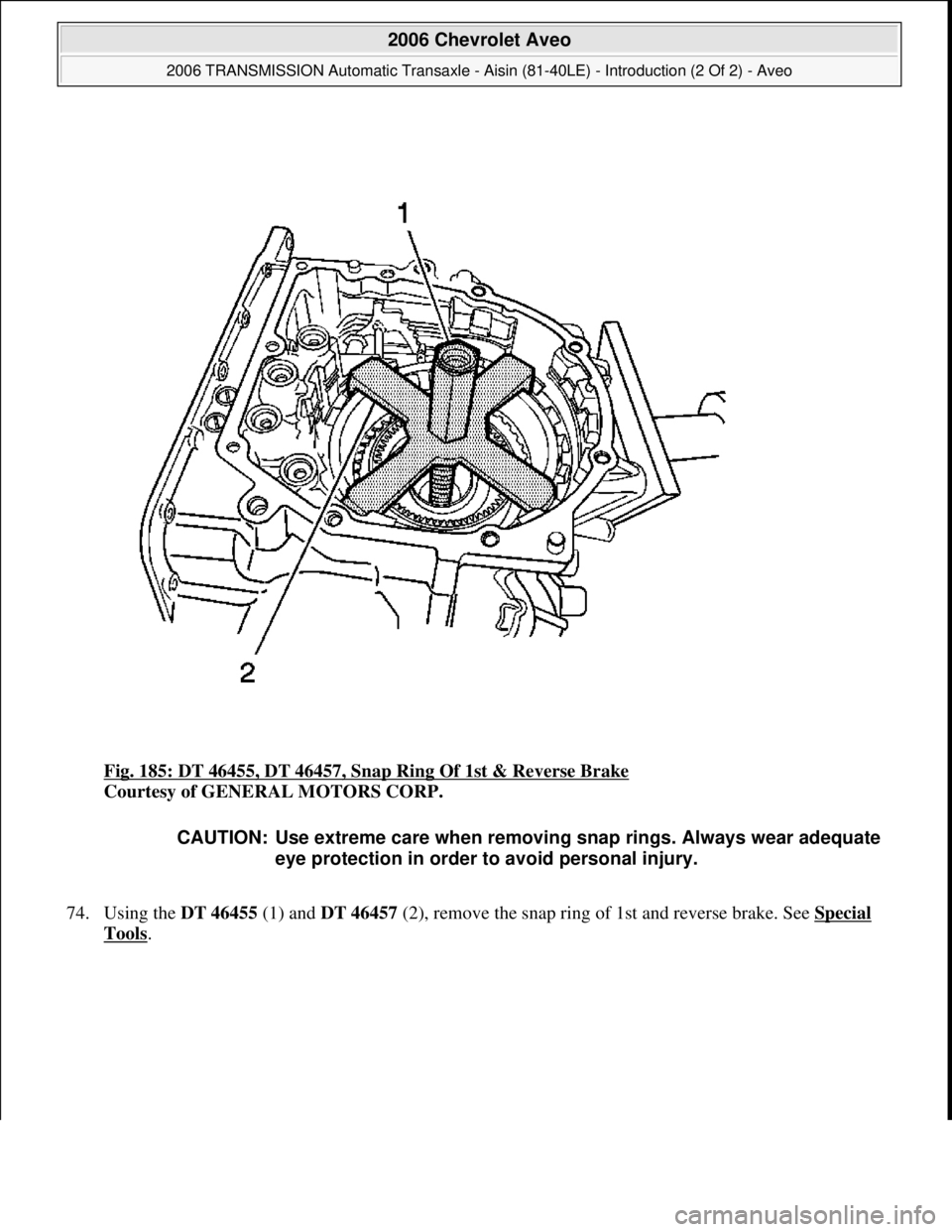

CHEVROLET AVEO 2002 Service Repair Manual Fig. 185: DT 46455, DT 46457, Snap Ring Of 1st & Reverse Brake Courtesy of GENERAL MOTORS CORP. 74. Using the DT 46455 (1) and DT 46457 (2), remove the snap ring of 1st and reverse brake. See Specia

Page 2747 of 5127

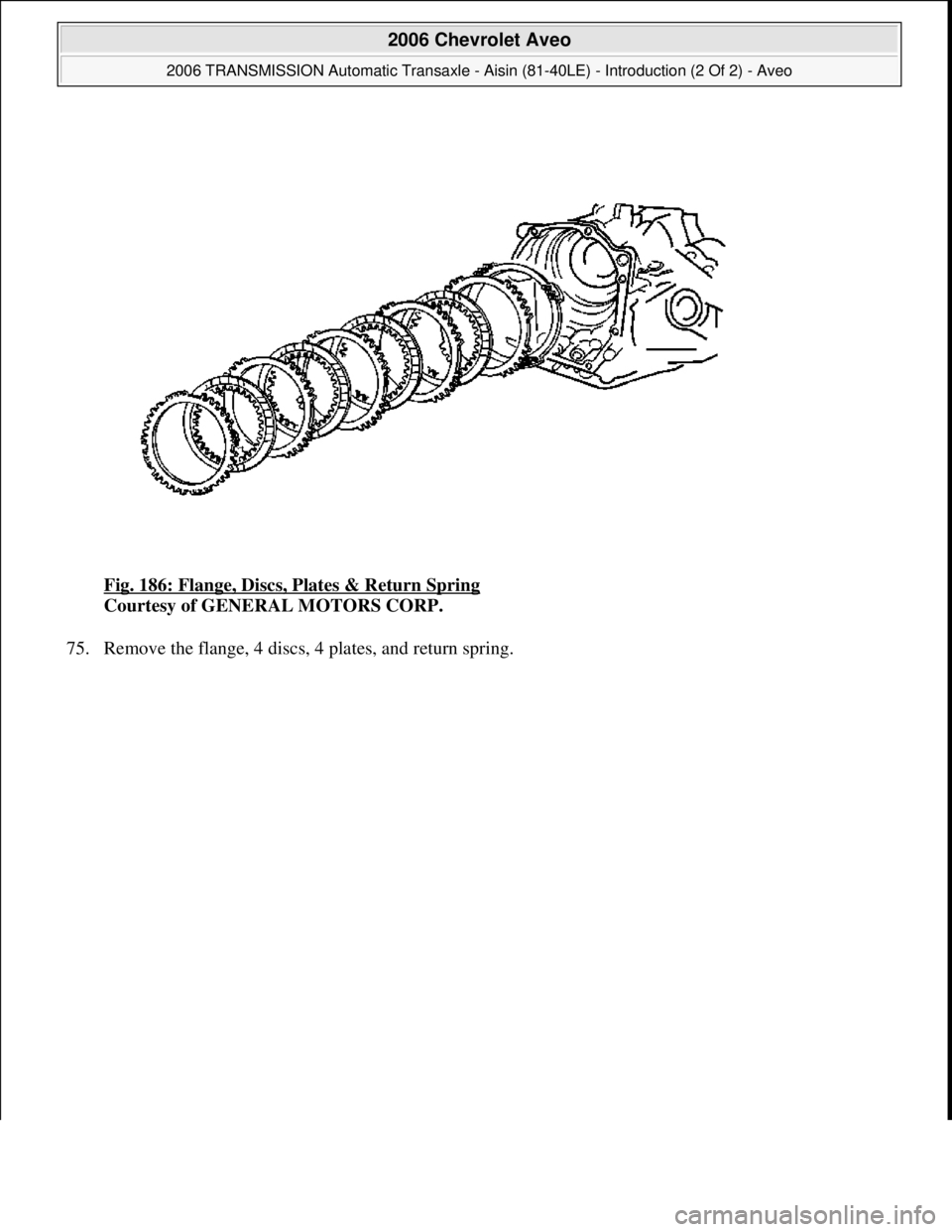

CHEVROLET AVEO 2002 Service Repair Manual Fig. 186: Flange, Discs, Plates & Return Spring Courtesy of GENERAL MOTORS CORP. 75. Remove the flan ge, 4 discs, 4 plates, and return spring. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Tra

Page 2748 of 5127

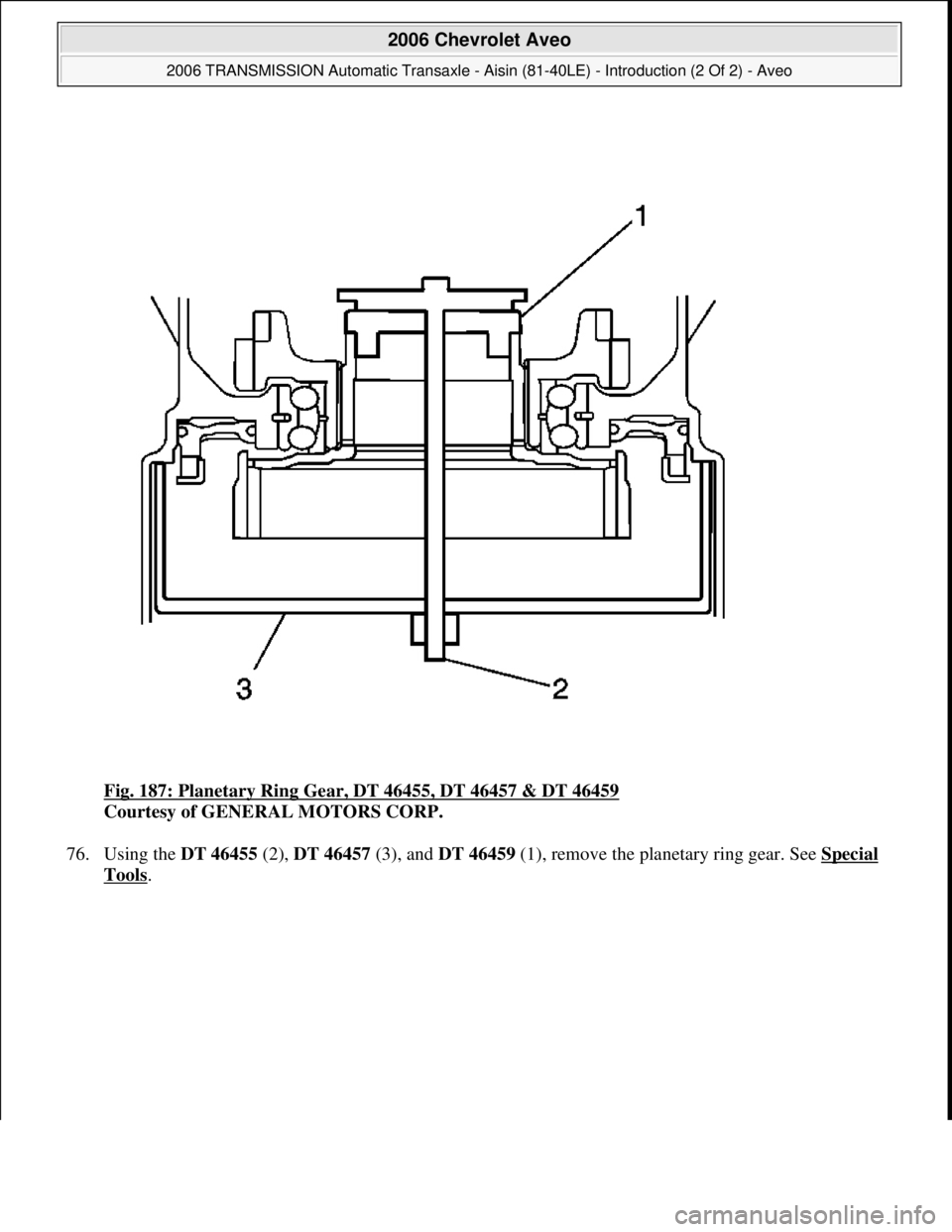

CHEVROLET AVEO 2002 Service Repair Manual Fig. 187: Planetary Ring Gear, DT 46455, DT 46457 & DT 46459 Courtesy of GENERAL MOTORS CORP. 76. Using the DT 46455 (2), DT 46457 (3), and DT 46459 (1), remove the planetary ring gear. See Special

Page 2749 of 5127

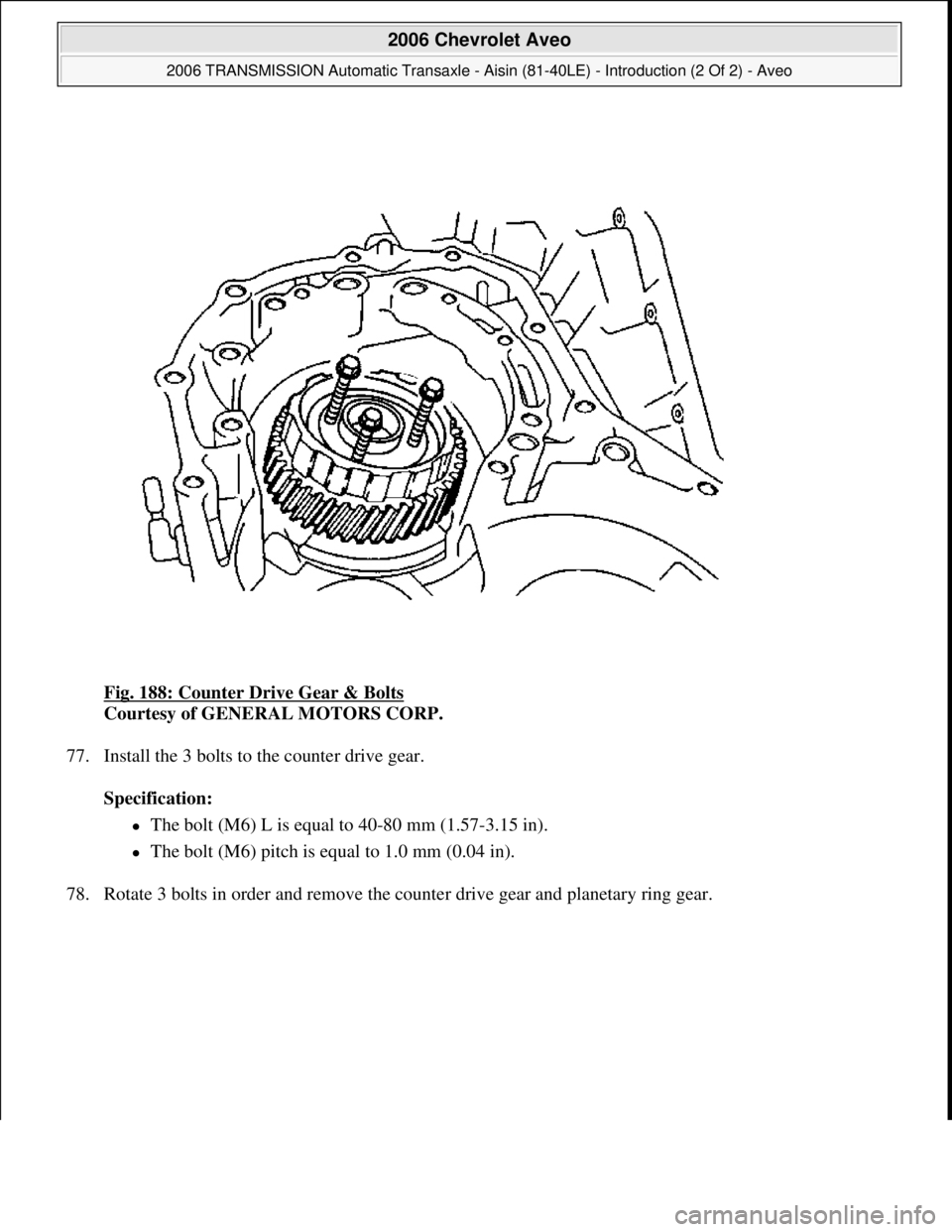

CHEVROLET AVEO 2002 Service Repair Manual Fig. 188: Counter Drive Gear & Bolts Courtesy of GENERAL MOTORS CORP. 77. Install the 3 bolts to the counter drive gear. Specification: The bolt (M6) L is equal to 40-80 mm (1.57-3.15 in).

Page 2750 of 5127

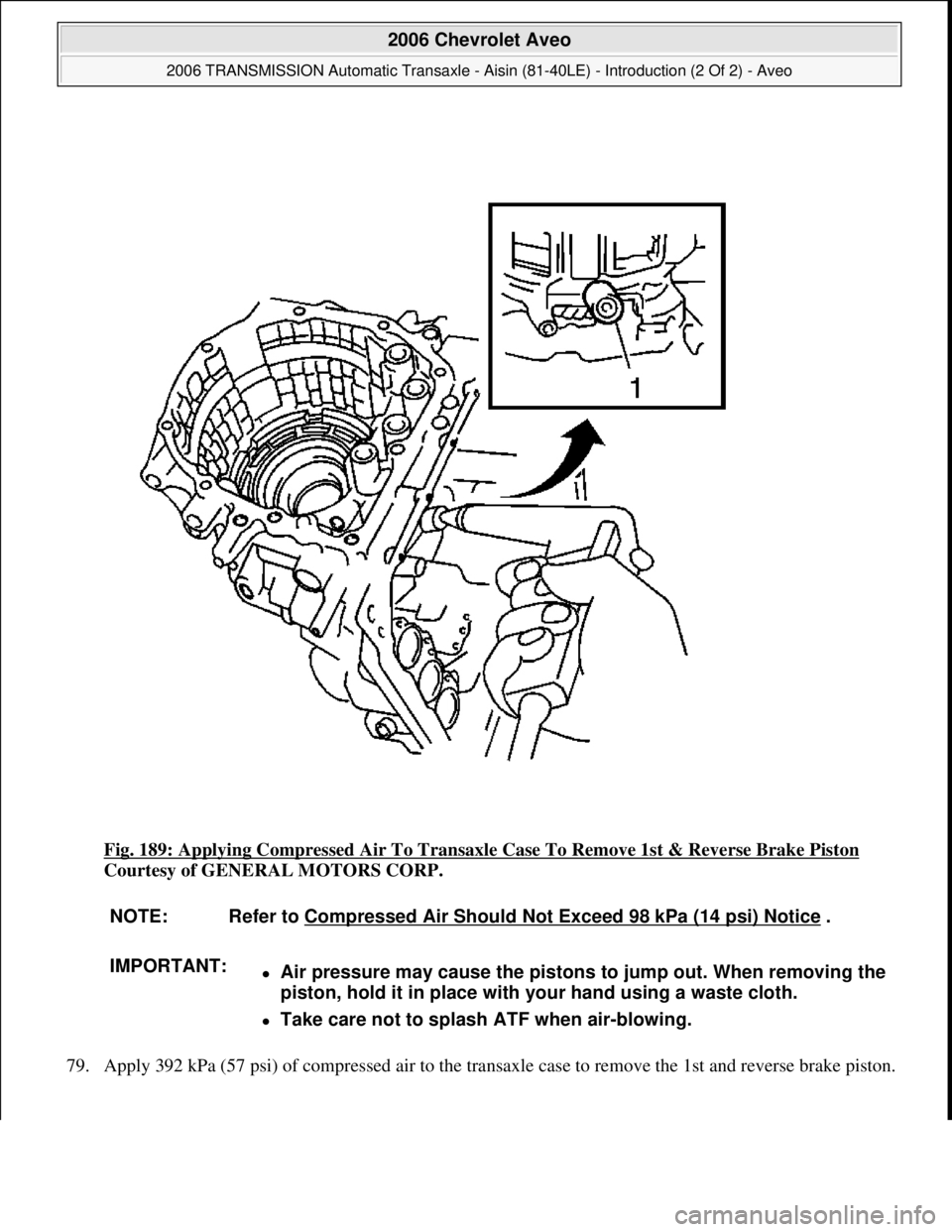

CHEVROLET AVEO 2002 Service Repair Manual Fig. 189: Applying Compressed Air To Transaxle Case To Remove 1st & Reverse Brake Piston Courtesy of GENERAL MOTORS CORP. 79. Appl y 392 kPa (57 psi) of compressed air to the transaxle case to remov

Page 2751 of 5127

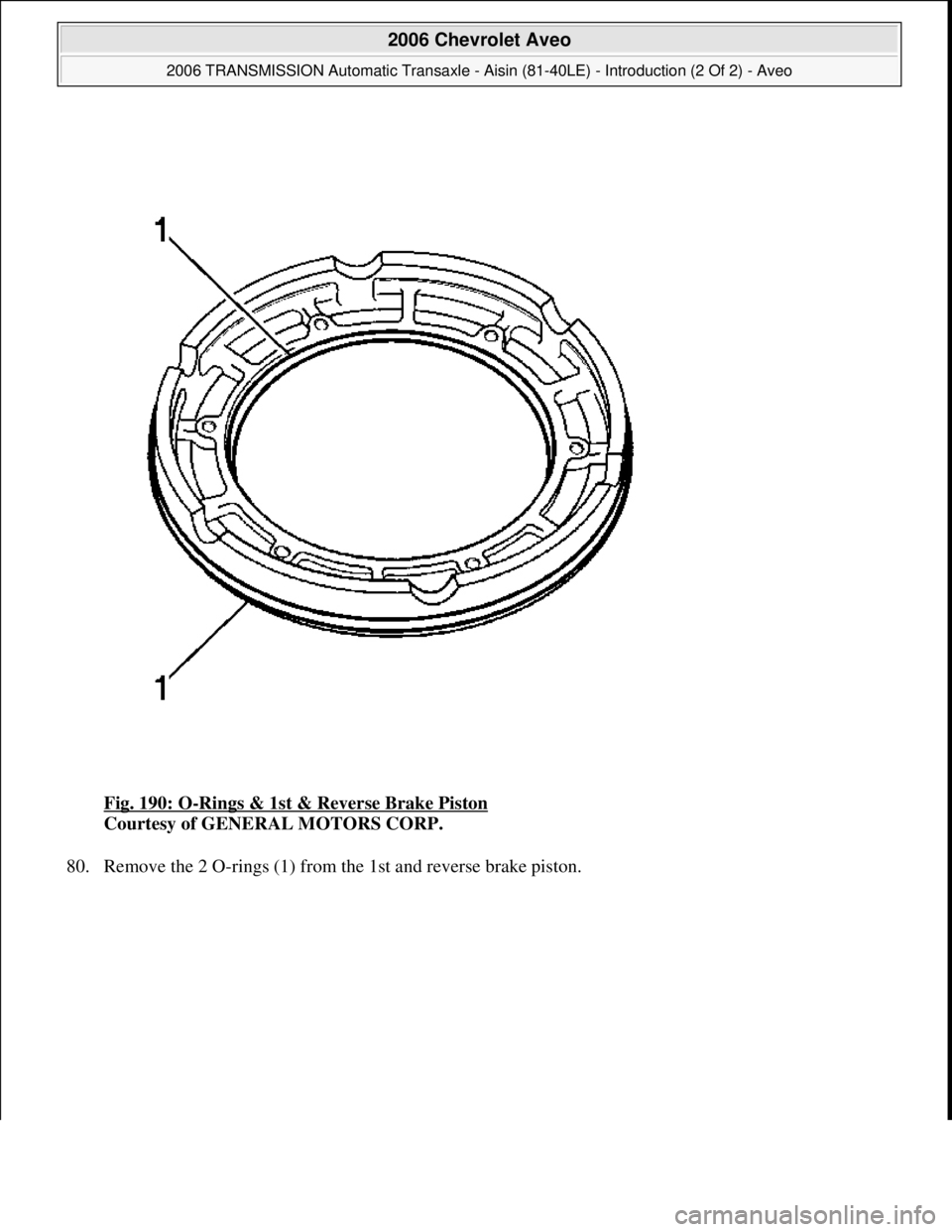

CHEVROLET AVEO 2002 Service Repair Manual Fig. 190: O-Rings & 1st & Reverse Brake Piston Courtesy of GENERAL MOTORS CORP. 80. Remove the 2 O-rin gs (1) from the 1st and reverse brake piston. 2006 Chevrolet Aveo 2006 TRANSMISSION Automat

Page 2752 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 191: No. 1 Transaxle Case Plate & Bolt Courtesy of GENERAL MOTORS CORP. 81. Remove the bolt and No. 1 transaxle case plate from the transaxle case. 2006 Chevrolet Aveo 2006 TRANSMISSION Aut
