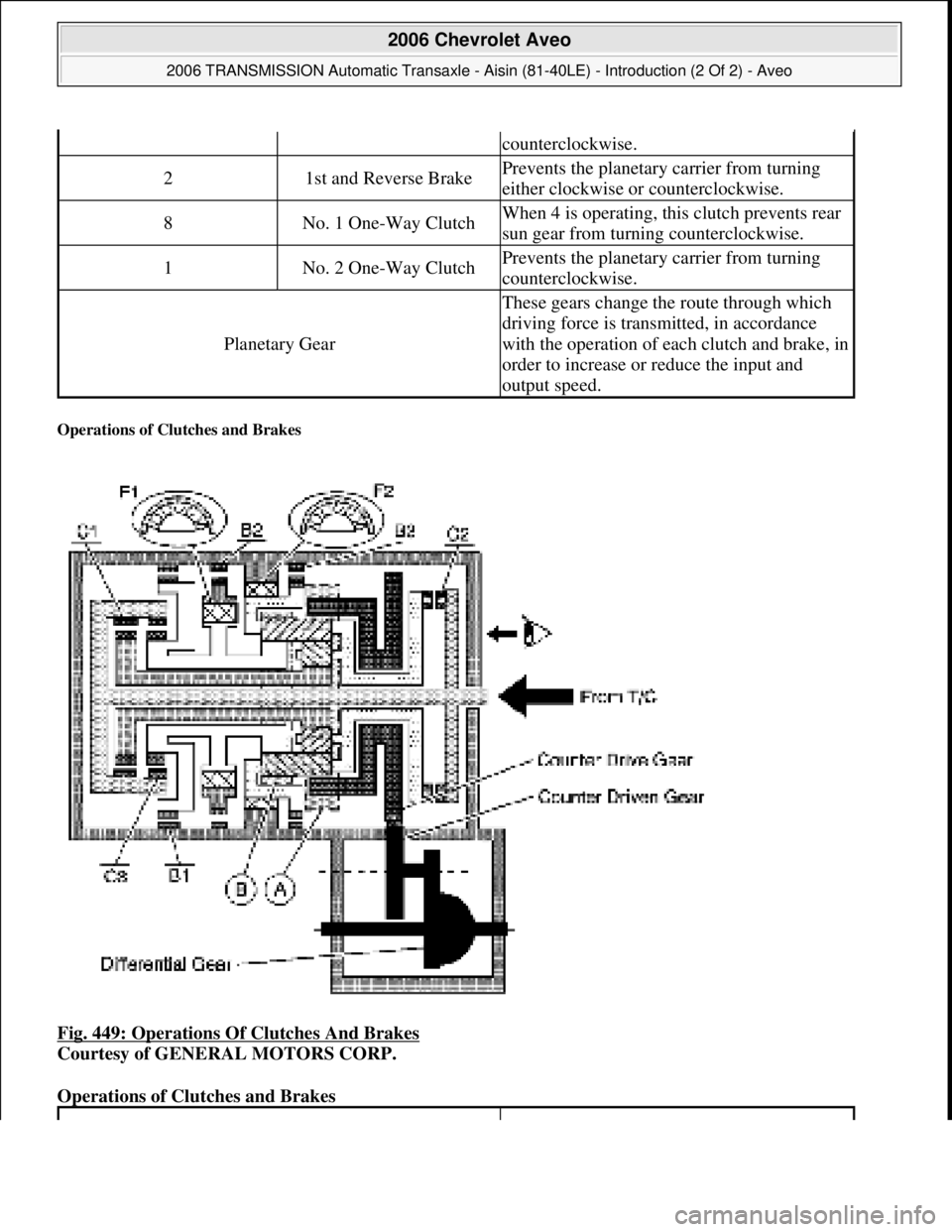

CHEVROLET AVEO 2002 Service Repair Manual Operations of Clutches and Brakes Fig. 449: Operations Of Clutches And Brakes Courtesy of GENERAL MOTORS CORP. Operations of Clutches and Brakes counterclockwise. 21st and Reverse BrakePrevents th

Page 3018 of 5127

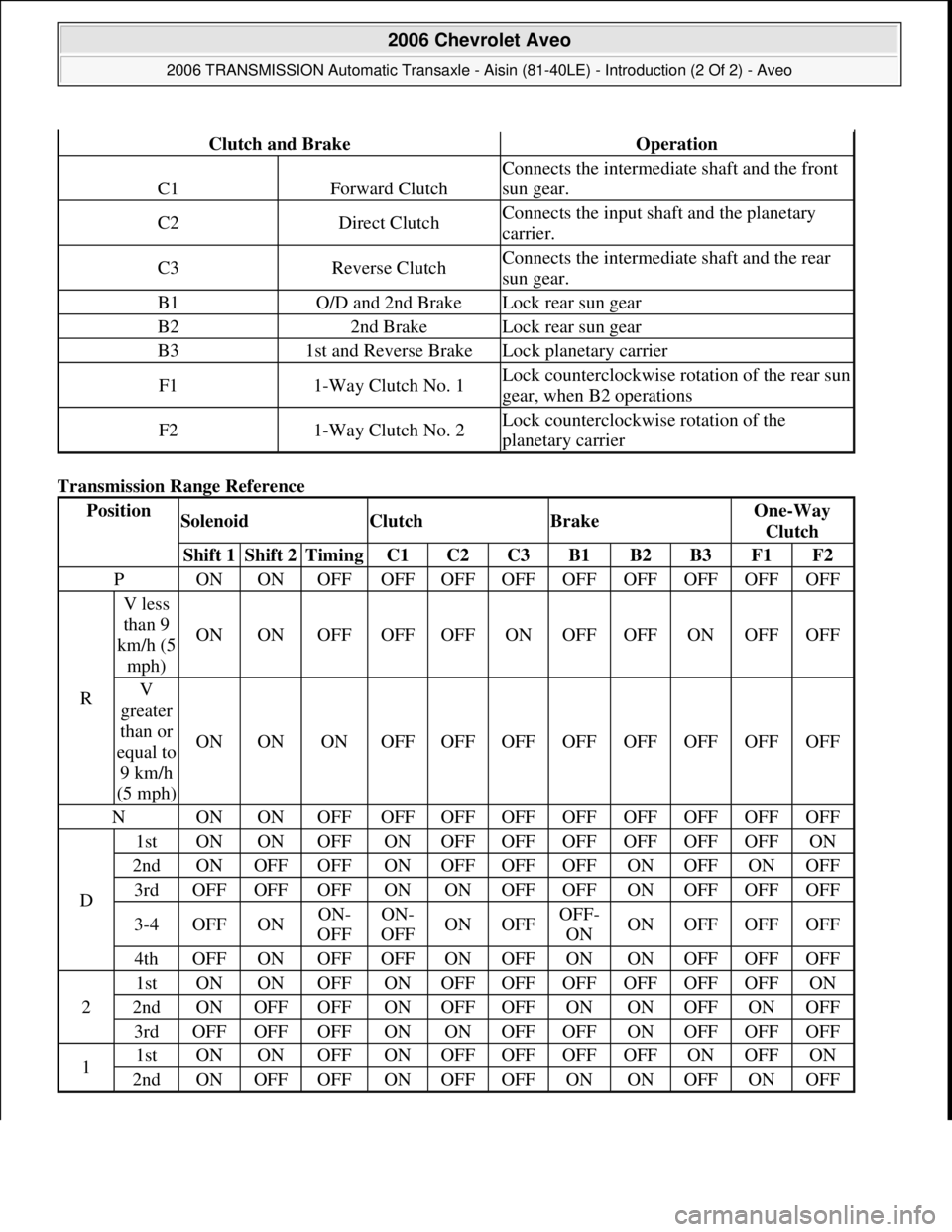

CHEVROLET AVEO 2002 Service Repair Manual Transmission Range Reference Clutch and BrakeOperation C1Forward Clutch Connects the intermediate shaft and the front sun gear. C2Direct ClutchConnects the input shaft and the planetary carrier. C3

Page 3019 of 5127

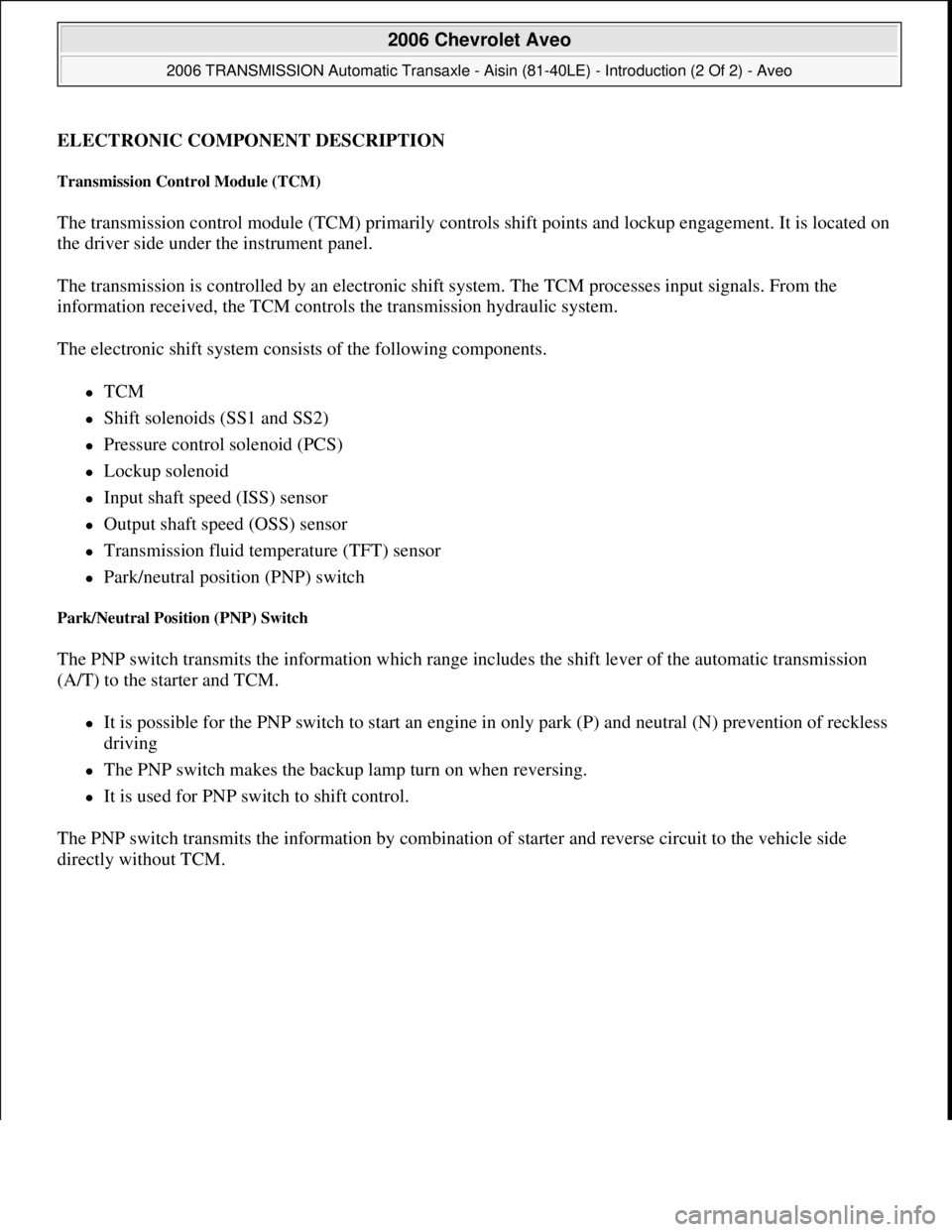

CHEVROLET AVEO 2002 Service Repair Manual ELECTRONIC COMPONENT DESCRIPTION Transmission Control Module (TCM) The transmission control module (TCM) primarily controls shift points and lockup engagement. It is located on the driver side under

Page 3020 of 5127

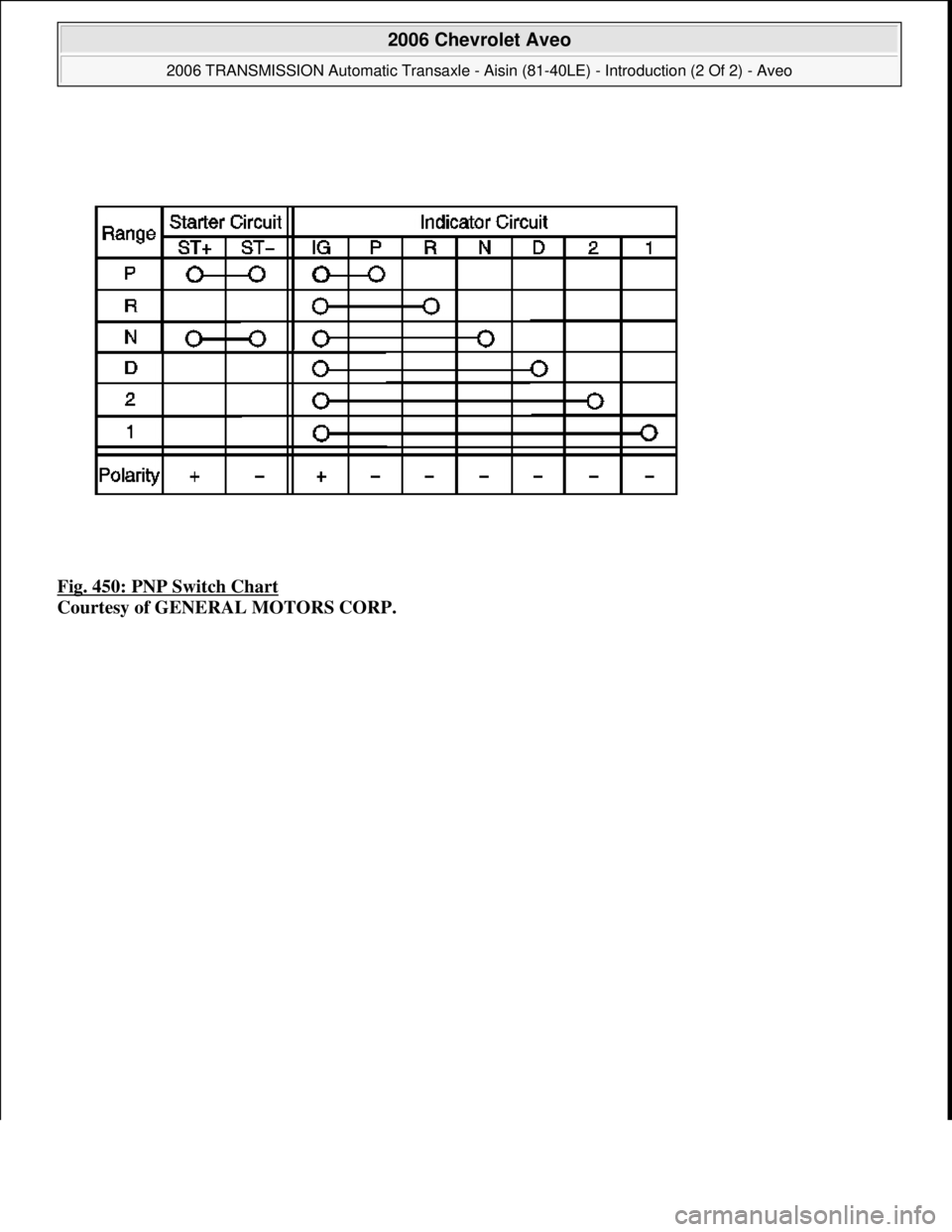

CHEVROLET AVEO 2002 Service Repair Manual Fig. 450: PNP Switch Chart Courtesy of GENERAL MOTORS CORP. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo Microsoft Thursday, July

Page 3021 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 451: PNP Switch, Nut, Washer & Control Lever Courtesy of GENERAL MOTORS CORP. Shift Solenoid No 1, 2 (SS1, SS2) Two shift solenoids are installed directly in the valve body. The solenoids oper

Page 3022 of 5127

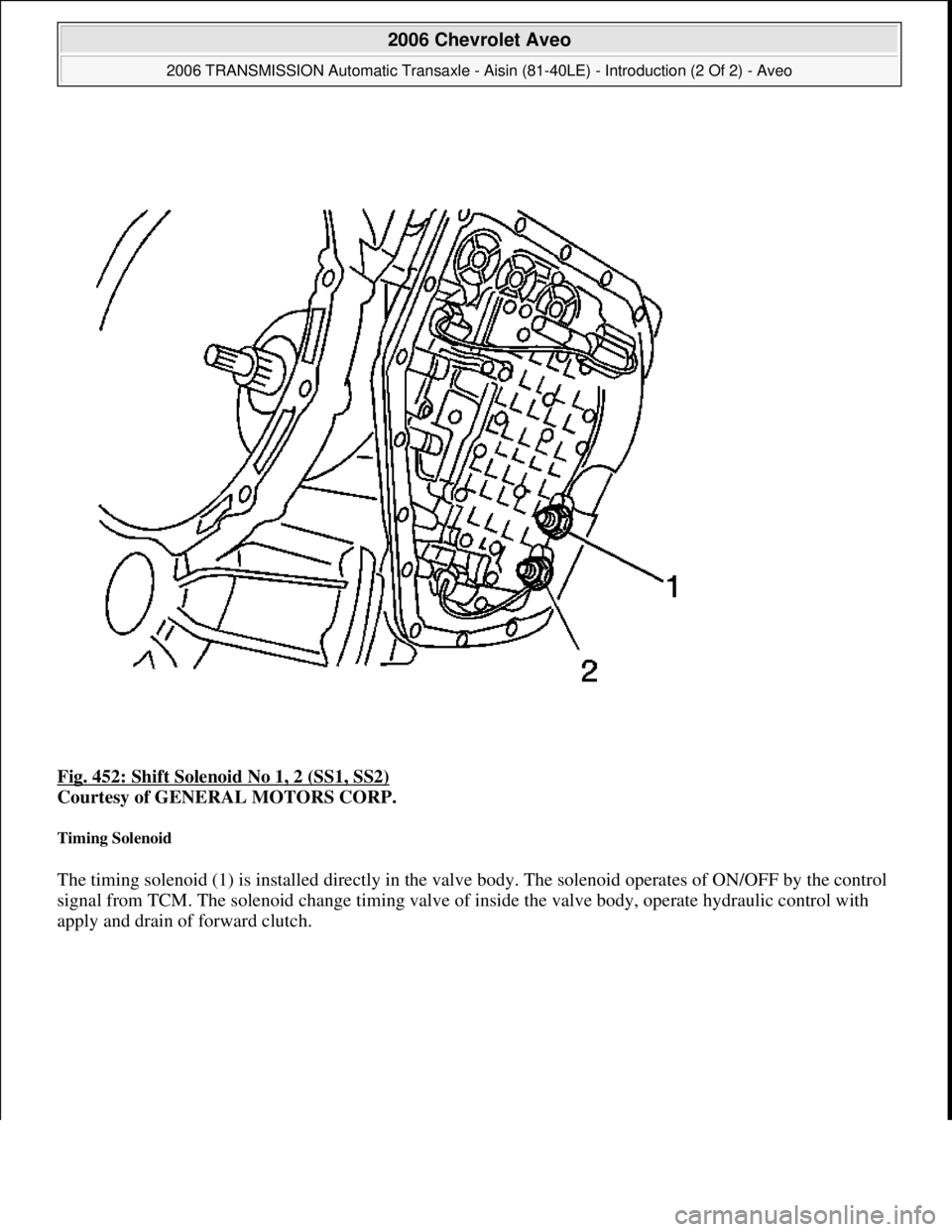

CHEVROLET AVEO 2002 Service Repair Manual Fig. 452: Shift Solenoid No 1, 2 (SS1, SS2) Courtesy of GENERAL MOTORS CORP. Timing Solenoid The timing solenoid (1) is installed directly in the valve body. The solenoid operates of ON/OFF by the

Page 3023 of 5127

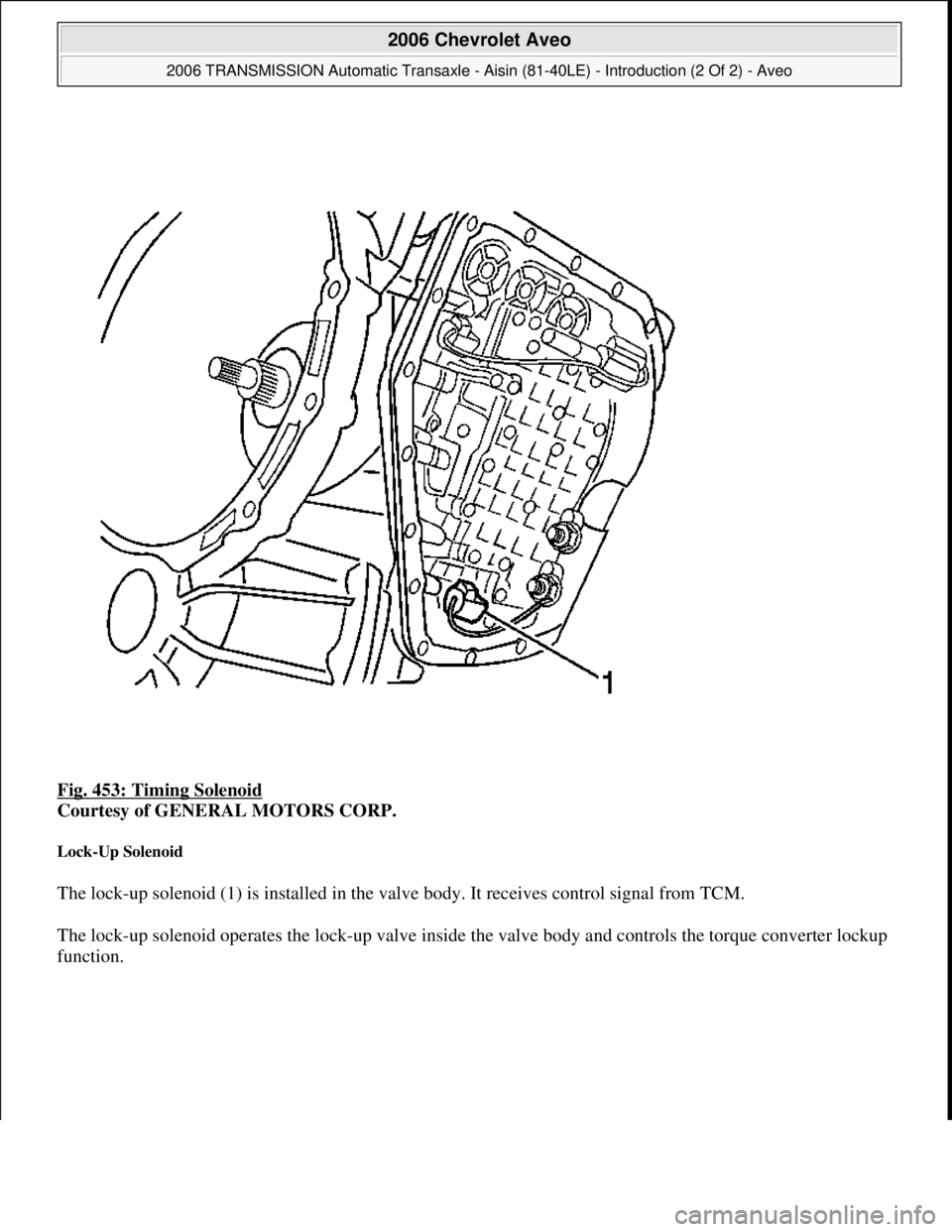

CHEVROLET AVEO 2002 Service Repair Manual Fig. 453: Timing Solenoid Courtesy of GENERAL MOTORS CORP. Lock-Up Solenoid The lock-up solenoid (1) is installed in the valve body. It receives control signal from TCM. The lock-up solenoid opera

Page 3024 of 5127

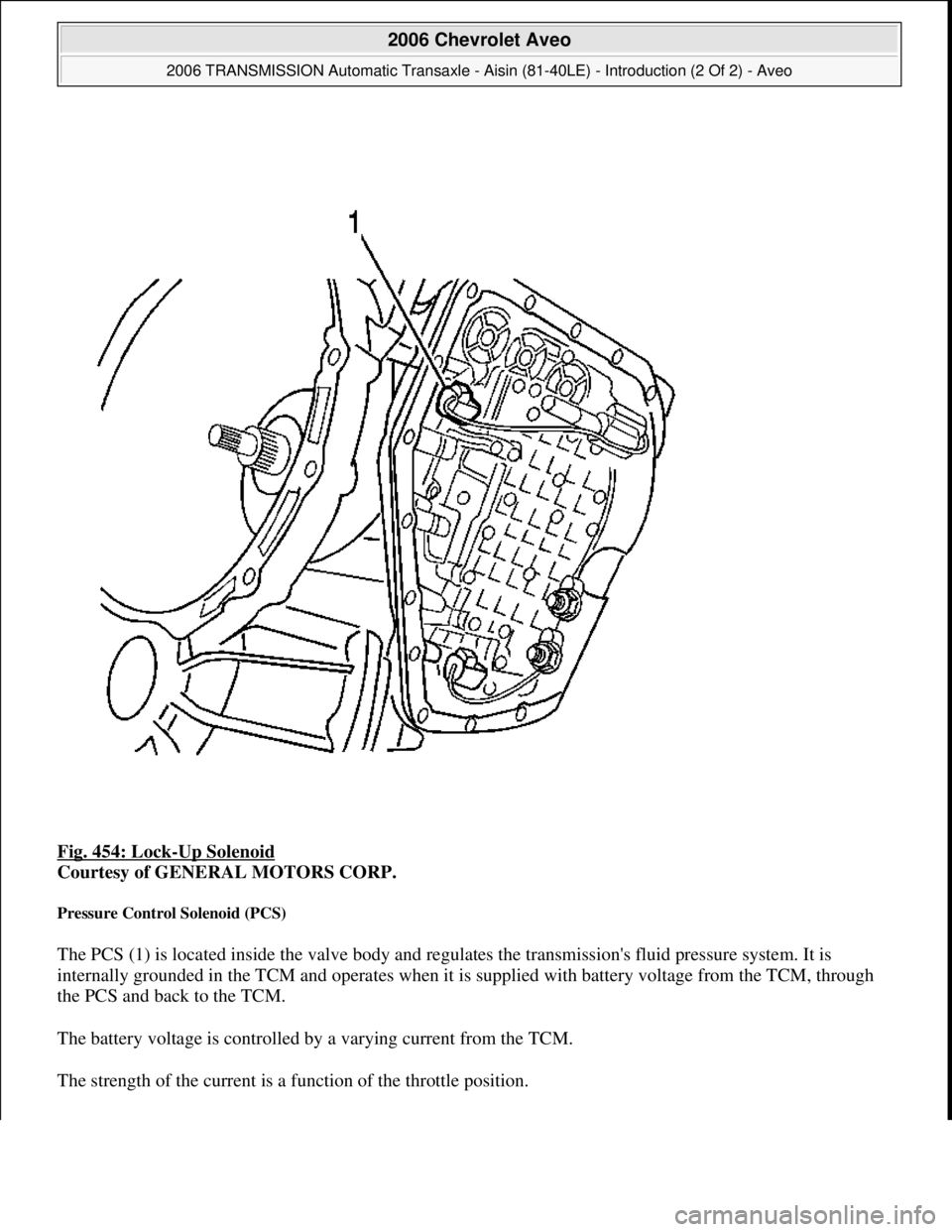

CHEVROLET AVEO 2002 Service Repair Manual Fig. 454: Lock-Up Solenoid Courtesy of GENERAL MOTORS CORP. Pressure Control Solenoid (PCS) The PCS (1) is located inside the valve body and regulates the transmissions fluid pressure system. It i
