Page 2977 of 5127

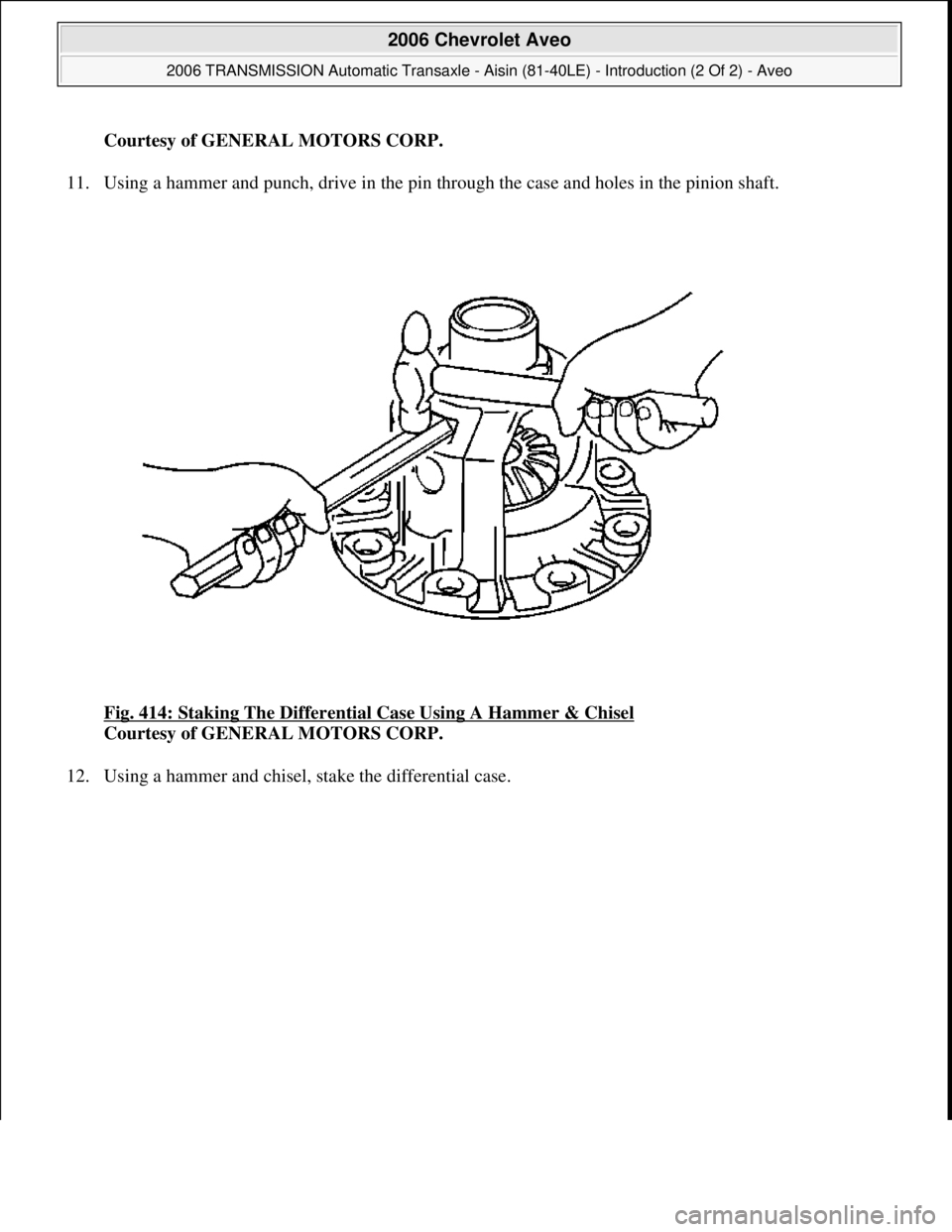

CHEVROLET AVEO 2002 Service Repair Manual Courtesy of GENERAL MOTORS CORP. 11. Using a hammer and punch, drive in the pin through the case and holes in the pinion shaft. Fig. 414: Staking The Differential Case Using A Hammer & Chisel Court

Page 2978 of 5127

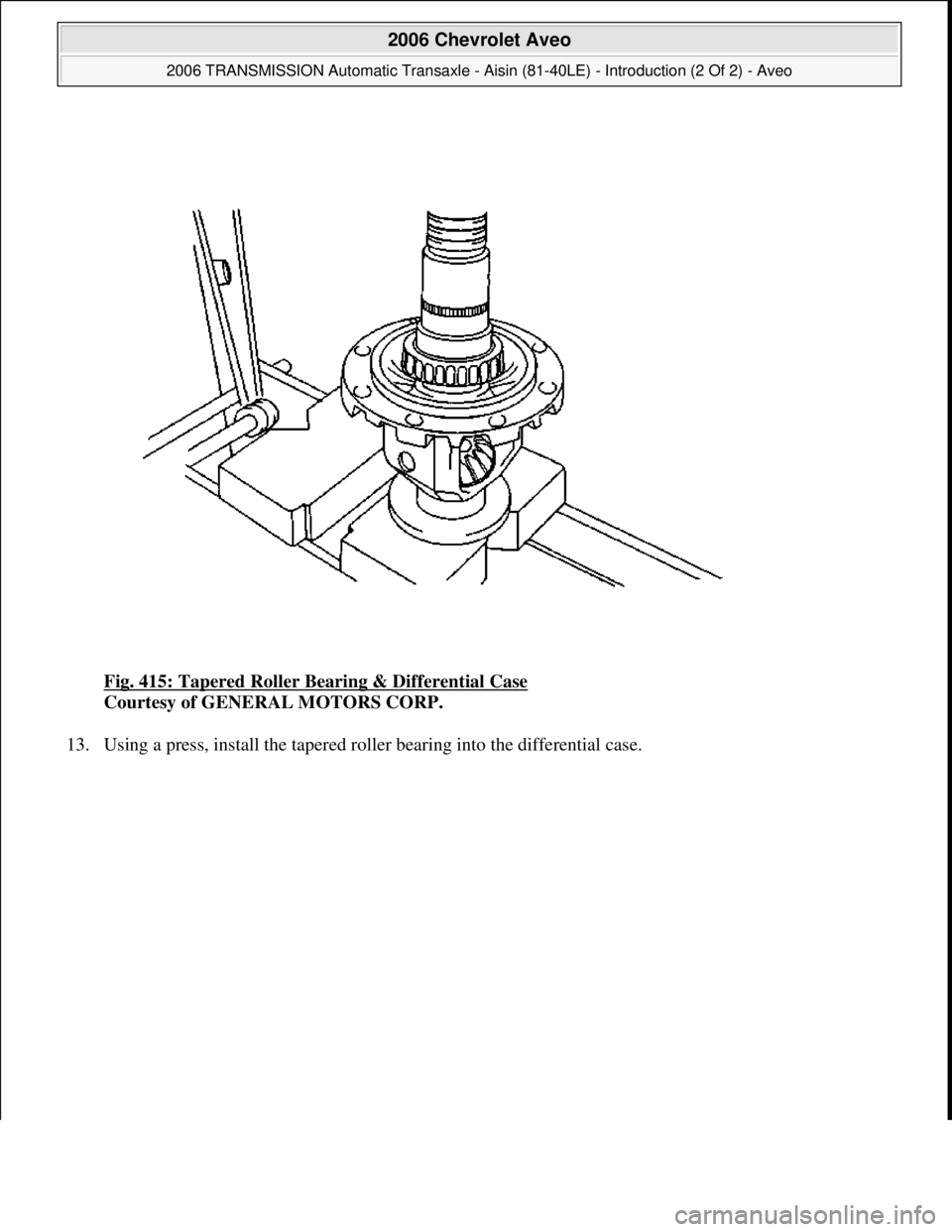

CHEVROLET AVEO 2002 Service Repair Manual Fig. 415: Tapered Roller Bearing & Differential Case Courtesy of GENERAL MOTORS CORP. 13. Using a press, install the tapered roller bearing into the differential case. 2006 Chevrolet Aveo 2006 T

Page 2979 of 5127

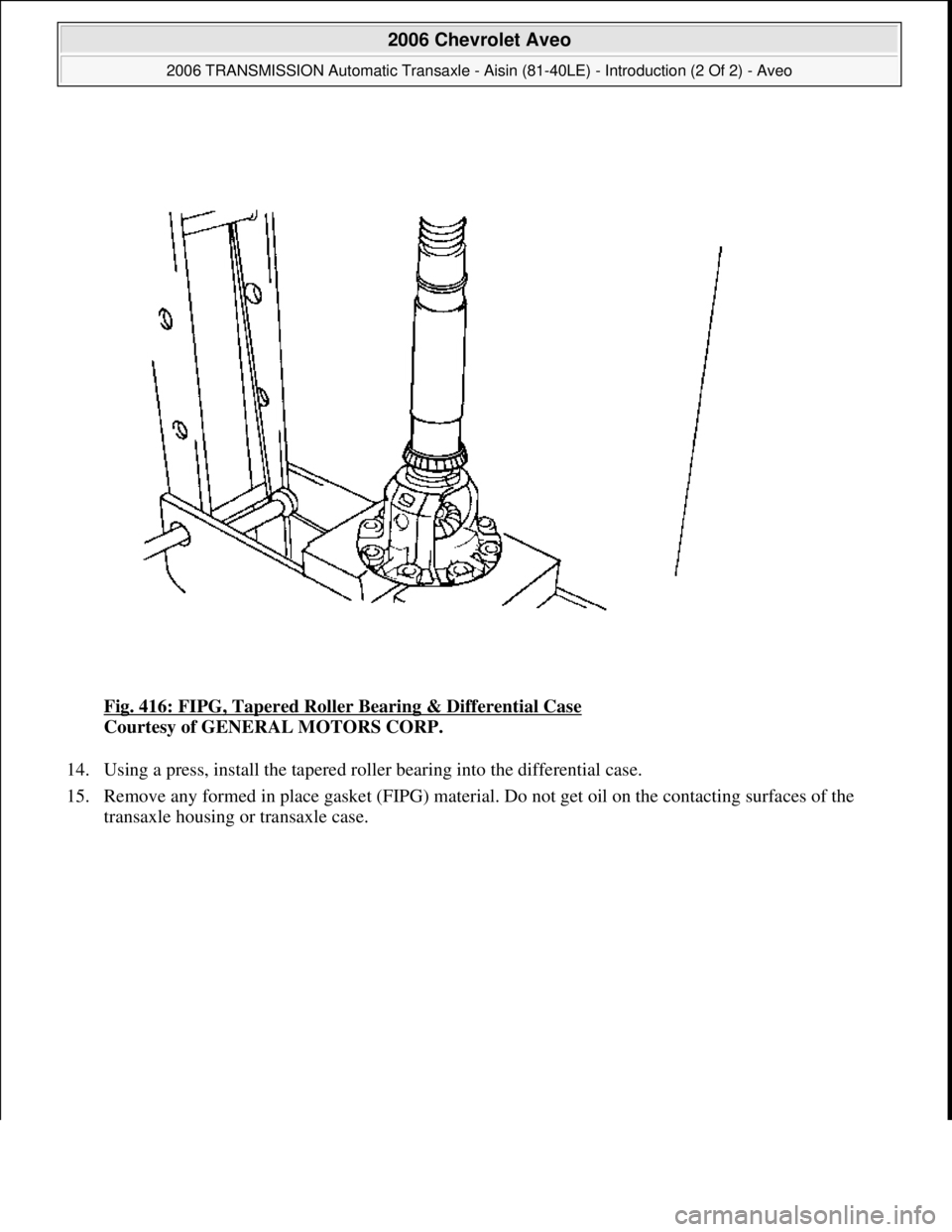

CHEVROLET AVEO 2002 Service Repair Manual Fig. 416: FIPG, Tapered Roller Bearing & Differential Case Courtesy of GENERAL MOTORS CORP. 14. Using a press, install the tapered roller bearing into the differential case. 15. Remove any formed

Page 2980 of 5127

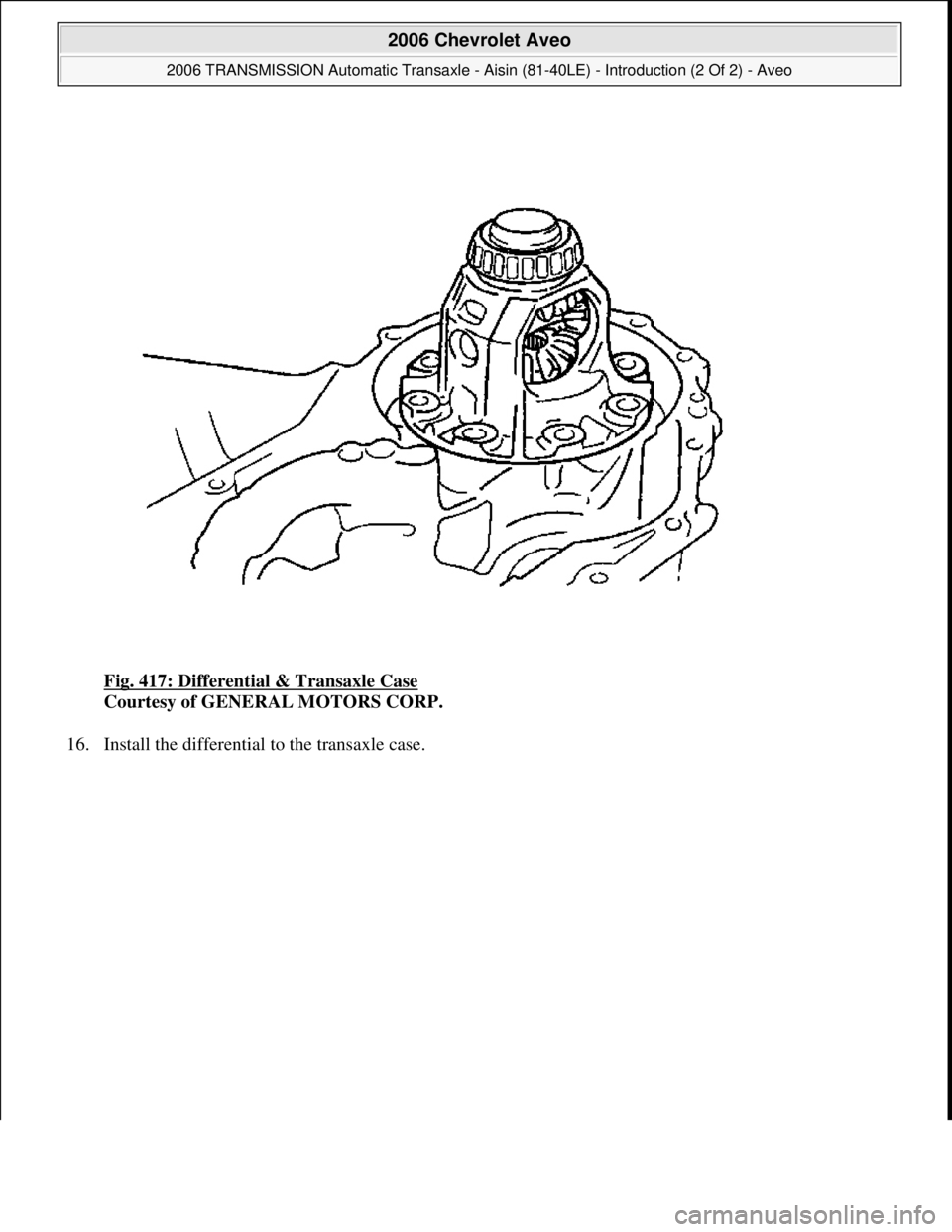

CHEVROLET AVEO 2002 Service Repair Manual Fig. 417: Differential & Transaxle Case Courtesy of GENERAL MOTORS CORP. 16. Install the differential to the transaxle case. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81

Page 2981 of 5127

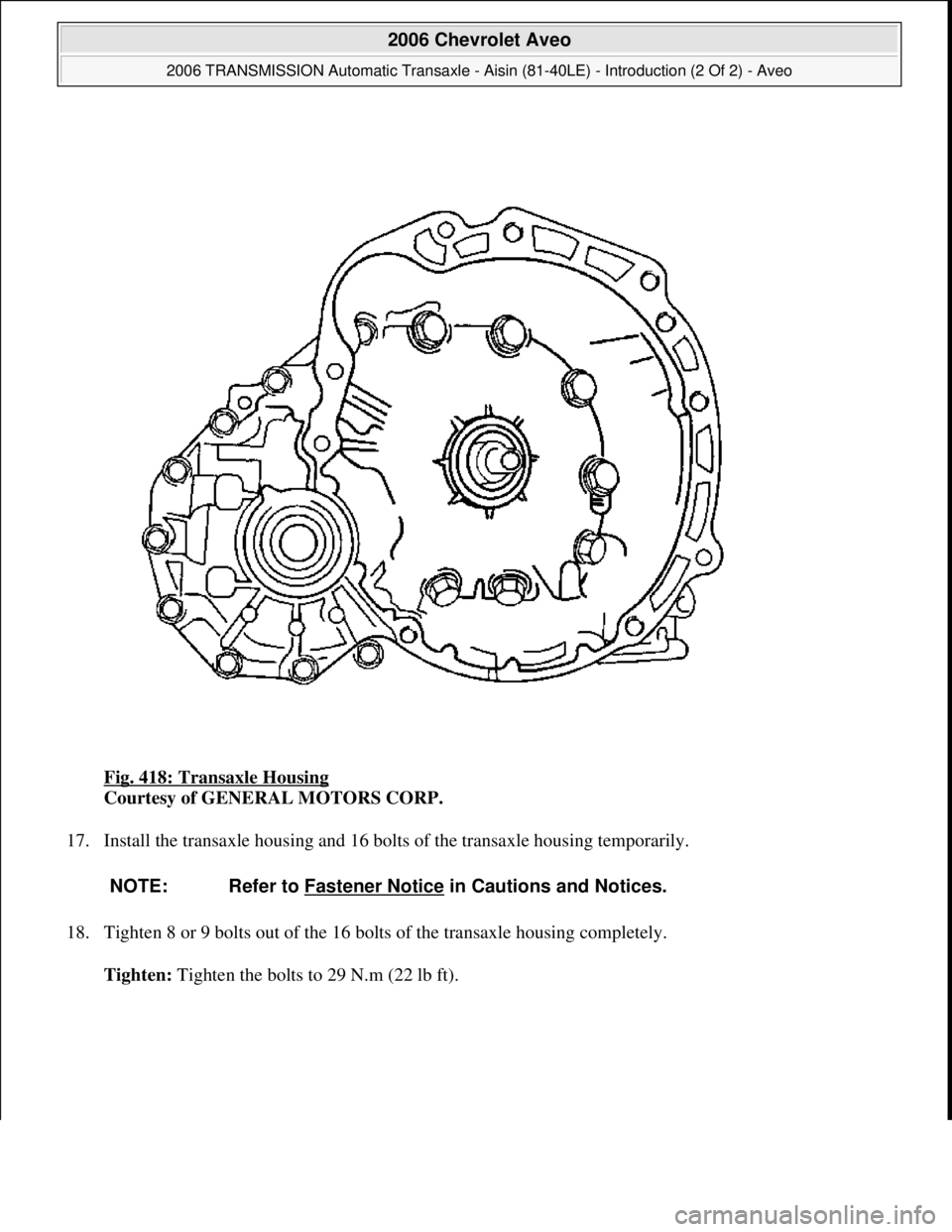

CHEVROLET AVEO 2002 Service Repair Manual Fig. 418: Transaxle Housing Courtesy of GENERAL MOTORS CORP. 17. Install the transaxle housing and 16 bolts of the transaxle housing temporarily. 18. Tighten 8 or 9 bolts out of the 16 bolts of the

Page 2982 of 5127

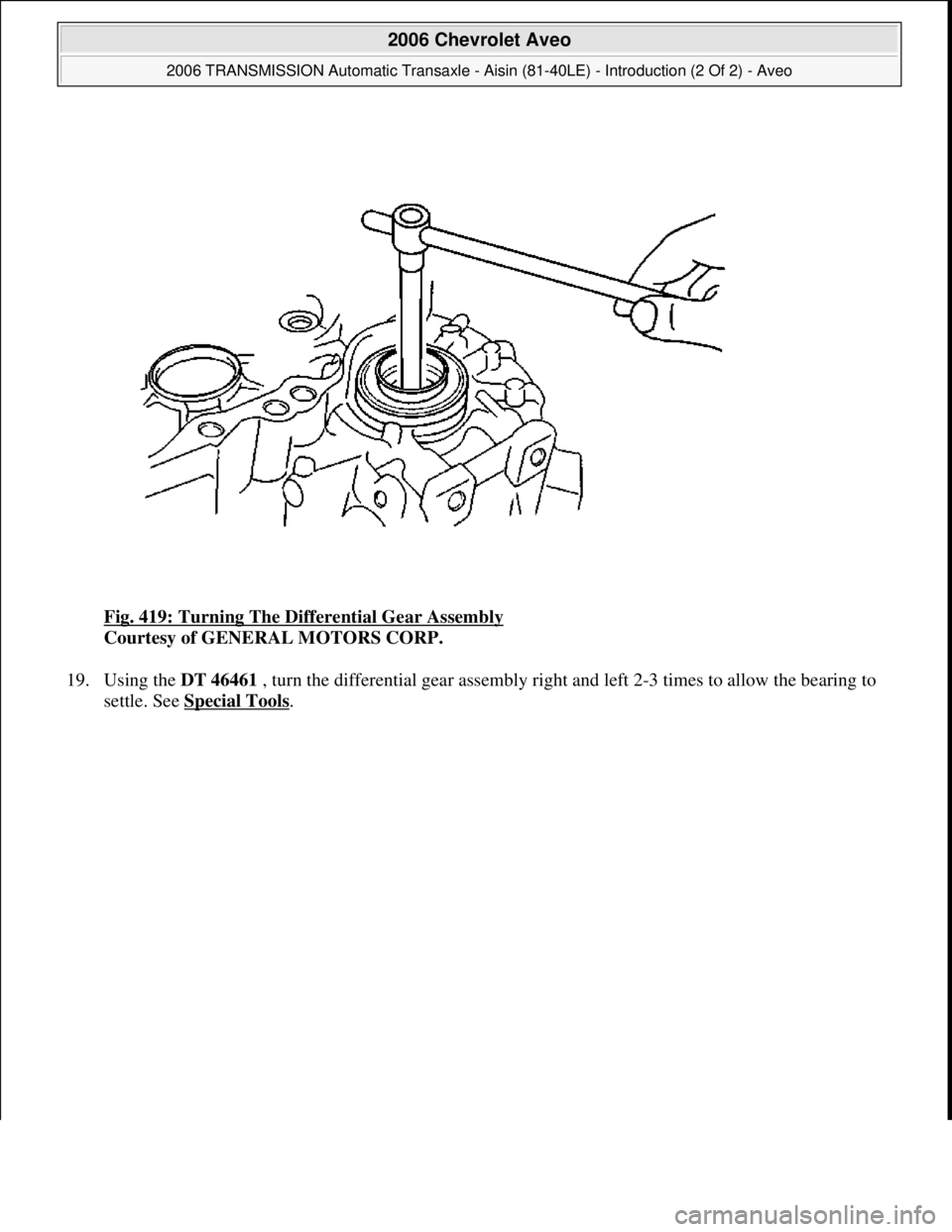

CHEVROLET AVEO 2002 Service Repair Manual Fig. 419: Turning The Differential Gear Assembly Courtesy of GENERAL MOTORS CORP. 19. Using the DT 46461 , turn the differential gear assembly right and left 2-3 times to allow the bearing to settl

Page 2983 of 5127

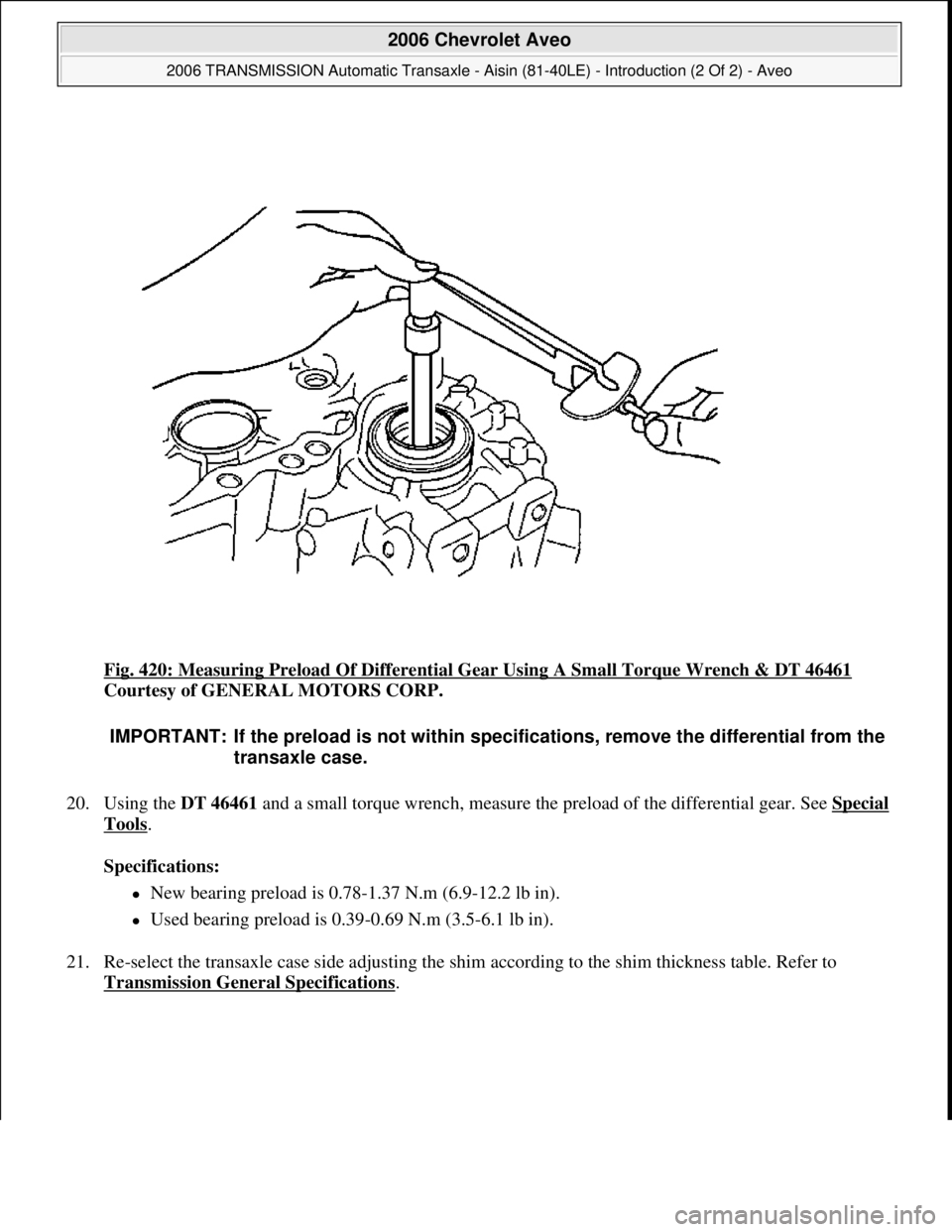

CHEVROLET AVEO 2002 Service Repair Manual Fig. 420: Measuring Preload Of Differential Gear Using A Small Torque Wrench & DT 46461 Courtesy of GENERAL MOTORS CORP. 20. Using the DT 46461 and a small torque wrench, measure the preload of the

Page 2984 of 5127

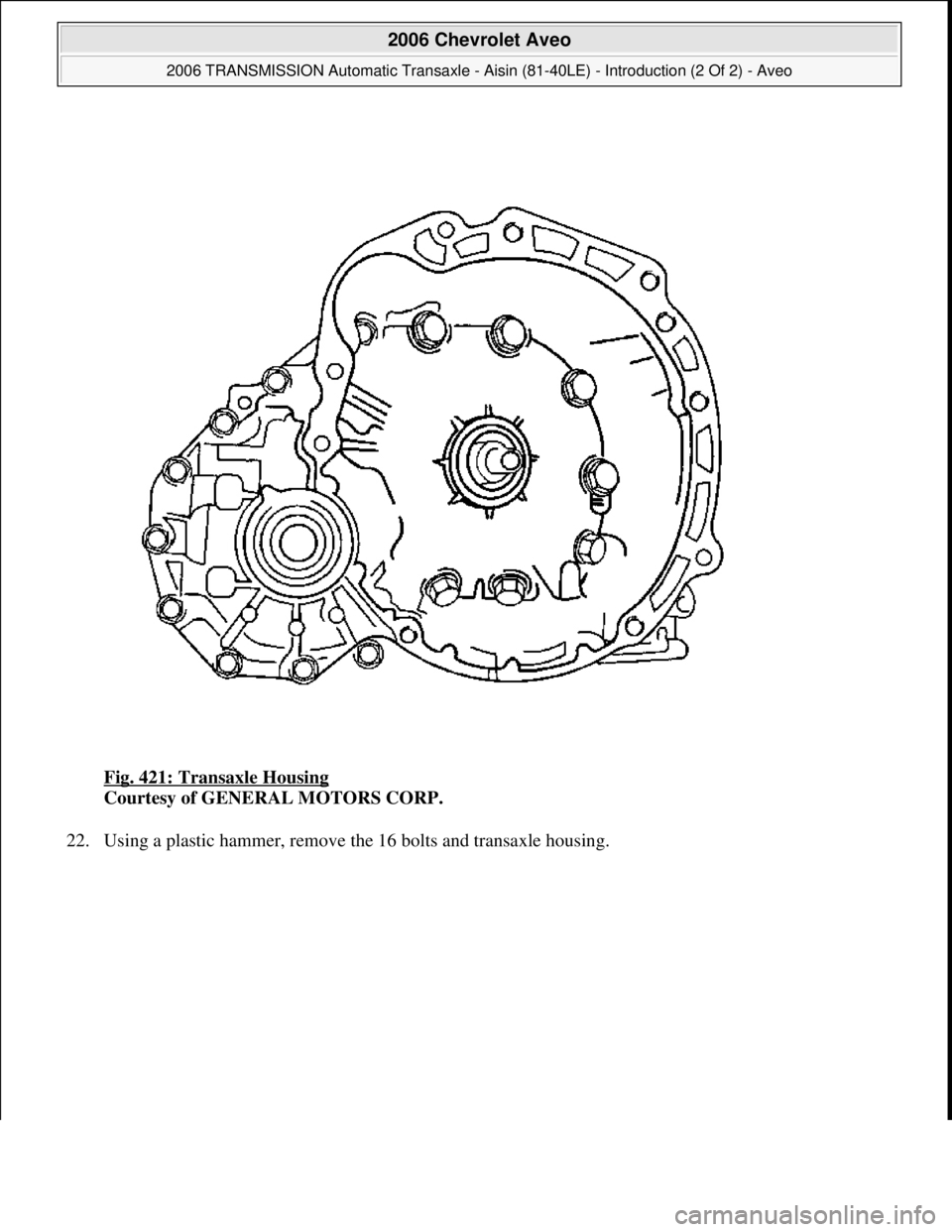

CHEVROLET AVEO 2002 Service Repair Manual Fig. 421: Transaxle Housing Courtesy of GENERAL MOTORS CORP. 22. Usin g a plastic hammer, remove the 16 bolts and transaxle housing. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - A
