Page 2705 of 5127

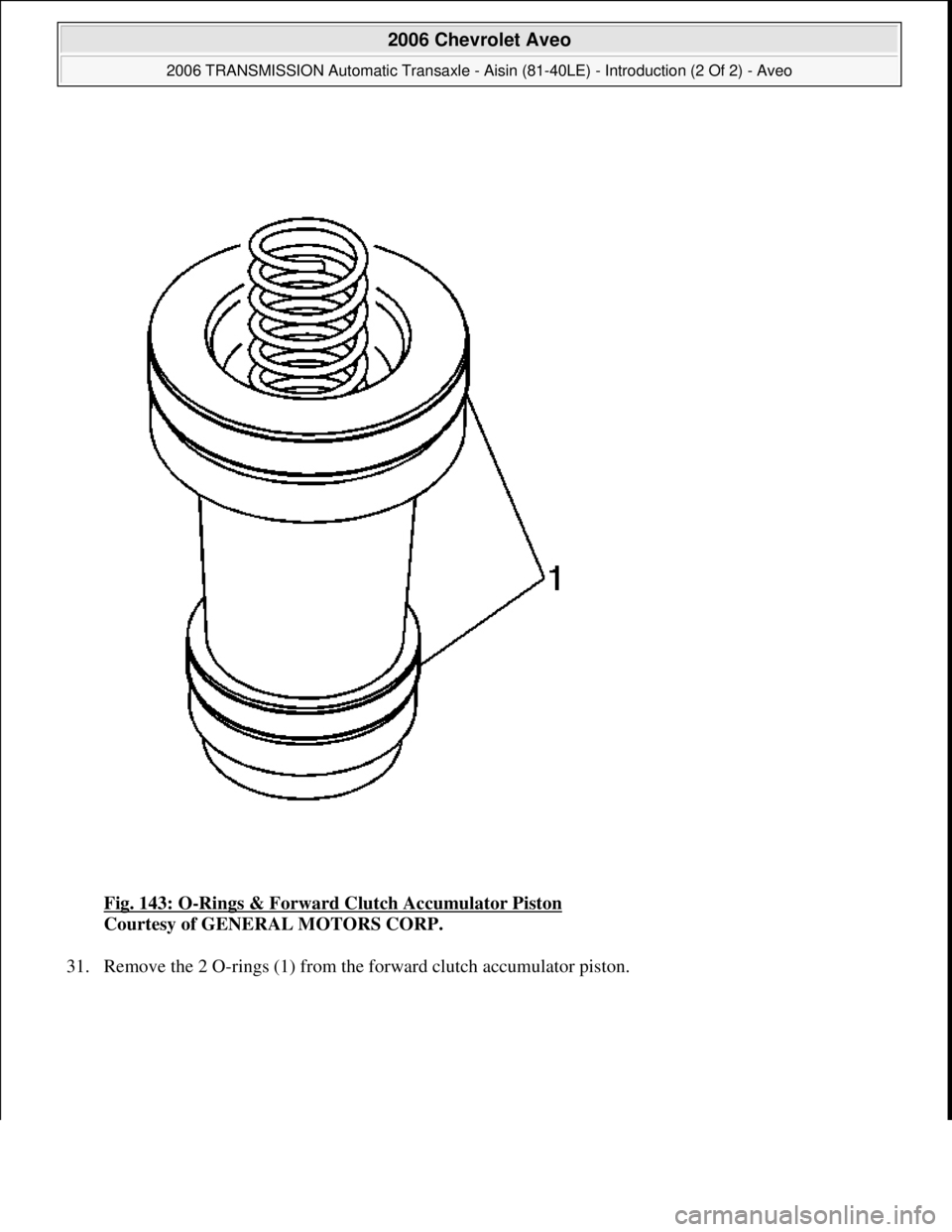

CHEVROLET AVEO 2002 Service Repair Manual Fig. 143: O-Rings & Forward Clutch Accumulator Piston Courtesy of GENERAL MOTORS CORP. 31. Remove the 2 O-rin gs (1) from the forward clutch accumulator piston. 2006 Chevrolet Aveo 2006 TRANSMIS

Page 2706 of 5127

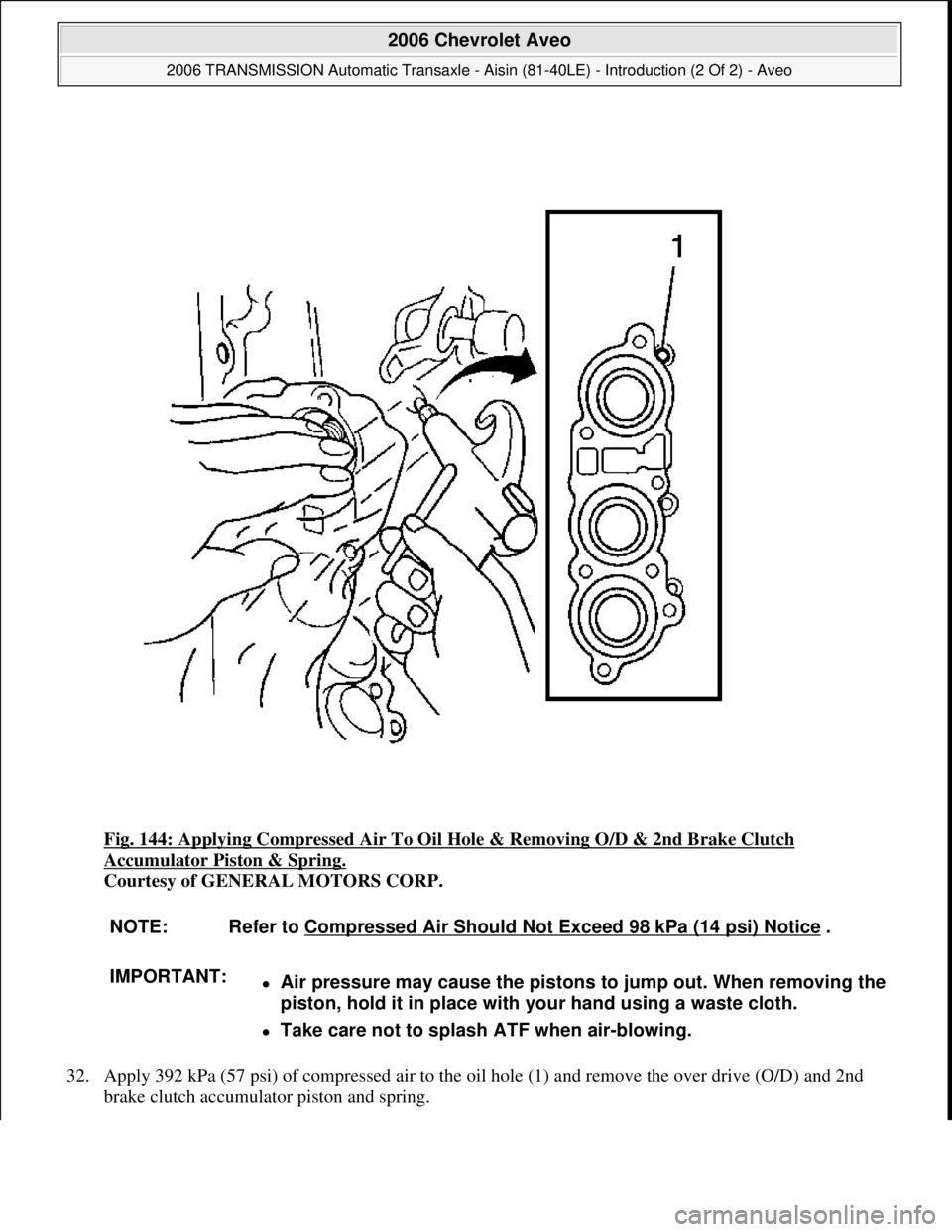

CHEVROLET AVEO 2002 Service Repair Manual Fig. 144: Applying Compressed Air To Oil Hole & Removing O/D & 2nd Brake Clutch Accumulator Piston & Spring. Courtesy of GENERAL MOTORS CORP. 32. Apply 392 kPa (57 psi) of compressed air to the oil

Page 2707 of 5127

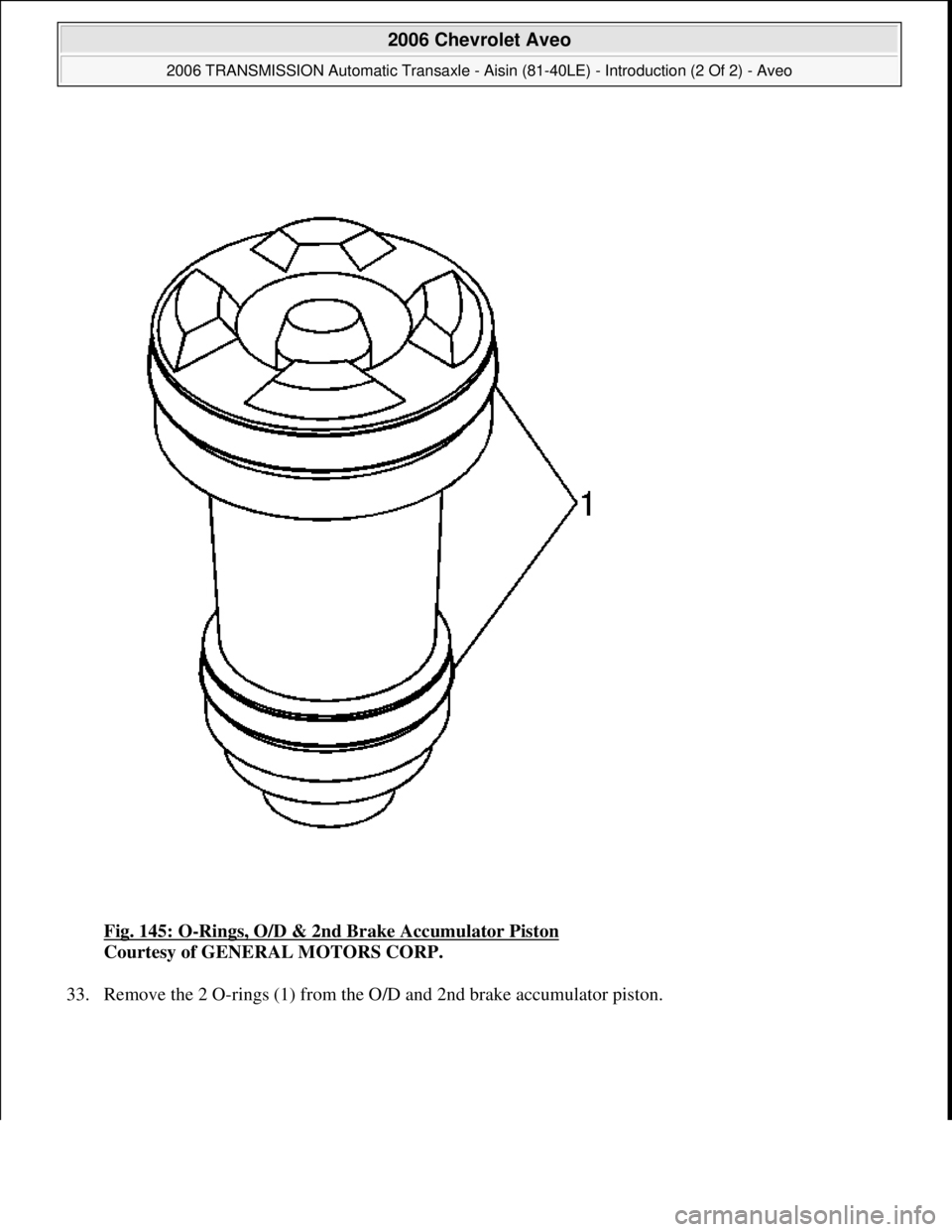

CHEVROLET AVEO 2002 Service Repair Manual Fig. 145: O-Rings, O/D & 2nd Brake Accumulator Piston Courtesy of GENERAL MOTORS CORP. 33. Remove the 2 O-rin gs (1) from the O/D and 2nd brake accumulator piston. 2006 Chevrolet Aveo 2006 TRANS

Page 2708 of 5127

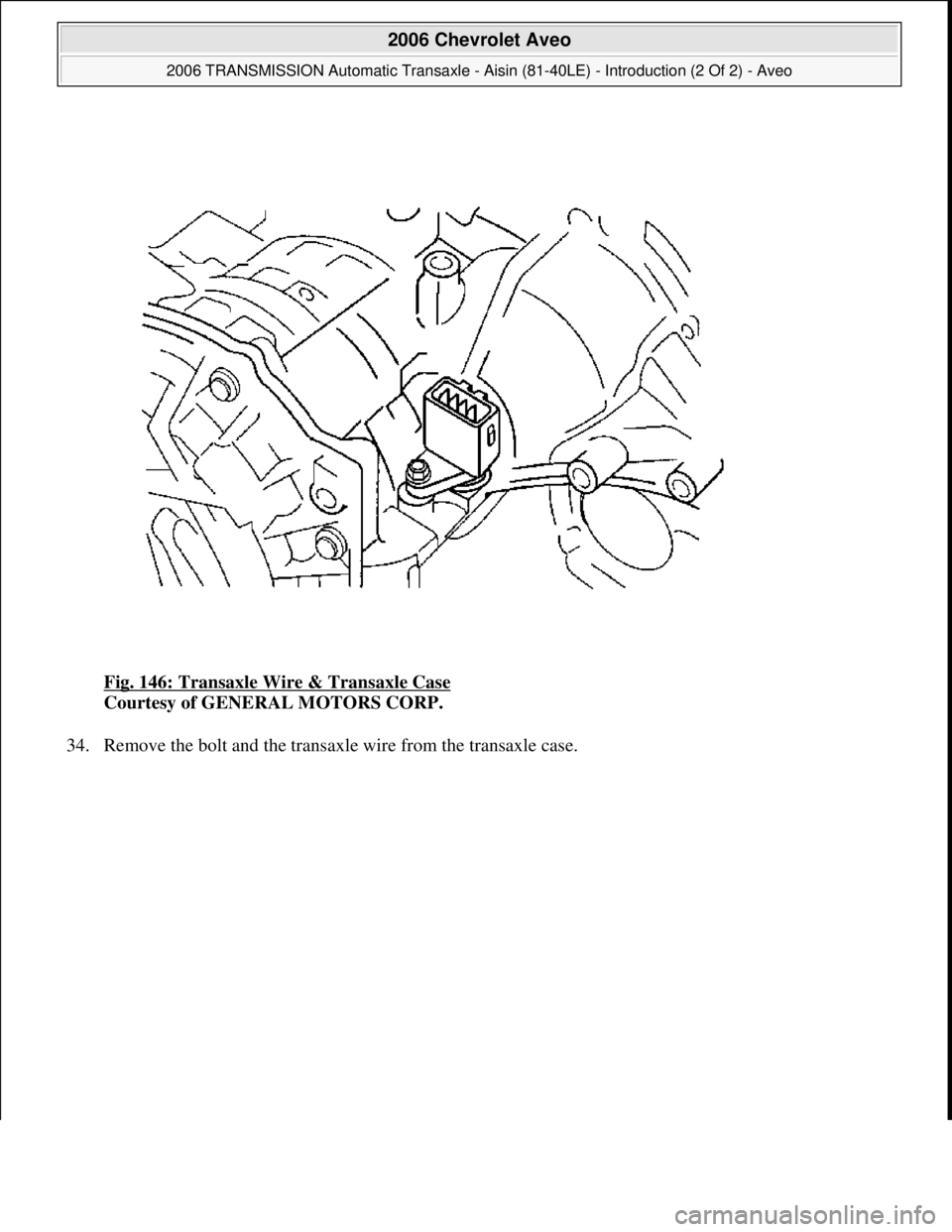

CHEVROLET AVEO 2002 Service Repair Manual Fig. 146: Transaxle Wire & Transaxle Case Courtesy of GENERAL MOTORS CORP. 34. Remove the bolt and the transaxle wire from the transaxle case. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Tra

Page 2709 of 5127

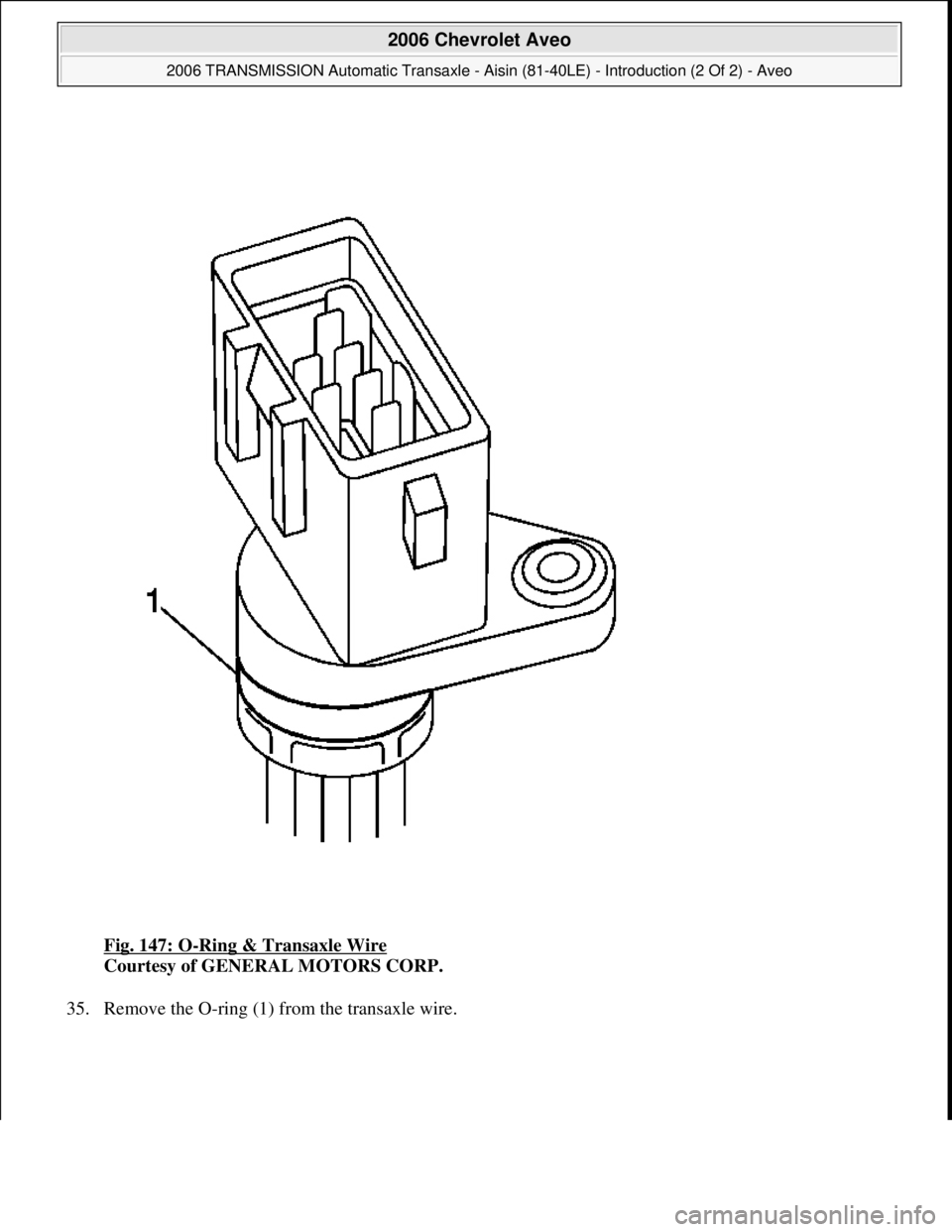

CHEVROLET AVEO 2002 Service Repair Manual Fig. 147: O-Ring & Transaxle Wire Courtesy of GENERAL MOTORS CORP. 35. Remove the O-rin g (1) from the transaxle wire. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE)

Page 2710 of 5127

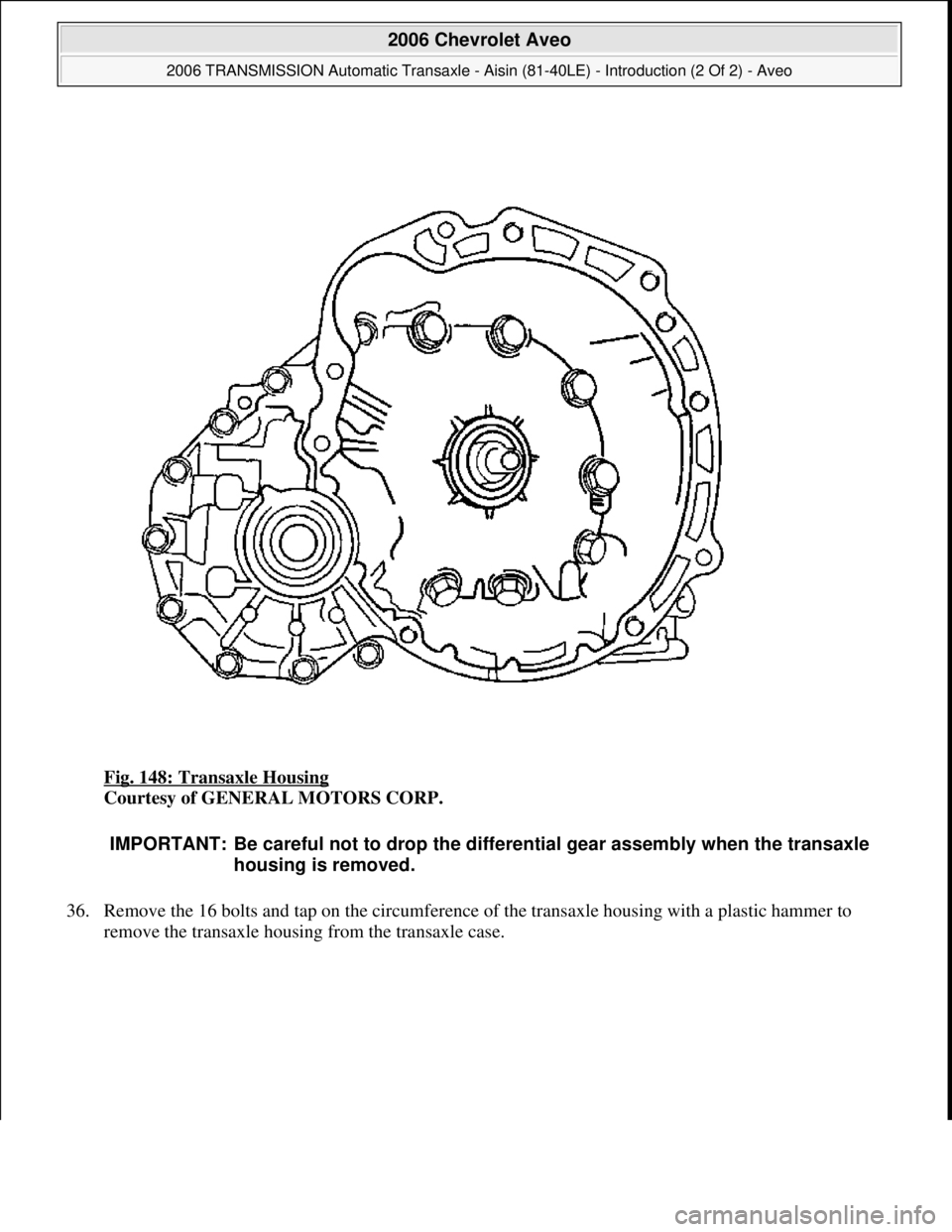

CHEVROLET AVEO 2002 Service Repair Manual Fig. 148: Transaxle Housing Courtesy of GENERAL MOTORS CORP. 36. Remove the 16 bolts and tap on the circumference of the transaxle housing with a plastic hammer to remove the transaxle housing from

Page 2711 of 5127

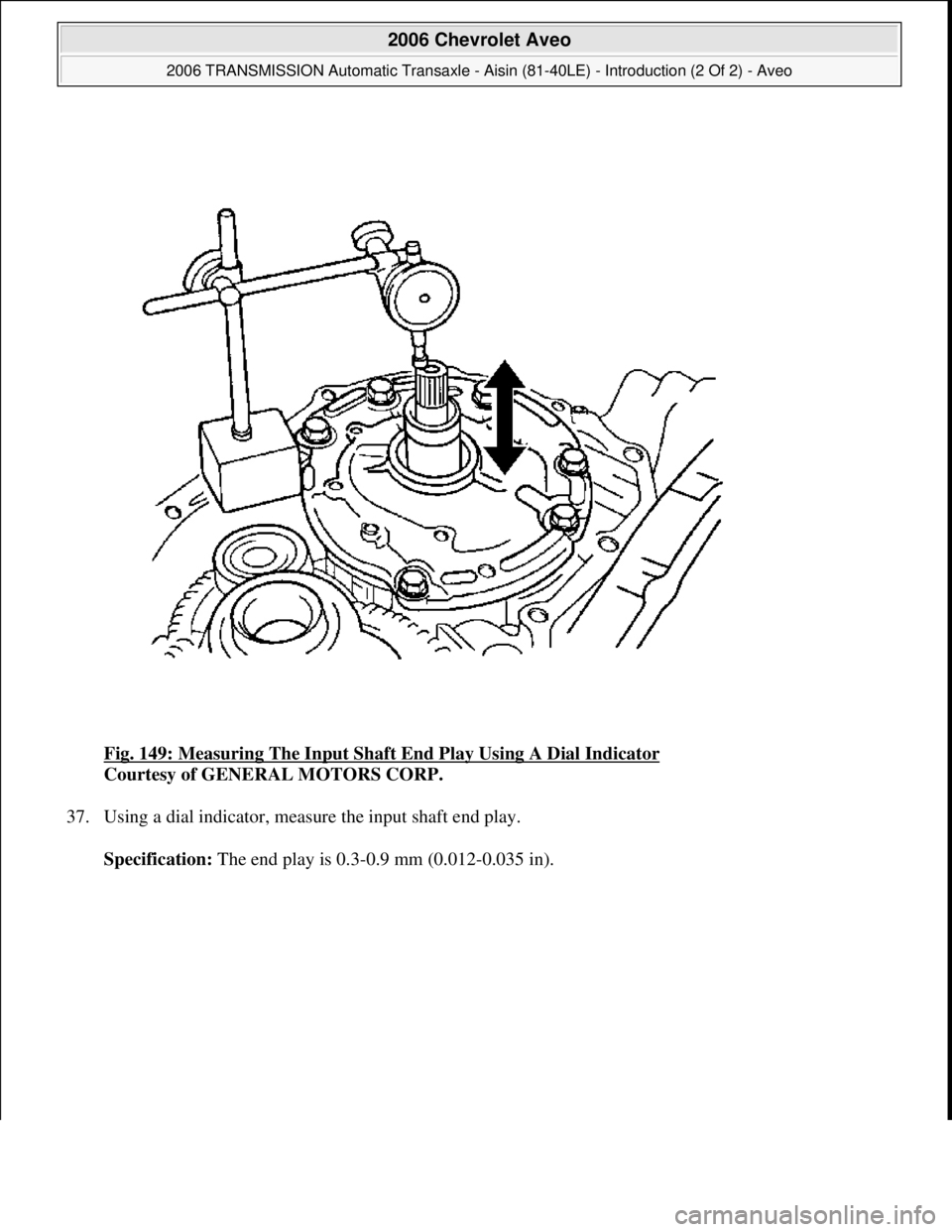

CHEVROLET AVEO 2002 Service Repair Manual Fig. 149: Measuring The Input Shaft End Play Using A Dial Indicator Courtesy of GENERAL MOTORS CORP. 37. Using a dial indicator, measure the input shaft end play. Specification: The end play is 0.3

Page 2712 of 5127

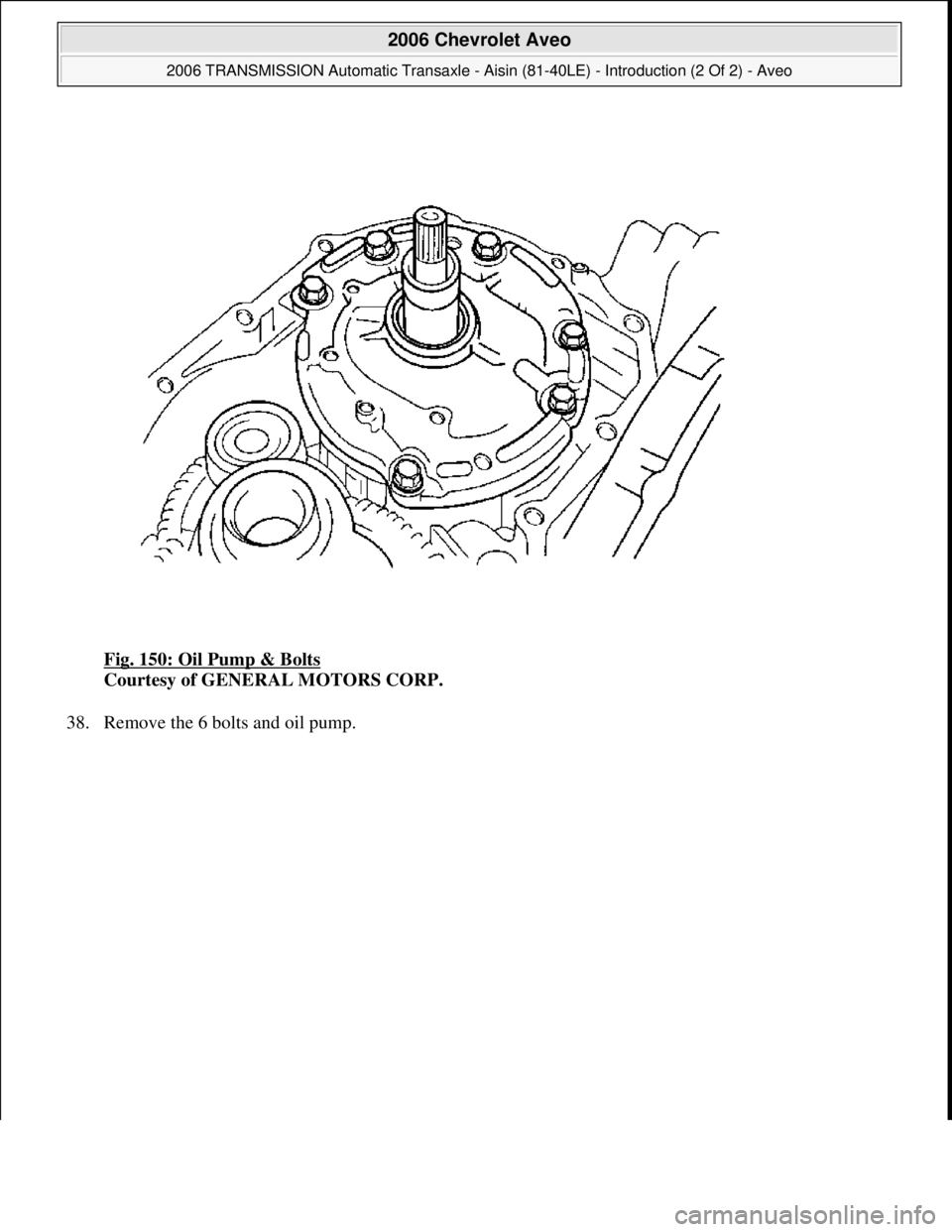

CHEVROLET AVEO 2002 Service Repair Manual Fig. 150: Oil Pump & Bolts Courtesy of GENERAL MOTORS CORP. 38. Remove the 6 bolts and oil pump. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of
