Page 2689 of 5127

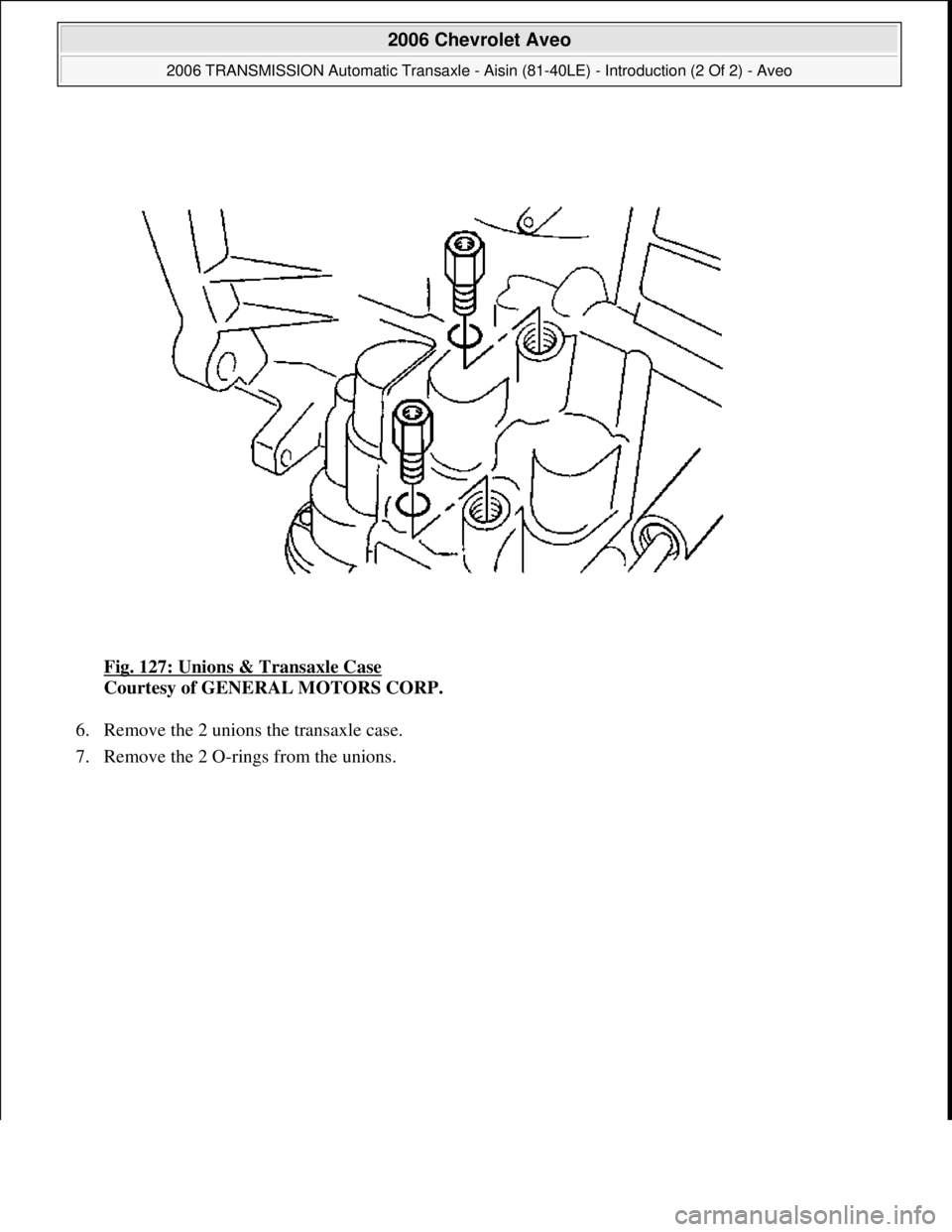

CHEVROLET AVEO 2002 Service Repair Manual Fig. 127: Unions & Transaxle Case Courtesy of GENERAL MOTORS CORP. 6. Remove the 2 unions the transaxle case. 7. Remove the 2 O-rings from the unions. 2006 Chevrolet Aveo 2006 TRANSMISSION Aut

Page 2690 of 5127

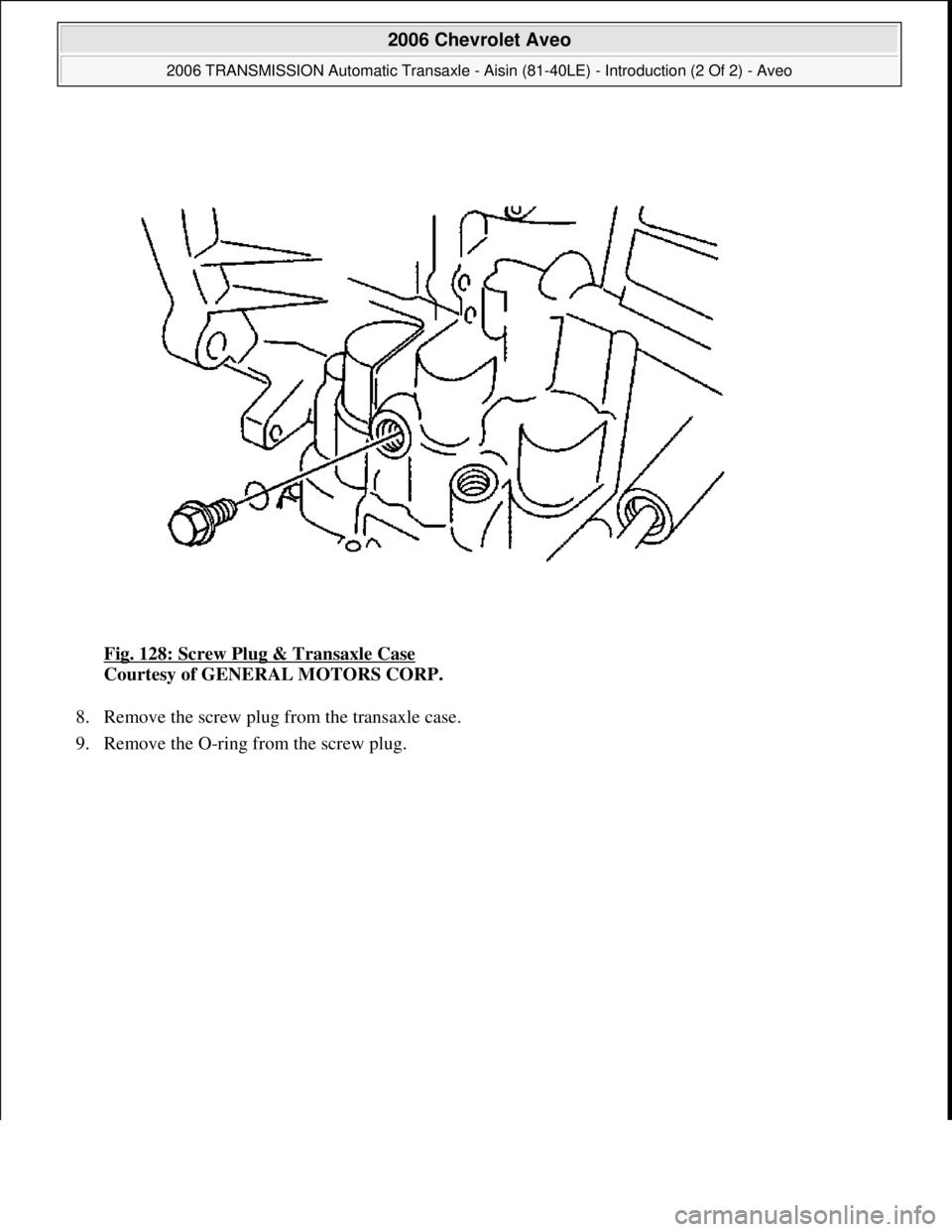

CHEVROLET AVEO 2002 Service Repair Manual Fig. 128: Screw Plug & Transaxle Case Courtesy of GENERAL MOTORS CORP. 8. Remove the screw plug from the transaxle case. 9. Remove the O-ring from the screw plug. 2006 Chevrolet Aveo 2006 TRAN

Page 2691 of 5127

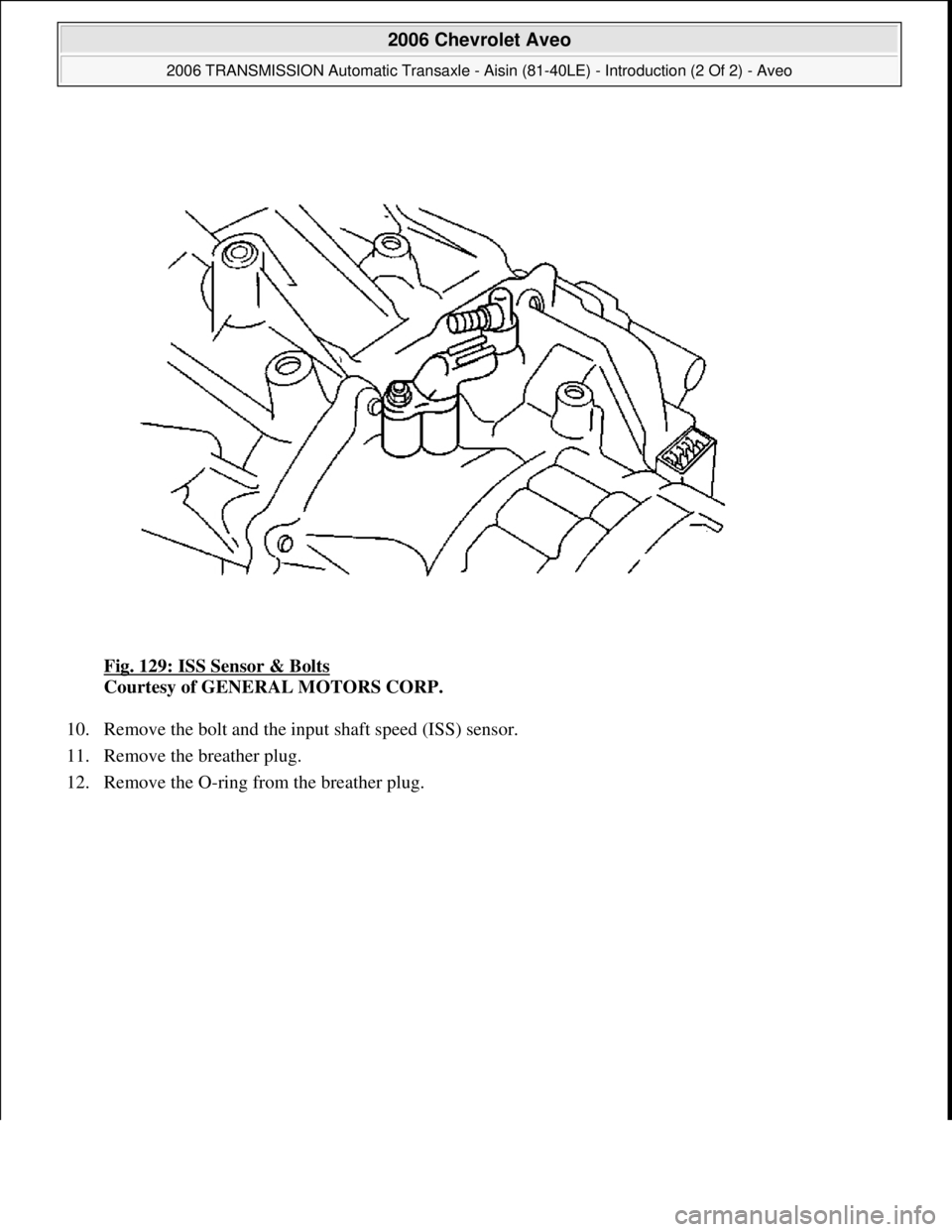

CHEVROLET AVEO 2002 Service Repair Manual Fig. 129: ISS Sensor & Bolts Courtesy of GENERAL MOTORS CORP. 10. Remove the bolt and the input shaft speed (ISS) sensor. 11. Remove the breather plug. 12. Remove the O-rin g from the breather p

Page 2692 of 5127

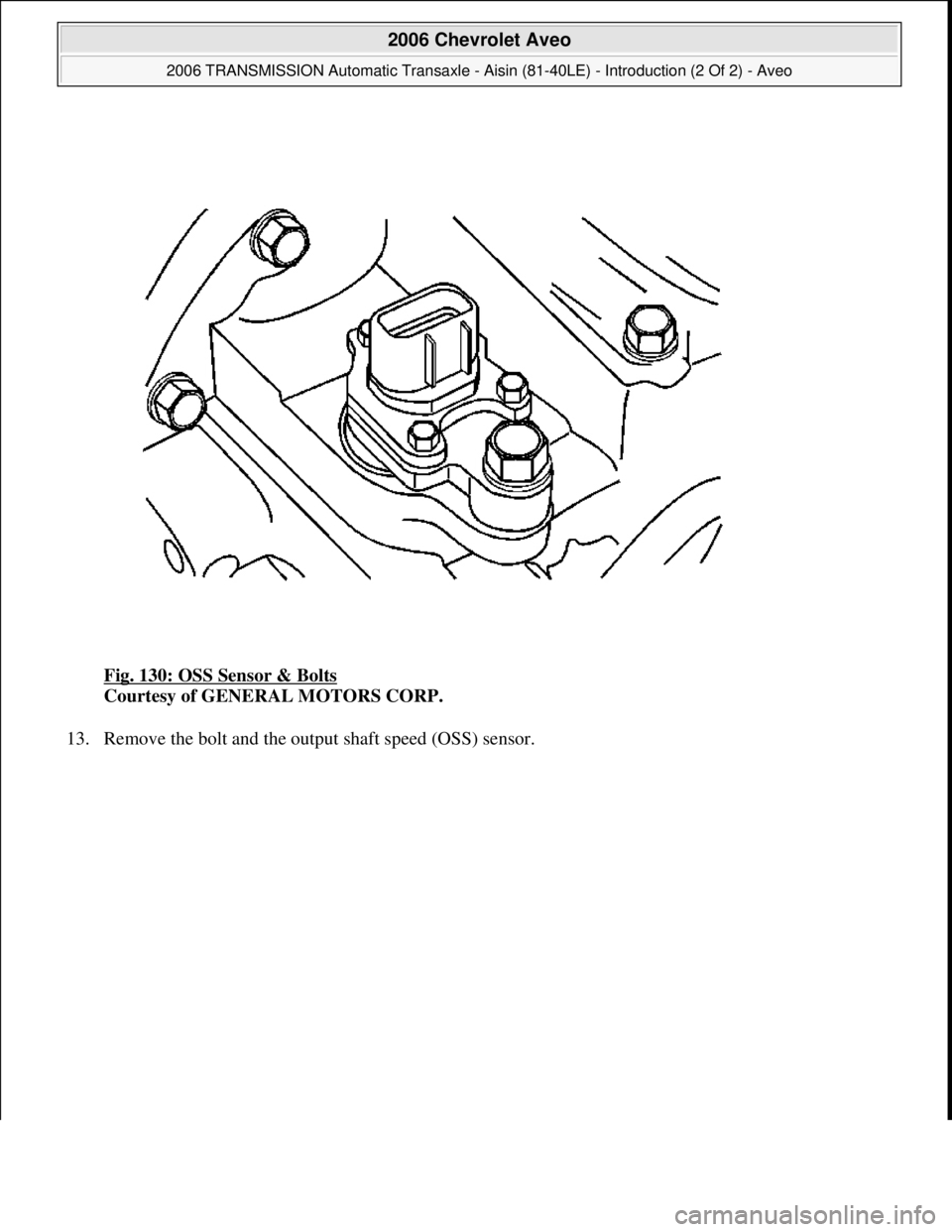

CHEVROLET AVEO 2002 Service Repair Manual Fig. 130: OSS Sensor & Bolts Courtesy of GENERAL MOTORS CORP. 13. Remove the bolt and the output shaft speed (OSS) sensor. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-4

Page 2693 of 5127

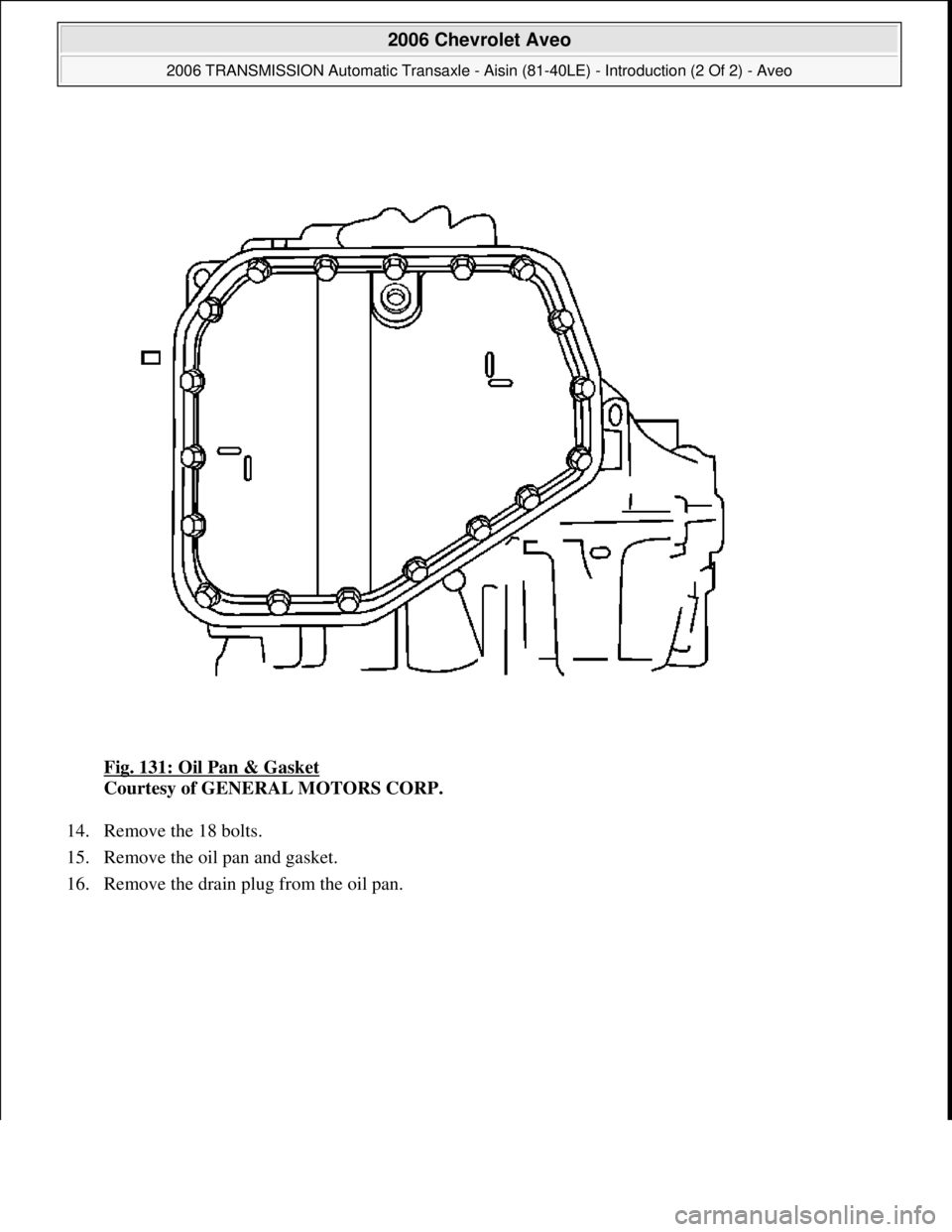

CHEVROLET AVEO 2002 Service Repair Manual Fig. 131: Oil Pan & Gasket Courtesy of GENERAL MOTORS CORP. 14. Remove the 18 bolts. 15. Remove the oil pan and gasket. 16. Remove the drain plu g from the oil pan. 2006 Chevrolet Aveo 2006

Page 2694 of 5127

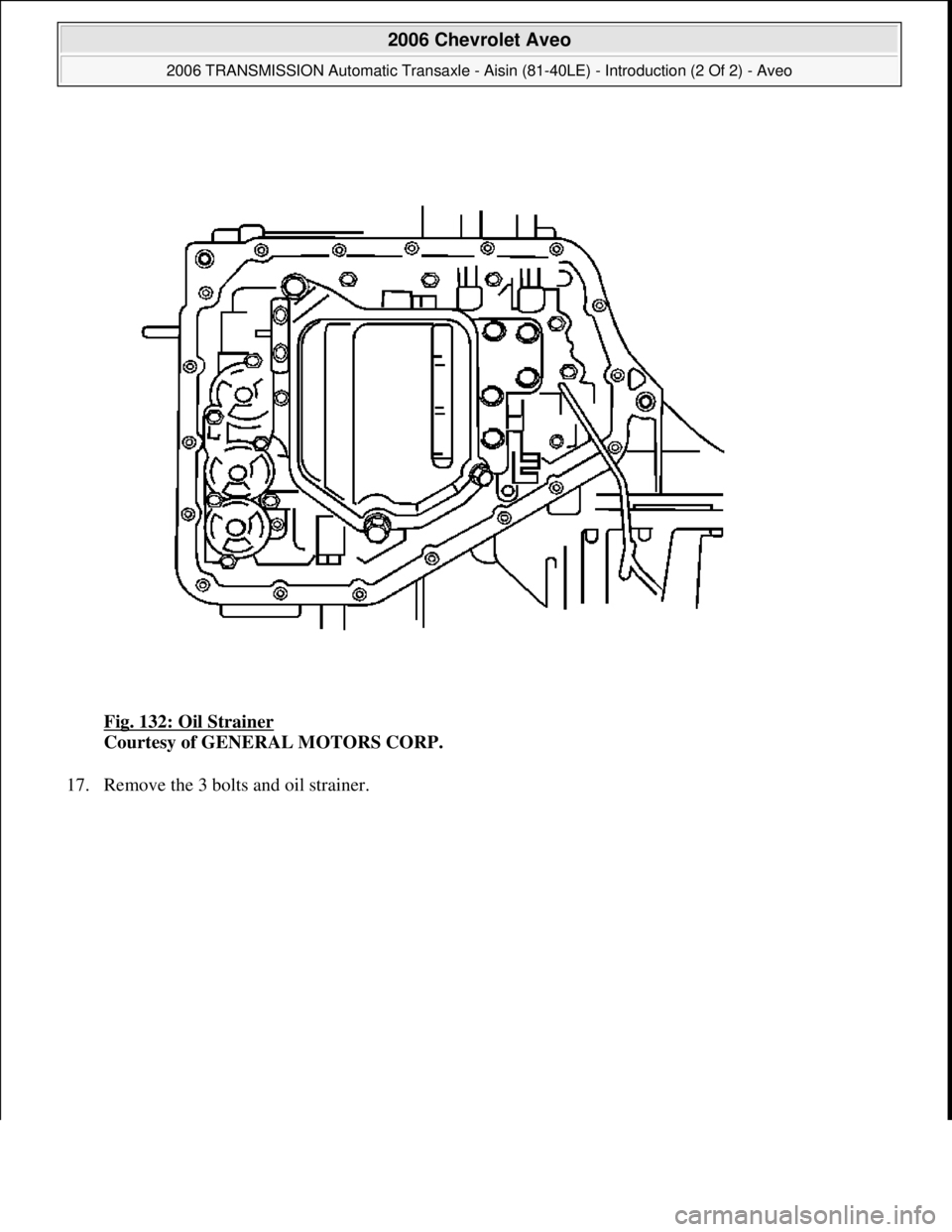

CHEVROLET AVEO 2002 Service Repair Manual Fig. 132: Oil Strainer Courtesy of GENERAL MOTORS CORP. 17. Remove the 3 bolts and oil strainer. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of

Page 2695 of 5127

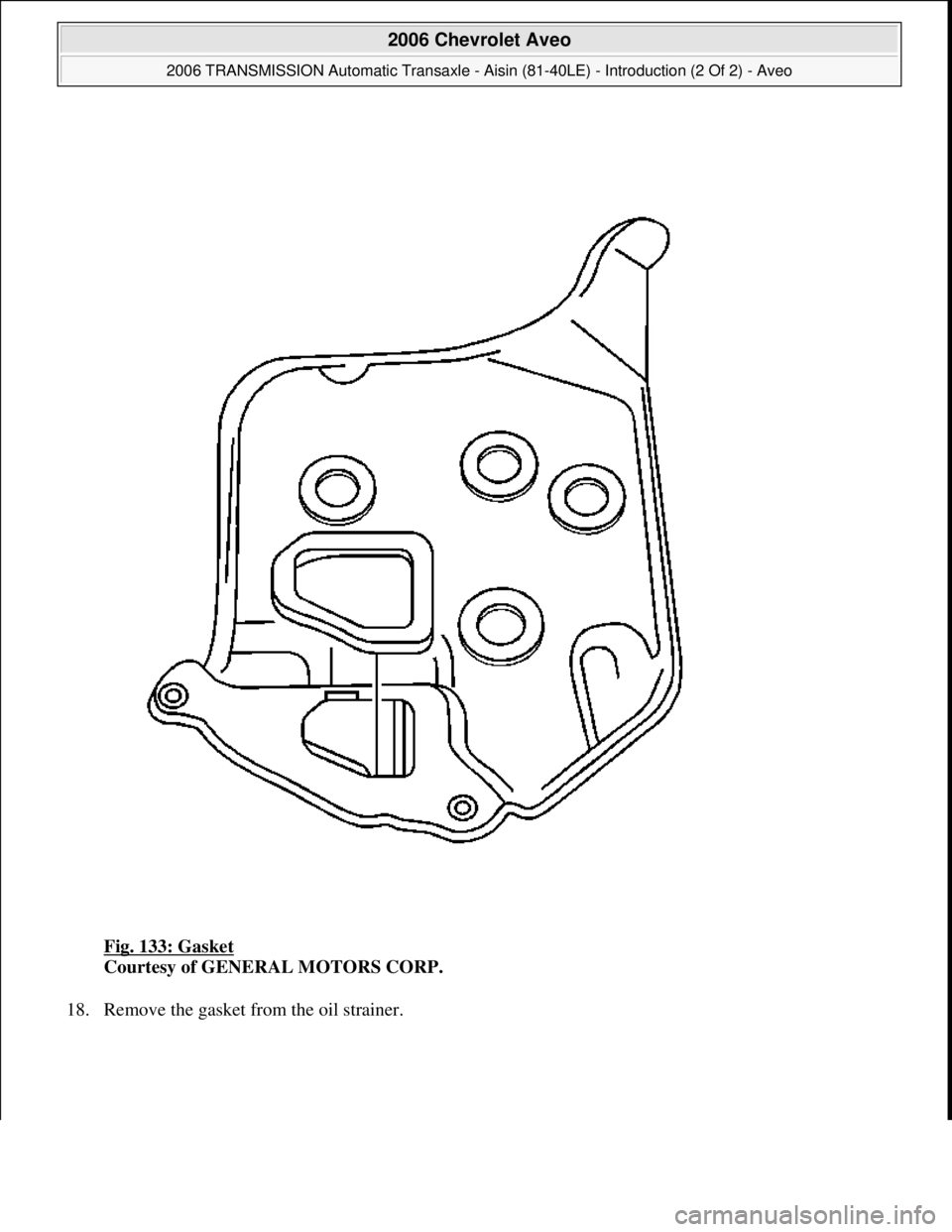

CHEVROLET AVEO 2002 Service Repair Manual Fig. 133: Gasket Courtesy of GENERAL MOTORS CORP. 18. Remove the gasket from the oil strainer. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2)

Page 2696 of 5127

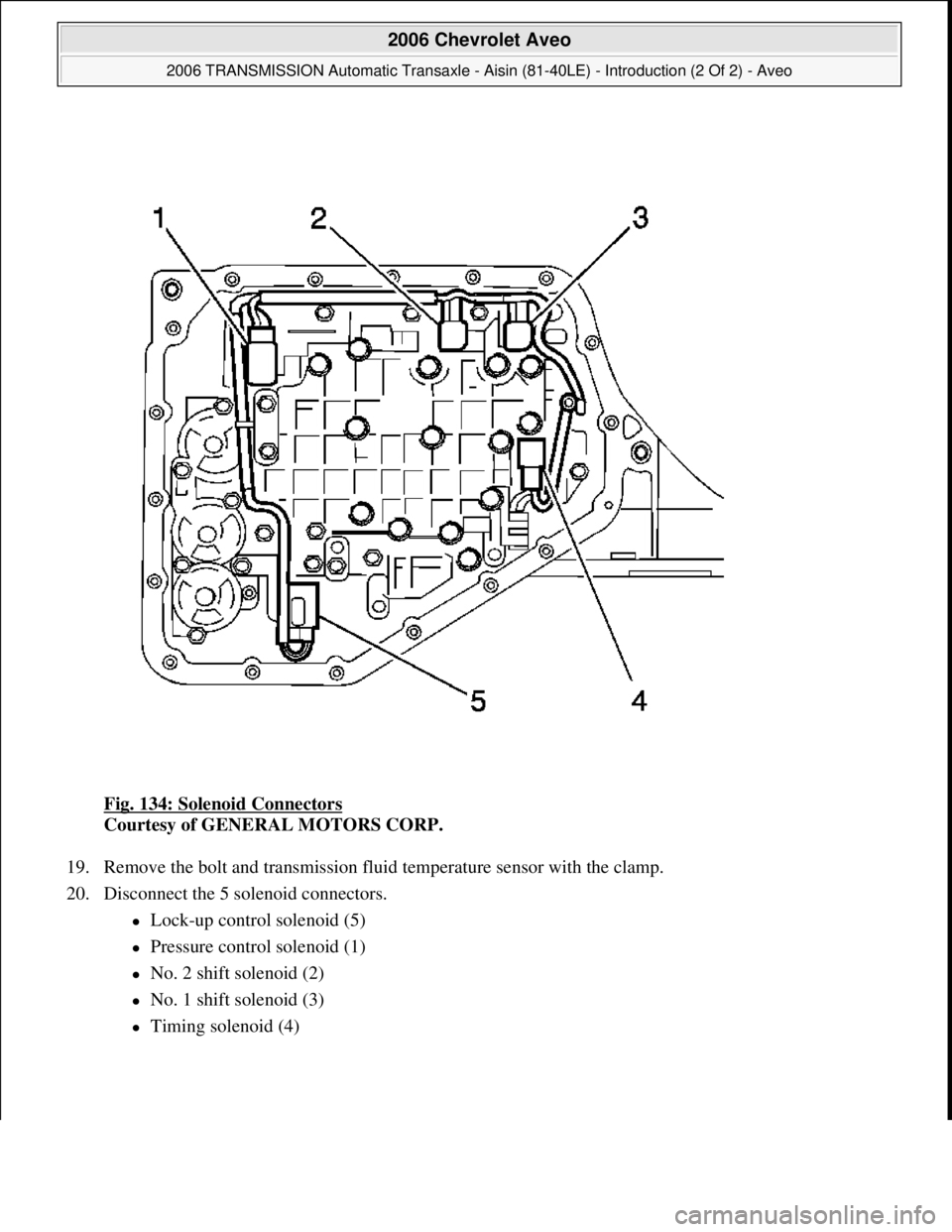

CHEVROLET AVEO 2002 Service Repair Manual Fig. 134: Solenoid Connectors Courtesy of GENERAL MOTORS CORP. 19. Remove the bolt and transmission fluid temperature sensor with the clamp. 20. Disconnect the 5 solenoid connectors. Lock-up c
