Page 2809 of 5127

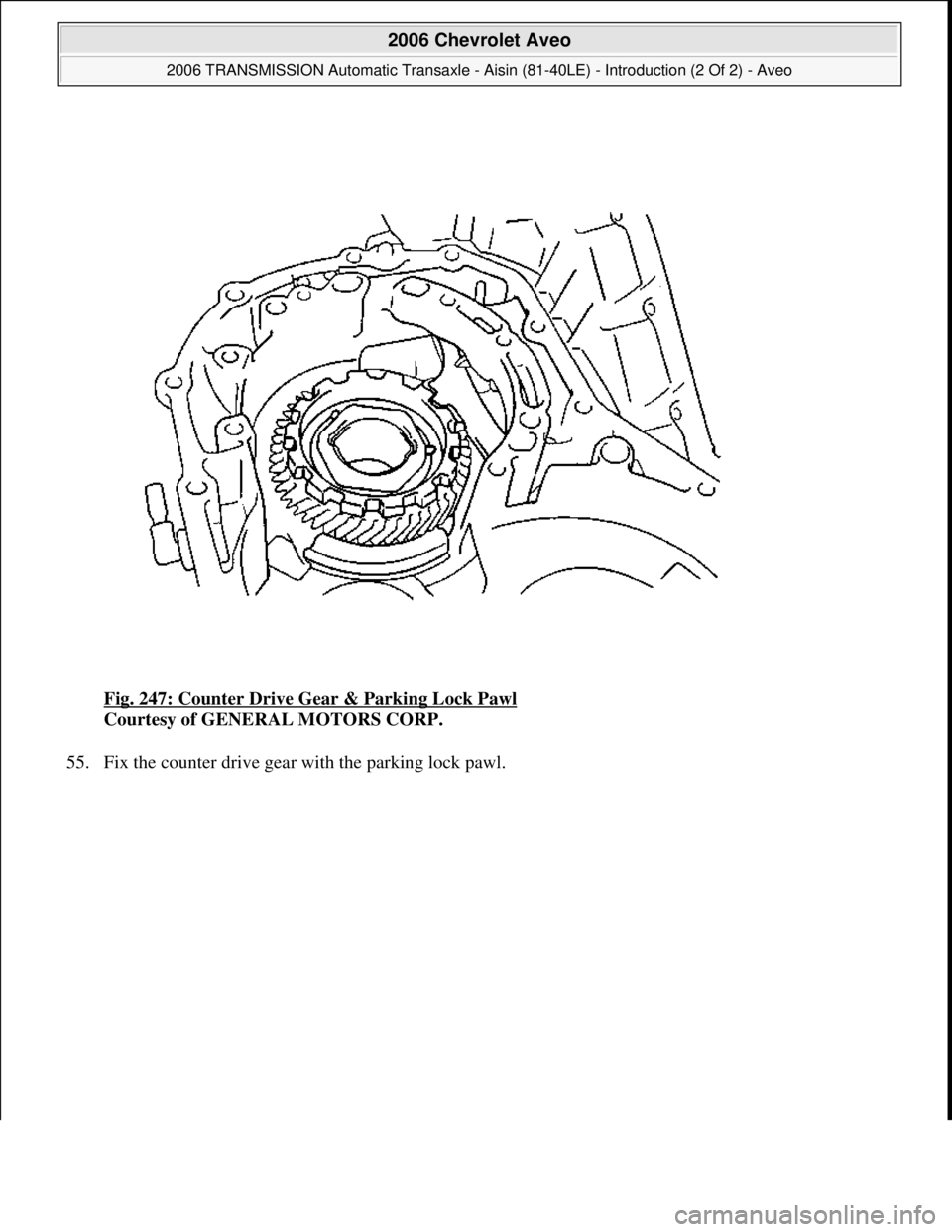

CHEVROLET AVEO 2002 Service Repair Manual Fig. 247: Counter Drive Gear & Parking Lock Pawl Courtesy of GENERAL MOTORS CORP. 55. Fix the counter drive gear with the parking lock pawl. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Tran

Page 2810 of 5127

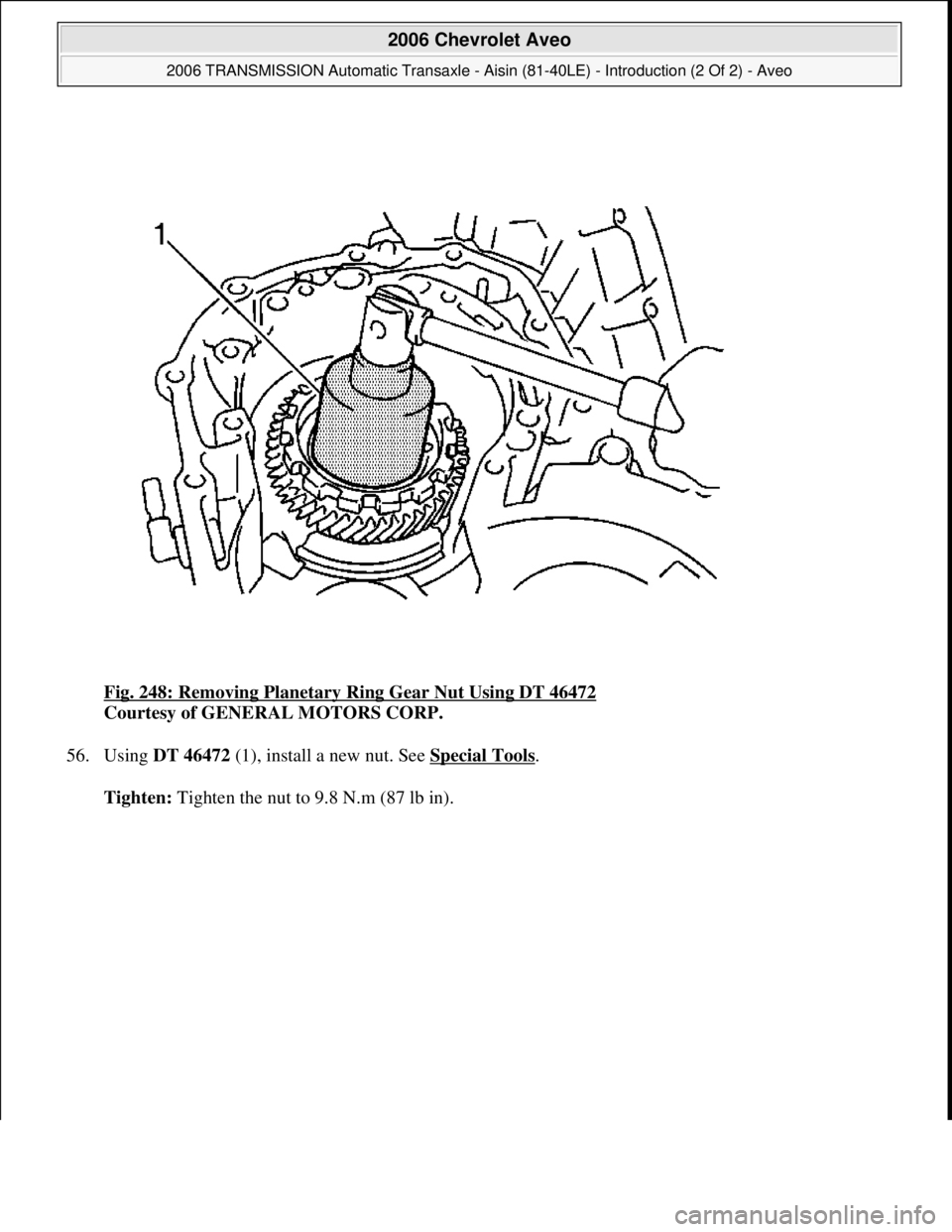

CHEVROLET AVEO 2002 Service Repair Manual Fig. 248: Removing Planetary Ring Gear Nut Using DT 46472 Courtesy of GENERAL MOTORS CORP. 56. Using DT 46472 (1), install a new nut. See Special Tools . Tighten: Ti ghten the nut to 9.8 N.m (87 lb

Page 2811 of 5127

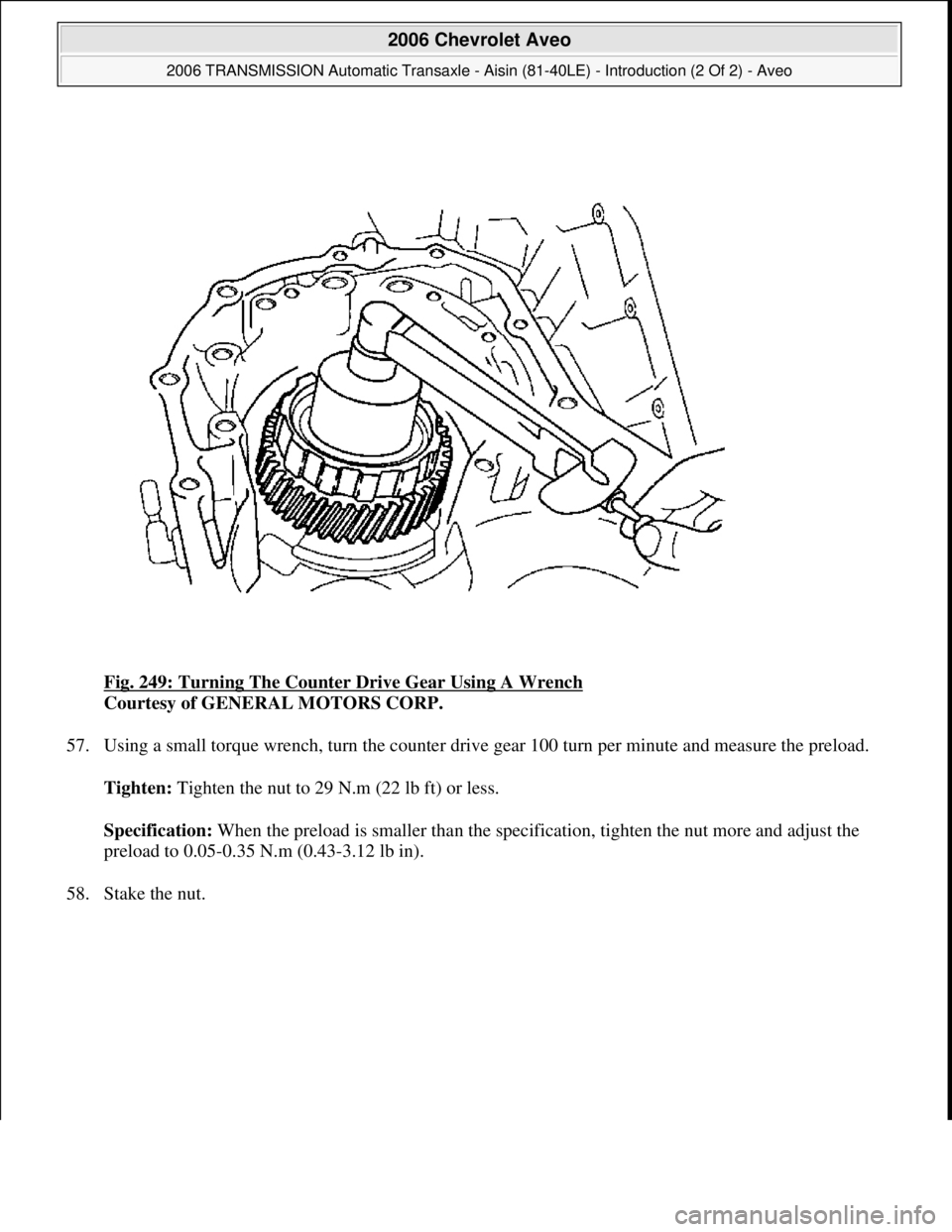

CHEVROLET AVEO 2002 Service Repair Manual Fig. 249: Turning The Counter Drive Gear Using A Wrench Courtesy of GENERAL MOTORS CORP. 57. Using a small torque wrench, turn the counter drive gear 100 turn per minute and measure the preload. Ti

Page 2812 of 5127

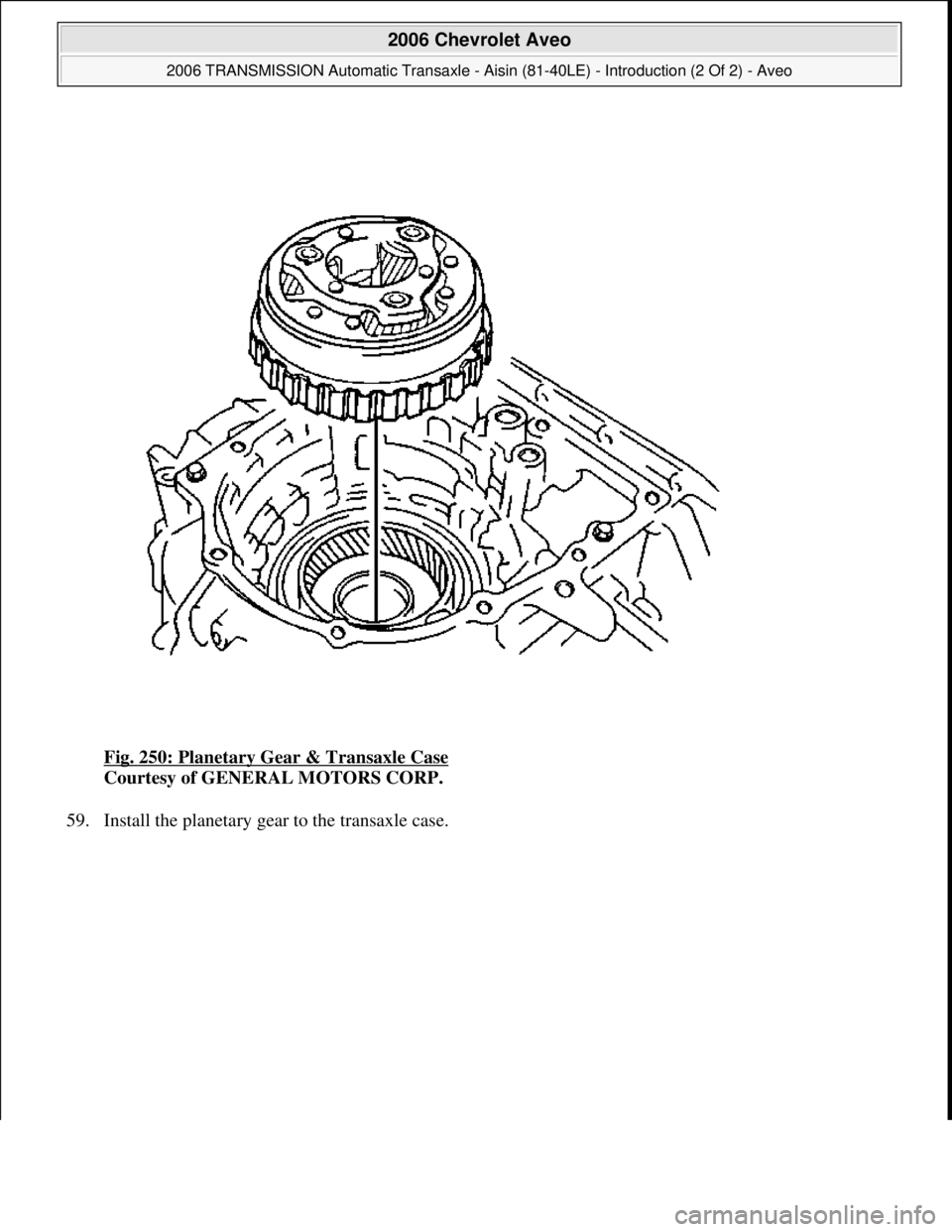

CHEVROLET AVEO 2002 Service Repair Manual Fig. 250: Planetary Gear & Transaxle Case Courtesy of GENERAL MOTORS CORP. 59. Install the planetar y gear to the transaxle case. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisi

Page 2813 of 5127

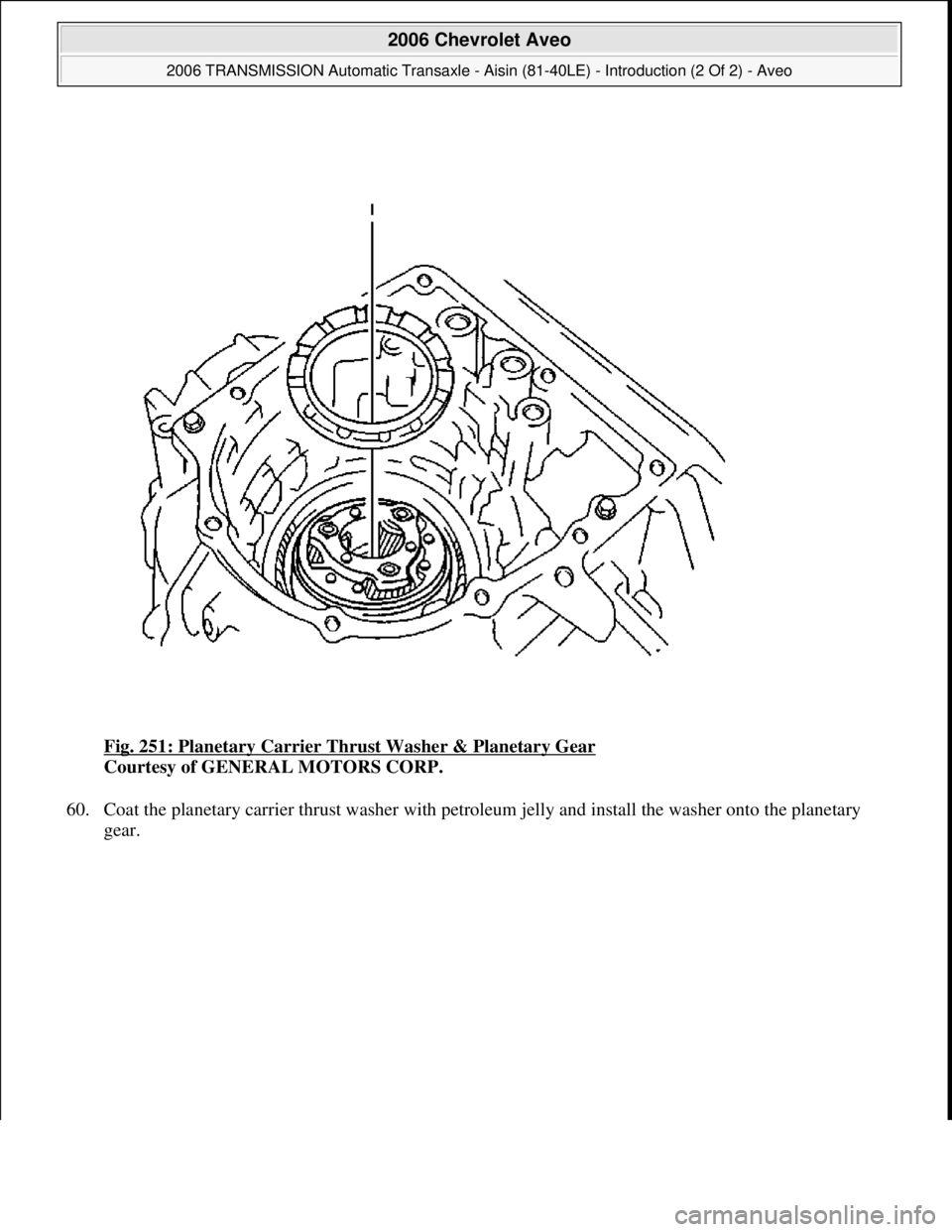

CHEVROLET AVEO 2002 Service Repair Manual Fig. 251: Planetary Carrier Thrust Washer & Planetary Gear Courtesy of GENERAL MOTORS CORP. 60. Coat the planetary carrier thrust washer with petroleum jelly and install the washer onto the planetar

Page 2814 of 5127

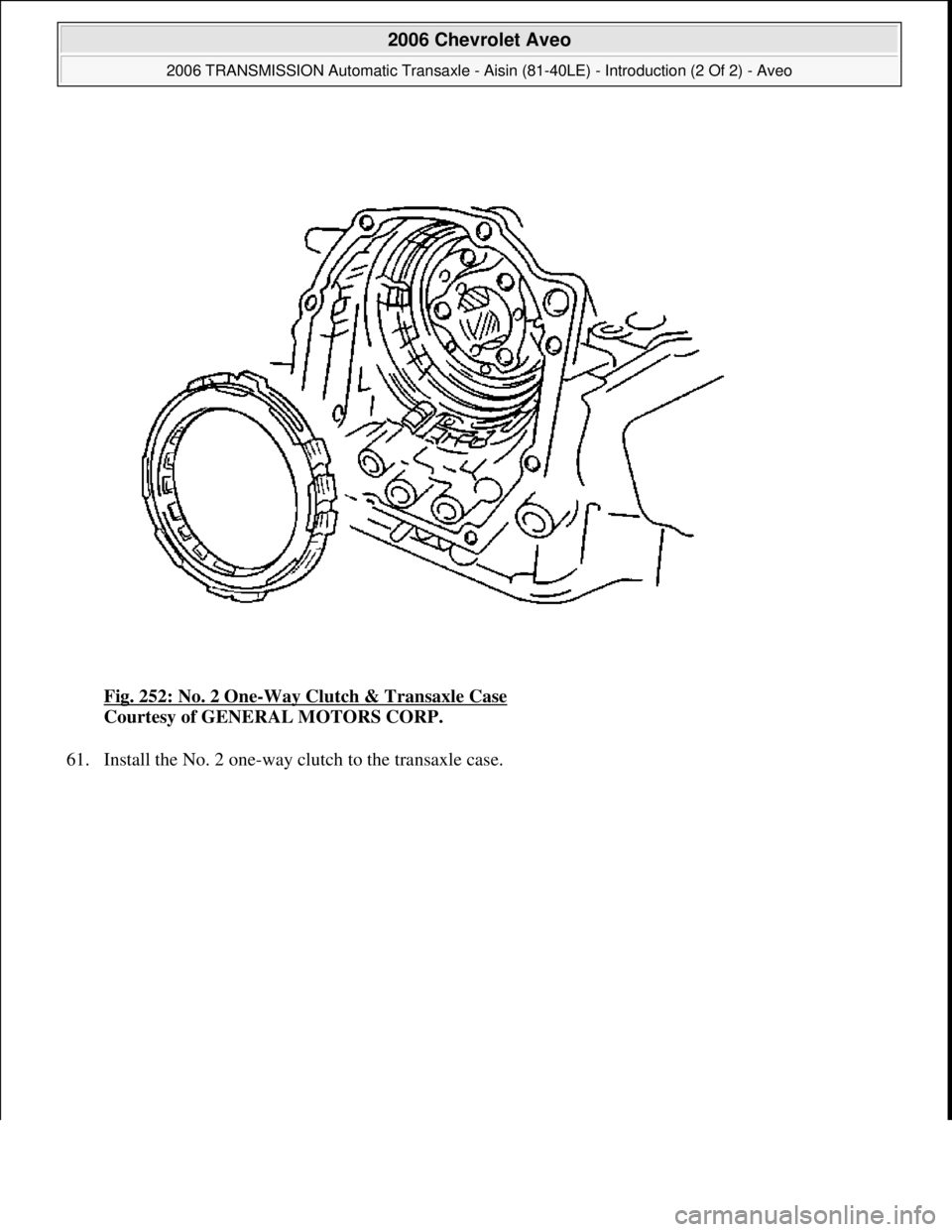

CHEVROLET AVEO 2002 Service Repair Manual Fig. 252: No. 2 One-Way Clutch & Transaxle Case Courtesy of GENERAL MOTORS CORP. 61. Install the No. 2 one-wa y clutch to the transaxle case. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Tran

Page 2815 of 5127

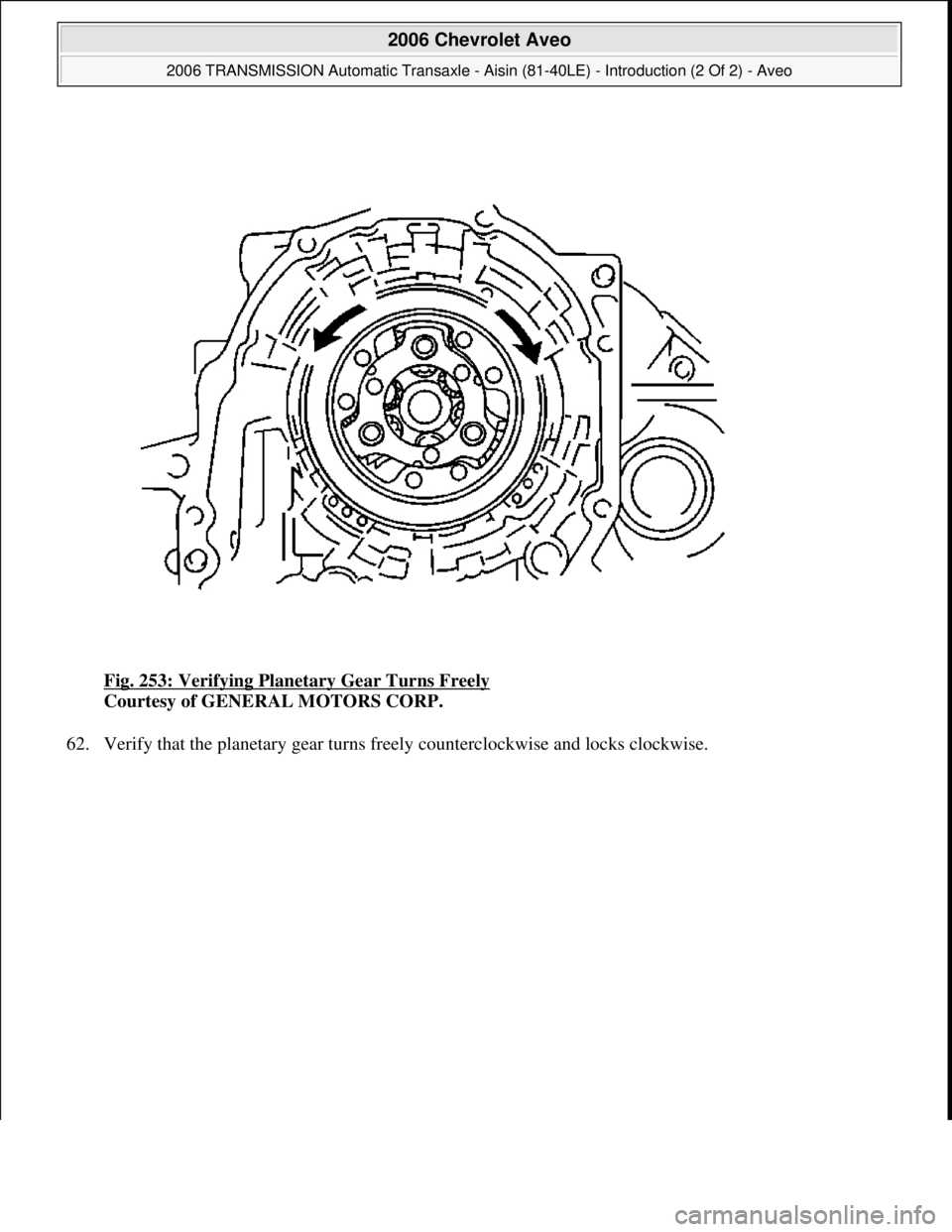

CHEVROLET AVEO 2002 Service Repair Manual Fig. 253: Verifying Planetary Gear Turns Freely Courtesy of GENERAL MOTORS CORP. 62. Verif y that the planetary gear turns freely counterclockwise and locks clockwise. 2006 Chevrolet Aveo 2006 T

Page 2816 of 5127

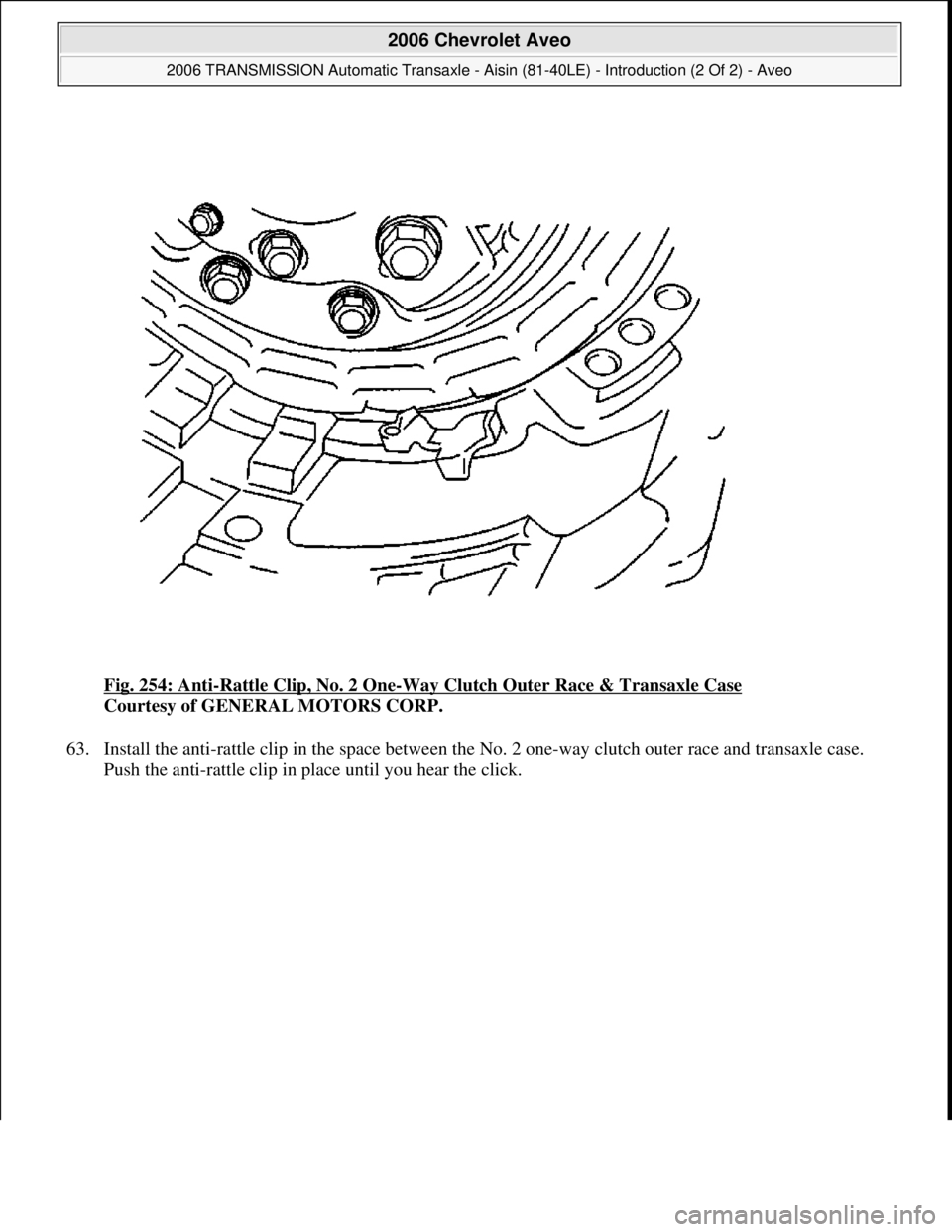

CHEVROLET AVEO 2002 Service Repair Manual Fig. 254: Anti-Rattle Clip, No. 2 One-Way Clutch Outer Race & Transaxle Case Courtesy of GENERAL MOTORS CORP. 63. Install the anti-rattle clip in the space between the No. 2 one-way clutch outer rac
