Page 4425 of 5127

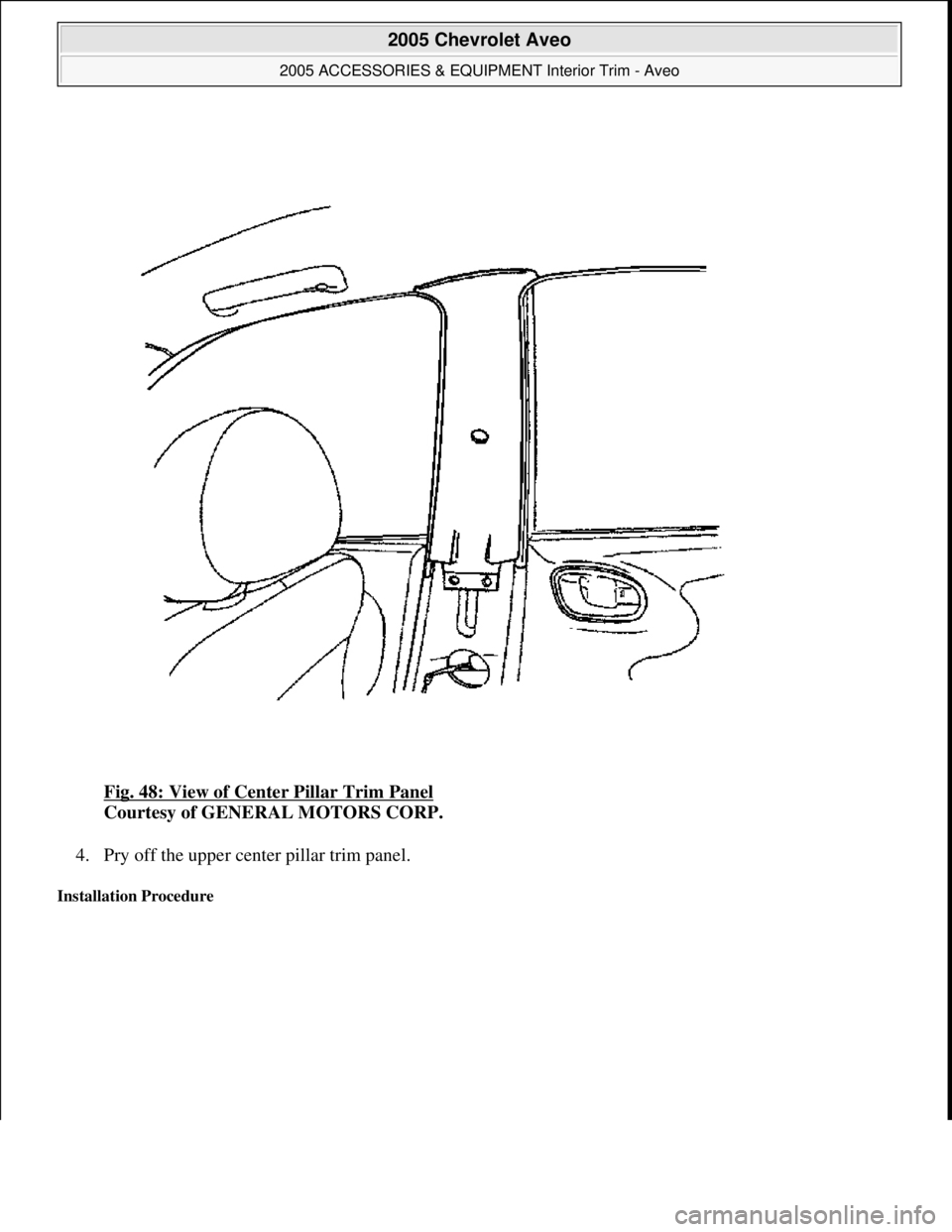

CHEVROLET AVEO 2002 Service Repair Manual Fig. 48: View of Center Pillar Trim Panel Courtesy of GENERAL MOTORS CORP. 4. Pry off the upper center pillar trim panel. Installation Procedure 2005 Chevrolet Aveo 2005 ACCESSORIES & EQUIPMEN

Page 4426 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 49: View of Center Pillar Trim Panel Courtesy of GENERAL MOTORS CORP. 1. Install the upper center pillar trim panel. 2005 Chevrolet Aveo 2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo

Page 4427 of 5127

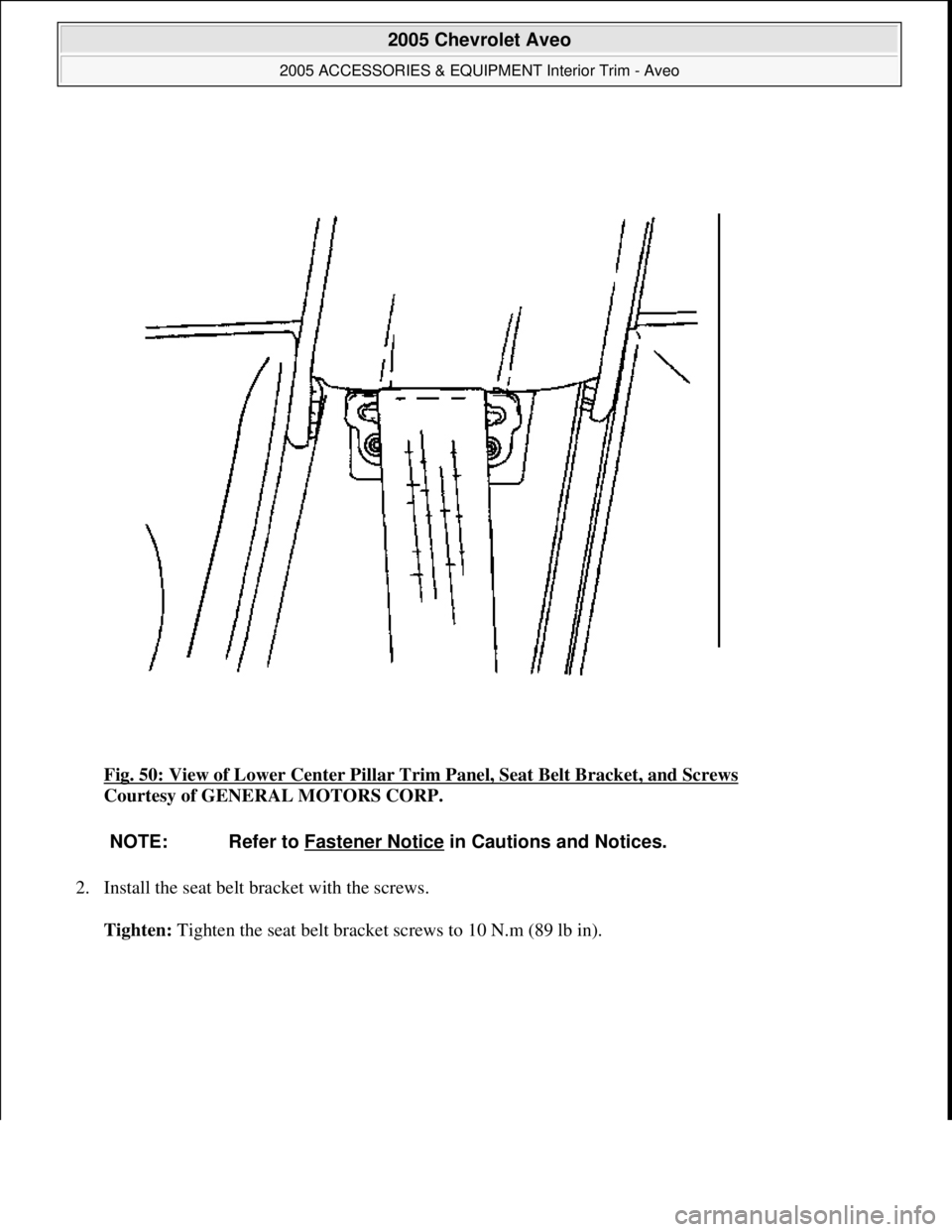

CHEVROLET AVEO 2002 Service Repair Manual Fig. 50: View of Lower Center Pillar Trim Panel, Seat Belt Bracket, and Screws Courtesy of GENERAL MOTORS CORP. 2. Install the seat belt bracket with the screws. Tighten: Ti ghten the seat belt bra

Page 4428 of 5127

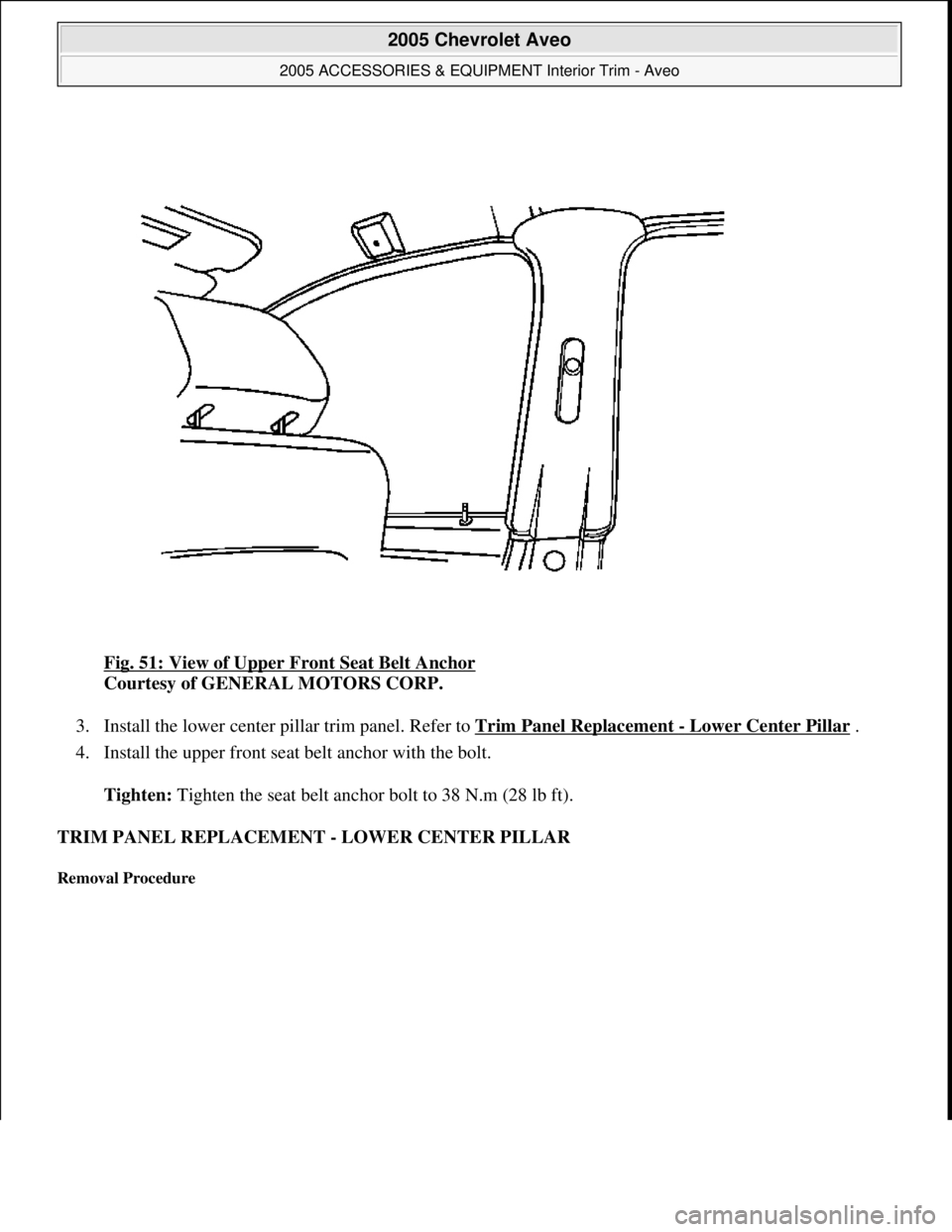

CHEVROLET AVEO 2002 Service Repair Manual Fig. 51: View of Upper Front Seat Belt Anchor Courtesy of GENERAL MOTORS CORP. 3. Install the lower center pillar trim panel. Refer to Trim Panel Replacement - Lower Center Pillar . 4. Install th

Page 4429 of 5127

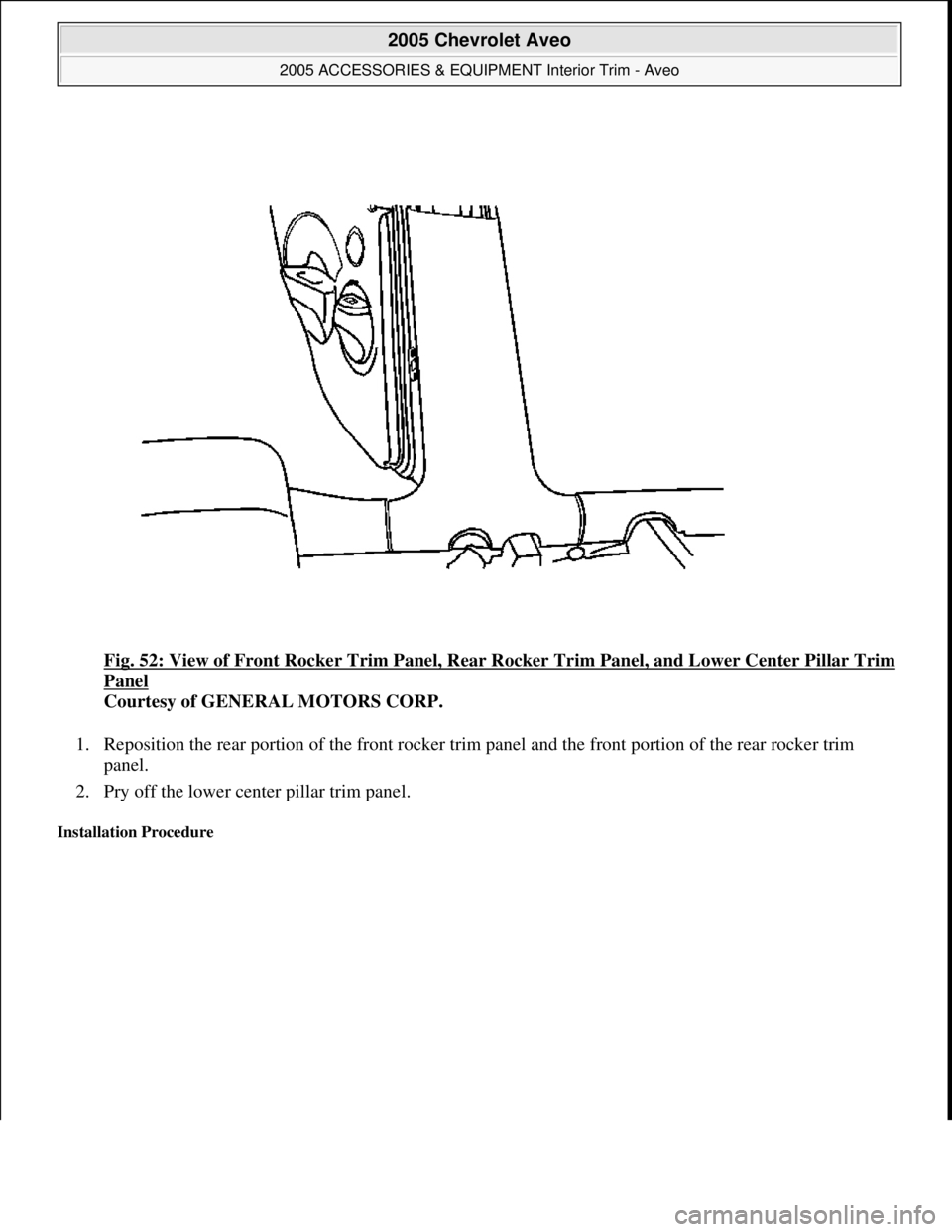

CHEVROLET AVEO 2002 Service Repair Manual Fig. 52: View of Front Rocker Trim Panel, Rear Rocker Trim Panel, and Lower Center Pillar Trim Panel Courtesy of GENERAL MOTORS CORP. 1. Reposition the rear portion of the front rocker trim panel a

Page 4430 of 5127

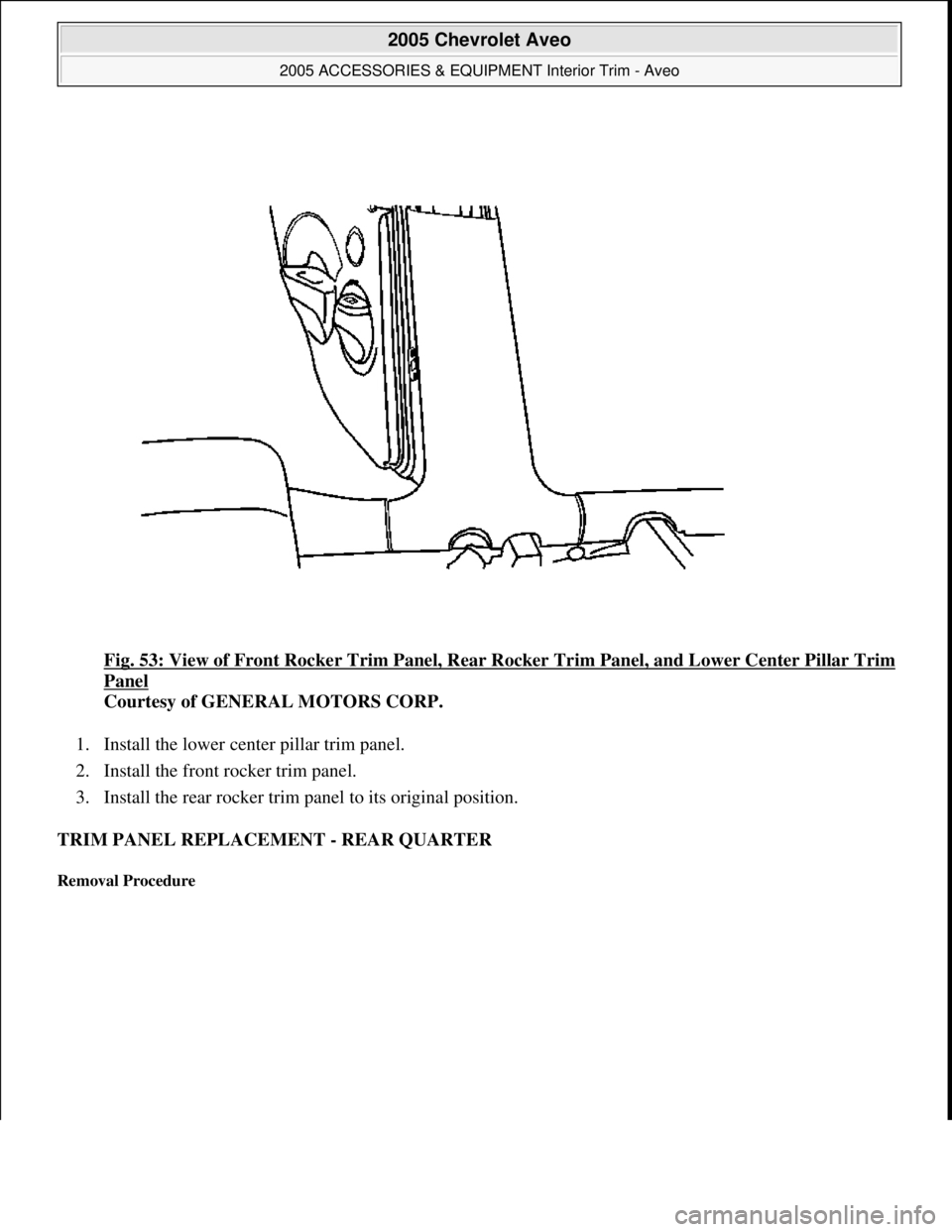

CHEVROLET AVEO 2002 Service Repair Manual Fig. 53: View of Front Rocker Trim Panel, Rear Rocker Trim Panel, and Lower Center Pillar Trim Panel Courtesy of GENERAL MOTORS CORP. 1. Install the lower center pillar trim panel. 2. Install the

Page 4431 of 5127

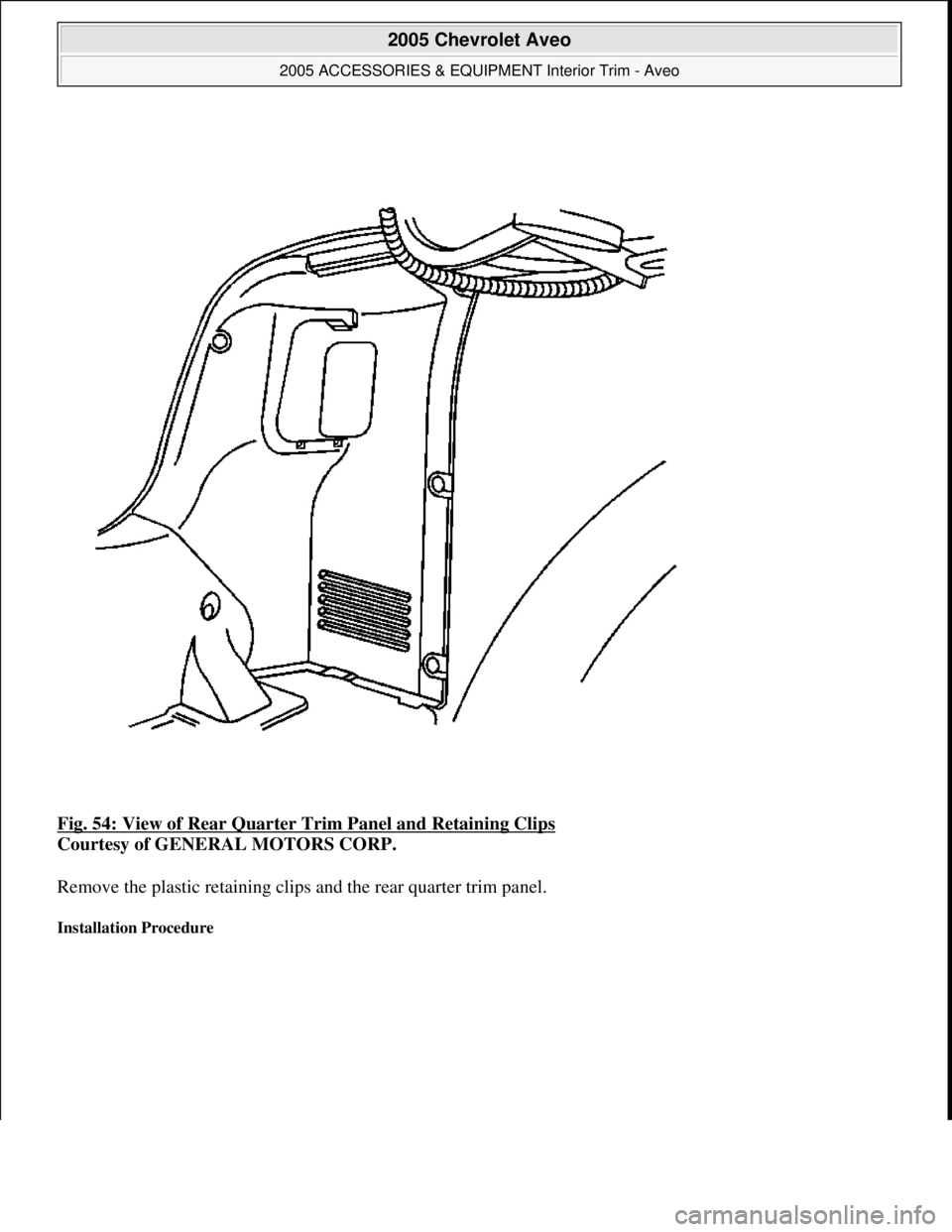

CHEVROLET AVEO 2002 Service Repair Manual Fig. 54: View of Rear Quarter Trim Panel and Retaining Clips Courtesy of GENERAL MOTORS CORP. Remove the plastic retaining clips and the rear quarter trim panel. Installation Procedure 2005 Chev

Page 4432 of 5127

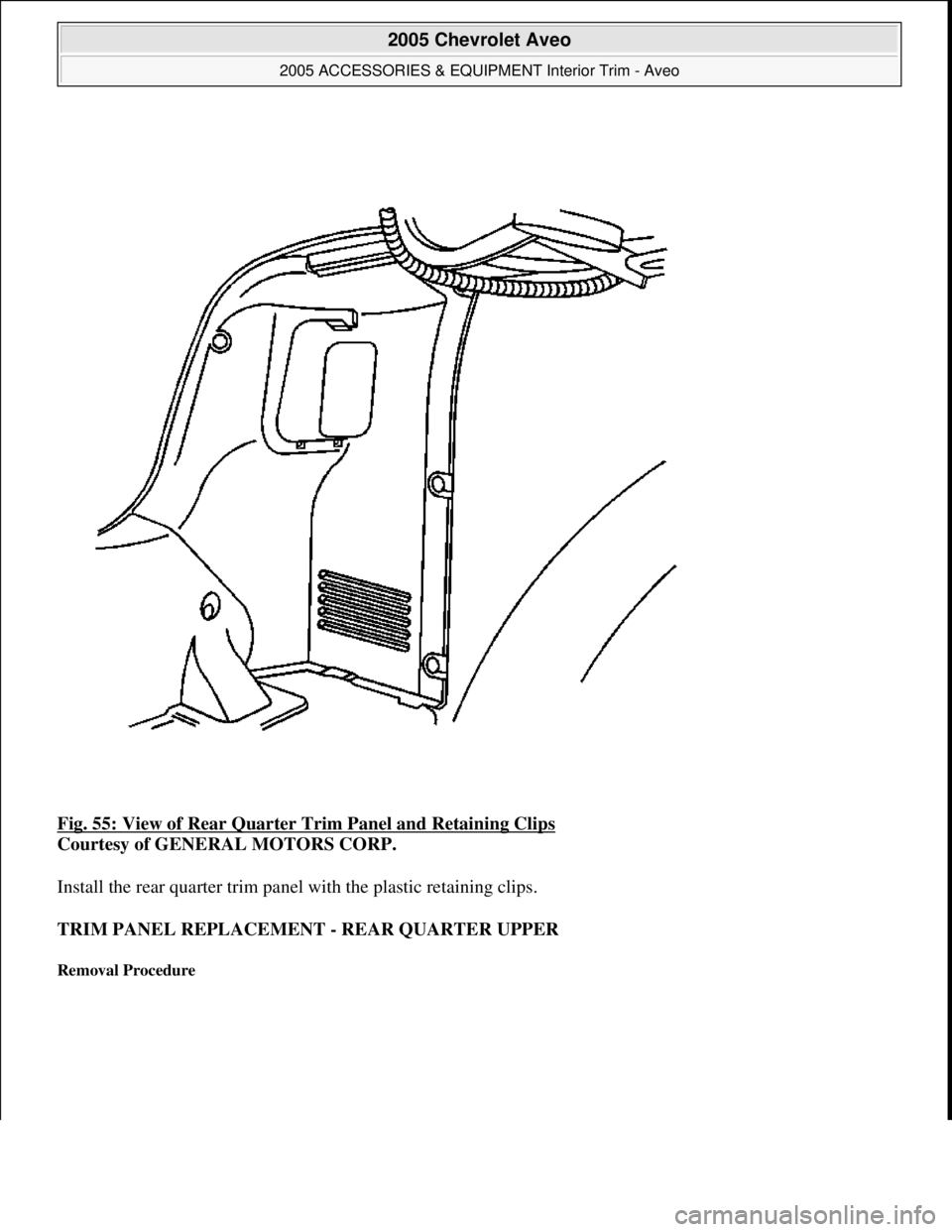

CHEVROLET AVEO 2002 Service Repair Manual Fig. 55: View of Rear Quarter Trim Panel and Retaining Clips Courtesy of GENERAL MOTORS CORP. Install the rear quarter trim panel with the plastic retaining clips. TRIM PANEL REPLACEMENT - REAR QUA
