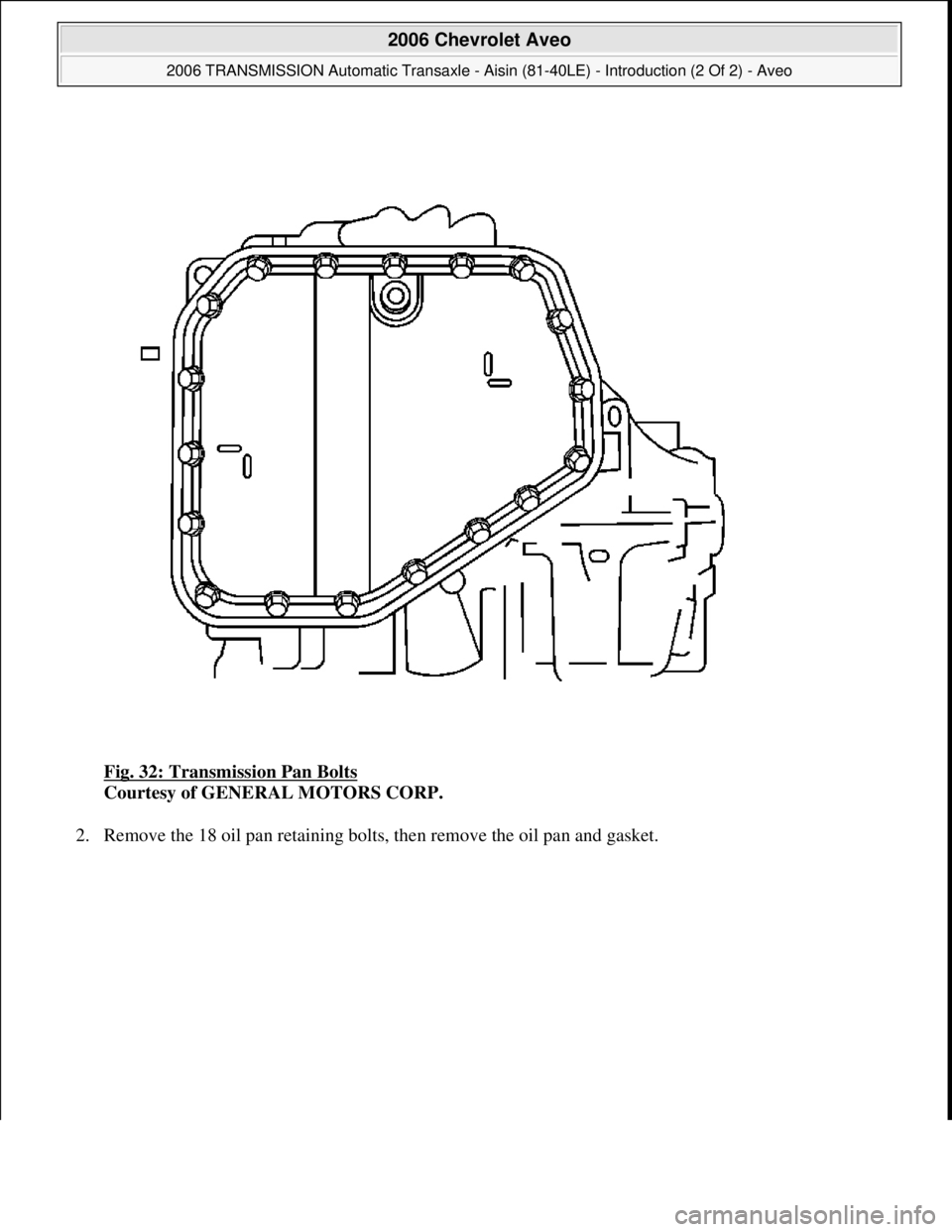

CHEVROLET AVEO 2002 Service Repair Manual Fig. 32: Transmission Pan Bolts Courtesy of GENERAL MOTORS CORP. 2. Remove the 18 oil pan retainin g bolts, then remove the oil pan and gasket. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Tr

Page 2594 of 5127

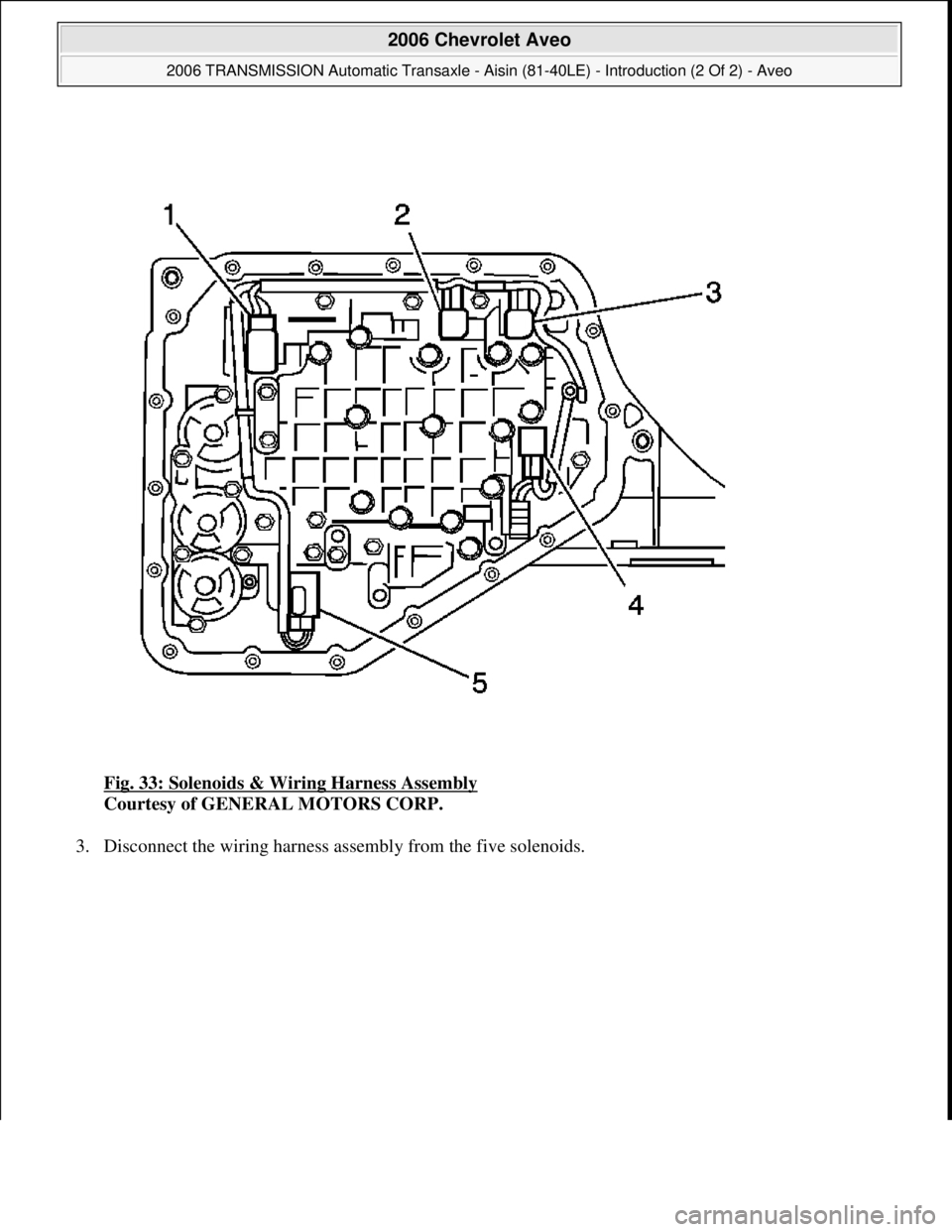

CHEVROLET AVEO 2002 Service Repair Manual Fig. 33: Solenoids & Wiring Harness Assembly Courtesy of GENERAL MOTORS CORP. 3. Disconnect the wirin g harness assembly from the five solenoids. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic

Page 2595 of 5127

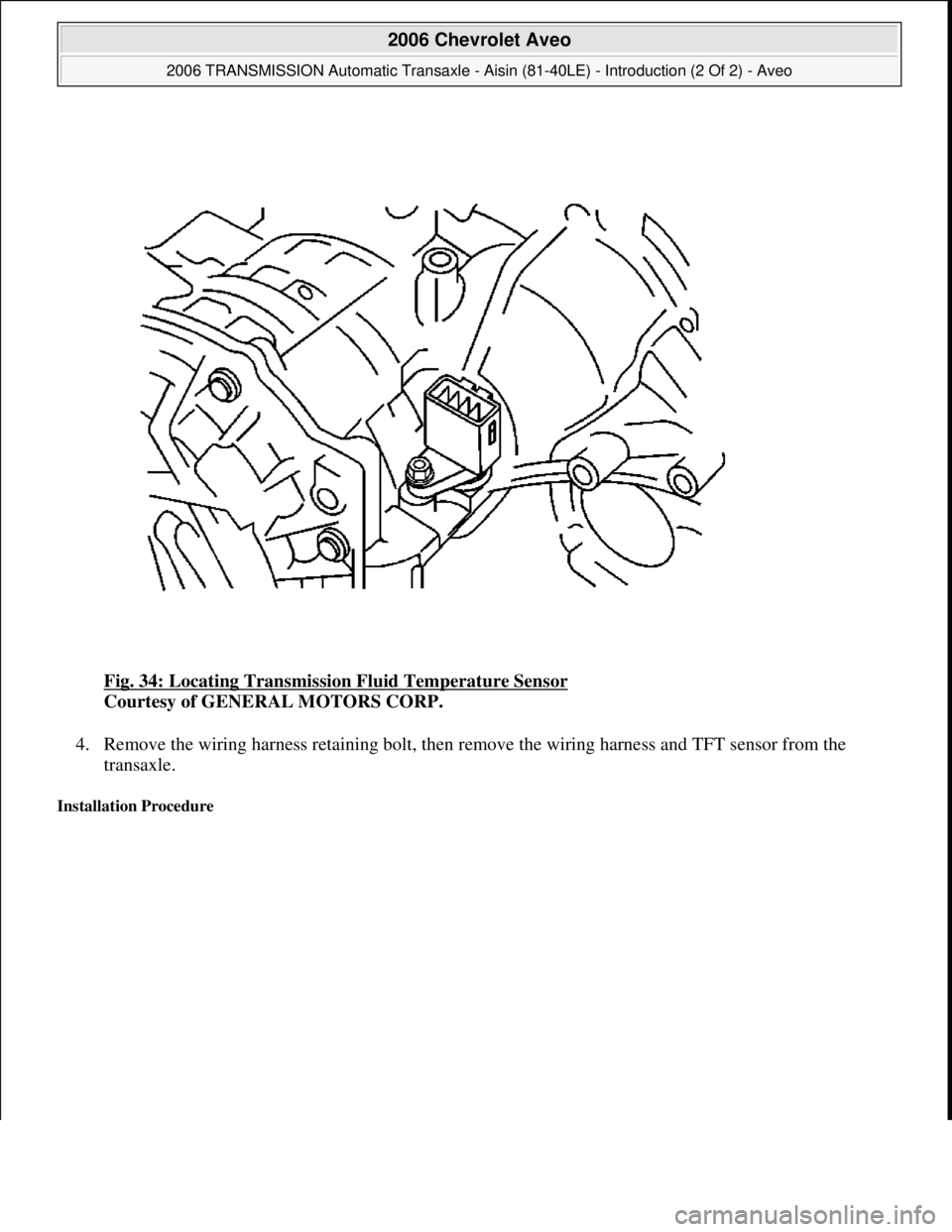

CHEVROLET AVEO 2002 Service Repair Manual Fig. 34: Locating Transmission Fluid Temperature Sensor Courtesy of GENERAL MOTORS CORP. 4. Remove the wiring harness retaining bolt, then remove the wiring harness and TFT sensor from the transaxl

Page 2596 of 5127

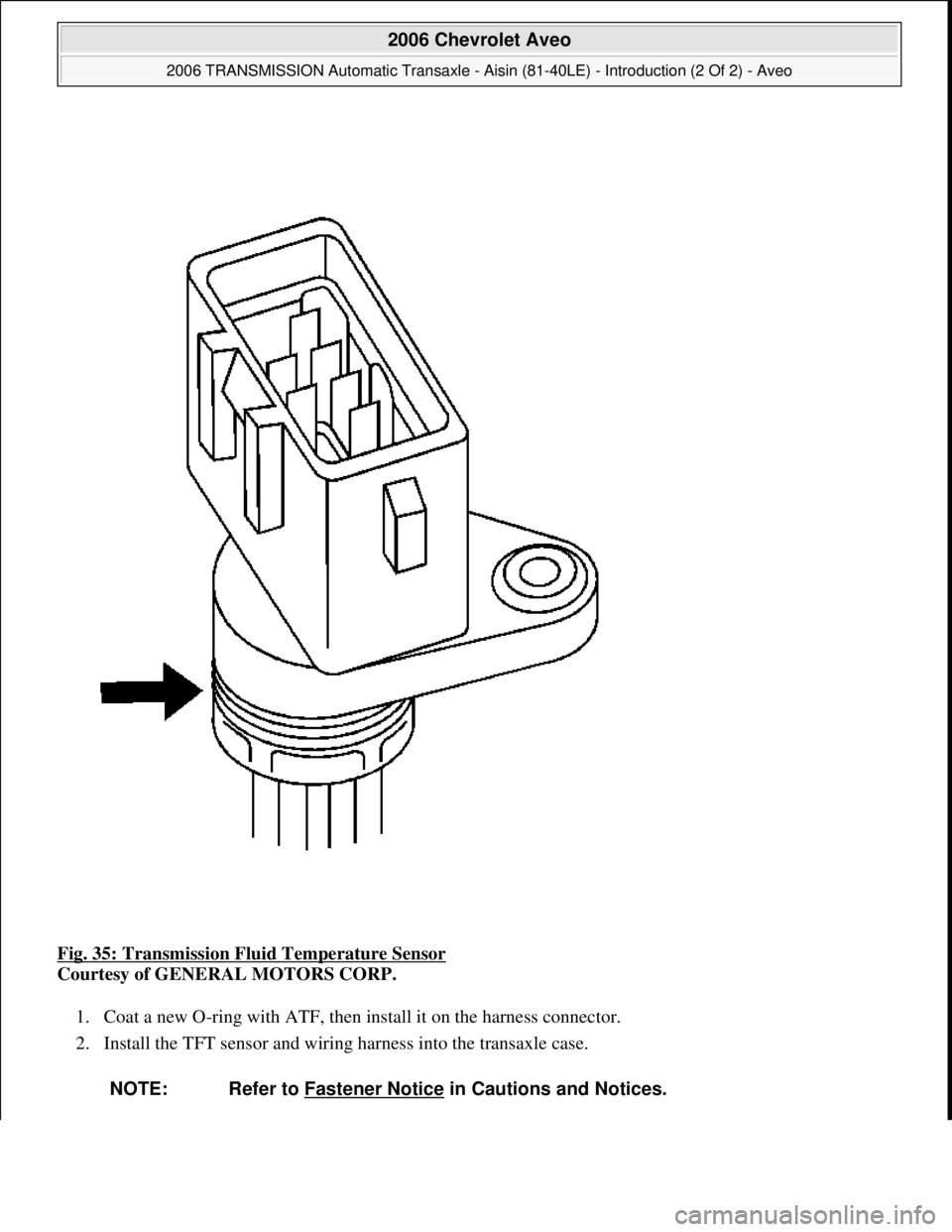

CHEVROLET AVEO 2002 Service Repair Manual Fig. 35: Transmission Fluid Temperature Sensor Courtesy of GENERAL MOTORS CORP. 1. Coat a new O-ring with ATF, then install it on the harness connector. 2. Install the TFT sensor and wiring harnes

Page 2597 of 5127

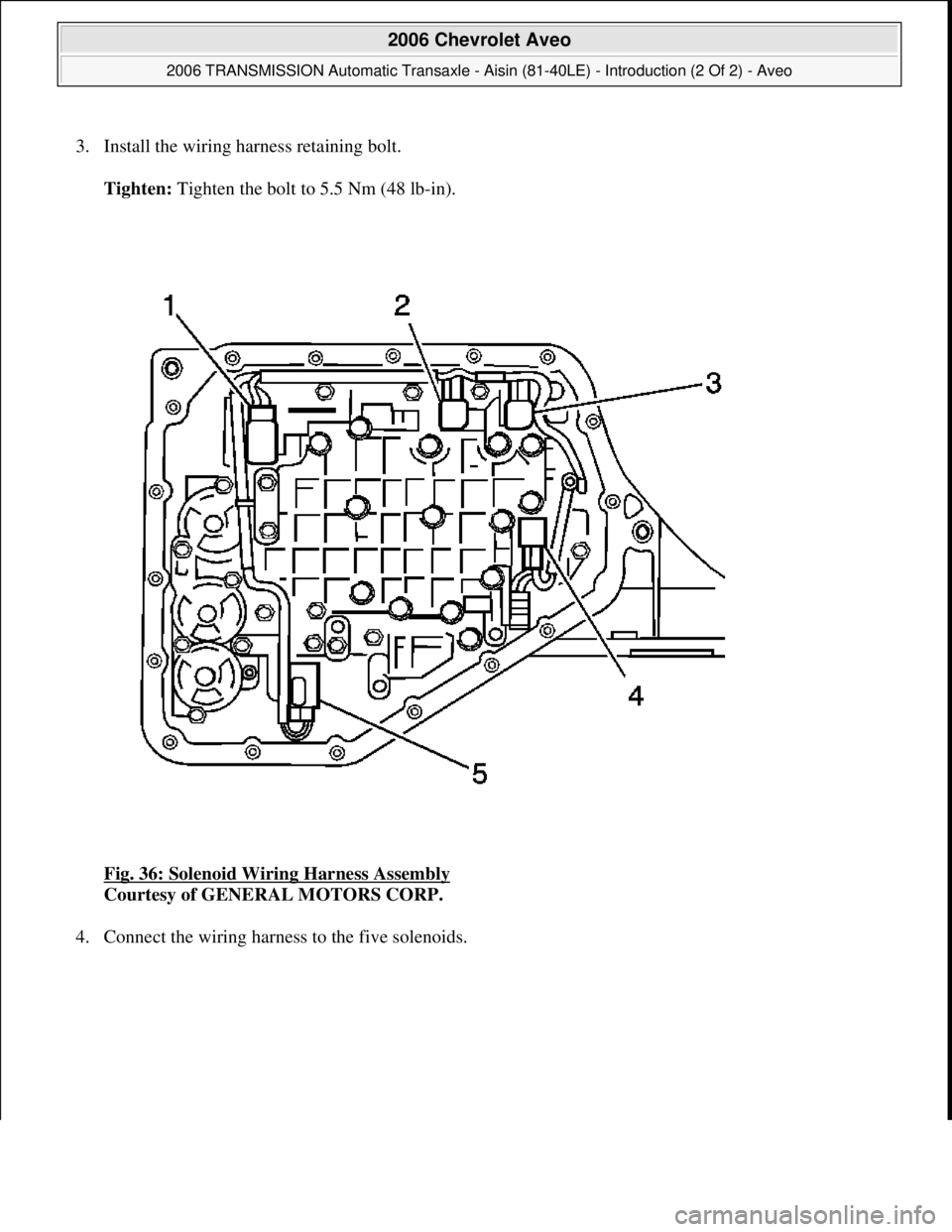

CHEVROLET AVEO 2002 Service Repair Manual 3. Install the wiring harness retaining bolt. Tighten: Tighten the bolt to 5.5 Nm (48 lb-in). Fig. 36: Solenoid Wiring Harness Assembly Courtesy of GENERAL MOTORS CORP. 4. Connect the wirin g har

Page 2598 of 5127

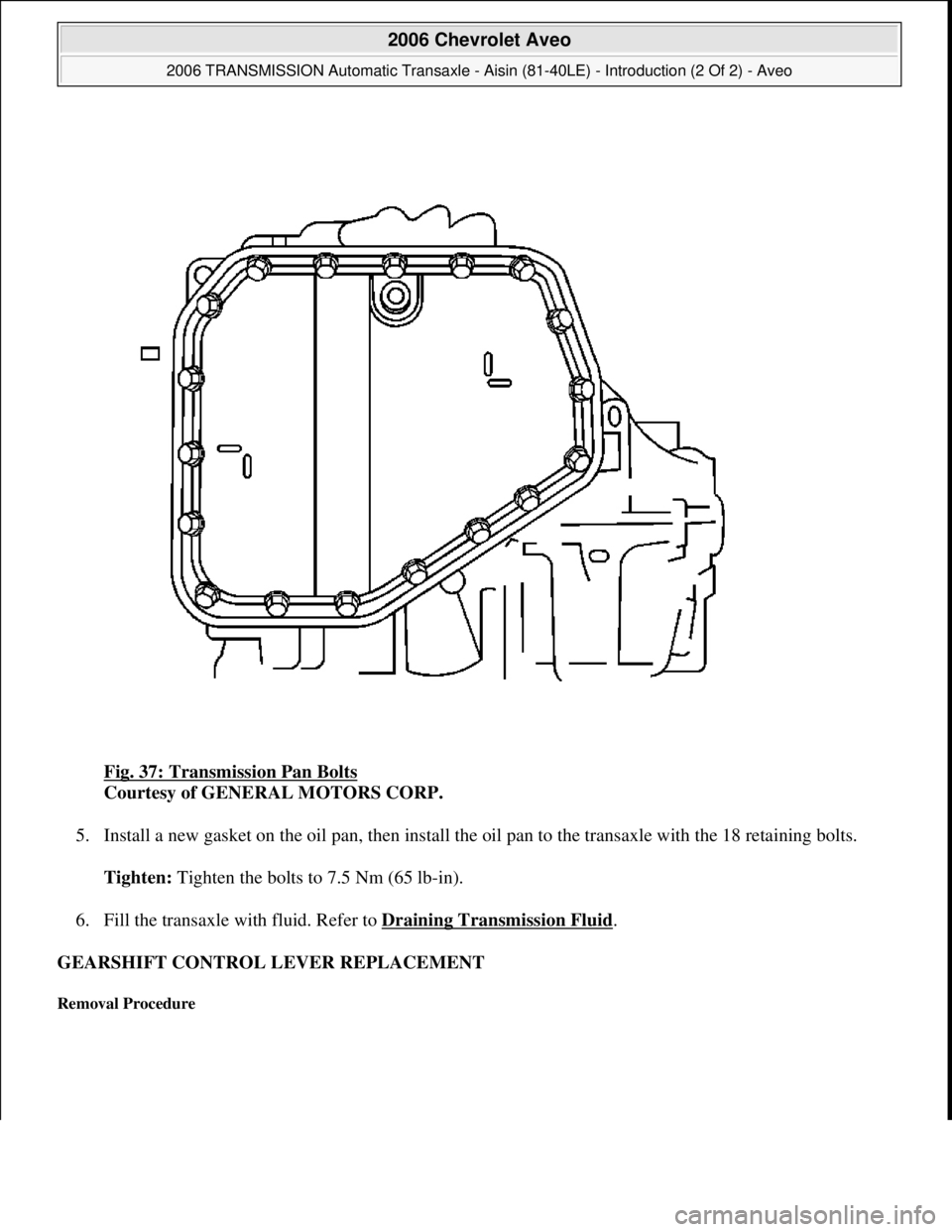

CHEVROLET AVEO 2002 Service Repair Manual Fig. 37: Transmission Pan Bolts Courtesy of GENERAL MOTORS CORP. 5. Install a new gasket on the oil pan, then install the oil pan to the transaxle with the 18 retaining bolts. Tighten: Tighten the

Page 2599 of 5127

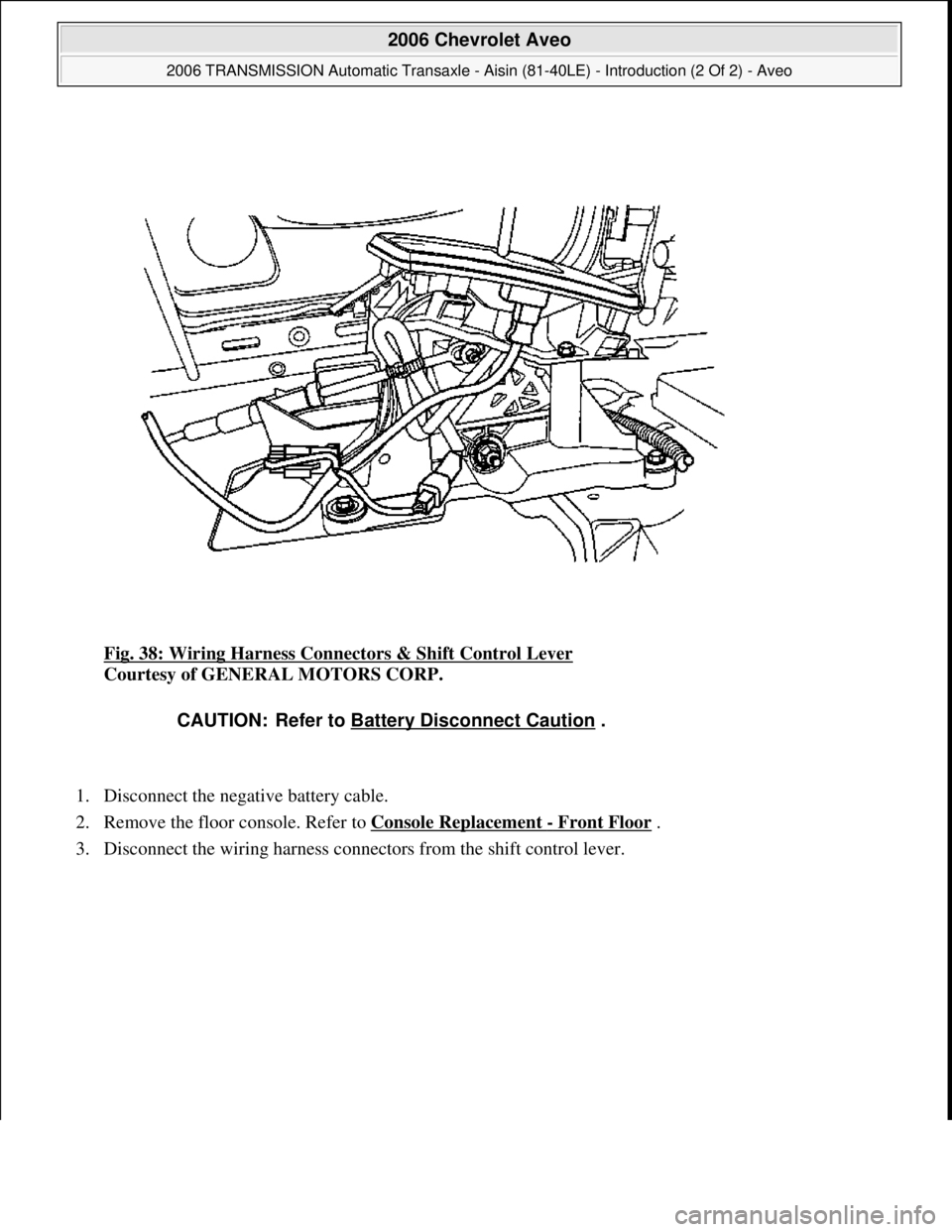

CHEVROLET AVEO 2002 Service Repair Manual Fig. 38: Wiring Harness Connectors & Shift Control Lever Courtesy of GENERAL MOTORS CORP. 1. Disconnect the negative battery cable. 2. Remove the floor console. Refer to Console Replacement - Fro

Page 2600 of 5127

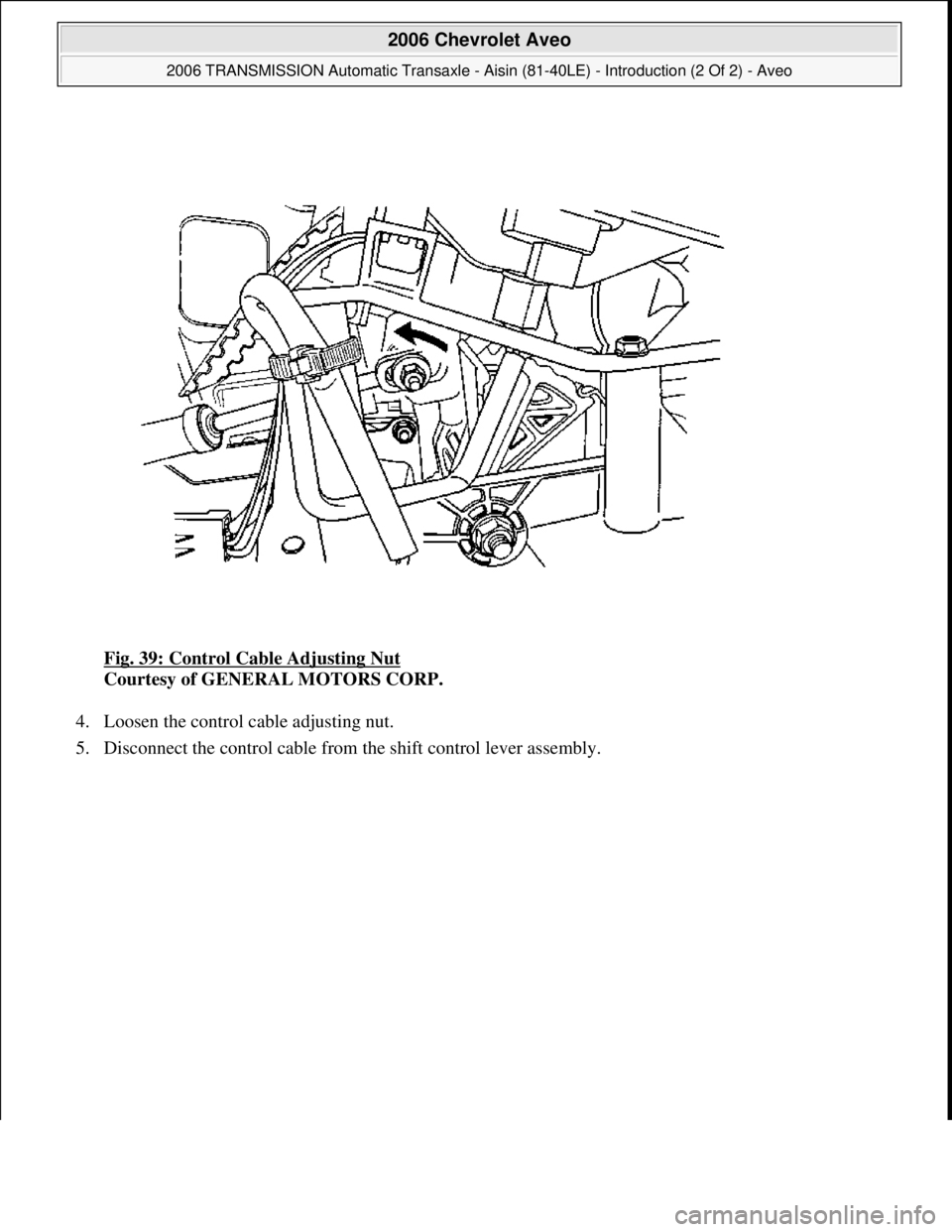

CHEVROLET AVEO 2002 Service Repair Manual Fig. 39: Control Cable Adjusting Nut Courtesy of GENERAL MOTORS CORP. 4. Loosen the control cable adjusting nut. 5. Disconnect the control cable from the shift control lever assembl y. 2006 Che
