Page 2673 of 5127

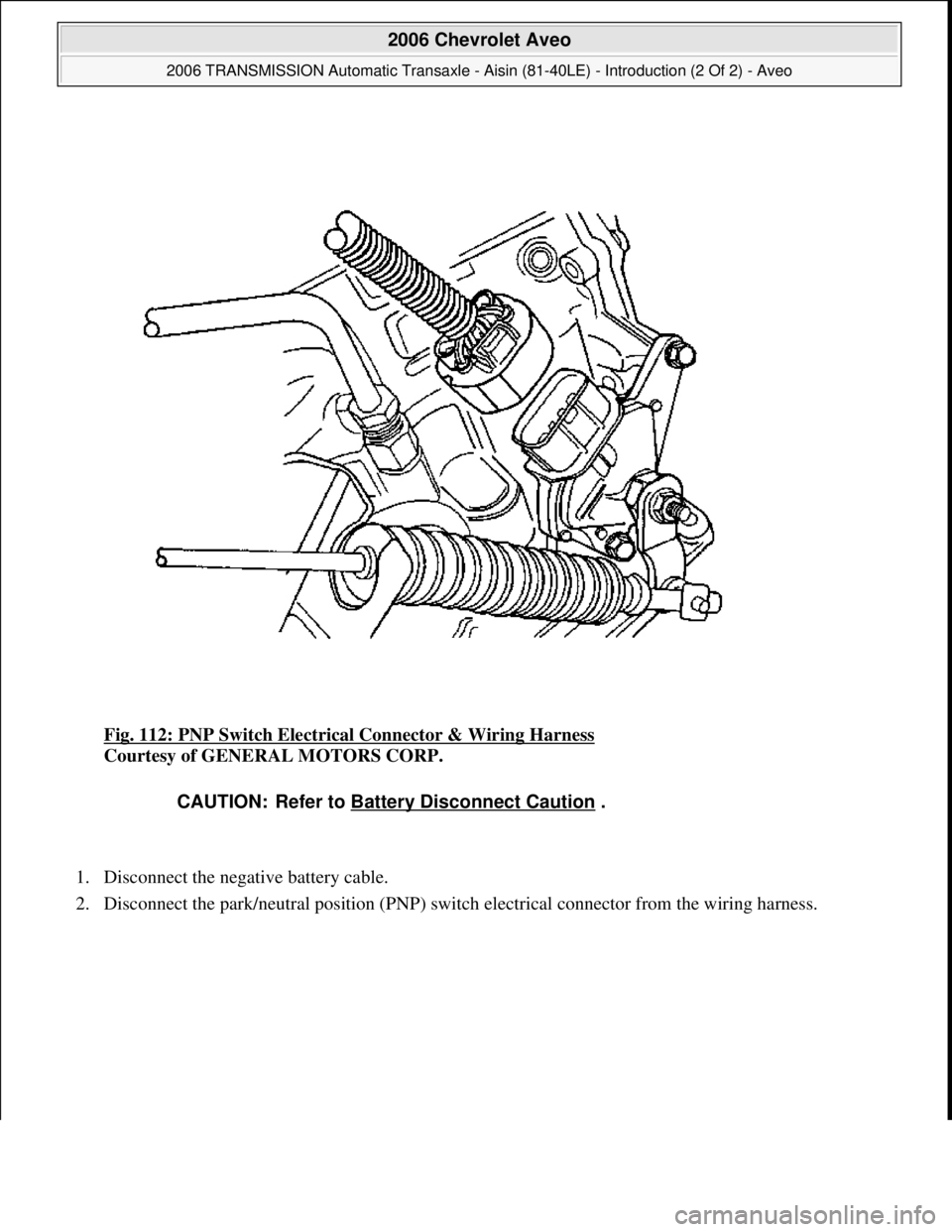

CHEVROLET AVEO 2002 Service Repair Manual Fig. 112: PNP Switch Electrical Connector & Wiring Harness Courtesy of GENERAL MOTORS CORP. 1. Disconnect the negative battery cable. 2. Disconnect the park/neutral position (PNP) switch electrica

Page 2674 of 5127

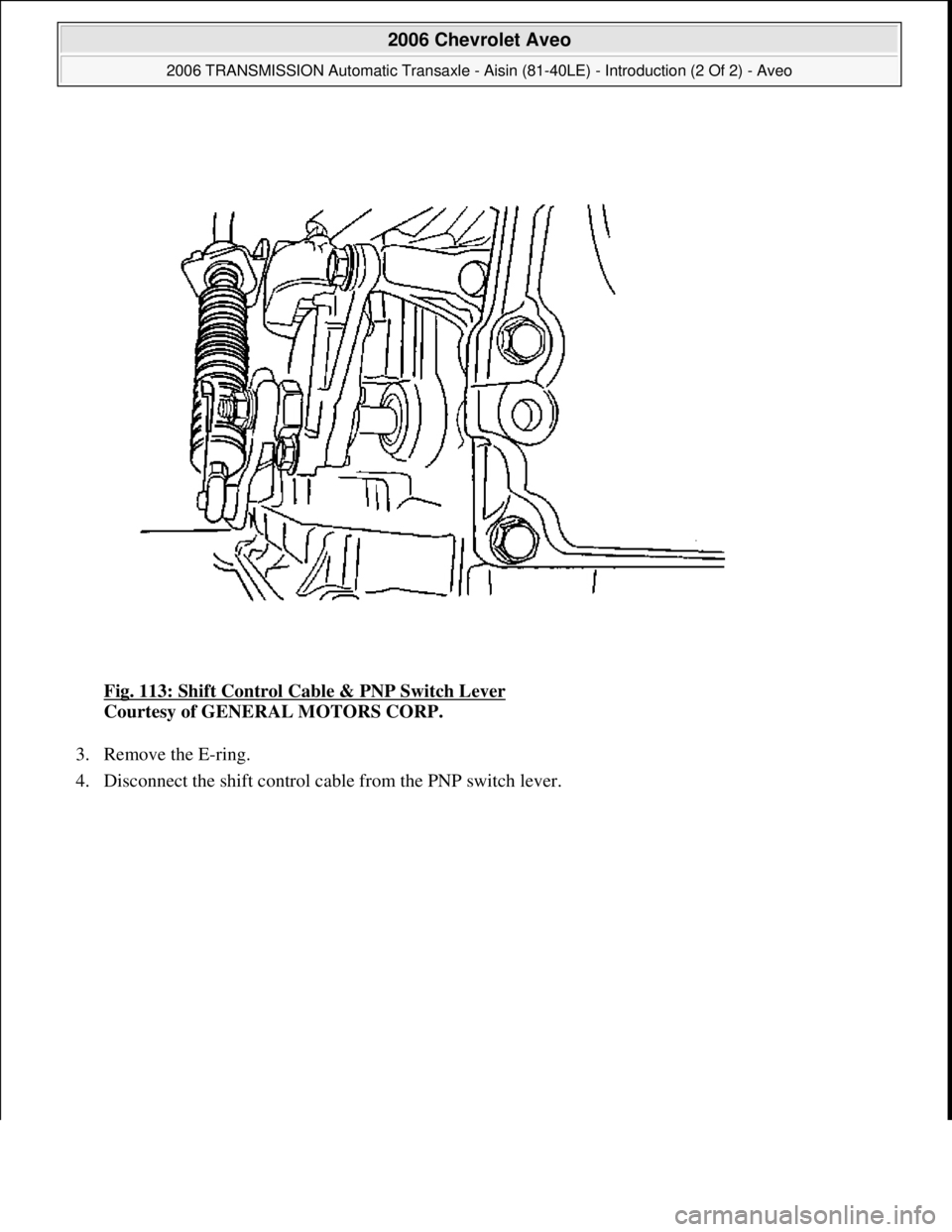

CHEVROLET AVEO 2002 Service Repair Manual Fig. 113: Shift Control Cable & PNP Switch Lever Courtesy of GENERAL MOTORS CORP. 3. Remove the E-ring. 4. Disconnect the shift control cable from the PNP switch lever. 2006 Chevrolet Aveo 200

Page 2675 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 114: Retaining Nut, Washer & Control Lever Courtesy of GENERAL MOTORS CORP. 5. Remove the retaining nut and then remove the washer and the control lever. 6. Using a driver, unstake the lock w

Page 2676 of 5127

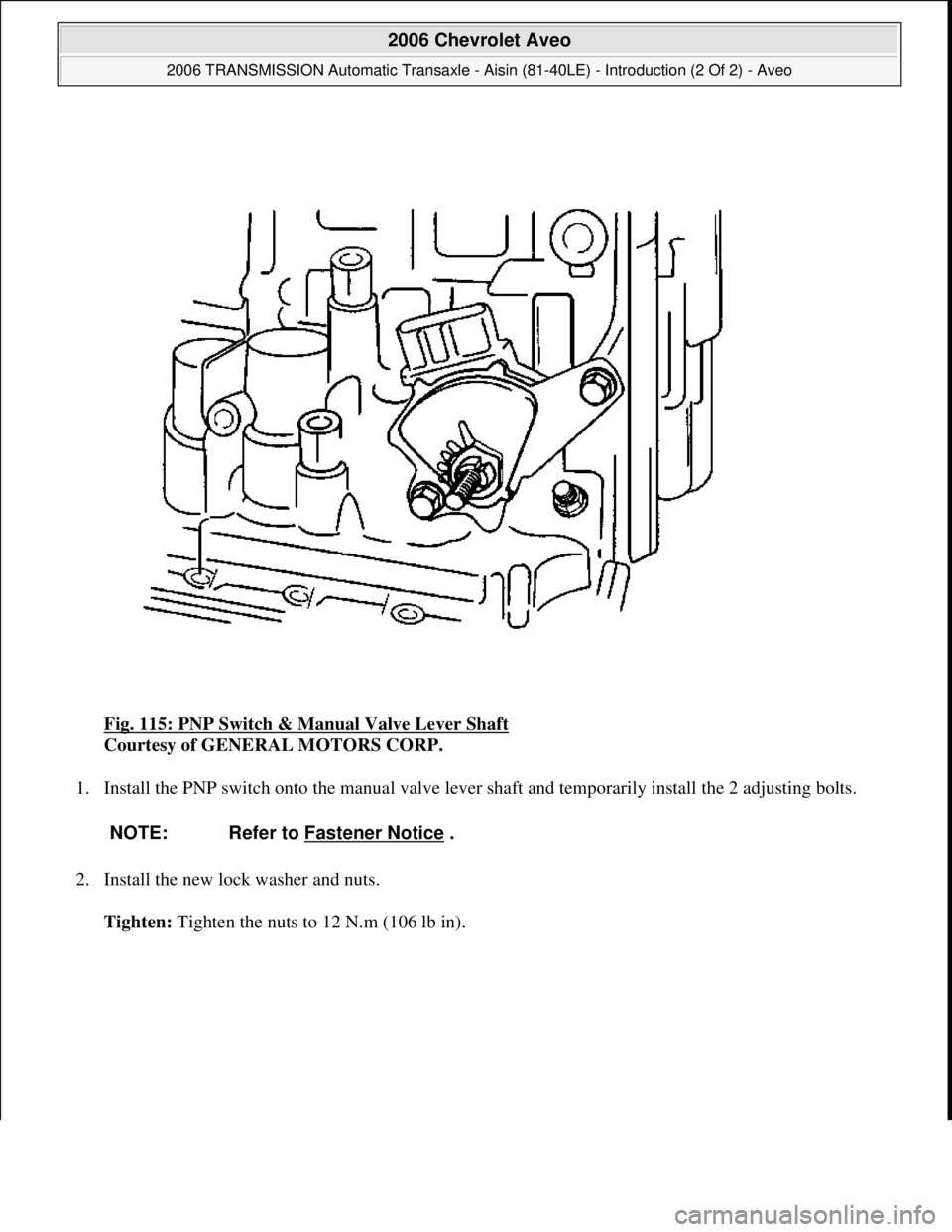

CHEVROLET AVEO 2002 Service Repair Manual Fig. 115: PNP Switch & Manual Valve Lever Shaft Courtesy of GENERAL MOTORS CORP. 1. Install the PNP switch onto the manual valve lever shaft and temporarily install the 2 adjusting bolts. 2. Instal

Page 2677 of 5127

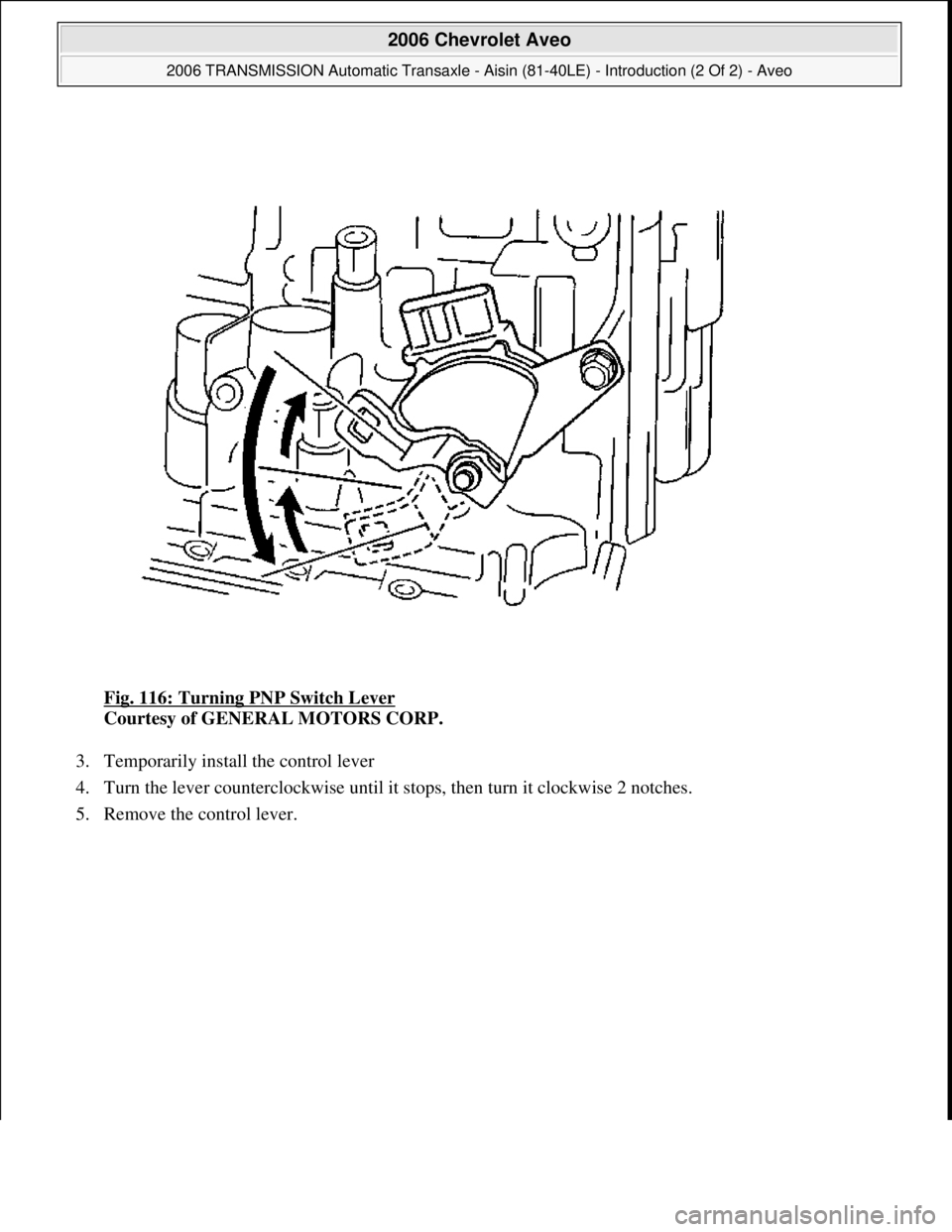

CHEVROLET AVEO 2002 Service Repair Manual Fig. 116: Turning PNP Switch Lever Courtesy of GENERAL MOTORS CORP. 3. Temporarily install the control lever 4. Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.

Page 2678 of 5127

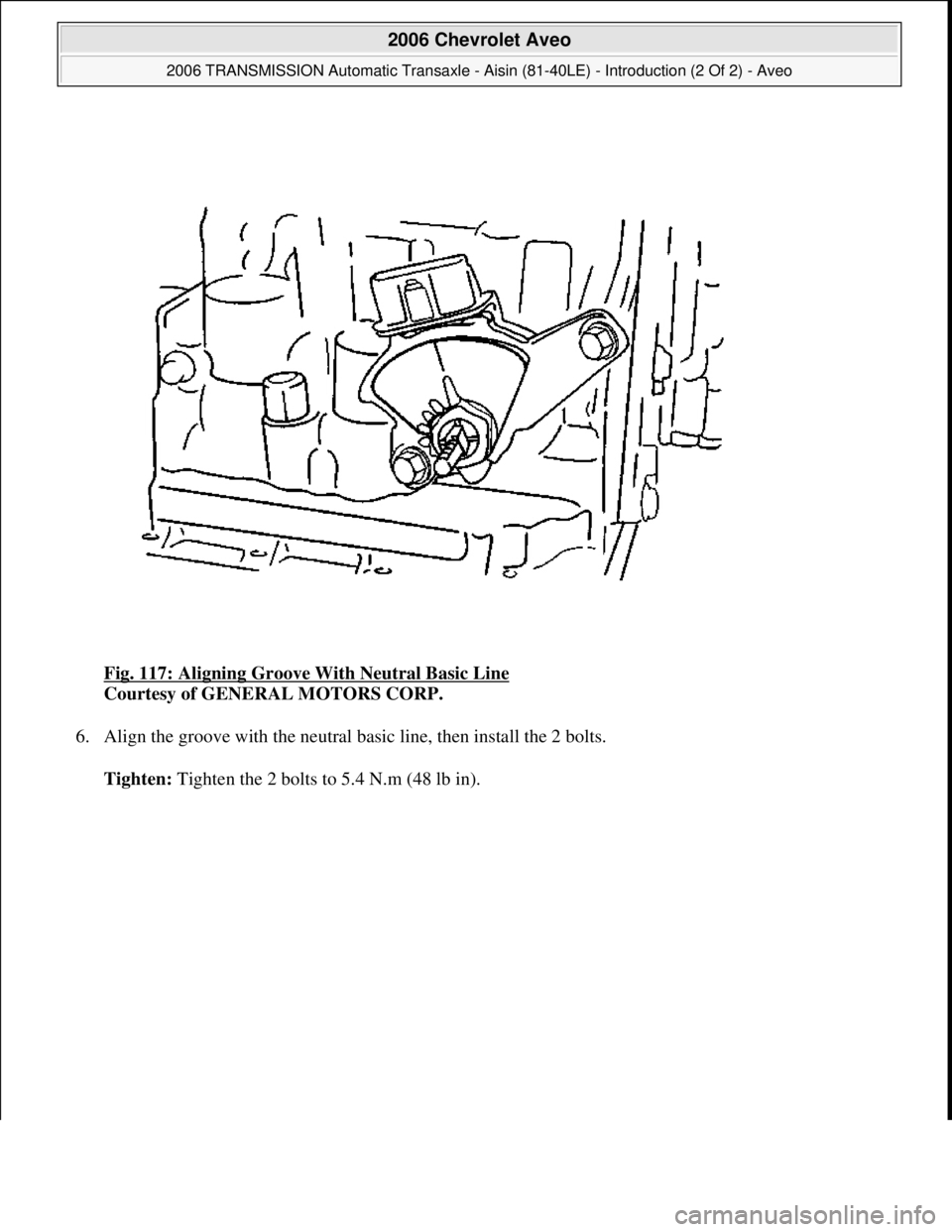

CHEVROLET AVEO 2002 Service Repair Manual Fig. 117: Aligning Groove With Neutral Basic Line Courtesy of GENERAL MOTORS CORP. 6. Align the groove with the neutral basic line, then install the 2 bolts. Tighten: Tighten the 2 bolts to 5.4 N.m

Page 2679 of 5127

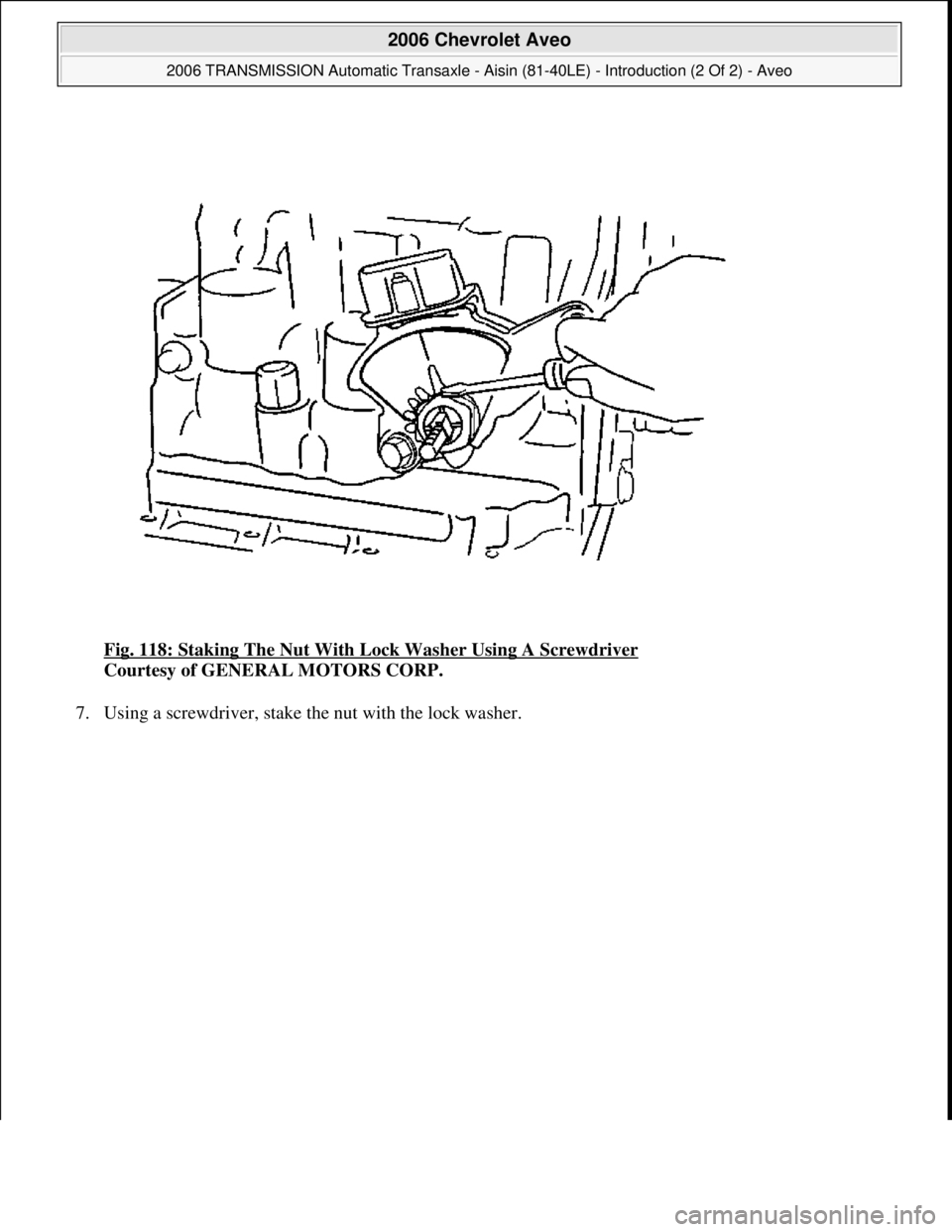

CHEVROLET AVEO 2002 Service Repair Manual Fig. 118: Staking The Nut With Lock Washer Using A Screwdriver Courtesy of GENERAL MOTORS CORP. 7. Usin g a screwdriver, stake the nut with the lock washer. 2006 Chevrolet Aveo 2006 TRANSMISSION

Page 2680 of 5127

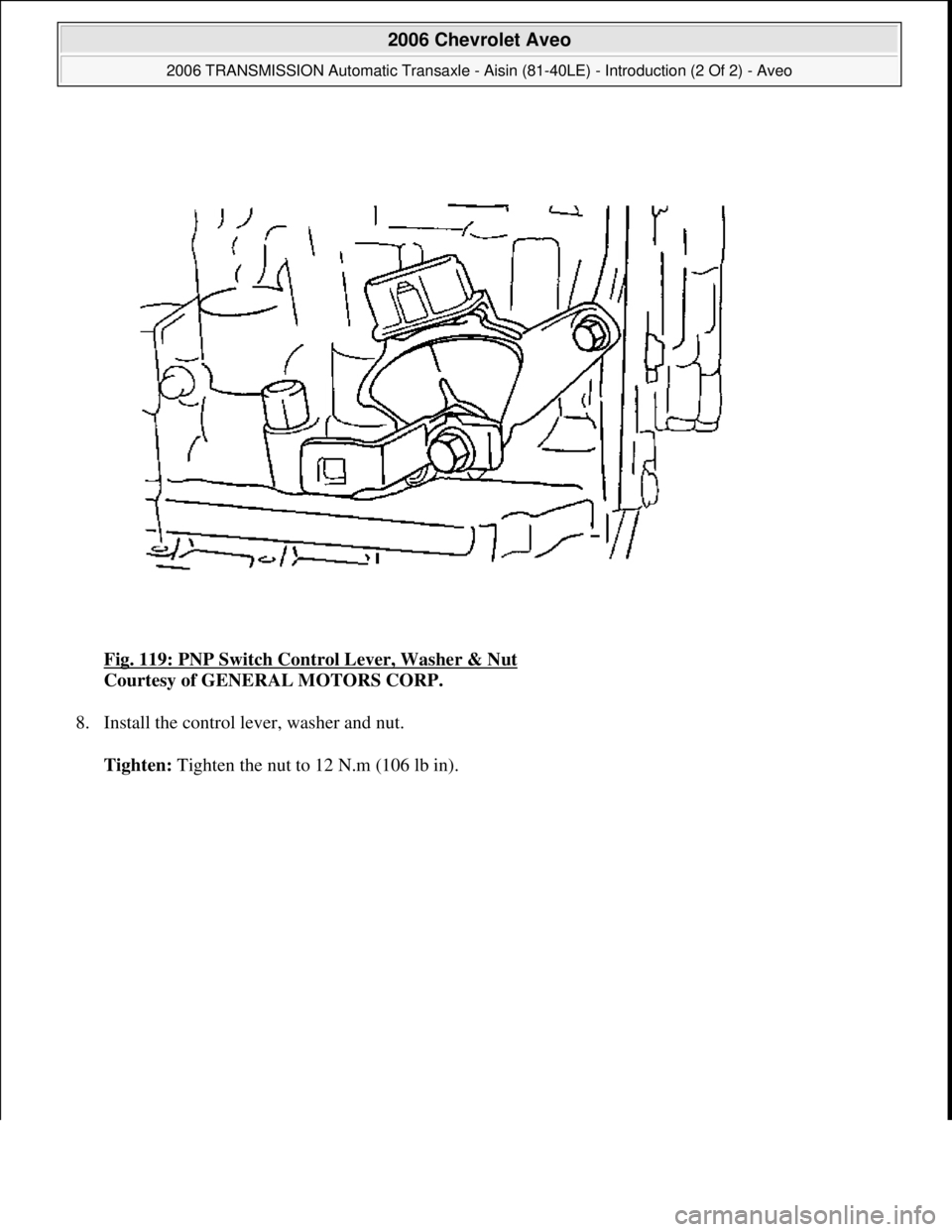

CHEVROLET AVEO 2002 Service Repair Manual Fig. 119: PNP Switch Control Lever, Washer & Nut Courtesy of GENERAL MOTORS CORP. 8. Install the control lever, washer and nut. Tighten: Tighten the nut to 12 N.m (106 lb in). 2006 Chevrolet Aveo
