Page 2945 of 5127

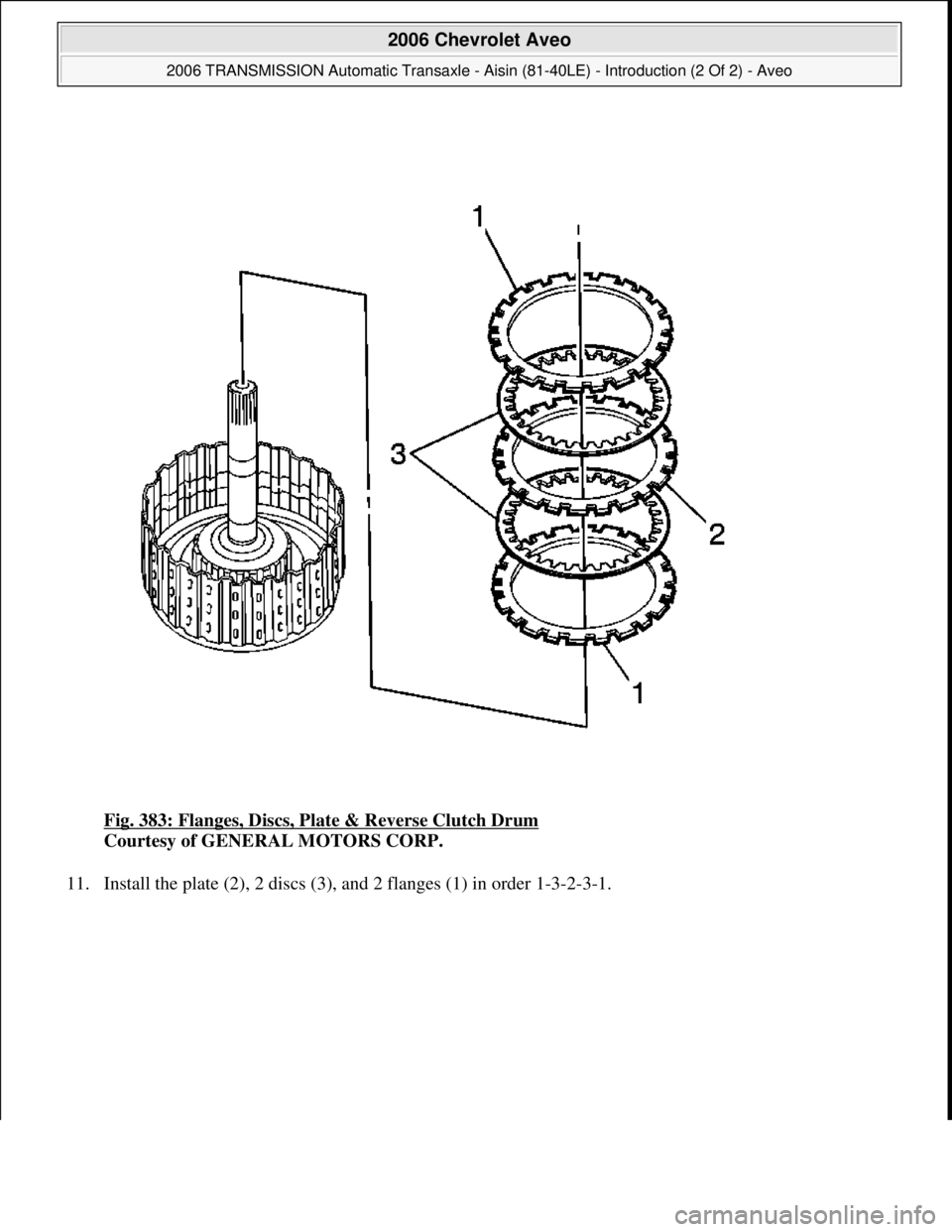

CHEVROLET AVEO 2002 Service Repair Manual Fig. 383: Flanges, Discs, Plate & Reverse Clutch Drum Courtesy of GENERAL MOTORS CORP. 11. Install the plate (2), 2 discs (3), and 2 flan ges (1) in order 1-3-2-3-1. 2006 Chevrolet Aveo 2006 TRA

Page 2946 of 5127

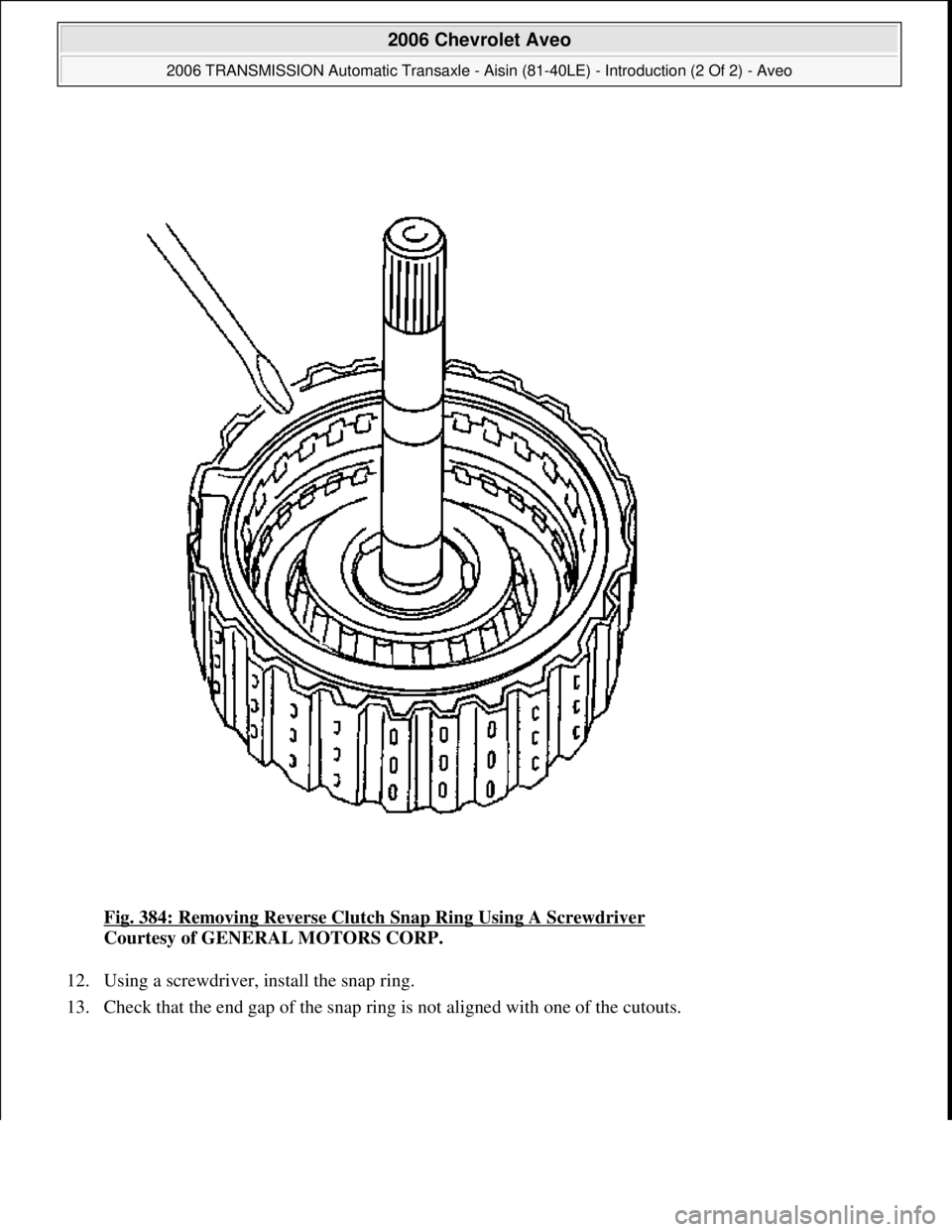

CHEVROLET AVEO 2002 Service Repair Manual Fig. 384: Removing Reverse Clutch Snap Ring Using A Screwdriver Courtesy of GENERAL MOTORS CORP. 12. Using a screwdriver, install the snap ring. 13. Check that the end gap of the snap ring is not

Page 2947 of 5127

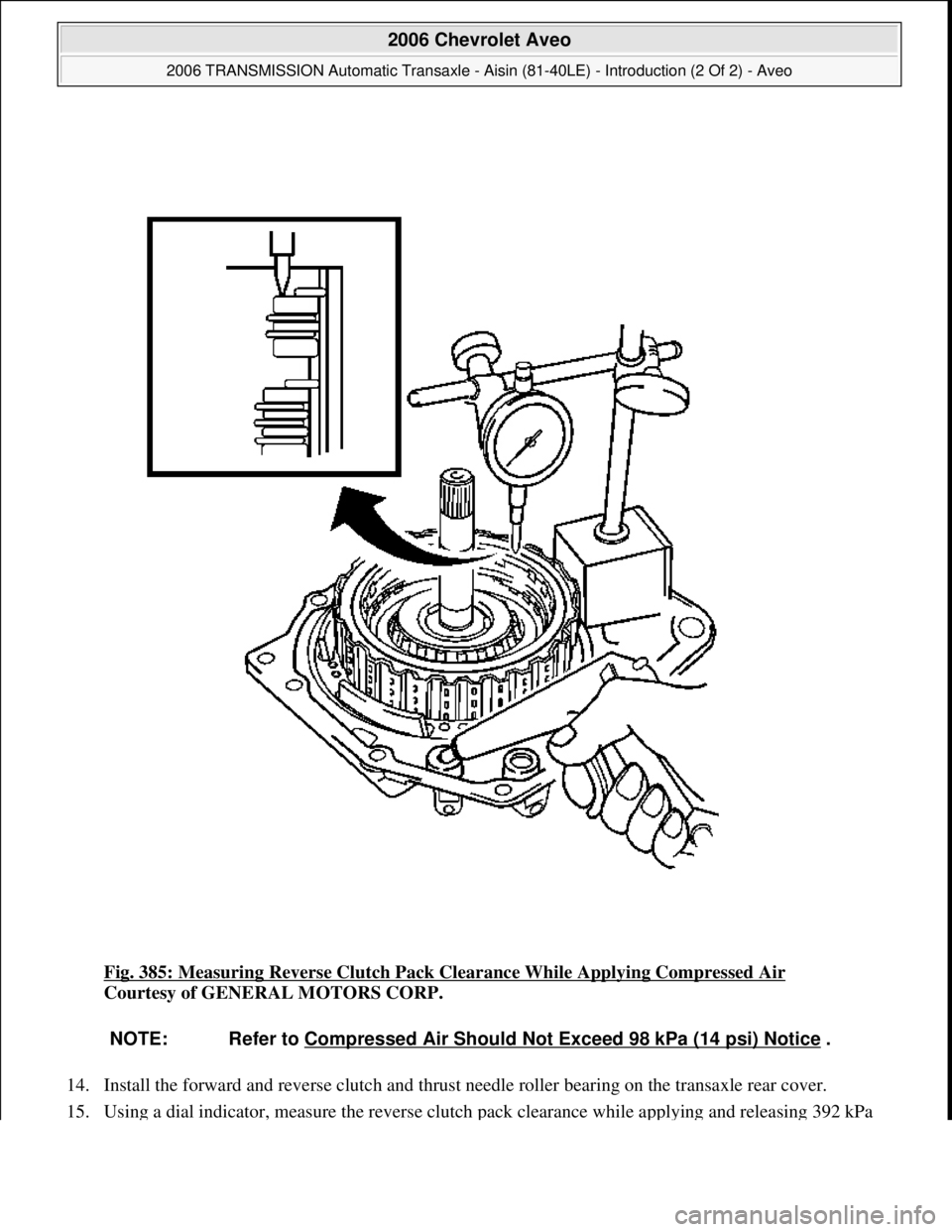

CHEVROLET AVEO 2002 Service Repair Manual Fig. 385: Measuring Reverse Clutch Pack Clearance While Applying Compressed Air Courtesy of GENERAL MOTORS CORP. 14. Install the forward and reverse clutch and thrust needle roller bearing on the tr

Page 2948 of 5127

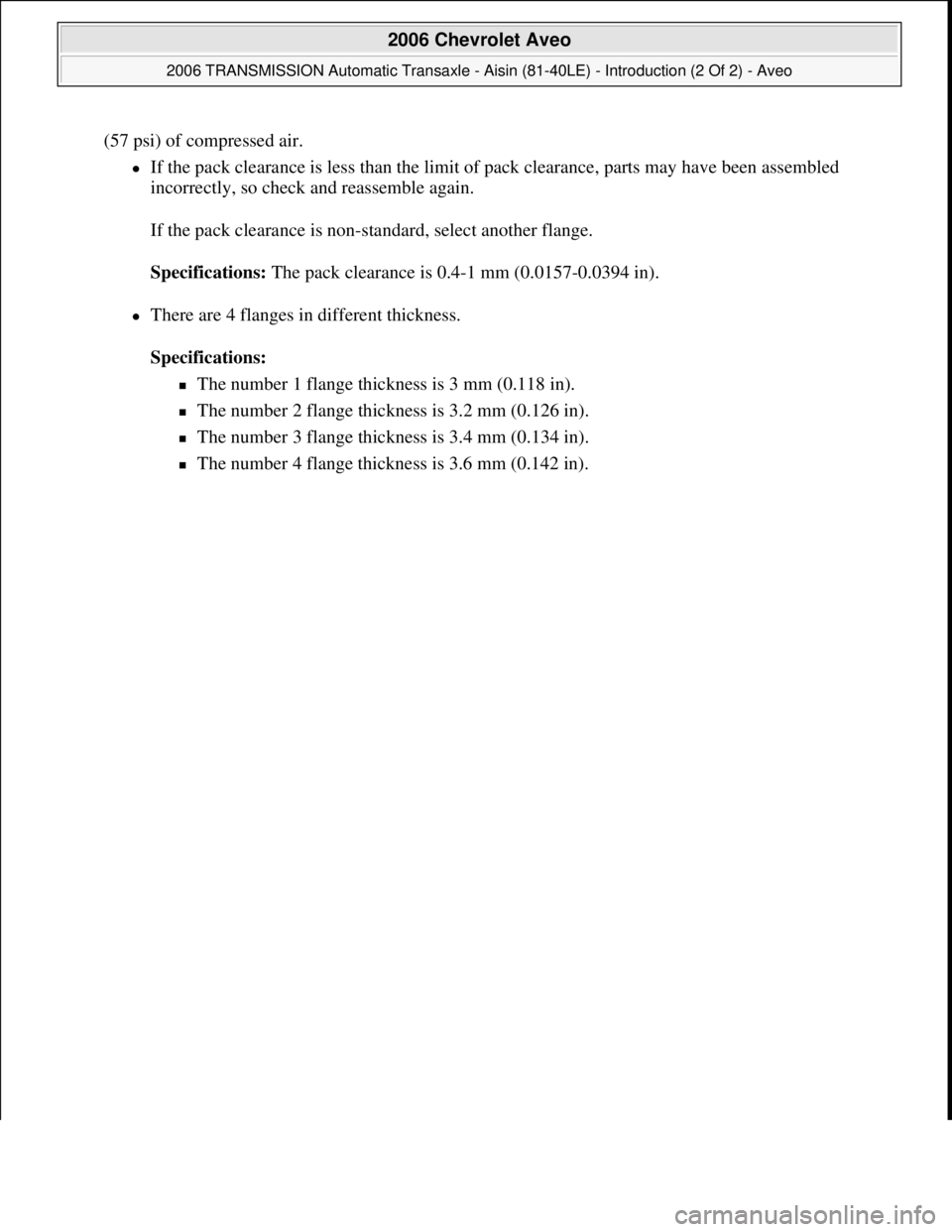

CHEVROLET AVEO 2002 Service Repair Manual (57 psi) of compressed air. If the pack clearance is less than the limit of pack clearance, parts may have been assembled incorrectly, so check and reassemble again. If the pack clearance is non

Page 2949 of 5127

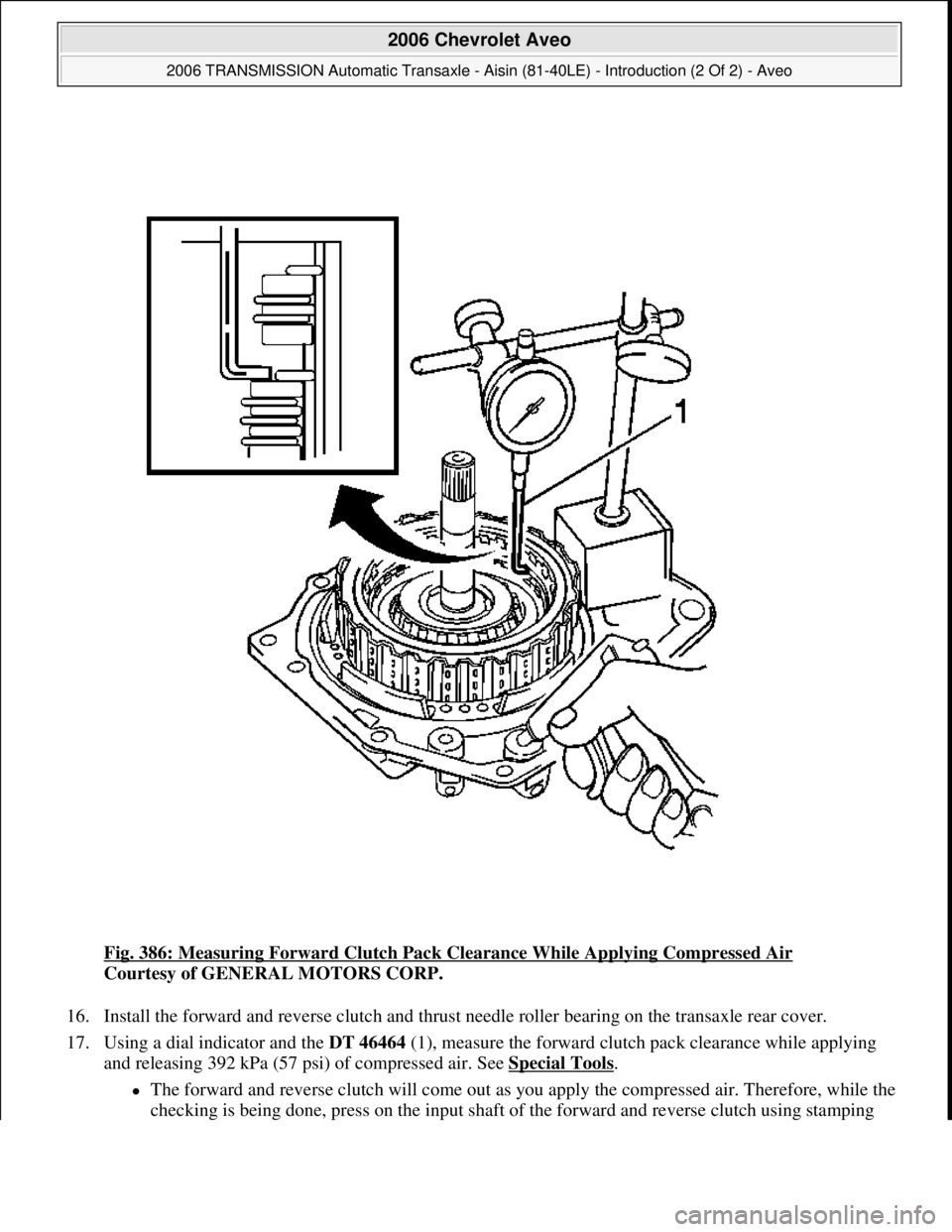

CHEVROLET AVEO 2002 Service Repair Manual Fig. 386: Measuring Forward Clutch Pack Clearance While Applying Compressed Air Courtesy of GENERAL MOTORS CORP. 16. Install the forward and reverse clutch and thrust needle roller bearing on the tr

Page 2950 of 5127

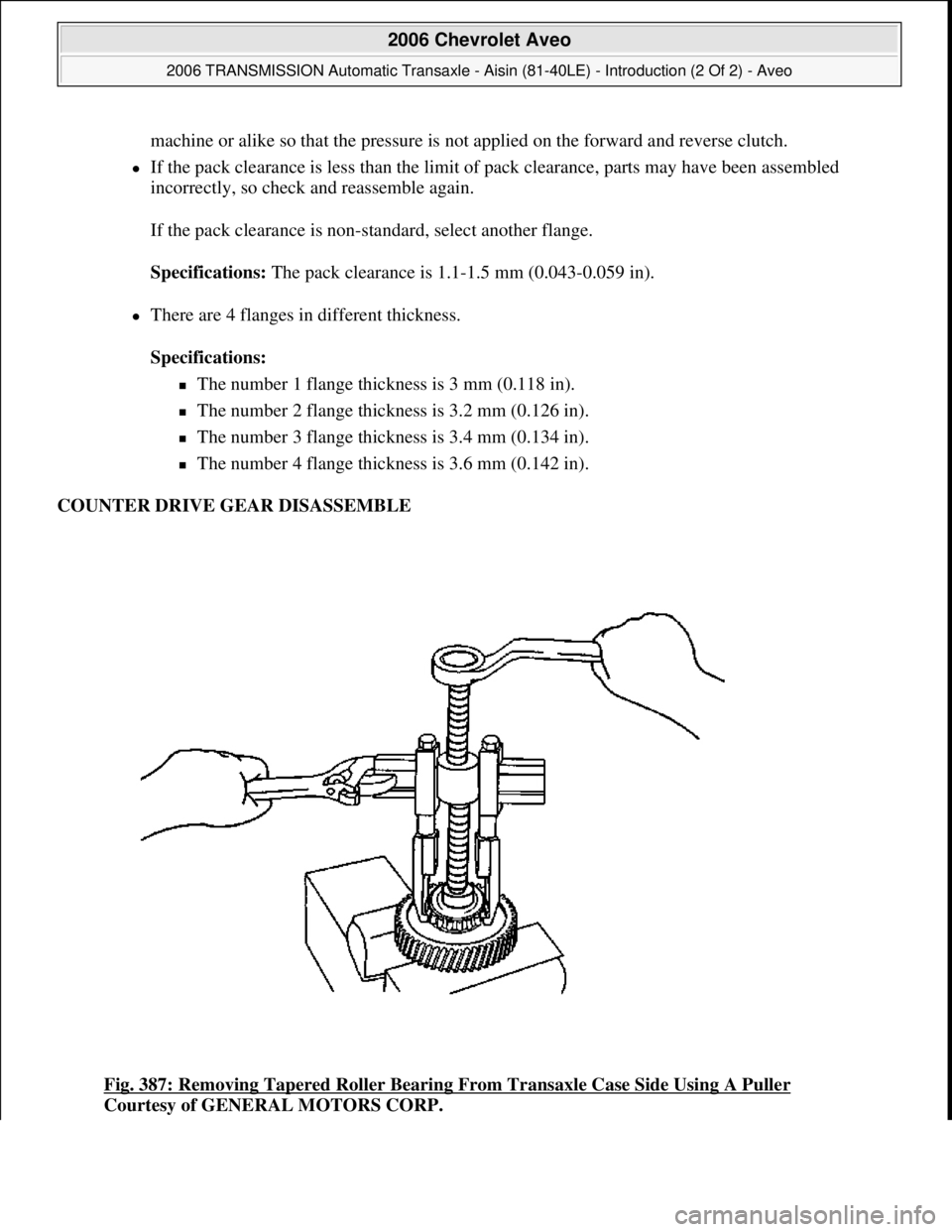

CHEVROLET AVEO 2002 Service Repair Manual machine or alike so that the pressure is not applied on the forward and reverse clutch. If the pack clearance is less than the limit of pack clearance, parts may have been assembled incorrectly,

Page 2951 of 5127

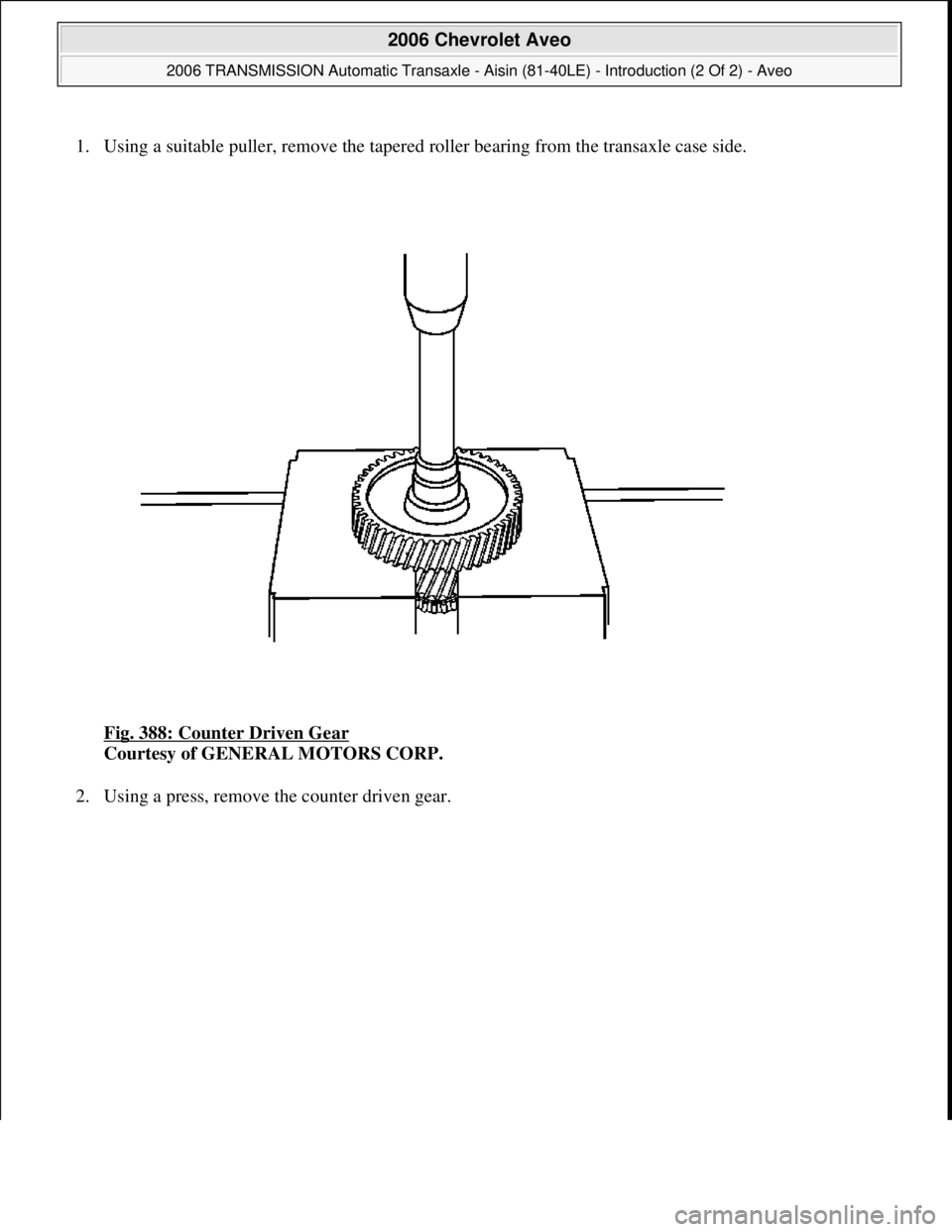

CHEVROLET AVEO 2002 Service Repair Manual 1. Using a suitable puller, remove the tapered roller bearing from the transaxle case side. Fig. 388: Counter Driven Gear Courtesy of GENERAL MOTORS CORP. 2. Usin g a press, remove the counter dri

Page 2952 of 5127

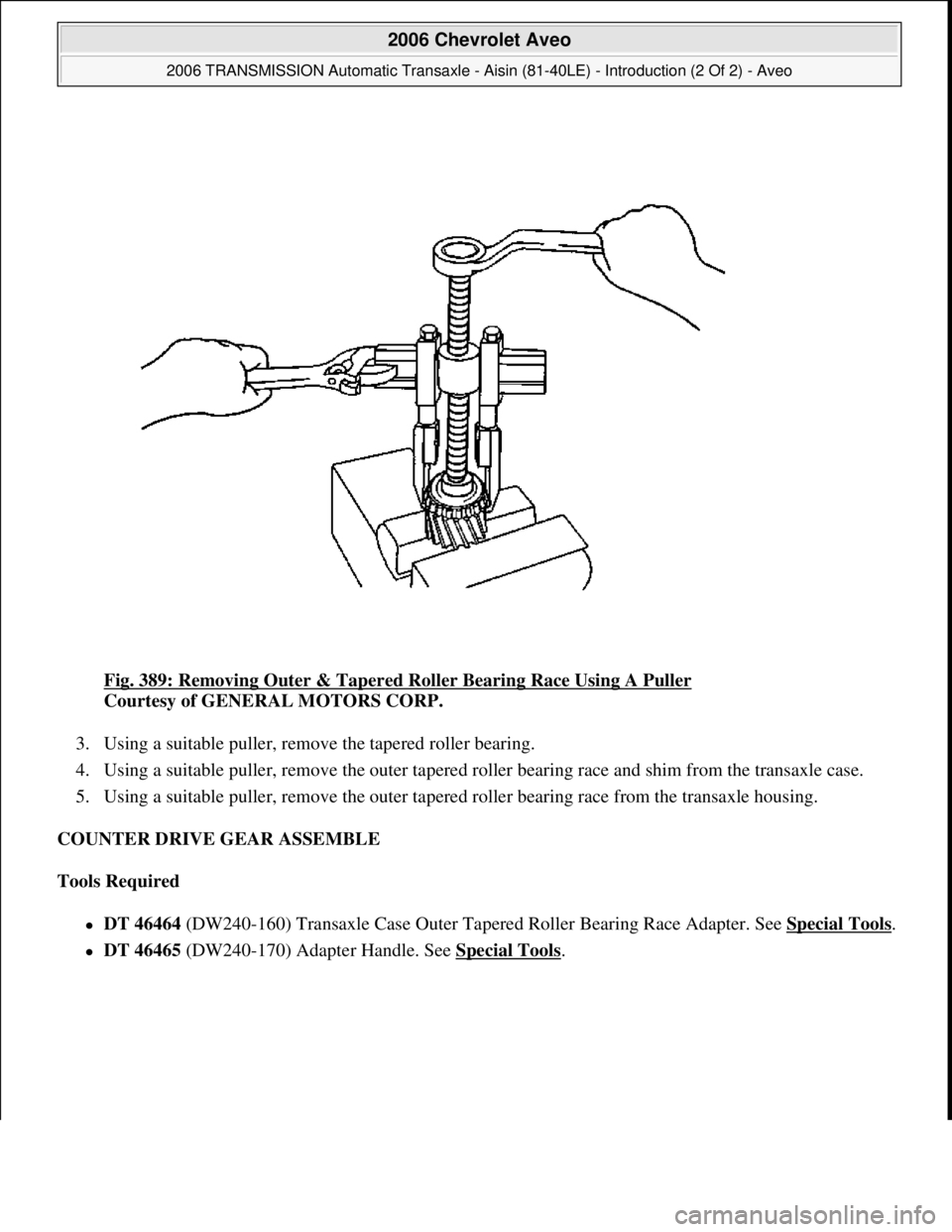

CHEVROLET AVEO 2002 Service Repair Manual Fig. 389: Removing Outer & Tapered Roller Bearing Race Using A Puller Courtesy of GENERAL MOTORS CORP. 3. Using a suitable puller, remove the tapered roller bearing. 4. Using a suitable puller, re
