Page 2609 of 5127

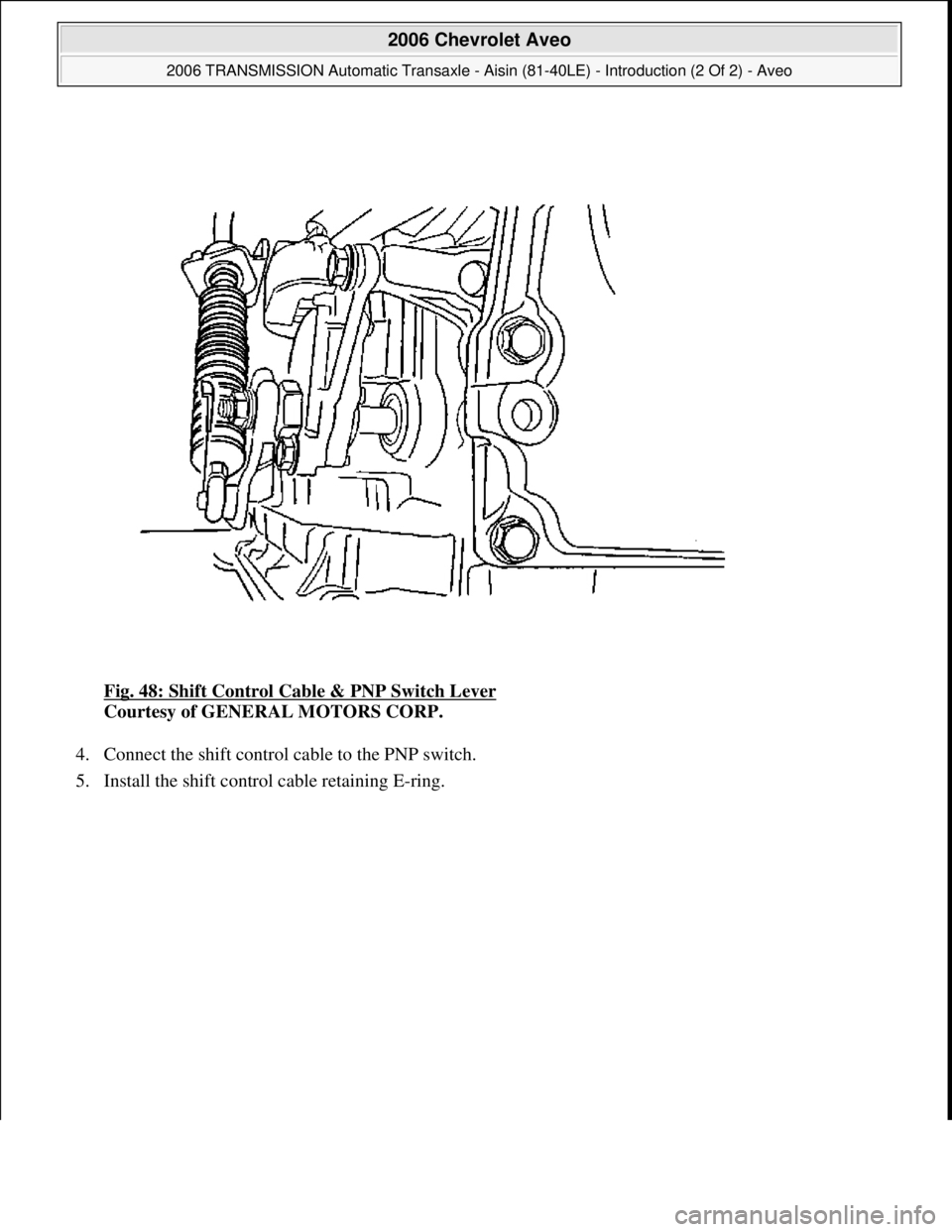

CHEVROLET AVEO 2002 Service Repair Manual Fig. 48: Shift Control Cable & PNP Switch Lever Courtesy of GENERAL MOTORS CORP. 4. Connect the shift control cable to the PNP switch. 5. Install the shift control cable retainin g E-ring. 2006

Page 2610 of 5127

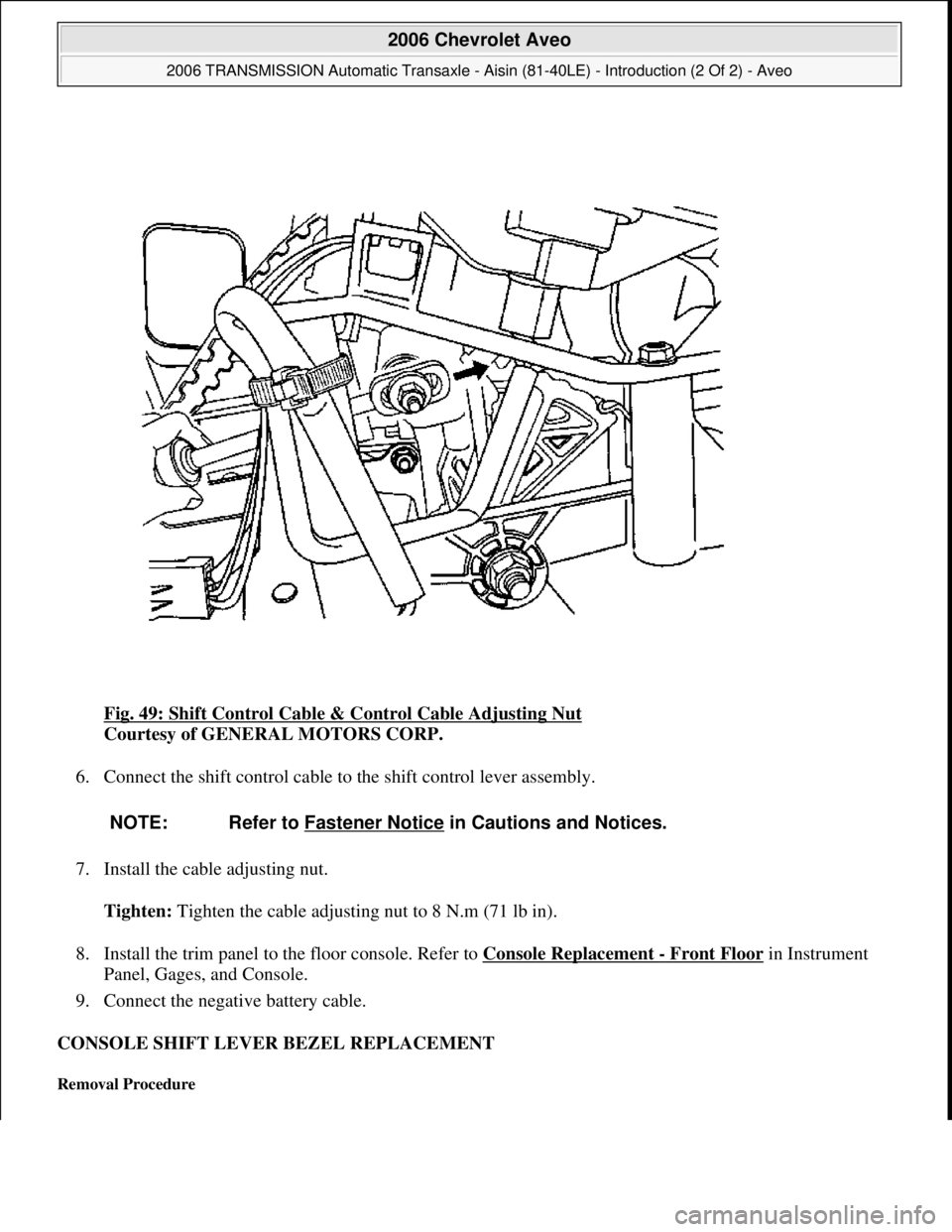

CHEVROLET AVEO 2002 Service Repair Manual Fig. 49: Shift Control Cable & Control Cable Adjusting Nut Courtesy of GENERAL MOTORS CORP. 6. Connect the shift control cable to the shift control lever assembly. 7. Install the cable adjusting nu

Page 2611 of 5127

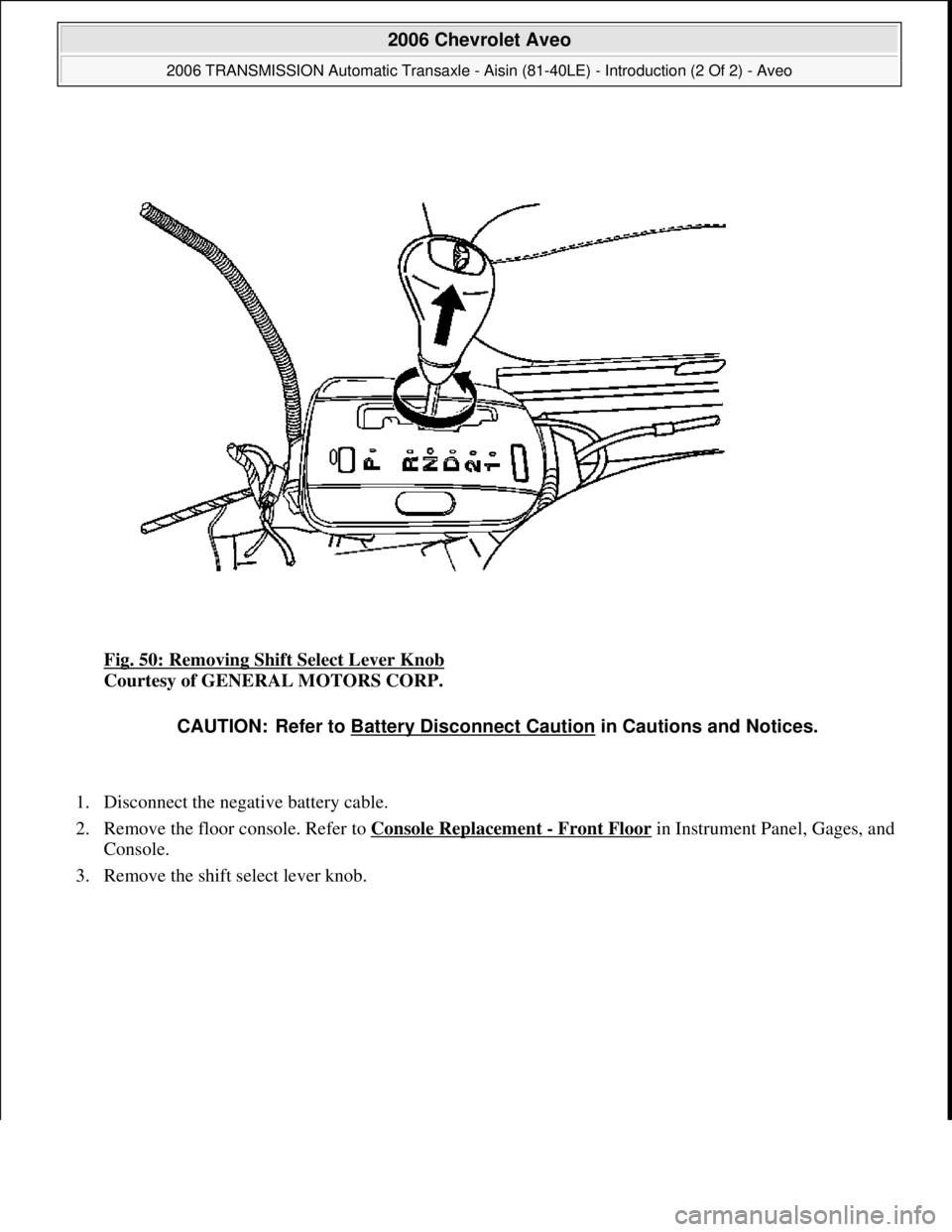

CHEVROLET AVEO 2002 Service Repair Manual Fig. 50: Removing Shift Select Lever Knob Courtesy of GENERAL MOTORS CORP. 1. Disconnect the negative battery cable. 2. Remove the floor console. Refer to Console Replacement - Front Floorin Inst

Page 2612 of 5127

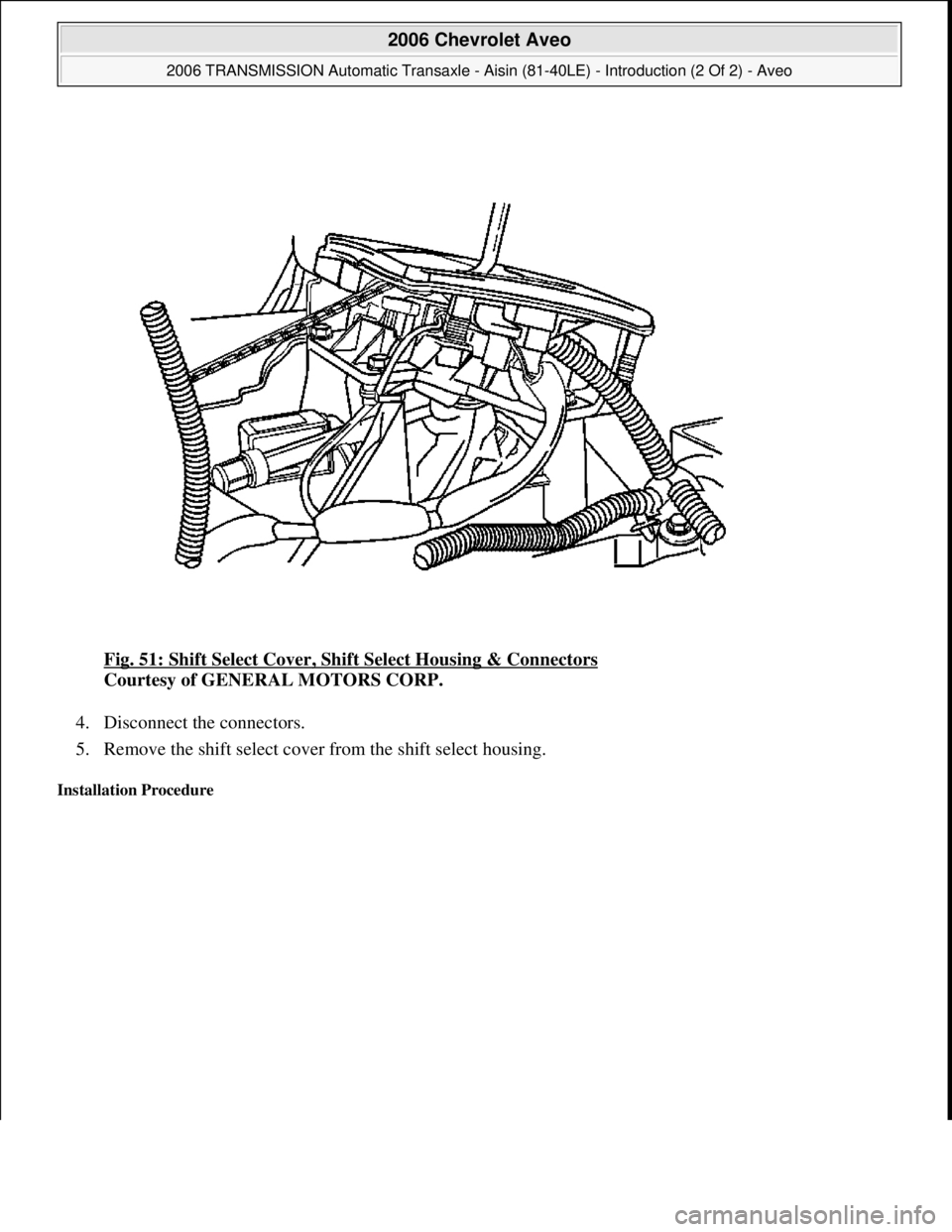

CHEVROLET AVEO 2002 Service Repair Manual Fig. 51: Shift Select Cover, Shift Select Housing & Connectors Courtesy of GENERAL MOTORS CORP. 4. Disconnect the connectors. 5. Remove the shift select cover from the shift select housing. Inst

Page 2613 of 5127

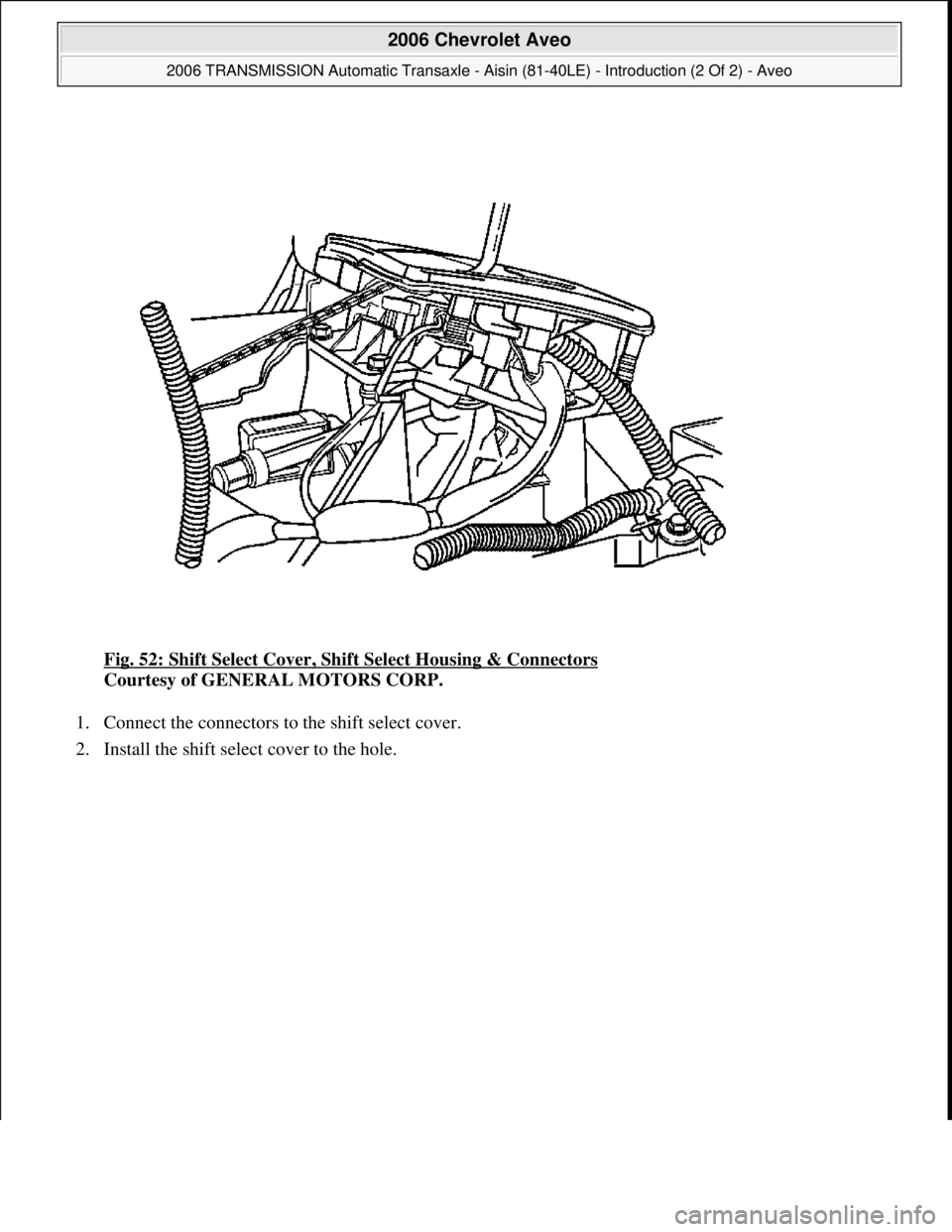

CHEVROLET AVEO 2002 Service Repair Manual Fig. 52: Shift Select Cover, Shift Select Housing & Connectors Courtesy of GENERAL MOTORS CORP. 1. Connect the connectors to the shift select cover. 2. Install the shift select cover to the hole.

Page 2614 of 5127

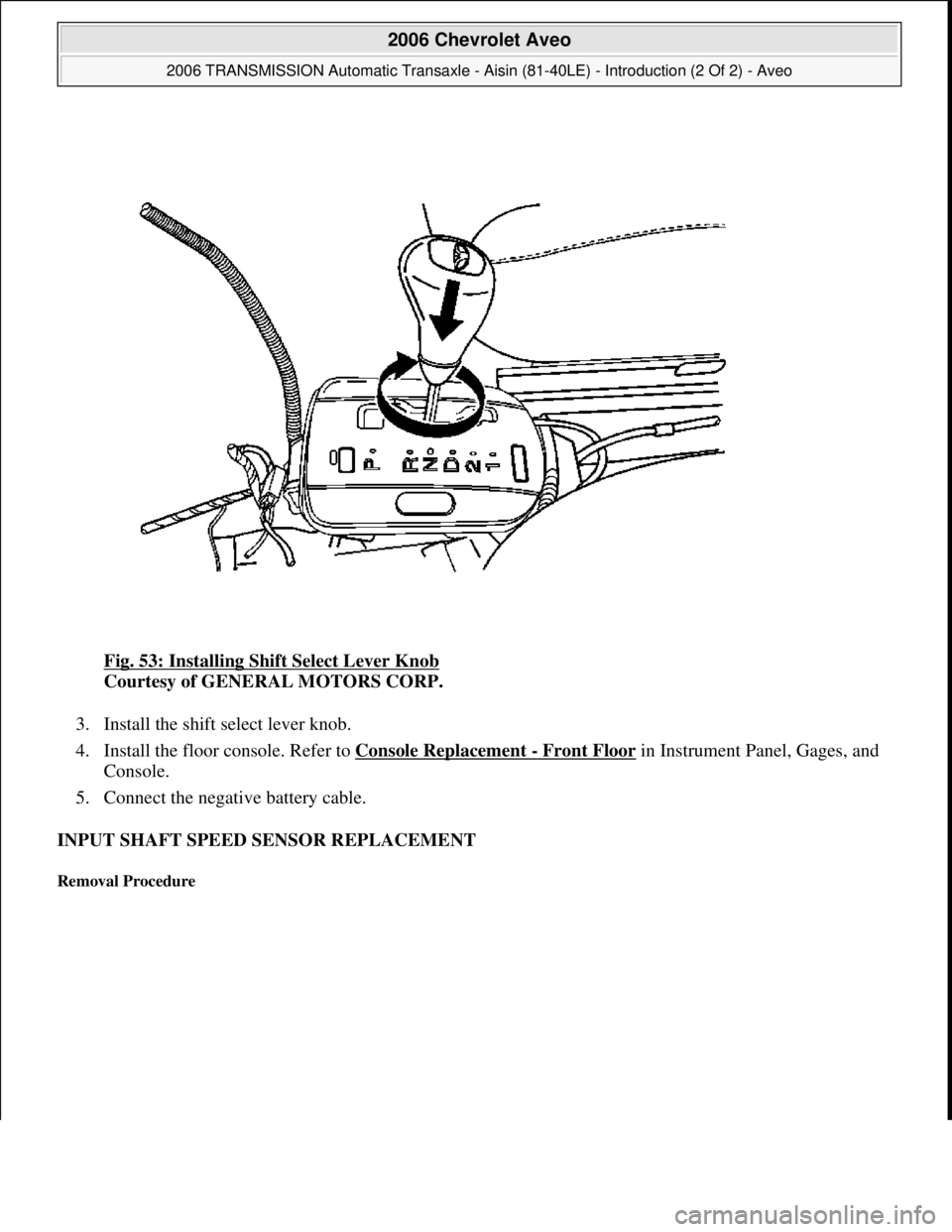

CHEVROLET AVEO 2002 Service Repair Manual Fig. 53: Installing Shift Select Lever Knob Courtesy of GENERAL MOTORS CORP. 3. Install the shift select lever knob. 4. Install the floor console. Refer to Console Replacement - Front Floor in In

Page 2615 of 5127

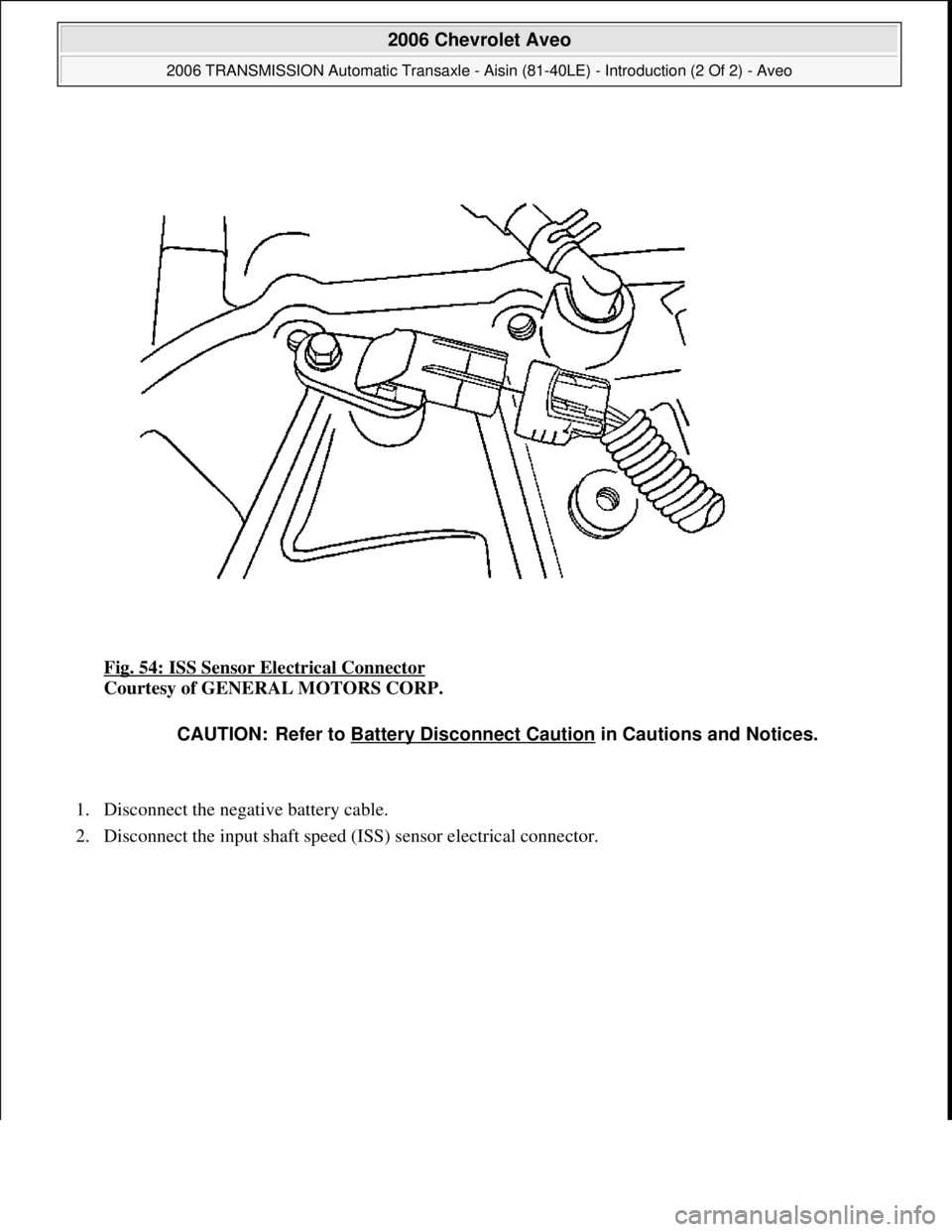

CHEVROLET AVEO 2002 Service Repair Manual Fig. 54: ISS Sensor Electrical Connector Courtesy of GENERAL MOTORS CORP. 1. Disconnect the negative battery cable. 2. Disconnect the input shaft speed (ISS) sensor electrical connector. CAUTION:

Page 2616 of 5127

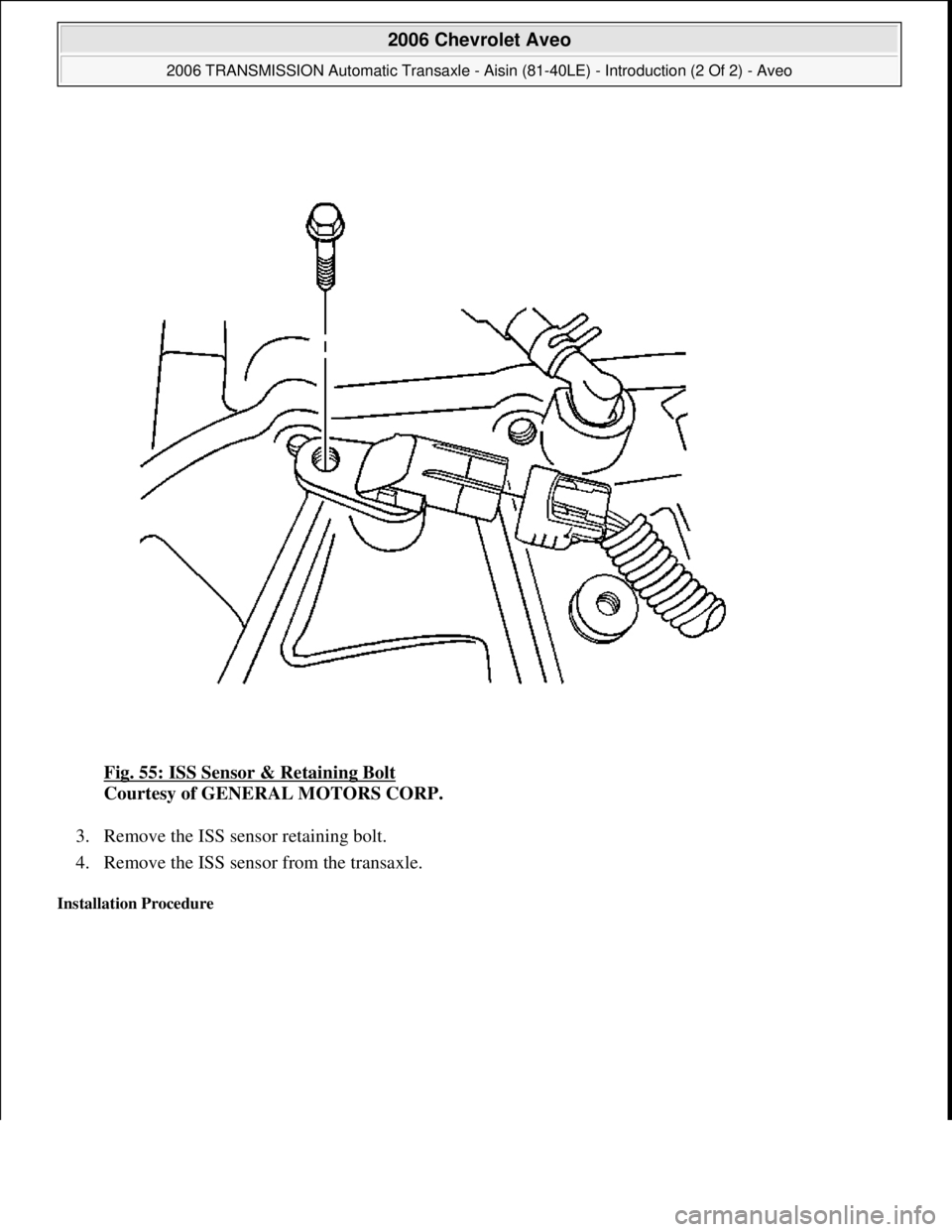

CHEVROLET AVEO 2002 Service Repair Manual Fig. 55: ISS Sensor & Retaining Bolt Courtesy of GENERAL MOTORS CORP. 3. Remove the ISS sensor retaining bolt. 4. Remove the ISS sensor from the transaxle. Installation Procedure 2006 Chevrol
