Page 2553 of 5127

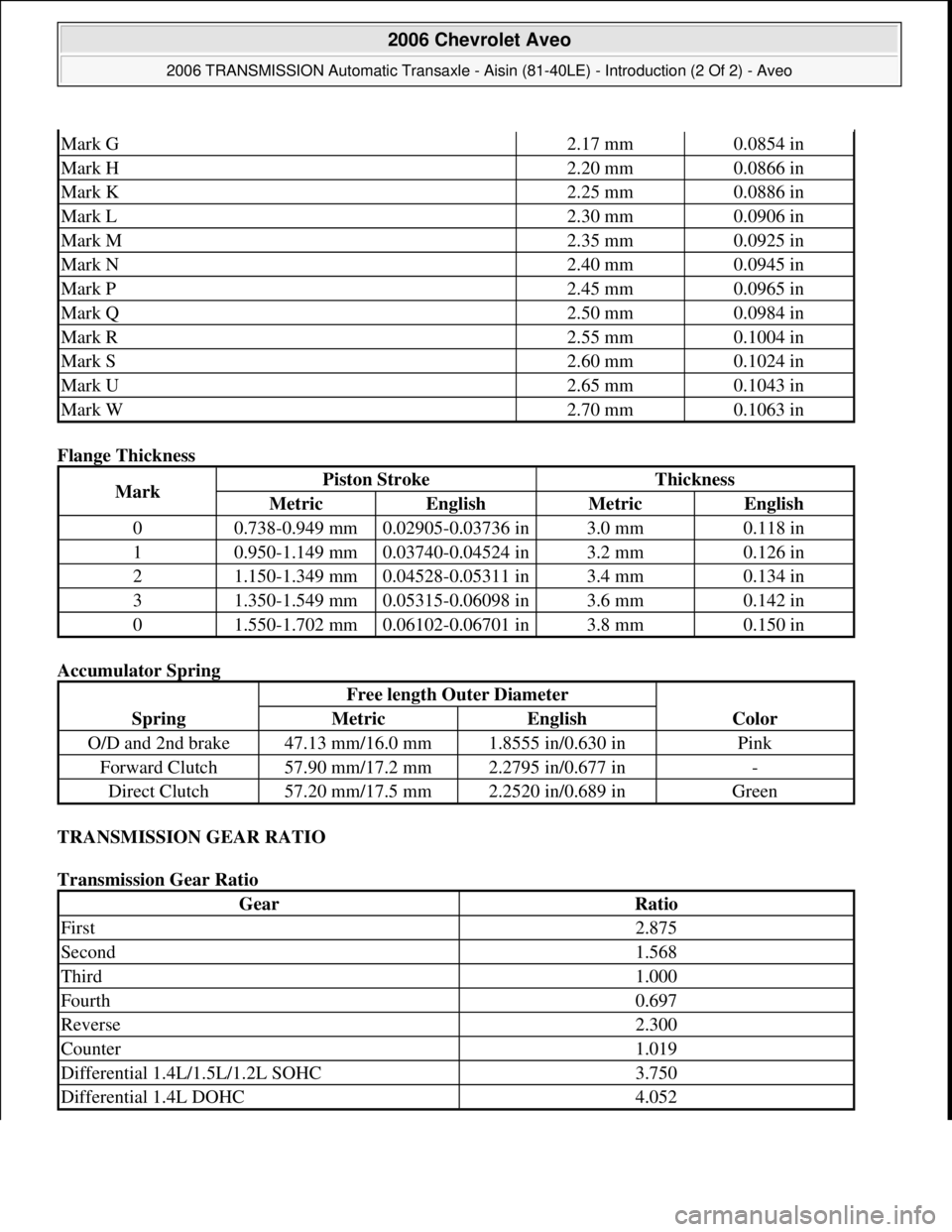

CHEVROLET AVEO 2002 Service Repair Manual Flange Thickness Accumulator Spring TRANSMISSION GEAR RATIO Transmission Gear Ratio Mark G2.17 mm0.0854 in Mark H2.20 mm0.0866 in Mark K2.25 mm0.0886 in Mark L2.30 mm0.0906 in Mark M2.35 mm0.0925

Page 2554 of 5127

CHEVROLET AVEO 2002 Service Repair Manual FLUID CAPACITY SPECIFICATIONS Fluid Capacity Specifications SHIFT SPEED Fig. 1: Economic Mode (1.4/1.5L SOHC) Courtesy of GENERAL MOTORS CORP. Application Specification MetricEnglish Transmission

Page 2555 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 2: Economic Mode (1.2L SOHC) Courtesy of GENERAL MOTORS CORP. Fig. 3: Economic Mode (1.4L DOHC) Courtesy of GENERAL MOTORS CORP. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transa

Page 2556 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 4: Power Mode (1.4/1.5L SOHC) Courtesy of GENERAL MOTORS CORP. Fig. 5: Power Mode (1.2L SOHC) Courtesy of GENERAL MOTORS CORP. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxl

Page 2557 of 5127

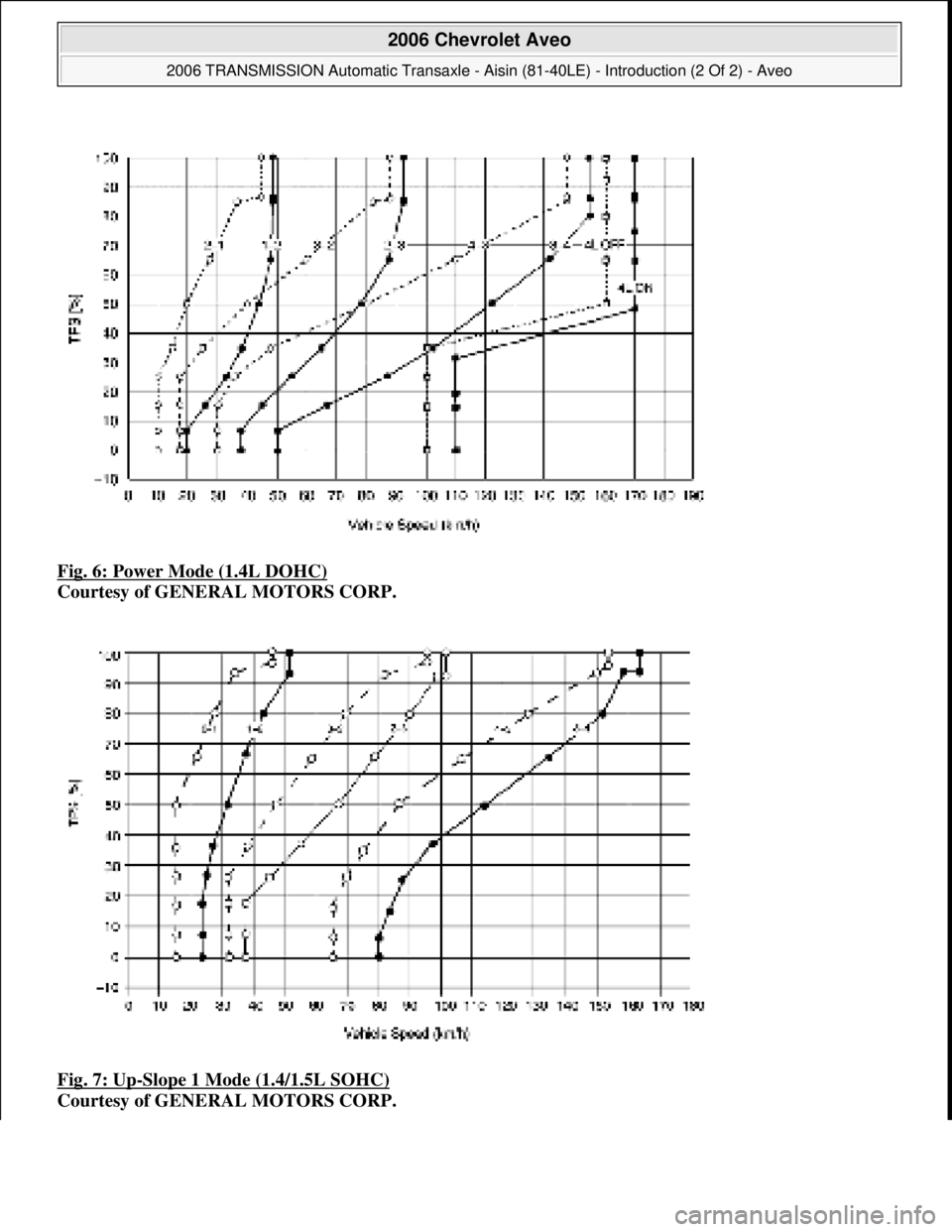

CHEVROLET AVEO 2002 Service Repair Manual Fig. 6: Power Mode (1.4L DOHC) Courtesy of GENERAL MOTORS CORP. Fig. 7: Up -Slope 1 Mode (1.4/1.5L SOHC) Courtesy of GENERAL MOTORS CORP. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Tra

Page 2558 of 5127

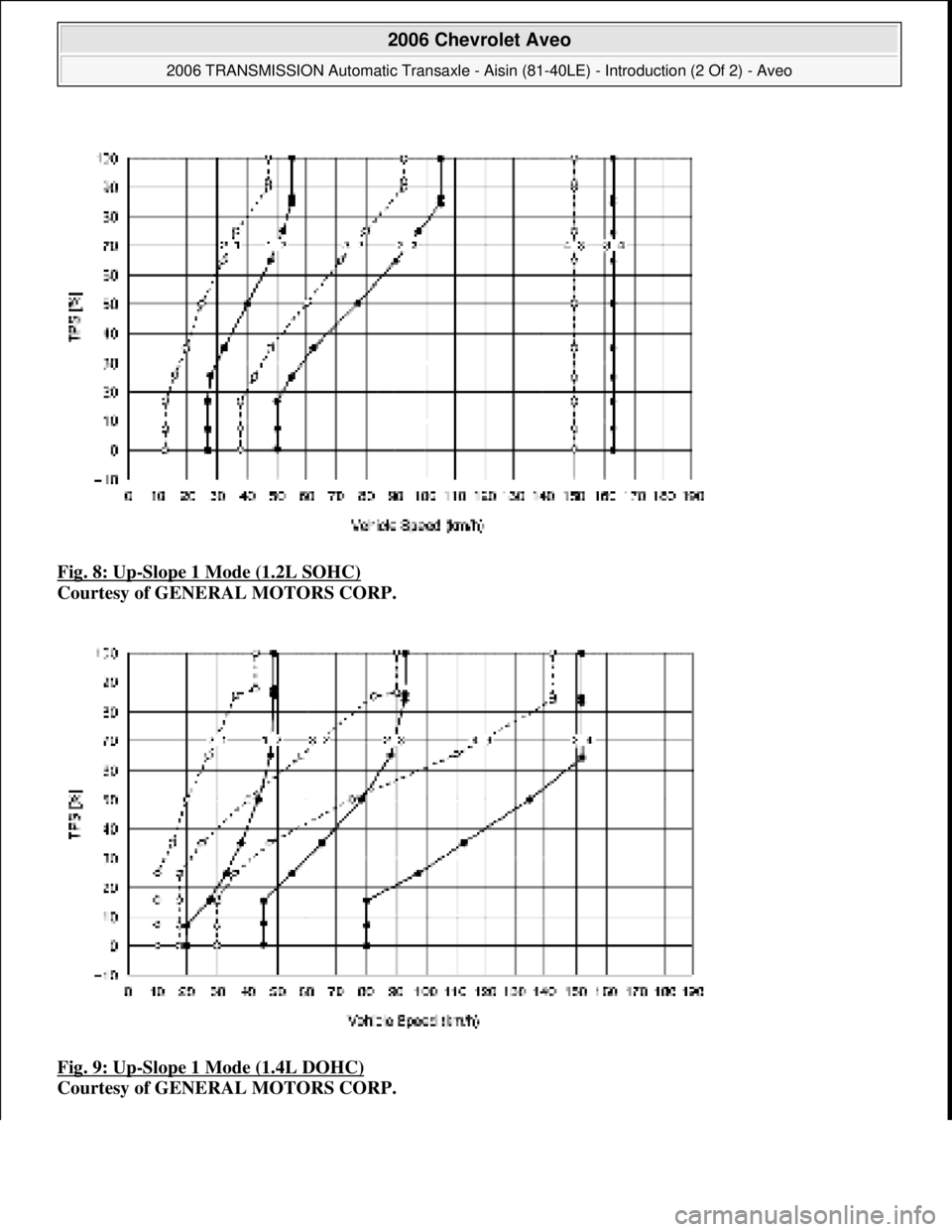

CHEVROLET AVEO 2002 Service Repair Manual Fig. 8: Up-Slope 1 Mode (1.2L SOHC) Courtesy of GENERAL MOTORS CORP. Fig. 9: Up -Slope 1 Mode (1.4L DOHC) Courtesy of GENERAL MOTORS CORP. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Tr

Page 2559 of 5127

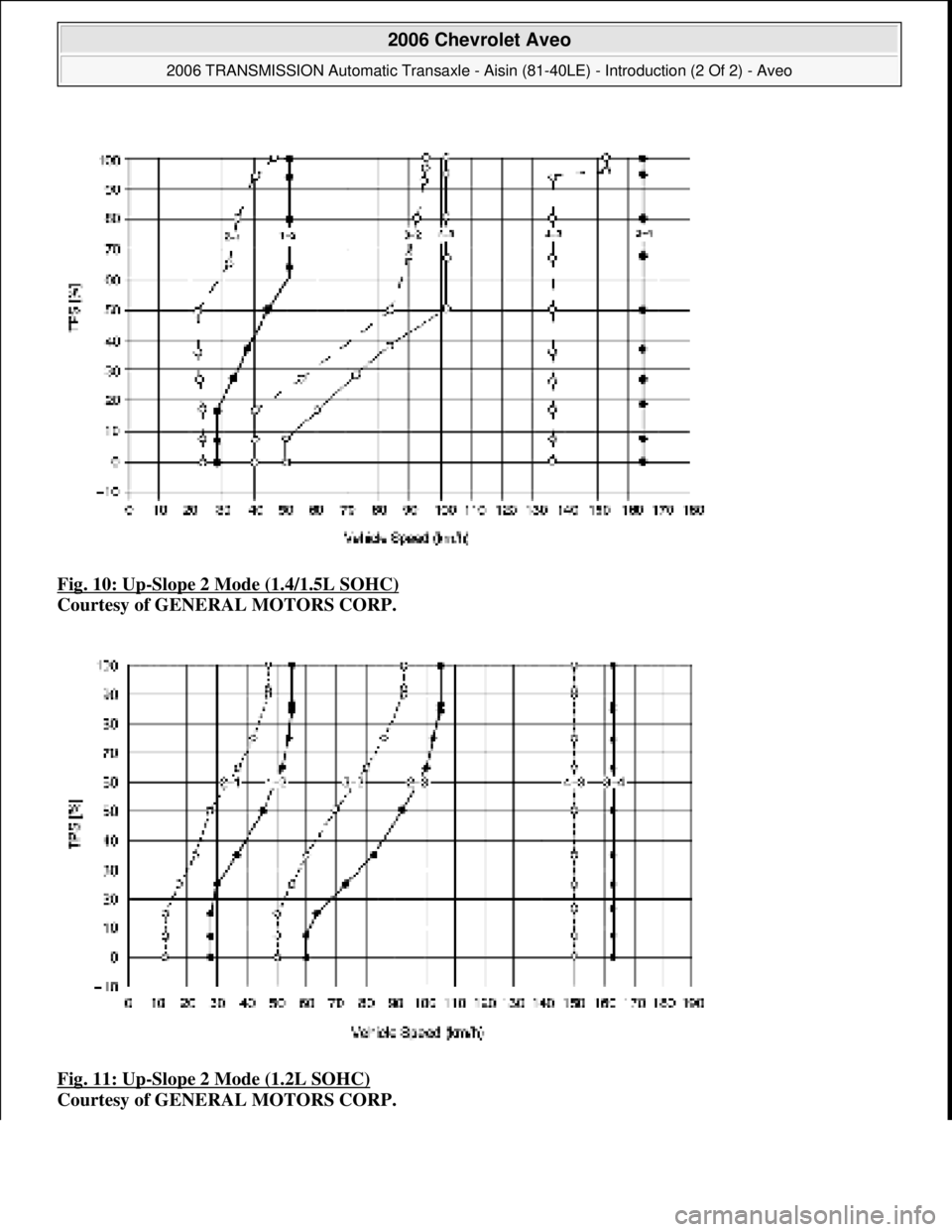

CHEVROLET AVEO 2002 Service Repair Manual Fig. 10: Up-Slope 2 Mode (1.4/1.5L SOHC) Courtesy of GENERAL MOTORS CORP. Fig. 11: Up -Slope 2 Mode (1.2L SOHC) Courtesy of GENERAL MOTORS CORP. 2006 Chevrolet Aveo 2006 TRANSMISSION Automa

Page 2560 of 5127

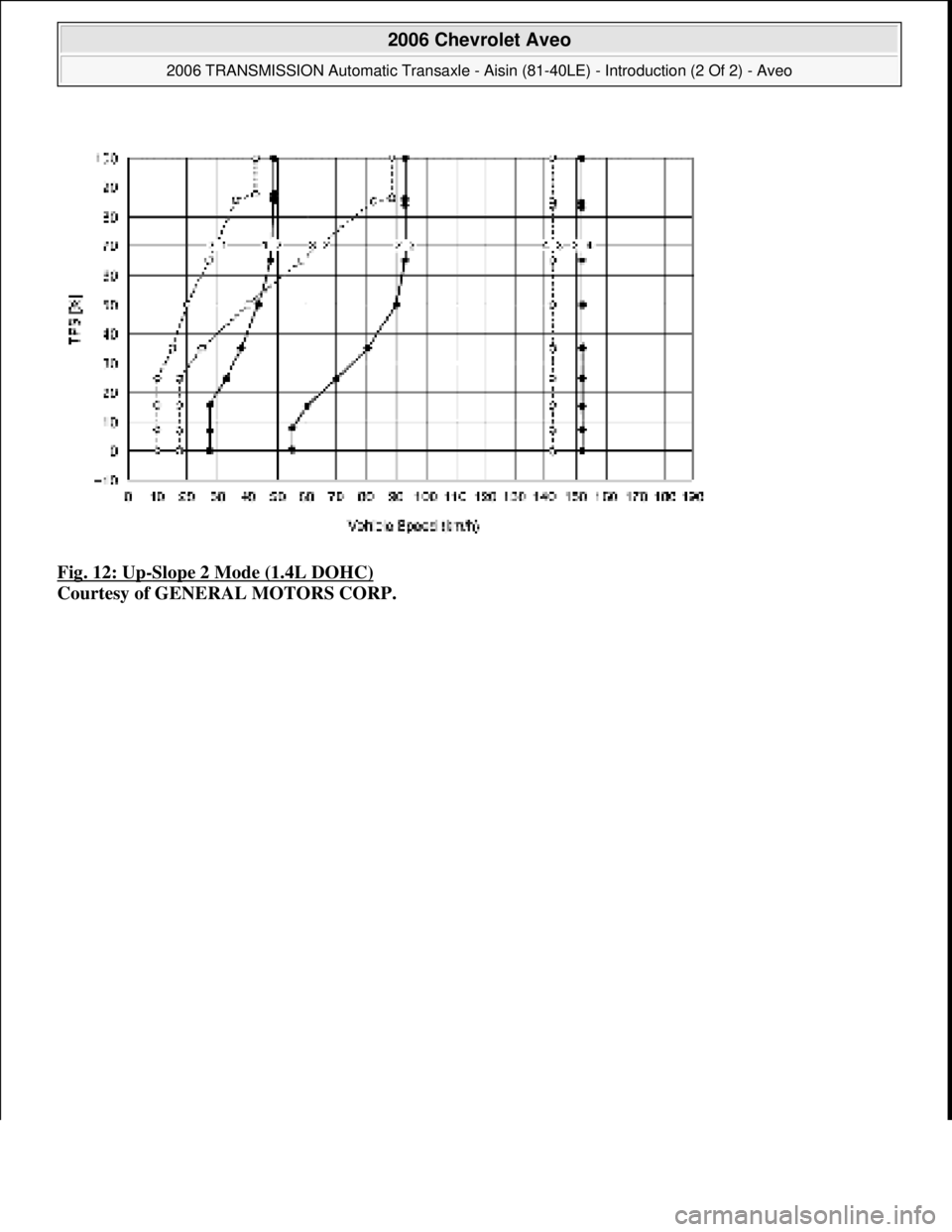

CHEVROLET AVEO 2002 Service Repair Manual Fig. 12: Up-Slope 2 Mode (1.4L DOHC) Courtesy of GENERAL MOTORS CORP. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo Microsoft Thurs
