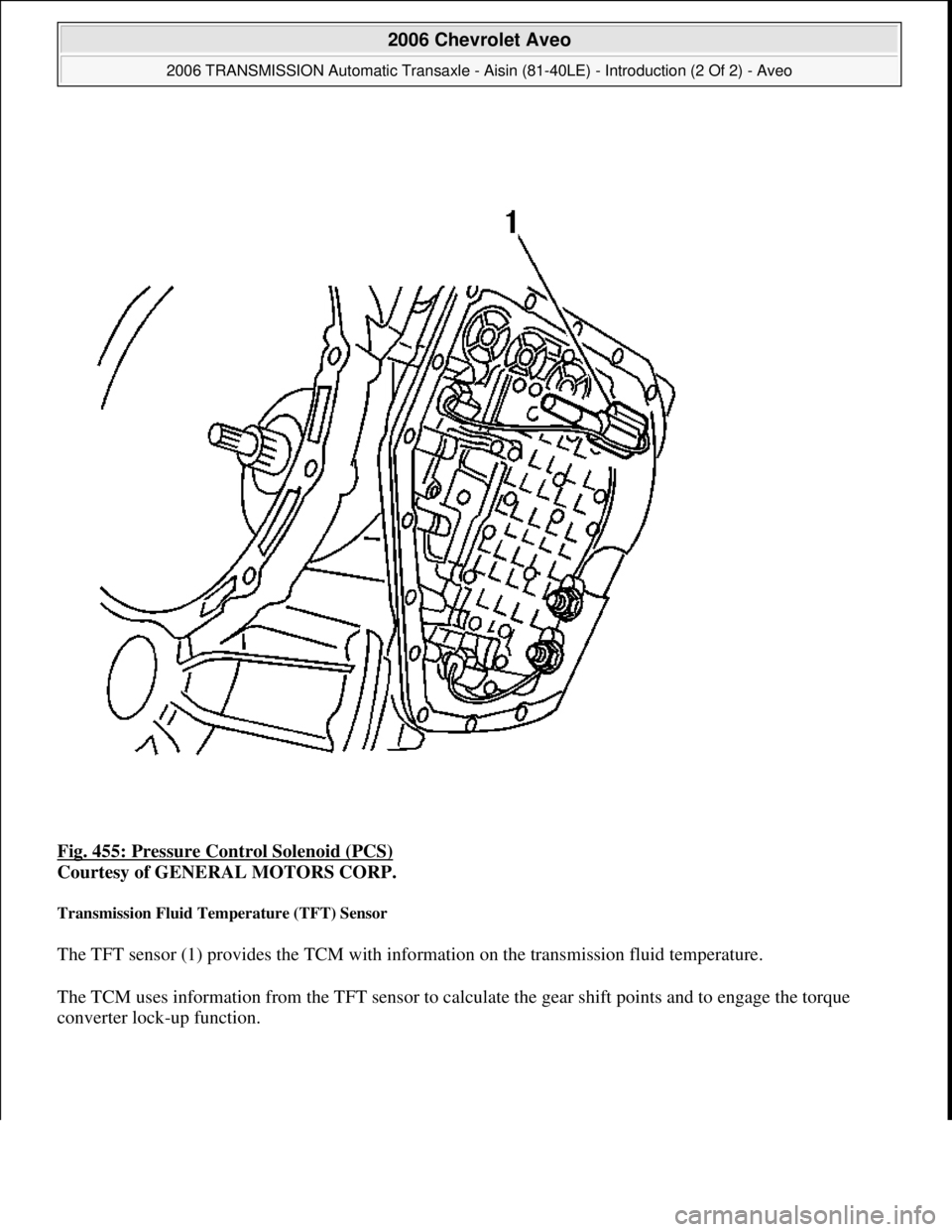

Page 3025 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 455: Pressure Control Solenoid (PCS) Courtesy of GENERAL MOTORS CORP. Transmission Fluid Temperature (TFT) Sensor The TFT sensor (1) provides the TCM with information on the transmission fluid

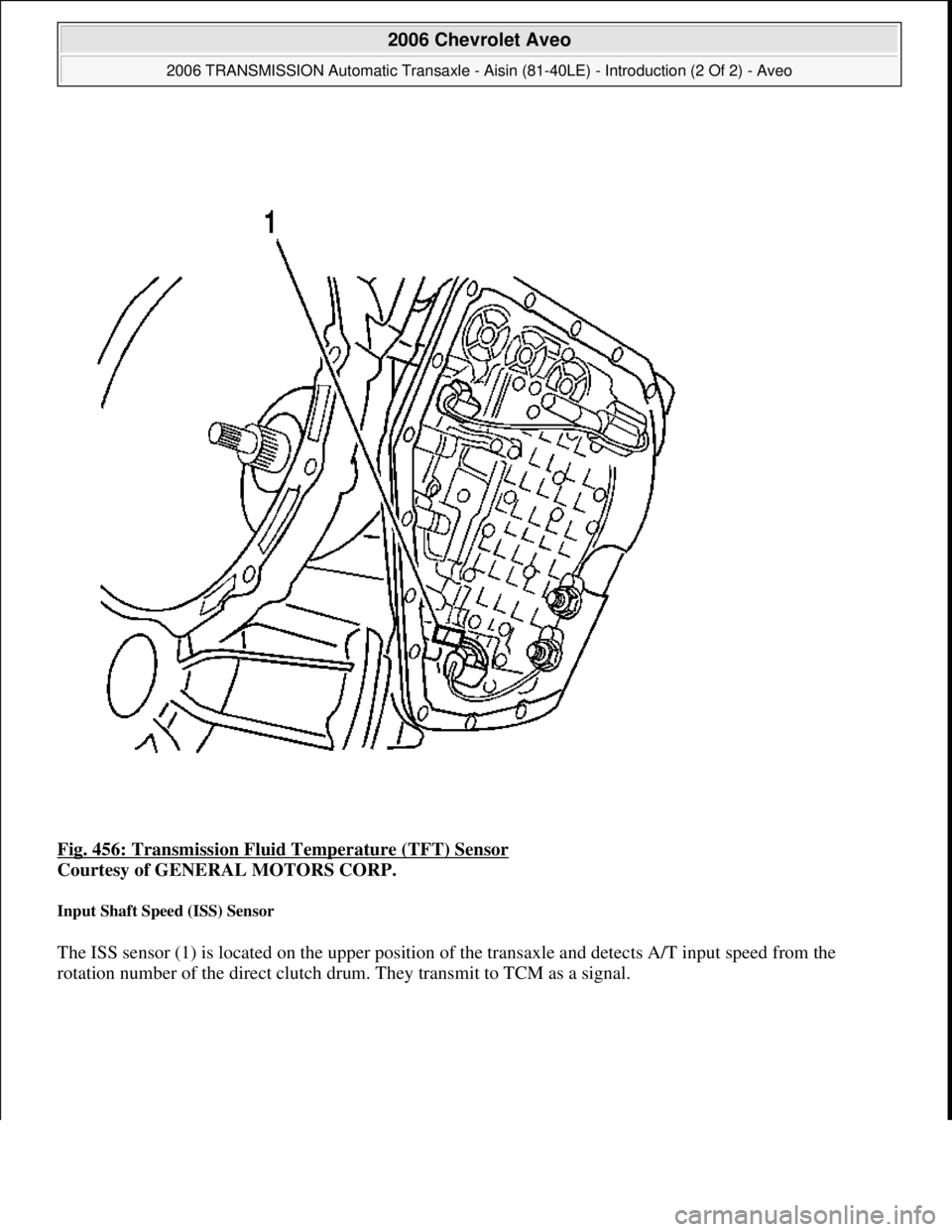

Page 3026 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 456: Transmission Fluid Temperature (TFT) Sensor Courtesy of GENERAL MOTORS CORP. Input Shaft Speed (ISS) Sensor The ISS sensor (1) is located on the upper position of the transaxle and detect

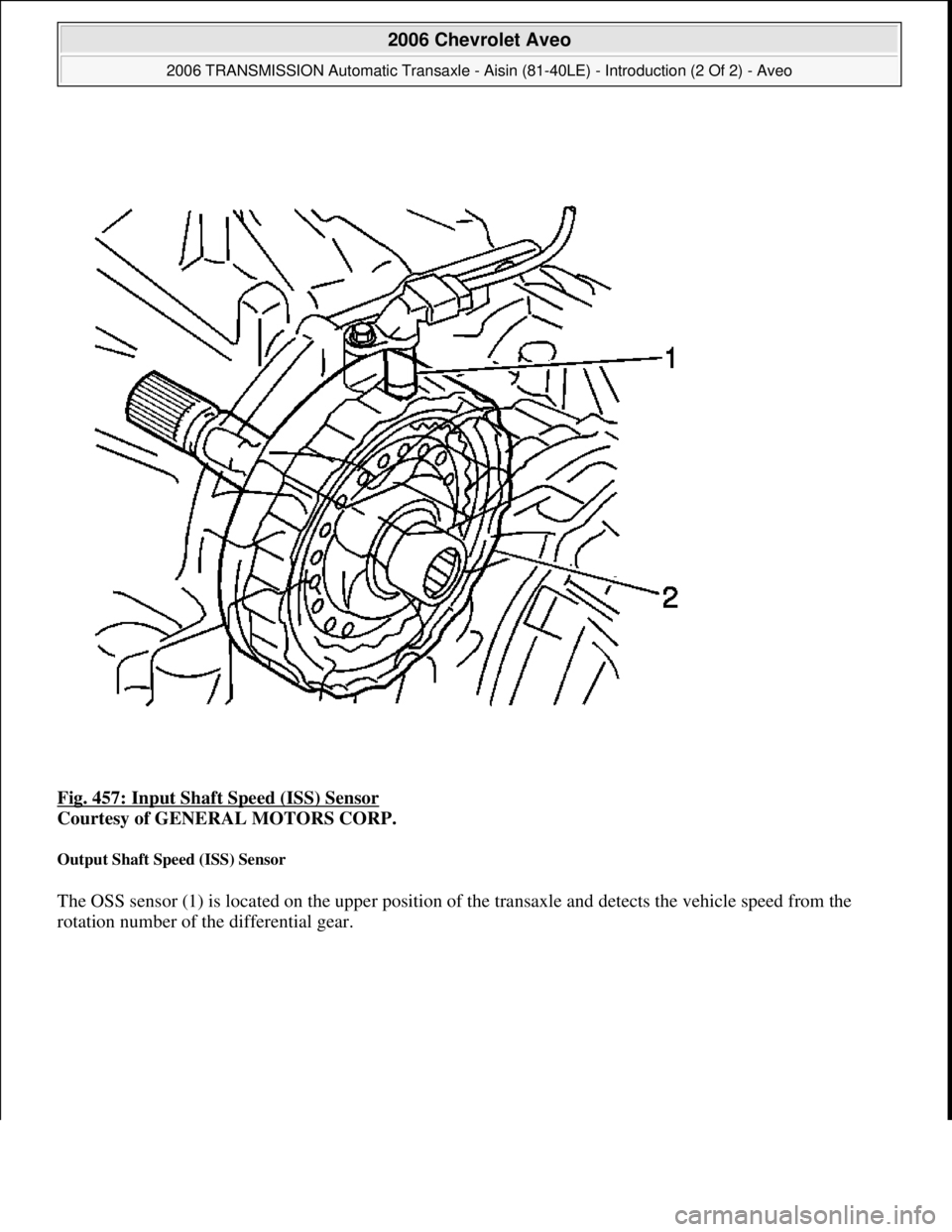

Page 3027 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 457: Input Shaft Speed (ISS) Sensor Courtesy of GENERAL MOTORS CORP. Output Shaft Speed (ISS) Sensor The OSS sensor (1) is located on the upper position of the transaxle and detects the vehicl

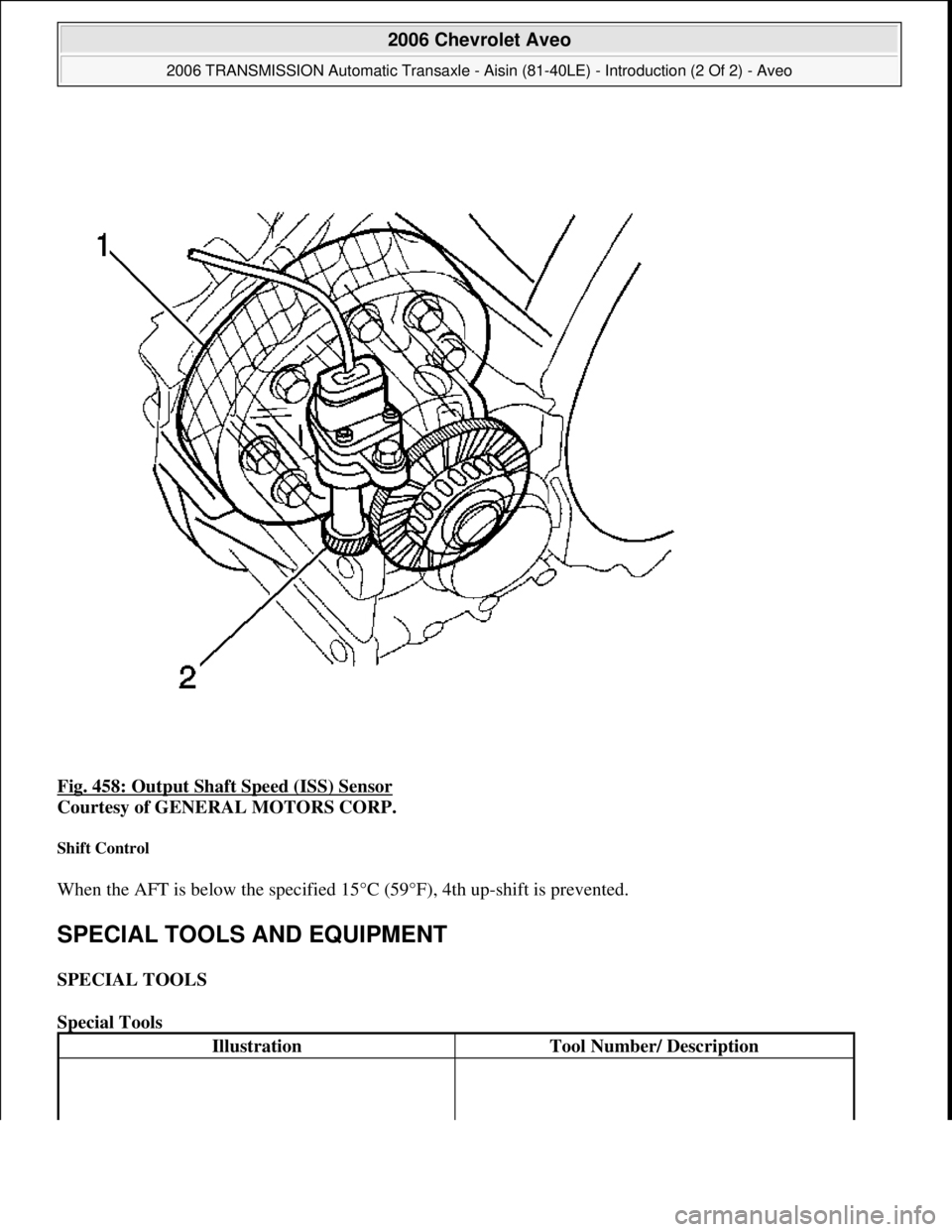

Page 3028 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 458: Output Shaft Speed (ISS) Sensor Courtesy of GENERAL MOTORS CORP. Shift Control When the AFT is below the specified 15°C (59°F), 4th up-shift is prevented. SPECIAL TOOLS AND EQUIPMENT

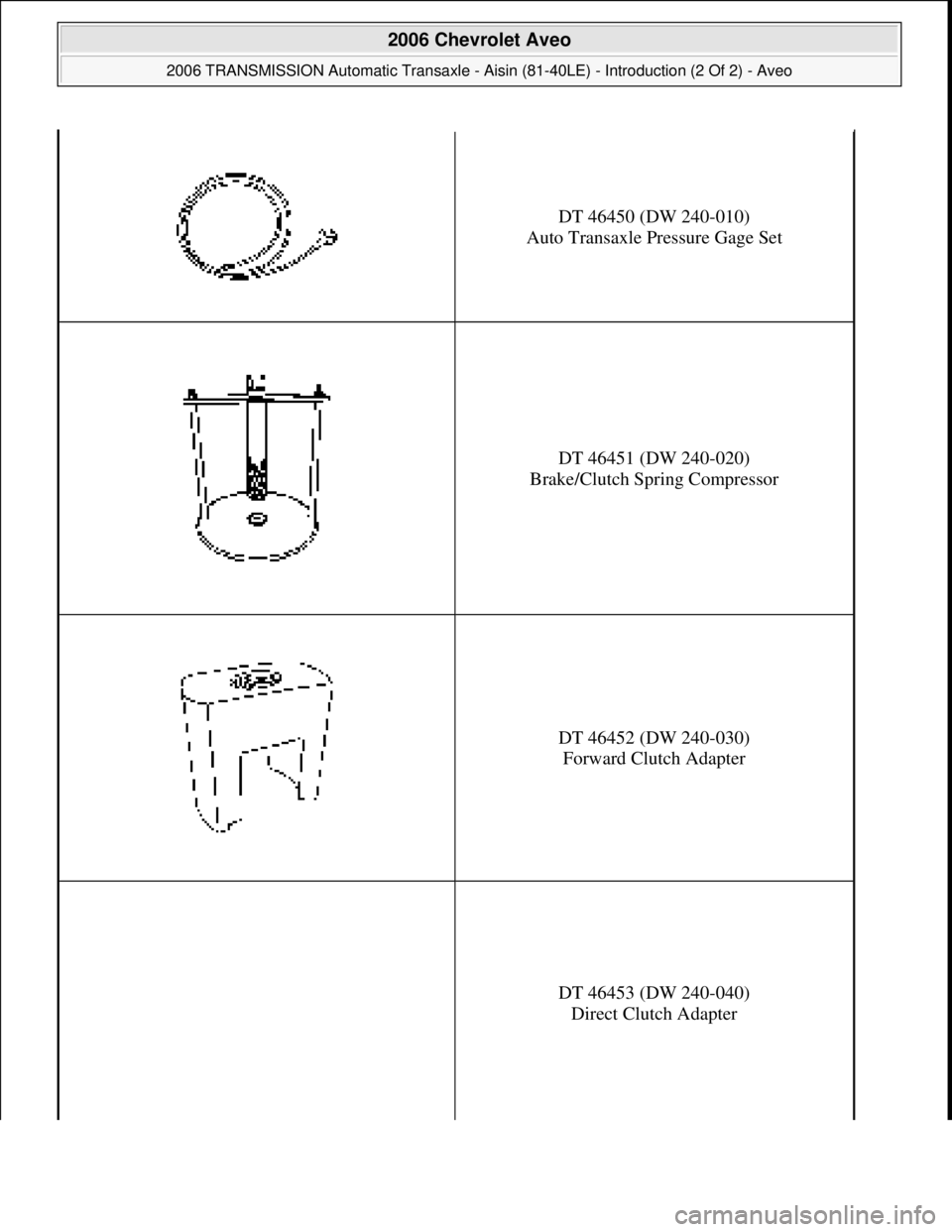

Page 3029 of 5127

CHEVROLET AVEO 2002 Service Repair Manual DT 46450 (DW 240-010) Auto Transaxle Pressure Gage Set DT 46451 (DW 240-020) Brake/Clutch Spring Compressor DT 46452 (DW 240-030) Forward Clutch Adapter DT 46453 (DW 240-040) Direct Clutch Adapter

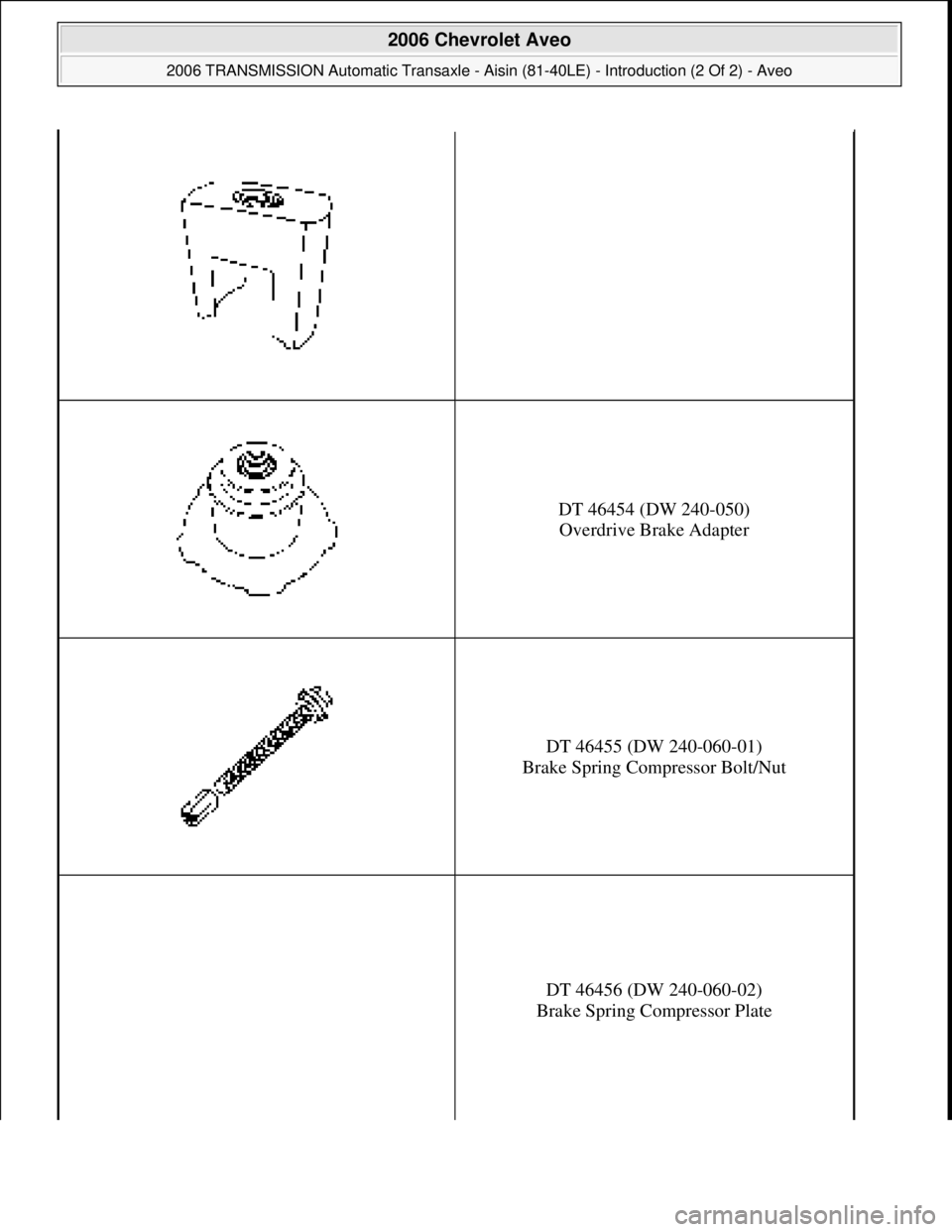

Page 3030 of 5127

CHEVROLET AVEO 2002 Service Repair Manual DT 46454 (DW 240-050) Overdrive Brake Adapter DT 46455 (DW 240-060-01) Brake Spring Compressor Bolt/Nut DT 46456 (DW 240-060-02) Brake Spring Compressor Plate 2006 Chevrolet Aveo 2006 TRANSMISSI

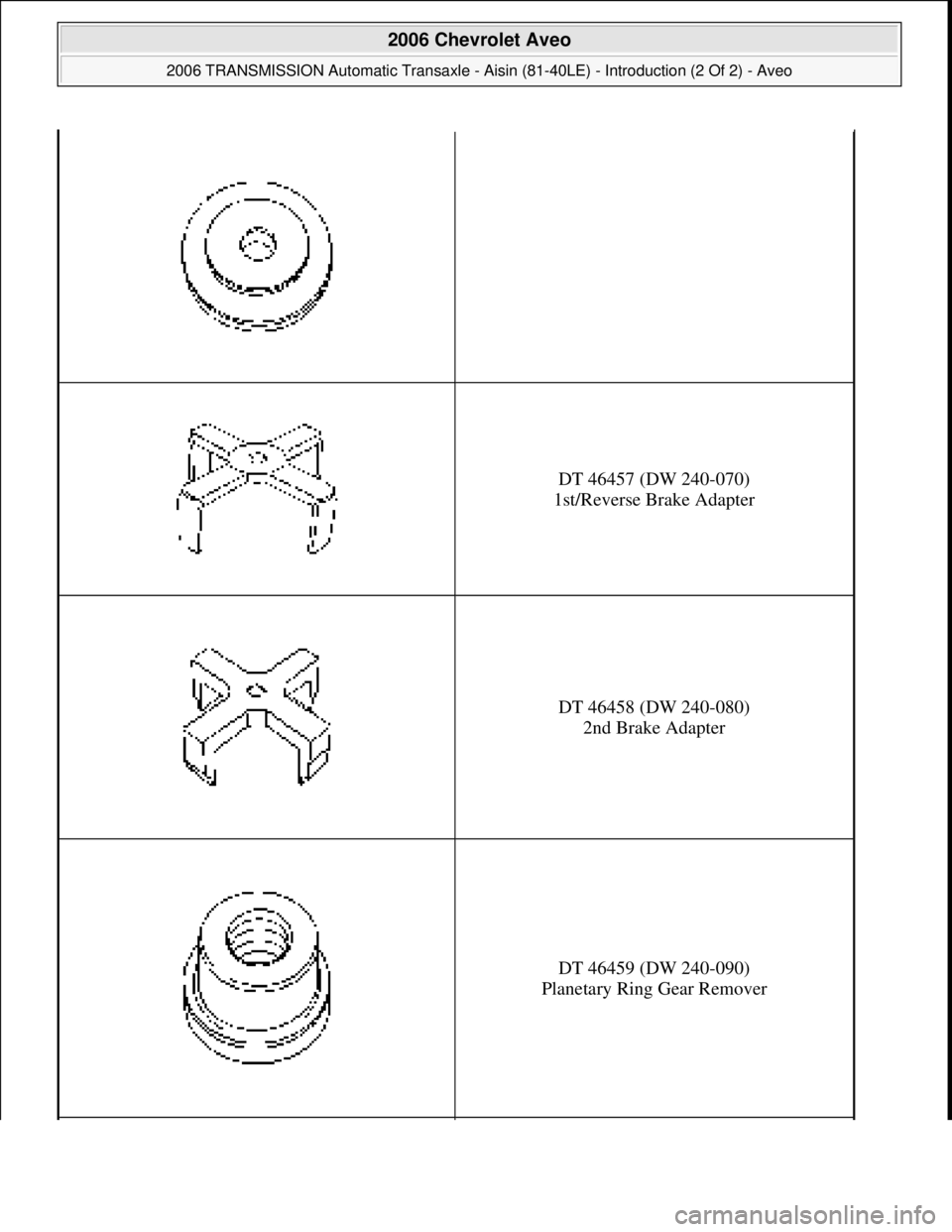

Page 3031 of 5127

CHEVROLET AVEO 2002 Service Repair Manual DT 46457 (DW 240-070) 1st/Reverse Brake Adapter DT 46458 (DW 240-080) 2nd Brake Adapter DT 46459 (DW 240-090) Planetary Ring Gear Remover 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxl

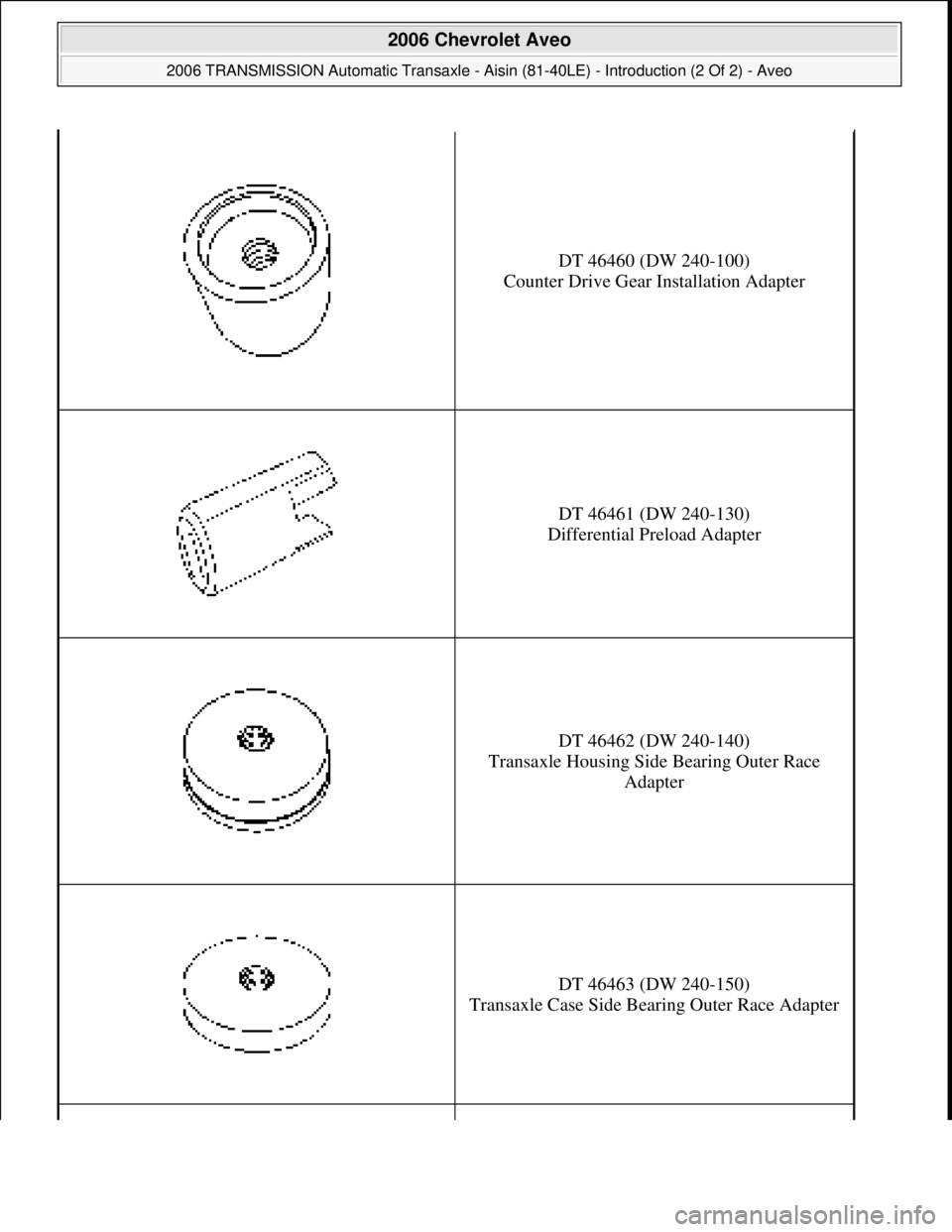

Page 3032 of 5127

CHEVROLET AVEO 2002 Service Repair Manual DT 46460 (DW 240-100) Counter Drive Gear Installation Adapter DT 46461 (DW 240-130) Differential Preload Adapter DT 46462 (DW 240-140) Transaxle Housing Side Bearing Outer Race Adapter DT 46463 (D
