Page 2753 of 5127

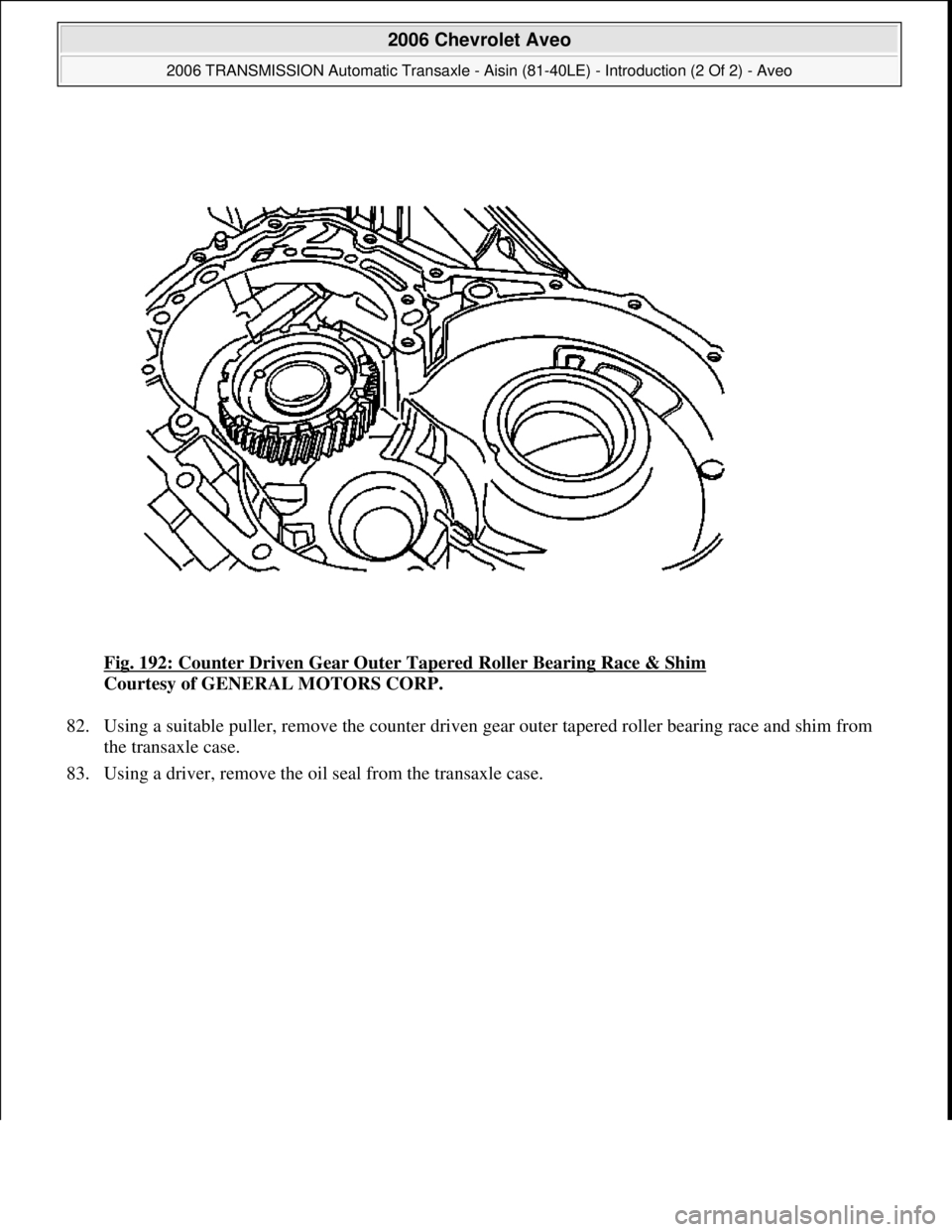

CHEVROLET AVEO 2002 Service Repair Manual Fig. 192: Counter Driven Gear Outer Tapered Roller Bearing Race & Shim Courtesy of GENERAL MOTORS CORP. 82. Using a suitable puller, remove the counter driven gear outer tapered roller bearing race

Page 2754 of 5127

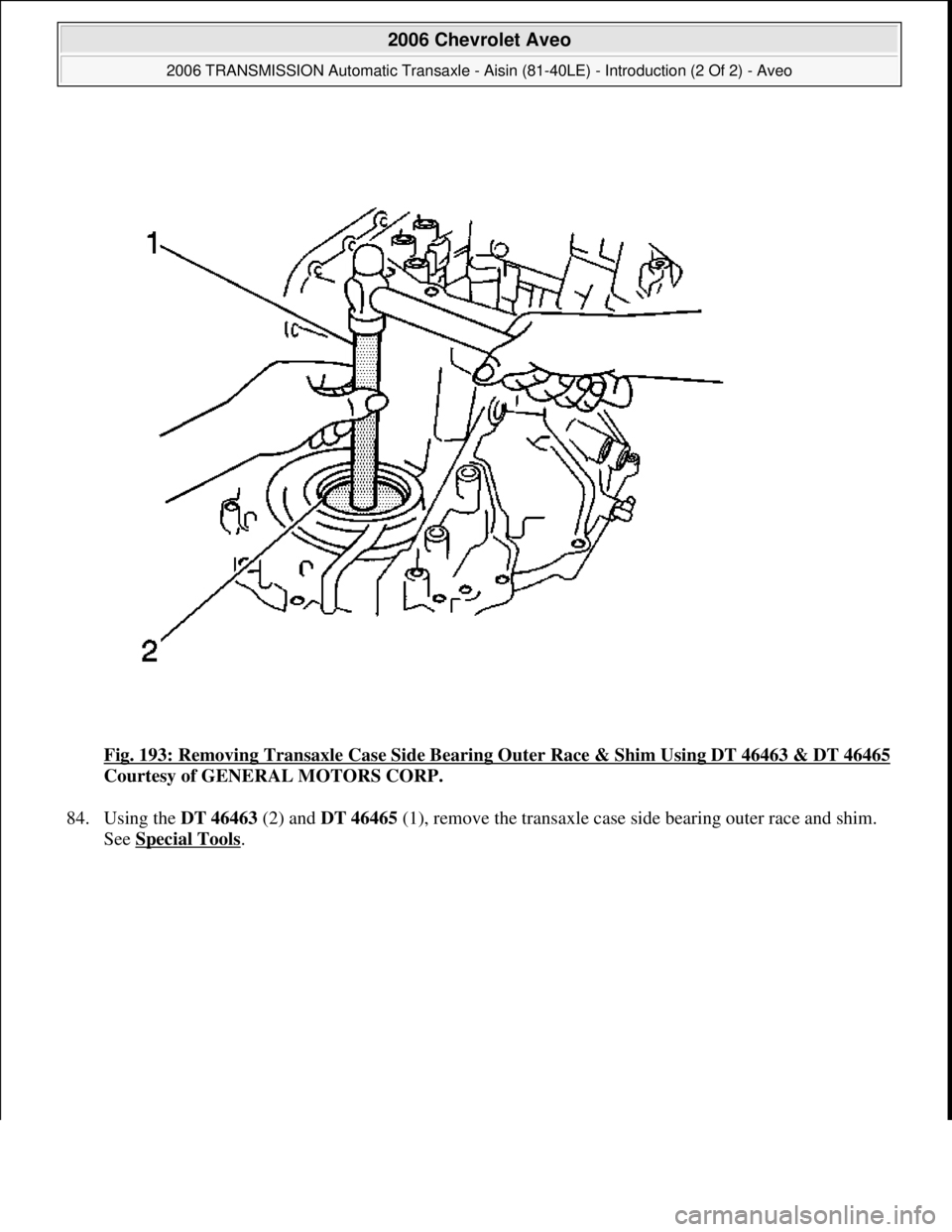

CHEVROLET AVEO 2002 Service Repair Manual Fig. 193: Removing Transaxle Case Side Bearing Outer Race & Shim Using DT 46463 & DT 46465 Courtesy of GENERAL MOTORS CORP. 84. Using the DT 46463 (2) and DT 46465 (1), remove the transaxle case side

Page 2755 of 5127

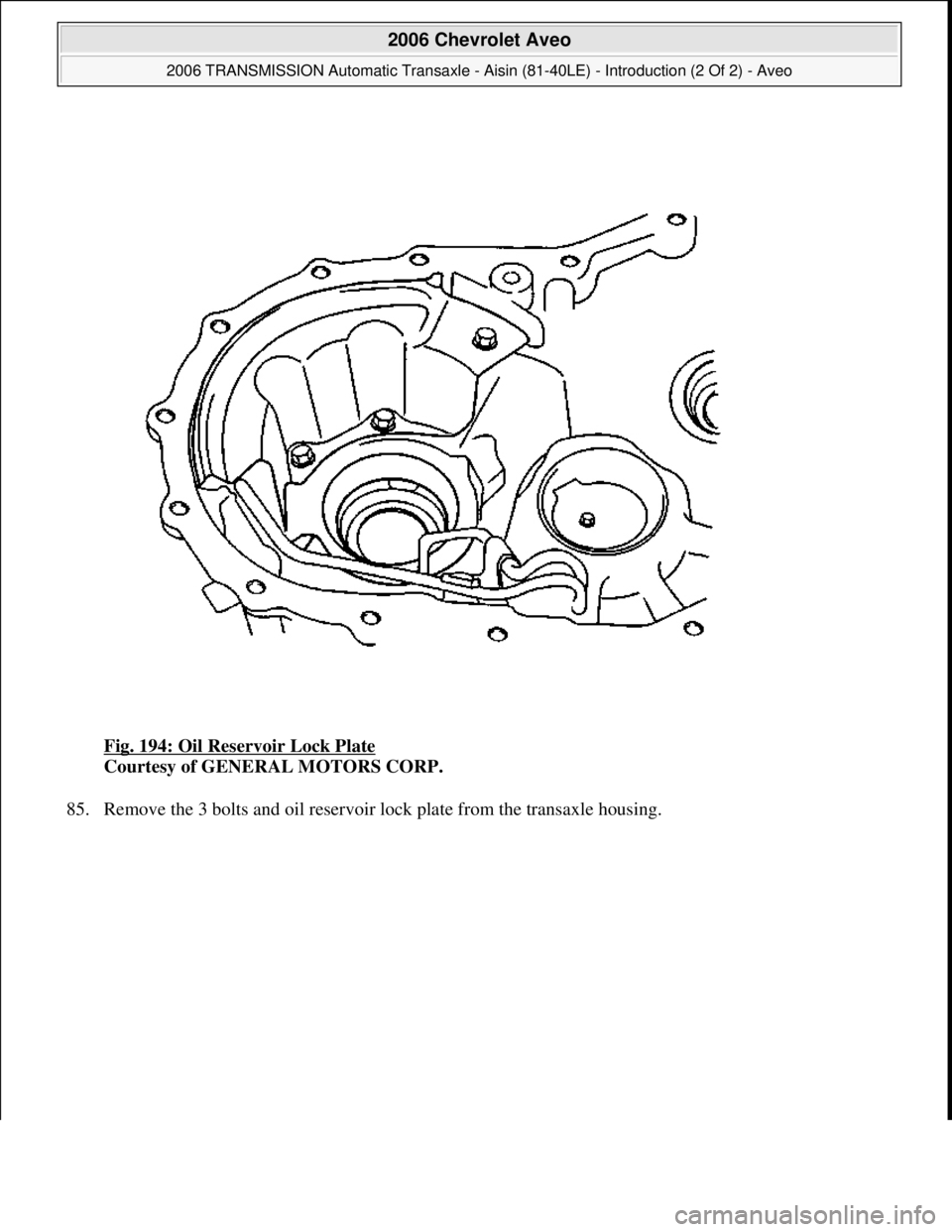

CHEVROLET AVEO 2002 Service Repair Manual Fig. 194: Oil Reservoir Lock Plate Courtesy of GENERAL MOTORS CORP. 85. Remove the 3 bolts and oil reservoir lock plate from the transaxle housing. 2006 Chevrolet Aveo 2006 TRANSMISSION Automati

Page 2756 of 5127

CHEVROLET AVEO 2002 Service Repair Manual Fig. 195: No. 1 Transaxle Apply Pipe Clamp Courtesy of GENERAL MOTORS CORP. 86. Remove the bolt and No. 1 transaxle apply pipe clamp from the transaxle housing. 87. Remove the transaxle lube appl

Page 2757 of 5127

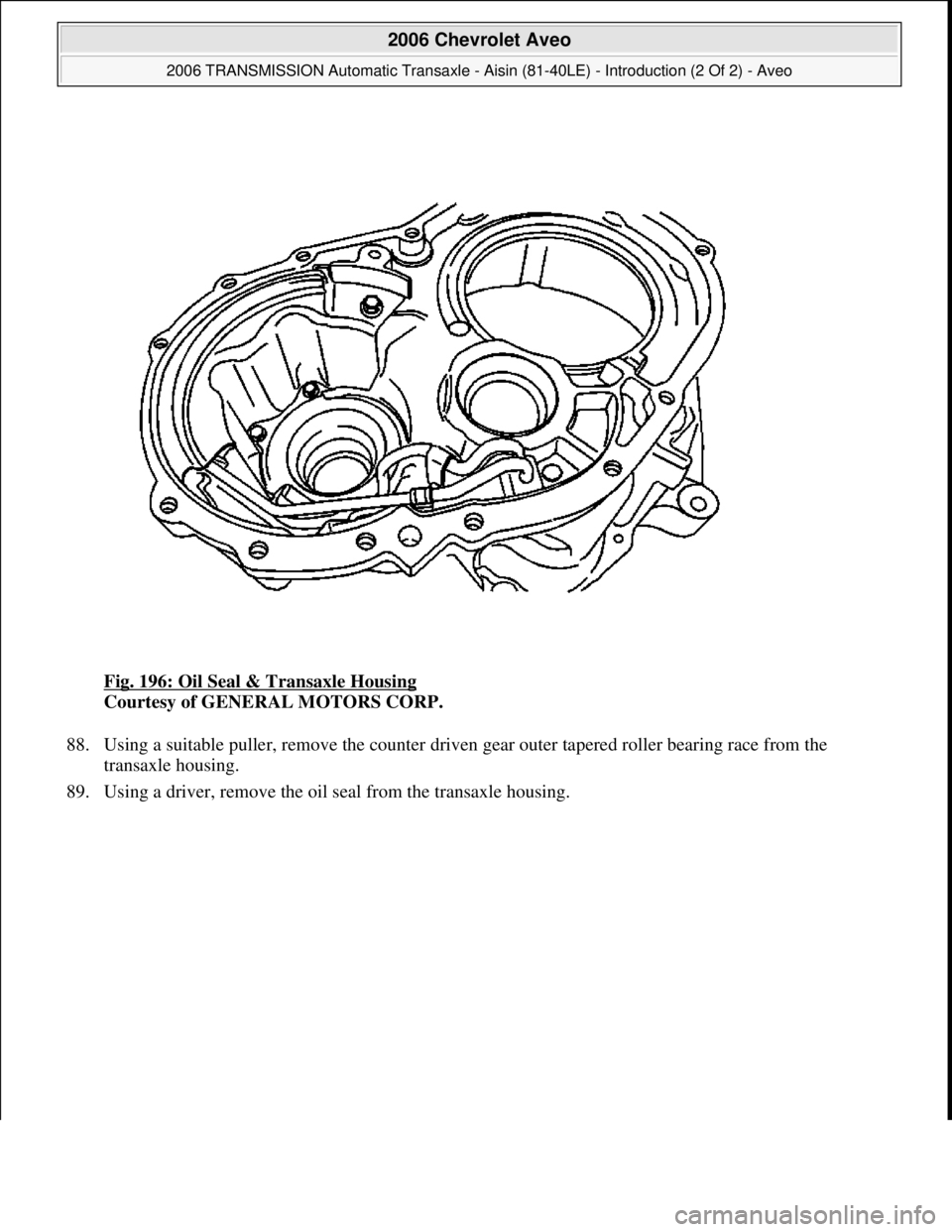

CHEVROLET AVEO 2002 Service Repair Manual Fig. 196: Oil Seal & Transaxle Housing Courtesy of GENERAL MOTORS CORP. 88. Using a suitable puller, remove the counter driven gear outer tapered roller bearing race from the transaxle housing. 8

Page 2758 of 5127

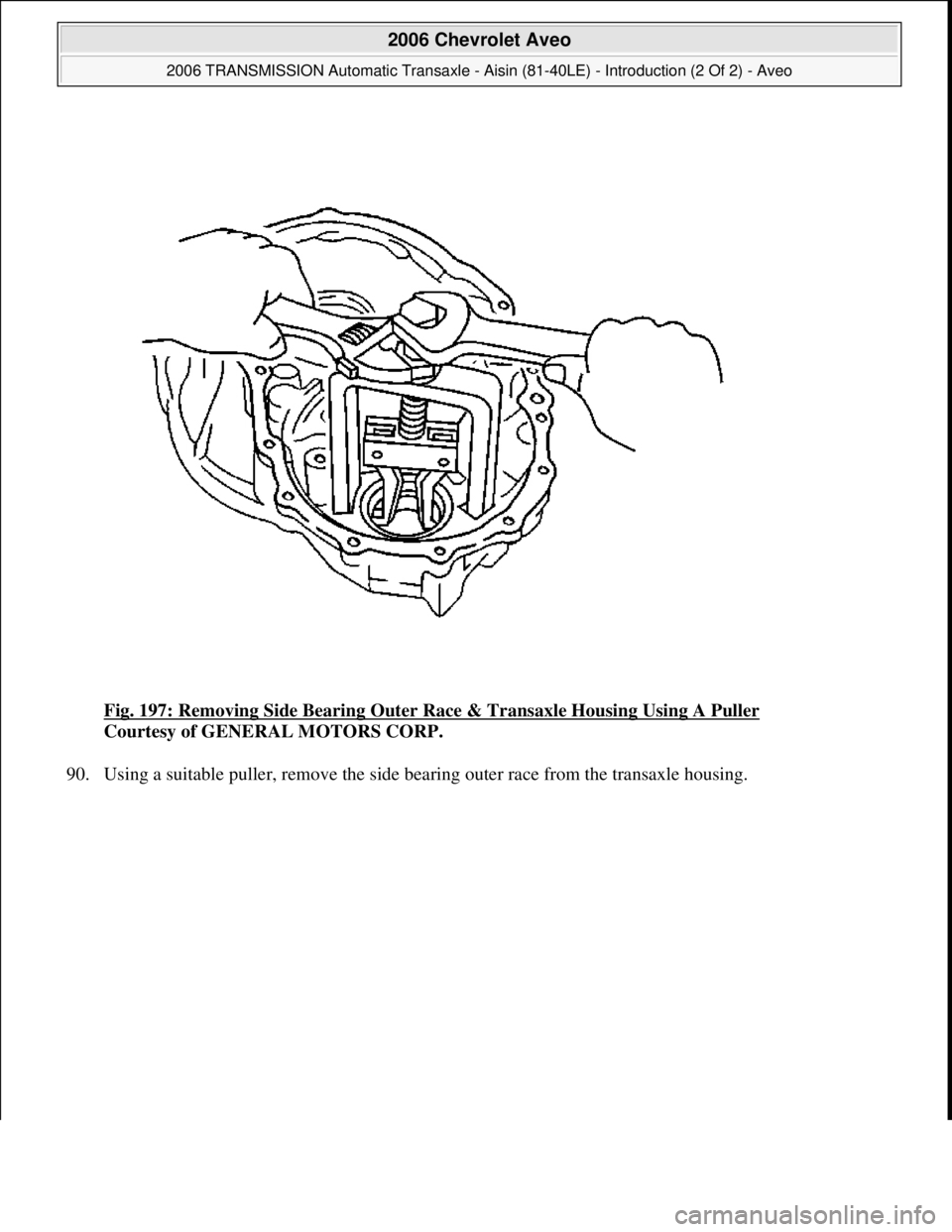

CHEVROLET AVEO 2002 Service Repair Manual Fig. 197: Removing Side Bearing Outer Race & Transaxle Housing Using A Puller Courtesy of GENERAL MOTORS CORP. 90. Usin g a suitable puller, remove the side bearing outer race from the transaxle hou

Page 2759 of 5127

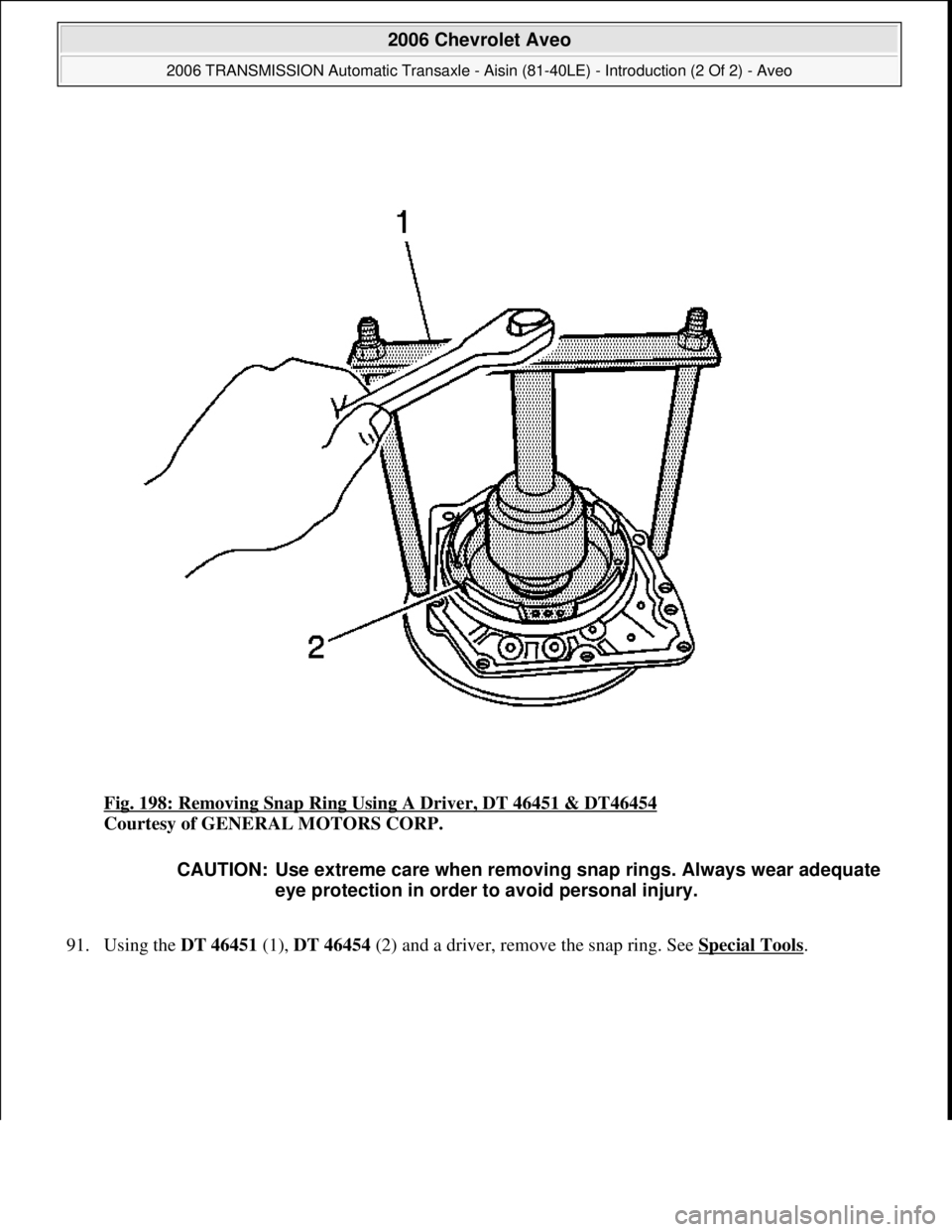

CHEVROLET AVEO 2002 Service Repair Manual Fig. 198: Removing Snap Ring Using A Driver, DT 46451 & DT46454 Courtesy of GENERAL MOTORS CORP. 91. Usin g the DT 46451 (1), DT 46454 (2) and a driver, remove the snap ring. See Special Tools. CAU

Page 2760 of 5127

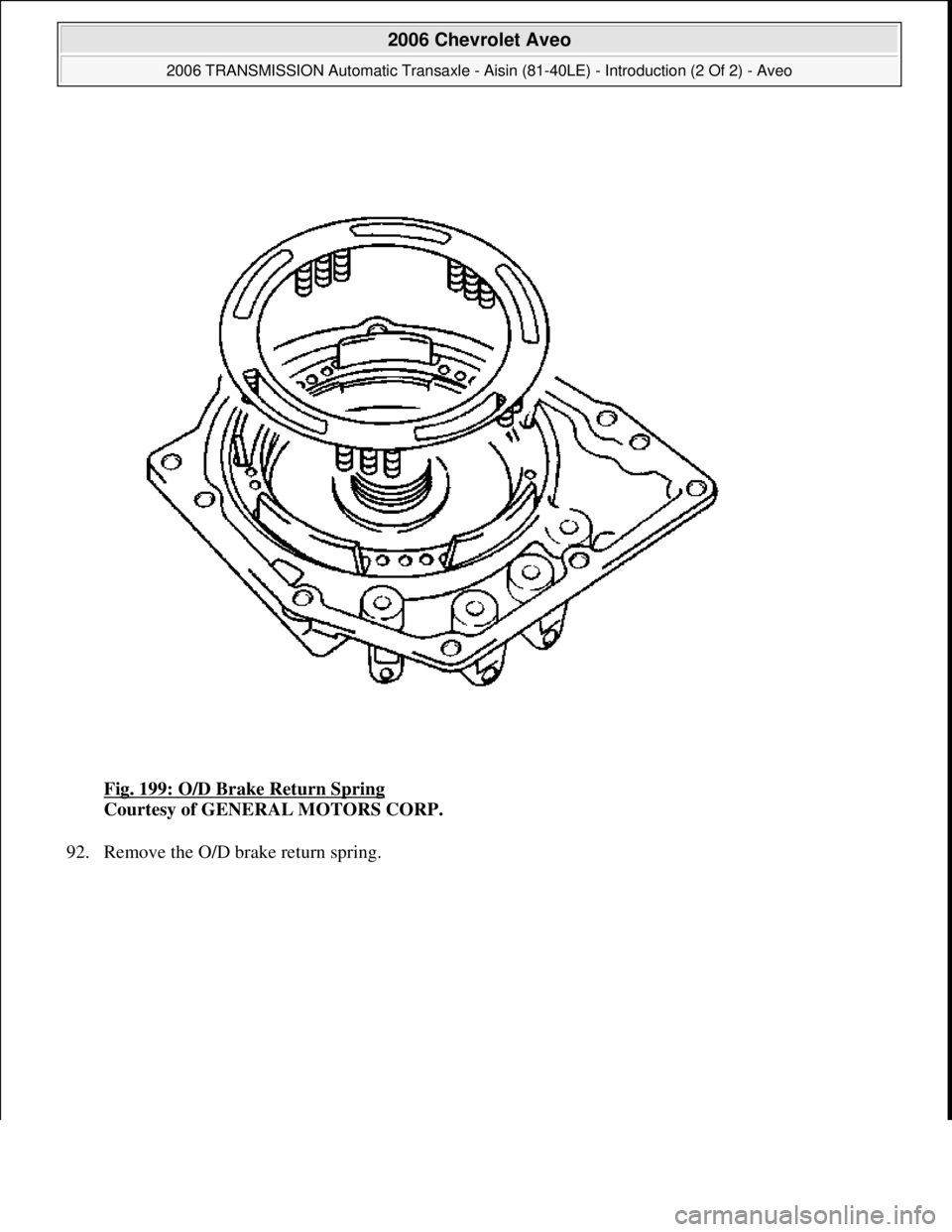

CHEVROLET AVEO 2002 Service Repair Manual Fig. 199: O/D Brake Return Spring Courtesy of GENERAL MOTORS CORP. 92. Remove the O/D brake return sprin g. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduc
