Page 2657 of 5127

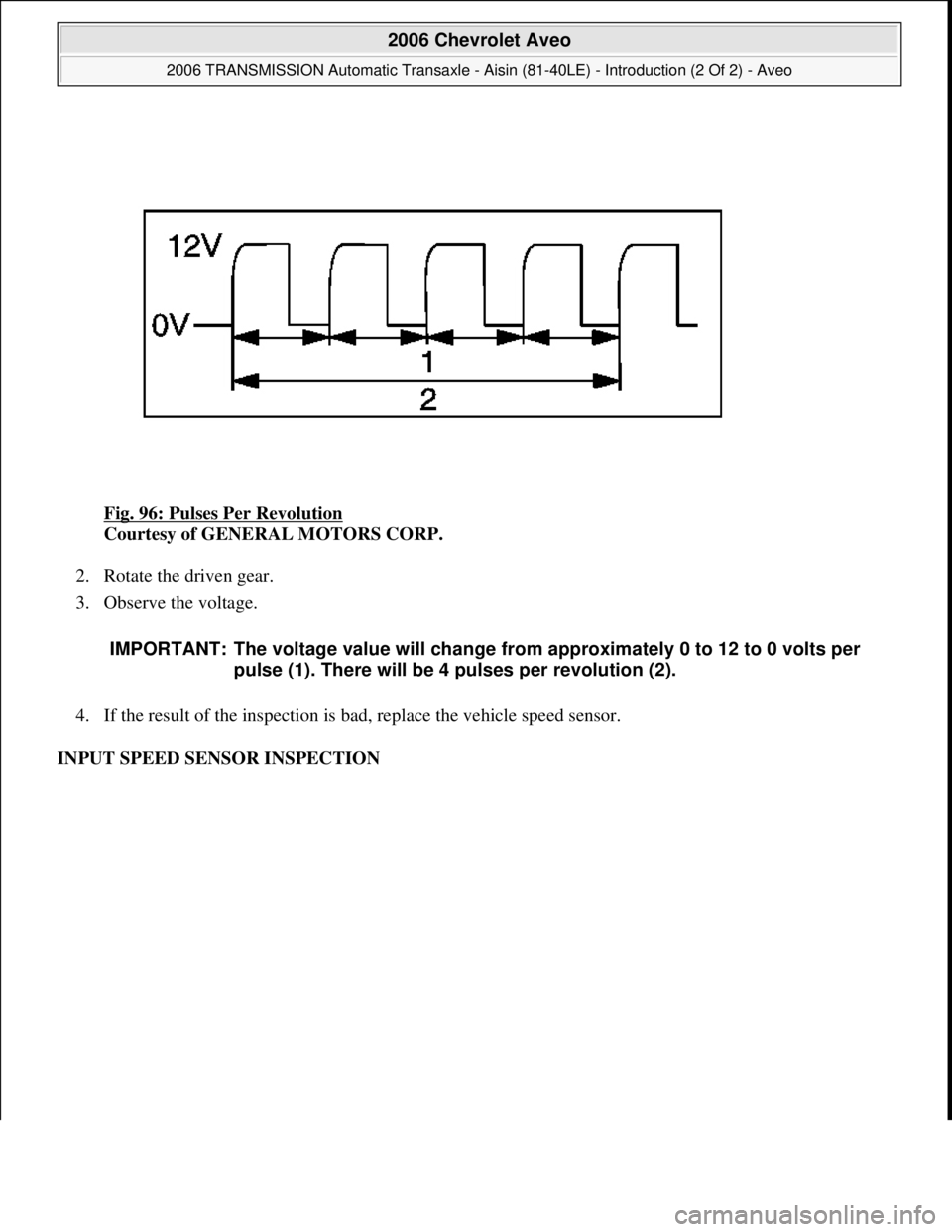

CHEVROLET AVEO 2002 Service Repair Manual Fig. 96: Pulses Per Revolution Courtesy of GENERAL MOTORS CORP. 2. Rotate the driven gear. 3. Observe the voltage. 4. If the result of the inspection is bad, replace the vehicle speed sensor. I

Page 2658 of 5127

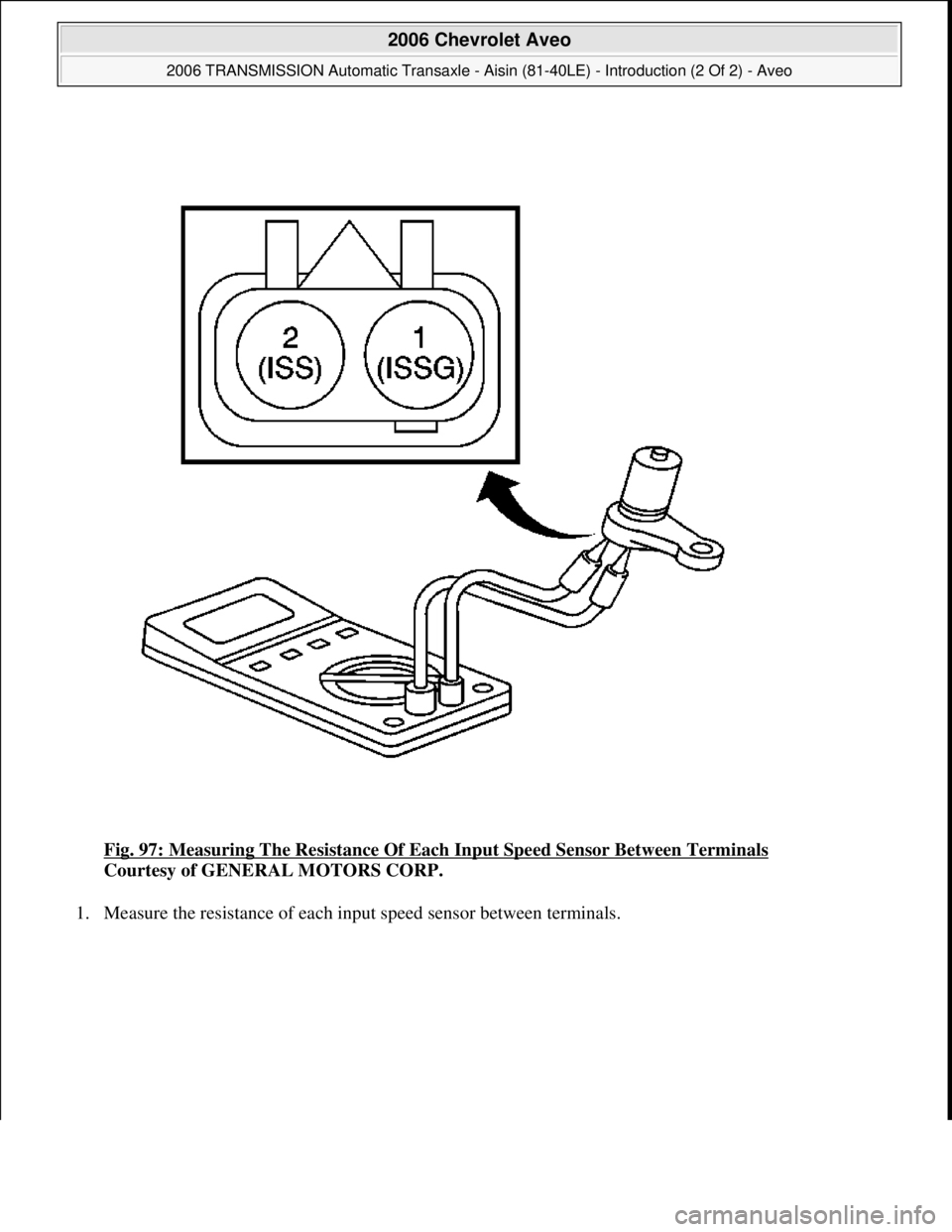

CHEVROLET AVEO 2002 Service Repair Manual Fig. 97: Measuring The Resistance Of Each Input Speed Sensor Between Terminals Courtesy of GENERAL MOTORS CORP. 1. Measure the resistance of each input speed sensor between terminals. 2006 Chevro

Page 2659 of 5127

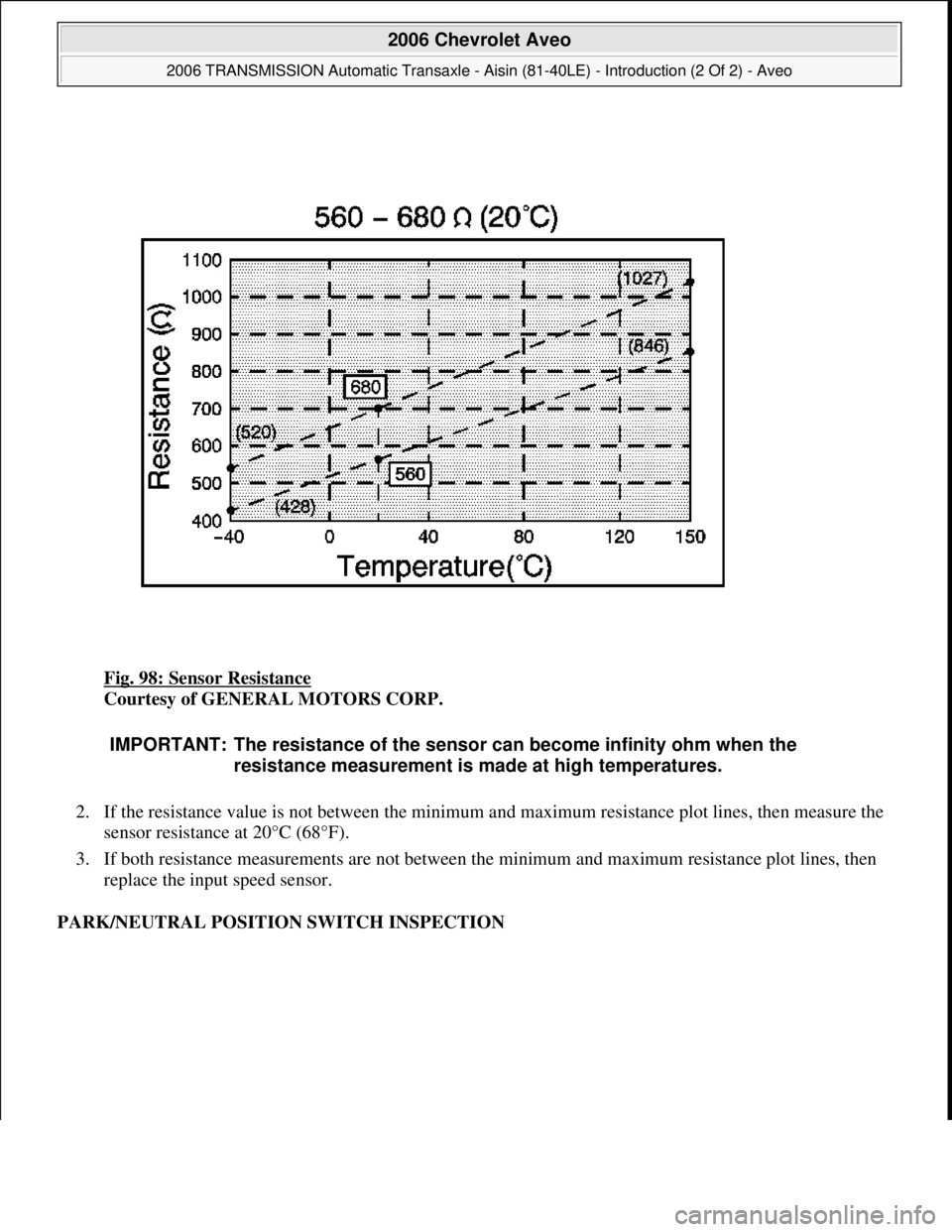

CHEVROLET AVEO 2002 Service Repair Manual Fig. 98: Sensor Resistance Courtesy of GENERAL MOTORS CORP. 2. If the resistance value is not between the minimum and maximum resistance plot lines, then measure the sensor resistance at 20°C (68

Page 2660 of 5127

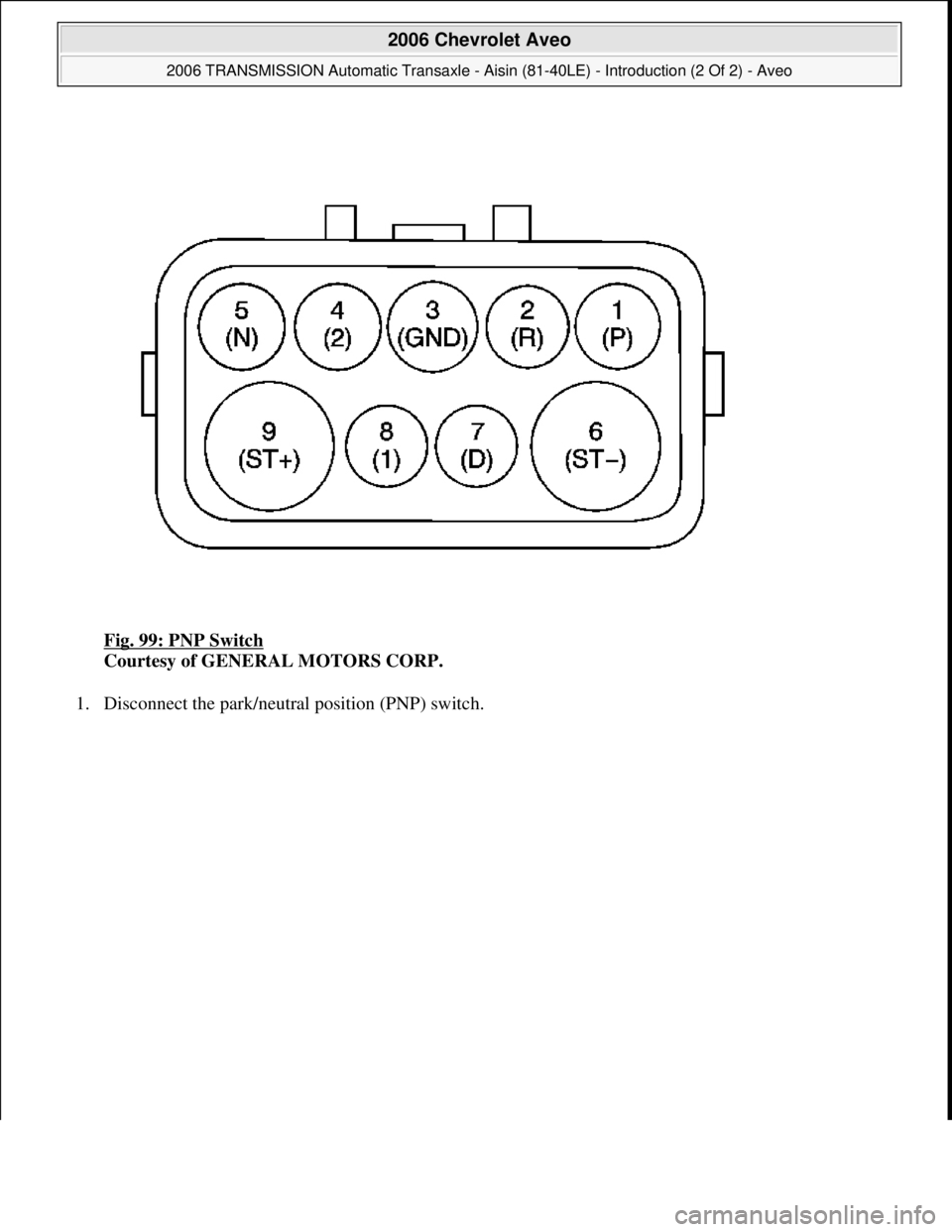

CHEVROLET AVEO 2002 Service Repair Manual Fig. 99: PNP Switch Courtesy of GENERAL MOTORS CORP. 1. Disconnect the park/neutral position (PNP) switch. 2006 Chevrolet Aveo 2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduct

Page 2661 of 5127

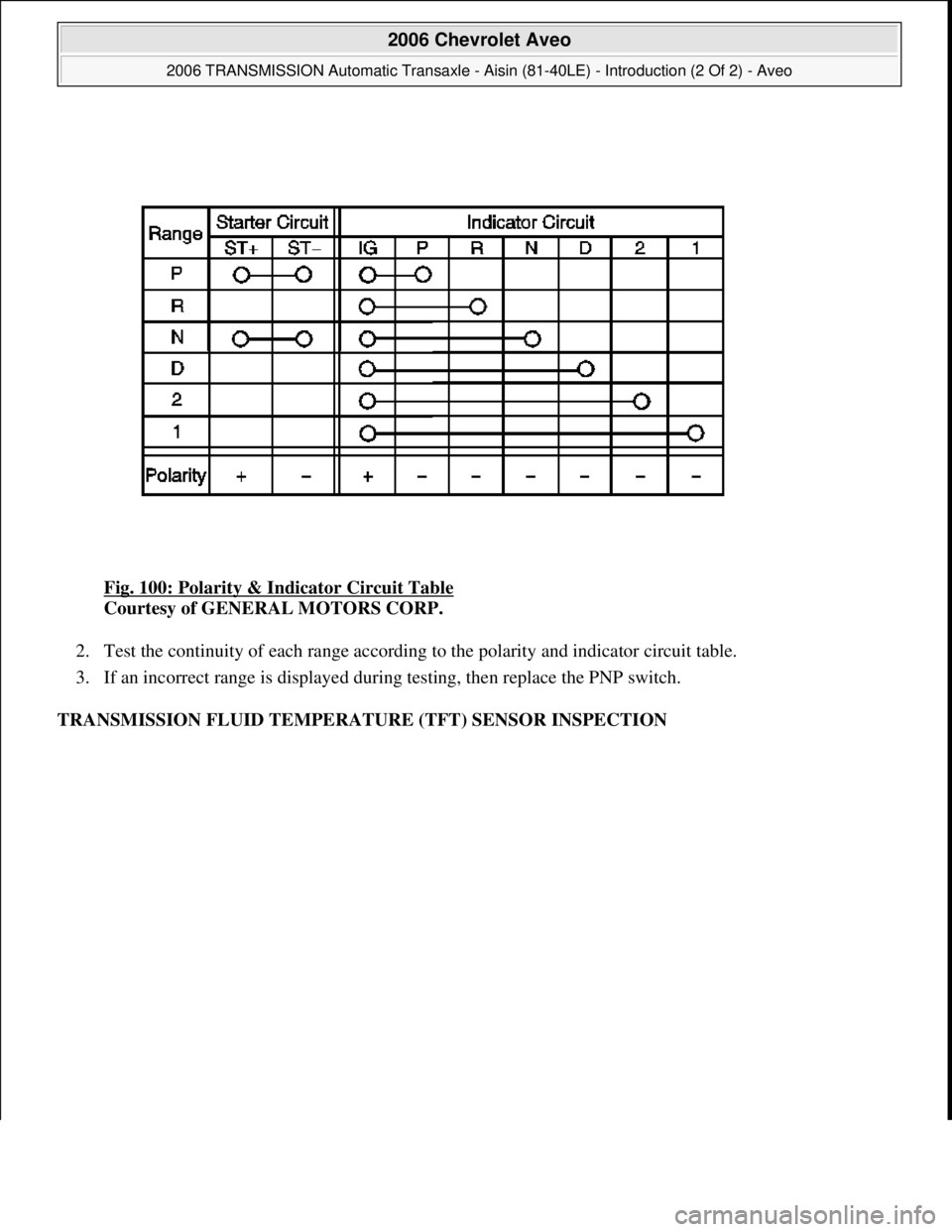

CHEVROLET AVEO 2002 Service Repair Manual Fig. 100: Polarity & Indicator Circuit Table Courtesy of GENERAL MOTORS CORP. 2. Test the continuity of each range according to the polarity and indicator circuit table. 3. If an incorrect range i

Page 2662 of 5127

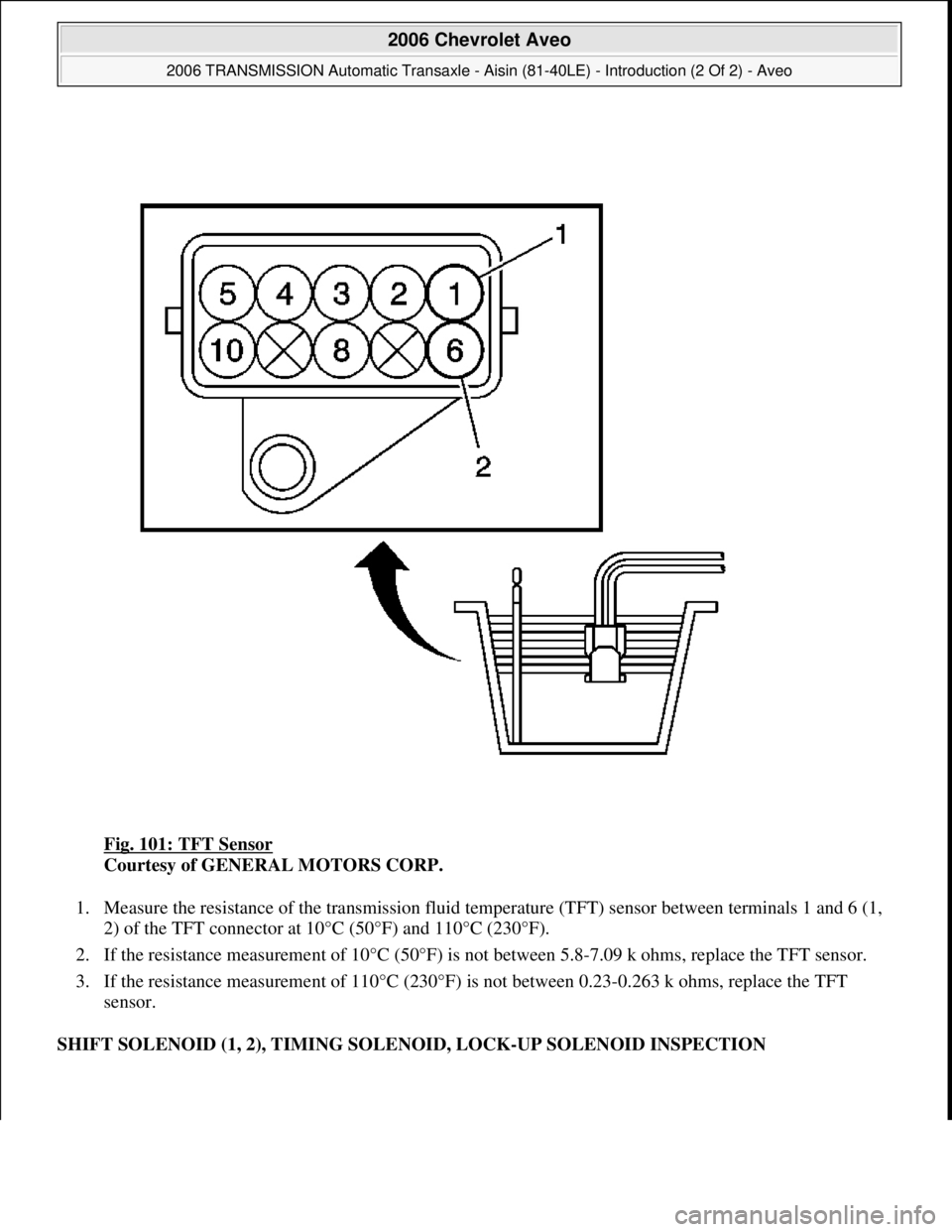

CHEVROLET AVEO 2002 Service Repair Manual Fig. 101: TFT Sensor Courtesy of GENERAL MOTORS CORP. 1. Measure the resistance of the transmission fluid temperature (TFT) sensor between terminals 1 and 6 (1, 2) of the TFT connector at 10°C (50

Page 2663 of 5127

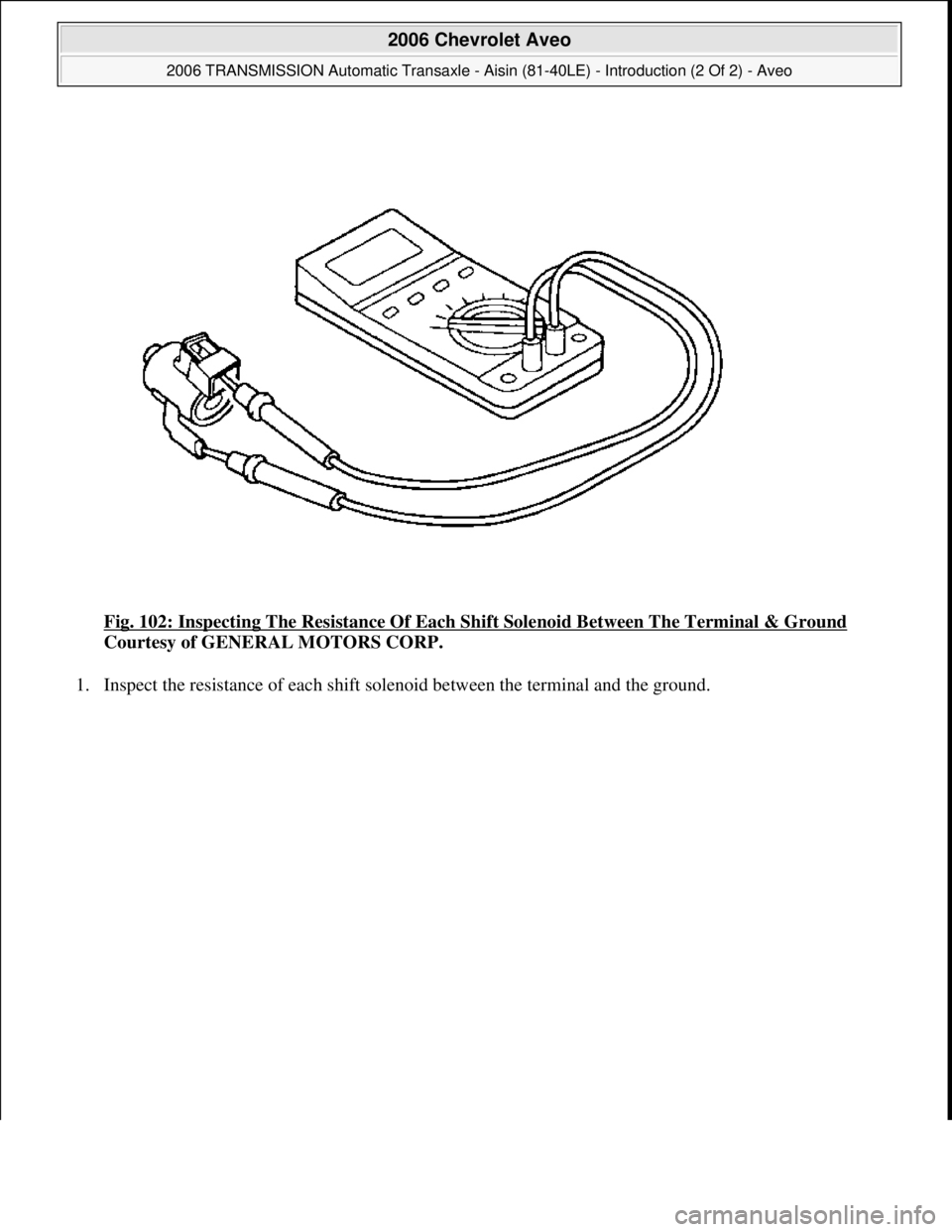

CHEVROLET AVEO 2002 Service Repair Manual Fig. 102: Inspecting The Resistance Of Each Shift Solenoid Between The Terminal & Ground Courtesy of GENERAL MOTORS CORP. 1. Inspect the resistance of each shift solenoid between the terminal and th

Page 2664 of 5127

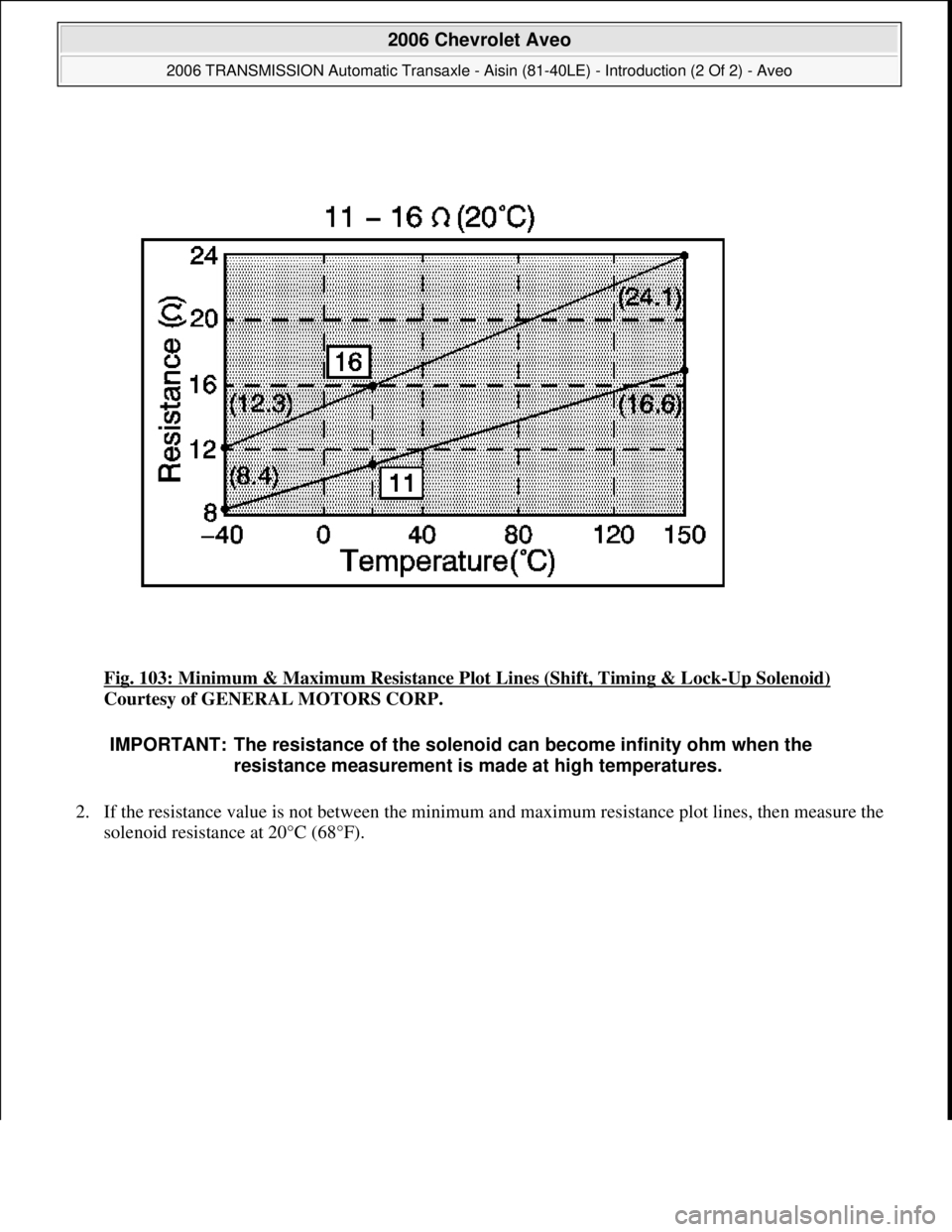

CHEVROLET AVEO 2002 Service Repair Manual Fig. 103: Minimum & Maximum Resistance Plot Lines (Shift, Timing & Lock-Up Solenoid) Courtesy of GENERAL MOTORS CORP. 2. If the resistance value is not between the minimum and maximum resistance plo
