Page 430 of 2395

Self-diagnosisNBBR0095FUNCTIONNBBR0095S01IWhen a problem occurs in the ABS, the warning lamp on the
instrument panel comes on. To start the self-diagnostic results
mode, ground the self-diagnostic (check) terminal located on
data link connector. The location of the malfunction is indicated
by the warning lamp flashing.
SELF-DIAGNOSIS PROCEDURENBBR0095S021. Drive vehicle over 30 km/h (19 MPH) for at least one minute.
2. Turn ignition switch OFF.
SBR665E
3. Ground terminal 9 of data link connector with a suitable har-
ness.
4. Turn ignition switch ON while grounding terminal 9.
Do not depress brake pedal.
SBR668E
5. After 3.0 seconds, the warning lamp starts flashing to indicate
the malfunction code No. (See NOTE.)
6. Verify the location of the malfunction with the malfunction code
chart. Refer to BR-54. Then make the necessary repairs fol-
lowing the diagnostic procedures.
7. After the malfunctions are repaired, erase the malfunction
codes stored in the control unit. Refer to BR-42.
8. Rerun the self-diagnostic results mode to verify that the mal-
function codes have been erased.
9. Disconnect the check terminal from the ground. The self-diag-
nostic results mode is now complete.
10. Check warning lamp for deactivation after driving vehicle over
30 km/h (19 MPH) for at least one minute.
11. After making certain that warning lamp does not come on, test
the ABS in a safe area to verify that it functions properly.
NOTE:
The indication terminates after 5 minutes.
However, when the ignition switch is turned from OFF to ON, the
indication starts flashing again.
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
ST
RS
BT
HA
SC
EL
IDX
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONABS
Self-diagnosis
BR-41
Page 431 of 2395

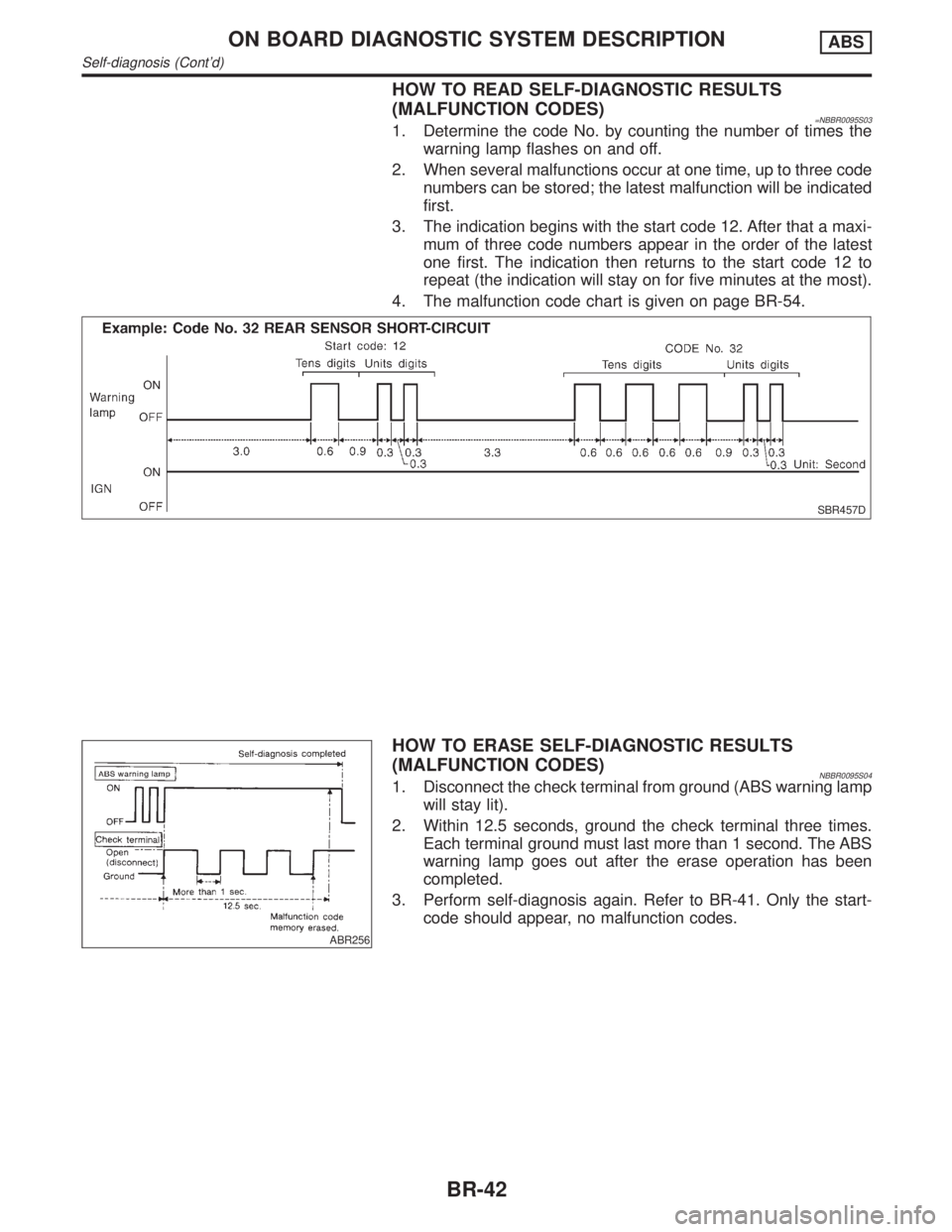

HOW TO READ SELF-DIAGNOSTIC RESULTS
(MALFUNCTION CODES)
=NBBR0095S031. Determine the code No. by counting the number of times the
warning lamp flashes on and off.
2. When several malfunctions occur at one time, up to three code
numbers can be stored; the latest malfunction will be indicated
first.
3. The indication begins with the start code 12. After that a maxi-
mum of three code numbers appear in the order of the latest
one first. The indication then returns to the start code 12 to
repeat (the indication will stay on for five minutes at the most).
4. The malfunction code chart is given on page BR-54.
SBR457D
ABR256
HOW TO ERASE SELF-DIAGNOSTIC RESULTS
(MALFUNCTION CODES)
NBBR0095S041. Disconnect the check terminal from ground (ABS warning lamp
will stay lit).
2. Within 12.5 seconds, ground the check terminal three times.
Each terminal ground must last more than 1 second. The ABS
warning lamp goes out after the erase operation has been
completed.
3. Perform self-diagnosis again. Refer to BR-41. Only the start-
code should appear, no malfunction codes.
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONABS
Self-diagnosis (Cont'd)
BR-42
Page 432 of 2395

CONSULT-II=NBBR0096CONSULT-II APPLICATION TO ABSNBBR0096S01
ITEMSELF-DIAGNOSTIC
RESULTSDATA MONITOR ACTIVE TEST
Front right wheel sensor´´Ð
Front left wheel sensor´´Ð
Rear right wheel sensor´´Ð
Rear left wheel sensor´´Ð
G switch (G sensor)H´´´
ABS sensor´ÐÐ
Stop lamp switch дÐ
Front right inlet solenoid valve´´´
Front right outlet solenoid valve´´´
Front left inlet solenoid valve´´´
Front left outlet solenoid valve´´´
Rear inlet solenoid valve´´´
Rear outlet solenoid valve´´´
Actuator solenoid valve relay´´Ð
Actuator motor relay
(ABS MOTOR is shown on the Data Monitor
screen.)´´´
ABS warning lamp дÐ
Battery voltage´´Ð
Control unit´ÐÐ
ABS operating signal д´
´: Applicable
Ð: Not applicable
H: 4WD models only
