Page 2289 of 2395

SMT862D
Transfer Control Unit Terminals and Reference
Value
NBTF0018REMOVAL AND INSTALLATION OF TRANSFER
CONTROL UNIT
NBTF0018S03RemovalNBTF0018S03011. Turn ignition switch OFF and disconnect negative battery ter-
minal.
2. Remove console box.
3. Remove cluster lid C.
4. Remove audio assembly and A/C control unit.
5. Remove instrument lower panel on driver side.
6. Remove glove box.
7. Remove instrument lower panel on passenger side.
8. Remove instrument lower center panel.
9. Remove transfer control unit.
IFor steps 2 through 8 above, refer to BT-21, ªInstrument Panel
Assemblyº.
InstallationNBTF0018S0302IInstallation is in the reverse order of removal.
When installing transfer control unit, tighten transfer control unit
lock nut.
Tightening torque:
: 4.3 - 5.8 N´m (0.44 - 0.59 kg-m, 38 - 51 in-lb)
SMT771D
INSPECTION OF TRANSFER CONTROL UNITNBTF0018S01IMeasure voltage between each terminal and terminal 6 or 45
by following ªTRANSFER CONTROL UNIT INSPECTION
TABLEº, TF-55.
IPin connector terminal layout
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
Transfer Control Unit Terminals and Reference Value
TF-54
Page 2290 of 2395

SMT772D
TRANSFER CONTROL UNIT INSPECTION TABLENBTF0018S02(Data are reference values.)
Terminal
No.Item Condition Judgement standard
12-4WD shift solenoid
valve
&
4WD shift switch is set to ª2WDº
position.Less than 1V
4WD shift switch is set to any posi-
tion other than ª2WDº.Battery voltage
24WD shift indicator lamp
(2WD)
Lamp lights while system is operating
properly.Less than 1V
&
2WD indicator lamp does not come
on.Battery voltage
3 Ground Ð Ð
4Transfer shift relay
(High)While actuator is operating
(4H,4LO)Battery voltage
Actuator does not operate. Less than 1V
5 4WD warning lampLamp comes ON. (when engine is
stopped.)
(Fail-safe condition appears on
display, engine is stopped, actuator
position detection switch is
inoperative, oil temperature is too
high and/or tires of different size are
installed.)Less than 1V
Except above Battery voltage
6 Ground Ð Ð Ð
7 PNP switch (R position)
&
A/T selector lever is set to ªreverseº
position.Battery voltage
A/T selector lever is set to any posi-
tion other than ªreverseº.Less than 1V
8ÐÐÐÐ
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
Transfer Control Unit Terminals and Reference Value (Cont'd)
TF-55

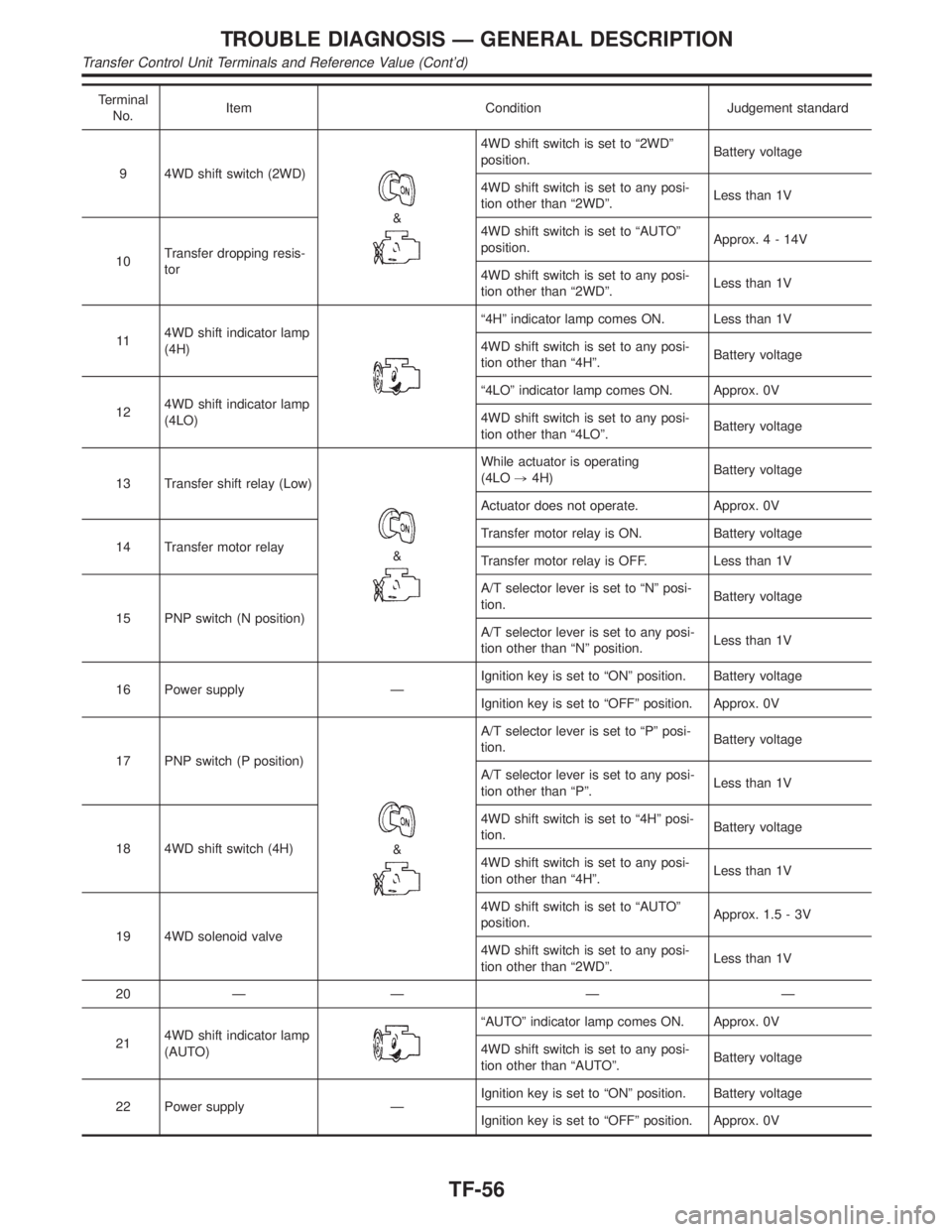

Page 2291 of 2395

Terminal
No.Item Condition Judgement standard
9 4WD shift switch (2WD)
&
4WD shift switch is set to ª2WDº
position.Battery voltage
4WD shift switch is set to any posi-
tion other than ª2WDº.Less than 1V
10Transfer dropping resis-
tor4WD shift switch is set to ªAUTOº
position.Approx.4-14V
4WD shift switch is set to any posi-
tion other than ª2WDº.Less than 1V
114WD shift indicator lamp
(4H)
ª4Hº indicator lamp comes ON. Less than 1V
4WD shift switch is set to any posi-
tion other than ª4Hº.Battery voltage
124WD shift indicator lamp
(4LO)ª4LOº indicator lamp comes ON. Approx. 0V
4WD shift switch is set to any posi-
tion other than ª4LOº.Battery voltage
13 Transfer shift relay (Low)
&
While actuator is operating
(4LO,4H)Battery voltage
Actuator does not operate. Approx. 0V
14 Transfer motor relayTransfer motor relay is ON. Battery voltage
Transfer motor relay is OFF. Less than 1V
15 PNP switch (N position)A/T selector lever is set to ªNº posi-
tion.Battery voltage
A/T selector lever is set to any posi-
tion other than ªNº position.Less than 1V
16 Power supply ÐIgnition key is set to ªONº position. Battery voltage
Ignition key is set to ªOFFº position. Approx. 0V
17 PNP switch (P position)
&
A/T selector lever is set to ªPº posi-
tion.Battery voltage
A/T selector lever is set to any posi-
tion other than ªPº.Less than 1V
18 4WD shift switch (4H)4WD shift switch is set to ª4Hº posi-
tion.Battery voltage
4WD shift switch is set to any posi-
tion other than ª4Hº.Less than 1V
19 4WD solenoid valve4WD shift switch is set to ªAUTOº
position.Approx. 1.5 - 3V
4WD shift switch is set to any posi-
tion other than ª2WDº.Less than 1V
20ÐÐÐÐ
214WD shift indicator lamp
(AUTO)
ªAUTOº indicator lamp comes ON. Approx. 0V
4WD shift switch is set to any posi-
tion other than ªAUTOº.Battery voltage
22 Power supply ÐIgnition key is set to ªONº position. Battery voltage
Ignition key is set to ªOFFº position. Approx. 0V
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
Transfer Control Unit Terminals and Reference Value (Cont'd)
TF-56

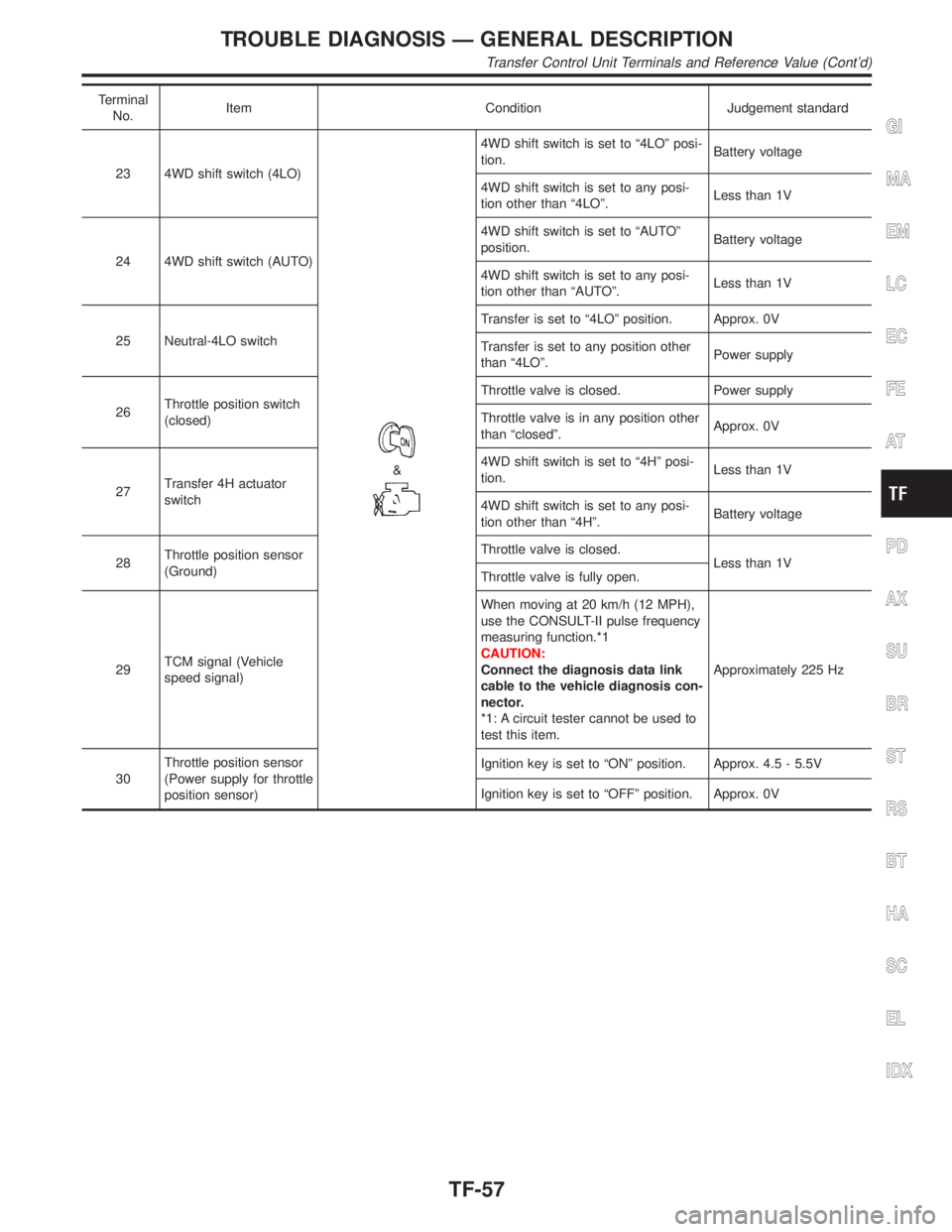

Page 2292 of 2395

Terminal
No.Item Condition Judgement standard
23 4WD shift switch (4LO)
&
4WD shift switch is set to ª4LOº posi-
tion.Battery voltage
4WD shift switch is set to any posi-
tion other than ª4LOº.Less than 1V
24 4WD shift switch (AUTO)4WD shift switch is set to ªAUTOº
position.Battery voltage
4WD shift switch is set to any posi-
tion other than ªAUTOº.Less than 1V
25 Neutral-4LO switchTransfer is set to ª4LOº position. Approx. 0V
Transfer is set to any position other
than ª4LOº.Power supply
26Throttle position switch
(closed)Throttle valve is closed. Power supply
Throttle valve is in any position other
than ªclosedº.Approx. 0V
27Transfer 4H actuator
switch4WD shift switch is set to ª4Hº posi-
tion.Less than 1V
4WD shift switch is set to any posi-
tion other than ª4Hº.Battery voltage
28Throttle position sensor
(Ground)Throttle valve is closed.
Less than 1V
Throttle valve is fully open.
29TCM signal (Vehicle
speed signal)When moving at 20 km/h (12 MPH),
use the CONSULT-II pulse frequency
measuring function.*1
CAUTION:
Connect the diagnosis data link
cable to the vehicle diagnosis con-
nector.
*1: A circuit tester cannot be used to
test this item.Approximately 225 Hz
30Throttle position sensor
(Power supply for throttle
position sensor)Ignition key is set to ªONº position. Approx. 4.5 - 5.5V
Ignition key is set to ªOFFº position. Approx. 0VGI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
Transfer Control Unit Terminals and Reference Value (Cont'd)
TF-57

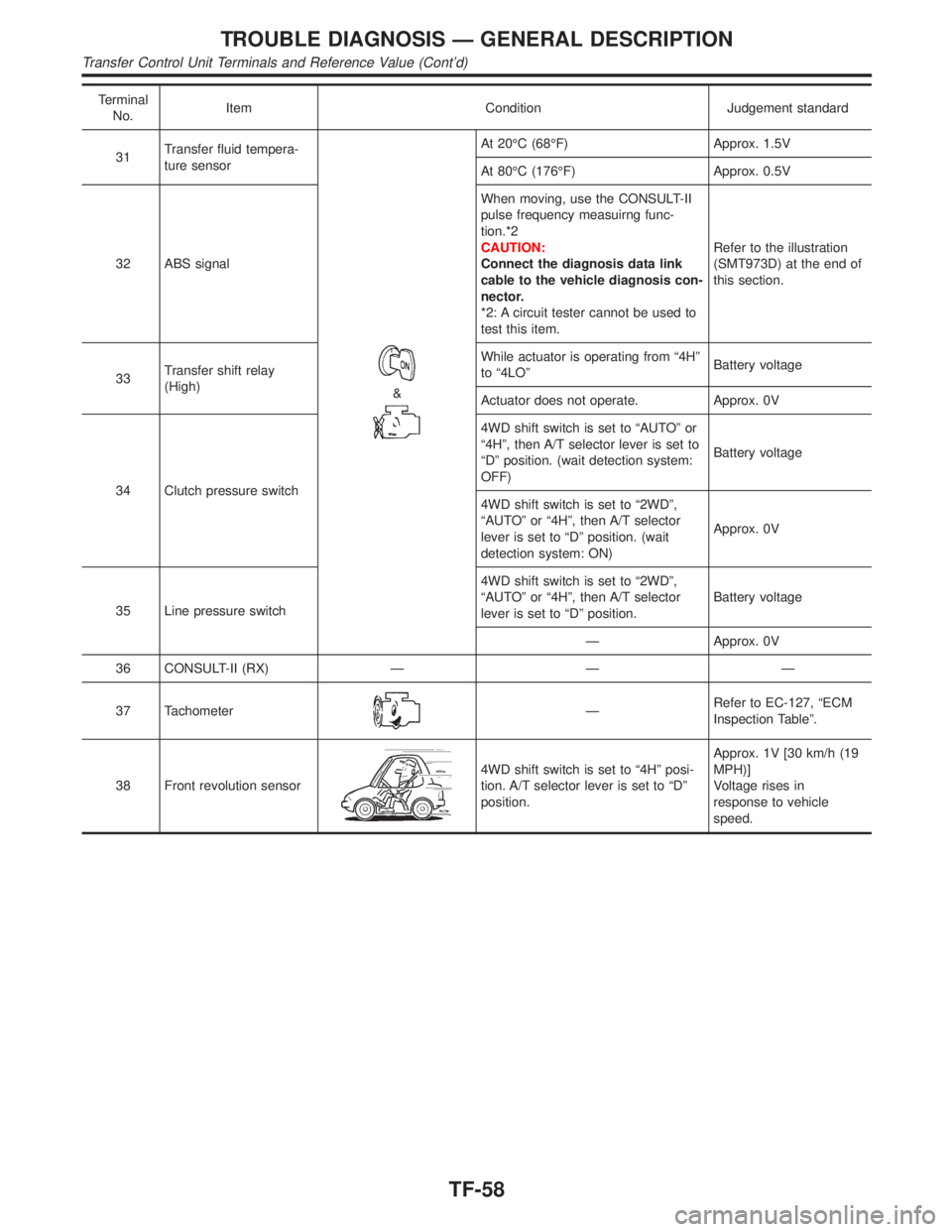

Page 2293 of 2395

Terminal
No.Item Condition Judgement standard
31Transfer fluid tempera-
ture sensor
&
At 20ÉC (68ÉF) Approx. 1.5V
At 80ÉC (176ÉF) Approx. 0.5V
32 ABS signalWhen moving, use the CONSULT-II
pulse frequency measuirng func-
tion.*2
CAUTION:
Connect the diagnosis data link
cable to the vehicle diagnosis con-
nector.
*2: A circuit tester cannot be used to
test this item.Refer to the illustration
(SMT973D) at the end of
this section.
33Transfer shift relay
(High)While actuator is operating from ª4Hº
to ª4LOºBattery voltage
Actuator does not operate. Approx. 0V
34 Clutch pressure switch4WD shift switch is set to ªAUTOº or
ª4Hº, then A/T selector lever is set to
ªDº position. (wait detection system:
OFF)Battery voltage
4WD shift switch is set to ª2WDº,
ªAUTOº or ª4Hº, then A/T selector
lever is set to ªDº position. (wait
detection system: ON)Approx. 0V
35 Line pressure switch4WD shift switch is set to ª2WDº,
ªAUTOº or ª4Hº, then A/T selector
lever is set to ªDº position.Battery voltage
Ð Approx. 0V
36 CONSULT-II (RX) Ð Ð Ð
37 Tachometer
ÐRefer to EC-127, ªECM
Inspection Tableº.
38 Front revolution sensor
4WD shift switch is set to ª4Hº posi-
tion. A/T selector lever is set to ªDº
position.Approx. 1V [30 km/h (19
MPH)]
Voltage rises in
response to vehicle
speed.
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
Transfer Control Unit Terminals and Reference Value (Cont'd)
TF-58

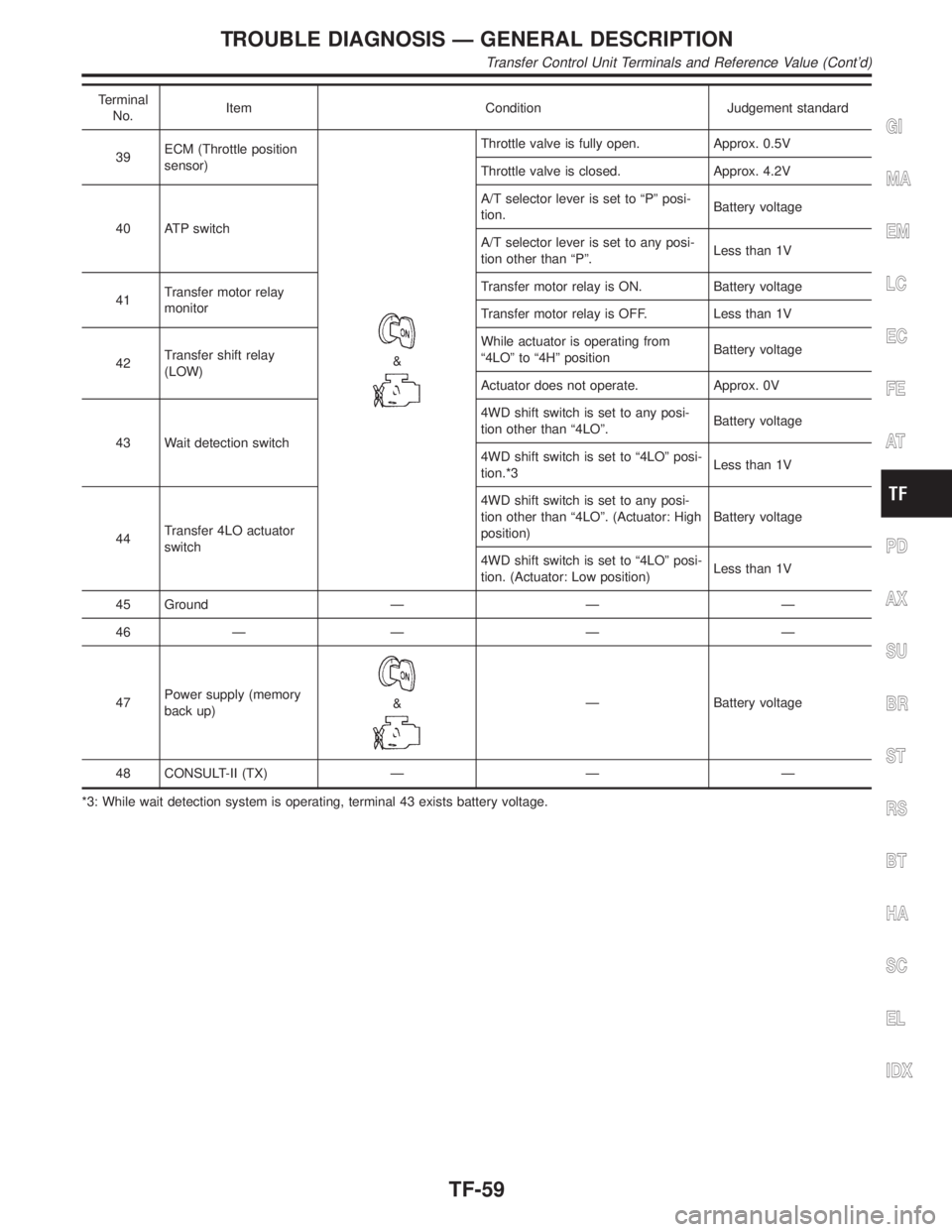

Page 2294 of 2395

Terminal
No.Item Condition Judgement standard
39ECM (Throttle position
sensor)
&
Throttle valve is fully open. Approx. 0.5V
Throttle valve is closed. Approx. 4.2V
40 ATP switchA/T selector lever is set to ªPº posi-
tion.Battery voltage
A/T selector lever is set to any posi-
tion other than ªPº.Less than 1V
41Transfer motor relay
monitorTransfer motor relay is ON. Battery voltage
Transfer motor relay is OFF. Less than 1V
42Transfer shift relay
(LOW)While actuator is operating from
ª4LOº to ª4Hº positionBattery voltage
Actuator does not operate. Approx. 0V
43 Wait detection switch4WD shift switch is set to any posi-
tion other than ª4LOº.Battery voltage
4WD shift switch is set to ª4LOº posi-
tion.*3Less than 1V
44Transfer 4LO actuator
switch4WD shift switch is set to any posi-
tion other than ª4LOº. (Actuator: High
position)Battery voltage
4WD shift switch is set to ª4LOº posi-
tion. (Actuator: Low position)Less than 1V
45 Ground Ð Ð Ð
46ÐÐÐÐ
47Power supply (memory
back up)
&Ð Battery voltage
48 CONSULT-II (TX) Ð Ð Ð
*3: While wait detection system is operating, terminal 43 exists battery voltage.
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
Transfer Control Unit Terminals and Reference Value (Cont'd)
TF-59
Page 2295 of 2395
SMT973D
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
Transfer Control Unit Terminals and Reference Value (Cont'd)
TF-60
Page 2296 of 2395

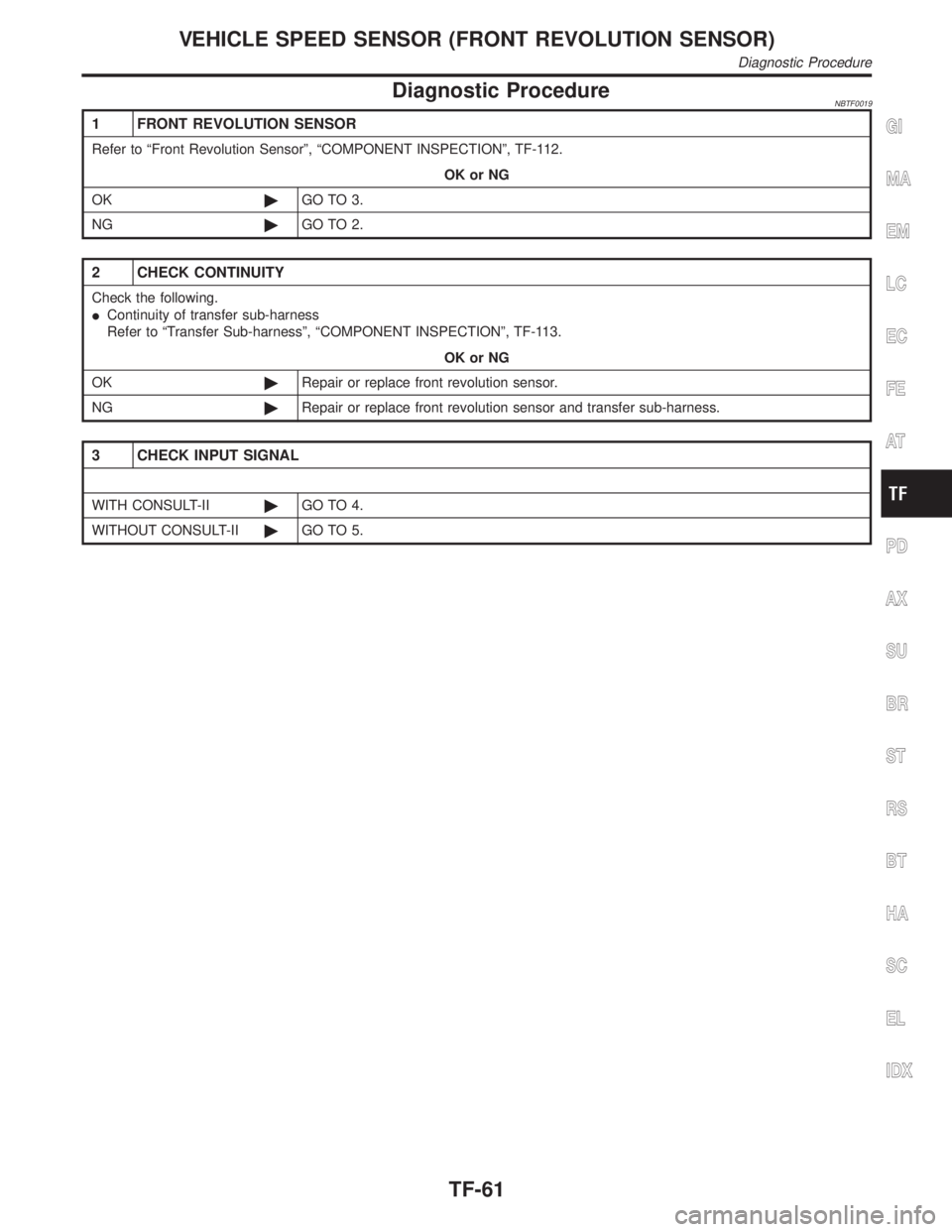

Diagnostic ProcedureNBTF0019
1 FRONT REVOLUTION SENSOR
Refer to ªFront Revolution Sensorº, ªCOMPONENT INSPECTIONº, TF-112.
OK or NG
OK©GO TO 3.
NG©GO TO 2.
2 CHECK CONTINUITY
Check the following.
IContinuity of transfer sub-harness
Refer to ªTransfer Sub-harnessº, ªCOMPONENT INSPECTIONº, TF-113.
OK or NG
OK©Repair or replace front revolution sensor.
NG©Repair or replace front revolution sensor and transfer sub-harness.
3 CHECK INPUT SIGNAL
WITH CONSULT-II©GO TO 4.
WITHOUT CONSULT-II©GO TO 5.
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
VEHICLE SPEED SENSOR (FRONT REVOLUTION SENSOR)
Diagnostic Procedure
TF-61
