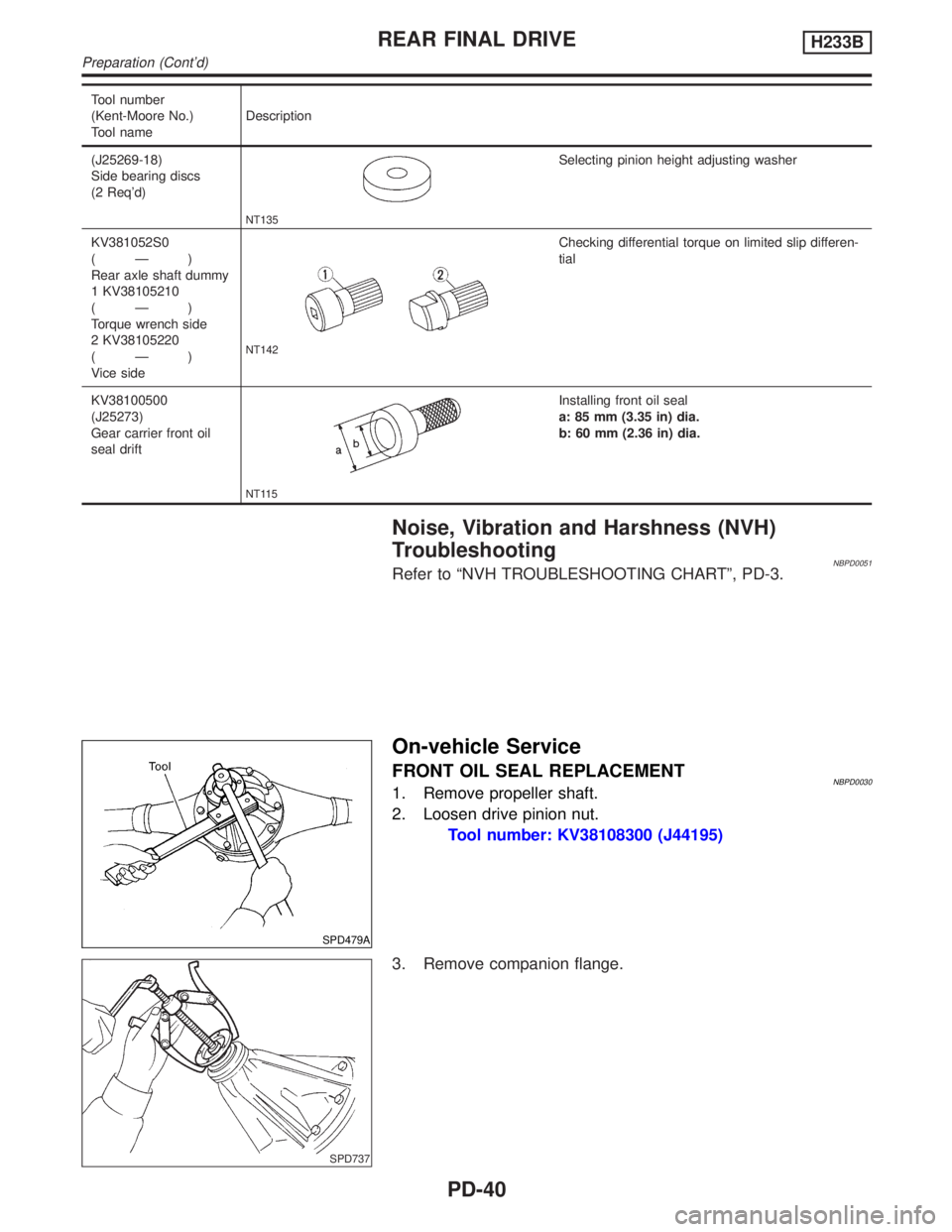

Page 2065 of 2395
Tool number
(Kent-Moore No.)
Tool nameDescription
(J25269-18)
Side bearing discs
(2 Req'd)
NT135
Selecting pinion height adjusting washer
KV381052S0
(Ð)
Rear axle shaft dummy
1 KV38105210
(Ð)
Torque wrench side
2 KV38105220
(Ð)
Vice side
NT142
Checking differential torque on limited slip differen-
tial
KV38100500
(J25273)
Gear carrier front oil
seal drift
NT115
Installing front oil seal
a: 85 mm (3.35 in) dia.
b: 60 mm (2.36 in) dia.
Noise, Vibration and Harshness (NVH)
Troubleshooting
NBPD0051Refer to ªNVH TROUBLESHOOTING CHARTº, PD-3.
SPD479A
On-vehicle Service
FRONT OIL SEAL REPLACEMENTNBPD00301. Remove propeller shaft.
2. Loosen drive pinion nut.
Tool number: KV38108300 (J44195)
SPD737
3. Remove companion flange.
REAR FINAL DRIVEH233B
Preparation (Cont'd)
PD-40

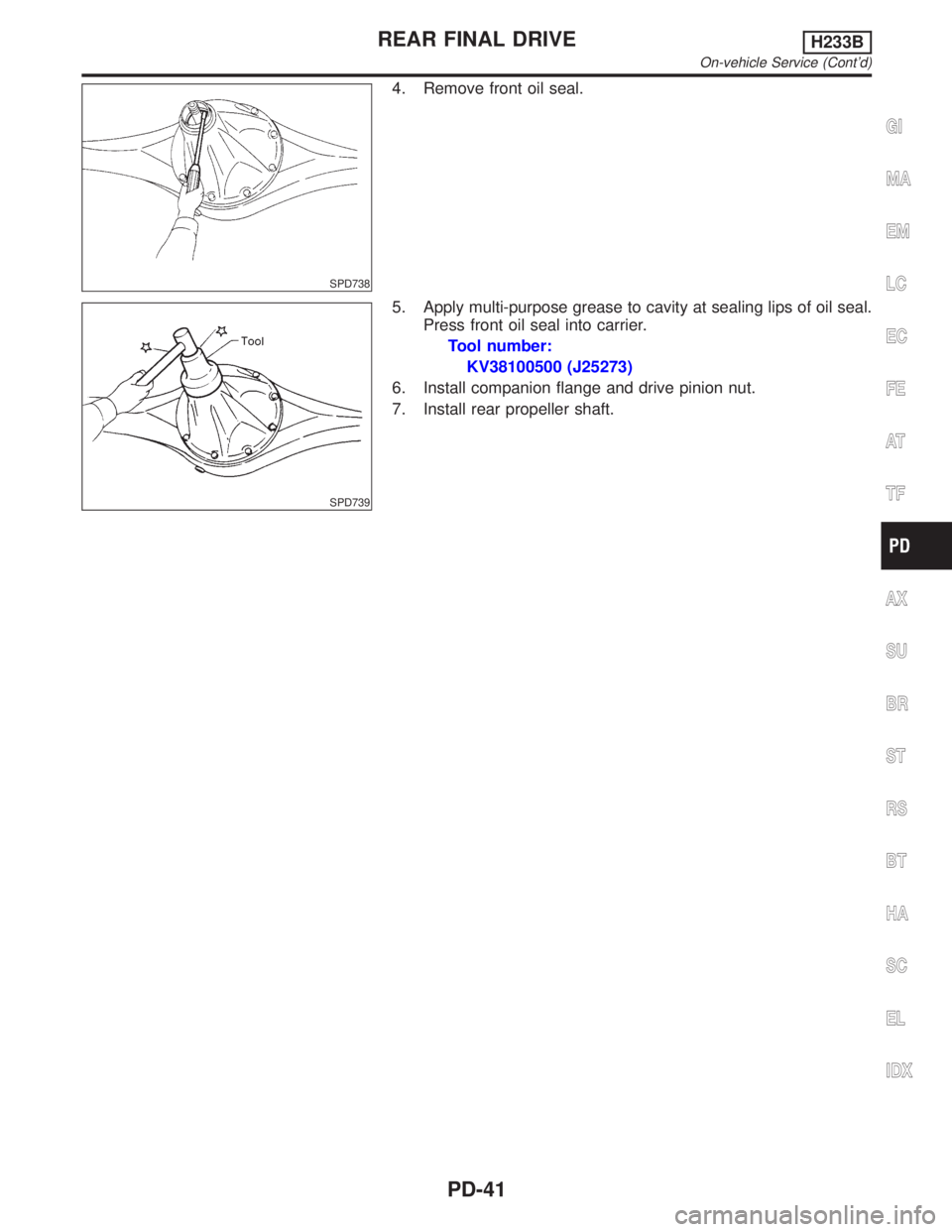

Page 2066 of 2395
SPD738
4. Remove front oil seal.
SPD739
5. Apply multi-purpose grease to cavity at sealing lips of oil seal.
Press front oil seal into carrier.
Tool number:
KV38100500 (J25273)
6. Install companion flange and drive pinion nut.
7. Install rear propeller shaft.
GI
MA
EM
LC
EC
FE
AT
TF
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REAR FINAL DRIVEH233B
On-vehicle Service (Cont'd)
PD-41
Page 2067 of 2395
ComponentsNBPD0031
SPD362AA
REAR FINAL DRIVEH233B
Components
PD-42

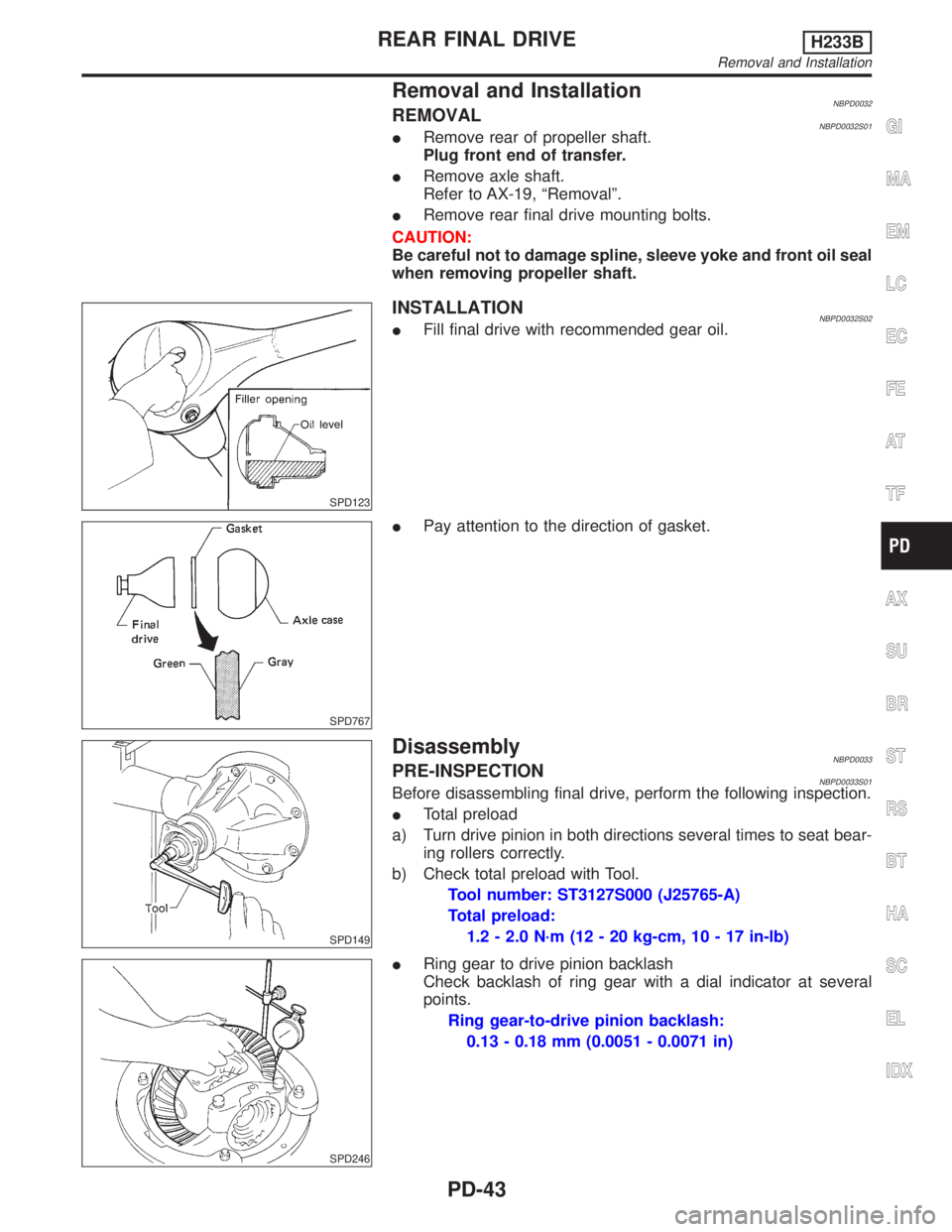

Page 2068 of 2395

Removal and InstallationNBPD0032REMOVALNBPD0032S01IRemove rear of propeller shaft.
Plug front end of transfer.
IRemove axle shaft.
Refer to AX-19, ªRemovalº.
IRemove rear final drive mounting bolts.
CAUTION:
Be careful not to damage spline, sleeve yoke and front oil seal
when removing propeller shaft.
SPD123
INSTALLATIONNBPD0032S02IFill final drive with recommended gear oil.
SPD767
IPay attention to the direction of gasket.
SPD149
DisassemblyNBPD0033PRE-INSPECTIONNBPD0033S01Before disassembling final drive, perform the following inspection.
ITotal preload
a) Turn drive pinion in both directions several times to seat bear-
ing rollers correctly.
b) Check total preload with Tool.
Tool number: ST3127S000 (J25765-A)
Total preload:
1.2 - 2.0 N´m (12 - 20 kg-cm, 10 - 17 in-lb)
SPD246
IRing gear to drive pinion backlash
Check backlash of ring gear with a dial indicator at several
points.
Ring gear-to-drive pinion backlash:
0.13 - 0.18 mm (0.0051 - 0.0071 in)
GI
MA
EM
LC
EC
FE
AT
TF
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REAR FINAL DRIVEH233B
Removal and Installation
PD-43

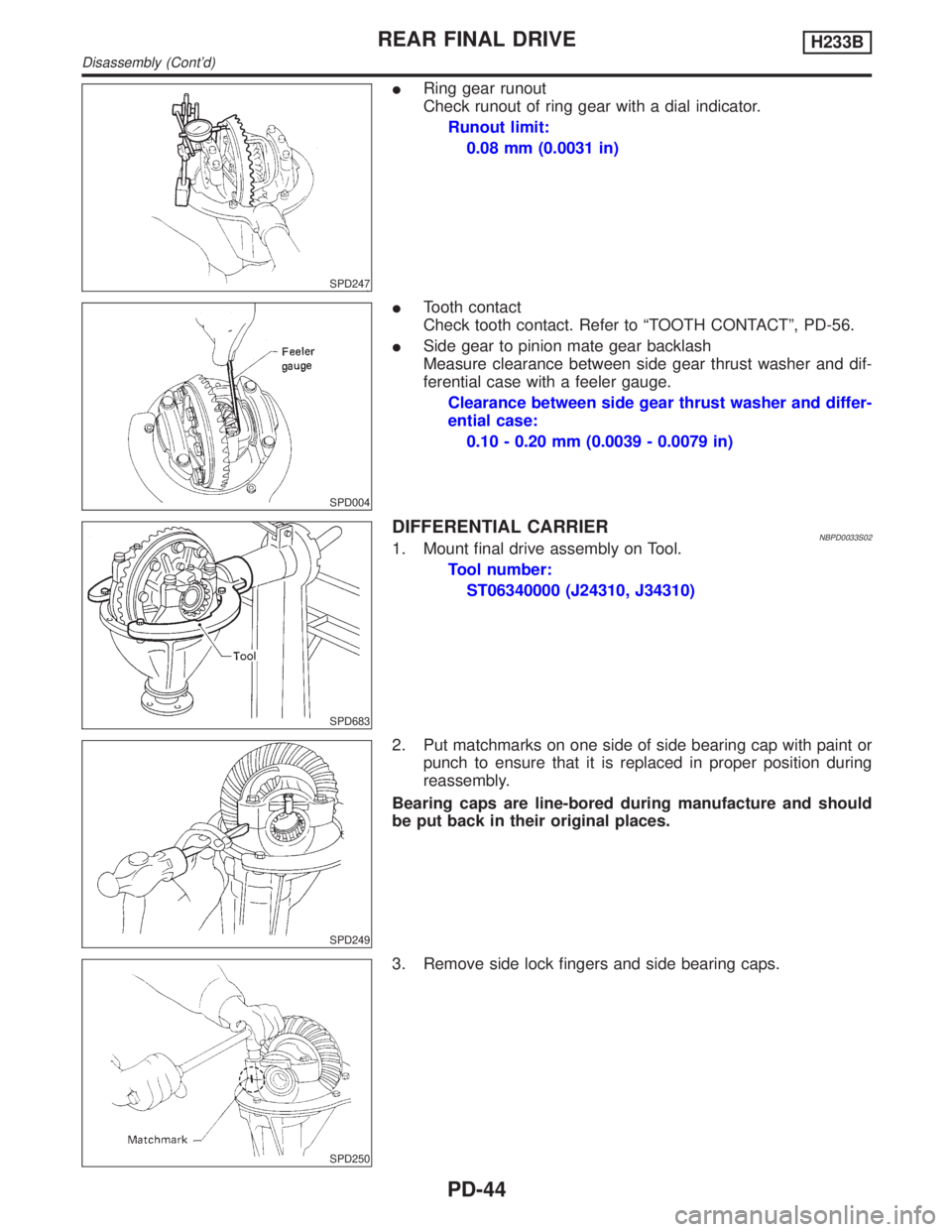

Page 2069 of 2395
SPD247
IRing gear runout
Check runout of ring gear with a dial indicator.
Runout limit:
0.08 mm (0.0031 in)
SPD004
ITooth contact
Check tooth contact. Refer to ªTOOTH CONTACTº, PD-56.
ISide gear to pinion mate gear backlash
Measure clearance between side gear thrust washer and dif-
ferential case with a feeler gauge.
Clearance between side gear thrust washer and differ-
ential case:
0.10 - 0.20 mm (0.0039 - 0.0079 in)
SPD683
DIFFERENTIAL CARRIERNBPD0033S021. Mount final drive assembly on Tool.
Tool number:
ST06340000 (J24310, J34310)
SPD249
2. Put matchmarks on one side of side bearing cap with paint or
punch to ensure that it is replaced in proper position during
reassembly.
Bearing caps are line-bored during manufacture and should
be put back in their original places.
SPD250
3. Remove side lock fingers and side bearing caps.
REAR FINAL DRIVEH233B
Disassembly (Cont'd)
PD-44

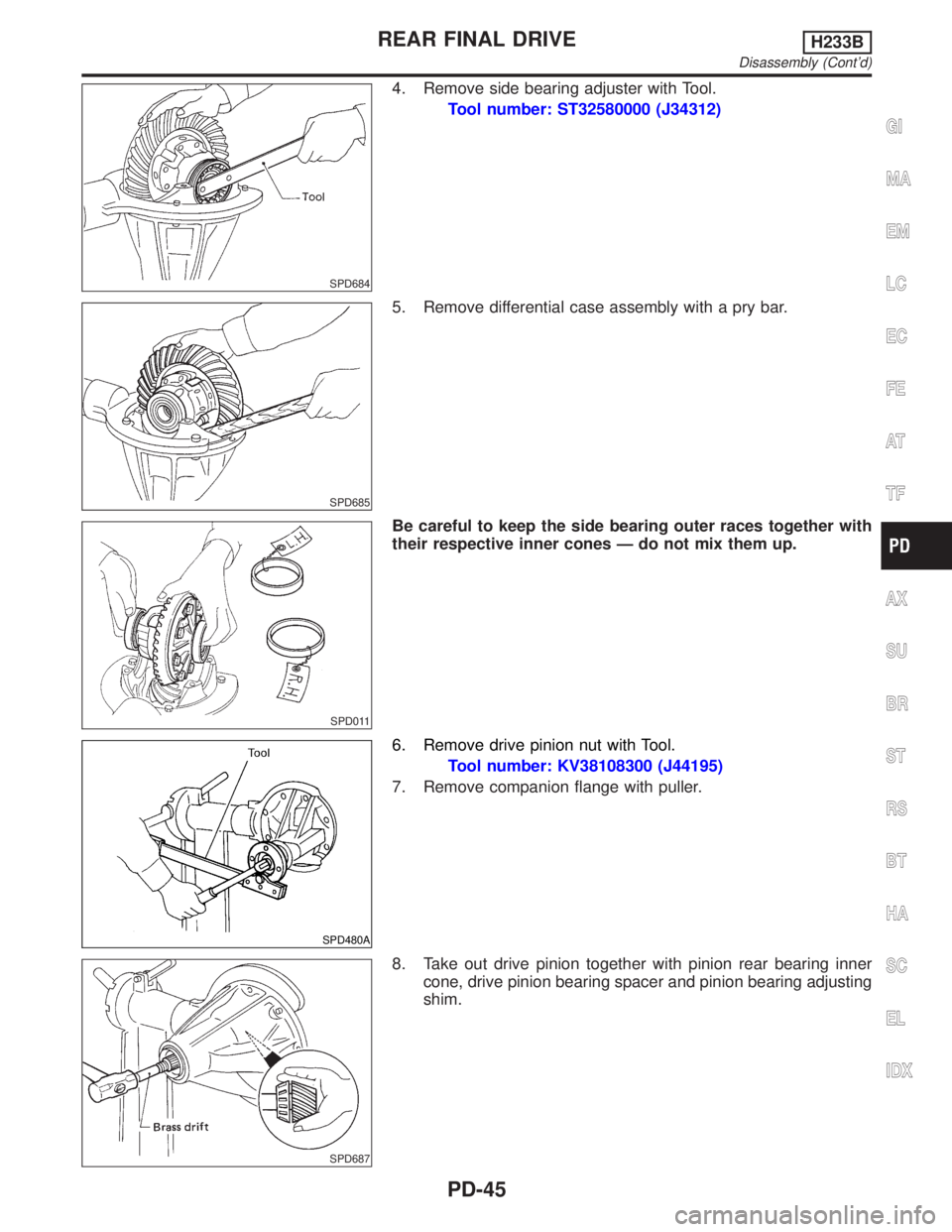

Page 2070 of 2395
SPD684
4. Remove side bearing adjuster with Tool.
Tool number: ST32580000 (J34312)
SPD685
5. Remove differential case assembly with a pry bar.
SPD011
Be careful to keep the side bearing outer races together with
their respective inner cones Ð do not mix them up.
SPD480A
6. Remove drive pinion nut with Tool.
Tool number: KV38108300 (J44195)
7. Remove companion flange with puller.
SPD687
8. Take out drive pinion together with pinion rear bearing inner
cone, drive pinion bearing spacer and pinion bearing adjusting
shim.
GI
MA
EM
LC
EC
FE
AT
TF
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REAR FINAL DRIVEH233B
Disassembly (Cont'd)
PD-45

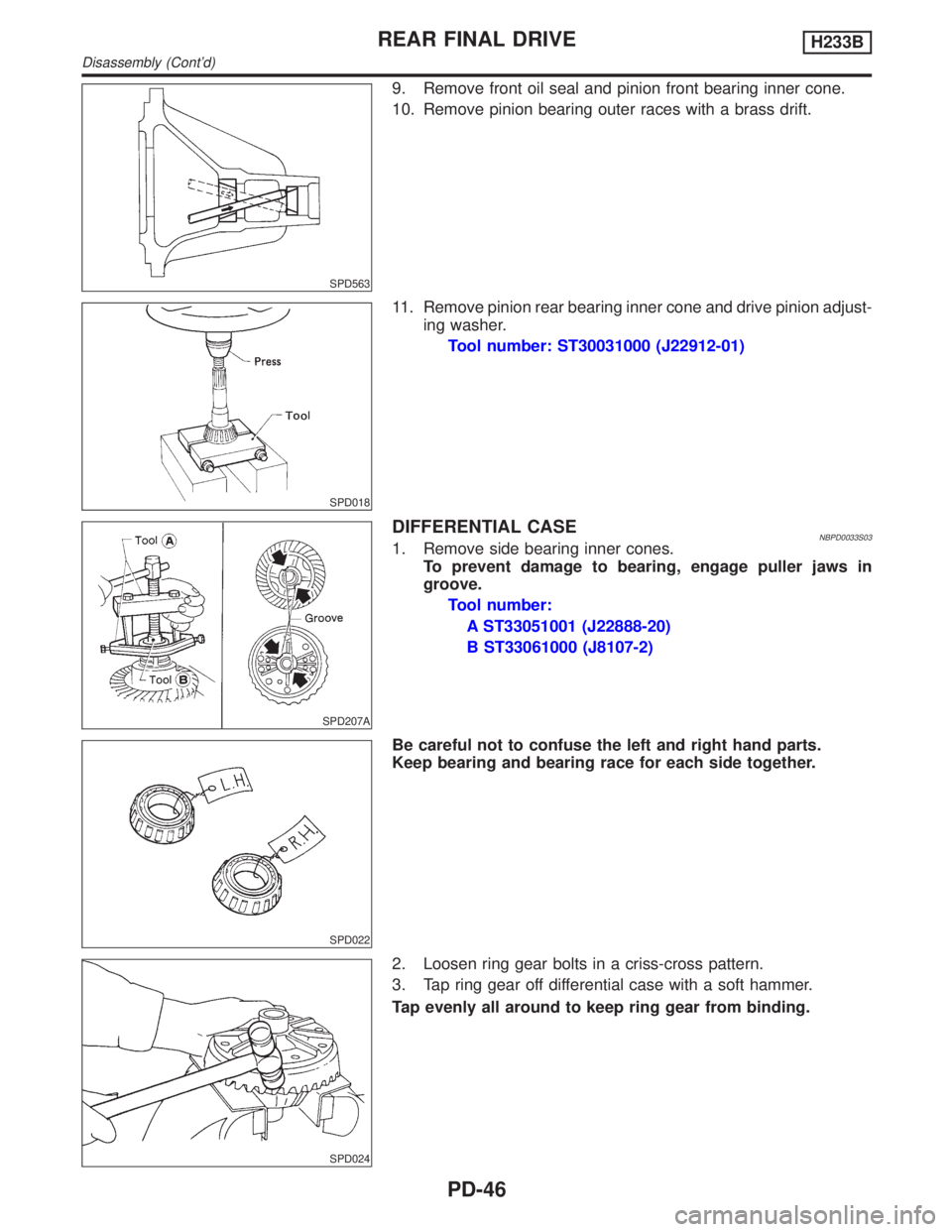

Page 2071 of 2395
SPD563
9. Remove front oil seal and pinion front bearing inner cone.
10. Remove pinion bearing outer races with a brass drift.
SPD018
11. Remove pinion rear bearing inner cone and drive pinion adjust-
ing washer.
Tool number: ST30031000 (J22912-01)
SPD207A
DIFFERENTIAL CASENBPD0033S031. Remove side bearing inner cones.
To prevent damage to bearing, engage puller jaws in
groove.
Tool number:
A ST33051001 (J22888-20)
B ST33061000 (J8107-2)
SPD022
Be careful not to confuse the left and right hand parts.
Keep bearing and bearing race for each side together.
SPD024
2. Loosen ring gear bolts in a criss-cross pattern.
3. Tap ring gear off differential case with a soft hammer.
Tap evenly all around to keep ring gear from binding.
REAR FINAL DRIVEH233B
Disassembly (Cont'd)
PD-46

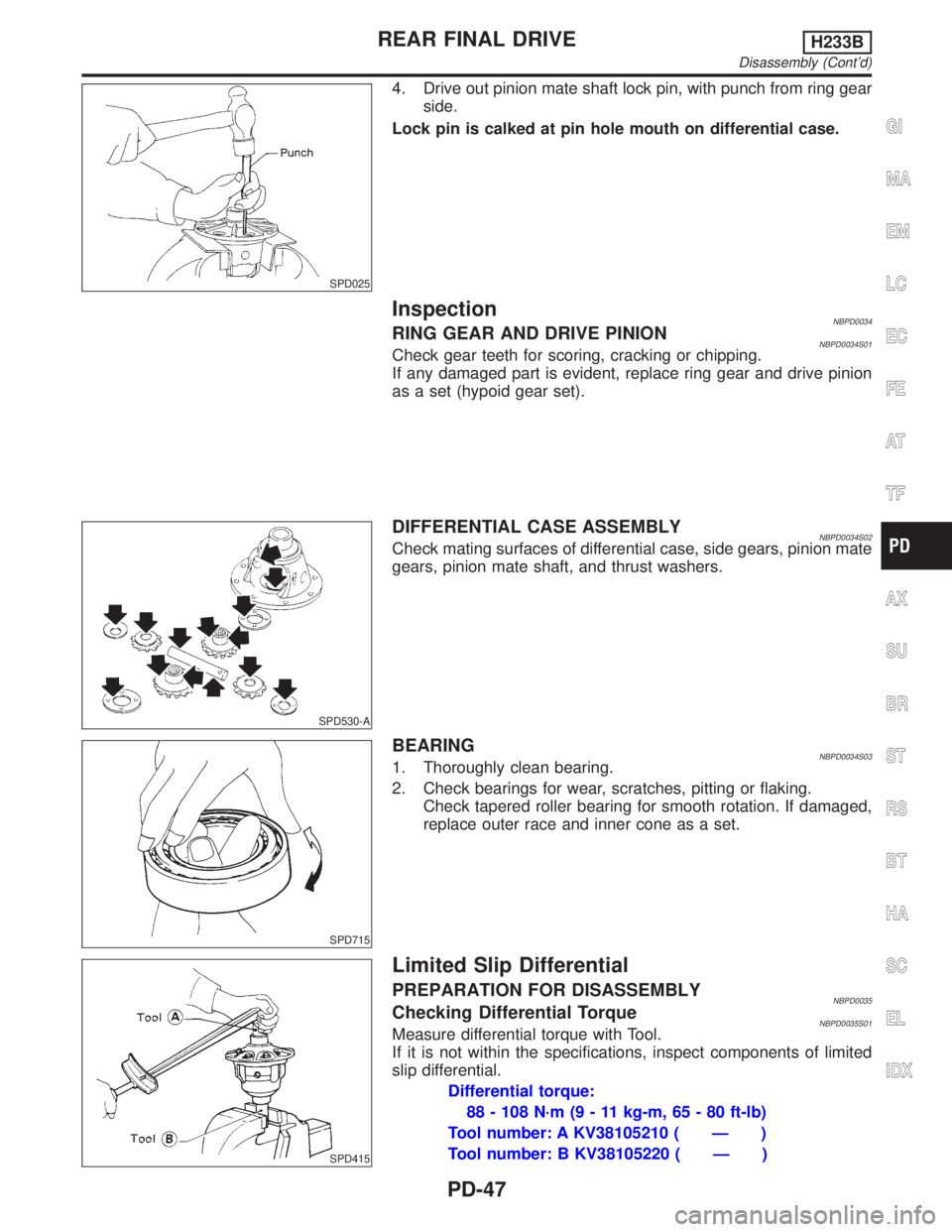

Page 2072 of 2395

SPD025
4. Drive out pinion mate shaft lock pin, with punch from ring gear
side.
Lock pin is calked at pin hole mouth on differential case.
InspectionNBPD0034RING GEAR AND DRIVE PINIONNBPD0034S01Check gear teeth for scoring, cracking or chipping.
If any damaged part is evident, replace ring gear and drive pinion
as a set (hypoid gear set).
SPD530-A
DIFFERENTIAL CASE ASSEMBLYNBPD0034S02Check mating surfaces of differential case, side gears, pinion mate
gears, pinion mate shaft, and thrust washers.
SPD715
BEARINGNBPD0034S031. Thoroughly clean bearing.
2. Check bearings for wear, scratches, pitting or flaking.
Check tapered roller bearing for smooth rotation. If damaged,
replace outer race and inner cone as a set.
SPD415
Limited Slip Differential
PREPARATION FOR DISASSEMBLYNBPD0035Checking Differential TorqueNBPD0035S01Measure differential torque with Tool.
If it is not within the specifications, inspect components of limited
slip differential.
Differential torque:
88 - 108 N´m (9 - 11 kg-m, 65 - 80 ft-lb)
Tool number: A KV38105210 ( Ð )
Tool number: B KV38105220 ( Ð )
GI
MA
EM
LC
EC
FE
AT
TF
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REAR FINAL DRIVEH233B
Disassembly (Cont'd)
PD-47
