Page 81 of 2395

INFINITI QX4 2001 Factory Service Manual 3 CHECK SHIFT UP (D2TO D3)
Does A/T shift from D2to D3at the specified speed?
Read gear position, throttle position and vehicle speed.
Specified speed when shifting from D
2to D3:
Refer to Shift sched

Page 82 of 2395

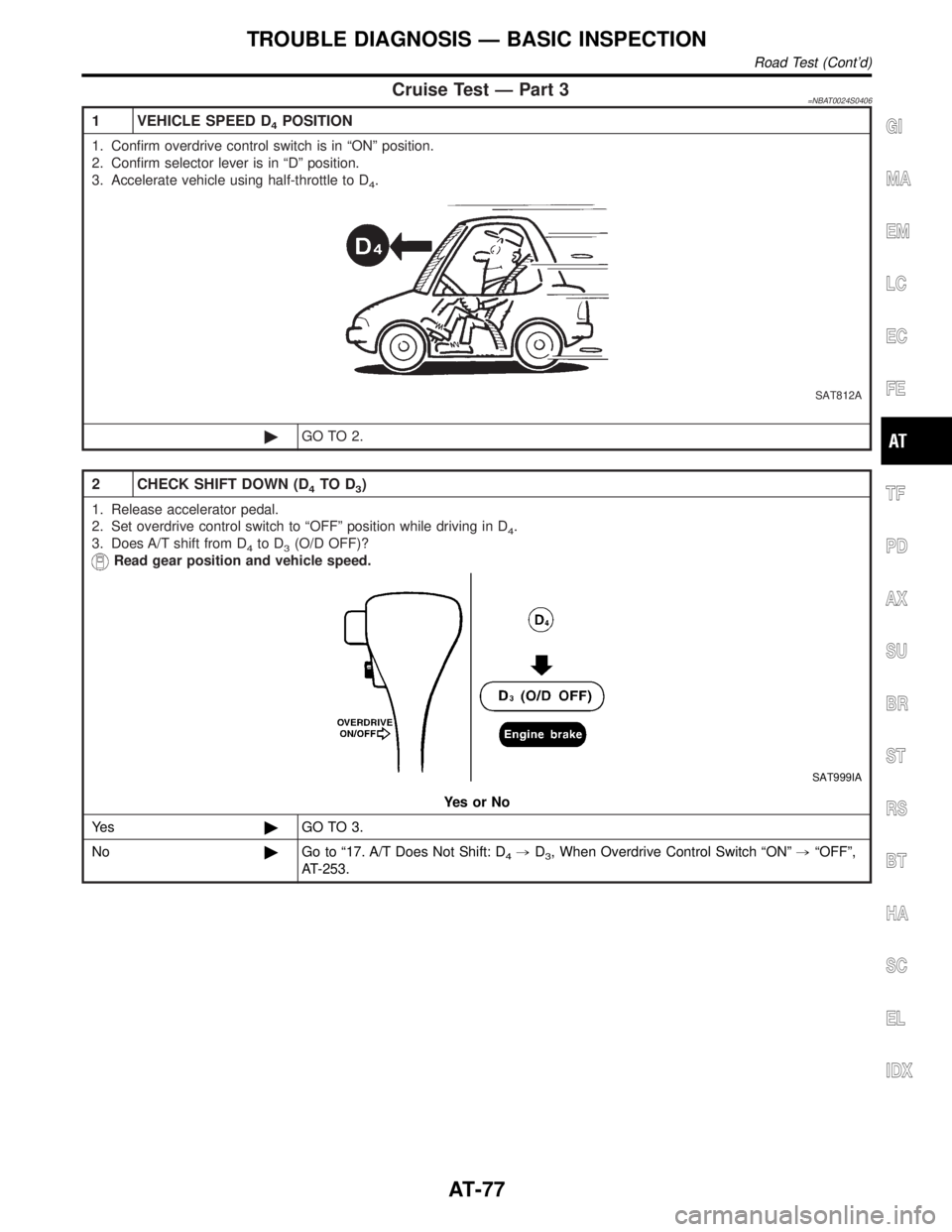

INFINITI QX4 2001 Factory Service Manual Cruise Test Ð Part 3=NBAT0024S0406
1 VEHICLE SPEED D4POSITION
1. Confirm overdrive control switch is in ªONº position.
2. Confirm selector lever is in ªDº position.
3. Accelerate vehicle using ha

Page 83 of 2395

INFINITI QX4 2001 Factory Service Manual 3 CHECK ENGINE BRAKE
Does vehicle decelerate by engine brake?
SAT999IA
YesorNo
Ye s©GO TO 4.
No©Go to ª15. Engine Speed Does Not Return To Idle (Light Braking D
4,D3)º, AT-250.
4 CHECK SHIFT DOWN

Page 84 of 2395

INFINITI QX4 2001 Factory Service Manual 5 CHECK ENGINE BRAKE
Does vehicle decelerate by engine brake?
SAT791GB
YesorNo
Ye s©GO TO 6.
No©Go to ª15. Engine Speed Does Not Return To Idle (Light Braking D
4,D3)º, AT-250.
6 CHECK SHIFT DOWN

Page 85 of 2395

INFINITI QX4 2001 Factory Service Manual 7 CHECK ENGINE BRAKE
Does vehicle decelerate by engine brake?
SAT778B
YesorNo
Ye s©1. Stop vehicle.
2. Perform self-diagnosis. Refer to TCM SELF-DIAGNOSTIC PROCEDURE (No Tools),
AT-46.
No©Go to ª20

Page 86 of 2395

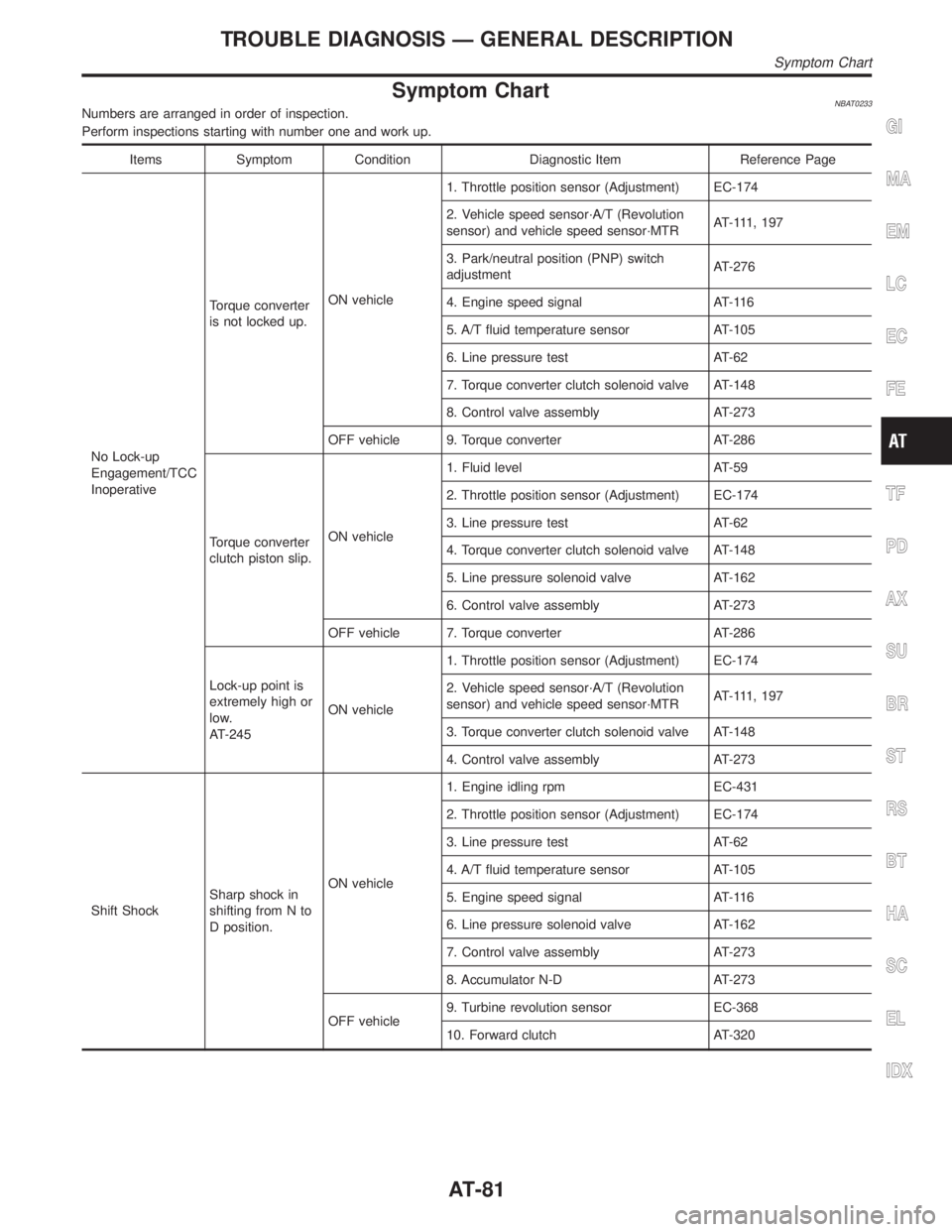

INFINITI QX4 2001 Factory Service Manual Symptom ChartNBAT0233Numbers are arranged in order of inspection.
Perform inspections starting with number one and work up.
Items Symptom Condition Diagnostic Item Reference Page
No Lock-up
Engagement

Page 87 of 2395

INFINITI QX4 2001 Factory Service Manual Items Symptom Condition Diagnostic Item Reference Page
Shift ShockToo sharp a
shock in change
from D
1to D2.ON vehicle1. Throttle position sensor (Adjustment) EC-174
2. Line pressure test AT-62
3. Acc

Items Symptom Condition Diagnostic Item Reference Page
Shift ShockToo sharp a
shock in change
from D
1to D2.ON vehicle1. Throttle position sensor (Adjustment) EC-174
2. Line pressure test AT-62
3. Accumulator servo release AT-273
4. Control valve assembly AT-273
5. A/T fluid temperature sensor AT-105
OFF vehicle 6. Brake band AT-333
Too sharp a
shock in change
from D
2to D3.ON vehicle1. Throttle position sensor (Adjustment) EC-174
2. Line pressure test AT-62
3. Control valve assembly AT-273
OFF vehicle4. High clutch AT-317
5. Brake band AT-333
Too sharp a
shock in change
from D
3to D4.ON vehicle1. Throttle position sensor (Adjustment) EC-174
2. Line pressure test AT-62
3. Control valve assembly AT-273
OFF vehicle4. Brake band AT-333
5. Overrun clutch AT-320
Gear change
shock felt during
deceleration by
releasing accel-
erator pedal.ON vehicle1. Throttle position sensor (Adjustment) EC-174
2. Line pressure test AT-62
3. Overrun clutch solenoid valve AT-185
4. Control valve assembly AT-273
Large shock
changing from 1
2to 11in 1 position.ON vehicle 1. Control valve assembly AT-273
ON vehicle 2. Low & reverse brake AT-324
Improper Shift
TimingToo high a gear
change point from
D
1to D2, from D2to D3, from D3to
D
4.
AT-236, 239, 242ON vehicle1. Throttle position sensor (Adjustment) EC-174
2. Vehicle speed sensor´A/T (Revolution
sensor) and vehicle speed sensor´MTRAT- 111 , 1 9 7
3. Shift solenoid valve A AT-168
4. Shift solenoid valve B AT-172
Gear change
directly from D
1to
D
3occurs.ON vehicle1. Fluid level AT-59
2. Accumulator servo release AT-273
OFF vehicle 3. Brake band AT-333
Too high a
change point from
D
4to D3, from D3to D2, from D2to
D
1.ON vehicle1. Throttle position sensor (Adjustment) EC-174
2. Vehicle speed sensor´A/T (Revolution
sensor) and vehicle speed sensor´MTRAT- 111 , 1 9 7
Kickdown does
not operate when
depressing pedal
in D
4within kick-
down vehicle
speed.ON vehicle1. Throttle position sensor (Adjustment) EC-174
2. Vehicle speed sensor´A/T (Revolution
sensor) and vehicle speed sensor´MTRAT- 111 , 1 9 7
3. Shift solenoid valve A AT-168
4. Shift solenoid valve B AT-172
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
Symptom Chart (Cont'd)
AT-82

Page 88 of 2395

INFINITI QX4 2001 Factory Service Manual Items Symptom Condition Diagnostic Item Reference Page
Improper Shift
TimingKickdown oper-
ates or engine
overruns when
depressing pedal
in D
4beyond kick-
down vehicle
speed limit.ON vehicle1. Vehicl
