Page 313 of 2395
SAT834A
DISASSEMBLYNBAT01211. Remove valves at parallel pins.
IDo not use a magnetic hand.
SAT822A
a. Use a wire paper clip to push out parallel pins.
SAT823A
b. Remove parallel pins while pressing their corresponding plugs
and sleeves.
IRemove plug slowly to prevent internal parts from jump-
ing out.
SAT824A
c. Place mating surface of valve facedown, and remove internal
parts.
IIf a valve is hard to remove, place valve body facedown
and lightly tap it with a soft hammer.
IBe careful not to drop or damage valves and sleeves.
SAT825A
2. Remove valves at retainer plates.
a. Pry out retainer plate with wire paper clip.
REPAIR FOR COMPONENT PARTS
Control Valve Upper Body (Cont'd)
AT-308
Page 314 of 2395

SAT826A
b. Remove retainer plates while holding spring.
SAT827A
c. Place mating surface of valve facedown, and remove internal
parts.
IIf a valve is hard to remove, lightly tap valve body with a
soft hammer.
IBe careful not to drop or damage valves, sleeves, etc.
SAT828A
I4-2 sequence valve and relay valve are located far back in
upper body. If they are hard to remove, carefully push them out
using stiff wire.
IBe careful not to scratch sliding surface of valve with wire.
SAT829A
INSPECTIONNBAT0122Valve SpringsNBAT0122S01IMeasure free length and outer diameter of each valve spring.
Also check for damage or deformation.
Inspection standard:
Refer to SDS, AT-357.
IReplace valve springs if deformed or fatigued.
Control ValvesNBAT0122S02ICheck sliding surfaces of valves, sleeves and plugs.
SAT830A
ASSEMBLYNBAT01231. Lubricate the control valve body and all valves with ATF. Install
control valves by sliding them carefully into their bores.
IBe careful not to scratch or damage valve body.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REPAIR FOR COMPONENT PARTS
Control Valve Upper Body (Cont'd)
AT-309

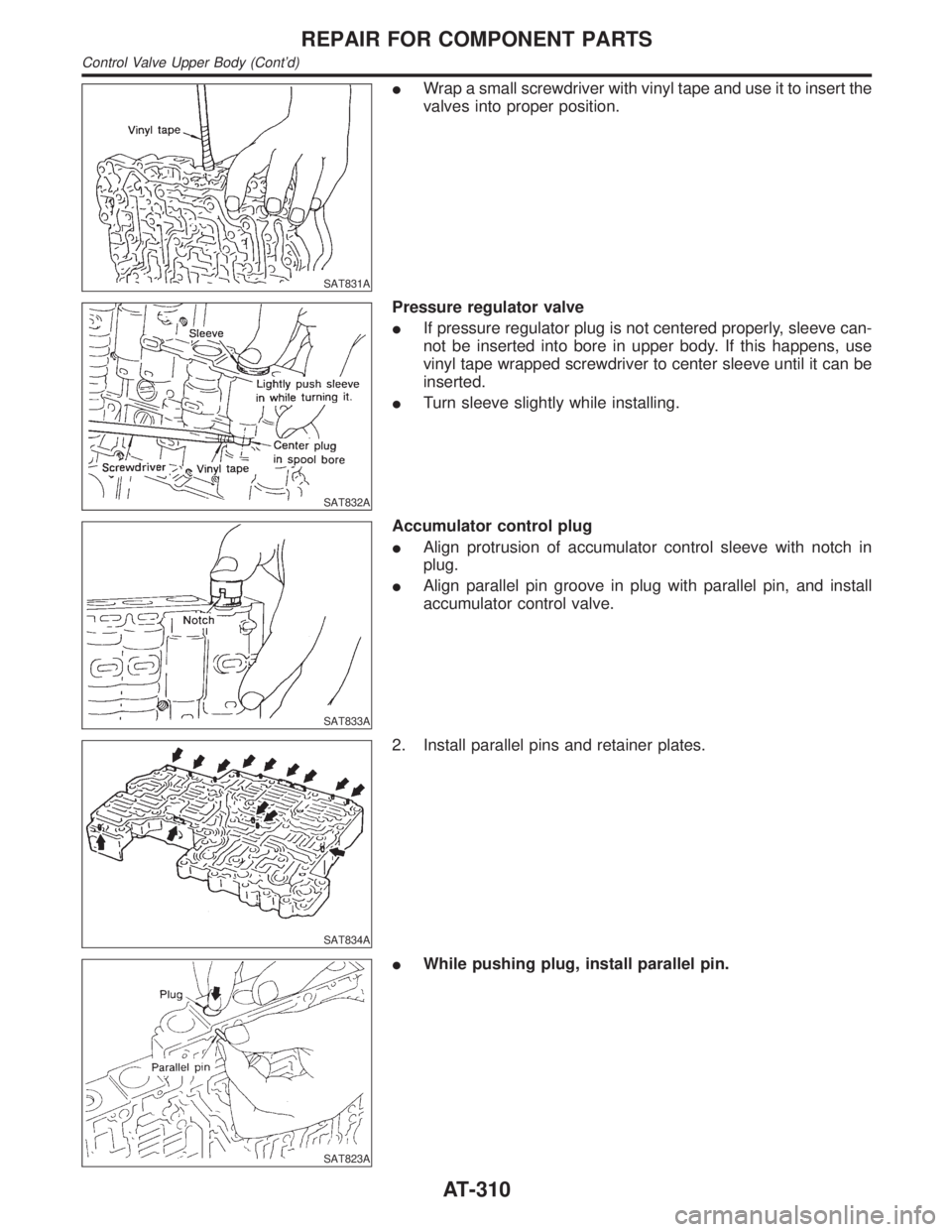

Page 315 of 2395
SAT831A
IWrap a small screwdriver with vinyl tape and use it to insert the
valves into proper position.
SAT832A
Pressure regulator valve
IIf pressure regulator plug is not centered properly, sleeve can-
not be inserted into bore in upper body. If this happens, use
vinyl tape wrapped screwdriver to center sleeve until it can be
inserted.
ITurn sleeve slightly while installing.
SAT833A
Accumulator control plug
IAlign protrusion of accumulator control sleeve with notch in
plug.
IAlign parallel pin groove in plug with parallel pin, and install
accumulator control valve.
SAT834A
2. Install parallel pins and retainer plates.
SAT823A
IWhile pushing plug, install parallel pin.
REPAIR FOR COMPONENT PARTS
Control Valve Upper Body (Cont'd)
AT-310
Page 316 of 2395
SAT835A
4-2 sequence valve and relay valve
IPush 4-2 sequence valve and relay valve with wire wrapped in
vinyl tape to prevent scratching valve body. Install parallel pins.
SAT836A
IInsert retainer plate while pushing spring.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REPAIR FOR COMPONENT PARTS
Control Valve Upper Body (Cont'd)
AT-311
Page 317 of 2395
Control Valve Lower Body
COMPONENTSNBAT0124
SAT966I
Apply ATF to all components before their installation.
Numbers preceding valve springs correspond with those shown in SDS on page AT-357.
REPAIR FOR COMPONENT PARTS
Control Valve Lower Body
AT-312
Page 318 of 2395
SAT838A
DISASSEMBLYNBAT01251. Remove valves at parallel pins.
2. Remove valves at retainer plates.
For removal procedures, refer to ªDISASSEMBLYº of Control
Valve Upper Body.
SAT829A
INSPECTIONNBAT0126Valve SpringsNBAT0126S01ICheck each valve spring for damage or deformation. Also
measure free length and outer diameter.
Inspection standard:
Refer to SDS, AT-357.
IReplace valve springs if deformed or fatigued.
Control ValvesNBAT0126S02ICheck sliding surfaces of control valves, sleeves and plugs for
damage.
SAT838A
ASSEMBLYNBAT0127IInstall control valves.
For installation procedures, refer to ªASSEMBLYº of Control
Valve Upper Body, AT-309.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REPAIR FOR COMPONENT PARTS
Control Valve Lower Body (Cont'd)
AT-313
Page 319 of 2395
Reverse Clutch
COMPONENTSNBAT0128
SAT157K
SAT841A
DISASSEMBLYNBAT01291. Check operation of reverse clutch.
a. Install seal ring onto oil pump cover and install reverse clutch.
Apply compressed air to oil hole.
b. Check to see that retaining plate moves to snap ring.
c. If retaining plate does not contact snap ring,
ID-ring might be damaged.
IOil seal might be damaged.
IFluid might be leaking past piston check ball.
SAT842A
2. Remove drive plates, driven plates, retaining plate, dish plate
and snap ring.
REPAIR FOR COMPONENT PARTS
Reverse Clutch
AT-314
Page 320 of 2395

SAT524G
3. Remove snap ring from clutch drum while compressing clutch
springs.
IDo not expand snap ring excessively.
4. Remove spring retainer.
SAT844A
5. Install seal ring onto oil pump cover and install reverse clutch
drum. While holding piston, gradually apply compressed air to
oil hole until piston is removed.
IDo not apply compressed air abruptly.
6. Remove D-ring and oil seal from piston.
INSPECTIONNBAT0130Reverse Clutch Snap Ring and Spring RetainerNBAT0130S01ICheck for deformation, fatigue or damage.
SAT845A
Reverse Clutch Drive PlatesNBAT0130S03ICheck facing for burns, cracks or damage.
IMeasure thickness of facing.
Thickness of drive plate:
Standard value: 1.90 - 2.05 mm (0.0748 - 0.0807 in)
Wear limit: 1.80 mm (0.0709 in)
IIf not within wear limit, replace.
Reverse Clutch Dish PlateNBAT0130S04ICheck for deformation or damage.
SAT846A
Reverse Clutch PistonNBAT0130S05IShake piston to assure that balls are not seized.
IApply compressed air to check ball oil hole opposite the return
spring. Make sure there is no air leakage.
IAlso apply compressed air to oil hole on return spring side to
assure that air leaks past ball.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REPAIR FOR COMPONENT PARTS
Reverse Clutch (Cont'd)
AT-315
