Page 1369 of 2395

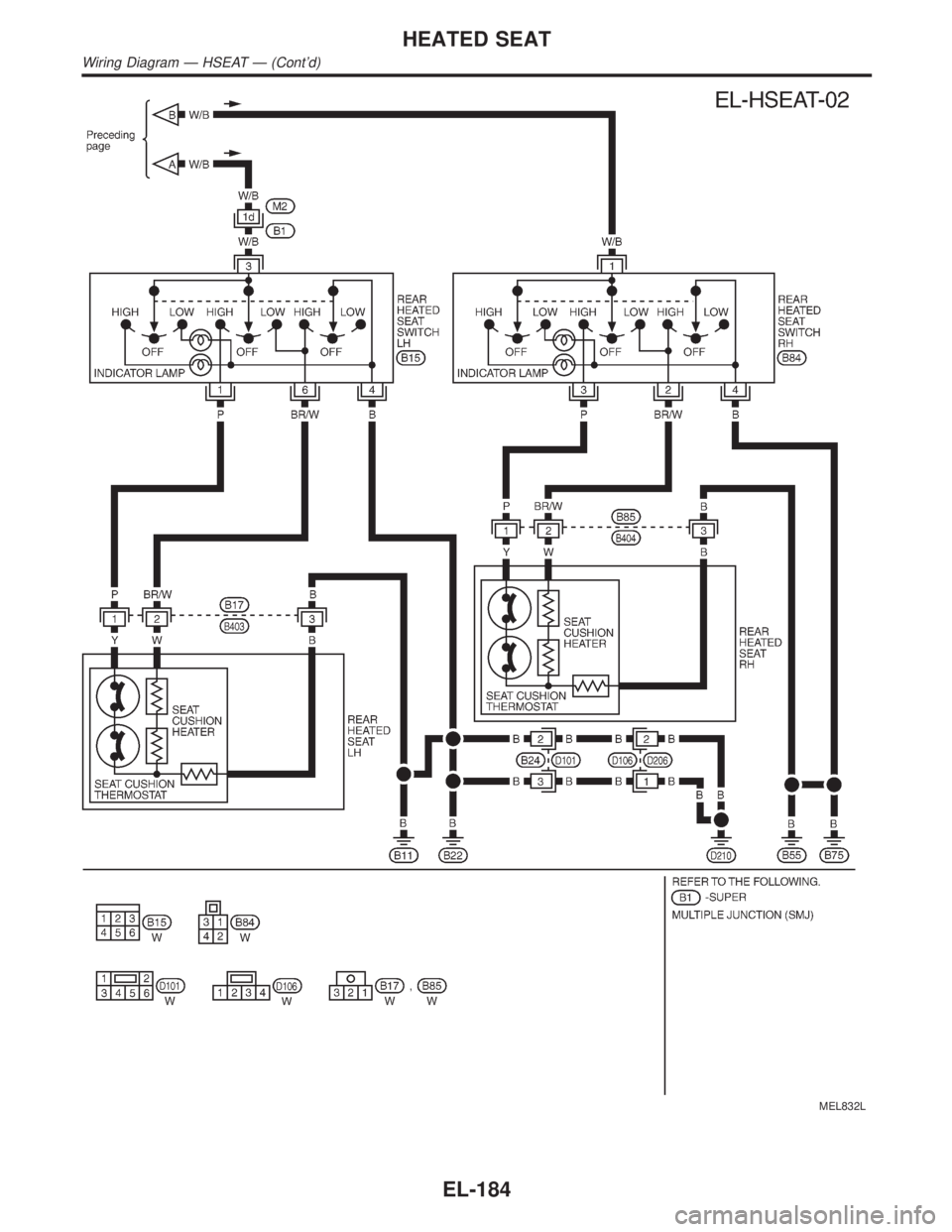

INFINITI QX4 2001 Factory Service Manual MEL832L
HEATED SEAT
Wiring Diagram Ð HSEAT Ð (Contd)
EL-184

Page 1370 of 2395

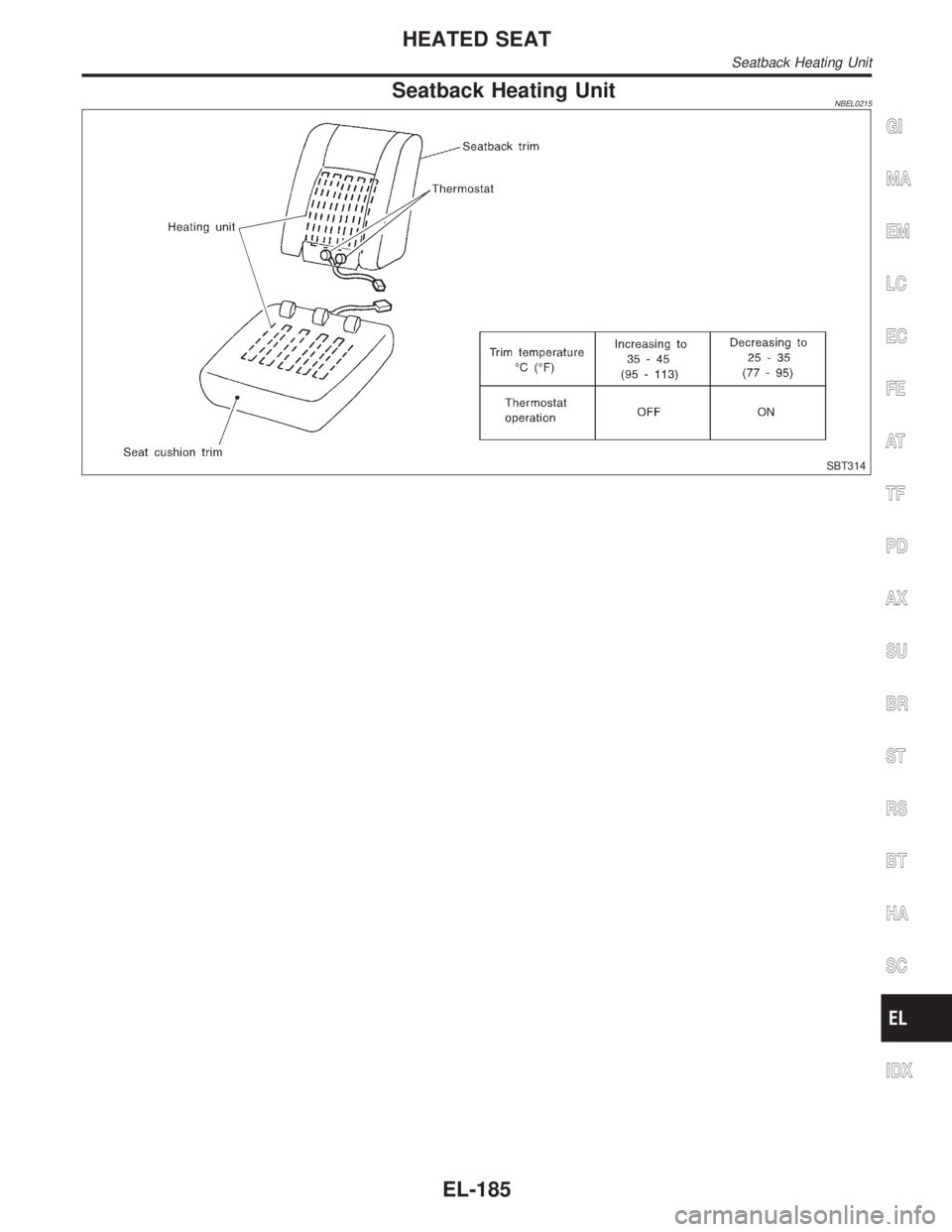

INFINITI QX4 2001 Factory Service Manual Seatback Heating UnitNBEL0215
SBT314
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
HEATED SEAT
Seatback Heating Unit
EL-185

Page 1371 of 2395

INFINITI QX4 2001 Factory Service Manual Component Parts and Harness Connector
Location
NBEL0209
SEL353X
AUTOMATIC DRIVE POSITIONER
Component Parts and Harness Connector Location
EL-186

Page 1372 of 2395

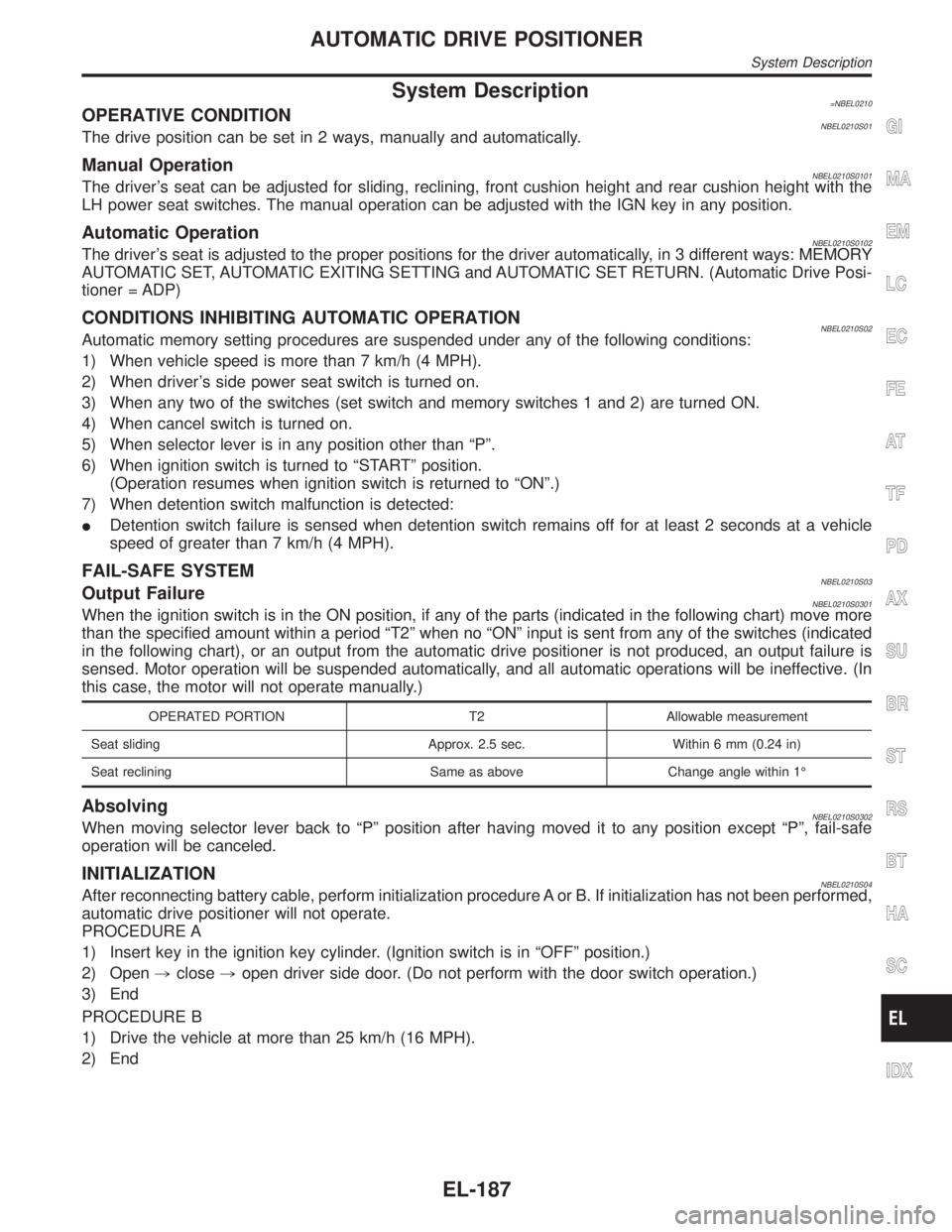

INFINITI QX4 2001 Factory Service Manual System Description=NBEL0210OPERATIVE CONDITIONNBEL0210S01The drive position can be set in 2 ways, manually and automatically.
Manual OperationNBEL0210S0101The drivers seat can be adjusted for sliding

System Description=NBEL0210OPERATIVE CONDITIONNBEL0210S01The drive position can be set in 2 ways, manually and automatically.
Manual OperationNBEL0210S0101The driver's seat can be adjusted for sliding, reclining, front cushion height and rear cushion height with the
LH power seat switches. The manual operation can be adjusted with the IGN key in any position.
Automatic OperationNBEL0210S0102The driver's seat is adjusted to the proper positions for the driver automatically, in 3 different ways: MEMORY
AUTOMATIC SET, AUTOMATIC EXITING SETTING and AUTOMATIC SET RETURN. (Automatic Drive Posi-
tioner = ADP)
CONDITIONS INHIBITING AUTOMATIC OPERATIONNBEL0210S02Automatic memory setting procedures are suspended under any of the following conditions:
1) When vehicle speed is more than 7 km/h (4 MPH).
2) When driver's side power seat switch is turned on.
3) When any two of the switches (set switch and memory switches 1 and 2) are turned ON.
4) When cancel switch is turned on.
5) When selector lever is in any position other than ªPº.
6) When ignition switch is turned to ªSTARTº position.
(Operation resumes when ignition switch is returned to ªONº.)
7) When detention switch malfunction is detected:
IDetention switch failure is sensed when detention switch remains off for at least 2 seconds at a vehicle
speed of greater than 7 km/h (4 MPH).
FAIL-SAFE SYSTEMNBEL0210S03Output FailureNBEL0210S0301When the ignition switch is in the ON position, if any of the parts (indicated in the following chart) move more
than the specified amount within a period ªT2º when no ªONº input is sent from any of the switches (indicated
in the following chart), or an output from the automatic drive positioner is not produced, an output failure is
sensed. Motor operation will be suspended automatically, and all automatic operations will be ineffective. (In
this case, the motor will not operate manually.)
OPERATED PORTION T2 Allowable measurement
Seat sliding Approx. 2.5 sec. Within 6 mm (0.24 in)
Seat reclining Same as above Change angle within 1É
AbsolvingNBEL0210S0302When moving selector lever back to ªPº position after having moved it to any position except ªPº, fail-safe
operation will be canceled.
INITIALIZATIONNBEL0210S04After reconnecting battery cable, perform initialization procedure A or B. If initialization has not been performed,
automatic drive positioner will not operate.
PROCEDURE A
1) Insert key in the ignition key cylinder. (Ignition switch is in ªOFFº position.)
2) Open,close,open driver side door. (Do not perform with the door switch operation.)
3) End
PROCEDURE B
1) Drive the vehicle at more than 25 km/h (16 MPH).
2) End
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
AUTOMATIC DRIVE POSITIONER
System Description
EL-187

Page 1373 of 2395

INFINITI QX4 2001 Factory Service Manual MEMORY AUTOMATIC SET=NBEL0210S05Two drive positions can be retained in the memory. Press memory switch to set drivers seat to preset posi-
tion.
SEL592W
NOTE:
IWhen memory switch for which drivers s

Page 1374 of 2395

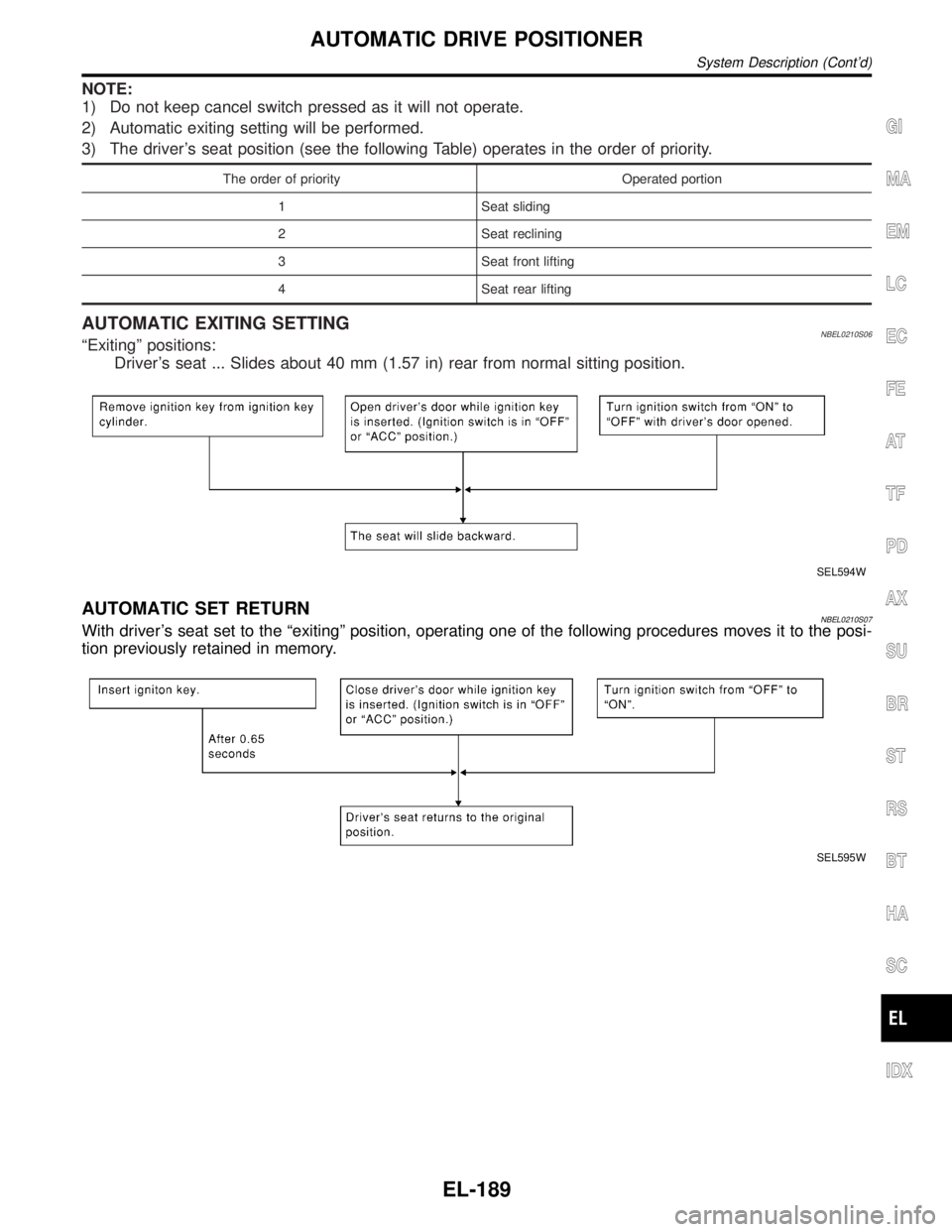

INFINITI QX4 2001 Factory Service Manual NOTE:
1) Do not keep cancel switch pressed as it will not operate.
2) Automatic exiting setting will be performed.
3) The drivers seat position (see the following Table) operates in the order of prio

Page 1375 of 2395

INFINITI QX4 2001 Factory Service Manual SchematicNBEL0211
MEL833L
AUTOMATIC DRIVE POSITIONER
Schematic
EL-190

Page 1376 of 2395

INFINITI QX4 2001 Factory Service Manual Wiring Diagram Ð AUT/DP ÐNBEL0212
MEL834L
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
AUTOMATIC DRIVE POSITIONER
Wiring Diagram Ð AUT/DP Ð
EL-191
