POWER WINDOW
Wiring Diagram Ð WINDOW Ð (Cont'd)
EL-249
Page 1435 of 2395

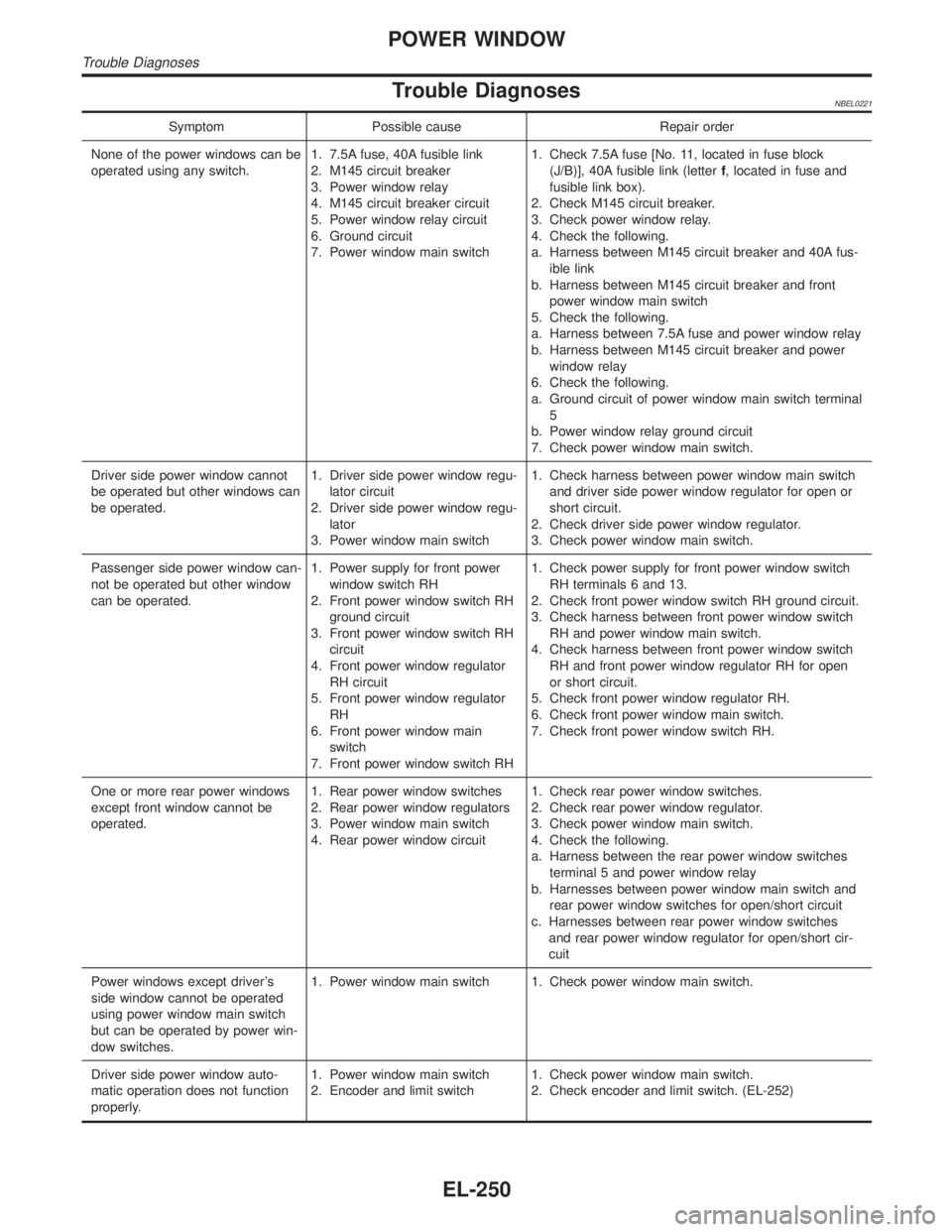

Trouble DiagnosesNBEL0221
Symptom Possible cause Repair order
None of the power windows can be
operated using any switch.1. 7.5A fuse, 40A fusible link
2. M145 circuit breaker
3. Power window relay
4. M145 circuit breaker circuit
5. Power window relay circuit
6. Ground circuit
7. Power window main switch1. Check 7.5A fuse [No. 11, located in fuse block
(J/B)], 40A fusible link (letterf, located in fuse and
fusible link box).
2. Check M145 circuit breaker.
3. Check power window relay.
4. Check the following.
a. Harness between M145 circuit breaker and 40A fus-
ible link
b. Harness between M145 circuit breaker and front
power window main switch
5. Check the following.
a. Harness between 7.5A fuse and power window relay
b. Harness between M145 circuit breaker and power
window relay
6. Check the following.
a. Ground circuit of power window main switch terminal
5
b. Power window relay ground circuit
7. Check power window main switch.
Driver side power window cannot
be operated but other windows can
be operated.1. Driver side power window regu-
lator circuit
2. Driver side power window regu-
lator
3. Power window main switch1. Check harness between power window main switch
and driver side power window regulator for open or
short circuit.
2. Check driver side power window regulator.
3. Check power window main switch.
Passenger side power window can-
not be operated but other window
can be operated.1. Power supply for front power
window switch RH
2. Front power window switch RH
ground circuit
3. Front power window switch RH
circuit
4. Front power window regulator
RH circuit
5. Front power window regulator
RH
6. Front power window main
switch
7. Front power window switch RH1. Check power supply for front power window switch
RH terminals 6 and 13.
2. Check front power window switch RH ground circuit.
3. Check harness between front power window switch
RH and power window main switch.
4. Check harness between front power window switch
RH and front power window regulator RH for open
or short circuit.
5. Check front power window regulator RH.
6. Check front power window main switch.
7. Check front power window switch RH.
One or more rear power windows
except front window cannot be
operated.1. Rear power window switches
2. Rear power window regulators
3. Power window main switch
4. Rear power window circuit1. Check rear power window switches.
2. Check rear power window regulator.
3. Check power window main switch.
4. Check the following.
a. Harness between the rear power window switches
terminal 5 and power window relay
b. Harnesses between power window main switch and
rear power window switches for open/short circuit
c. Harnesses between rear power window switches
and rear power window regulator for open/short cir-
cuit
Power windows except driver's
side window cannot be operated
using power window main switch
but can be operated by power win-
dow switches.1. Power window main switch 1. Check power window main switch.
Driver side power window auto-
matic operation does not function
properly.1. Power window main switch
2. Encoder and limit switch1. Check power window main switch.
2. Check encoder and limit switch. (EL-252)
POWER WINDOW
Trouble Diagnoses
EL-250
Page 1436 of 2395

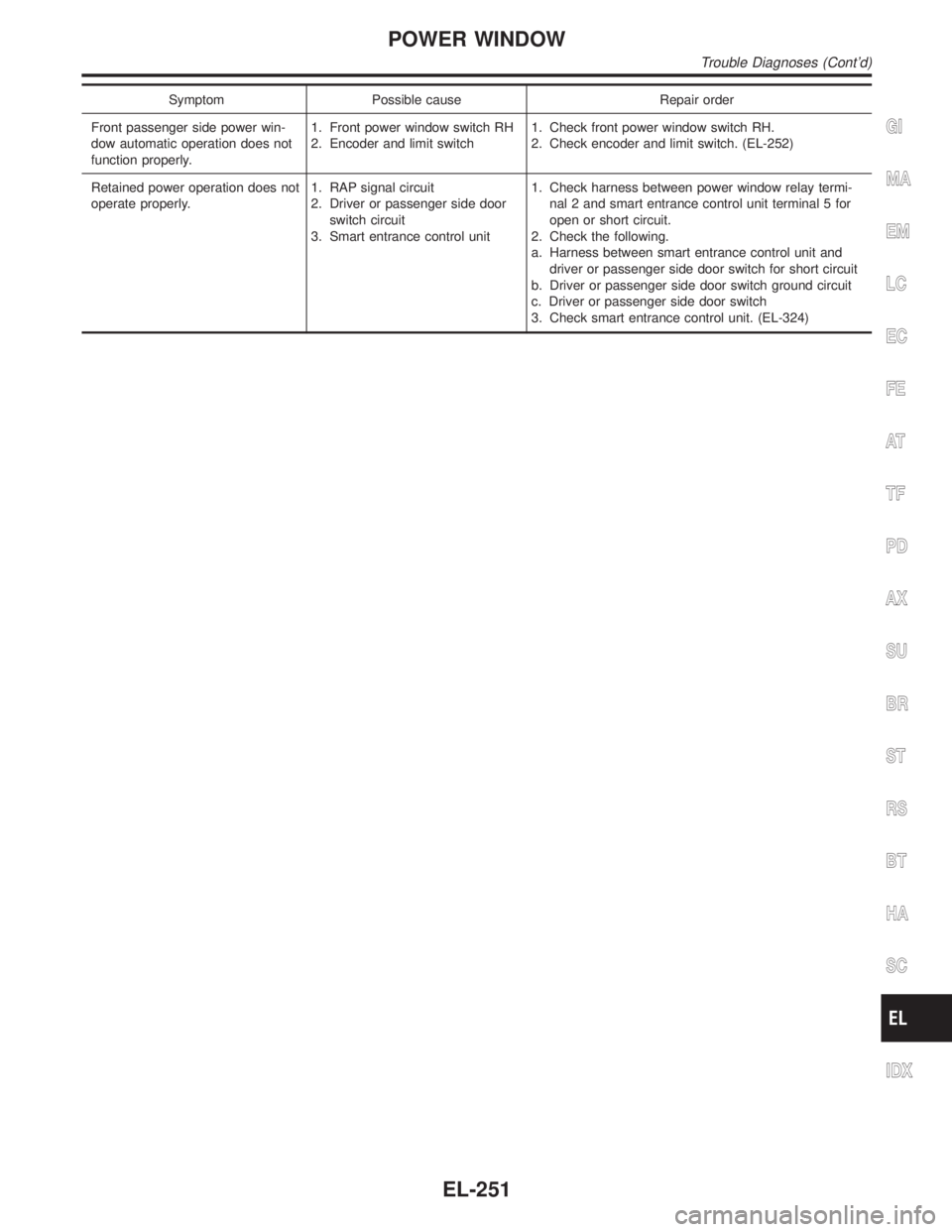

Symptom Possible cause Repair order
Front passenger side power win-
dow automatic operation does not
function properly.1. Front power window switch RH
2. Encoder and limit switch1. Check front power window switch RH.
2. Check encoder and limit switch. (EL-252)
Retained power operation does not
operate properly.1. RAP signal circuit
2. Driver or passenger side door
switch circuit
3. Smart entrance control unit1. Check harness between power window relay termi-
nal 2 and smart entrance control unit terminal 5 for
open or short circuit.
2. Check the following.
a. Harness between smart entrance control unit and
driver or passenger side door switch for short circuit
b. Driver or passenger side door switch ground circuit
c. Driver or passenger side door switch
3. Check smart entrance control unit. (EL-324)
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER WINDOW
Trouble Diagnoses (Cont'd)
EL-251
Page 1437 of 2395

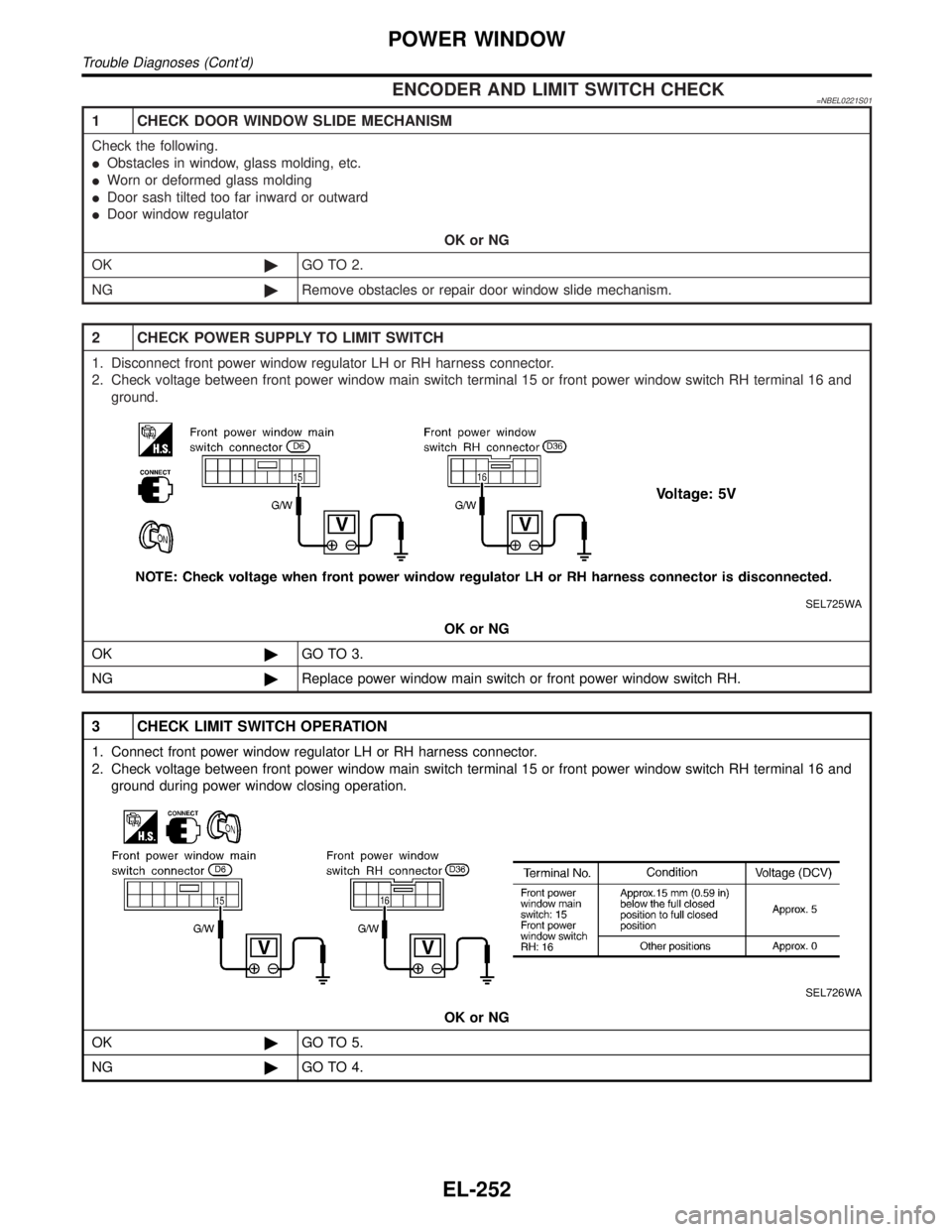

ENCODER AND LIMIT SWITCH CHECK=NBEL0221S01
1 CHECK DOOR WINDOW SLIDE MECHANISM
Check the following.
IObstacles in window, glass molding, etc.
IWorn or deformed glass molding
IDoor sash tilted too far inward or outward
IDoor window regulator
OK or NG
OK©GO TO 2.
NG©Remove obstacles or repair door window slide mechanism.
2 CHECK POWER SUPPLY TO LIMIT SWITCH
1. Disconnect front power window regulator LH or RH harness connector.
2. Check voltage between front power window main switch terminal 15 or front power window switch RH terminal 16 and
ground.
SEL725WA
OK or NG
OK©GO TO 3.
NG©Replace power window main switch or front power window switch RH.
3 CHECK LIMIT SWITCH OPERATION
1. Connect front power window regulator LH or RH harness connector.
2. Check voltage between front power window main switch terminal 15 or front power window switch RH terminal 16 and
ground during power window closing operation.
SEL726WA
OK or NG
OK©GO TO 5.
NG©GO TO 4.
POWER WINDOW
Trouble Diagnoses (Cont'd)
EL-252
Page 1438 of 2395
4 RESET LIMIT SWITCH
Reset limit switch. Refer to BT-19, ªFront Door Glass Limit Switch Resetº. Then check voltage between front power win-
dow main switch terminal 15 or front power window switch RH terminal 16 and ground during power window closing
operation at least ten times.
SEL726WA
OK or NG
OK©GO TO 5.
NG©Replace power window regulator motor.
5 CHECK ENCODER
Measure voltage between front power window main switch terminal 14 or front power window switch RH terminal 19 and
ground with oscilloscope when power window is in automatic closing operation.
SEL727WA
OK or NG
OK©Replace power window main switch.
NG©Replace power window regulator motor.
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER WINDOW
Trouble Diagnoses (Cont'd)
EL-253
Page 1439 of 2395
Component Parts and Harness Connector
Location
NBEL0106
SEL065WA
System DescriptionNBEL0107OPERATIONNBEL0107S04
IThe lock/unlock switch (LH and RH) on door trim can lock and unlock all doors.
IWith the door key inserted in the key cylinder on front LH or back door, turning it to ªLOCKº, will lock all
doors; turning it to ªUNLOCKº once unlocks the corresponding door; turning it to ªUNLOCKº again within
5 seconds after the first unlock operation unlocks all of the other doors. (Signals from door key cylinder
switch)
IIf the ignition key is in the ignition key cylinder and one or more of doors are open, setting the lock/unlock
switch to ªLOCKº locks the doors once but then immediately unlock them. (Combination signals from key
switch and door switches) - (KEY REMINDER DOOR SYSTEM)
POWER DOOR LOCK
Component Parts and Harness Connector Location
EL-254
Page 1440 of 2395
SchematicNBEL0108
MEL211M
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER DOOR LOCK
Schematic
EL-255
