Page 1329 of 2395
MEL810L
REAR WIPER AND WASHER
Wiring Diagram Ð WIP/R Ð (Cont'd)
EL-144
Page 1330 of 2395

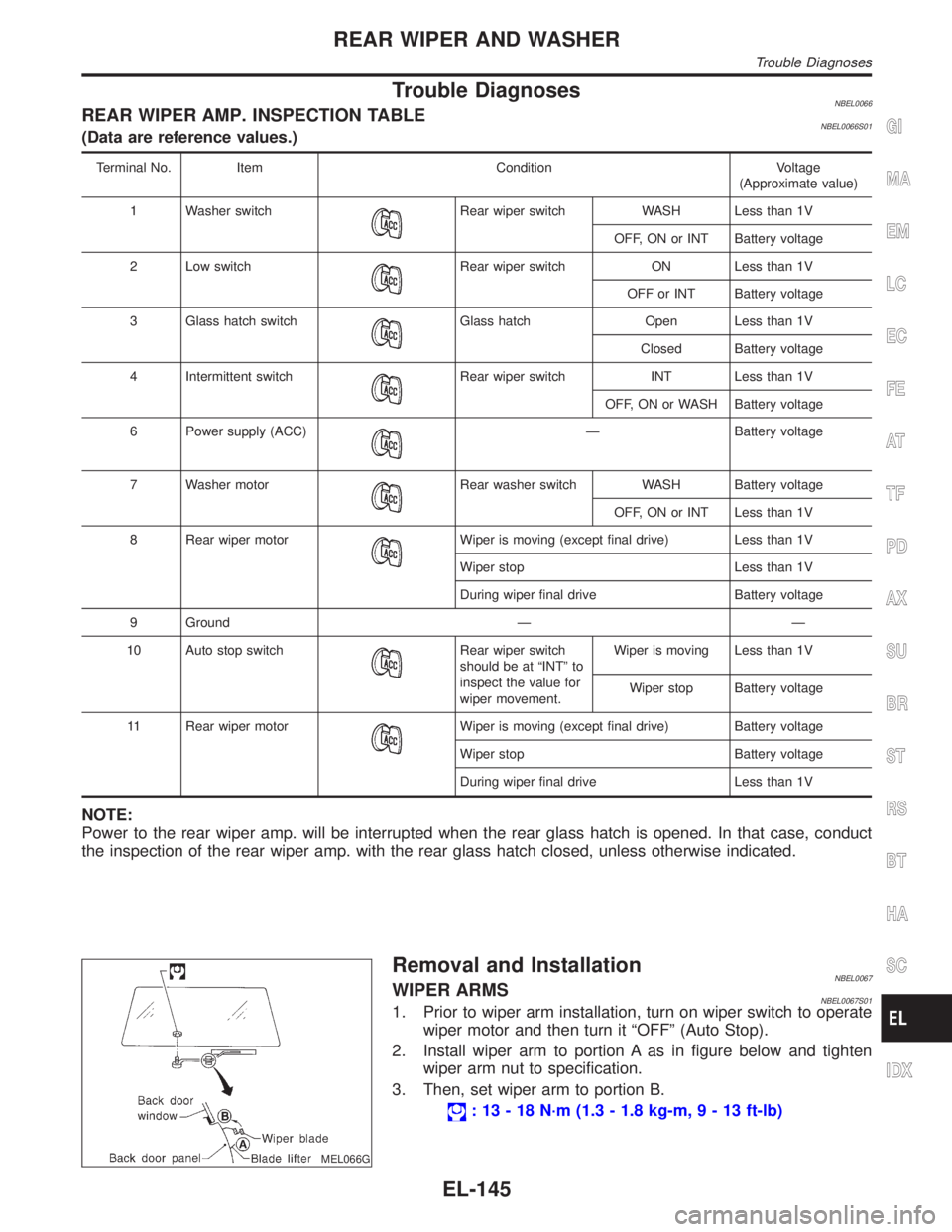

Trouble DiagnosesNBEL0066REAR WIPER AMP. INSPECTION TABLENBEL0066S01(Data are reference values.)
Terminal No. Item Condition Voltage
(Approximate value)
1 Washer switch
Rear wiper switch WASH Less than 1V
OFF, ON or INT Battery voltage
2 Low switch
Rear wiper switch ON Less than 1V
OFF or INT Battery voltage
3 Glass hatch switch
Glass hatch Open Less than 1V
Closed Battery voltage
4 Intermittent switch
Rear wiper switch INT Less than 1V
OFF, ON or WASH Battery voltage
6 Power supply (ACC)
Ð Battery voltage
7 Washer motor
Rear washer switch WASH Battery voltage
OFF, ON or INT Less than 1V
8 Rear wiper motor
Wiper is moving (except final drive) Less than 1V
Wiper stop Less than 1V
During wiper final drive Battery voltage
9 Ground Ð Ð
10 Auto stop switch
Rear wiper switch
should be at ªINTº to
inspect the value for
wiper movement.Wiper is moving Less than 1V
Wiper stop Battery voltage
11 Rear wiper motor
Wiper is moving (except final drive) Battery voltage
Wiper stop Battery voltage
During wiper final drive Less than 1V
NOTE:
Power to the rear wiper amp. will be interrupted when the rear glass hatch is opened. In that case, conduct
the inspection of the rear wiper amp. with the rear glass hatch closed, unless otherwise indicated.
MEL066G
Removal and InstallationNBEL0067WIPER ARMSNBEL0067S011. Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it ªOFFº (Auto Stop).
2. Install wiper arm to portion A as in figure below and tighten
wiper arm nut to specification.
3. Then, set wiper arm to portion B.
: 13 - 18 N´m (1.3 - 1.8 kg-m,9-13ft-lb)
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
REAR WIPER AND WASHER
Trouble Diagnoses
EL-145
Page 1331 of 2395
SEL024J

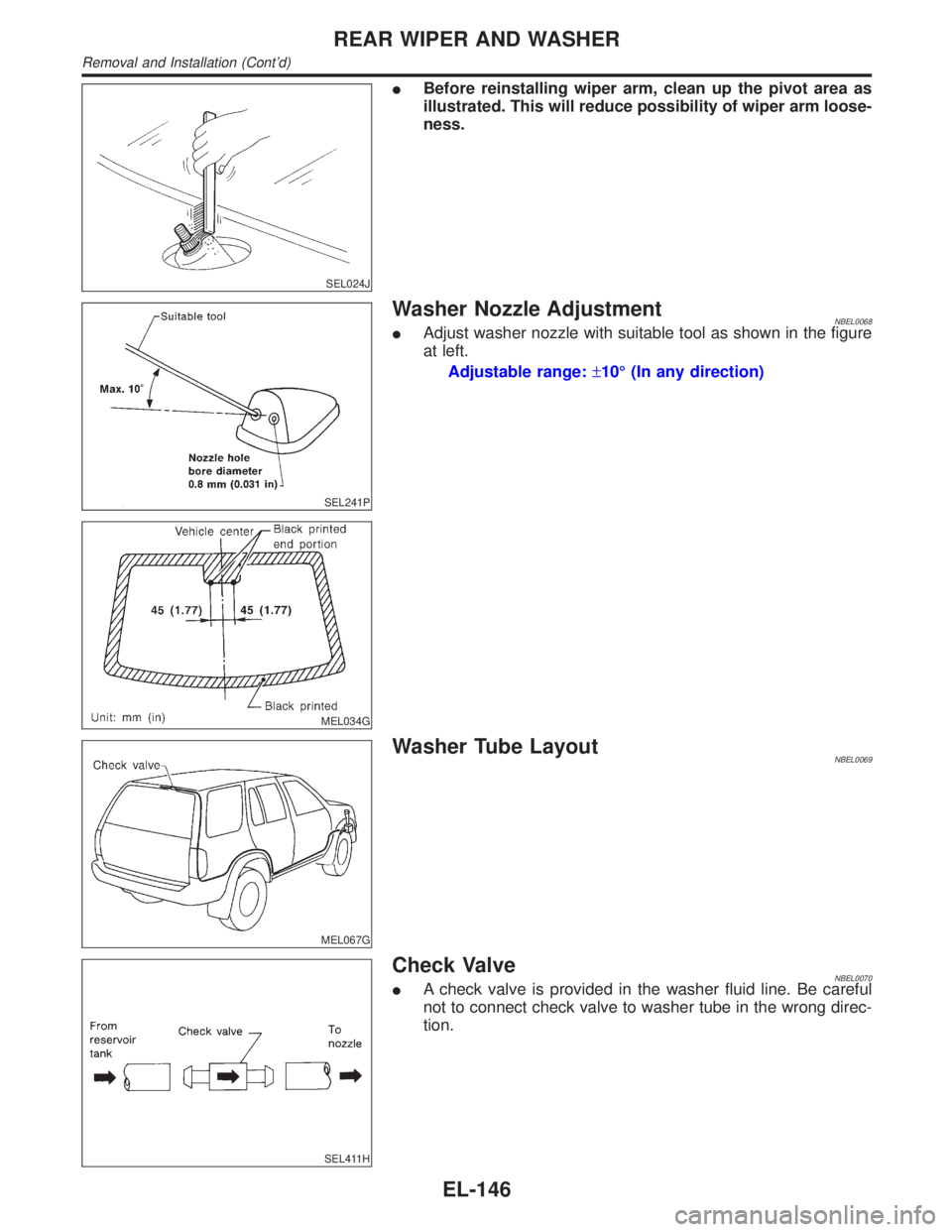

IBefore reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm loose-
ness.
SEL241P
MEL034G
Washer Nozzle AdjustmentNBEL0068IAdjust washer nozzle with suitable tool as shown in the figure
at left.
Adjustable range:±10É (In any direction)
MEL067G
Washer Tube LayoutNBEL0069
SEL411H
Check ValveNBEL0070IA check valve is provided in the washer fluid line. Be careful
not to connect check valve to washer tube in the wrong direc-
tion.
REAR WIPER AND WASHER
Removal and Installation (Cont'd)
EL-146
Page 1332 of 2395
Wiring Diagram Ð HORN ÐNBEL0071
MEL811L
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
HORN
Wiring Diagram Ð HORN Ð
EL-147
Page 1333 of 2395
Wiring Diagram Ð CIGAR ÐNBEL0156
MEL812L
CIGARETTE LIGHTER
Wiring Diagram Ð CIGAR Ð
EL-148
Page 1334 of 2395
MEL813L
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
CIGARETTE LIGHTER
Wiring Diagram Ð CIGAR Ð (Cont'd)
EL-149
Page 1335 of 2395
Wiring Diagram Ð CLOCK ÐNBEL0204
MEL814L
CLOCK
Wiring Diagram Ð CLOCK Ð
EL-150
Page 1336 of 2395

Component Parts and Harness Connector
Location
NBEL0072
SEL465X
System DescriptionNBEL0073The rear window defogger system is controlled by the smart entrance control unit. The rear window defogger
operates only for approximately 15 minutes.
Power is supplied at all times
Ito rear window defogger relay terminal 3
Ithrough 20A fuse (No. 56, located in the fuse and fusible link box) and
Ito rear window defogger relay terminal 6
Ithrough 20A fuse (No. 57, located in the fuse and fusible link box)
Ito smart entrance control unit terminal 10
Ithrough 7.5A [No. 24, located in fuse block (J/B)]
With the ignition switch in the ON or START position, power is supplied
Ithrough 7.5A fuse [No. 11, located in the fuse block (J/B)]
Ito the rear window defogger relay terminal 1, and
Ito smart entrance control unit terminal 33.
Ground is supplied
Ito terminal 1 of the rear window defogger switch
Ithrough body grounds M4, M66 and M147(with navigation system),
Ito terminal 32 of the A/C auto amp.
Ithrough body grounds M4, M66 and M147 (without navigation system), or
Ito smart entrance control unit terminal 16
Ithrough body grounds M77 and M111.
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
REAR WINDOW DEFOGGER
Component Parts and Harness Connector Location
EL-151
