2001 INFINITI QX4 Factory Service Manual

steering wheel adjustment coolant level trip computer navigation system parking sensors bonnet

Page 137 of 2395

INFINITI QX4 2001 Factory Service Manual DescriptionNBAT0045IThis is an OBD-II self-diagnostic item and not available in TCM
self-diagnosis.
IThis malfunction will not be detected while the O/D OFF indi-
cator lamp is indicating another self

DescriptionNBAT0045IThis is an OBD-II self-diagnostic item and not available in TCM
self-diagnosis.
IThis malfunction will not be detected while the O/D OFF indi-
cator lamp is indicating another self-diagnosis malfunction.
IThis malfunction is detected when the A/T does not shift into
third gear position as instructed by the TCM. This is not caused
by electrical malfunction (circuits open or shorted) but by
mechanical malfunction such as control valve sticking,
improper solenoid valve operation, malfunctioning servo piston
or brake band, etc.
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
TCM TERMINALS AND REFERENCE VALUENBAT0045S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement
standard
(Approx.)
11 L/WShift solenoid
valve A
When shift solenoid valve A operates.
(When driving in ªD
1ºorªD4º.)Battery volt-
age
When shift solenoid valve A does not operate.
(When driving in ªD
2ºorªD3º.)0V
ON BOARD DIAGNOSIS LOGICNBAT0045S03This diagnosis monitors actual gear position by checking the torque
converter slip ratio calculated by TCM as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (3rd) supposed
by TCM, the slip ratio will be more than normal. In case the ratio
exceeds the specified value, TCM judges this diagnosis malfunc-
tion.
This malfunction will be caused when shift solenoid valve A is stuck
closed.
Gear position supposed by TCM1234
In case of gear position with no malfunctions1234
In case of gear position with shift solenoid valve A
stuck closed1 1 4* 4
*: P0733 is detected.
Diagnostic trouble code Malfunction is detected when ... Check item (Possible cause)
: A/T 3RD GR FNCTN
A/T cannot be shifted to the 3rd gear
position even if electrical circuit is good.IShift solenoid valve A
IEach clutch
IHydraulic control circuit
: P0733
DTC P0733 IMPROPER SHIFTING TO 3RD GEAR POSITION
Description
AT-132

Page 138 of 2395

INFINITI QX4 2001 Factory Service Manual SAT014K
SAT971J
SAT021J
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NBAT0045S01CAUTION:
IAlways drive vehicle at a safe speed.
IBe careful not to rev engine into the red zone on the
tachomete

SAT014K
SAT971J
SAT021J

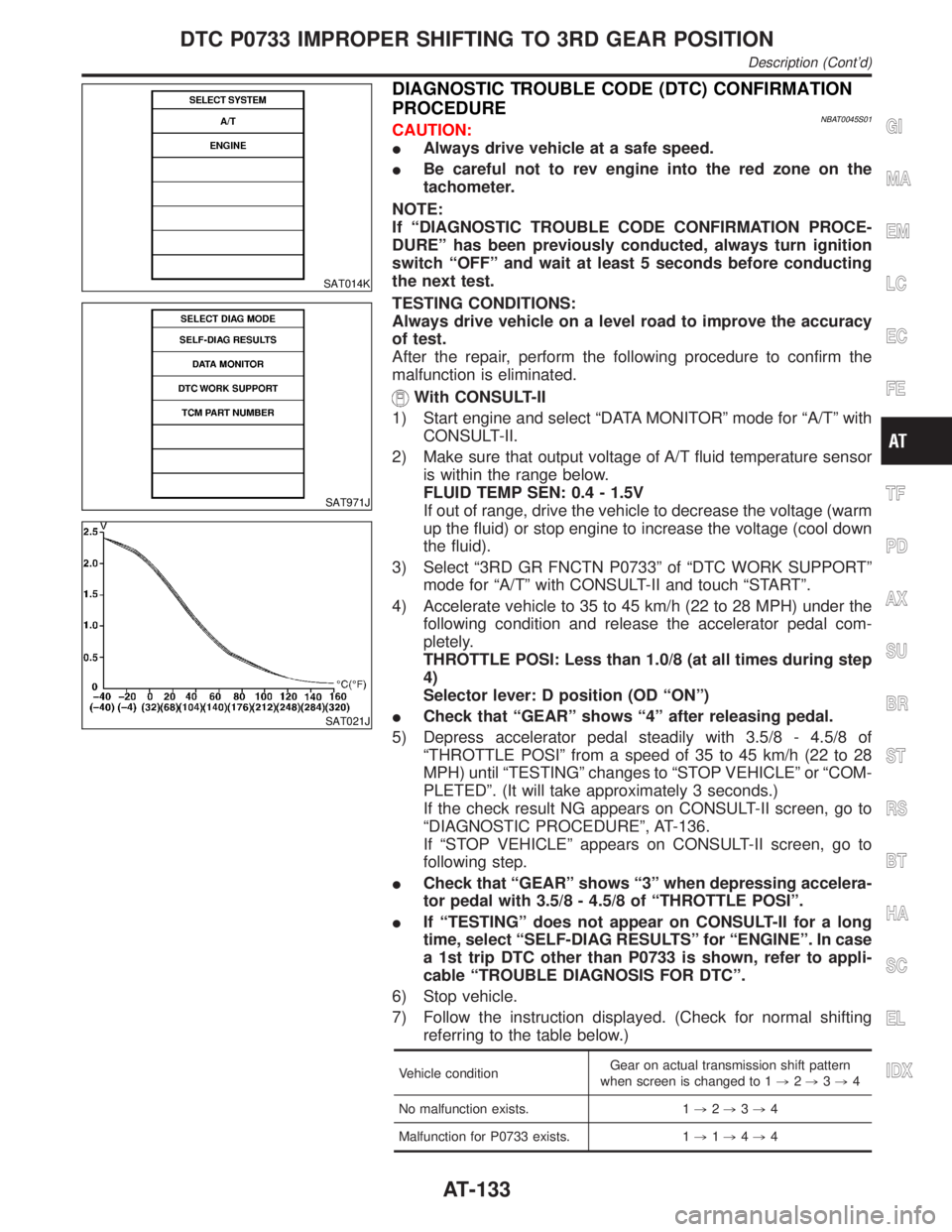

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NBAT0045S01CAUTION:
IAlways drive vehicle at a safe speed.
IBe careful not to rev engine into the red zone on the
tachometer.
NOTE:
If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DUREº has been previously conducted, always turn ignition
switch ªOFFº and wait at least 5 seconds before conducting
the next test.
TESTING CONDITIONS:
Always drive vehicle on a level road to improve the accuracy
of test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1) Start engine and select ªDATA MONITORº mode for ªA/Tº with
CONSULT-II.
2) Make sure that output voltage of A/T fluid temperature sensor
is within the range below.
FLUID TEMP SEN: 0.4 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm
up the fluid) or stop engine to increase the voltage (cool down
the fluid).
3) Select ª3RD GR FNCTN P0733º of ªDTC WORK SUPPORTº
mode for ªA/Tº with CONSULT-II and touch ªSTARTº.
4) Accelerate vehicle to 35 to 45 km/h (22 to 28 MPH) under the
following condition and release the accelerator pedal com-
pletely.
THROTTLE POSI: Less than 1.0/8 (at all times during step
4)
Selector lever: D position (OD ªONº)
ICheck that ªGEARº shows ª4º after releasing pedal.
5) Depress accelerator pedal steadily with 3.5/8 - 4.5/8 of
ªTHROTTLE POSIº from a speed of 35 to 45 km/h (22 to 28
MPH) until ªTESTINGº changes to ªSTOP VEHICLEº or ªCOM-
PLETEDº. (It will take approximately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to
ªDIAGNOSTIC PROCEDUREº, AT-136.
If ªSTOP VEHICLEº appears on CONSULT-II screen, go to
following step.
ICheck that ªGEARº shows ª3º when depressing accelera-
tor pedal with 3.5/8 - 4.5/8 of ªTHROTTLE POSIº.
IIf ªTESTINGº does not appear on CONSULT-II for a long
time, select ªSELF-DIAG RESULTSº for ªENGINEº. In case
a 1st trip DTC other than P0733 is shown, refer to appli-
cable ªTROUBLE DIAGNOSIS FOR DTCº.
6) Stop vehicle.
7) Follow the instruction displayed. (Check for normal shifting
referring to the table below.)
Vehicle conditionGear on actual transmission shift pattern
when screen is changed to 1,2,3,4
No malfunction exists. 1,2,3,4
Malfunction for P0733 exists. 1,1,4,4
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DTC P0733 IMPROPER SHIFTING TO 3RD GEAR POSITION
Description (Cont'd)
AT-133

Page 139 of 2395

INFINITI QX4 2001 Factory Service Manual 8) Make sure that ªOKº is displayed. (If ªNGº is displayed, refer
to ªDIAGNOSTIC PROCEDUREº.) Refer to ªDIAGNOSTIC
PROCEDUREº, AT-136.
Refer to shift schedule, AT-356.
With GST
Follow the proc

Page 140 of 2395

INFINITI QX4 2001 Factory Service Manual Wiring Diagram Ð AT Ð 3RDNBAT0192
MAT733A
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DTC P0733 IMPROPER SHIFTING TO 3RD GEAR POSITION
Wiring Diagram Ð AT Ð 3RD
AT-135

Page 141 of 2395

INFINITI QX4 2001 Factory Service Manual Diagnostic ProcedureNBAT0046
1 CHECK SHIFT SOLENOID VALVE
1. Remove control valve assembly. Refer to AT-273.
2. Check shift solenoid valve operation.
IShift solenoid valve A
Refer to ªComponent Inspe

Page 142 of 2395

INFINITI QX4 2001 Factory Service Manual SAT654I
Component InspectionNBAT0047SHIFT SOLENOID VALVE ANBAT0047S01IFor removal, refer to AT-273.
Resistance CheckNBAT0047S0101ICheck resistance between terminal 3 and ground.
Solenoid valve Termina

Page 143 of 2395

INFINITI QX4 2001 Factory Service Manual DescriptionNBAT0048IThis is an OBD-II self-diagnostic item and not available in TCM
self-diagnosis.
IThis malfunction will not be detected while the O/D OFF indi-
cator lamp is indicating another self

DescriptionNBAT0048IThis is an OBD-II self-diagnostic item and not available in TCM
self-diagnosis.
IThis malfunction will not be detected while the O/D OFF indi-
cator lamp is indicating another self-diagnosis malfunction.
IThis malfunction is detected when the A/T does not shift into
fourth gear position or the torque converter clutch does not
lock up as instructed by the TCM. This is not caused by elec-
trical malfunction (circuits open or shorted) but by mechanical
malfunction such as control valve sticking, improper solenoid
valve operation, malfunctioning oil pump or torque converter
clutch, etc.
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NBAT0048S04Remarks: Specification data are reference values.
Monitor item Condition Specification
Line pressure solenoid valve
dutySmall throttle opening (Low line pressure)
"
Large throttle opening (High line pressure)Approximately 24%
"
Approximately 95%
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
TCM TERMINALS AND REFERENCE VALUENBAT0048S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement
standard
(Approx.)
1GYLine pressure
solenoid valve
When releasing accelerator pedal after warm-
ing up engine.1.5 - 3.0V
When depressing accelerator pedal fully after
warming up engine.0V
2 BR/YLine pressure
solenoid valve
(with dropping
resistor)When releasing accelerator pedal after warm-
ing up engine.5 - 14V
When depressing accelerator pedal fully after
warming up engine.0V
11 L/WShift solenoid
valve A
When shift solenoid valve A operates.
(When driving in ªD
1ºorªD4º.)Battery volt-
age
When shift solenoid valve A does not operate.
(When driving in ªD
2ºorªD3º.)0V
12 L/RShift solenoid
valve BWhen shift solenoid valve B operates.
(When driving in ªD
1ºorªD2º.)Battery volt-
age
When shift solenoid valve B does not operate.
(When driving in ªD
3ºorªD4º.)0V
DTC P0734 IMPROPER SHIFTING TO 4TH GEAR POSITION
Description
AT-138

Page 144 of 2395

INFINITI QX4 2001 Factory Service Manual ON BOARD DIAGNOSIS LOGIC=NBAT0048S03This diagnosis monitors actual gear position by checking the torque
converter slip ratio calculated by TCM as follows:
Torque converter slip ratio = A x C/B
A: Outp
