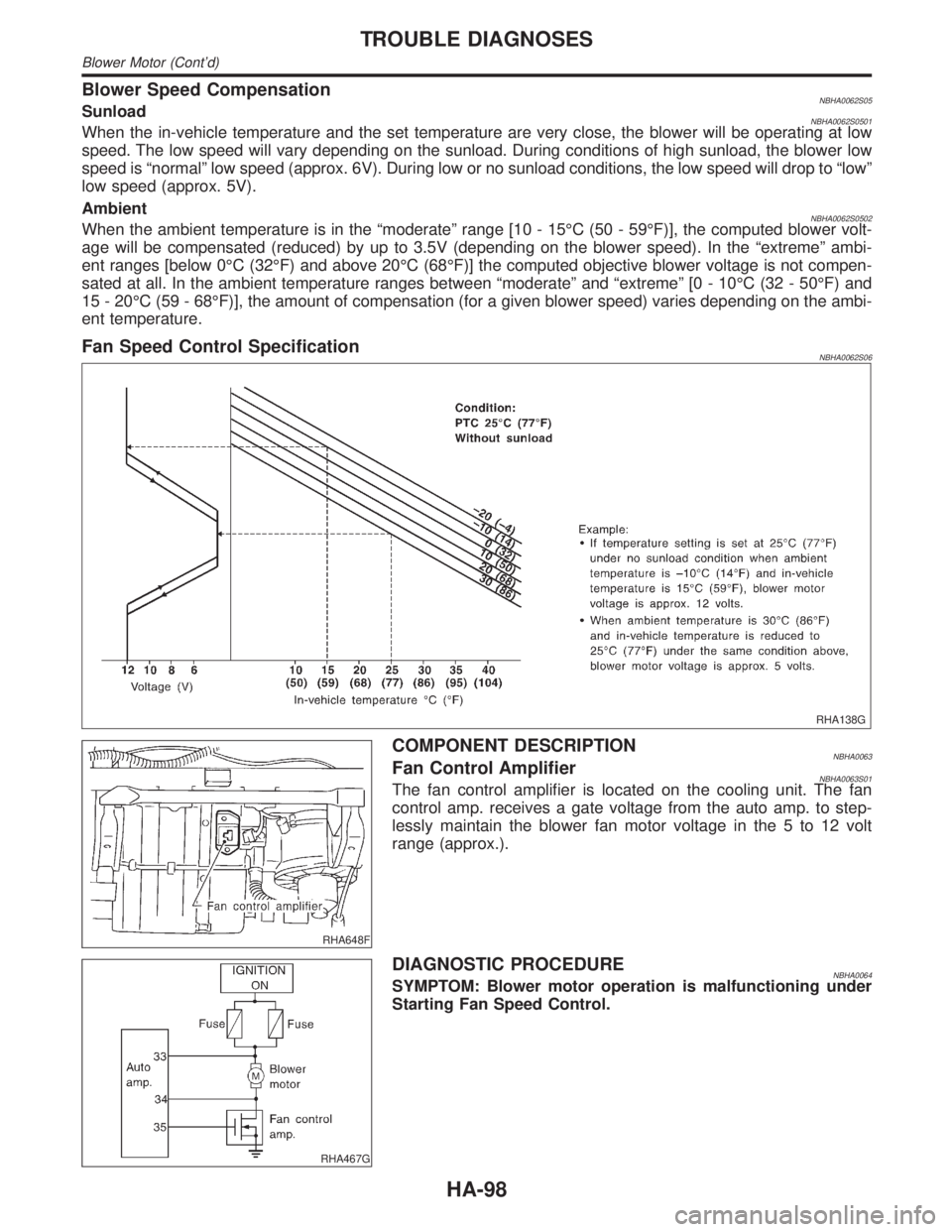

Blower Speed CompensationNBHA0062S05SunloadNBHA0062S0501When the in-vehicle temperature and the set temperature are very close, the blower will be operating at low
speed. The low speed will vary depending on the sunload. During conditions of high sunload, the blower low
speed is ªnormalº low speed (approx. 6V). During low or no sunload conditions, the low speed will drop to ªlowº
low speed (approx. 5V).
Ambient
NBHA0062S0502When the ambient temperature is in the ªmoderateº range [10 - 15ÉC (50 - 59ÉF)], the computed blower volt-
age will be compensated (reduced) by up to 3.5V (depending on the blower speed). In the ªextremeº ambi-
ent ranges [below 0ÉC (32ÉF) and above 20ÉC (68ÉF)] the computed objective blower voltage is not compen-
sated at all. In the ambient temperature ranges between ªmoderateº and ªextremeº [0 - 10ÉC (32 - 50ÉF) and
15 - 20ÉC (59 - 68ÉF)], the amount of compensation (for a given blower speed) varies depending on the ambi-
ent temperature.
Fan Speed Control SpecificationNBHA0062S06
RHA138G
RHA648F
COMPONENT DESCRIPTIONNBHA0063Fan Control AmplifierNBHA0063S01The fan control amplifier is located on the cooling unit. The fan
control amp. receives a gate voltage from the auto amp. to step-
lessly maintain the blower fan motor voltage in the 5 to 12 volt
range (approx.).
RHA467G
DIAGNOSTIC PROCEDURENBHA0064SYMPTOM: Blower motor operation is malfunctioning under
Starting Fan Speed Control.
TROUBLE DIAGNOSES
Blower Motor (Cont'd)
HA-98
Page 1898 of 2395

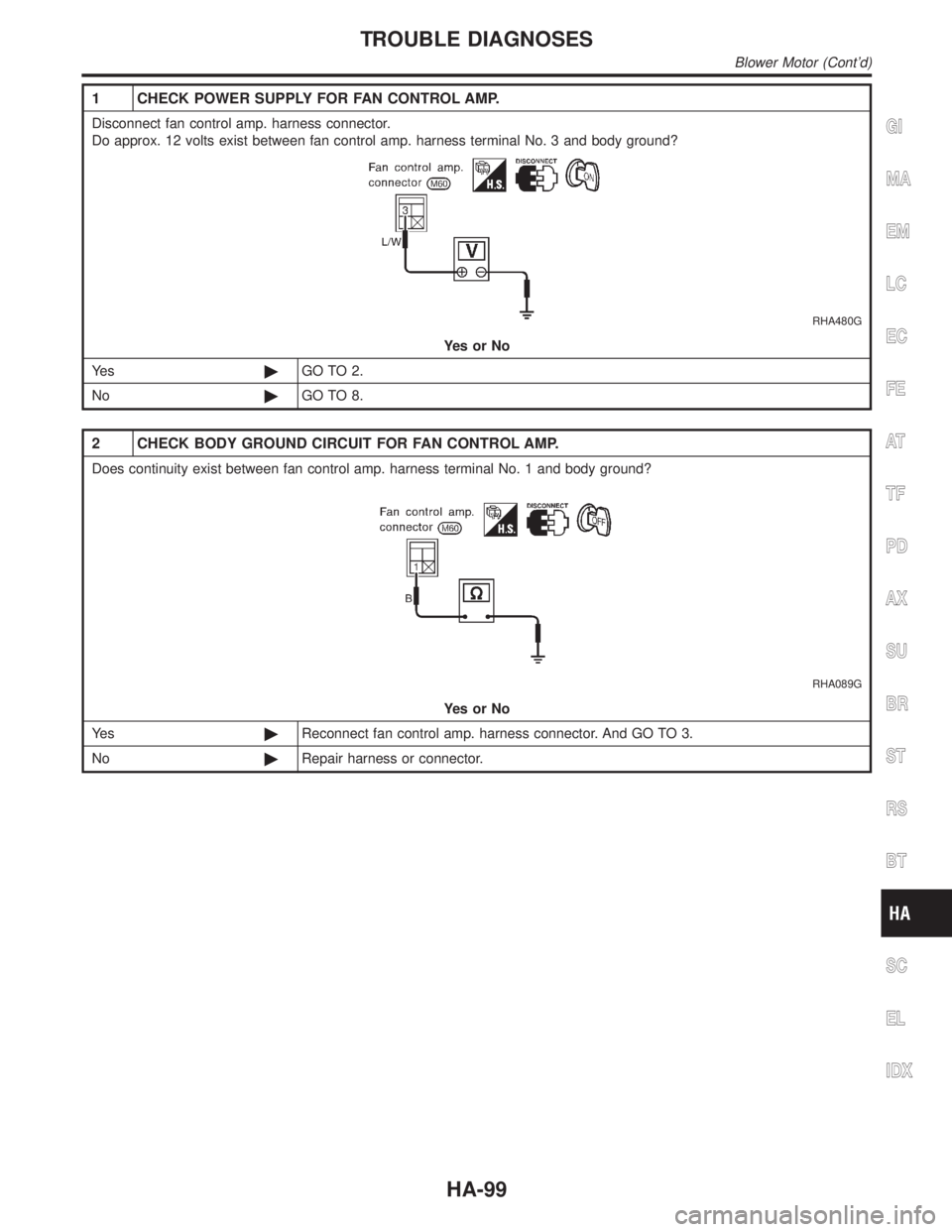

1 CHECK POWER SUPPLY FOR FAN CONTROL AMP.
Disconnect fan control amp. harness connector.
Do approx. 12 volts exist between fan control amp. harness terminal No. 3 and body ground?
RHA480G
YesorNo
Ye s©GO TO 2.
No©GO TO 8.
2 CHECK BODY GROUND CIRCUIT FOR FAN CONTROL AMP.
Does continuity exist between fan control amp. harness terminal No. 1 and body ground?
RHA089G
YesorNo
Ye s©Reconnect fan control amp. harness connector. And GO TO 3.
No©Repair harness or connector.
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSES
Blower Motor (Cont'd)
HA-99
Page 1899 of 2395
3 CHECK VOLTAGE FOR FAN CONTROL AMP.
Set up Self-diagnosis STEP 4.
Measure voltage across fan control amp. harness terminal No. 2 and body ground.
RHA481GB
MTBL0465
OK or NG
OK©GO TO 5.
NG©IThe result is less than 2.5V. Replace fan control amp.
IThe result is more than 3.0V. GO TO 4.
4 CHECK FAN CONTROL AMP.
Refer to HA-103.
OK or NG
OK©GO TO 5.
NG©1. Replace fan control amp.
2. Go to ªSTEP-BY-STEP PROCEDUREº, HA-45 and perform self-diagnosis STEP 4.
Confirm that blower motor operation is normal.
5 CHECK FAN CONTROL AMP. CIRCUIT BETWEEN FAN CONTROL AMP. AND AUTO AMP. (LCU)
1. Disconnect auto amp. (LCU) and fan control amp. harness connector.
2. Check circuit continuity between auto amp. (LCU) harness terminal No. 35 and fan control amp. harness terminal No.
2.
RHA824H
Continuity should exist.
If OK, check harness for short.
OK or NG
OK©GO TO 6.
NG©Repair harness or connector.
TROUBLE DIAGNOSES
Blower Motor (Cont'd)
HA-100
Page 1900 of 2395
6 CHECK FAN FEED BACK CIRCUIT
Reconnect auto amp. (LCU) harness connector.
Do approx. 12 volts exist between auto amp. (LCU) harness terminal No. 33 and body ground?
RHA825H
YesorNo
Ye s©GO TO 7.
No©Check power supply circuit and 15A fuses (Nos. 1 and 2, located in the fuse block).
Refer to EL-14, ªWiring Diagram Ð POWER к.
IIf OK, check for open circuit in wiring harness.
Repair or replace as necessary.
IIf NG, replace fuse and check wiring harness for short circuit.
Repair or replace as necessary.
7 CHECK POWER SUPPLY FOR AUTO AMP.
Do approx. 12 volts exist between auto amp. harness terminal No. 34 and body ground?
RHA826H
YesorNo
Ye s©1. Replace auto amp.
2. Go to self-diagnosis step-by-step procedure (HA-45) and perform self-diagnosis STEP
4.
Confirm that blower motor operation is normal.
No©GO TO 10.
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSES
Blower Motor (Cont'd)
HA-101
Page 1901 of 2395

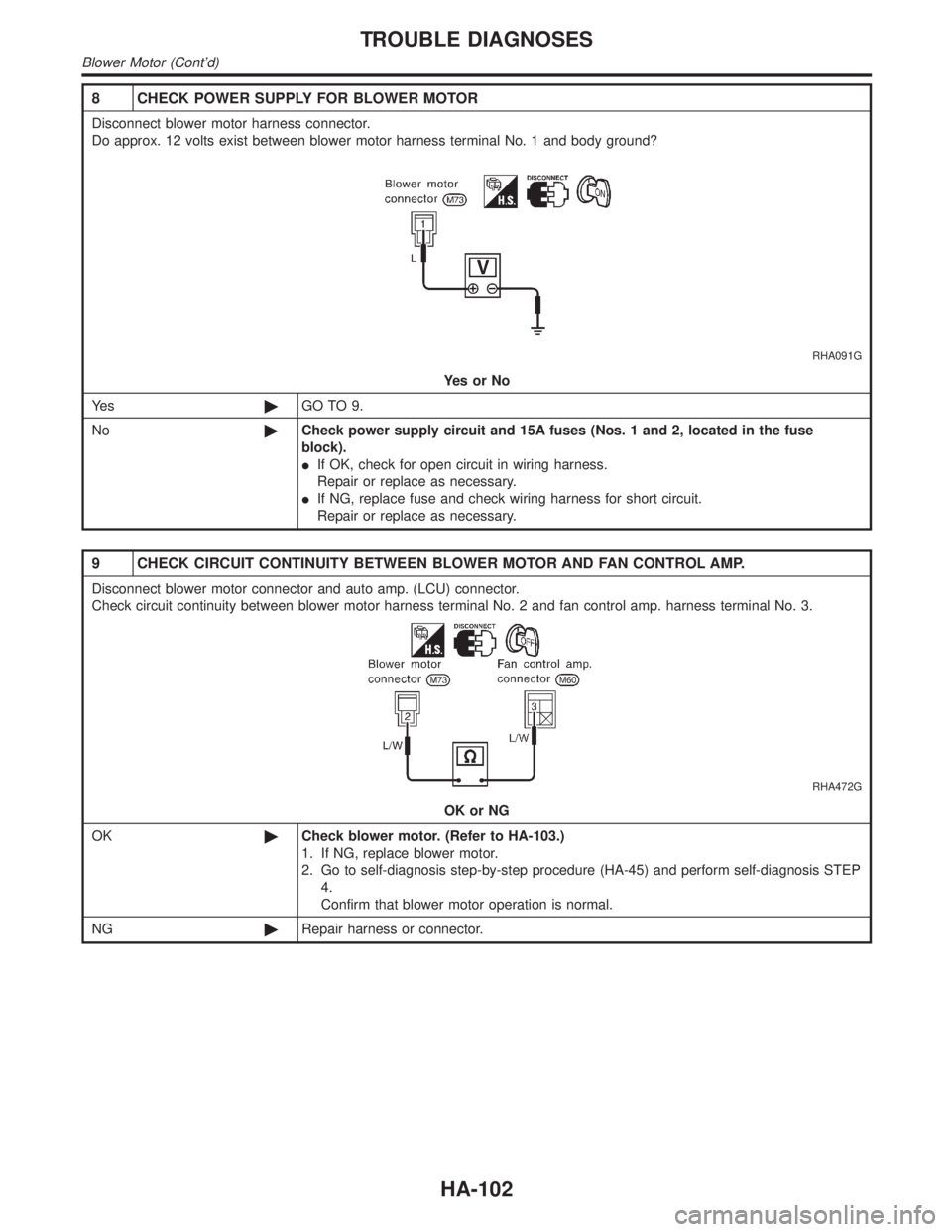

8 CHECK POWER SUPPLY FOR BLOWER MOTOR
Disconnect blower motor harness connector.
Do approx. 12 volts exist between blower motor harness terminal No. 1 and body ground?
RHA091G
YesorNo
Ye s©GO TO 9.
No©Check power supply circuit and 15A fuses (Nos. 1 and 2, located in the fuse
block).
IIf OK, check for open circuit in wiring harness.
Repair or replace as necessary.
IIf NG, replace fuse and check wiring harness for short circuit.
Repair or replace as necessary.
9 CHECK CIRCUIT CONTINUITY BETWEEN BLOWER MOTOR AND FAN CONTROL AMP.
Disconnect blower motor connector and auto amp. (LCU) connector.
Check circuit continuity between blower motor harness terminal No. 2 and fan control amp. harness terminal No. 3.
RHA472G
OK or NG
OK©Check blower motor. (Refer to HA-103.)
1. If NG, replace blower motor.
2. Go to self-diagnosis step-by-step procedure (HA-45) and perform self-diagnosis STEP
4.
Confirm that blower motor operation is normal.
NG©Repair harness or connector.
TROUBLE DIAGNOSES
Blower Motor (Cont'd)
HA-102
Page 1902 of 2395

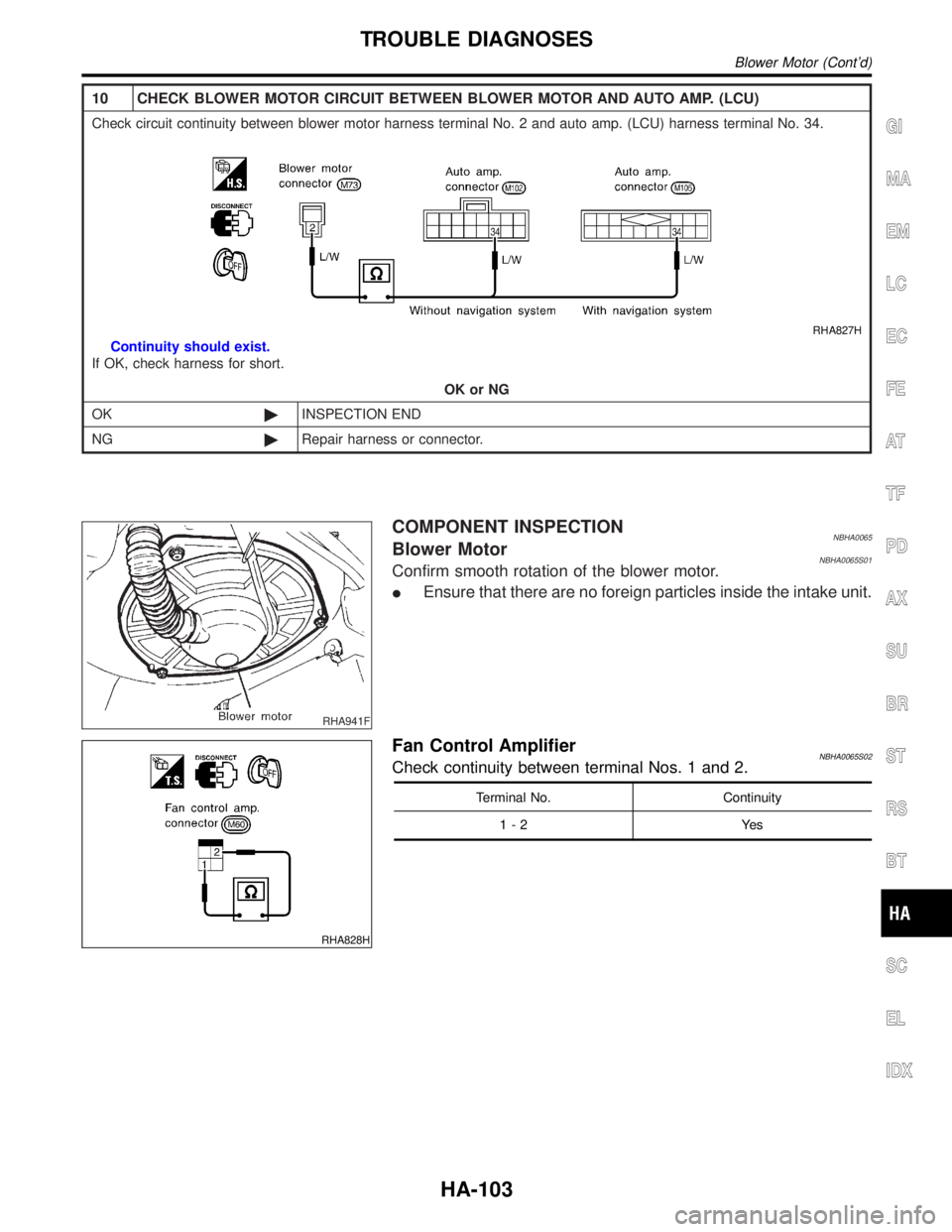

10 CHECK BLOWER MOTOR CIRCUIT BETWEEN BLOWER MOTOR AND AUTO AMP. (LCU)
Check circuit continuity between blower motor harness terminal No. 2 and auto amp. (LCU) harness terminal No. 34.
RHA827H
Continuity should exist.
If OK, check harness for short.
OK or NG
OK©INSPECTION END
NG©Repair harness or connector.
RHA941F
COMPONENT INSPECTIONNBHA0065Blower MotorNBHA0065S01Confirm smooth rotation of the blower motor.
IEnsure that there are no foreign particles inside the intake unit.
RHA828H
Fan Control AmplifierNBHA0065S02Check continuity between terminal Nos. 1 and 2.
Terminal No. Continuity
1-2 Yes
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSES
Blower Motor (Cont'd)
HA-103
Page 1903 of 2395
Magnet Clutch
TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH=NBHA0095SYMPTOM:
IMagnet clutch does not engage.
Inspection FlowNBHA0095S01Without Navigation SystemNBHA0095S0101
SHA249F
*1: STEP-BY-STEP PROCEDURE
(HA-44)
*2: HA-129
*3: HA-132
*4: HA-135
*5: HA-141*6: STEP-BY-STEP PROCEDURE
(HA-45), see No. 13.
*7: HA-106
*8: HA-150
*9: HA-155
*10: HA-66*11: HA-45
*12: HA-66
*13: HA-65
*14: HA-139
TROUBLE DIAGNOSES
Magnet Clutch
HA-104
Page 1904 of 2395
With Navigation SystemNBHA0095S0102
RHA876H
*1: STEP-BY-STEP PROCEDURE
(HA-44)
*2: HA-129
*3: HA-132
*4: HA-135
*5: HA-141*6: STEP-BY-STEP PROCEDURE
(HA-45), see No. 13.
*7: HA-106
*8: HA-150
*9: HA-155
*10: HA-66*11: HA-45
*12: HA-66
*13: HA-65
*14: HA-139
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSES
Magnet Clutch (Cont'd)
