System DescriptionNBEL0038POWER SUPPLY AND GROUNDNBEL0038S06Power is supplied at all times:
Ithrough 7.5A fuse [No. 24, located in the fuse block (J/B)]
Ito key switch terminal 2 and
Ito smart entrance control unit terminal 10.
When the key is removed from ignition key cylinder, power is interrupted:
Ithrough key switch terminal 1
Ito smart entrance control unit terminal 32.
With the ignition key switch in the ON or START position, power is supplied:
Ithrough 7.5A fuse [No. 11, located in the fuse block (J/B)]
Ito smart entrance control unit terminal 33.
Ground is supplied:
Ito smart entrance control unit terminal 16
Ithrough body grounds terminals M77 and M111.
When the front driver side door is opened, ground is supplied:
Ithrough body grounds B11, B22 and D210
Ito front door switch (LH) terminal 2
Ifrom front door switch (LH) terminal 1
Ito smart entrance control unit terminal 29.
When the front passenger side door is opened, ground is supplied:
Ithrough case ground of front door switch (RH)
Ifrom front door switch (RH) terminal 1
Ito smart entrance control unit terminal 40.
When any other door (except front door) is opened, ground is supplied to smart entrance control unit termi-
nal 28 in the same manner as the front door switch (front passenger side).
When the front driver side door is unlocked, the smart entrance control unit receives a ground signal:
Ithrough body grounds terminals M77 and M111
Ito front door lock actuator (driver side unlock sensor) terminal 2
Ifrom front door lock actuator (driver side unlock sensor) terminal 4
Ito smart entrance control unit terminal 36.
When a signal, or combination of signals is received by the smart entrance control unit, ground is supplied:
Ithrough smart entrance control unit terminal 8
Ito interior lamp terminal 2.
With power and ground supplied, the interior lamp illuminates.
SWITCH OPERATIONNBEL0038S07When interior lamp switch is ON, ground is supplied:
Ithrough case grounds of interior lamp
Ito interior lamp.
And power is supplied:
Ito interior lamp terminal 1
Ifrom smart entrance control unit terminal 17.
When spot lamp (LH and/or RH) is ON, ground is supplied:
Ithrough body grounds M4, M66 and M147
Ito spot lamp terminal 2.
And power is supplied:
Ito spot lamp terminal 1
Ifrom smart entrance control unit terminal 17.
When vanity mirror illumination (LH and/or RH) is ON, ground is supplied:
Ithrough body grounds M4, M66 and M147
Ito vanity mirror illuminations (LH and RH) terminals 2.
INTERIOR, SPOT, VANITY MIRROR AND LUGGAGE ROOM LAMPS
System Description
EL-88
Page 1274 of 2395

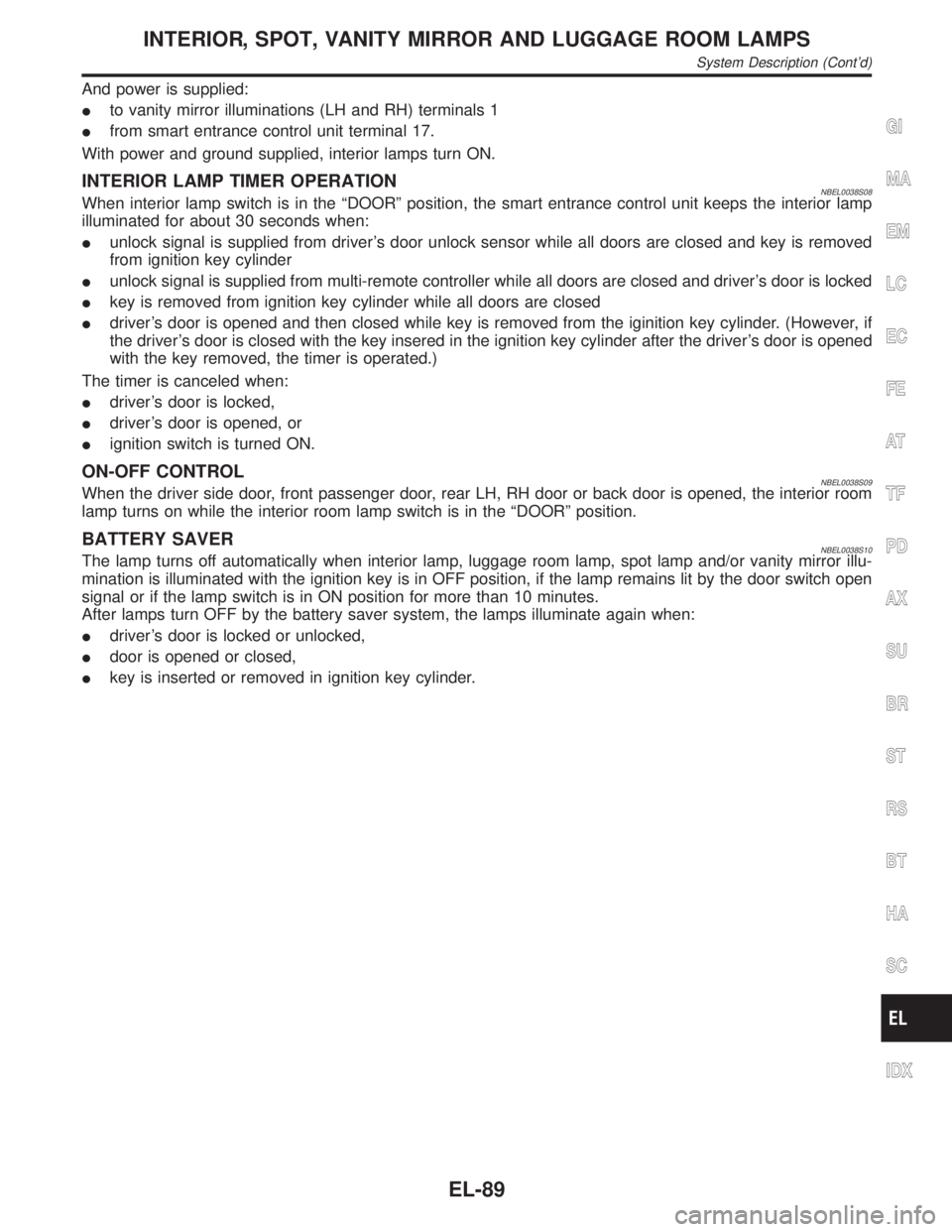

And power is supplied:
Ito vanity mirror illuminations (LH and RH) terminals 1
Ifrom smart entrance control unit terminal 17.
With power and ground supplied, interior lamps turn ON.
INTERIOR LAMP TIMER OPERATIONNBEL0038S08When interior lamp switch is in the ªDOORº position, the smart entrance control unit keeps the interior lamp
illuminated for about 30 seconds when:
Iunlock signal is supplied from driver's door unlock sensor while all doors are closed and key is removed
from ignition key cylinder
Iunlock signal is supplied from multi-remote controller while all doors are closed and driver's door is locked
Ikey is removed from ignition key cylinder while all doors are closed
Idriver's door is opened and then closed while key is removed from the iginition key cylinder. (However, if
the driver's door is closed with the key insered in the ignition key cylinder after the driver's door is opened
with the key removed, the timer is operated.)
The timer is canceled when:
Idriver's door is locked,
Idriver's door is opened, or
Iignition switch is turned ON.
ON-OFF CONTROLNBEL0038S09When the driver side door, front passenger door, rear LH, RH door or back door is opened, the interior room
lamp turns on while the interior room lamp switch is in the ªDOORº position.
BATTERY SAVERNBEL0038S10The lamp turns off automatically when interior lamp, luggage room lamp, spot lamp and/or vanity mirror illu-
mination is illuminated with the ignition key is in OFF position, if the lamp remains lit by the door switch open
signal or if the lamp switch is in ON position for more than 10 minutes.
After lamps turn OFF by the battery saver system, the lamps illuminate again when:
Idriver's door is locked or unlocked,
Idoor is opened or closed,
Ikey is inserted or removed in ignition key cylinder.
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
INTERIOR, SPOT, VANITY MIRROR AND LUGGAGE ROOM LAMPS
System Description (Cont'd)
EL-89
Page 1275 of 2395
SchematicNBEL0158
MEL209M
INTERIOR, SPOT, VANITY MIRROR AND LUGGAGE ROOM LAMPS
Schematic
EL-90
Page 1276 of 2395
Wiring Diagram Ð INT/L ÐNBEL0040
MEL789L
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
INTERIOR, SPOT, VANITY MIRROR AND LUGGAGE ROOM LAMPS
Wiring Diagram Ð INT/L Ð
EL-91
Page 1277 of 2395
MEL790L
INTERIOR, SPOT, VANITY MIRROR AND LUGGAGE ROOM LAMPS
Wiring Diagram Ð INT/L Ð (Cont'd)
EL-92
Page 1278 of 2395
MEL791L
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
INTERIOR, SPOT, VANITY MIRROR AND LUGGAGE ROOM LAMPS
Wiring Diagram Ð INT/L Ð (Cont'd)
EL-93
Page 1279 of 2395
Component Parts and Harness Connector
Location
NBEL0041
SEL351X
System DescriptionNBEL0042UNIFIED CONTROL METERNBEL0042S06ISpeedometer, odo/trip meter, tachometer, fuel gauge and water temperature gauge are controlled totally
by control unit.
IDigital meter is adopted for odo/trip meter.*
*The record of the odo meter is kept even if the battery cable is disconnected. The record of the trip meter
is erased when the battery cable is disconnected.
IOdo/trip meter is indicated for about 30 seconds after ignition switch has been turned OFF.
IOdo/trip meter segment can be checked in diagnosis mode.
IMeter/gauge can be checked in diagnosis mode.
HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METERNBEL0042S07
SEL175W
NOTE:
Turn ignition switch to the ªONº position to operate odo/trip meter.
METERS AND GAUGES
Component Parts and Harness Connector Location
EL-94
Page 1280 of 2395
![INFINITI QX4 2001 Factory Service Manual POWER SUPPLY AND GROUND CIRCUITNBEL0042S08Power is supplied at all times
Ithrough 7.5A fuse [No. 24, located in the fuse block (J/B)]
Ito combination meter terminal 62.
With the ignition switch in the INFINITI QX4 2001 Factory Service Manual POWER SUPPLY AND GROUND CIRCUITNBEL0042S08Power is supplied at all times
Ithrough 7.5A fuse [No. 24, located in the fuse block (J/B)]
Ito combination meter terminal 62.
With the ignition switch in the](/manual-img/42/57027/w960_57027-1279.png)

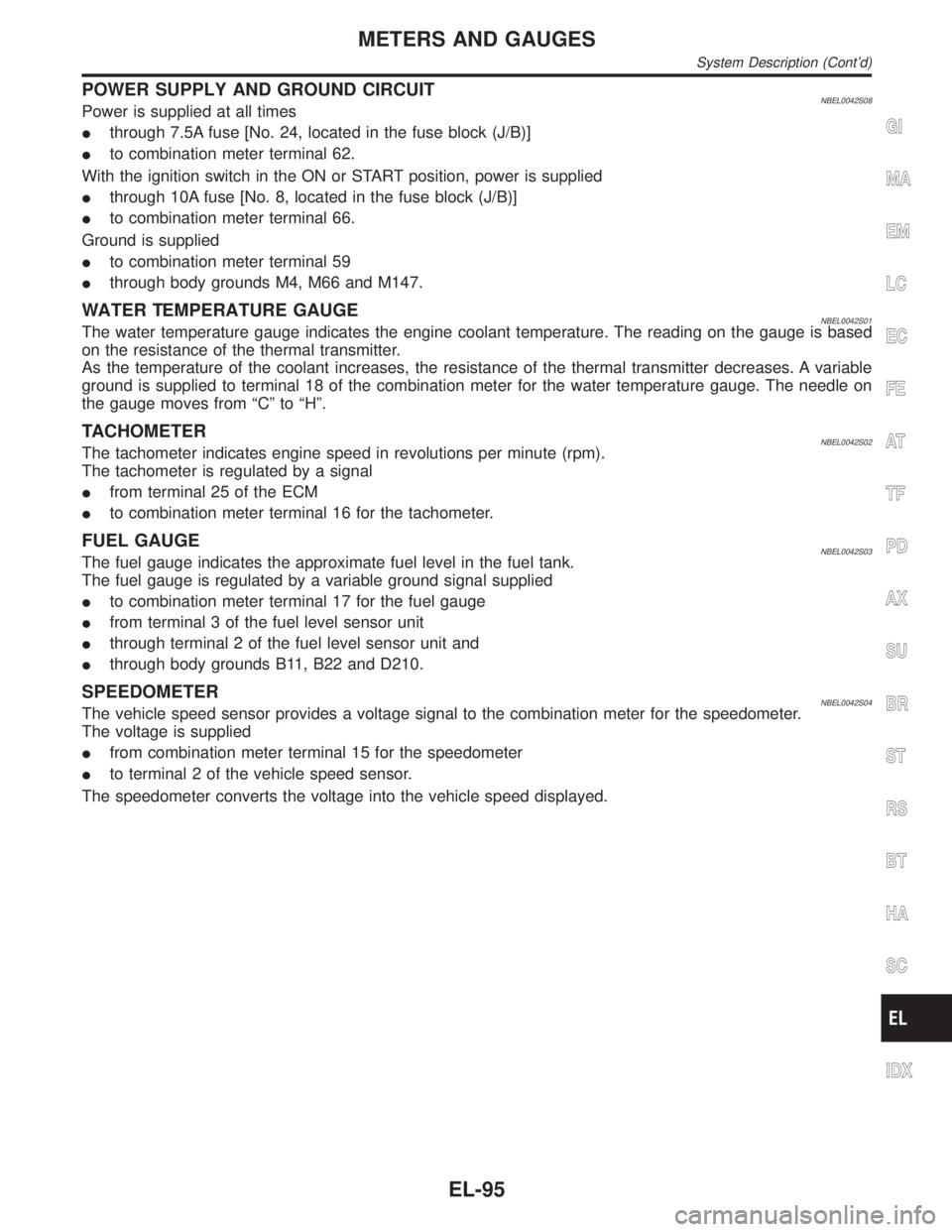

POWER SUPPLY AND GROUND CIRCUITNBEL0042S08Power is supplied at all times
Ithrough 7.5A fuse [No. 24, located in the fuse block (J/B)]
Ito combination meter terminal 62.
With the ignition switch in the ON or START position, power is supplied
Ithrough 10A fuse [No. 8, located in the fuse block (J/B)]
Ito combination meter terminal 66.
Ground is supplied
Ito combination meter terminal 59
Ithrough body grounds M4, M66 and M147.
WATER TEMPERATURE GAUGENBEL0042S01The water temperature gauge indicates the engine coolant temperature. The reading on the gauge is based
on the resistance of the thermal transmitter.
As the temperature of the coolant increases, the resistance of the thermal transmitter decreases. A variable
ground is supplied to terminal 18 of the combination meter for the water temperature gauge. The needle on
the gauge moves from ªCº to ªHº.
TACHOMETERNBEL0042S02The tachometer indicates engine speed in revolutions per minute (rpm).
The tachometer is regulated by a signal
Ifrom terminal 25 of the ECM
Ito combination meter terminal 16 for the tachometer.
FUEL GAUGENBEL0042S03The fuel gauge indicates the approximate fuel level in the fuel tank.
The fuel gauge is regulated by a variable ground signal supplied
Ito combination meter terminal 17 for the fuel gauge
Ifrom terminal 3 of the fuel level sensor unit
Ithrough terminal 2 of the fuel level sensor unit and
Ithrough body grounds B11, B22 and D210.
SPEEDOMETERNBEL0042S04The vehicle speed sensor provides a voltage signal to the combination meter for the speedometer.
The voltage is supplied
Ifrom combination meter terminal 15 for the speedometer
Ito terminal 2 of the vehicle speed sensor.
The speedometer converts the voltage into the vehicle speed displayed.
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
METERS AND GAUGES
System Description (Cont'd)
EL-95
