DTC P1491 VACUUM CUT VALVE BYPASS VALVE
Wiring Diagram
EC-594
Page 1130 of 2395

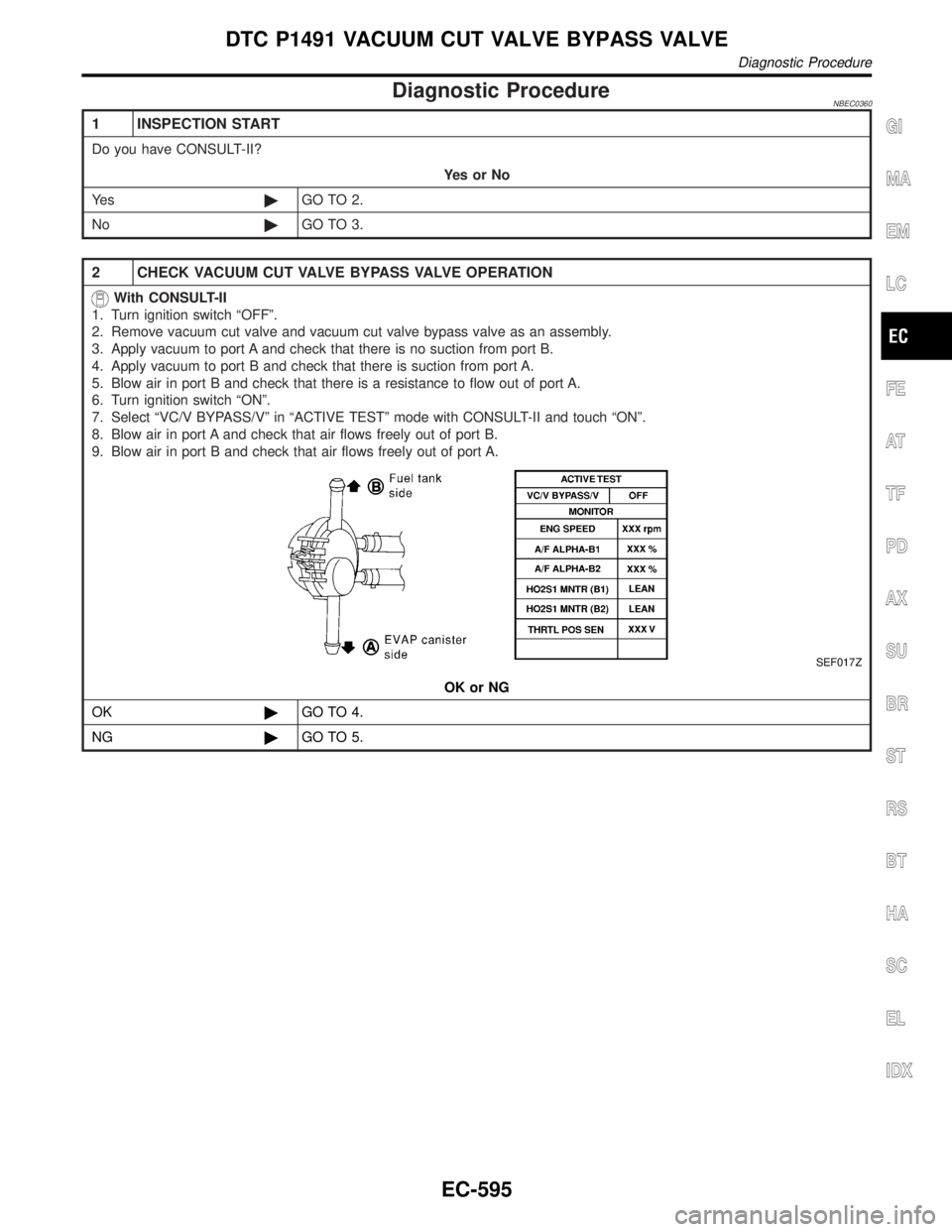

Diagnostic ProcedureNBEC0360
1 INSPECTION START
Do you have CONSULT-II?
YesorNo
Ye s©GO TO 2.
No©GO TO 3.
2 CHECK VACUUM CUT VALVE BYPASS VALVE OPERATION
With CONSULT-II
1. Turn ignition switch ªOFFº.
2. Remove vacuum cut valve and vacuum cut valve bypass valve as an assembly.
3. Apply vacuum to port A and check that there is no suction from port B.
4. Apply vacuum to port B and check that there is suction from port A.
5. Blow air in port B and check that there is a resistance to flow out of port A.
6. Turn ignition switch ªONº.
7. Select ªVC/V BYPASS/Vº in ªACTIVE TESTº mode with CONSULT-II and touch ªONº.
8. Blow air in port A and check that air flows freely out of port B.
9. Blow air in port B and check that air flows freely out of port A.
SEF017Z
OK or NG
OK©GO TO 4.
NG©GO TO 5.
GI
MA
EM
LC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DTC P1491 VACUUM CUT VALVE BYPASS VALVE
Diagnostic Procedure
EC-595
Page 1131 of 2395

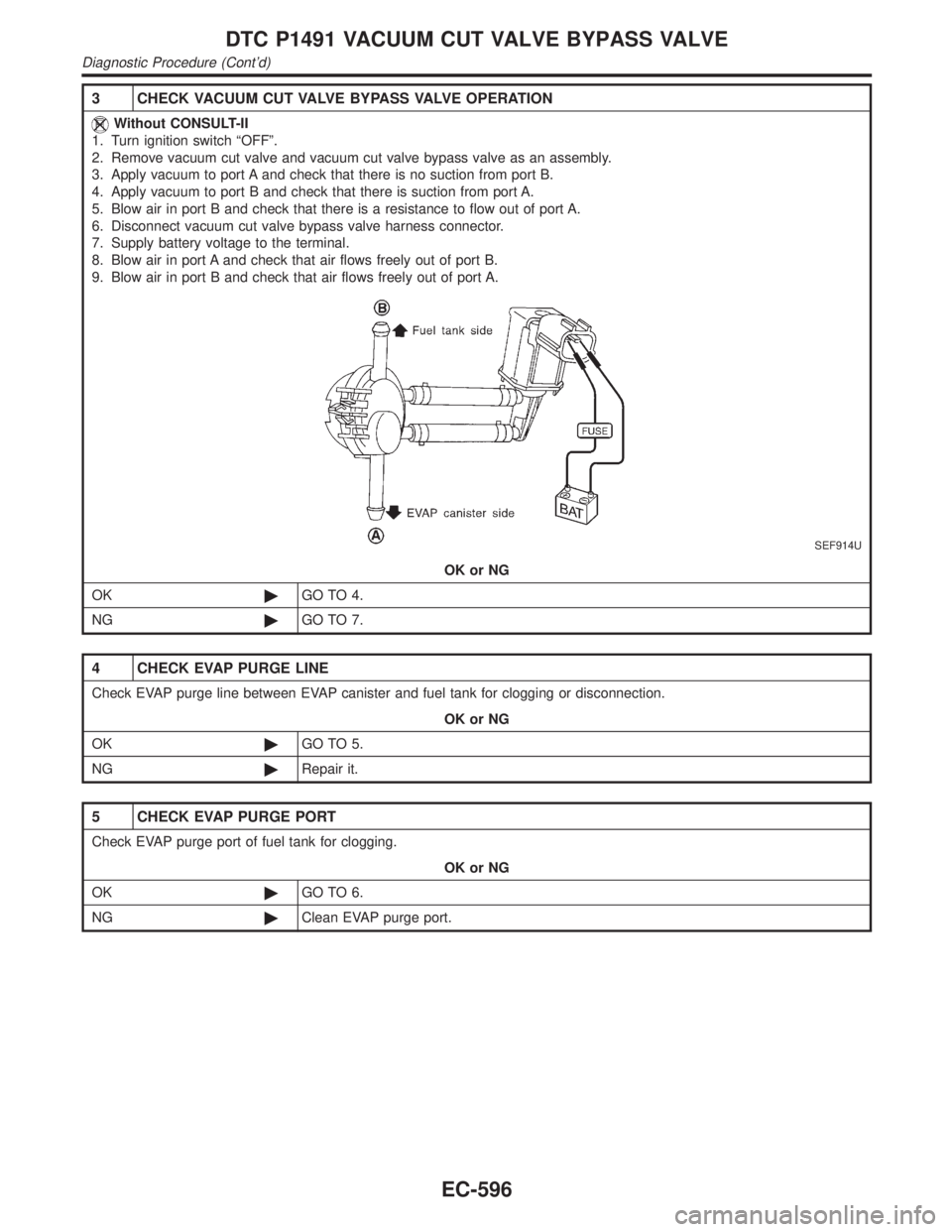

3 CHECK VACUUM CUT VALVE BYPASS VALVE OPERATION
Without CONSULT-II
1. Turn ignition switch ªOFFº.
2. Remove vacuum cut valve and vacuum cut valve bypass valve as an assembly.
3. Apply vacuum to port A and check that there is no suction from port B.
4. Apply vacuum to port B and check that there is suction from port A.
5. Blow air in port B and check that there is a resistance to flow out of port A.
6. Disconnect vacuum cut valve bypass valve harness connector.
7. Supply battery voltage to the terminal.
8. Blow air in port A and check that air flows freely out of port B.
9. Blow air in port B and check that air flows freely out of port A.
SEF914U
OK or NG
OK©GO TO 4.
NG©GO TO 7.
4 CHECK EVAP PURGE LINE
Check EVAP purge line between EVAP canister and fuel tank for clogging or disconnection.
OK or NG
OK©GO TO 5.
NG©Repair it.
5 CHECK EVAP PURGE PORT
Check EVAP purge port of fuel tank for clogging.
OK or NG
OK©GO TO 6.
NG©Clean EVAP purge port.
DTC P1491 VACUUM CUT VALVE BYPASS VALVE
Diagnostic Procedure (Cont'd)
EC-596
Page 1132 of 2395
6 CHECK EVAP CANISTER
1. Pinch the fresh air hose.
2. Blow air into portAand check that it flows freely out of portB.
AEC630A
OK or NG
OK©GO TO 12.
NG©Replace EVAP canister.
7 CHECK BYPASS HOSE
Check bypass hoses for clogging.
OK or NG
OK©GO TO 8.
NG©Repair or replace hoses.
GI
MA
EM
LC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DTC P1491 VACUUM CUT VALVE BYPASS VALVE
Diagnostic Procedure (Cont'd)
EC-597
Page 1133 of 2395
8 CHECK VACUUM CUT VALVE BYPASS VALVE
With CONSULT-II
1. Perform ªVC/V BYPASS/Vº in ªACTIVE TESTº mode.
2. Check air passage continuity and operation delay time under the following conditions.
SEF016Z
Without CONSULT-II
Check air passage continuity and operation delay time under the following conditions.
SEF358X
OK or NG
OK©GO TO 9.
NG©Replace vacuum cut valve bypass valve.
DTC P1491 VACUUM CUT VALVE BYPASS VALVE
Diagnostic Procedure (Cont'd)
EC-598
Page 1134 of 2395

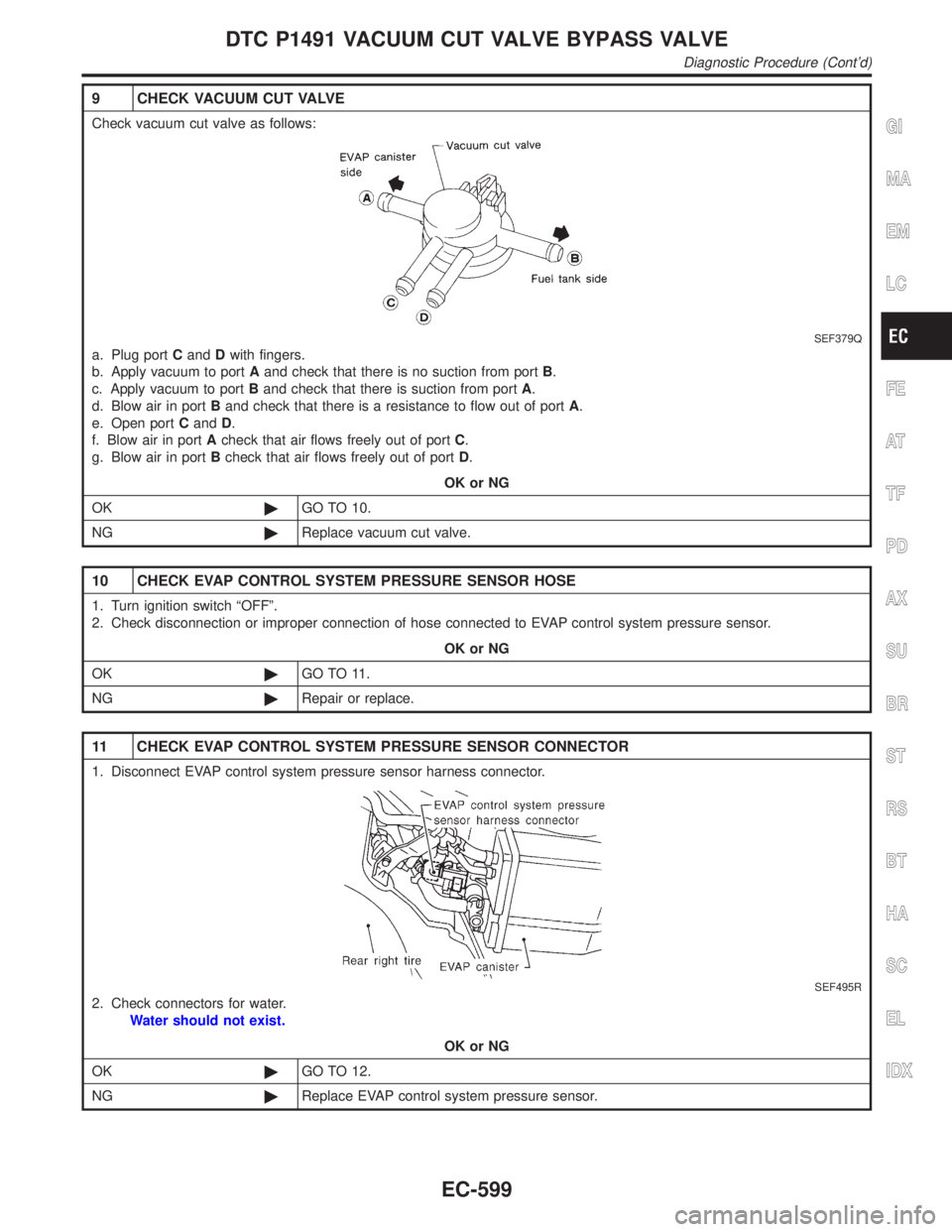

9 CHECK VACUUM CUT VALVE
