Page 1385 of 2395

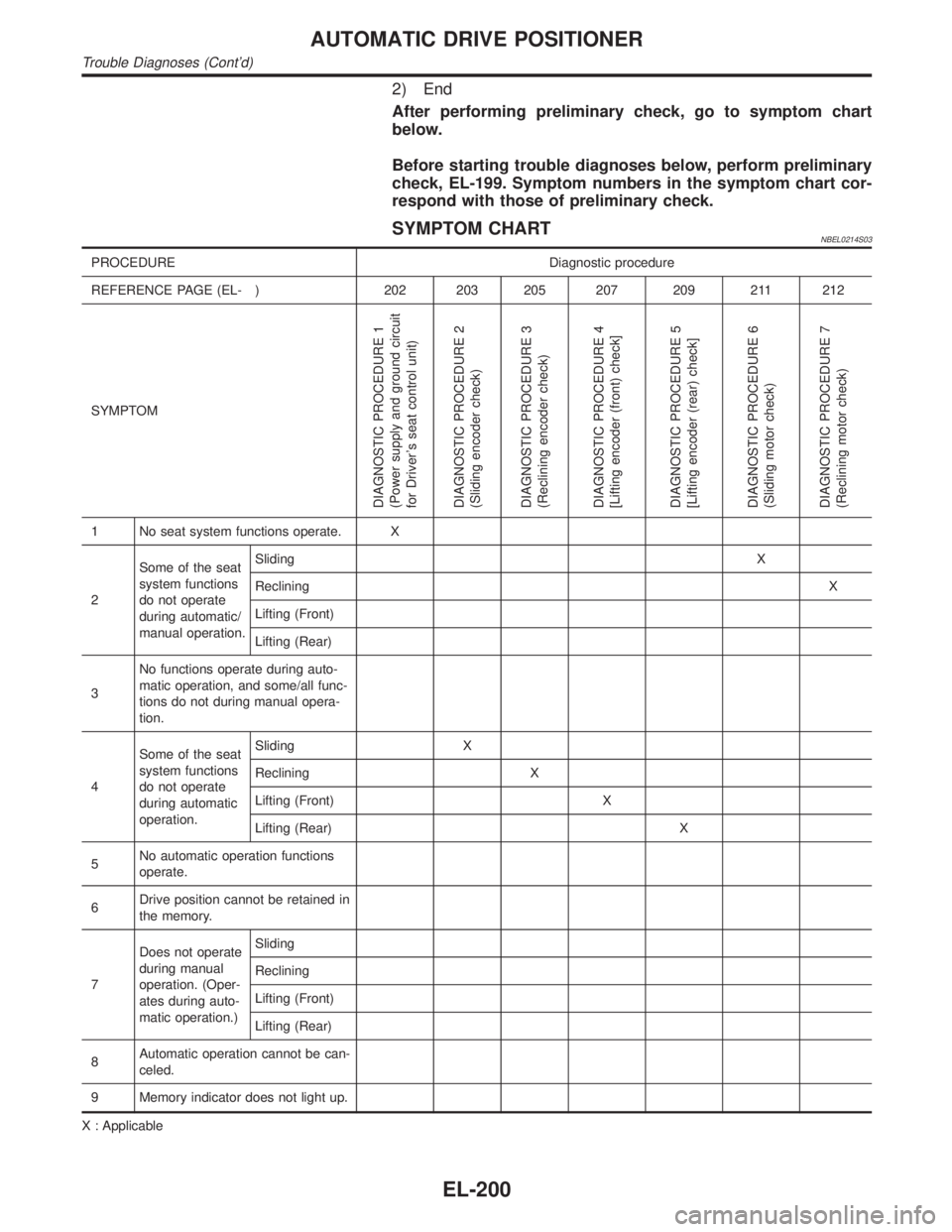

INFINITI QX4 2001 Factory Service Manual 2) End After performing preliminary check, go to symptom chart below. Before starting trouble diagnoses below, perform preliminary check, EL-199. Symptom numbers in the symptom chart cor- respond with

Page 1386 of 2395

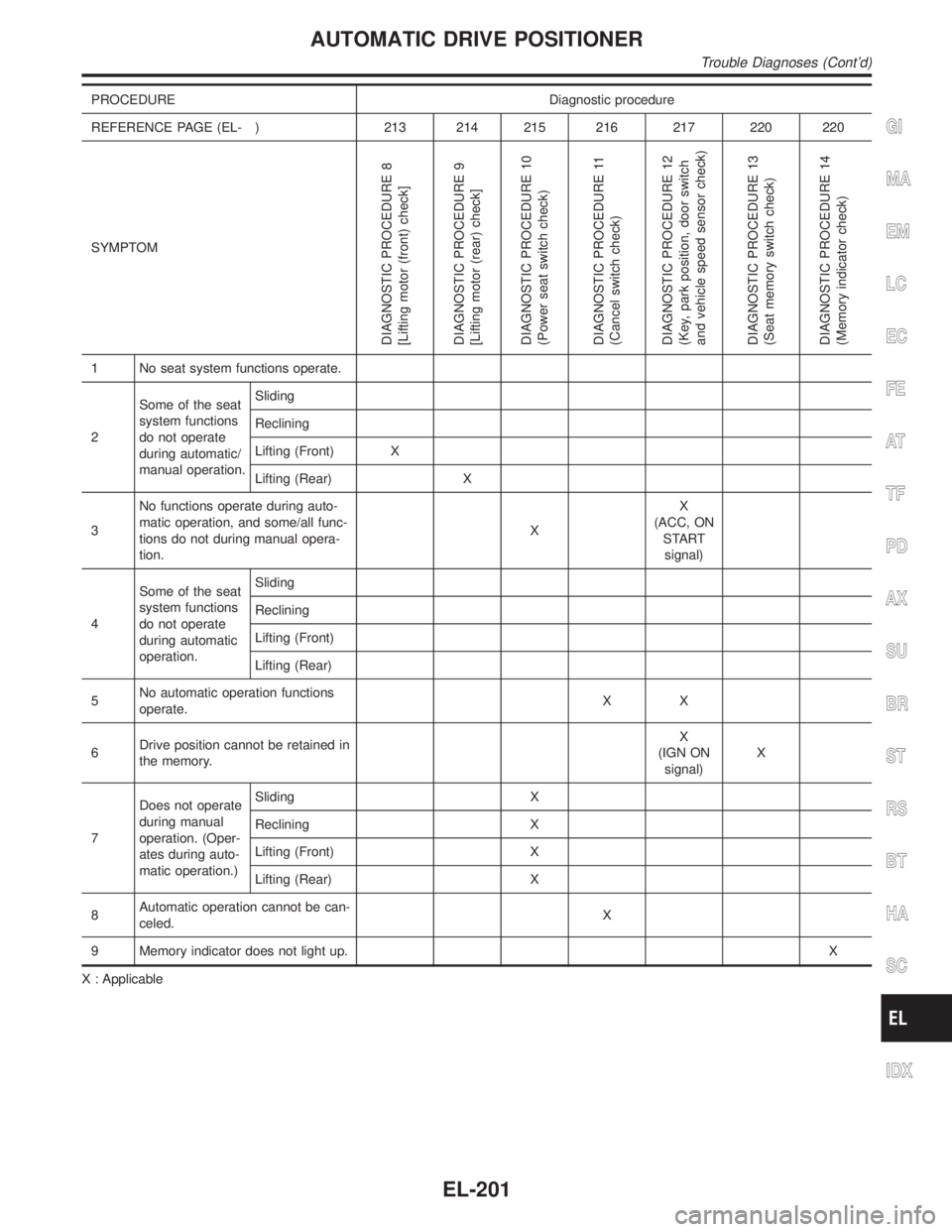

INFINITI QX4 2001 Factory Service Manual PROCEDURE Diagnostic procedure REFERENCE PAGE (EL- ) 213 214 215 216 217 220 220 SYMPTOM DIAGNOSTIC PROCEDURE 8 [Lifting motor (front) check] DIAGNOSTIC PROCEDURE 9 [Lifting motor (rear) check] DIAGNO

Page 1387 of 2395

INFINITI QX4 2001 Factory Service Manual SEL601W DIAGNOSTIC PROCEDURE 1=NBEL0214S04(Power supply and ground circuit for drivers seat control unit) Power Supply Circuit CheckNBEL0214S0401Check voltage between seat control unit LH terminal 1

Page 1388 of 2395

INFINITI QX4 2001 Factory Service Manual DIAGNOSTIC PROCEDURE 2=NBEL0214S05(Sliding encoder check) 1 CHECK SLIDING ENCODER OUTPUT SIGNAL Measure voltage between seat control unit LH terminal 18 and ground with CONSULT-II or oscilloscope when

Page 1389 of 2395

INFINITI QX4 2001 Factory Service Manual 3 CHECK SLIDING ENCODER OPEN CIRCUIT 1. Disconnect seat control unit LH connector and sliding device LH connector. 2. Check harness continuity between seat control unit LH connector and sliding device

Page 1390 of 2395

INFINITI QX4 2001 Factory Service Manual DIAGNOSTIC PROCEDURE 3=NBEL0214S06(Reclining encoder check) 1 CHECK RECLINING ENCODER OUTPUT SIGNAL Measure voltage between seat control unit LH terminal 29 and ground with CONSULT-II or oscilloscope

Page 1391 of 2395

INFINITI QX4 2001 Factory Service Manual 3 CHECK RECLINING ENCODER OPEN CIRCUIT 1. Disconnect seat control unit LH connector and reclining device LH connector. 2. Check harness continuity between seat control unit LH connector and reclining

Page 1392 of 2395

INFINITI QX4 2001 Factory Service Manual DIAGNOSTIC PROCEDURE 4=NBEL0214S07[Lifting encoder (front) check] 1 CHECK LIFTING ENCODER (FRONT) OUTPUT SIGNAL Measure voltage between seat control unit LH terminal 19 and ground with CONSULT-II or o
