Page 1049 of 2395

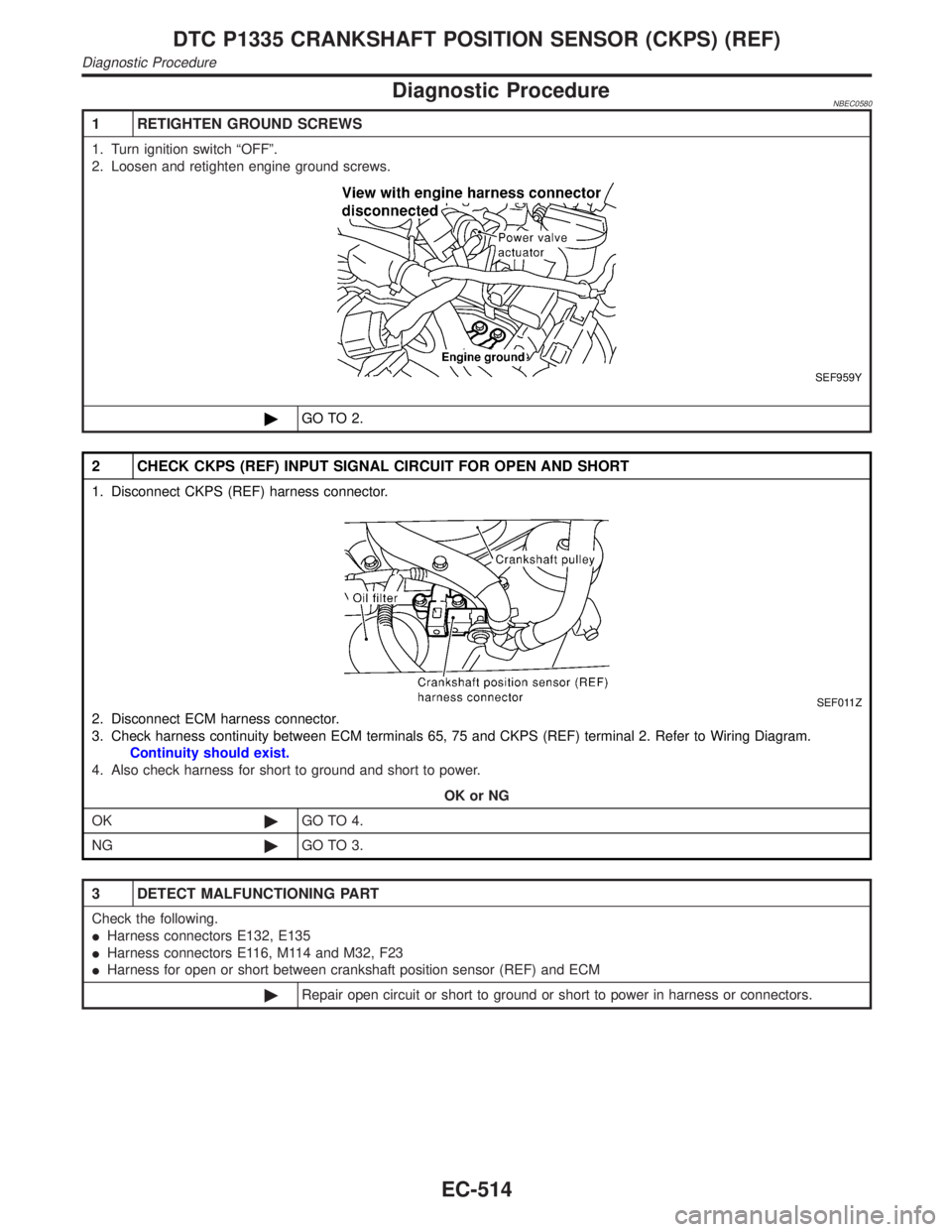

INFINITI QX4 2001 Factory Service Manual Diagnostic ProcedureNBEC0580 1 RETIGHTEN GROUND SCREWS 1. Turn ignition switch ªOFFº. 2. Loosen and retighten engine ground screws. SEF959Y ©GO TO 2. 2 CHECK CKPS (REF) INPUT SIGNAL CIRCUIT FOR OPE

Page 1050 of 2395

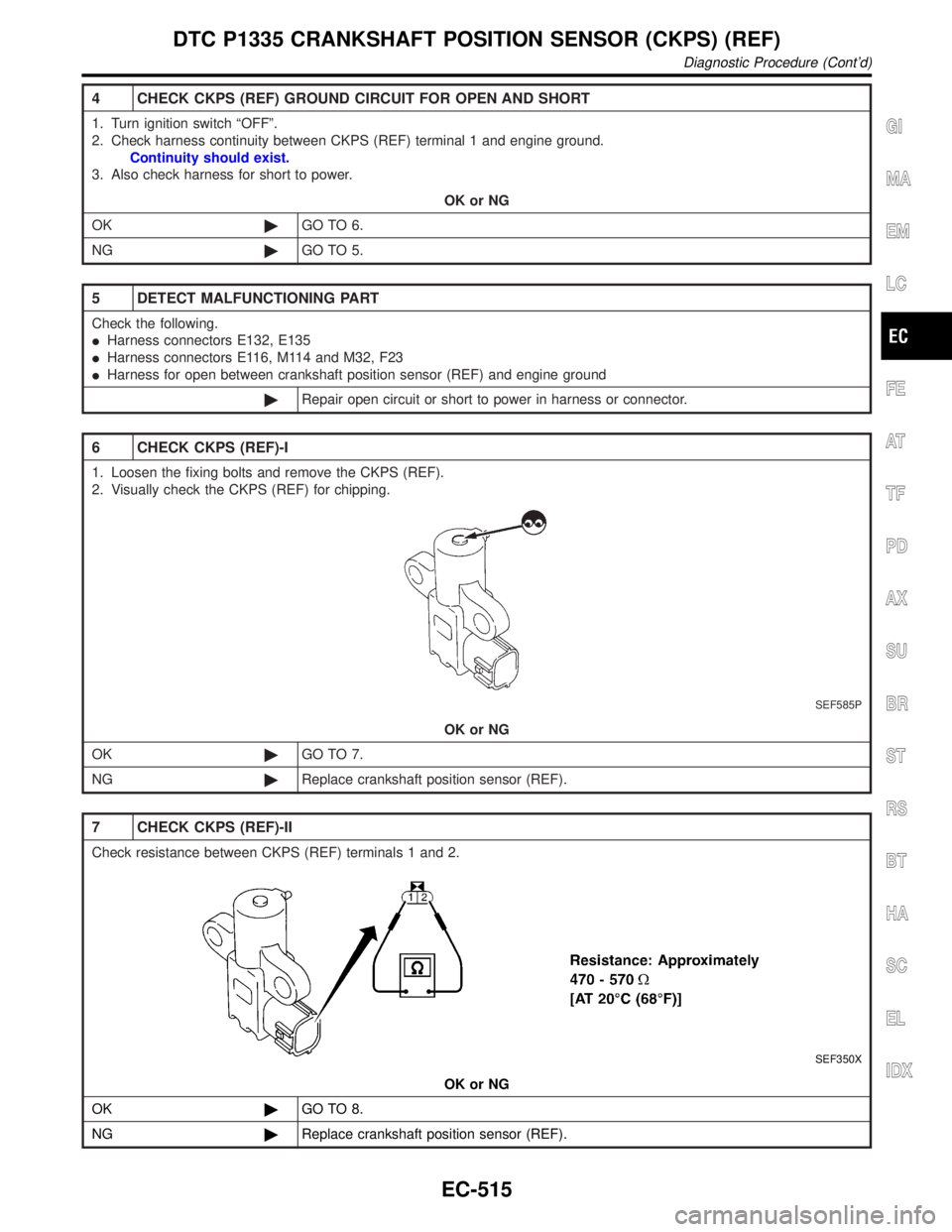

INFINITI QX4 2001 Factory Service Manual 4 CHECK CKPS (REF) GROUND CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch ªOFFº. 2. Check harness continuity between CKPS (REF) terminal 1 and engine ground. Continuity should exist. 3. Also chec

Page 1051 of 2395

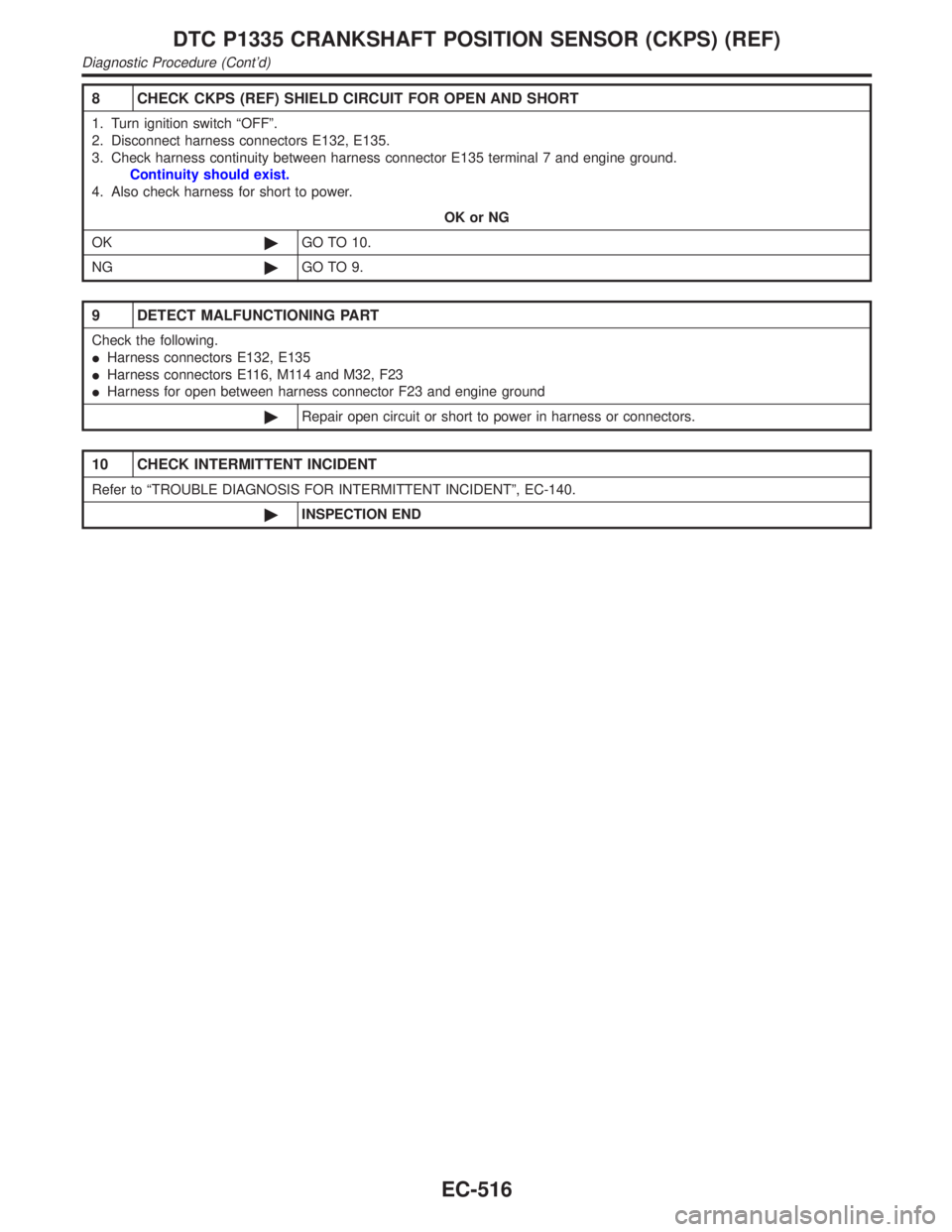

INFINITI QX4 2001 Factory Service Manual 8 CHECK CKPS (REF) SHIELD CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch ªOFFº. 2. Disconnect harness connectors E132, E135. 3. Check harness continuity between harness connector E135 terminal 7

Page 1052 of 2395

INFINITI QX4 2001 Factory Service Manual SEF977Y Component DescriptionNBEC0292The crankshaft position sensor (POS) is located on the oil pan facing the gear teeth (cogs) of the signal plate (flywheel). It detects the crankshaft position sign

Page 1053 of 2395

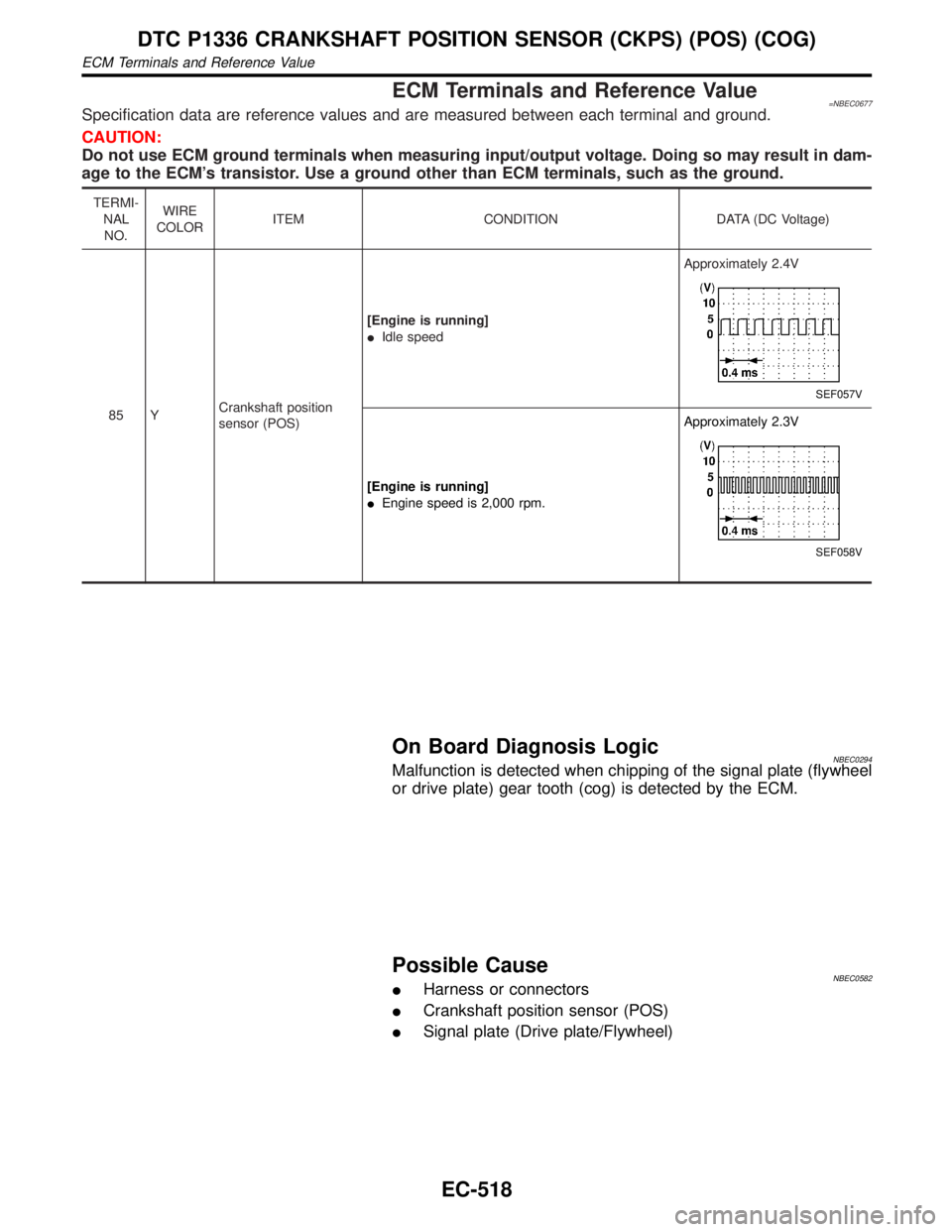

INFINITI QX4 2001 Factory Service Manual ECM Terminals and Reference Value=NBEC0677Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/outpu

Page 1054 of 2395

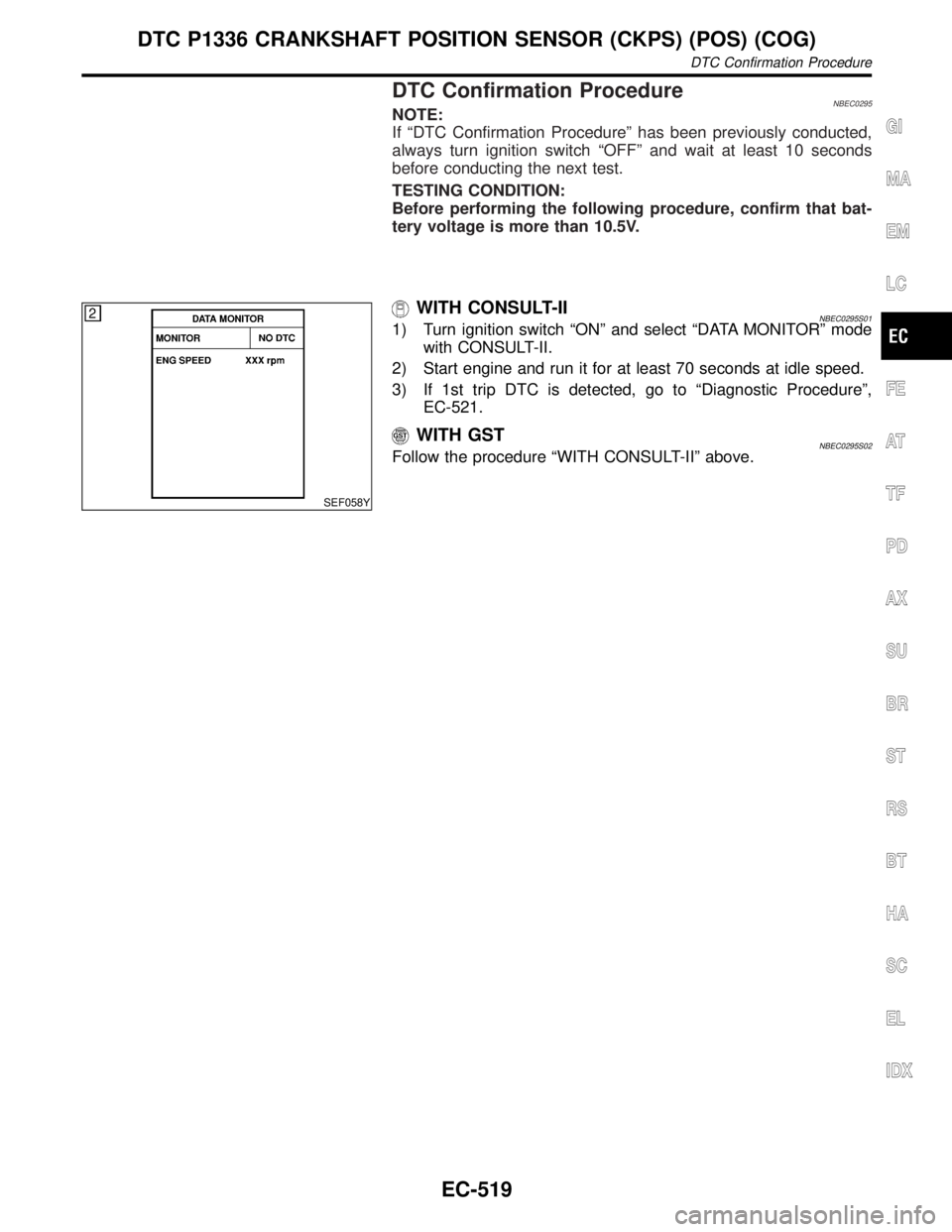

INFINITI QX4 2001 Factory Service Manual DTC Confirmation ProcedureNBEC0295NOTE: If ªDTC Confirmation Procedureº has been previously conducted, always turn ignition switch ªOFFº and wait at least 10 seconds before conducting the next tes

Page 1055 of 2395

INFINITI QX4 2001 Factory Service Manual Wiring DiagramNBEC0296 MEC959C DTC P1336 CRANKSHAFT POSITION SENSOR (CKPS) (POS) (COG) Wiring Diagram EC-520

Page 1056 of 2395

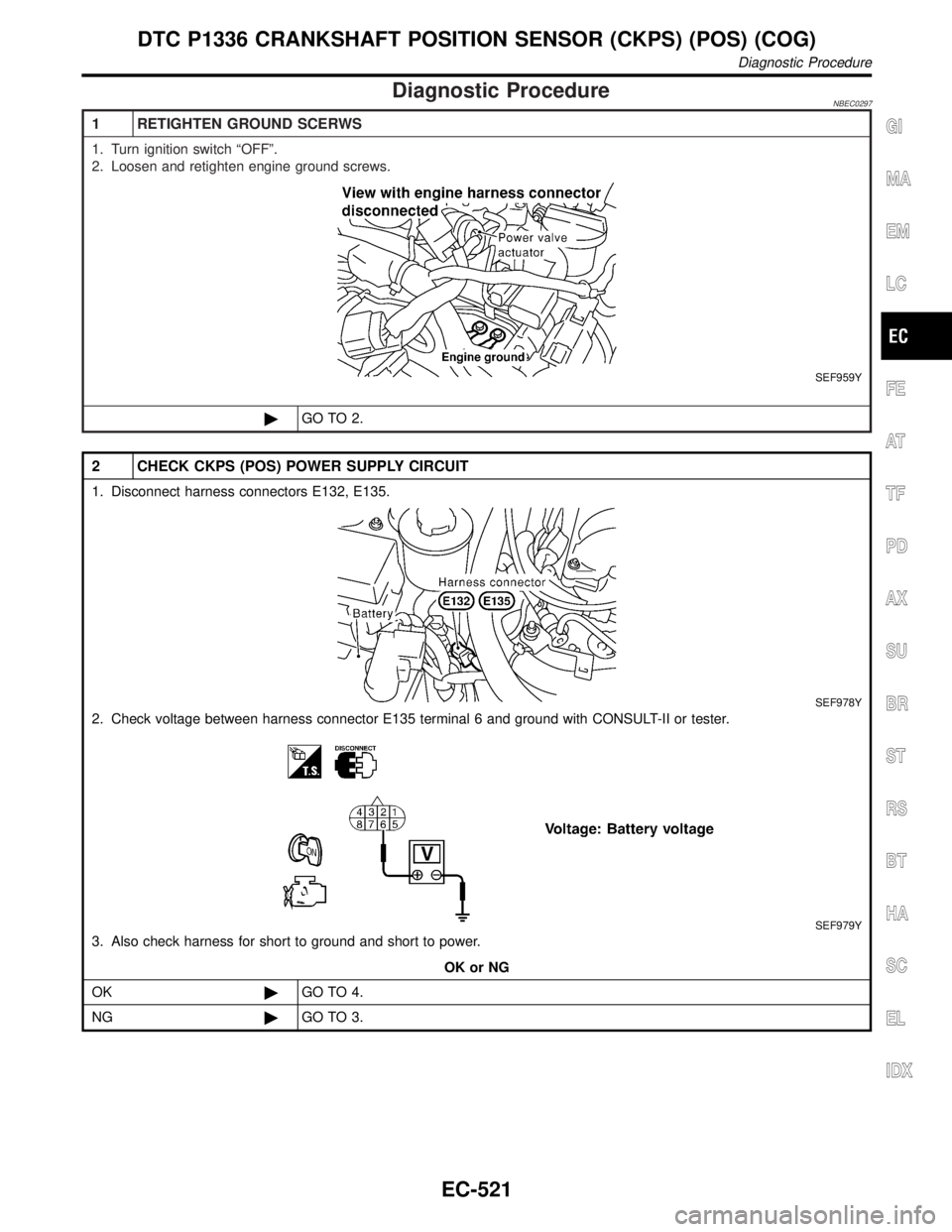

INFINITI QX4 2001 Factory Service Manual Diagnostic ProcedureNBEC0297 1 RETIGHTEN GROUND SCERWS 1. Turn ignition switch ªOFFº. 2. Loosen and retighten engine ground screws. SEF959Y ©GO TO 2. 2 CHECK CKPS (POS) POWER SUPPLY CIRCUIT 1. Disc
