Page 2273 of 2395

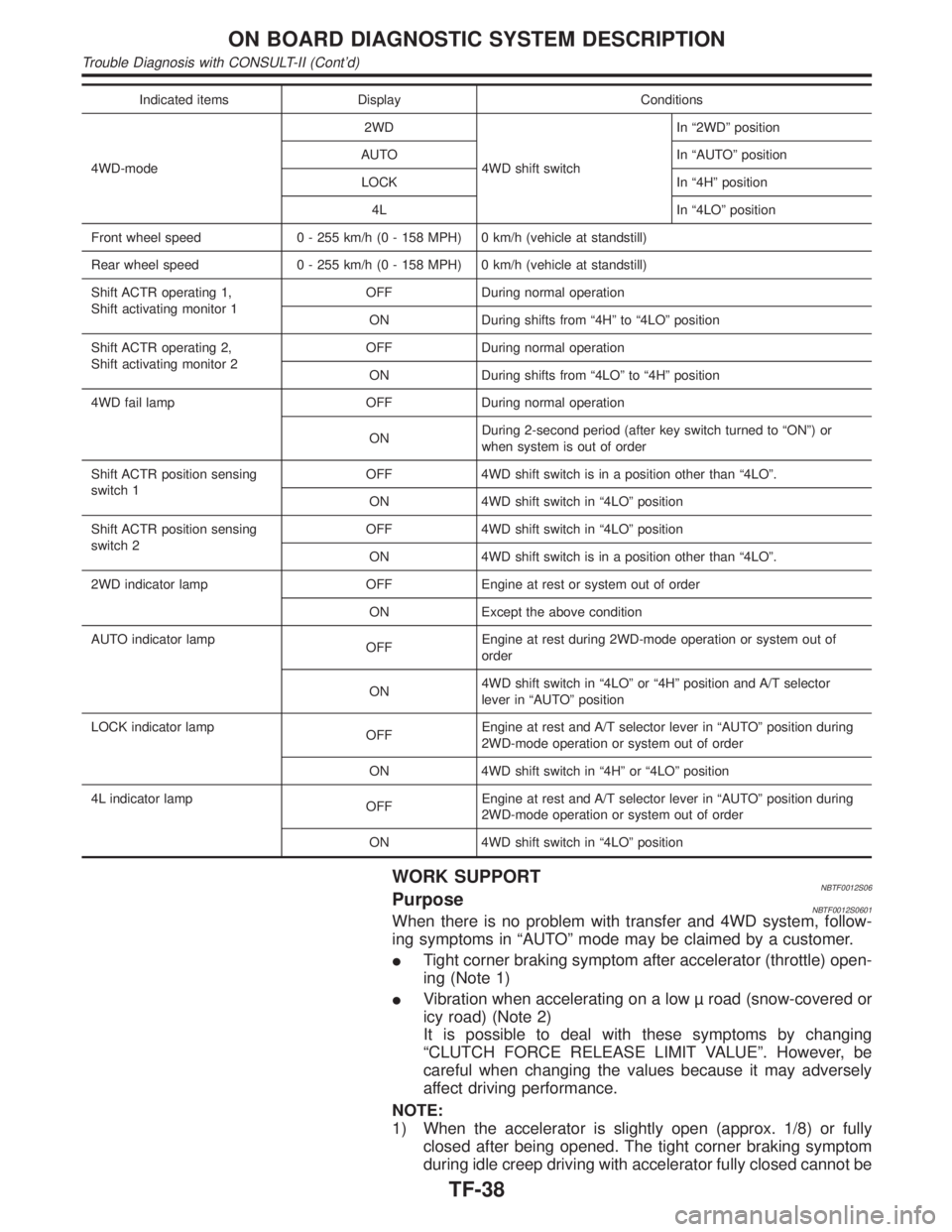

Indicated items Display Conditions
4WD-mode2WD
4WD shift switchIn ª2WDº position
AUTO In ªAUTOº position
LOCK In ª4Hº position
4L In ª4LOº position
Front wheel speed 0 - 255 km/h (0 - 158 MPH) 0 km/h (vehicle at standstill)
Rear wheel speed 0 - 255 km/h (0 - 158 MPH) 0 km/h (vehicle at standstill)
Shift ACTR operating 1,
Shift activating monitor 1OFF During normal operation
ON During shifts from ª4Hº to ª4LOº position
Shift ACTR operating 2,
Shift activating monitor 2OFF During normal operation
ON During shifts from ª4LOº to ª4Hº position
4WD fail lamp OFF During normal operation
ONDuring 2-second period (after key switch turned to ªONº) or
when system is out of order
Shift ACTR position sensing
switch 1OFF 4WD shift switch is in a position other than ª4LOº.
ON 4WD shift switch in ª4LOº position
Shift ACTR position sensing
switch 2OFF 4WD shift switch in ª4LOº position
ON 4WD shift switch is in a position other than ª4LOº.
2WD indicator lamp OFF Engine at rest or system out of order
ON Except the above condition
AUTO indicator lamp
OFFEngine at rest during 2WD-mode operation or system out of
order
ON4WD shift switch in ª4LOº or ª4Hº position and A/T selector
lever in ªAUTOº position
LOCK indicator lamp
OFFEngine at rest and A/T selector lever in ªAUTOº position during
2WD-mode operation or system out of order
ON 4WD shift switch in ª4Hº or ª4LOº position
4L indicator lamp
OFFEngine at rest and A/T selector lever in ªAUTOº position during
2WD-mode operation or system out of order
ON 4WD shift switch in ª4LOº position
WORK SUPPORTNBTF0012S06PurposeNBTF0012S0601When there is no problem with transfer and 4WD system, follow-
ing symptoms in ªAUTOº mode may be claimed by a customer.
ITight corner braking symptom after accelerator (throttle) open-
ing (Note 1)
IVibration when accelerating on a low road (snow-covered or
icy road) (Note 2)
It is possible to deal with these symptoms by changing
ªCLUTCH FORCE RELEASE LIMIT VALUEº. However, be
careful when changing the values because it may adversely
affect driving performance.
NOTE:
1) When the accelerator is slightly open (approx. 1/8) or fully
closed after being opened. The tight corner braking symptom
during idle creep driving with accelerator fully closed cannot be
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Trouble Diagnosis with CONSULT-II (Cont'd)
TF-38
Page 2274 of 2395

solved by this method. Refer to SYMPTOM 8, TF-108.
2) A slight shock is felt at a few hertz as if it were being pushed
lightly from behind.
SMT962D
CONSULT-II Setting ProcedureNBTF0012S06021. Turn ignition switch to ªOFFº position.
2. Connect CONSULT-II to data link connector, which is located
in instrument lower panel on driver side.
3. Turn ignition switch to ªONº position.
4. Touch ªSTARTº.
5. Touch ªALL MODE 4WDº.
SMT965D
6. Touch ªWORK SUPPORTº.
SMT967D
7. Select WORK ITEM by touching ªCLUTCH/F RLS LIM ADJº.
NOTE:
ªSTART TORQ OFFSET ADJº is displayed, but the transfer does
not have this function.
CLUTCH FORCE RELEASE LIMIT ADJUSTMENTNBTF0012S071.2 kg-m: Tight corner braking symptom is alleviated. However,
vibration may occur when accelerating on a low road (icy road,
etc.).
0.3 kg-m: Initial set value
0.2 kg-m: Do not set to this value because the tight corner braking
symptom will get worse.
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Trouble Diagnosis with CONSULT-II (Cont'd)
TF-39
Page 2275 of 2395
SMT968D
1. Current CLUTCH FORCE RELEASE LIMIT value ª0.3 kg-mº
appears under ªCONDITION SETTINGº on CONSULT-II dis-
play.
2. Touch ª1.2º on the display.
SMT969D
3. Display changes to ªNOW ADJUSTINGº in a short time.
SMT970D
4. When clutch force release limit value is set to ª1.2 kg-mº, cur-
rent value ª0.3 kg-mº shown on display will be replaced by ª1.2
kg-mº and ªADJUSTING COMPLETEº will appear at the same
time. Clutch force release limit value setting is now complete.
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Trouble Diagnosis with CONSULT-II (Cont'd)
TF-40
Page 2276 of 2395

IntroductionNBTF0013DESCRIPTIONNBTF0013S01When a malfunction (indicated by the 4WD warning lamp illumination) occurs, collect information first from the
customer about how the malfunction occurs. Then, proceed with the diagnosis presuming it is the cause. Also
inspect the electrical system, paying close attention to other possibilities such as fluid level and leaks.
All-mode 4WD transfer is controlled by transfer control unit and sensors.
If a malfunction occurs in the all-mode 4WD system, the 4WD warning lamp lights up to inform of the system
malfunction. There are two ways to identify the cause of the malfunction.
1) Performing the self-diagnosis. (The 4WD warning lamp will indicate what kind of malfunction has occurred
by flickering.)
2) Performing diagnosis using CONSULT-II.
DIAGNOSTIC WORKSHEETNBTF0013S02Information from CustomerNBTF0013S0201KEY POINTS
WHAT..... Vehicle model
WHEN..... Date, Frequencies
WHERE..... Road conditions
HOW..... Operating conditions, Symptoms
Information sheet from customer
Customer name MR/MS Model & Year VIN
Transfer model
ATX14AEngine Mileage
Incident Date Manuf. Date In Service Date
FrequencylContinuouslIntermittent ( times a day)
Symptomsl4WD shift indicator lamp does not turn on.
l4WD warning lamp does not turn on.
l4WD shift indicator lamp does not turn off.
lATP warning lamp does not turn on.
l4LO indicator lamp does not turn on.
l4WD shift indicator lamp does not indicate ª4Hº.
l4WD shift indicator lamp repeats flicking.
lTight corner braking symptom occurs.
l4WD system does not operate.
lOthers.
4WD warning lamplContinuously litlNot lit
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð INTRODUCTION
Introduction
TF-41
Page 2277 of 2395

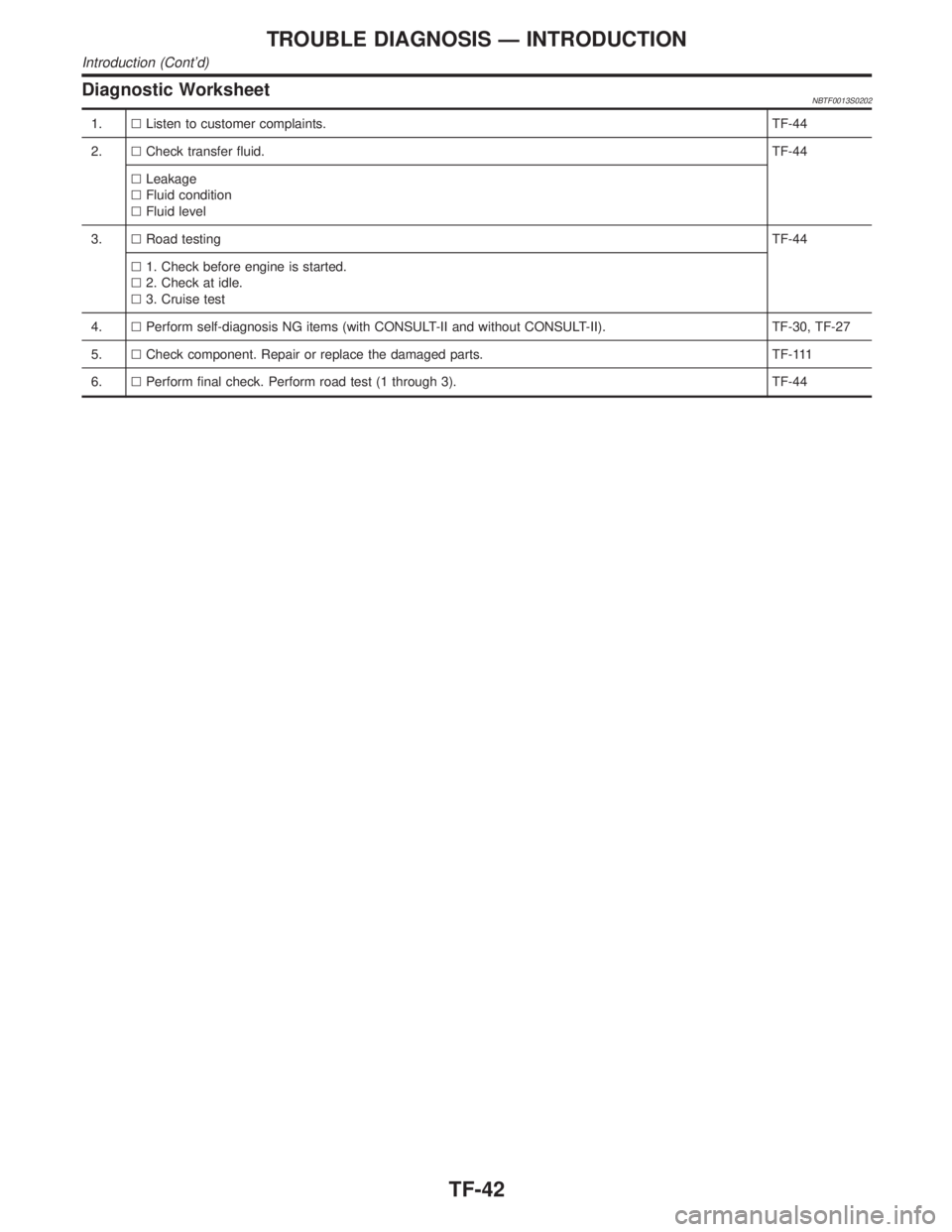

Diagnostic WorksheetNBTF0013S0202
1.lListen to customer complaints.TF-44
2.lCheck transfer fluid.TF-44
lLeakage
lFluid condition
lFluid level
3.lRoad testingTF-44
l1. Check before engine is started.
l2. Check at idle.
l3. Cruise test
4.lPerform self-diagnosis NG items (with CONSULT-II and without CONSULT-II). TF-30, TF-27
5.lCheck component. Repair or replace the damaged parts. TF-111
6.lPerform final check. Perform road test (1 through 3). TF-44
TROUBLE DIAGNOSIS Ð INTRODUCTION
Introduction (Cont'd)
TF-42
Page 2278 of 2395

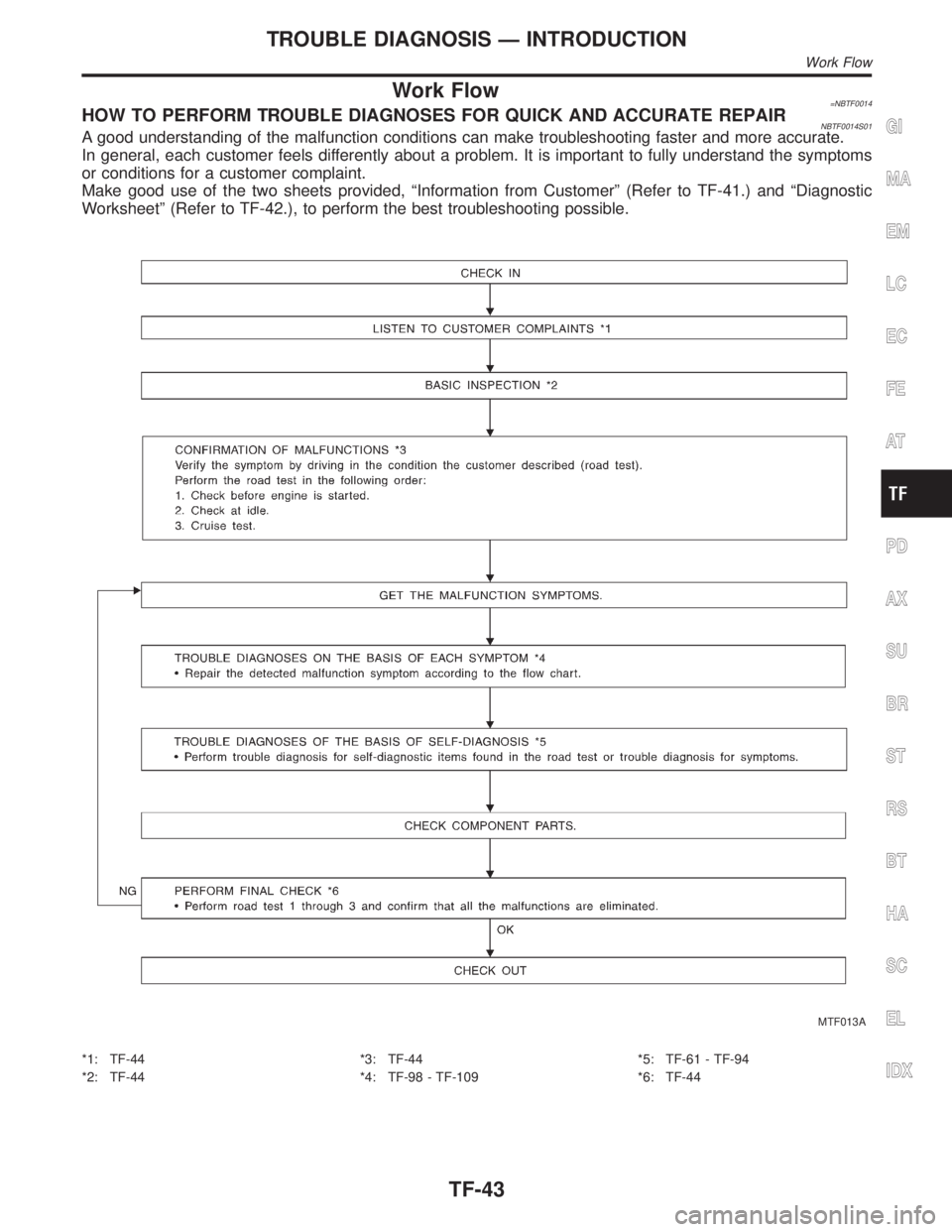

Work Flow=NBTF0014HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIRNBTF0014S01A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a problem. It is important to fully understand the symptoms
or conditions for a customer complaint.
Make good use of the two sheets provided, ªInformation from Customerº (Refer to TF-41.) and ªDiagnostic
Worksheetº (Refer to TF-42.), to perform the best troubleshooting possible.
MTF013A
*1: TF-44
*2: TF-44*3: TF-44
*4: TF-98 - TF-109*5: TF-61 - TF-94
*6: TF-44
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð INTRODUCTION
Work Flow
TF-43
Page 2279 of 2395

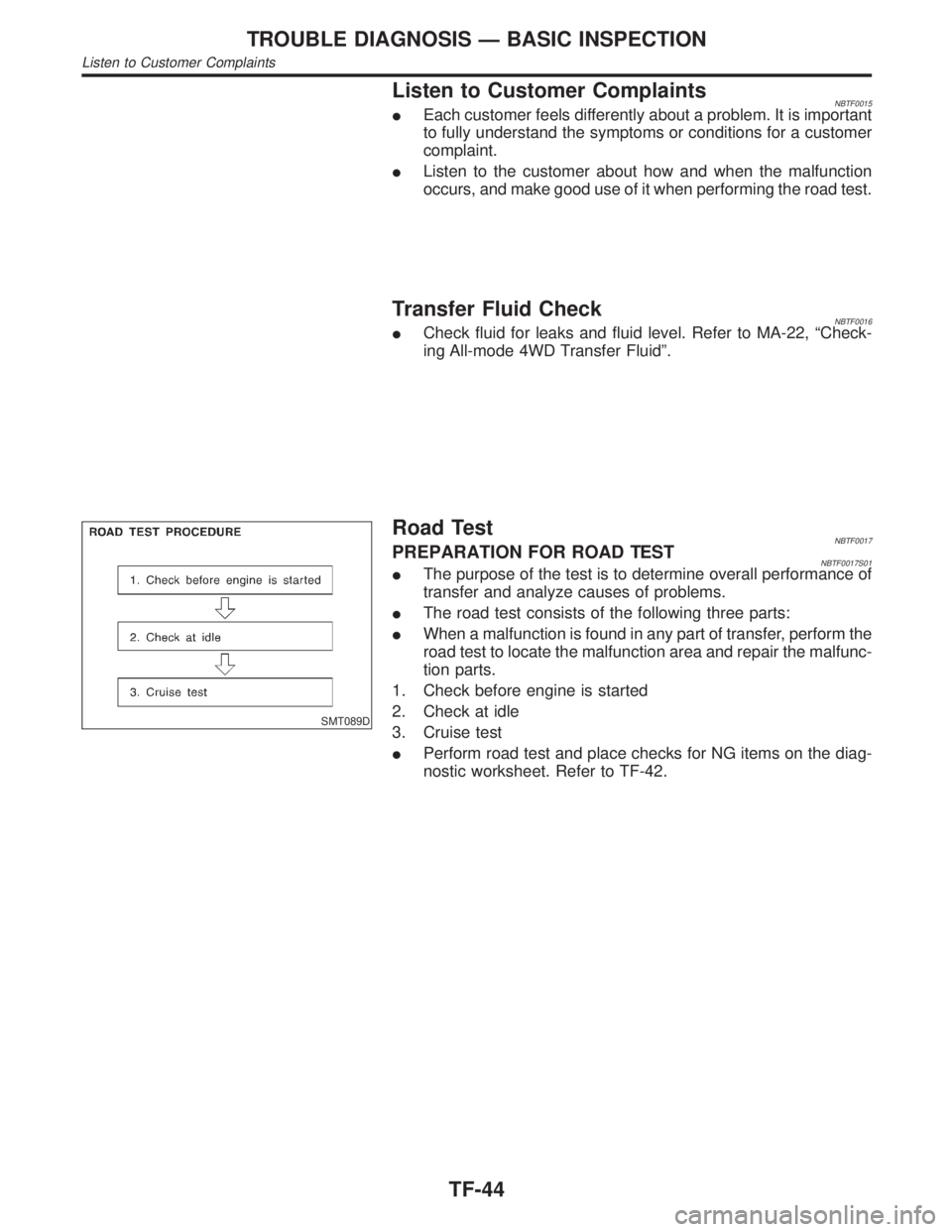

Listen to Customer ComplaintsNBTF0015IEach customer feels differently about a problem. It is important
to fully understand the symptoms or conditions for a customer
complaint.
IListen to the customer about how and when the malfunction
occurs, and make good use of it when performing the road test.
Transfer Fluid CheckNBTF0016ICheck fluid for leaks and fluid level. Refer to MA-22, ªCheck-
ing All-mode 4WD Transfer Fluidº.
SMT089D
Road TestNBTF0017PREPARATION FOR ROAD TESTNBTF0017S01IThe purpose of the test is to determine overall performance of
transfer and analyze causes of problems.
IThe road test consists of the following three parts:
IWhen a malfunction is found in any part of transfer, perform the
road test to locate the malfunction area and repair the malfunc-
tion parts.
1. Check before engine is started
2. Check at idle
3. Cruise test
IPerform road test and place checks for NG items on the diag-
nostic worksheet. Refer to TF-42.
TROUBLE DIAGNOSIS Ð BASIC INSPECTION
Listen to Customer Complaints
TF-44
Page 2280 of 2395

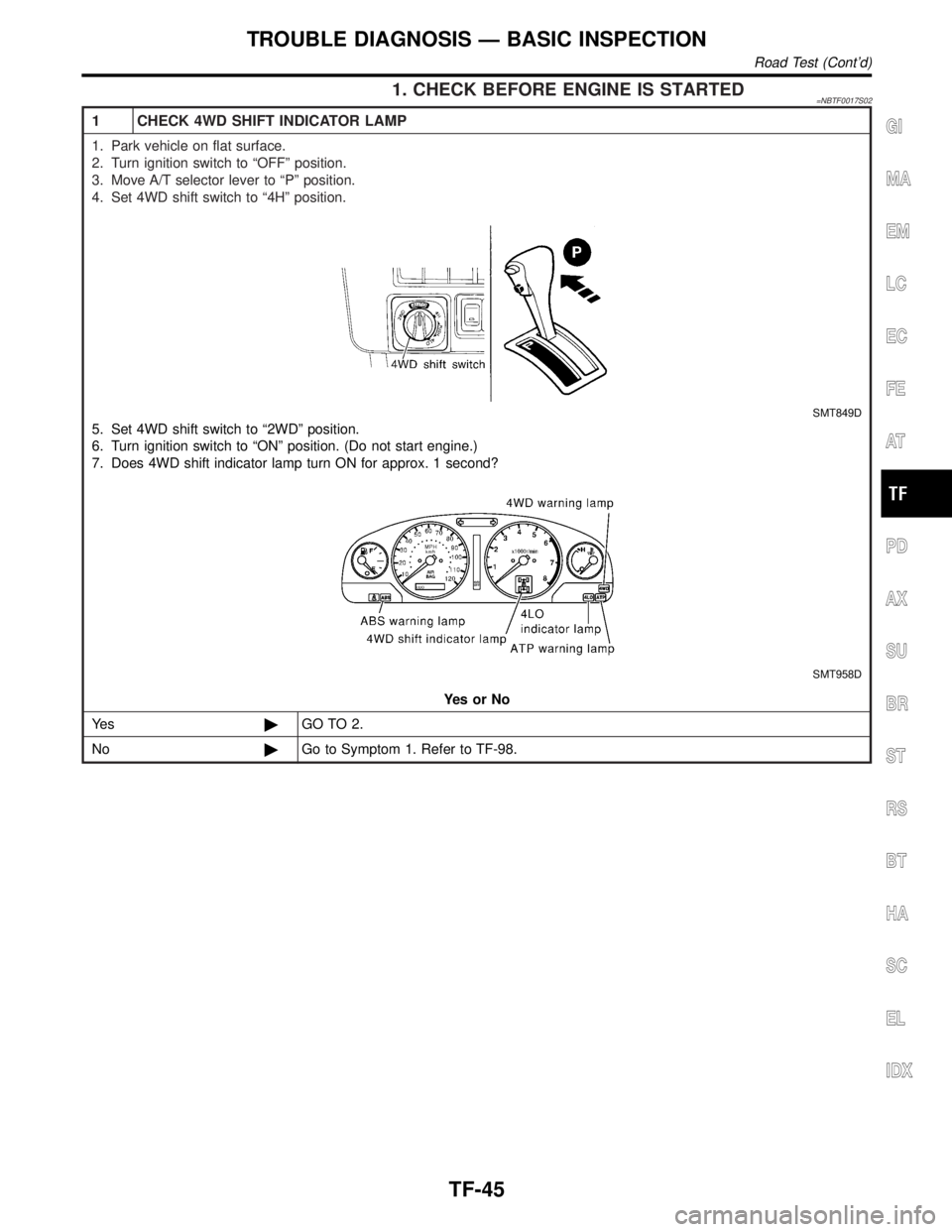

1. CHECK BEFORE ENGINE IS STARTED=NBTF0017S02
1 CHECK 4WD SHIFT INDICATOR LAMP
1. Park vehicle on flat surface.
2. Turn ignition switch to ªOFFº position.
3. Move A/T selector lever to ªPº position.
4. Set 4WD shift switch to ª4Hº position.
SMT849D
5. Set 4WD shift switch to ª2WDº position.
6. Turn ignition switch to ªONº position. (Do not start engine.)
7. Does 4WD shift indicator lamp turn ON for approx. 1 second?
SMT958D
YesorNo
Ye s©GO TO 2.
No©Go to Symptom 1. Refer to TF-98.
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð BASIC INSPECTION
Road Test (Cont'd)
TF-45
