WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-121
Page 1307 of 2395

SEL062WA
Fuel Warning Lamp Sensor CheckNBEL01661. Turn ignition switch ªOFFº.
2. Disconnect fuel level sensor unit harness connector B12.
3. Connect a resistor (80W) between fuel tank gauge unit harness
connector terminals 2 and 3.
4. Turn ignition switch ªONº.
The fuel warning lamp should come on.
NOTE:
ECM might store the 1st trip DTC P0180 during this inspection.
If the DTC is stored in ECM memory, erase the DTC after recon-
necting fuel tank gauge unit harness connector.
Refer to EC-60, ªHOW TO ERASE EMISSION-RELATED DIAG-
NOSTIC INFORMATIONº.
MEL425F
Electrical Components InspectionNBEL0051OIL PRESSURE SWITCH CHECKNBEL0051S02
Oil pressure
kPa (kg/cm2, psi)Continuity
Engine startMore than 10 - 20
(0.1-0.2,1-3)NO
Engine stopLess than 10 - 20
(0.1-0.2,1-3)YES
Check the continuity between the terminals of oil pressure switch
and body ground.
SEL901F
DIODE CHECKNBEL0051S03ICheck continuity using an ohmmeter.
IDiode is functioning properly if test results are as shown in the
figure at left.
ICheck diodes at the combination meter harness connector
instead of checking them on the combination meter assembly.
Refer to EL-115, ªWARNING LAMPº wiring diagrams.
NOTE:
Specification may vary depending on the type of tester. Before
performing this inspection, be sure to refer to the instruction
manual for the tester to be used.
WARNING LAMPS
Fuel Warning Lamp Sensor Check
EL-122
Page 1308 of 2395
Wiring Diagram Ð AT/IND ÐNBEL0203
MEL801L
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
A/T INDICATOR
Wiring Diagram Ð AT/IND Ð
EL-123
Page 1309 of 2395
MEL802L
A/T INDICATOR
Wiring Diagram Ð AT/IND Ð (Cont'd)
EL-124
Page 1310 of 2395

Component Parts and Harness Connector
Location
NBEL0052
SEL046W
System DescriptionNBEL0053The warning chime is controlled by the smart entrance control unit.
The warning chime is located in the smart entrance control unit.
Power is supplied at all times
Ithrough 7.5A fuse [No. 24, located in the fuse block (J/B)]
Ito smart entrance control unit terminal 10, and
Ito key switch terminal 2, and
Ithrough 10A fuse [No. 61, located in the fuse block (J/B)]
Ito tail lamp relay terminals 2 and 3.
With the ignition switch in the ON or START position, power is supplied
Ithrough 7.5A fuse [No. 11, located in the fuse block (J/B)]
Ito smart entrance control unit terminal 33.
Ground is supplied to smart entrance control unit terminal 16 through body grounds M77 and M111.
IGNITION KEY WARNING CHIMENBEL0053S01With the key in the ignition switch in the OFF or ACC position, and the driver's door open, the warning chime
will sound. Power is supplied
Ifrom key switch terminal 1
Ito smart entrance control unit terminal 32.
Ground is supplied
Ifrom front door switch LH terminal 1
Ito smart entrance control unit terminal 29.
Front door switch LH terminal 2 is grounded through body grounds B11, B22 and D210.
LIGHT WARNING CHIMENBEL0053S02With ignition switch OFF or ACC, driver's door open, warning chime will sound. [Except when headlamp bat-
tery saver control operates (for 45 seconds after ignition switch is turned to OFF or ACC position) and head-
lamps do not illuminate.] Power is supplied.
Ifrom tail lamp relay terminal 5
Ito smart entrance control unit terminal 34.
Ground is supplied
Ifrom front door switch LH terminal 1
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
WARNING CHIME
Component Parts and Harness Connector Location
EL-125

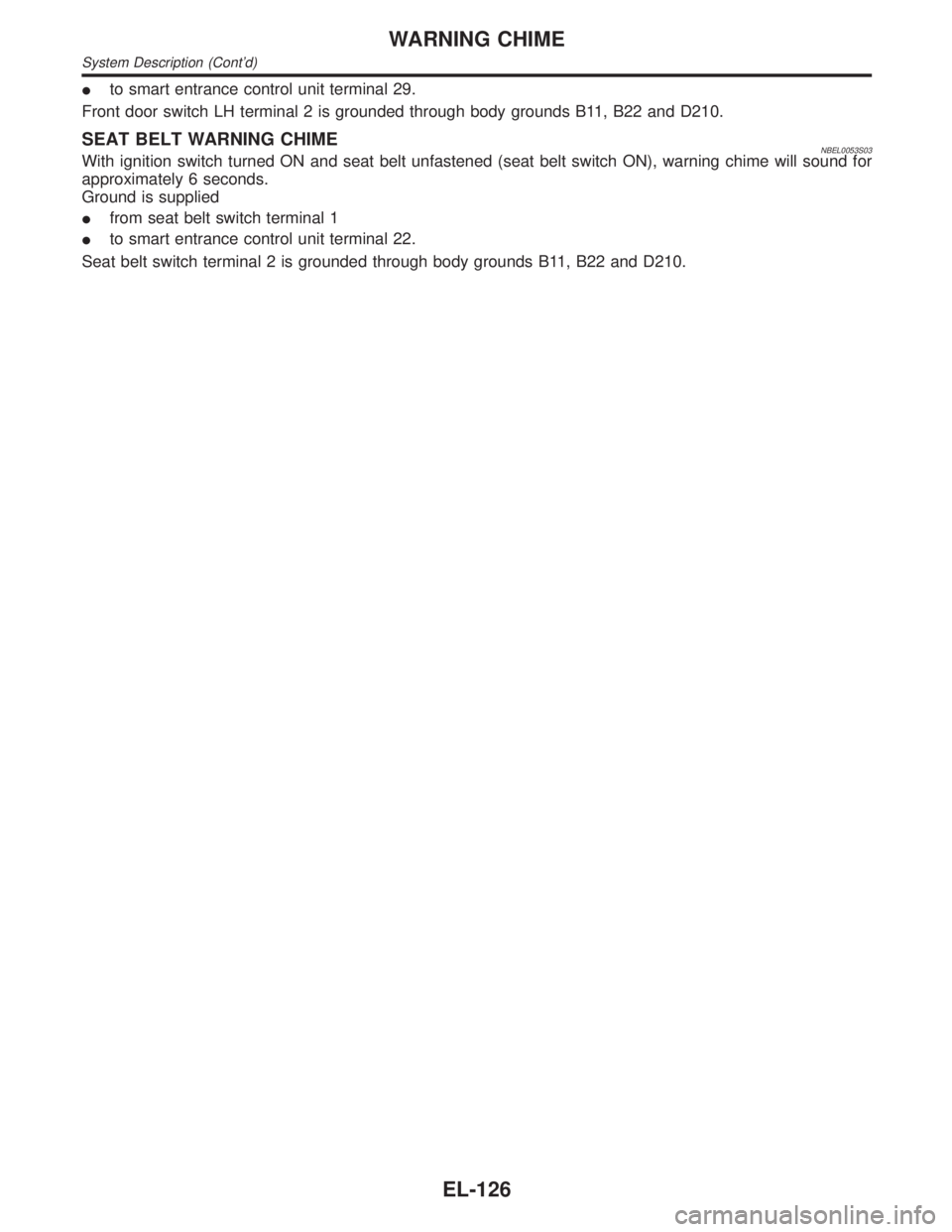

Page 1311 of 2395
Ito smart entrance control unit terminal 29.
Front door switch LH terminal 2 is grounded through body grounds B11, B22 and D210.
SEAT BELT WARNING CHIMENBEL0053S03With ignition switch turned ON and seat belt unfastened (seat belt switch ON), warning chime will sound for
approximately 6 seconds.
Ground is supplied
Ifrom seat belt switch terminal 1
Ito smart entrance control unit terminal 22.
Seat belt switch terminal 2 is grounded through body grounds B11, B22 and D210.
WARNING CHIME
System Description (Cont'd)
EL-126
