Page 105 of 2395
SAT014K
SAT020K
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NBAT0028S01CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DUREº has been previously conducted, always turn ignition
switch ªOFFº and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1) Turn ignition switch ªONº.
2) Select ªDATA MONITORº mode for ªENGINEº with CONSULT-
II.
3) Start engine and maintain the following conditions for at least
5 consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.3V
Selector lever: D position (OD ªONº or ªOFFº)
With GST
Follow the procedure ªWith CONSULT-IIº.
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Description (Cont'd)
AT-100
Page 106 of 2395
Wiring Diagram Ð AT Ð PNP/SWNBAT0186
MAT058B
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Wiring Diagram Ð AT Ð PNP/SW
AT-101
Page 107 of 2395
Diagnostic ProcedureNBAT0029
1 CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to ªONº position.
(Do not start engine.)
2. Select ªTCM INPUT SIGNALSº in ªDATA MONITORº mode for ªA/Tº with CONSULT-II.
3. Read out ªPº, ªRº, ªNº, ªDº, ª2º and ª1º position switches moving selector lever to each position. Check the signal of the
selector lever position is indicated properly.
SAT643J
OK or NG
OK©GO TO 4.
NG©GO TO 3.
2 CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to ªONº position.
(Do not start engine.)
2. Check voltage between TCM terminals 26, 27, 34, 35, 36 and ground while moving selector lever through each posi-
tion.
MTBL0205
SAT517J
Does battery voltage exist (B) or non-existent (0)?
Ye s©GO TO 4.
No©GO TO 3.
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Diagnostic Procedure
AT-102
Page 108 of 2395

3 DETECT MALFUNCTIONING ITEM
Check the following items:
IPNP switch
Refer to ªComponent Inspectionº, AT-103.
IHarness for short or open between ignition switch and PNP switch (Main harness)
IHarness for short or open between PNP switch and TCM (Main harness)
IDiode (P, N position)
IIgnition switch and 10A fuse [No. 18, located in the fuse block (J/B)]
Refer to EL-9, ªSchematicº.
OK or NG
OK©GO TO 4.
NG©Repair or replace damaged parts.
4 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-100.
OK or NG
OK©INSPECTION END
NG©GO TO 5.
5 CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK©INSPECTION END
NG©Repair or replace damaged parts.
SAT517GB
SAT843BG
Component InspectionNBAT0030PARK/NEUTRAL POSITION SWITCHNBAT0030S021. Check continuity between terminals 1 and 2 and between ter-
minals 3 and 4, 5, 6, 7, 8, 9 while moving manual shaft through
each position.
Lever position Terminal No.
P 1-2 3-4
R 3-5
N 1-2 3-6
D 3-7
2 3-8
1 3-9
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Diagnostic Procedure (Cont'd)
AT-103
Page 109 of 2395
SAT807B
2. If NG, check again with manual control linkage disconnected
from manual shaft of A/T assembly. Refer to step 1.
3. If OK on step 2, adjust manual control linkage. Refer to AT-276.
SAT386HC
4. If NG on step 2, remove PNP switch from A/T and check con-
tinuity of PNP switch terminals. Refer to step 1.
5. If OK on step 4, adjust PNP switch. Refer to AT-276.
6. If NG on step 4, replace PNP switch.
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Component Inspection (Cont'd)
AT-104
Page 110 of 2395

SAT342HA

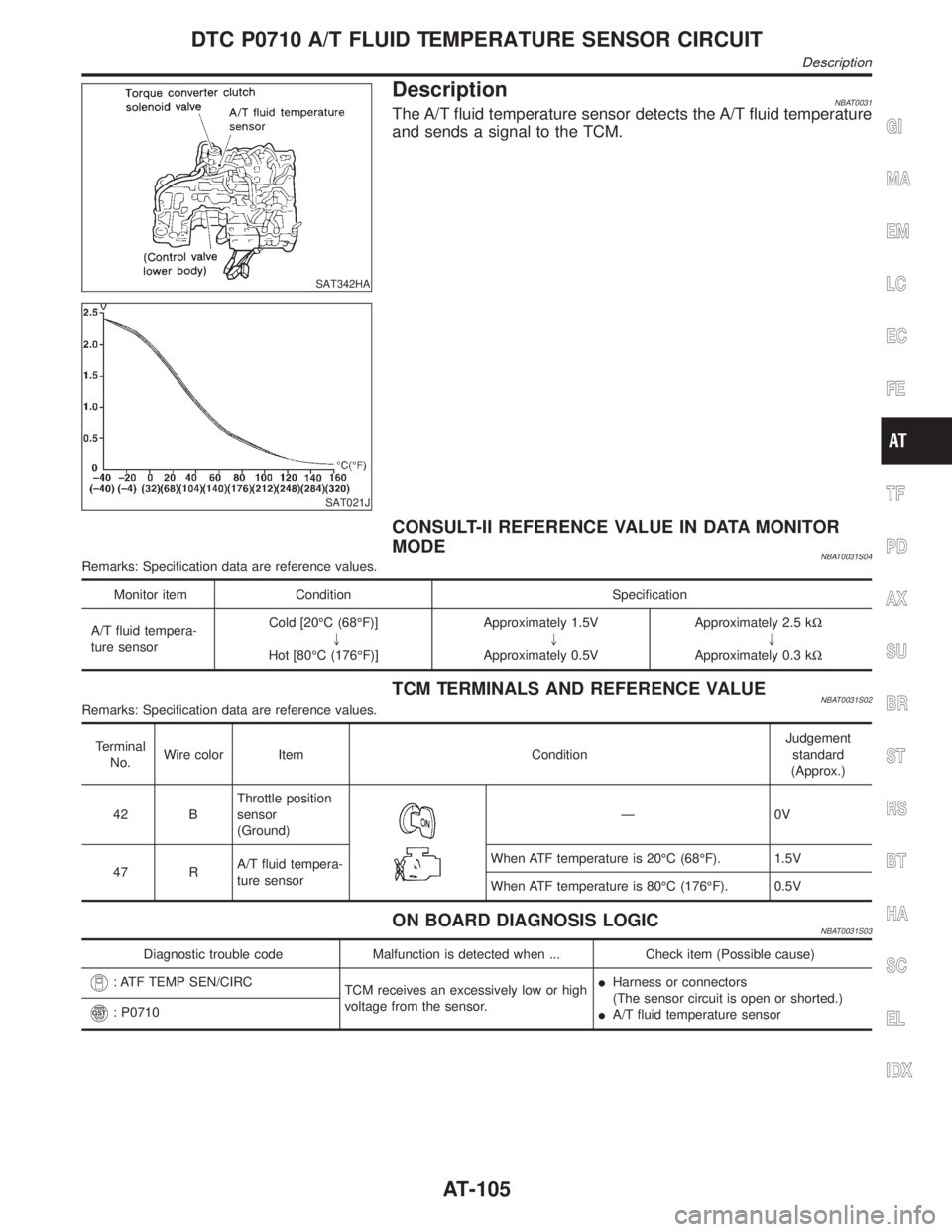

DescriptionNBAT0031The A/T fluid temperature sensor detects the A/T fluid temperature
and sends a signal to the TCM.
SAT021J
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NBAT0031S04Remarks: Specification data are reference values.
Monitor item Condition Specification
A/T fluid tempera-
ture sensorCold [20ÉC (68ÉF)]
"
Hot [80ÉC (176ÉF)]Approximately 1.5V
"
Approximately 0.5VApproximately 2.5 kW
"
Approximately 0.3 kW
TCM TERMINALS AND REFERENCE VALUENBAT0031S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement
standard
(Approx.)
42 BThrottle position
sensor
(Ground)
Ð0V
47 RA/T fluid tempera-
ture sensorWhen ATF temperature is 20ÉC (68ÉF). 1.5V
When ATF temperature is 80ÉC (176ÉF). 0.5V
ON BOARD DIAGNOSIS LOGICNBAT0031S03
Diagnostic trouble code Malfunction is detected when ... Check item (Possible cause)
: ATF TEMP SEN/CIRC
TCM receives an excessively low or high
voltage from the sensor.IHarness or connectors
(The sensor circuit is open or shorted.)
IA/T fluid temperature sensor
: P0710
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
Description
AT-105
Page 111 of 2395
SAT014K
SAT020K
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NBAT0031S01CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DUREº has been previously conducted, always turn ignition
switch ªOFFº and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1) Turn ignition switch ªONº and select ªDATA MONITORº mode
for ªENGINEº with CONSULT-II.
2) Start engine and maintain the following conditions for at least
10 minutes (Total). (It is not necessary to maintain continu-
ously.)
CMPS´RPM (REF): 450 rpm or more
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.2V
Selector lever: D position (OD ªONº)
With GST
Follow the procedure ªWith CONSULT-IIº.
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
Description (Cont'd)
AT-106
Page 112 of 2395
Wiring Diagram Ð AT Ð FTSNBAT0187
MAT909A
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
Wiring Diagram Ð AT Ð FTS
AT-107
