Page 1857 of 2395

INFINITI QX4 2001 Factory Service Manual 8 CHECK ACTUATORS Refer to the following chart and confirm discharge air flow, air temperature, blower motor voltage and compressor opera- tion. Checks must be made visually, by listening to any noise

Page 1858 of 2395

INFINITI QX4 2001 Factory Service Manual 9 STEP 5 - TEMPERATURE OF EACH SENSOR IS CHECKED Turn temperature dial clcokwise. Code No. appears on the display. RHA492A ©GO TO 10. 10 CHECK AMBIENT SENSOR Press(DEF) switch one time, temperature d

Page 1859 of 2395

INFINITI QX4 2001 Factory Service Manual 11 CHECK IN-VEHICLE SENSOR Press(DEF) switch the second time, temperature detected by in-vehicle sensor is indicated on the display screen. ECON shown in display indicates negative temperature reading

Page 1860 of 2395

INFINITI QX4 2001 Factory Service Manual 13 DETECTS MULTIPLEX COMMUNICATION ERROR Press REC switch. Does code No. appears on the display MTBL0509 YesorNo Ye s©INSPECTION END No©1. Go to ªMultiplex Communication Circuitº, HA-142. 2. Go to

Page 1861 of 2395

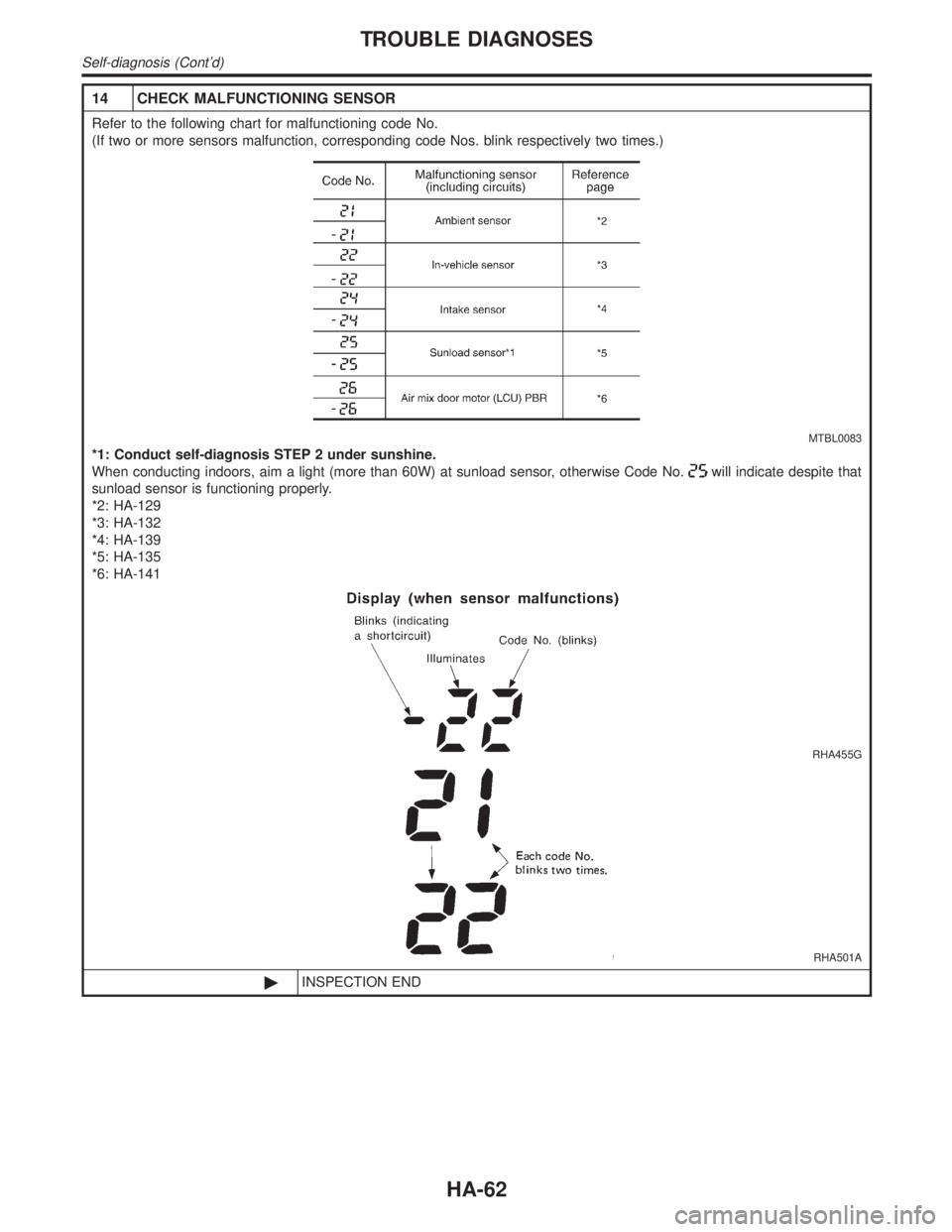

INFINITI QX4 2001 Factory Service Manual 14 CHECK MALFUNCTIONING SENSOR Refer to the following chart for malfunctioning code No. (If two or more sensors malfunction, corresponding code Nos. blink respectively two times.) MTBL0083 *1: Conduct

Page 1862 of 2395

INFINITI QX4 2001 Factory Service Manual 15 CHECK MALFUNCTIONING DOOR MOTOR POSITION SWITCH Mode or (and) intake door motor position switch(es) is (are) malfunctioning. (If two or more mode or intake doors are out of order, corresponding cod

Page 1863 of 2395

INFINITI QX4 2001 Factory Service Manual AUXILIARY MECHANISM: TEMPERATURE SETTING TRIMMER=NBHA0021S06With Navigation SystemNBHA0021S0601The trimmer compensates for differences in range of±3ÉC (±6ÉF) between temperature setting (displayed

Page 1864 of 2395

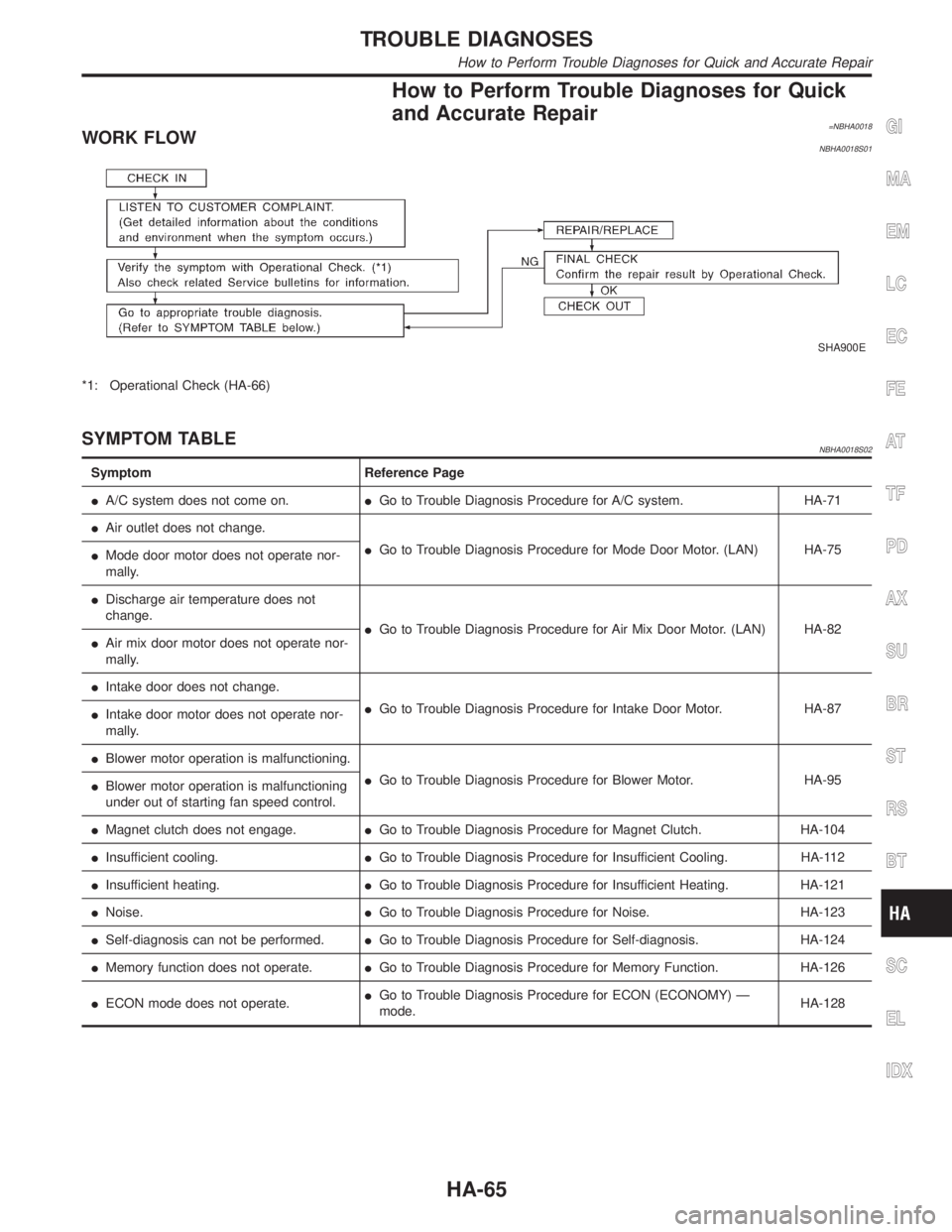

INFINITI QX4 2001 Factory Service Manual How to Perform Trouble Diagnoses for Quick and Accurate Repair =NBHA0018WORK FLOWNBHA0018S01 SHA900E *1: Operational Check (HA-66) SYMPTOM TABLENBHA0018S02 Symptom Reference Page IA/C system does not
