Page 1441 of 2395

INFINITI QX4 2001 Factory Service Manual Wiring Diagram Ð D/LOCK ÐNBEL0109FIG. 1NBEL0109S01 MEL848L POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð EL-256

Page 1442 of 2395

INFINITI QX4 2001 Factory Service Manual FIG. 2NBEL0109S02 MEL849L GI MA EM LC EC FE AT TF PD AX SU BR ST RS BT HA SC IDX POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð (Contd) EL-257

Page 1443 of 2395

INFINITI QX4 2001 Factory Service Manual FIG. 3NBEL0109S03 MEL850L POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð (Contd) EL-258

Page 1444 of 2395

INFINITI QX4 2001 Factory Service Manual FIG. 4NBEL0109S04 MEL851L GI MA EM LC EC FE AT TF PD AX SU BR ST RS BT HA SC IDX POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð (Contd) EL-259

Page 1445 of 2395

INFINITI QX4 2001 Factory Service Manual FIG. 5NBEL0109S05 MEL852L POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð (Contd) EL-260

Page 1446 of 2395

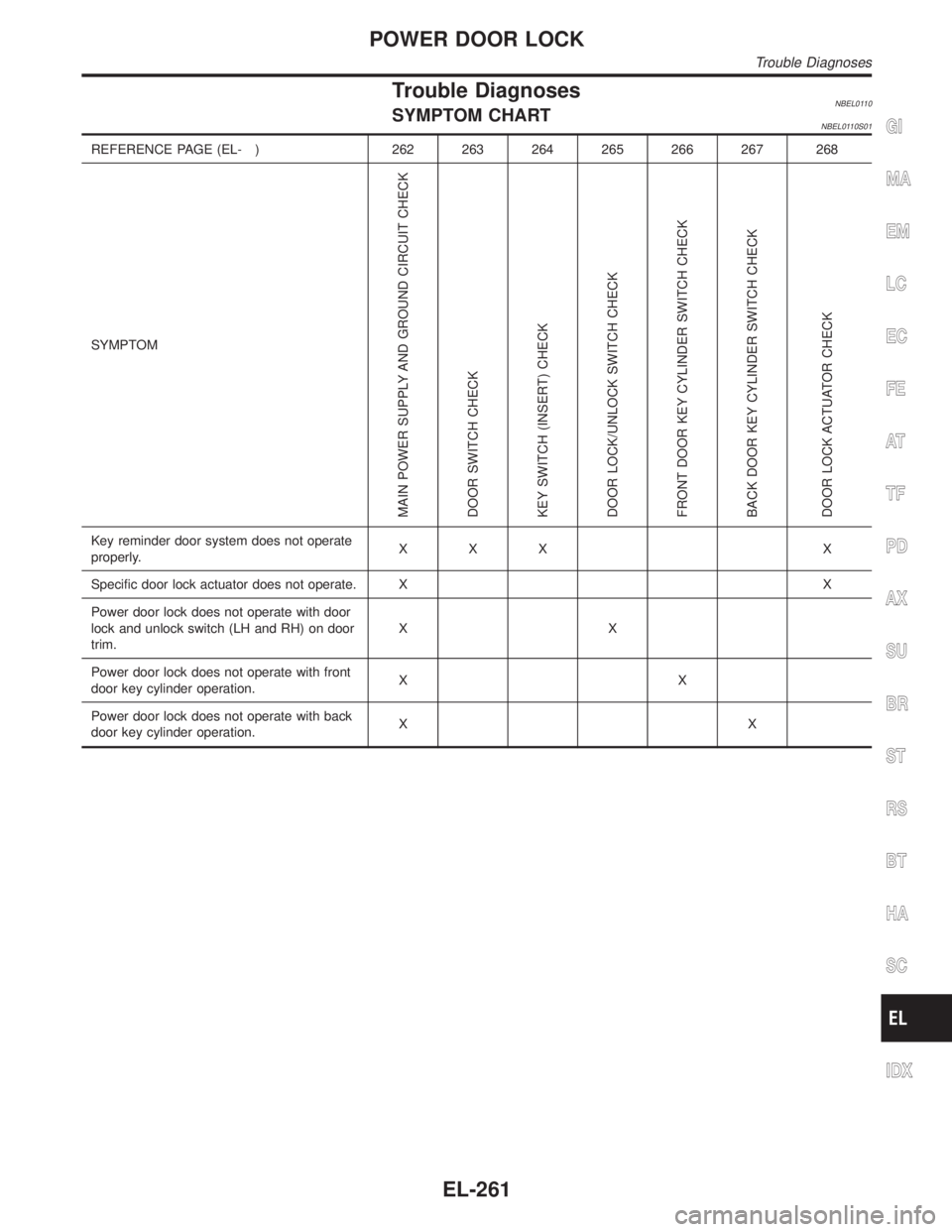

INFINITI QX4 2001 Factory Service Manual Trouble DiagnosesNBEL0110SYMPTOM CHARTNBEL0110S01 REFERENCE PAGE (EL- ) 262 263 264 265 266 267 268 SYMPTOM MAIN POWER SUPPLY AND GROUND CIRCUIT CHECK DOOR SWITCH CHECK KEY SWITCH (INSERT) CHECK DOOR

Page 1447 of 2395

INFINITI QX4 2001 Factory Service Manual SEL304X MAIN POWER SUPPLY AND GROUND CIRCUIT CHECK=NBEL0110S02Main Power Supply Circuit CheckNBEL0110S0201 Terminal Ignition switch (+) (þ) OFF ACC ON 10 GroundBattery voltageBattery voltageBattery v

Page 1448 of 2395

INFINITI QX4 2001 Factory Service Manual DOOR SWITCH CHECK=NBEL0110S05 1 CHECK DOOR SWITCH INPUT SIGNAL Check voltage between smart entrance control unit terminals 28, 29 or 40 and ground. SEL305X Refer to wiring diagram in EL-256. OK or NG
