Page 1721 of 2395

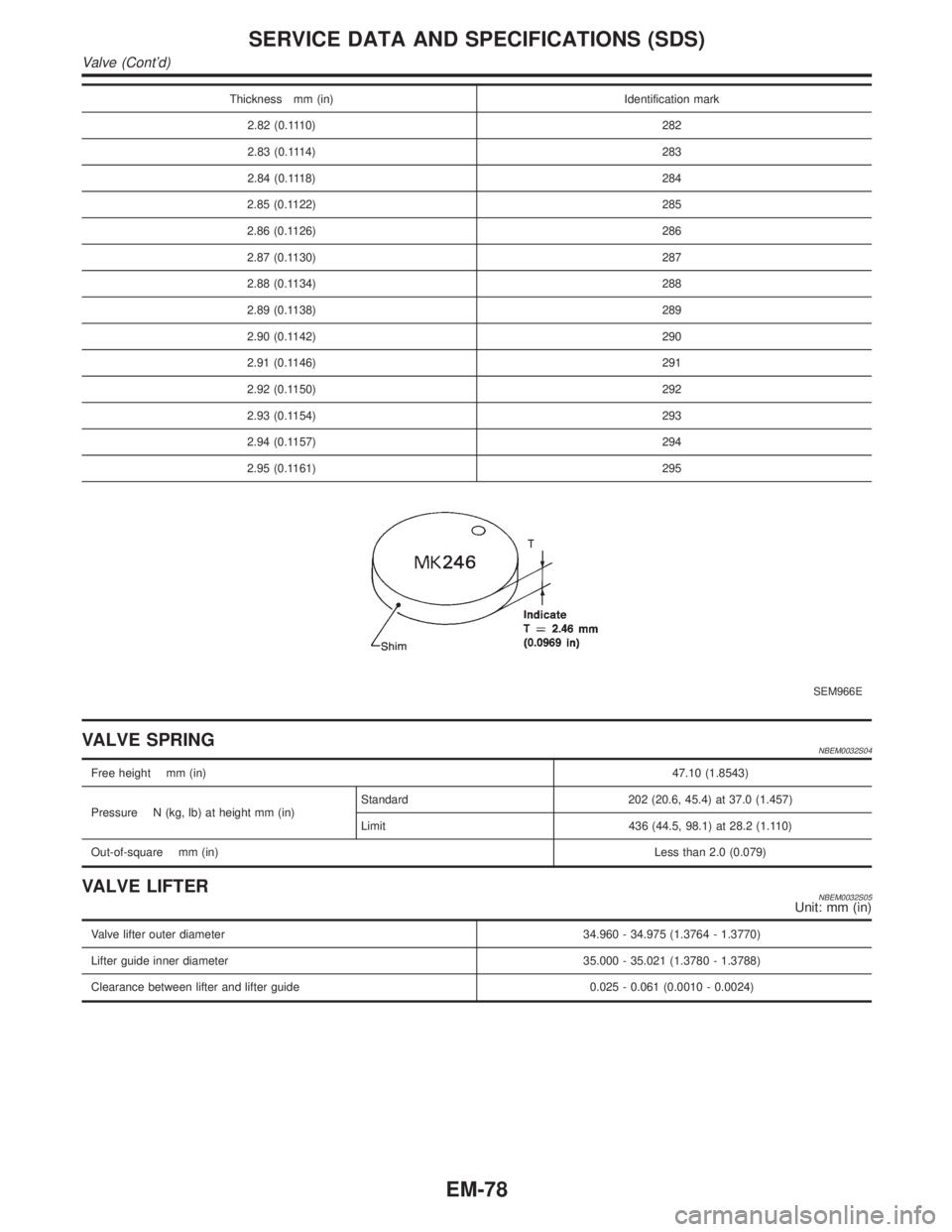

INFINITI QX4 2001 Factory Service Manual Thickness mm (in) Identification mark 2.82 (0.1110) 282 2.83 (0.1114) 283 2.84 (0.1118) 284 2.85 (0.1122) 285 2.86 (0.1126) 286 2.87 (0.1130) 287 2.88 (0.1134) 288 2.89 (0.1138) 289 2.90 (0.1142) 290

Page 1722 of 2395

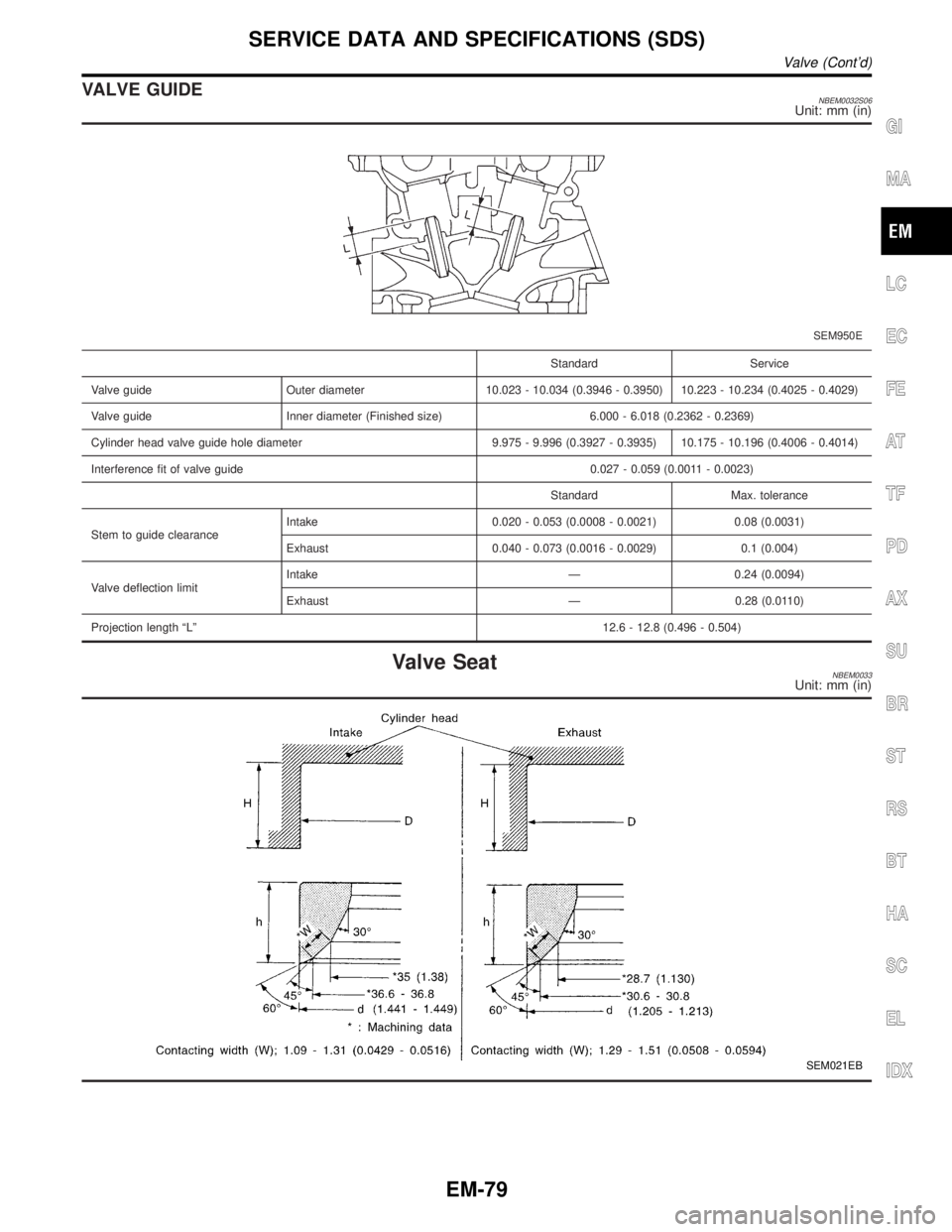

INFINITI QX4 2001 Factory Service Manual VALVE GUIDENBEM0032S06Unit: mm (in) SEM950E Standard Service Valve guide Outer diameter 10.023 - 10.034 (0.3946 - 0.3950) 10.223 - 10.234 (0.4025 - 0.4029) Valve guide Inner diameter (Finished size) 6

Page 1723 of 2395

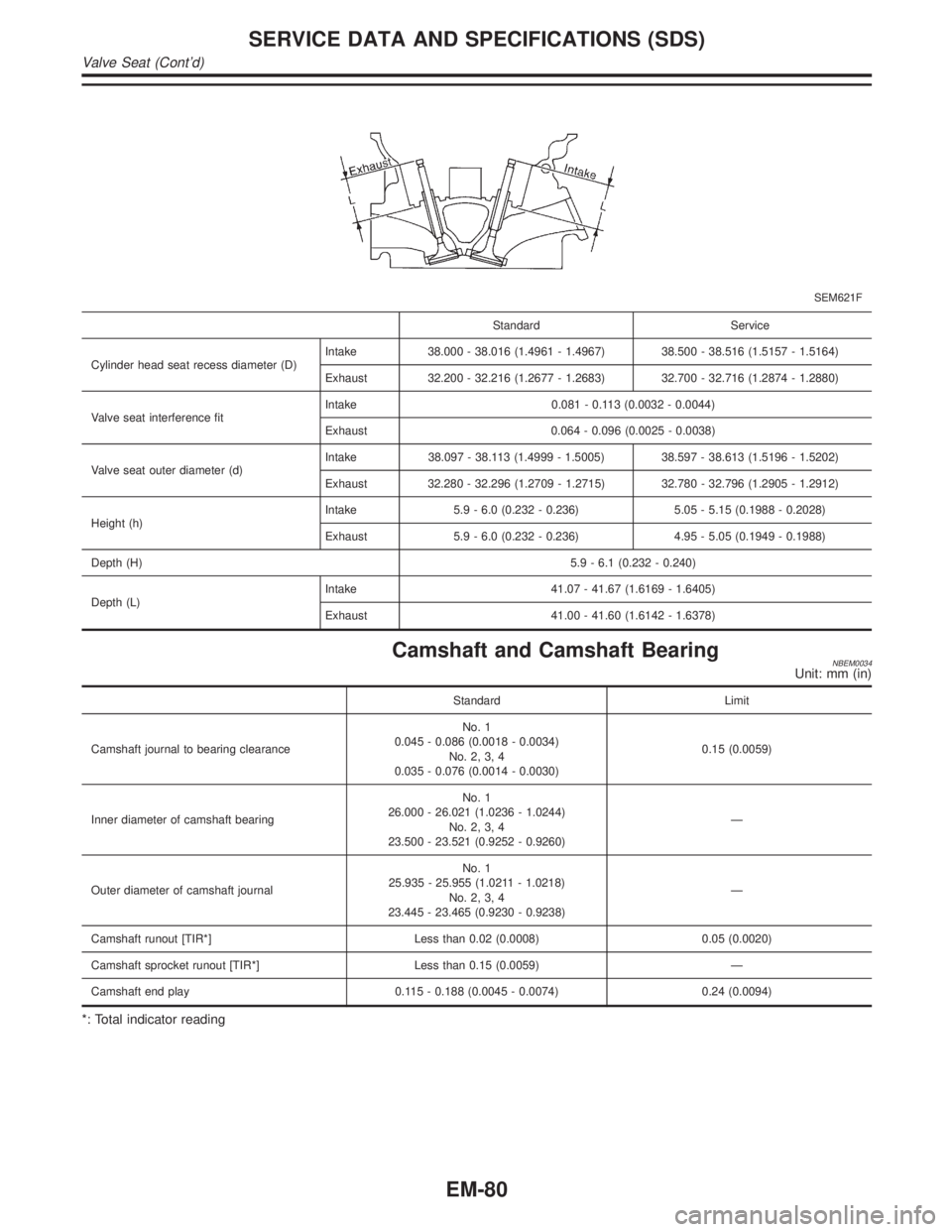

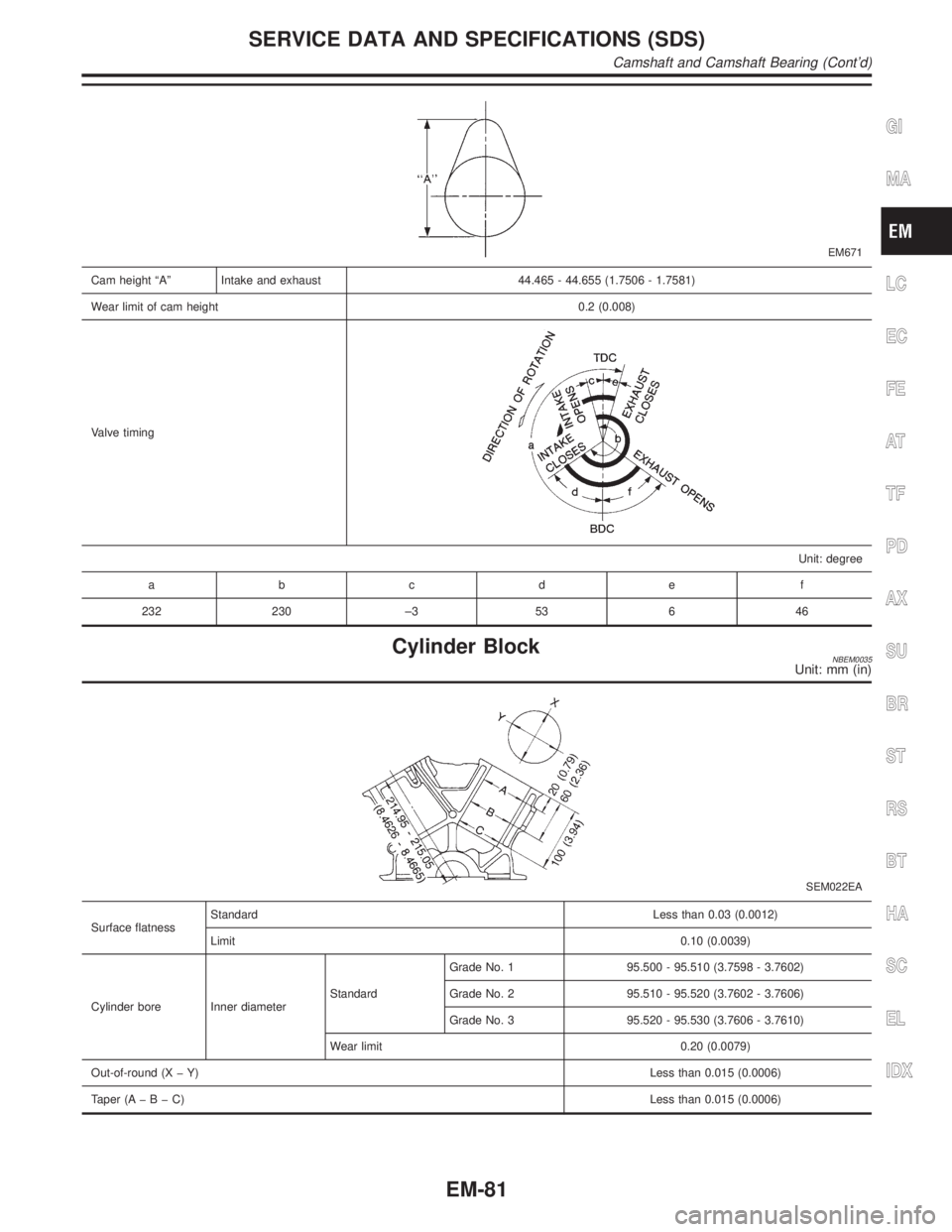

INFINITI QX4 2001 Factory Service Manual SEM621F Standard Service Cylinder head seat recess diameter (D)Intake 38.000 - 38.016 (1.4961 - 1.4967) 38.500 - 38.516 (1.5157 - 1.5164) Exhaust 32.200 - 32.216 (1.2677 - 1.2683) 32.700 - 32.716 (1.2

Page 1724 of 2395

INFINITI QX4 2001 Factory Service Manual EM671 Cam height ªAº Intake and exhaust 44.465 - 44.655 (1.7506 - 1.7581) Wear limit of cam height 0.2 (0.008) Valve timing Unit: degree abcde f 232 230 ±3 53 6 46 Cylinder BlockNBEM0035Unit: mm (i

Page 1725 of 2395

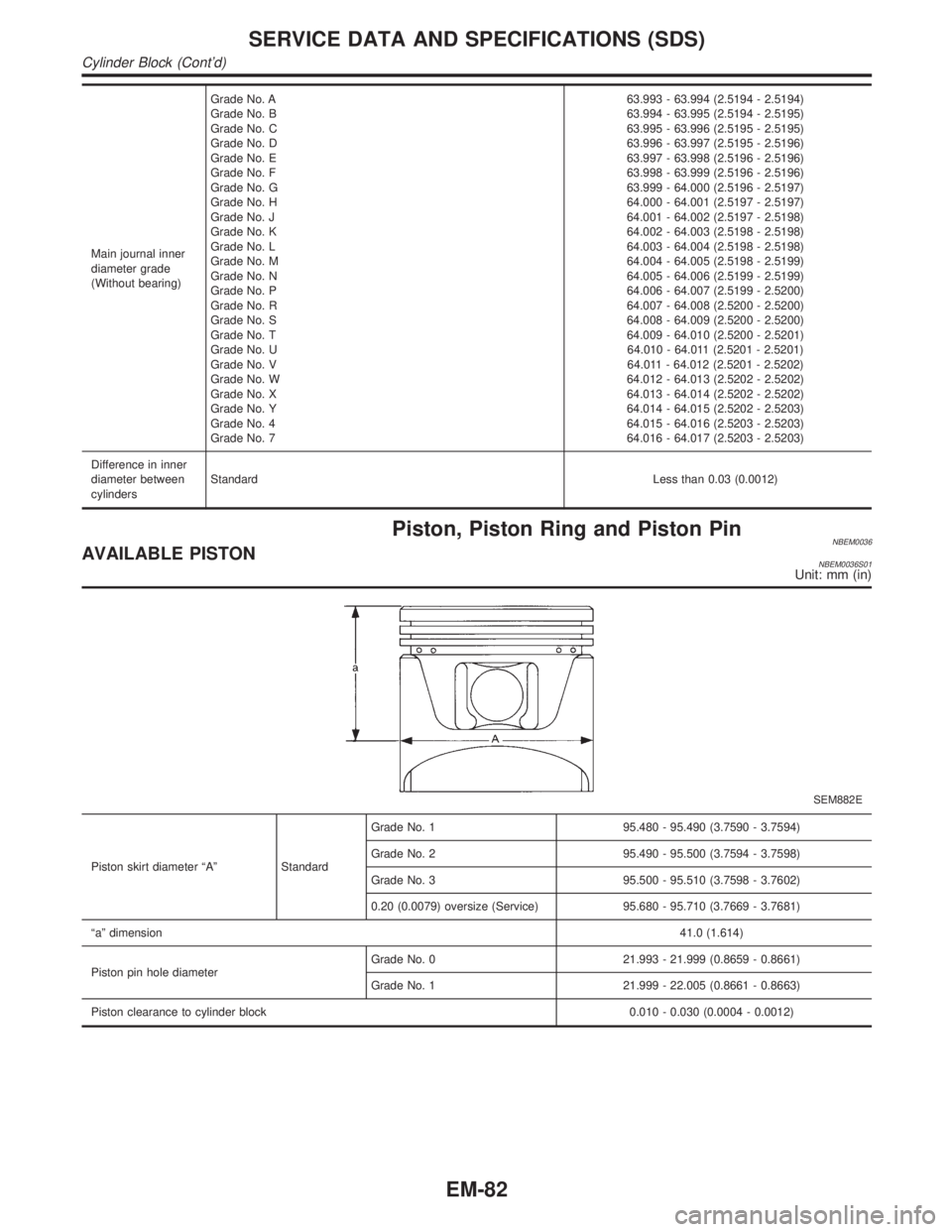

INFINITI QX4 2001 Factory Service Manual Main journal inner diameter grade (Without bearing)Grade No. A Grade No. B Grade No. C Grade No. D Grade No. E Grade No. F Grade No. G Grade No. H Grade No. J Grade No. K Grade No. L Grade No. M Grade

Page 1726 of 2395

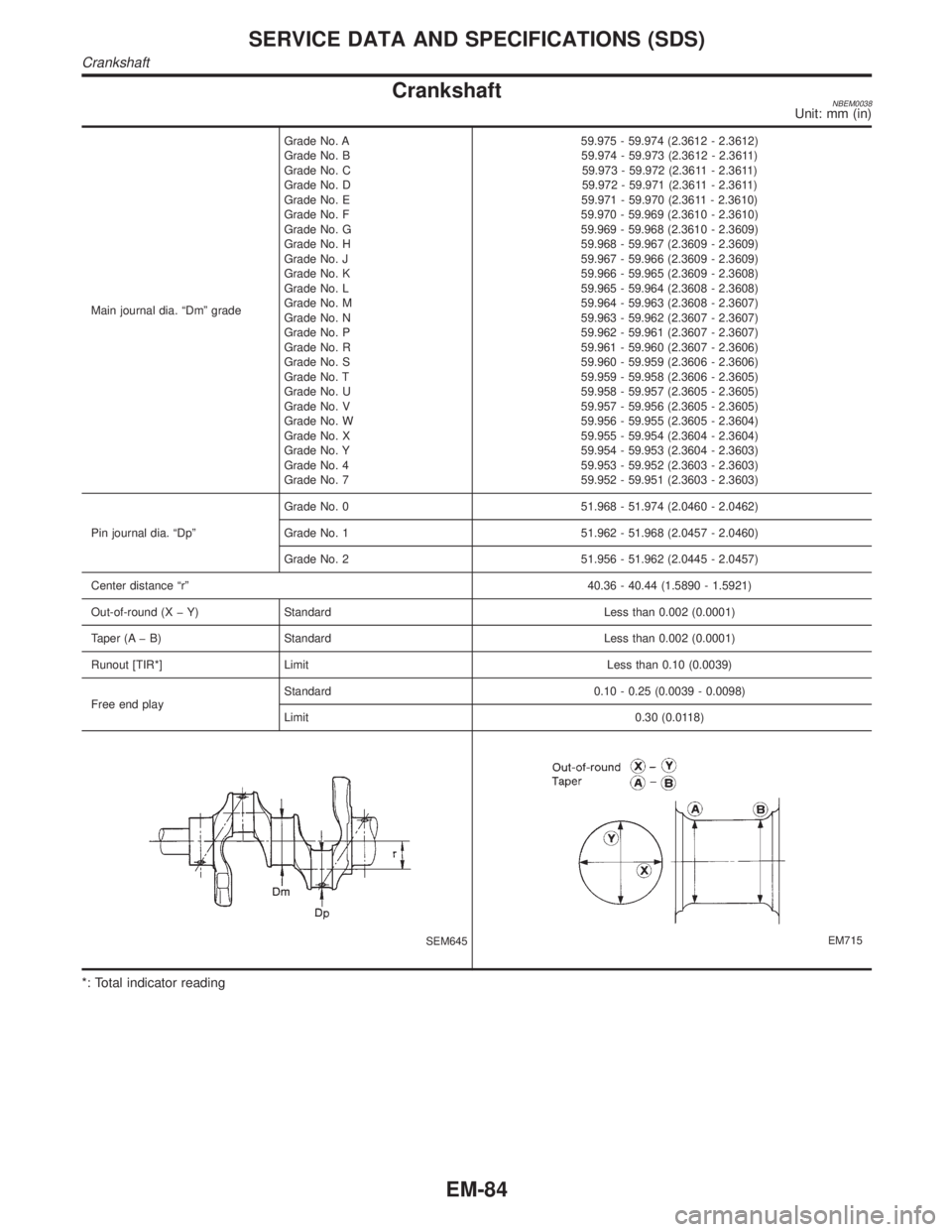

INFINITI QX4 2001 Factory Service Manual PISTON RING=NBEM0036S02Unit: mm (in) Standard Limit Side clearanceTop 0.040 - 0.080 (0.0016 - 0.0031) 0.11 (0.0043) 2nd 0.030 - 0.070 (0.0012 - 0.0028) 0.1 (0.004) Oil ring 0.015 - 0.050 (0.0006 - 0.0

Page 1727 of 2395

INFINITI QX4 2001 Factory Service Manual CrankshaftNBEM0038Unit: mm (in) Main journal dia. ªDmº gradeGrade No. A Grade No. B Grade No. C Grade No. D Grade No. E Grade No. F Grade No. G Grade No. H Grade No. J Grade No. K Grade No. L Grade

Page 1728 of 2395

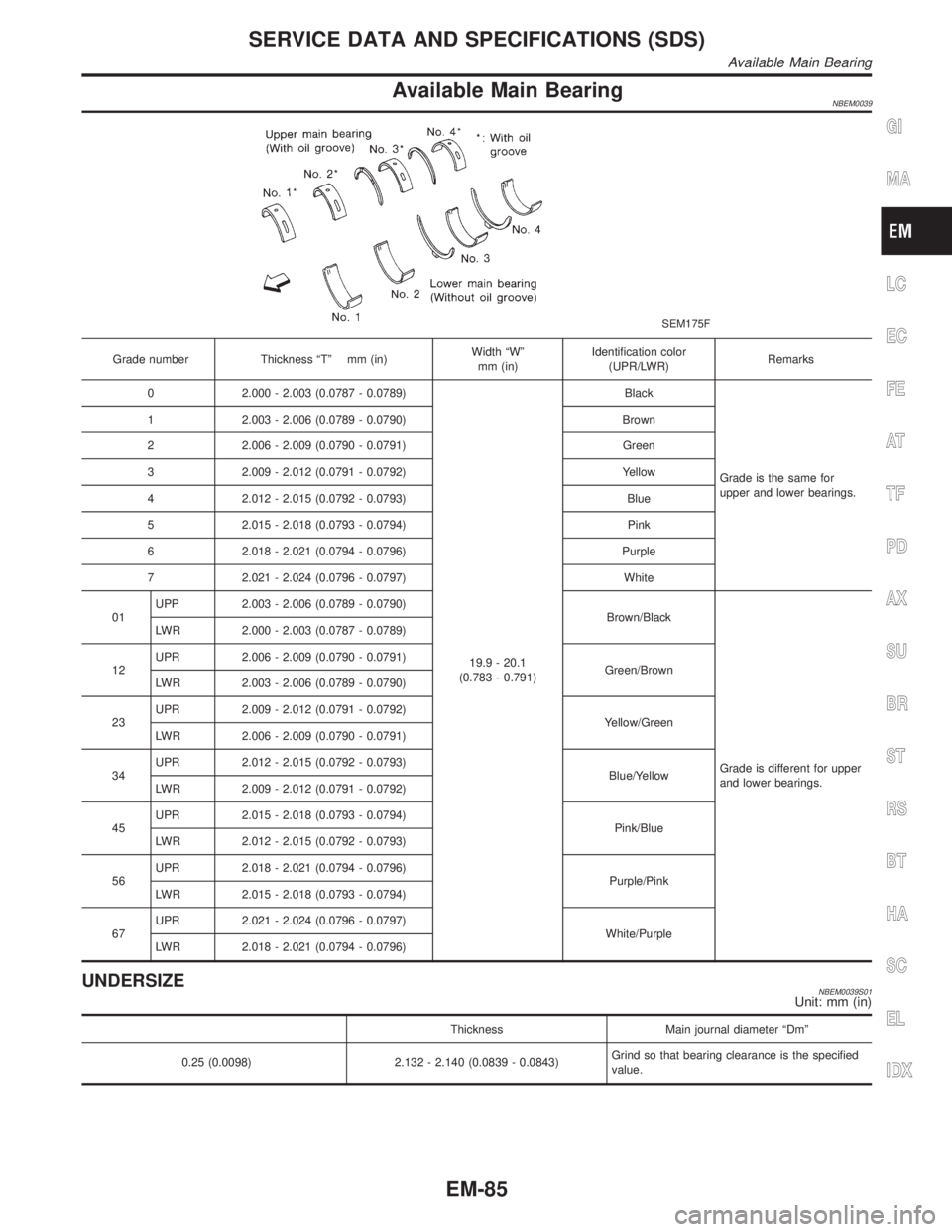

INFINITI QX4 2001 Factory Service Manual Available Main BearingNBEM0039 SEM175F Grade number Thickness ªTº mm (in)Width ªWº mm (in)Identification color (UPR/LWR)Remarks 0 2.000 - 2.003 (0.0787 - 0.0789) 19.9 - 20.1 (0.783 - 0.791)Black G
