Page 521 of 2395

INFINITI QX4 2001 Factory Service Manual SBT082
Using flat-bladed screwdriver, pry shade assembly holder off
rail. Then pull shade assembly forward to remove it from rail.
MBF491BA
Disengage pawls from rail, then remove wind deflector holder

Page 522 of 2395

INFINITI QX4 2001 Factory Service Manual Trouble Diagnoses=NBBT0018DIAGNOSTIC TABLENBBT0018S01NOTE:
For diagnosing electric problem, refer to EL-174 ªPOWER SUN-
ROOFº for details.
Check items (Components)
Wind deflector Adjustment Drain ho

Page 523 of 2395

INFINITI QX4 2001 Factory Service Manual ADJUSTMENTNBBT0018S03
SBT723
If any gap or height difference between glass lid and roof is found,
check glass lid fit and adjust as follows:
Gap AdjustmentNBBT0018S03011. Open shade assembly.
2. Tilt

Page 524 of 2395

INFINITI QX4 2001 Factory Service Manual DRAIN HOSESNBBT0018S04
SBT376
SBT333
1. Remove headlining to access drain hose connections. (Refer
to ªRemoval and Installationº in ªROOF TRIMº, BT-32, for
detail.)
2. Check visually for proper co

Page 525 of 2395

INFINITI QX4 2001 Factory Service Manual 3. Check weatherstrip visually for any damage, deterioration, or
flattening.
IIf any damage is found, replace weatherstrip.
CAUTION:
Do not remove weatherstrip except when replacing, or filling
up but

Page 526 of 2395

INFINITI QX4 2001 Factory Service Manual SBF034B
Removal and InstallationNBBT0019
SBT472
SBT473
REMOVALNBBT0019S01After removing moldings, remove glass using piano wire or power
cutting tool and an inflatable pump bag.
WARNING:
When cutting

SBF034B
Removal and InstallationNBBT0019
SBT472
SBT473
REMOVALNBBT0019S01After removing moldings, remove glass using piano wire or power
cutting tool and an inflatable pump bag.
WARNING:
When cutting the glass from the vehicle, always wear safety
glasses and heavy gloves to help prevent glass splinters from
entering your eyes or cutting your hands.
CAUTION:
IBe careful not to scratch the glass when removing.
IDo not set or stand the glass on its edge. Small chips may
develop into cracks.
INSTALLATIONNBBT0019S02IUse a genuine Nissan Urethane Adhesive Kit or equivalent
and follow the instructions furnished with it.
IWhile the urethane adhesive is curing, open a door win-
dow. This will prevent the glass from being forced out by
passenger compartment air pressure when a door is
closed.
IThe molding must be installed securely so that it is in
position and leaves no gap.
IInform the customer that the vehicle should remain sta-
tionary until the urethane adhesive has completely cured
(preferably 24 hours). Curing time varies with temperature
and humidity.
WARNING:
IKeep heat and open flames away as primers and adhesive
are flammable.
IThe materials contained in the kit are harmful if
swallowed, and may irritate skin and eyes. Avoid contact
with the skin and eyes.
IUse in an open, well ventilated location. Avoid breathing
the vapors. They can be harmful if inhaled. If affected by
vapor inhalation, immediately move to an area with fresh
air.
IDriving the vehicle before the urethane adhesive has com-
pletely cured may affect the performance of the wind-
shield in case of an accident.
CAUTION:
IDo not use an adhesive which is past its usable term.
Shelf life of this product is limited to six months after the
date of manufacture. Carefully adhere to the expiration or
manufacture date printed on the box.
IKeep primers and adhesive in a cool, dry place. Ideally,
they should be stored in a refrigerator.
IDo not leave primers or adhesive cartridge unattended
with their caps open or off.
IThe vehicle should not be driven for at least 24 hours or
until the urethane adhesive has completely cured. Curing
time varies depending on temperature and humidities. The
curing time will increase under higher temperatures and
lower humidities.
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
HA
SC
EL
IDX
WINDSHIELD AND WINDOWS
Removal and Installation
BT-53

Page 527 of 2395

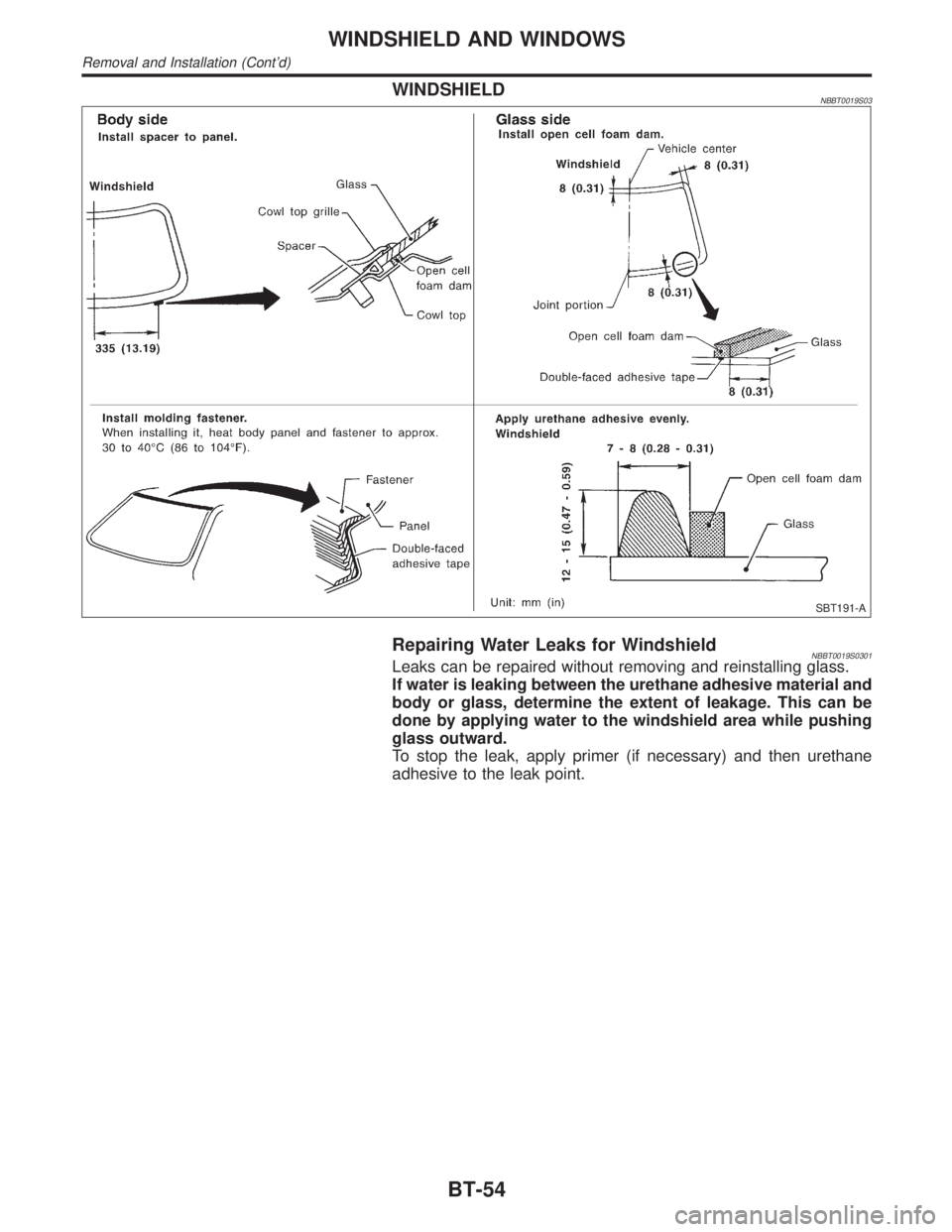

INFINITI QX4 2001 Factory Service Manual WINDSHIELDNBBT0019S03
SBT191-A
Repairing Water Leaks for WindshieldNBBT0019S0301Leaks can be repaired without removing and reinstalling glass.
If water is leaking between the urethane adhesive materia

Page 528 of 2395

INFINITI QX4 2001 Factory Service Manual REAR SIDE WINDOWNBBT0019S04
SBT359-A
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
HA
SC
EL
IDX
WINDSHIELD AND WINDOWS
Removal and Installation (Contd)
BT-55
