Air Mix Door Motor
TROUBLE DIAGNOSIS PROCEDURE FOR AIR MIX DOOR (LAN)=NBHA0098SYMPTOM:
IDischarge air temperature does not change.
IAir mix door motor does not operate.
Inspection FlowNBHA0098S01Without Navigation SystemNBHA0098S0101
SHA246F
*1: HA-44
*2: HA-129
*3: HA-132
*4: HA-135
*5: HA-141*6: STEP-BY-STEP PROCEDURE
(HA-45), see No. 13.
*7: HA-78
*8: HA-85
*9: HA-85*10: HA-66
*12: HA-66
*13: HA-65
*14: HA-139
*15: HA-45
TROUBLE DIAGNOSES
Air Mix Door Motor
HA-82
Page 1882 of 2395
With Navigation SystemNBHA0098S0102
RHA871H
*1: HA-44
*2: HA-129
*3: HA-132
*4: HA-135
*5: HA-141*6: STEP-BY-STEP PROCEDURE
(HA-45), see No. 13.
*7: HA-78
*8: HA-85
*9: HA-85*10: HA-66
*12: HA-66
*13: HA-65
*14: HA-139
*15: HA-45
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSES
Air Mix Door Motor (Cont'd)
HA-83
Page 1883 of 2395
SYSTEM DESCRIPTION=NBHA0059Component PartsNBHA0059S01Air mix door control system components are:
1) Auto amp.
2) Air mix door motor (LCU)
3) In-vehicle sensor
4) Ambient sensor
5) Sunload sensor
6) Intake sensor
System OperationNBHA0059S02The auto amplifier receives data from each of the sensors. The amplifier sends air mix door and mode door
opening angle data to the air mix door motor LCU and mode door motor LCU.
The air mix door motor and mode door motor read their respective signals according to the address signal.
Opening angle indication signals received from the auto amplifier and each of the motor position sensors are
compared by the LCUs in each motor with the existing decision and opening angles. Subsequently, HOT/
COLD or DEFROST/VENT operation is selected. The new selection data is returned to the auto amplifier.
RHA872H
TROUBLE DIAGNOSES
Air Mix Door Motor (Cont'd)
HA-84
Page 1884 of 2395

Air Mix Door Control SpecificationNBHA0059S03
RHA137G
RHA849E
COMPONENT DESCRIPTIONNBHA0060The air mix door motor is attached to the heater unit. It rotates so
that the air mix door is opened or closed to a position set by the
auto amplifier. Motor rotation is then conveyed through a shaft and
the air mix door position is then fed back to the auto amplifier by
PBR built-in air mix door motor.
RHA504G
SHA522EA
CONTROL LINKAGE ADJUSTMENTNBHA0099Air Mix Door (Water Cock)NBHA0099S011. Install air mix door motor on heater unit and connect it to main
harness.
2. Set up code No. 41 in Self-diagnosis STEP 4. Refer to HA-44.
3. Move air mix door lever by hand and hold it in full cold posi-
tion.
4. Attach air mix door lever to rod holder.
5. Make sure air mix door operates properly when changing from
code No.
toby pushing DEF switch.
Full cold Full hot
6. Set up code No.in Self-diagnosis STEP 4.
7. Attach water cock rod to air mix door lever and secure with clip.
8. Rotate air mix door lever (CLOCKWISE completely) and hold
water cock rod and link lever in the full cold position.
9. Attach water cock rod to link lever and secure with clip (white
mark on cable housing should be centered under the retaining
clip).
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSES
Air Mix Door Motor (Cont'd)
HA-85
Page 1885 of 2395

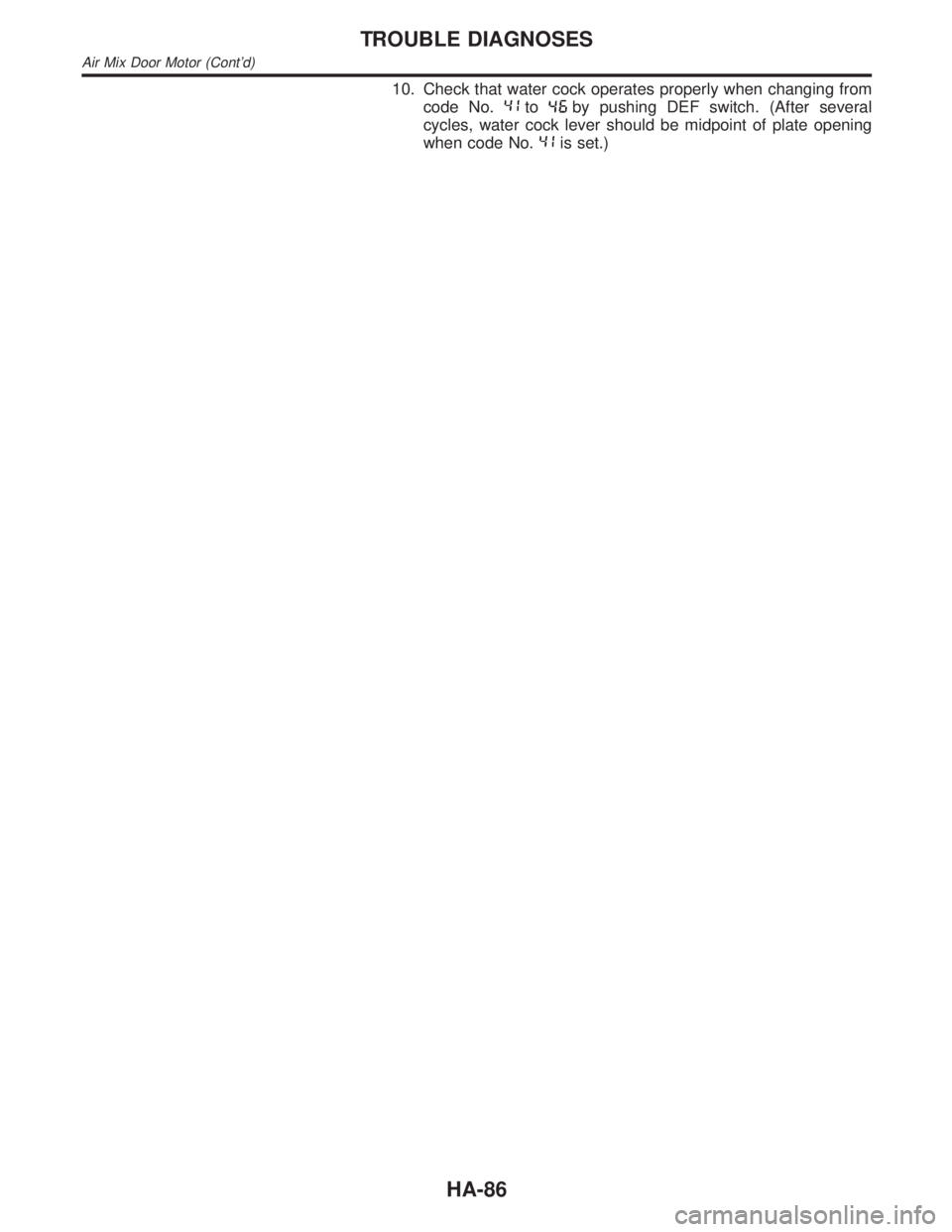

10. Check that water cock operates properly when changing from
code No.
toby pushing DEF switch. (After several
cycles, water cock lever should be midpoint of plate opening
when code No.
is set.)
TROUBLE DIAGNOSES
Air Mix Door Motor (Cont'd)
HA-86
Page 1886 of 2395
Intake Door Motor
TROUBLE DIAGNOSIS PROCEDURE FOR INTAKE DOOR=NBHA0092SYMPTOM:
IIntake door does not change.
IIntake door motor does not operate normally.
Inspection FlowNBHA0092S01Without Navigation SystemNBHA0092S0101
SHA247F
*1: HA-44
*2: HA-129
*3: HA-132
*4: HA-135
*5: HA-141*6: STEP-BY-STEP PROCEDURE
(HA-45), see No. 13.
*7: HA-90
*8: HA-94
*9: HA-66*10: HA-45
*11: HA-66
*12: HA-65
*13: HA-139
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSES
Intake Door Motor
HA-87
Page 1887 of 2395
With Navigation SystemNBHA0092S0102
RHA873H
*1: HA-44
*2: HA-129
*3: HA-132
*4: HA-135
*5: HA-141*6: STEP-BY-STEP PROCEDURE
(HA-45), see No. 13.
*7: HA-90
*8: HA-94
*9: HA-66*10: HA-45
*11: HA-66
*12: HA-65
*13: HA-139
TROUBLE DIAGNOSES
Intake Door Motor (Cont'd)
HA-88
Page 1888 of 2395
SYSTEM DESCRIPTION=NBHA0056Component PartsNBHA0056S01Intake door control system components are:
1) Auto amp.
2) Intake door motor
3) A/C LAN system (PBR built-in mode motor and air mix door motor)
4) In-vehicle sensor
5) Ambient sensor
6) Sunload sensor
7) Intake sensor
System OperationNBHA0056S02The intake door control determines intake door position based on the ambient temperature, the intake air
temperature and the in-vehicle temperature. When the ECON, DEFROST, or OFF switches are pushed, the
auto amplifier sets the intake door at the ªFreshº position.
RHA874H
Intake Door Control SpecificationNBHA0056S03
RHA136G
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSES
Intake Door Motor (Cont'd)
