Page 1561 of 2395

INFINITI QX4 2001 Factory Service Manual GPS ANTENNA CHECK=NBEL0184S11 1 CHECK VOLTAGE FOR GPS ANTENNA 1. Disconnect GPS feeder cable connector from IVCS unit. 2. Turn ignition switch ON. 3. Check voltage at IVCS unit GPS feeder cable termin

Page 1562 of 2395

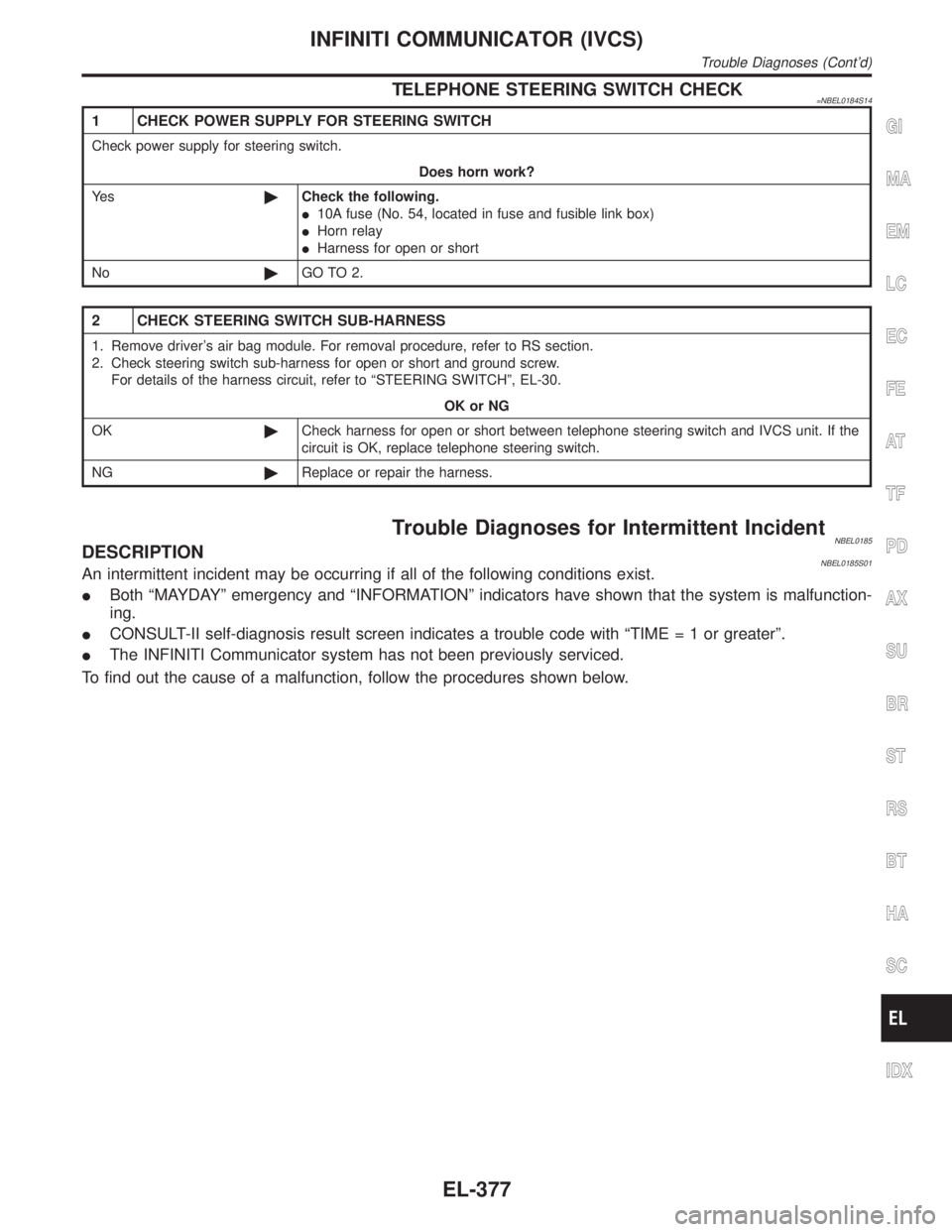

INFINITI QX4 2001 Factory Service Manual TELEPHONE STEERING SWITCH CHECK=NBEL0184S14 1 CHECK POWER SUPPLY FOR STEERING SWITCH Check power supply for steering switch. Does horn work? Ye s©Check the following. I10A fuse (No. 54, located in fu

Page 1563 of 2395

INFINITI QX4 2001 Factory Service Manual DIAGNOSTIC PROCEDURENBEL0185S02 SEL107WF *1: EL-364 *2: EL-324 NOTE: Enlarged spring contact of terminals may be cause of intermittent malfunction for ªCONNECTION ERROR [AIR BAG]/[IVMS]º. When you i

Page 1564 of 2395

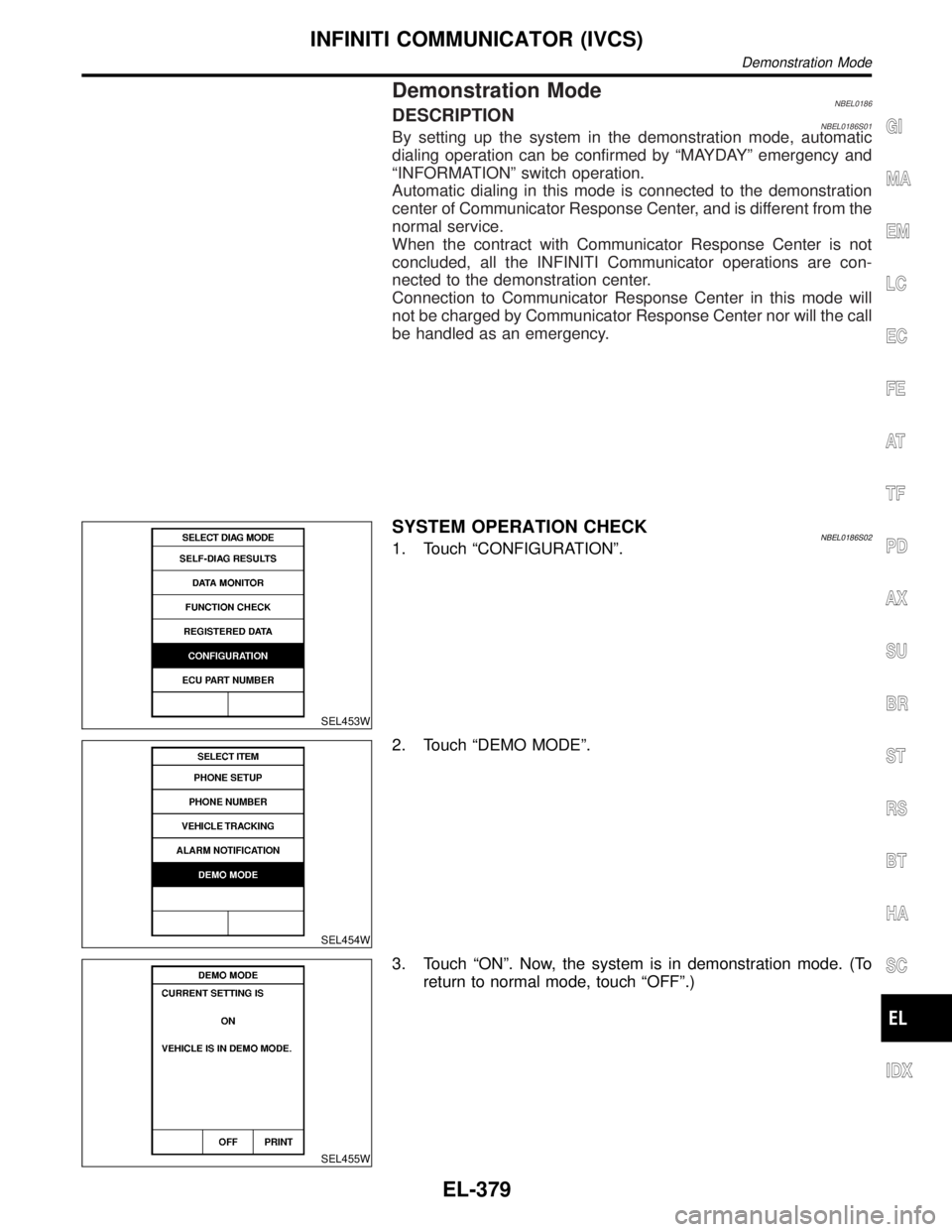

INFINITI QX4 2001 Factory Service Manual Demonstration ModeNBEL0186DESCRIPTIONNBEL0186S01By setting up the system in the demonstration mode, automatic dialing operation can be confirmed by ªMAYDAYº emergency and ªINFORMATIONº switch oper

Page 1565 of 2395

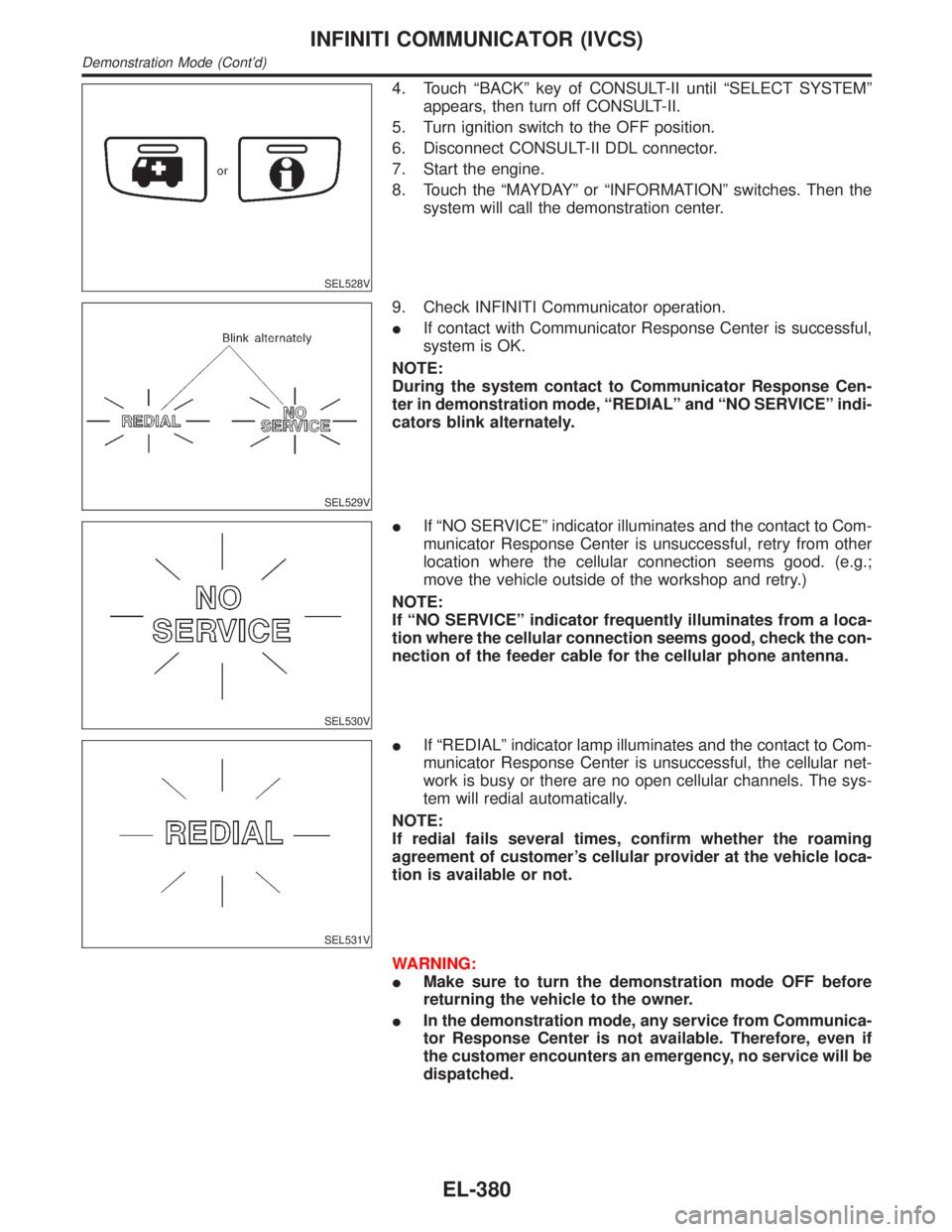

INFINITI QX4 2001 Factory Service Manual SEL528V 4. Touch ªBACKº key of CONSULT-II until ªSELECT SYSTEMº appears, then turn off CONSULT-II. 5. Turn ignition switch to the OFF position. 6. Disconnect CONSULT-II DDL connector. 7. Start the

Page 1566 of 2395

INFINITI QX4 2001 Factory Service Manual System Setting (When IVCS Unit is Replaced)NBEL0187DESCRIPTIONNBEL0187S01When the IVCS unit is replaced, carry out the following data set- tings. IPhone setup Ð Data setting regarding NAM (Number Ass

Page 1567 of 2395

INFINITI QX4 2001 Factory Service Manual IWhenever dialing the above number, information about the vehicle is required by the operator. For details, refer to EL-348. INever release the vehicle to the customer unless INFINITI Communicator sys

Page 1568 of 2395

INFINITI QX4 2001 Factory Service Manual SEL460W 6. Touch ªOKº. 7. Carry out the next system setting or contact Communicator Response Center and information them that data has been updated or the IVCS unit has been replaced. For details, r
