ASSEMBLY

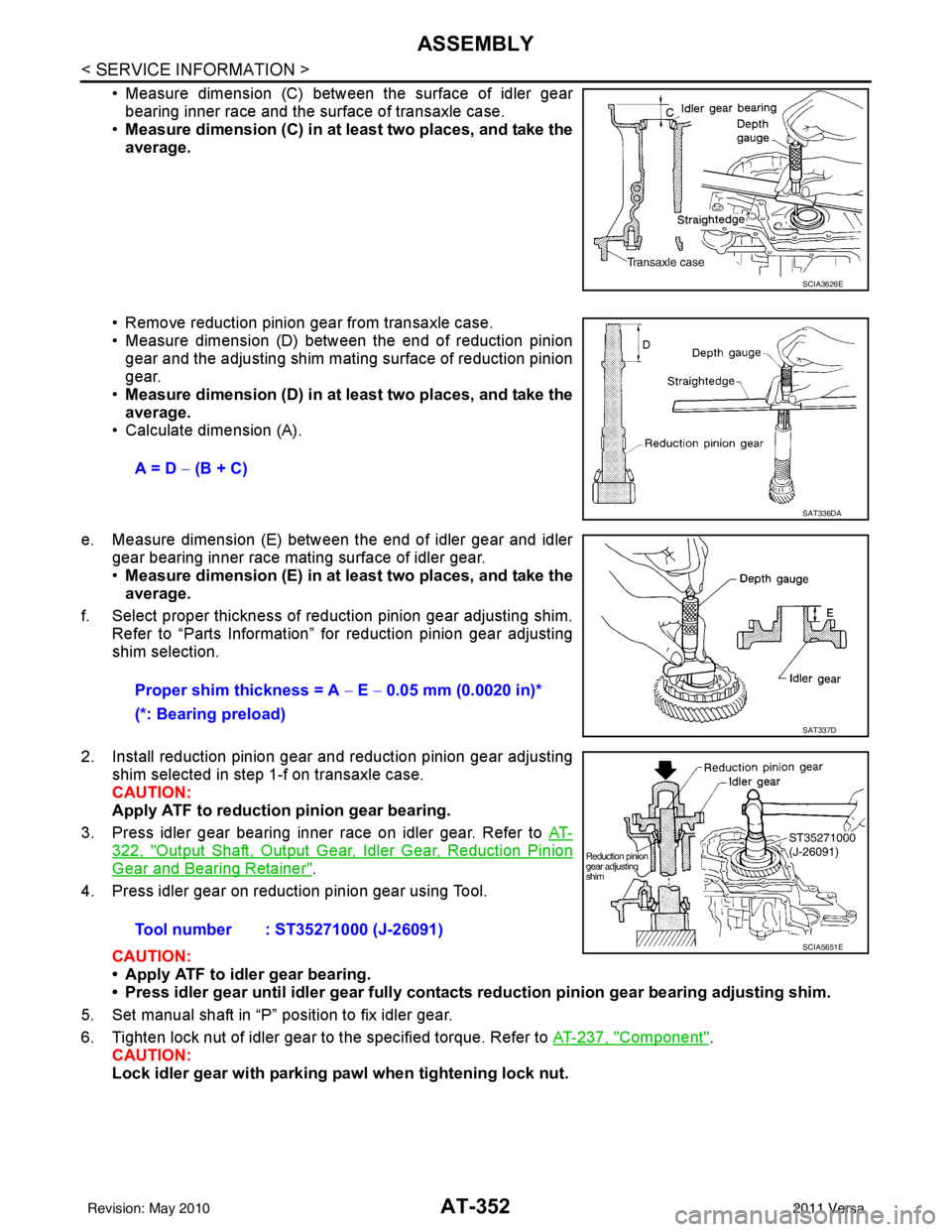

• Measure dimension (C) between the surface of idler gearbearing inner race and the surface of transaxle case.
• Measure dimension (C) in at least two places, and take the
average.
• Remove reduction pinion gear from transaxle case.
• Measure dimension (D) between the end of reduction pinion gear and the adjusting shim mating surface of reduction pinion
gear.
• Measure dimension (D) in at least two places, and take the
average.
• Calculate dimension (A).
e. Measure dimension (E) between the end of idler gear and idler gear bearing inner race mating surface of idler gear.
•Measure dimension (E) in at least two places, and take the
average.
f. Select proper thickness of reduction pinion gear adjusting shim. Refer to “Parts Information” for reduction pinion gear adjusting
shim selection.
2. Install reduction pinion gear and reduction pinion gear adjusting shim selected in step 1-f on transaxle case.
CAUTION:
Apply ATF to reduction pinion gear bearing.
3. Press idler gear bearing inner race on idler gear. Refer to AT-
322, "Output Shaft, Output Gear, Idler Gear, Reduction Pinion
Gear and Bearing Retainer".
4. Press idler gear on reduction pinion gear using Tool.
CAUTION:
• Apply ATF to idler gear bearing.
• Press idler gear until idler gear fully contacts reduction pinion gear bearing adjusting shim.
5. Set manual shaft in “P” position to fix idler gear.
6. Tighten lock nut of idler gear to the specified torque. Refer to AT-237, "
Component".
CAUTION:
Lock idler gear with parking pawl when tightening lock nut.
SCIA3626E
A = D − (B + C)
SAT336DA
Proper shim thickness = A − E − 0.05 mm (0.0020 in)*
(*: Bearing preload)
SAT337D
Tool number : ST35271000 (J-26091)SCIA5651E
Revision: May 2010 2011 Versa
Page 370 of 3787
ASSEMBLYAT-353
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

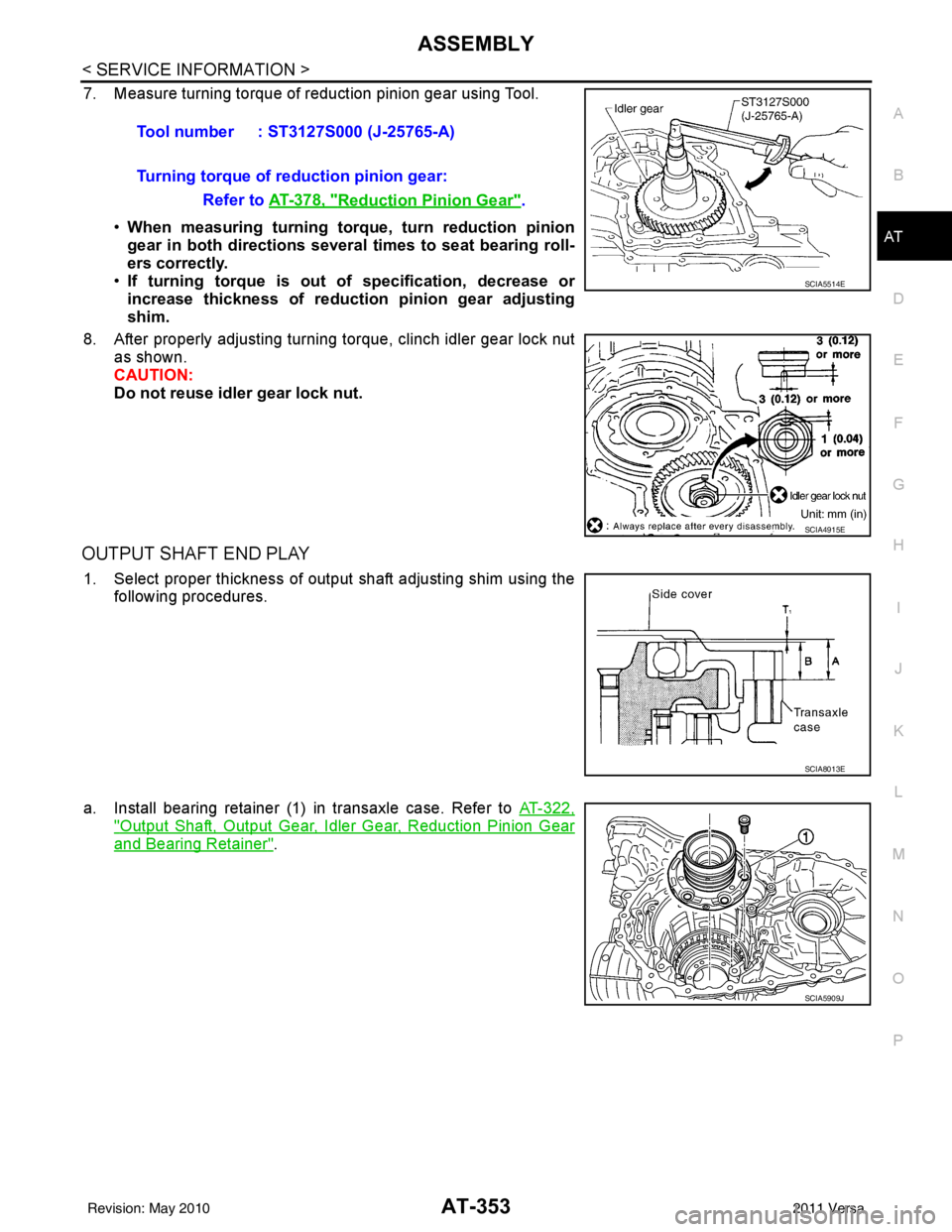

7. Measure turning torque of reduction pinion gear using Tool.
•When measuring turning torq ue, turn reduction pinion
gear in both directions several times to seat bearing roll-
ers correctly.
• If turning torque is out of specification, decrease or
increase thickness of reductio n pinion gear adjusting
shim.
8. After properly adjusting turning torque, clinch idler gear lock nut as shown.
CAUTION:
Do not reuse idler gear lock nut.
OUTPUT SHAFT END PLAY
1. Select proper thickness of output shaft adjusting shim using the
following procedures.
a. Install bearing retainer (1) in transaxle case. Refer to AT-322,
"Output Shaft, Output Gear, Idler Gear, Reduction Pinion Gear
and Bearing Retainer".
Tool number : ST3127S000 (J-25765-A)
Turning torque of reduction pinion gear:
Refer to AT-378, "
Reduction Pinion Gear".
SCIA5514E
SCIA4915E
SCIA8013E
SCIA5909J
Revision: May 2010 2011 Versa
Page 371 of 3787
AT-354
< SERVICE INFORMATION >
ASSEMBLY

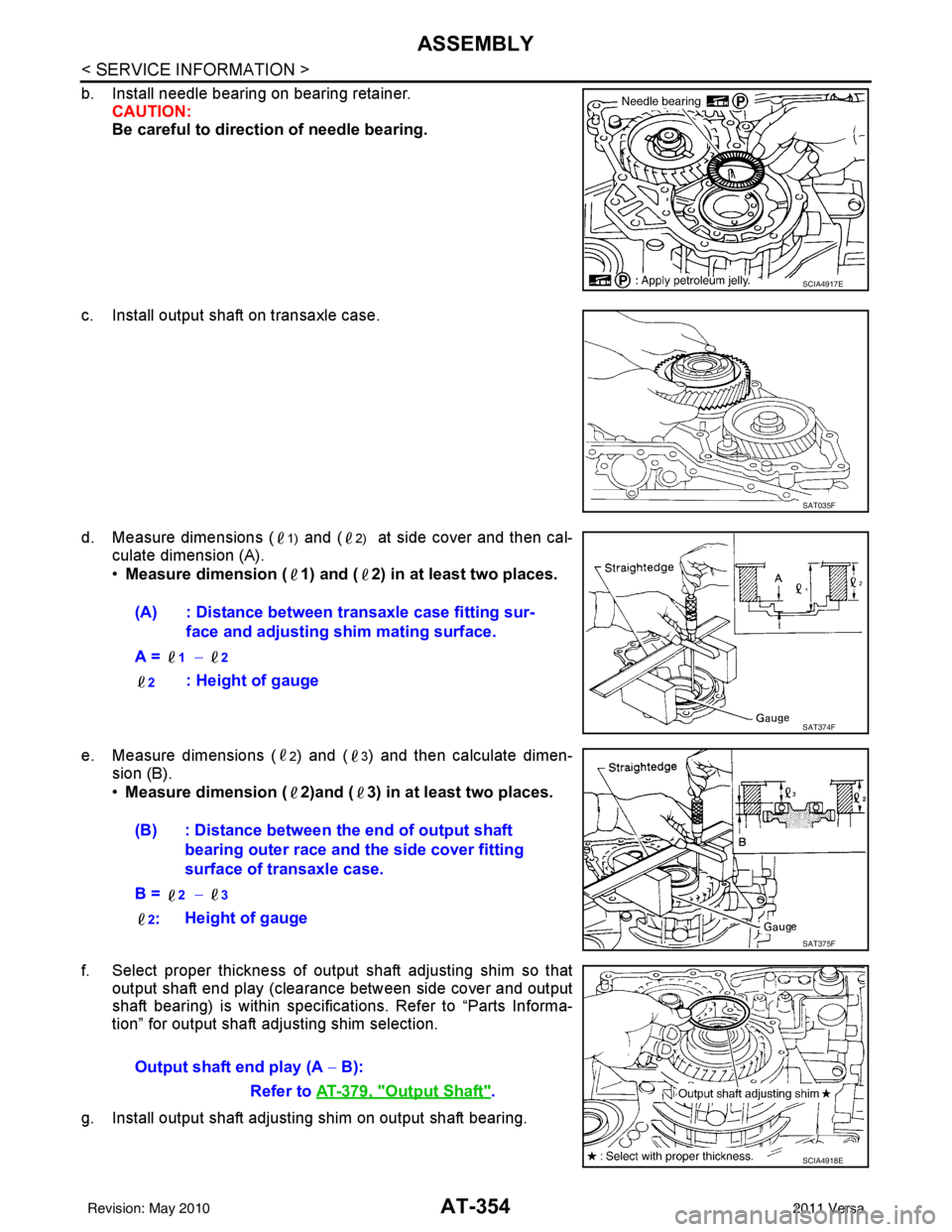

b. Install needle bearing on bearing retainer.CAUTION:
Be careful to direction of needle bearing.
c. Install output shaft on transaxle case.
d. Measure dimensions (
1) and (2) at side cover and then cal-
culate dimension (A).
• Measure dimension ( 1) and ( 2) in at least two places.
e. Measure dimensions (
2) and (3) and then calculate dimen-
sion (B).
• Measure dimension ( 2)and ( 3) in at least two places.
f. Select proper thickness of output shaft adjusting shim so that output shaft end play (clearance between side cover and output
shaft bearing) is within specifications. Refer to “Parts Informa-
tion” for output shaft adjusting shim selection.
g. Install output shaft adjusting shim on output shaft bearing.
SCIA4917E
SAT035F
(A) : Distance between transaxle case fitting sur- face and adjusting shim mating surface.
A =
1 − 2
2
: Height of gauge
SAT374F
(B) : Distance between the end of output shaft bearing outer race and the side cover fitting
surface of transaxle case.
B =
2 − 3
2
: Height of gauge
SAT375F
Output shaft end play (A
− B):
Refer to AT-379, "
Output Shaft".
SCIA4918E
Revision: May 2010 2011 Versa
Page 372 of 3787
ASSEMBLYAT-355
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
2. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent.) to transaxle case as shown.
: Inside of side cover
CAUTION:
• Apply the sealant on the center between the bolt holes.
• Completely remove all moisture, oil and old sealant, etc. from the transaxle case and side cover mounting surfaces.
3. Fit mounting part of output shaft bearing on side cover to output shaft bearing, and after adjusting knock pin position, install it
with light taps of a soft hammer and things like that.
CAUTION:
When installing, to avoid getting damaged and deformed,
set mounting part straight to parallel with the mounting sur-
face.
4. Tighten side cover bolts to specified torque. Refer to AT-237,
"Component".
CAUTION:
• Do not mix bolts (A) and (B).
• Always replace bolts (A) as they are self-sealing bolts.
Assembly (2)INFOID:0000000005928306

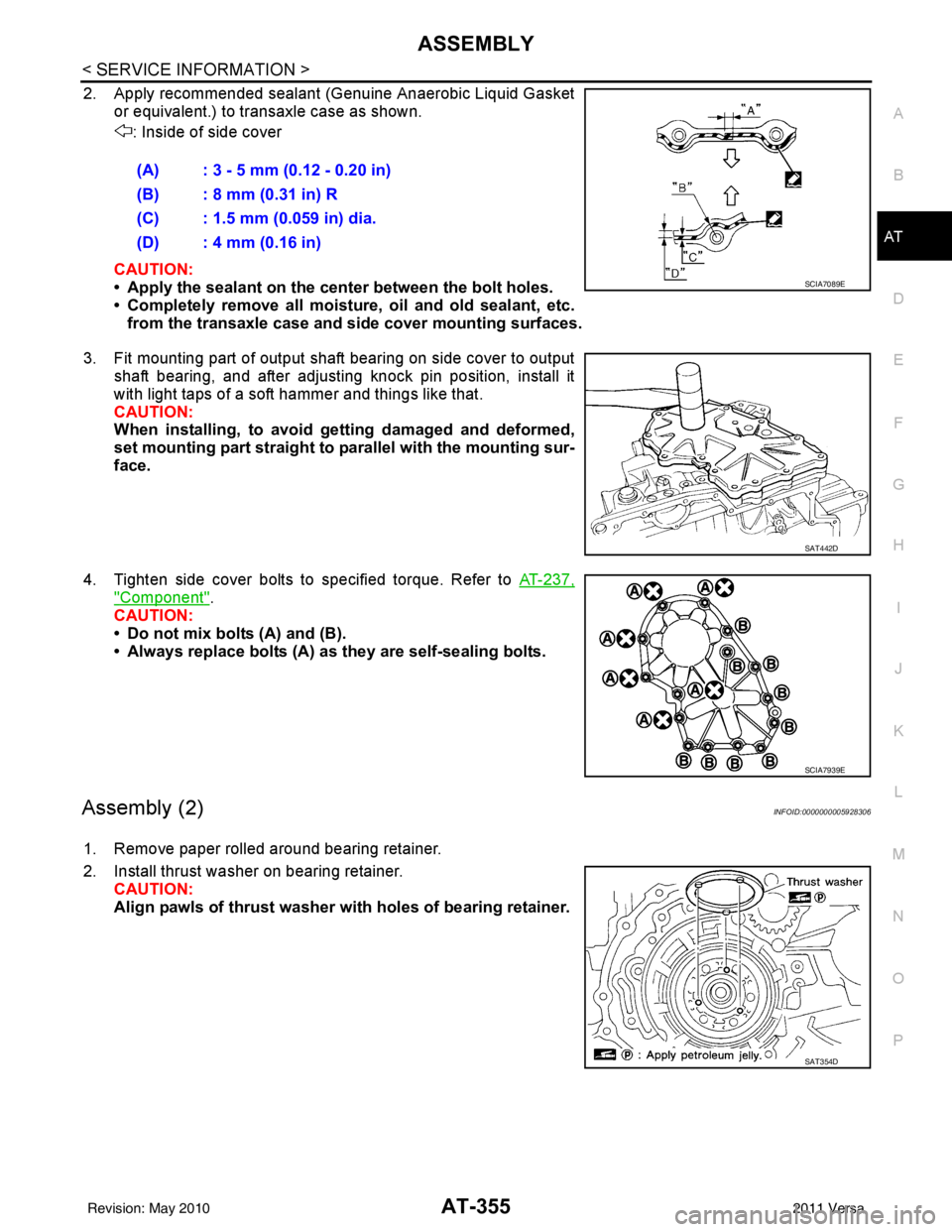

1. Remove paper rolled around bearing retainer.
2. Install thrust washer on bearing retainer. CAUTION:
Align pawls of thrust washer with holes of bearing retainer.(A) : 3 - 5 mm (0.12 - 0.20 in)
(B) : 8 mm (0.31 in) R
(C) : 1.5 mm (0.059 in) dia.
(D) : 4 mm (0.16 in)
SCIA7089E
SAT442D
SCIA7939E
SAT354D
Revision: May 2010
2011 Versa
Page 373 of 3787
AT-356
< SERVICE INFORMATION >
ASSEMBLY
3. Install forward clutch assembly and overrun clutch assembly (1)into transaxle case.
CAUTION:
• Align teeth of low & reverse brake drive plates beforeinstalling.
• Make sure that bearing retainer seal rings are not spread.
4. Install needle bearing (1) on bearing retainer. CAUTION:
Be careful with the dir ection of needle bearing.
5. Install thrust washer (1) on overrun clutch hub (2). CAUTION:
Align pawls of thrust washer (1) with holes of overrun
clutch hub (2).
6. Install overrun clutch hub (1) into forward clutch drum. CAUTION:
Align teeth of overrun clutch drive plates before installing.
7. Hold forward clutch hub, and check that rear internal gear locks when tried to rotate counterclockwise.
CAUTION:
If rear internal gear rotat es counterclockwise, check instal-
lation direction of forward one-way clutch.
SCIA5900J
SCIA8014E
SCIA5899J
SCIA5898J
SCIA7078E
Revision: May 2010 2011 Versa
Page 374 of 3787
ASSEMBLYAT-357
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
8. Install needle bearing (1) on rear internal gear (2). CAUTION:
Be careful with the direct ion of needle bearing (1).
9. Install rear internal gear (1) and forward clutch hub (2) as a set into forward clutch drum.
CAUTION:
Align teeth of forward clutch drive plates before installing.
10. Install needle bearing (1) on rear planetary carrier (2). CAUTION:
Be careful with the direct ion of needle bearing (1).
11. Install rear sun gear on rear planetary carrier. CAUTION:
Be careful with the dir ection of rear sun gear.
12. Install rear planetary carrier in transaxle case.
SCIA6041J
SCIA5897J
SCIA5927J
SAT052D
SAT051D
Revision: May 2010 2011 Versa
Page 375 of 3787
AT-358
< SERVICE INFORMATION >
ASSEMBLY
13. Install needle bearing (1) on front planetary carrier (2).CAUTION:
Be careful with the direct ion of needle bearing (1).
14. Install low one-way clutch to front planetary carrier by turning it in the direction of unlock.
15. Check that low one-way clutch rotates counterclockwise around front planetary carrier. Then try to turn it clockwise and check
that it is locked.
16. Install front planetary carrier (2) and low one-way clutch (1) as a set into transaxle case.
17. Install snap ring into transaxle case using a flat-bladed screw- driver.
18. Install needle bearing (1) on front sun gear (2). CAUTION:
Be careful with the direct ion of needle bearing (1).
SCIA6047J
SAT048D
SCIA5896J
SCIA3633E
SCIA6960E
Revision: May 2010 2011 Versa
Page 376 of 3787
ASSEMBLYAT-359
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
19. Install front sun gear on front planetary carrier.
20. Install needle bearing on front sun gear. CAUTION:
Be careful with the dir ection of needle bearing.
21. Install high clutch hub on front sun gear.
22. Install needle bearing on high clutch hub. CAUTION:
Be careful with the dir ection of needle bearing.
23. Remove paper rolled around input shaft assembly (high clutch drum).
24. Install input shaft assembly (high clutch assembly) (1). CAUTION:
Align teeth of high clutch dr ive plates before installing.
SAT368D
SAT369D
SAT370D
SAT371D
SCIA7079E
