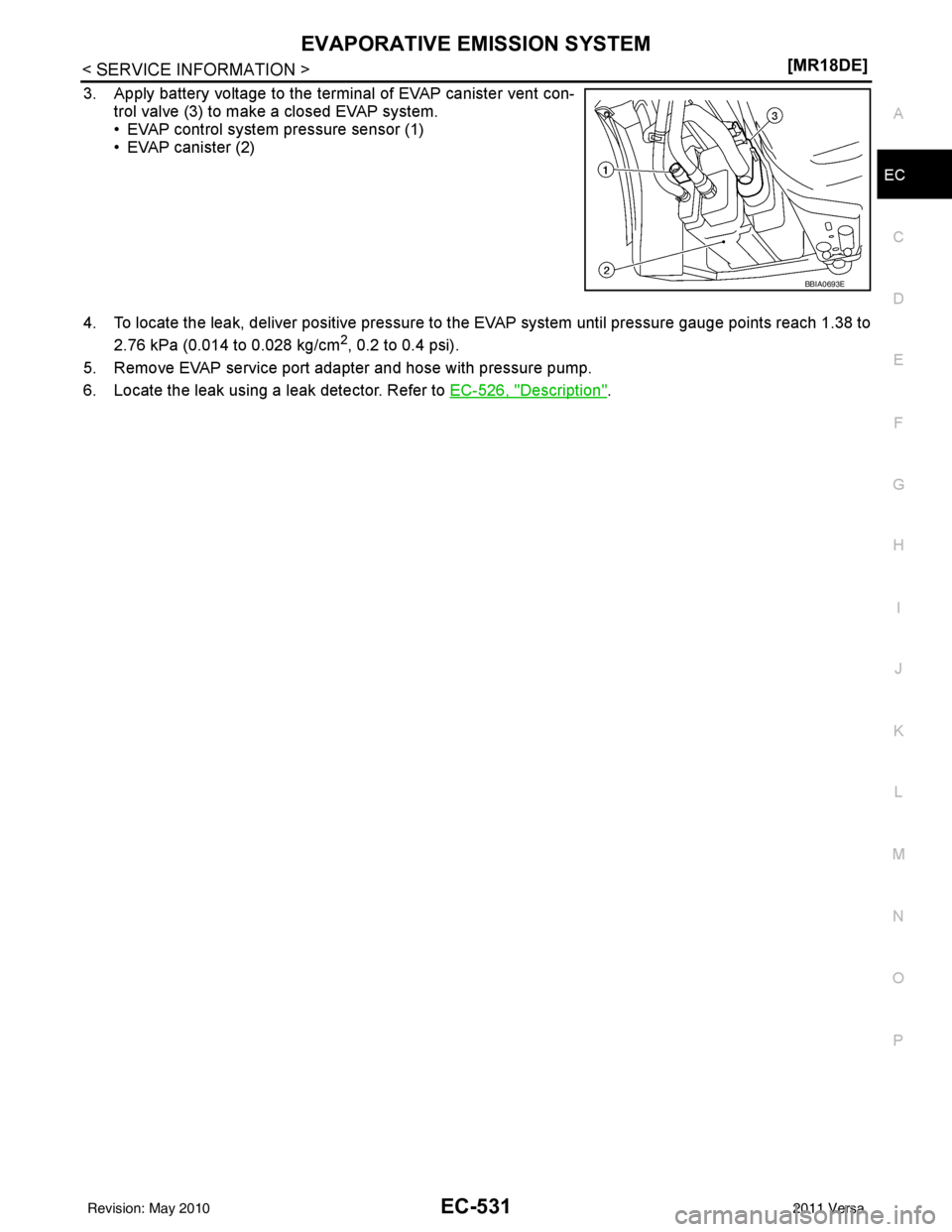

NISSAN LATIO 2011 Service Repair Manual EVAPORATIVE EMISSION SYSTEMEC-531
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Apply battery voltage to the termi
nal of EVAP canister vent con-
trol valve (3) to make a closed

Page 1826 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-532
< SERVICE INFORMATION >[MR18DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
System DescriptionINFOID:0000000006341711
From the beginning of refueling, the

EC-532
< SERVICE INFORMATION >[MR18DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
System DescriptionINFOID:0000000006341711
From the beginning of refueling, the air and vapor insi
de the fuel tank go through refueling EVAP vapor cut
valve and EVAP/ORVR line to the EVAP canister. The vapor is absorbed by the EVAP canister and the air is
released to the atmosphere.
When the refueling has reached the full level of the fuel tank, the refueling EVAP vapor cut valve is closed and
refueling is stopped because of auto shut-off. The vapor which was absorbed by the EVAP canister is purged
during driving.
WARNING:
When conducting inspections below, be sure to observe the following:
• Put a “CAUTION: FLAMMABLE” sign in workshop.
• Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.
• Be sure to furnish the workshop with a CO
2 fire extinguisher.
CAUTION:
• Before removing fuel line parts, carry out the following procedures:
- Put drained fuel in an explosion-pr oof container and put lid on securely.
- Release fuel pressure from fuel line. Refer to EC-582, "
Fuel Pressure Check".
- Disconnect negative battery cable.
• Always replace O-ring when the fu el gauge retainer is removed.
• Do not kink or twist hose and tube when they are installed.
• Do not tighten hose and clamps excessively to avoid damaging hoses.
• After installation, run engine and check for fuel leaks at connection.
• Do not attempt to top off the fuel tank afte r the fuel pump nozzle shuts off automatically.
Continued refueling may cause fuel overflow, r esulting in fuel spray and possibly a fire.
Diagnosis ProcedureINFOID:0000000006341712
SYMPTOM: FUEL ODOR FROM EVAP CANISTER IS STRONG.
1.CHECK EVAP CANISTER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be l ess than 1.9 kg (4.2 lb).
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2.CHECK IF EVAP CANISTER SATURATED WITH WATER
PBIB1387E
Revision: May 2010 2011 Versa

Page 1827 of 3787

NISSAN LATIO 2011 Service Repair Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-533
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Does water drain from
the EVAP canister?
Ye s o r N o
Yes >> GO TO 3.
No >> GO TO 6.

Page 1828 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-534
< SERVICE INFORMATION >[MR18DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
Does water drain from the EVAP canister?
Ye s o r N o
Ye s > > G O T O 3 .
No >> GO TO 5.
3.REPLACE EVAP CANISTER
Re

Page 1829 of 3787

NISSAN LATIO 2011 Service Repair Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-535
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NG >> Repair or replace one-way fuel valve with fuel tank.

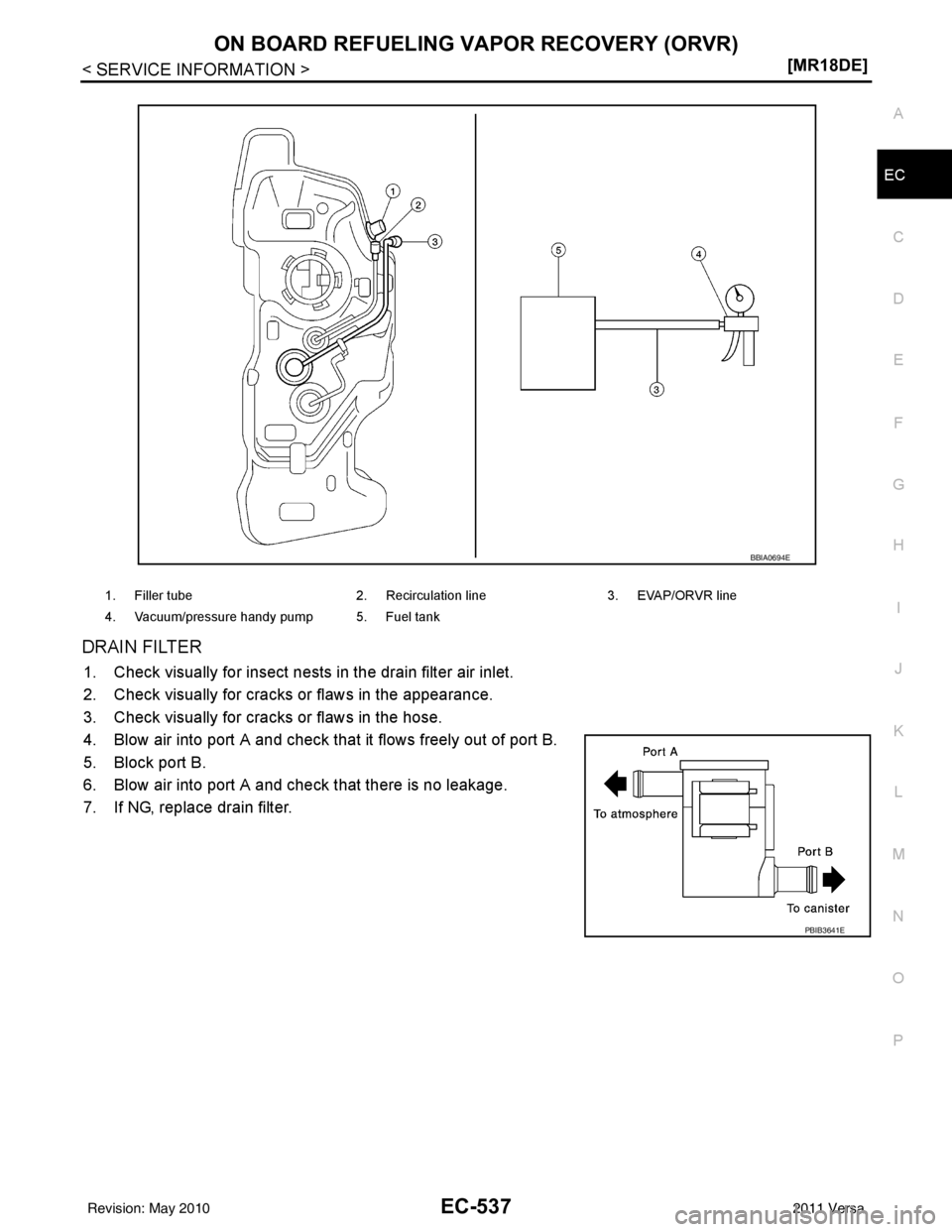

11 .CHECK ONE-WAY FUEL VALVE-

Page 1830 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-536
< SERVICE INFORMATION >[MR18DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
Without CONSULT-III
1. Remove fuel tank. Refer to
FL-10, "Removal and Installation".
2. Drain fuel from the tank as fo

Page 1831 of 3787

NISSAN LATIO 2011 Service Repair Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-537
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DRAIN FILTER
1. Check visually for insect nests in the drain filter air inlet.
2. Check

Page 1832 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-538
< SERVICE INFORMATION >[MR18DE]
POSITIVE CRANKCASE VENTILATION
POSITIVE CRANKCASE VENTILATION
DescriptionINFOID:0000000006341714
SYSTEM DESCRIPTION
