Page 1257 of 3787

DI-18
< SERVICE INFORMATION >
COMBINATION METERS
OK or NG
OK >> GO TO 2.
NG >> Replace combination meter. Refer to IP-12, "
Removal and Installation" .
2.CHECK HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Check combination meter and fuel level sensor uni t terminals (meter-side and harness-side) for poor con-
nection.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace terminals or connectors.
3.CHECK FUEL LEVEL SENSOR UNIT CIRCUIT
1. Disconnect combination meter connector and fuel level sensor unit connector.
2. Check continuity between combination meter harness connector
(A) and fuel level sensor uni t and fuel pump harness connector
(B).
3. Check continuity between combination meter harness connector (A) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4.CHECK FUEL LEVEL SENSOR UNIT GROUND CIRCUIT
1. Check continuity between combination meter harness connector (A) and fuel level sensor uni t and fuel pump harness connector
(B).
2. Check continuity between combination meter harness connector (A) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
1/4 Approx. 10
Empty Approx. 4
Fuel gauge pointer
Reference value of data monitor [lit.]
AB
Continuity
Connector Terminal Connector Terminal
M24 6 B100 2Yes
A GroundContinuity
Connector Terminal
M24 6 No
WKIA5454E
AB
Continuity
Connector Terminal Connector Terminal
M24 24 B100 5 Yes
A GroundContinuity
Connector Terminal
M24 24 No
WKIA5455E
Revision: May 2010 2011 Versa
Page 1258 of 3787

COMBINATION METERSDI-19
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P
5.CHECK FUEL LEVEL SENSOR UNIT
Check fuel level sensor unit. Refer to DI-20, "
Electrical Component Inspection" .
OK or NG
OK >> Check fuel level sensor unit installation, and c heck whether the float arm interferes or binds with
any of the internal components in the fuel tank. Repair or replace malfunctioning part, if neces-
sary.
NG >> Replace fuel level sensor unit.
Fuel Gauge Fluctuates, Indica tes Wrong Value, or VariesINFOID:0000000005929174
1.CHECK FUEL GAUGE FLUCTUATION
Test drive vehicle to see if gauge fluctuates onl y during driving or at the instant of stopping.
Does the indication value vary only during dr iving or at the at the instant of stopping?
YES >> The pointer fluctuation may be caused by fuel level change in the fuel tank. Condition is normal.
NO >> Ask the customer about the situation when the symptom occurs in detail, and perform the trouble diagnosis.
Fuel Gauge Does Not Move to Full-positionINFOID:0000000005929175
1.OBSERVE FUEL GAUGE
Does it take a long time for the pointer to move to FULL position?
YES or NO
YES >> GO TO 2.
NO >> GO TO 3.
2.IDENTIFY FUELING CONDITION
Was the vehicle fueled with the ignition switch ON?
YES or NO
YES >> Be sure to fuel the vehicle with the ignition swit ch OFF. Otherwise, it will take a long time to move
to FULL position because of the c haracteristic of the fuel gauge.
NO >> GO TO 3.
3.OBSERVE VEHICLE POSITION
Is the vehicle parked on an incline?
YES or NO
YES >> Check the fuel level indicati on with vehicle on a level surface.
NO >> GO TO 4.
4.OBSERVE FUEL GAUGE POINTER
During driving, does the fuel gauge pointer move gradually toward EMPTY position?
YES or NO
YES >> Check the components. Refer to DI-20, "Electrical Component Inspection" .
NO >> The float arm may interfere or bind with any of the components in the fuel tank.
DTC [U1000] CAN Communication CircuitINFOID:0000000005929176
Symptom: Display CAN COMM CIRC [U1000] at the re sult of self-diagnosis for combination meter.
1.CHECK CAN COMMUNICATION
1. Select "SELF-DIAG RESULTS" mode for "METER/M&A" with CONSULT-III.
2. Print out CONSULT-III screen.
>> Go to "CAN SYSTEM". Refer to LAN-17, "
Trouble Diagnosis Flow Chart".
Revision: May 2010 2011 Versa
Page 1259 of 3787
DI-20
< SERVICE INFORMATION >
COMBINATION METERS
Electrical Component Inspection
INFOID:0000000005929177
FUEL LEVEL SENSOR UNIT CHECK
For removal, refer to FL-6, "Removal and Installation" .
Check Fuel Level Sensor Unit and Fuel Pump
Check resistance between terminals 2 and 5.
1* and 2*: When float rod is in contact with stopper.
Check Fuel Level Sensor Unit and Fuel Pump Harness
Check continuity at the following terminals.
• If the results of check are NG, replace fuel pump assembly. If the
results of check are OK, replace fuel level sensor unit.
Removal and InstallationINFOID:0000000005929178
COMBINATION METER
Refer to IP-12, "Removal and Installation".
Terminals Float position mm (in) Resistance
value ( Ω)
(Approx.)
25 1* Full 160 (8.07)
6
2* Empty 20 (1.02) 80
WKIA5456E
TerminalContinuity
2 - Signal terminal (A) Ye s
5 - Ground terminal (B)
WKIA5457E
Revision: May 2010 2011 Versa
Page 1260 of 3787
WARNING LAMPSDI-21
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P
WARNING LAMPS

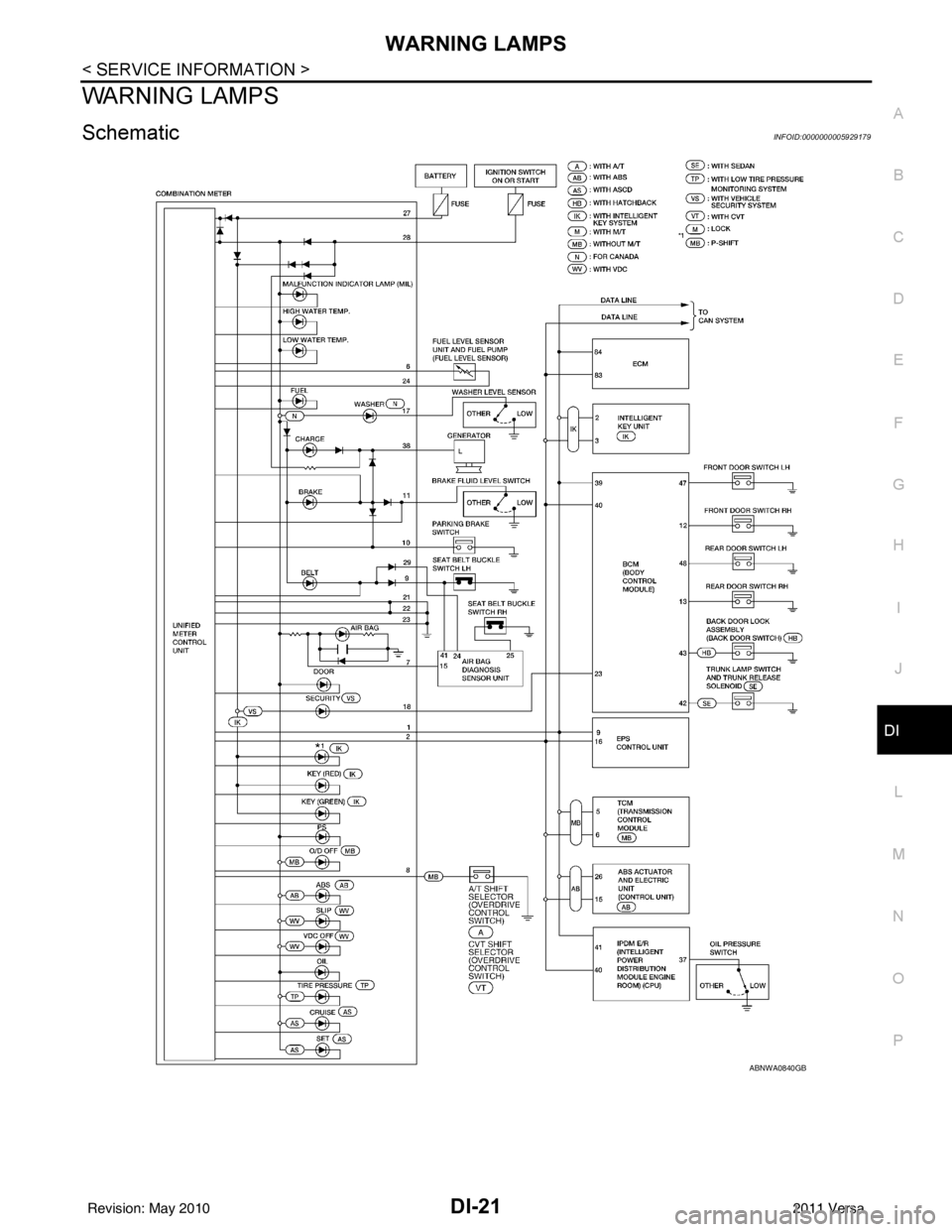

SchematicINFOID:0000000005929179
ABNWA0840GB
Revision: May 2010 2011 Versa
Page 1261 of 3787
DI-22
< SERVICE INFORMATION >
WARNING LAMPS

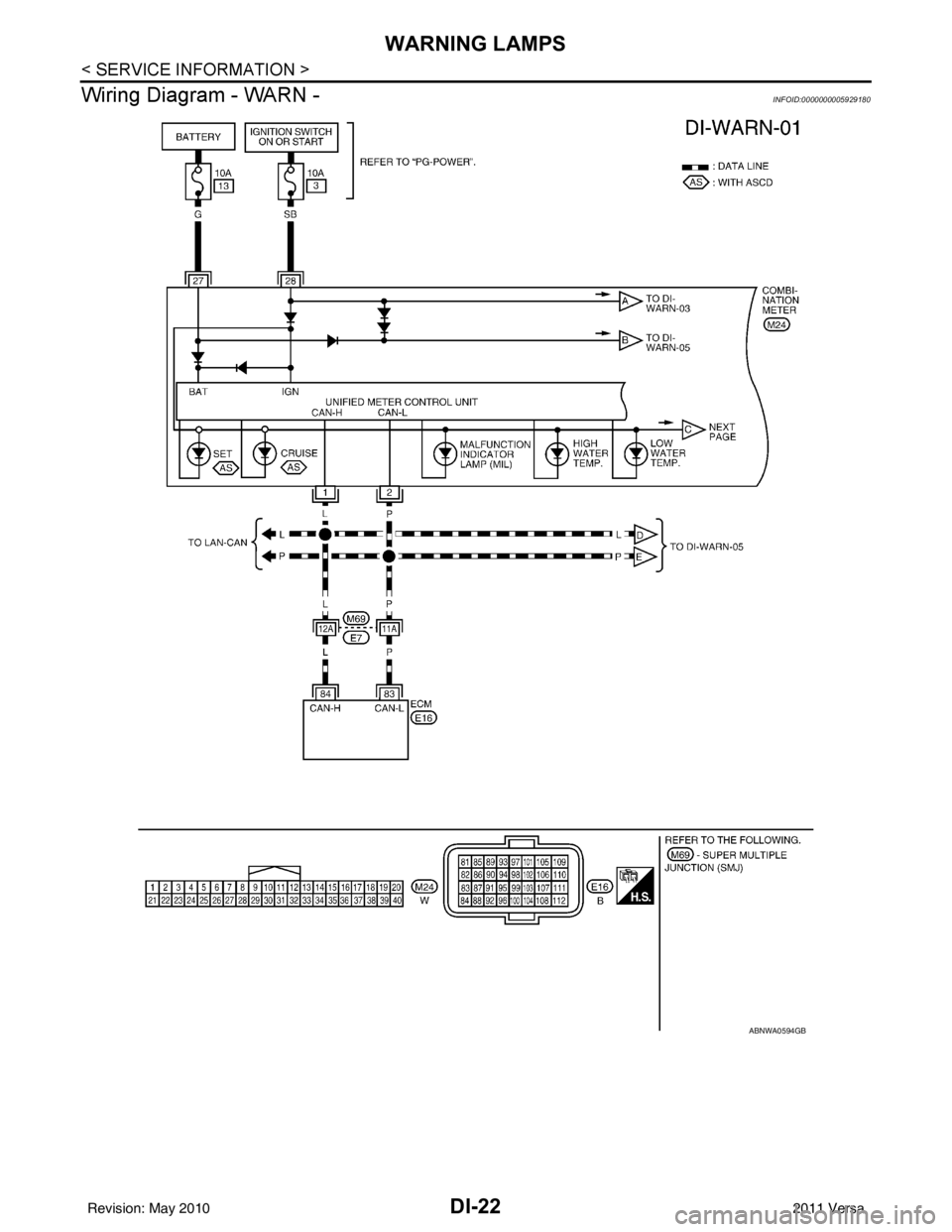

Wiring Diagram - WARN -
INFOID:0000000005929180
ABNWA0594GB
Revision: May 2010 2011 Versa
Page 1262 of 3787
WARNING LAMPSDI-23
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P

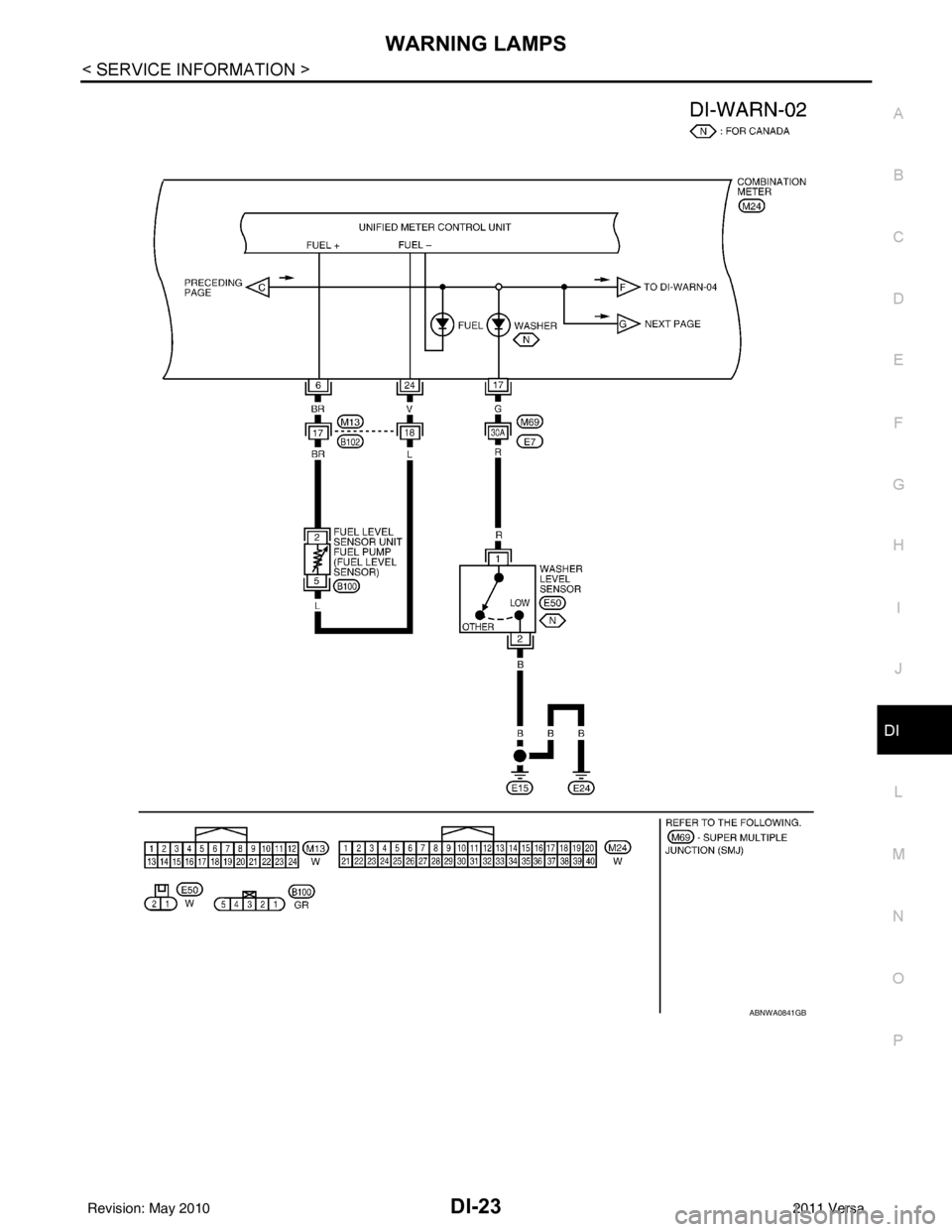

ABNWA0841GB
Revision: May 2010 2011 Versa
Page 1263 of 3787
DI-24
< SERVICE INFORMATION >

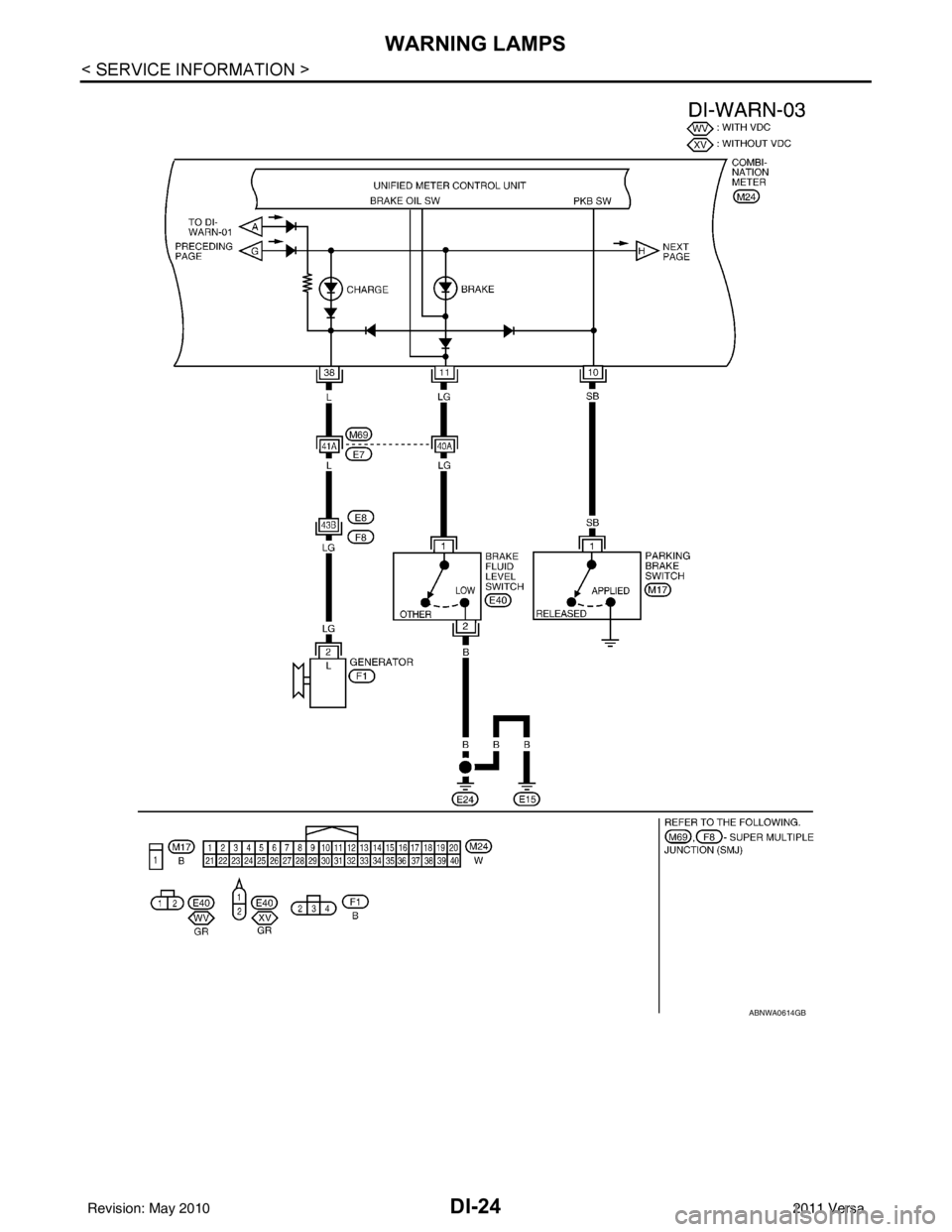

WARNING LAMPS
ABNWA0614GB
Revision: May 20102011 Versa
Page 1264 of 3787
WARNING LAMPSDI-25
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P

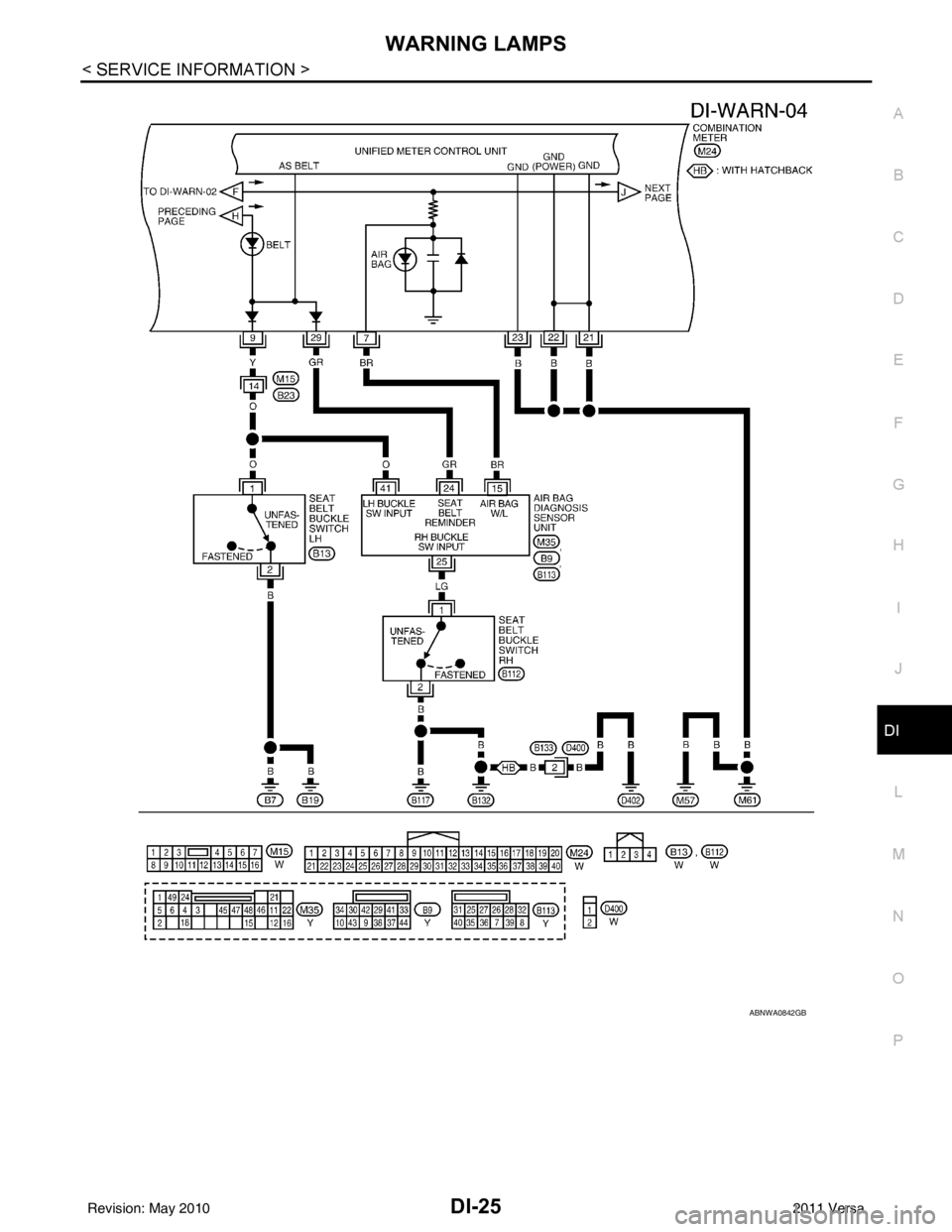

ABNWA0842GB
