Page 1273 of 3787
DI-34
< SERVICE INFORMATION >
A/T INDICATOR
A/T INDICATOR

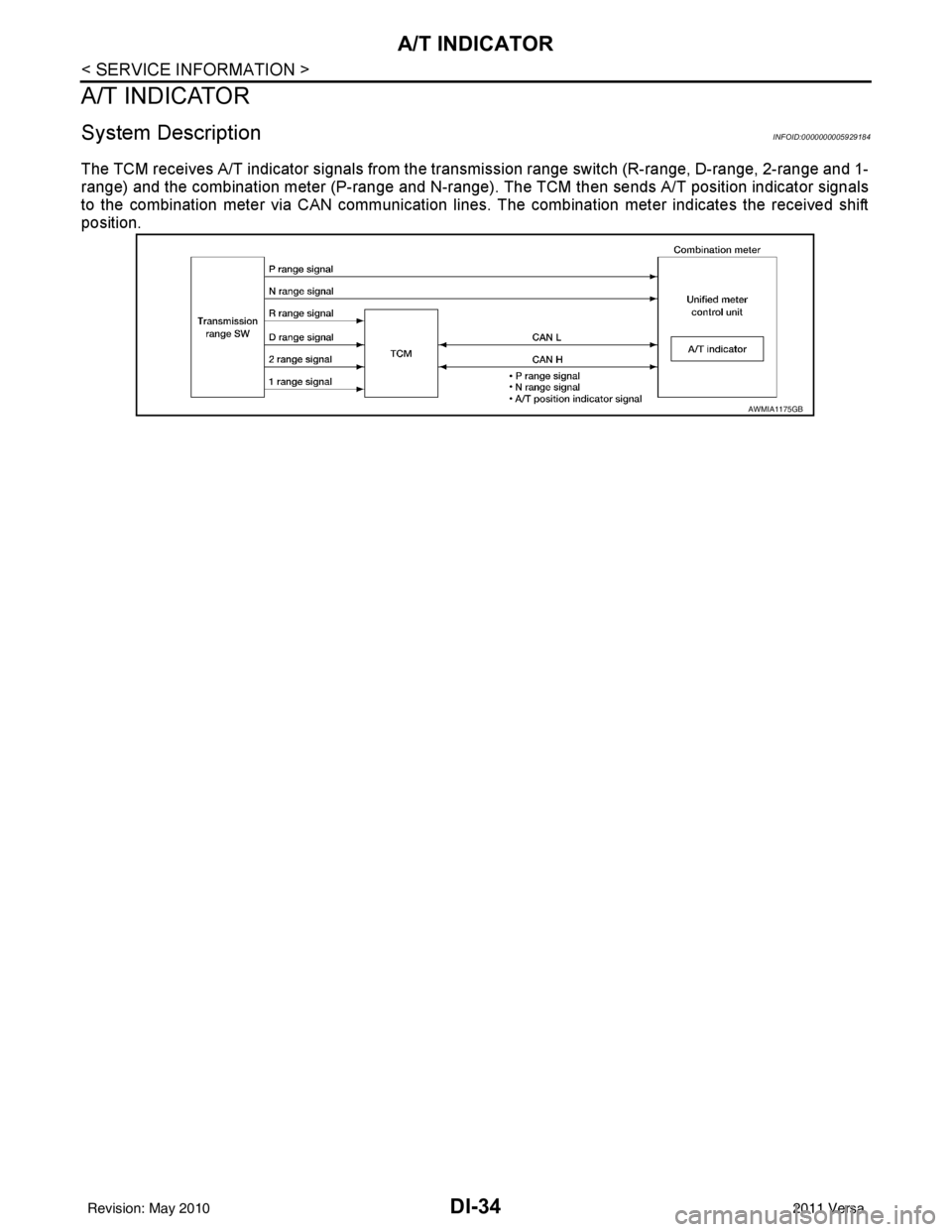

System DescriptionINFOID:0000000005929184
The TCM receives A/T indicator signals from the transmission range switch (R-range, D-range, 2-range and 1-
range) and the combination meter (P-range and N-range). The TCM then sends A/T position indicator signals
to the combination meter via CAN communication lines. The combination meter indicates the received shift
position.
AWMIA1175GB
Revision: May 20102011 Versa
Page 1274 of 3787
A/T INDICATORDI-35
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P

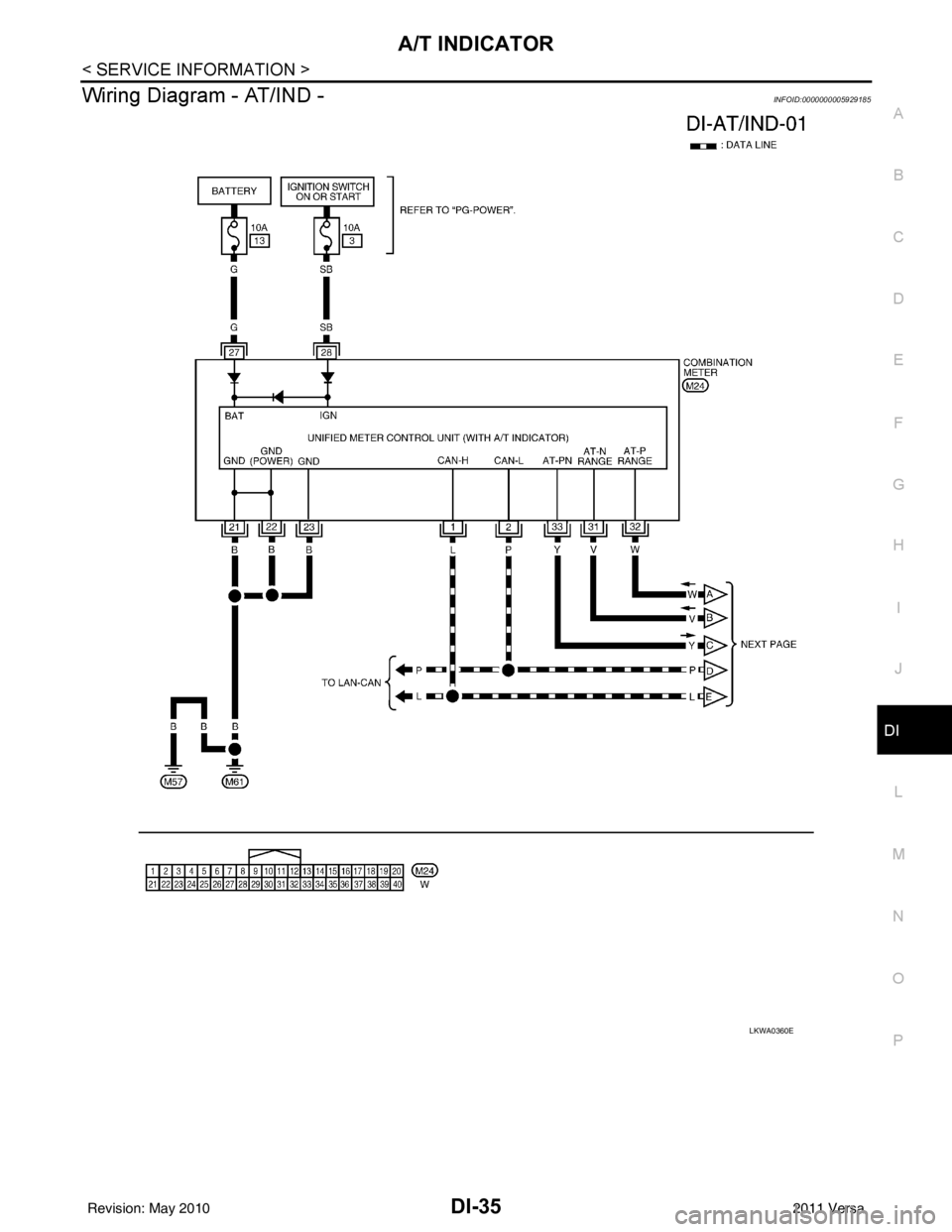

Wiring Diagram - AT/IND -INFOID:0000000005929185
LKWA0360E
Revision: May 2010 2011 Versa
Page 1275 of 3787
DI-36
< SERVICE INFORMATION >
A/T INDICATOR
A/T Indicator Does Not Illuminate
INFOID:0000000005929186
1.CHECK SEGMENT OF A/T INDICATOR

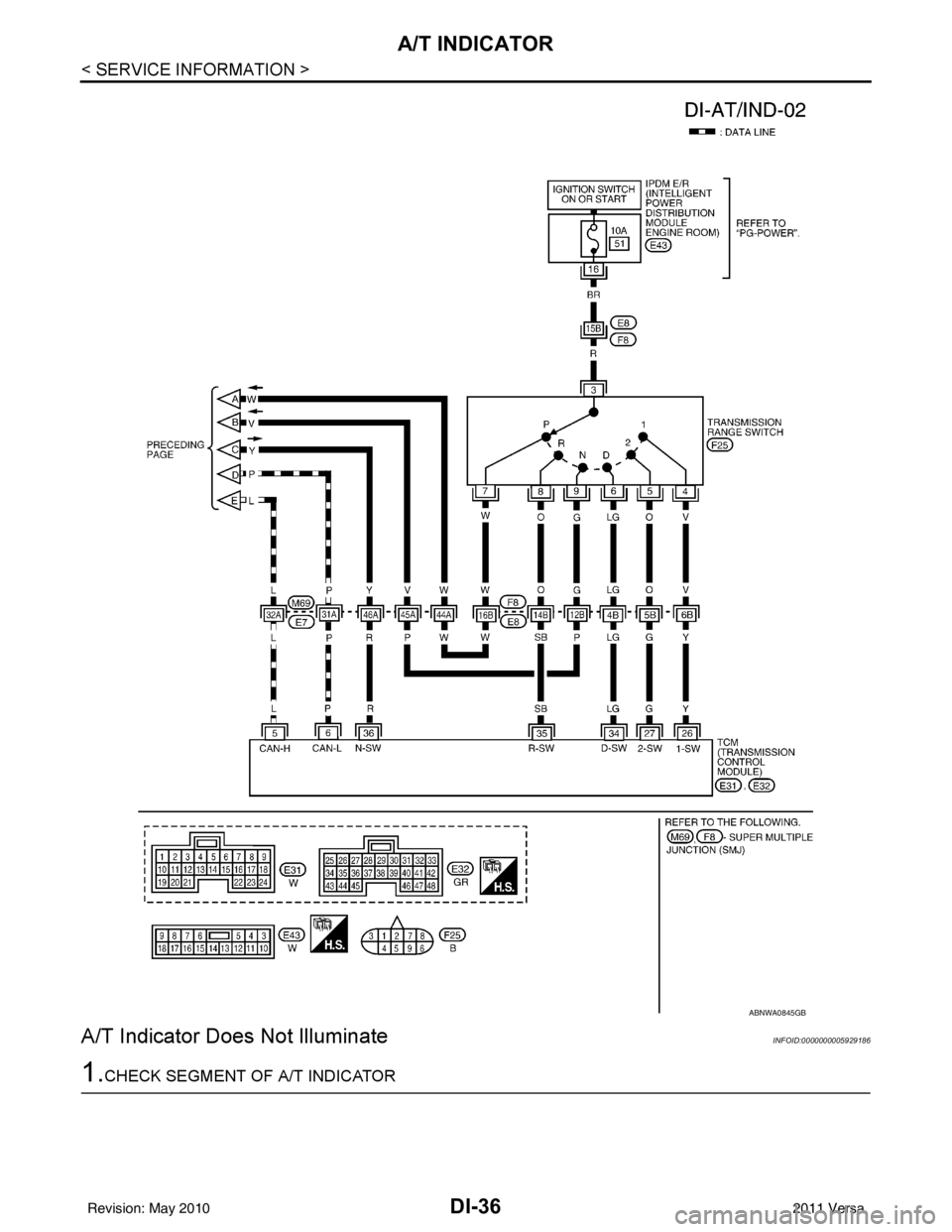

ABNWA0845GB
Revision: May 2010 2011 Versa
Page 1276 of 3787
A/T INDICATORDI-37
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P

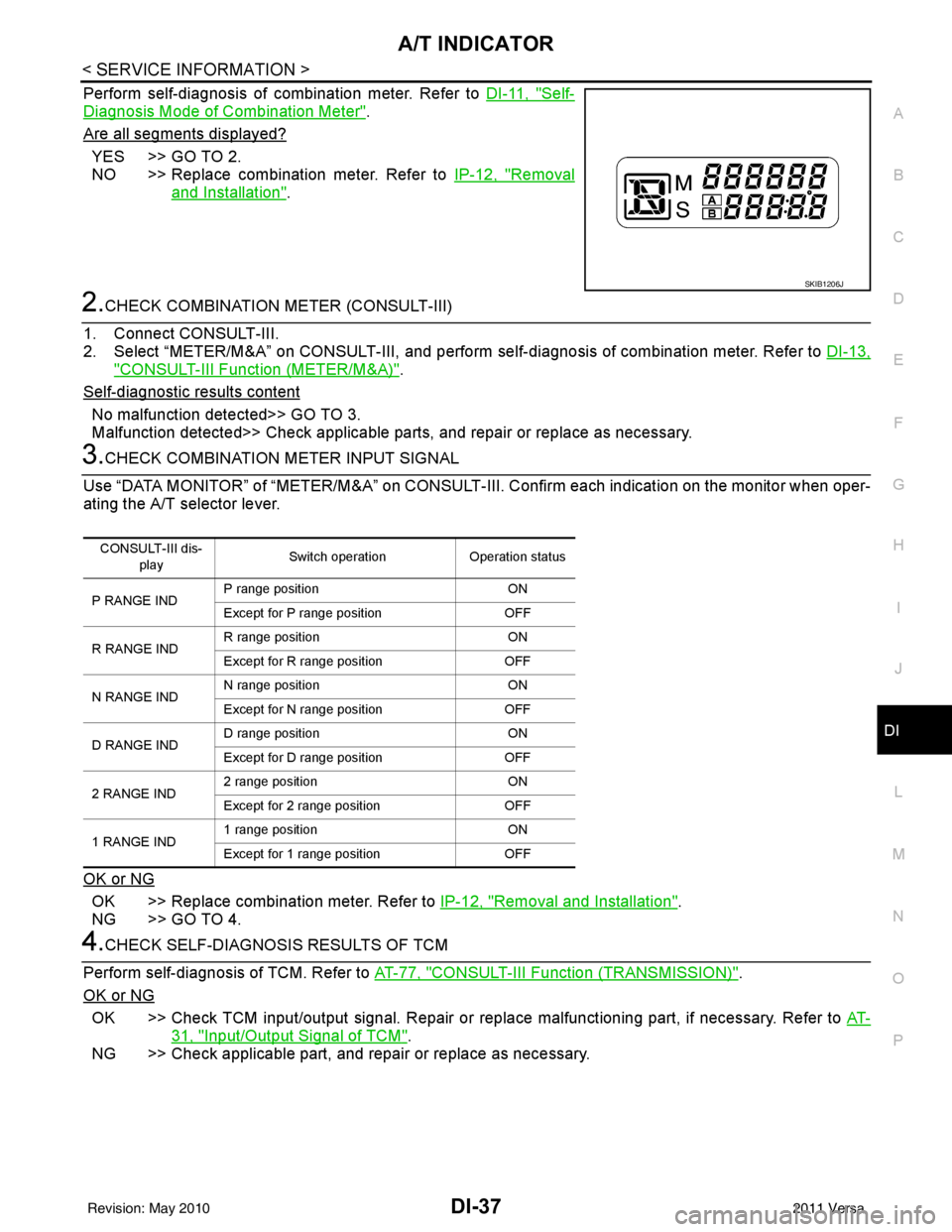

Perform self-diagnosis of combination meter. Refer to DI-11, "Self-
Diagnosis Mode of Combination Meter".
Are all segments displayed?
YES >> GO TO 2.
NO >> Replace combination meter. Refer to IP-12, "
Removal
and Installation".
2.CHECK COMBINATION METER (CONSULT-III)
1. Connect CONSULT-III.
2. Select “METER/M&A” on CONSULT-III, and perform se lf-diagnosis of combination meter. Refer to DI-13,
"CONSULT-III Function (METER/M&A)".
Self
-diagnostic results content
No malfunction detected>> GO TO 3.
Malfunction detected>> Check applicable parts, and repair or replace as necessary.
3.CHECK COMBINATION METER INPUT SIGNAL
Use “DATA MONITOR” of “METER/M&A” on CONSULT-II I. Confirm each indication on the monitor when oper-
ating the A/T selector lever.
OK or NG
OK >> Replace combination meter. Refer to IP-12, "Removal and Installation".
NG >> GO TO 4.
4.CHECK SELF-DIAGNOSIS RESULTS OF TCM
Perform self-diagnosis of TCM. Refer to AT-77, "
CONSULT-III Function (TRANSMISSION)".
OK or NG
OK >> Check TCM input/output signal. Repair or replace malfunctioning part, if necessary. Refer to AT-
31, "Input/Output Signal of TCM".
NG >> Check applicable part, and repair or replace as necessary.
SKIB1206J
CONSULT-III dis-
play Switch operation
Operation status
P RANGE IND P range position
ON
Except for P range position OFF
R RANGE IND R range position
ON
Except for R range position OFF
N RANGE IND N range position
ON
Except for N range position OFF
D RANGE IND D range position
ON
Except for D range position OFF
2 RANGE IND 2 range position
ON
Except for 2 range position OFF
1 RANGE IND 1 range position
ON
Except for 1 range position OFF
Revision: May 2010 2011 Versa
Page 1277 of 3787
DI-38
< SERVICE INFORMATION >
CVT INDICATOR
CVT INDICATOR
System DescriptionINFOID:0000000005929187
The TCM receives CVT indicator signals from the transmission range switch. The TCM then sends CVT posi-
tion indicator signals to the combination meter via CAN communication lines. The combination meter indicates
the received shift position.

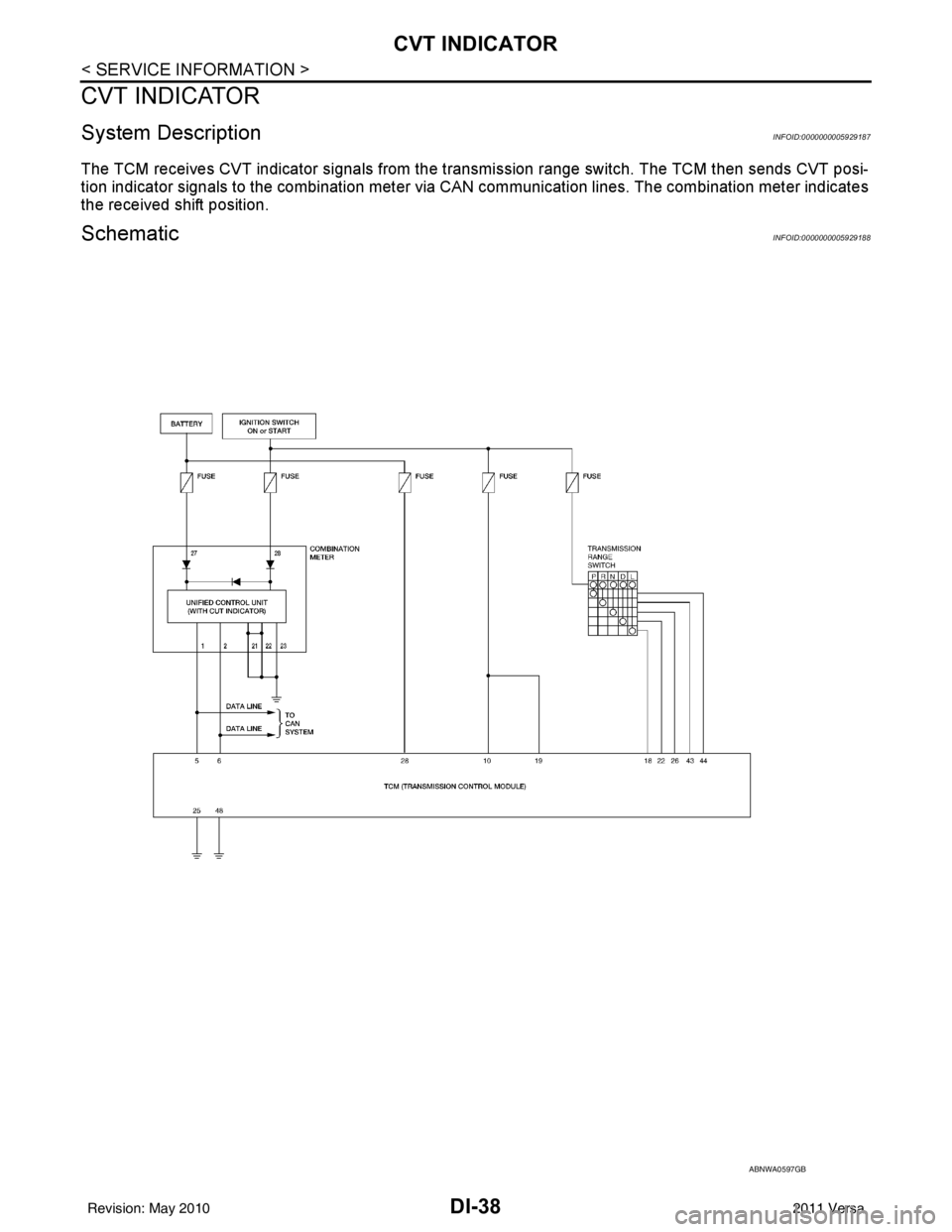

SchematicINFOID:0000000005929188
ABNWA0597GB
Revision: May 2010 2011 Versa
Page 1278 of 3787
CVT INDICATORDI-39
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P

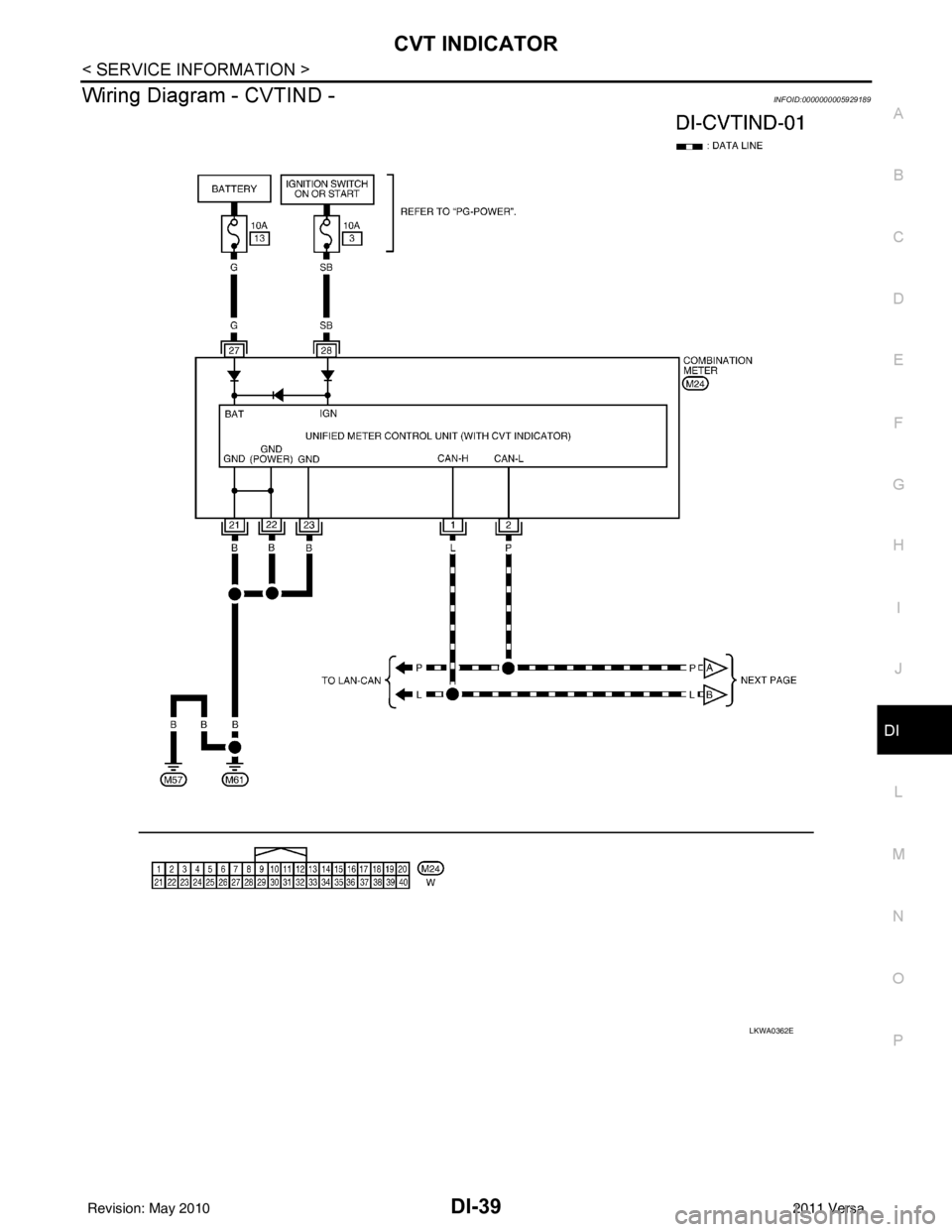

Wiring Diagram - CVTIND -INFOID:0000000005929189
LKWA0362E
Revision: May 2010 2011 Versa
Page 1279 of 3787
DI-40
< SERVICE INFORMATION >
CVT INDICATOR

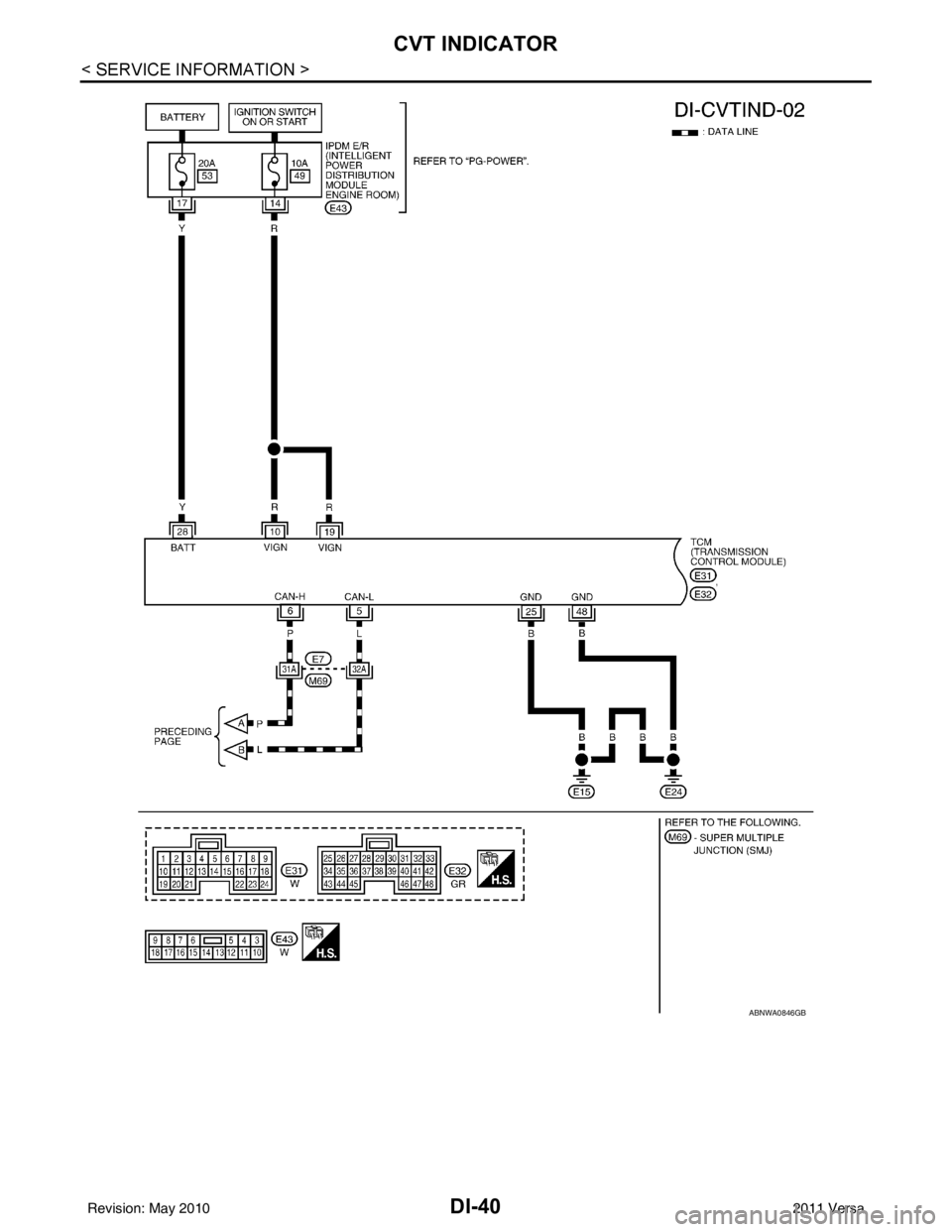

ABNWA0846GB
Revision: May 20102011 Versa
Page 1280 of 3787
CVT INDICATORDI-41
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P
CVT Indicator Does Not IlluminateINFOID:0000000005929190
1.CHECK SEGMENT OF CVT INDICATOR

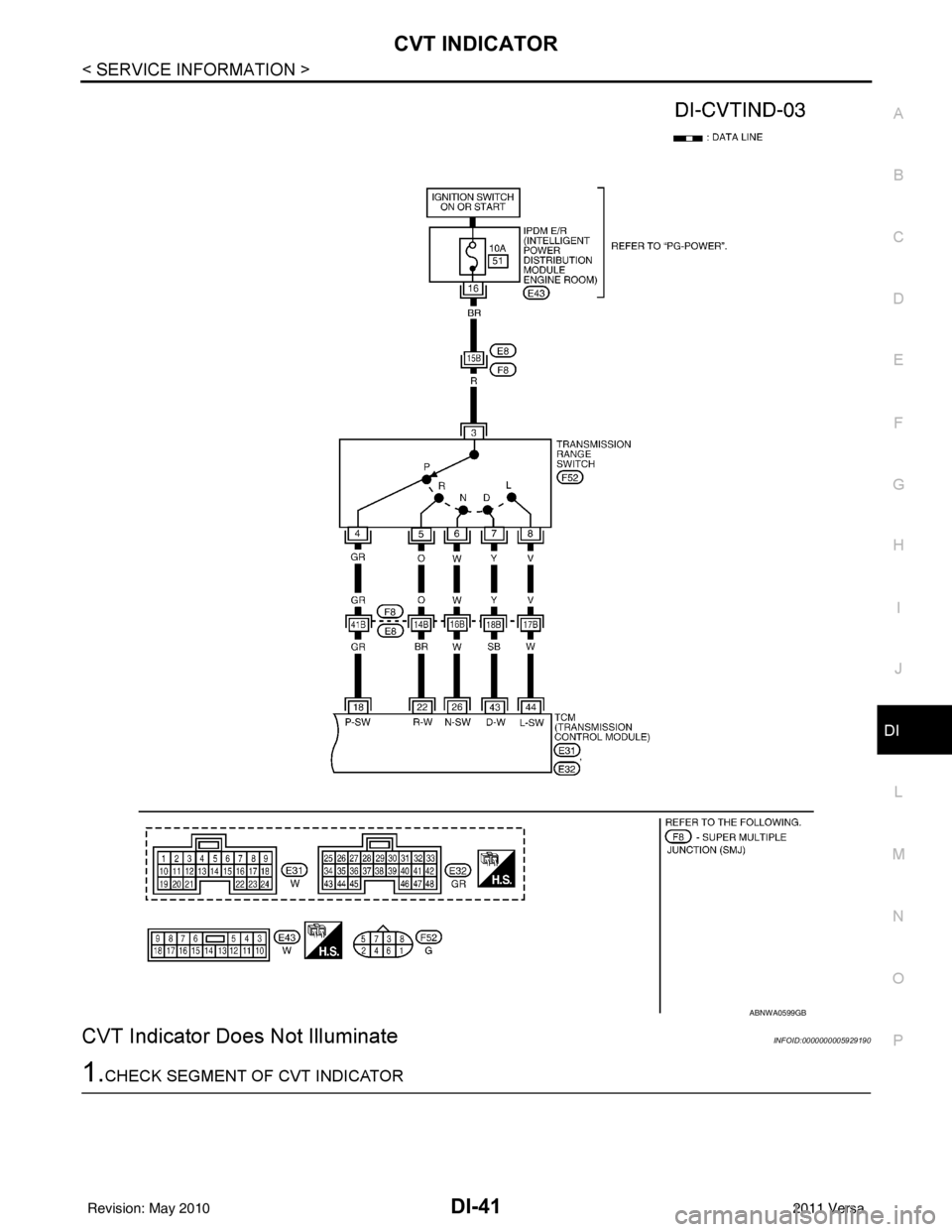

ABNWA0599GB
Revision: May 2010 2011 Versa
