Page 937 of 3787
BRC-48
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
• A customer's description of a vehicle concern may vary depending
on the individual. It is important to clarify the customer's concern.
• Ask the customer about what symptoms are present under what
conditions. Use this information to reproduce the symptom while
driving.
• It is also important to use the diagnosis sheet to understand what
type of trouble the customer is having.

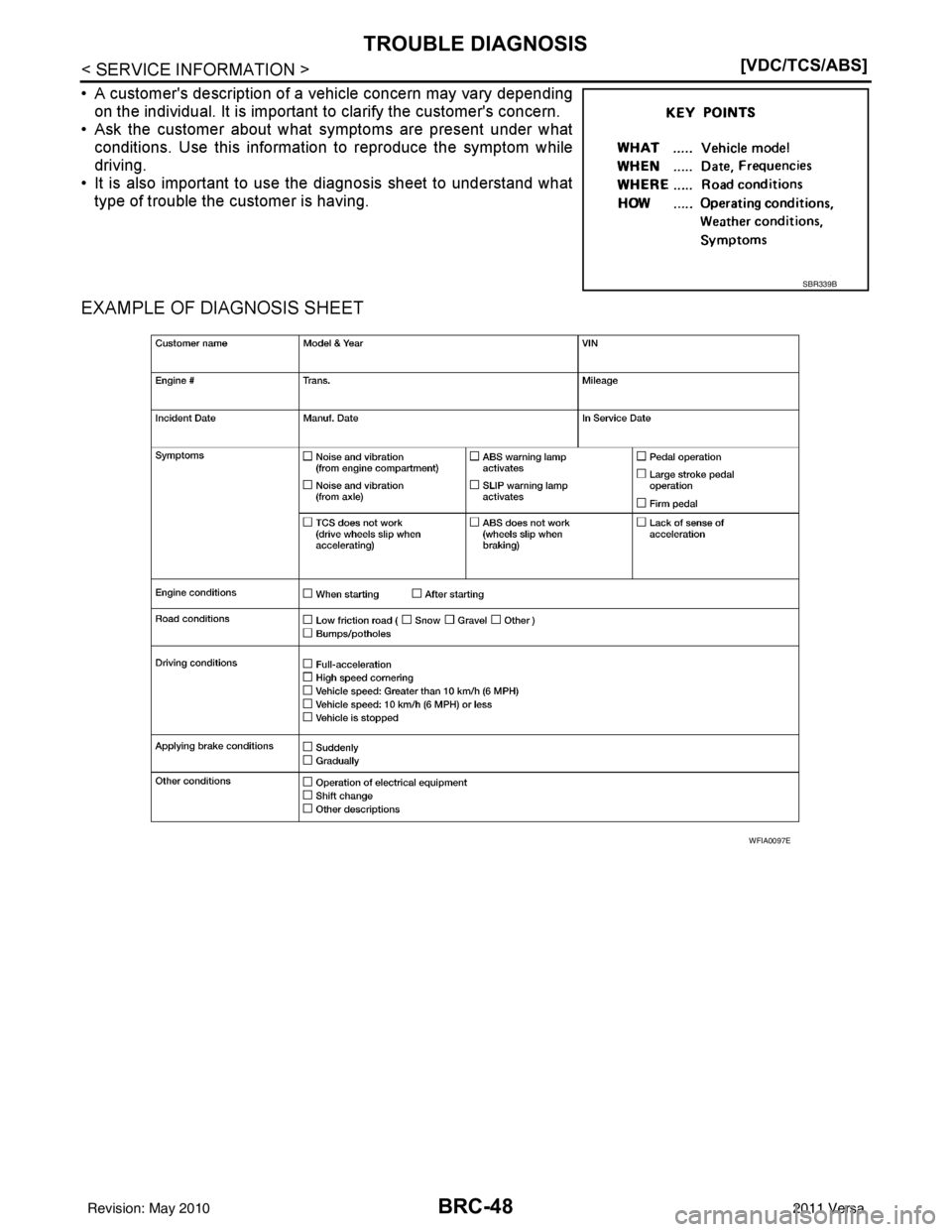

EXAMPLE OF DIAGNOSIS SHEET
SBR339B
WFIA0097E
Revision: May 2010 2011 Versa
Page 938 of 3787
TROUBLE DIAGNOSISBRC-49
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P

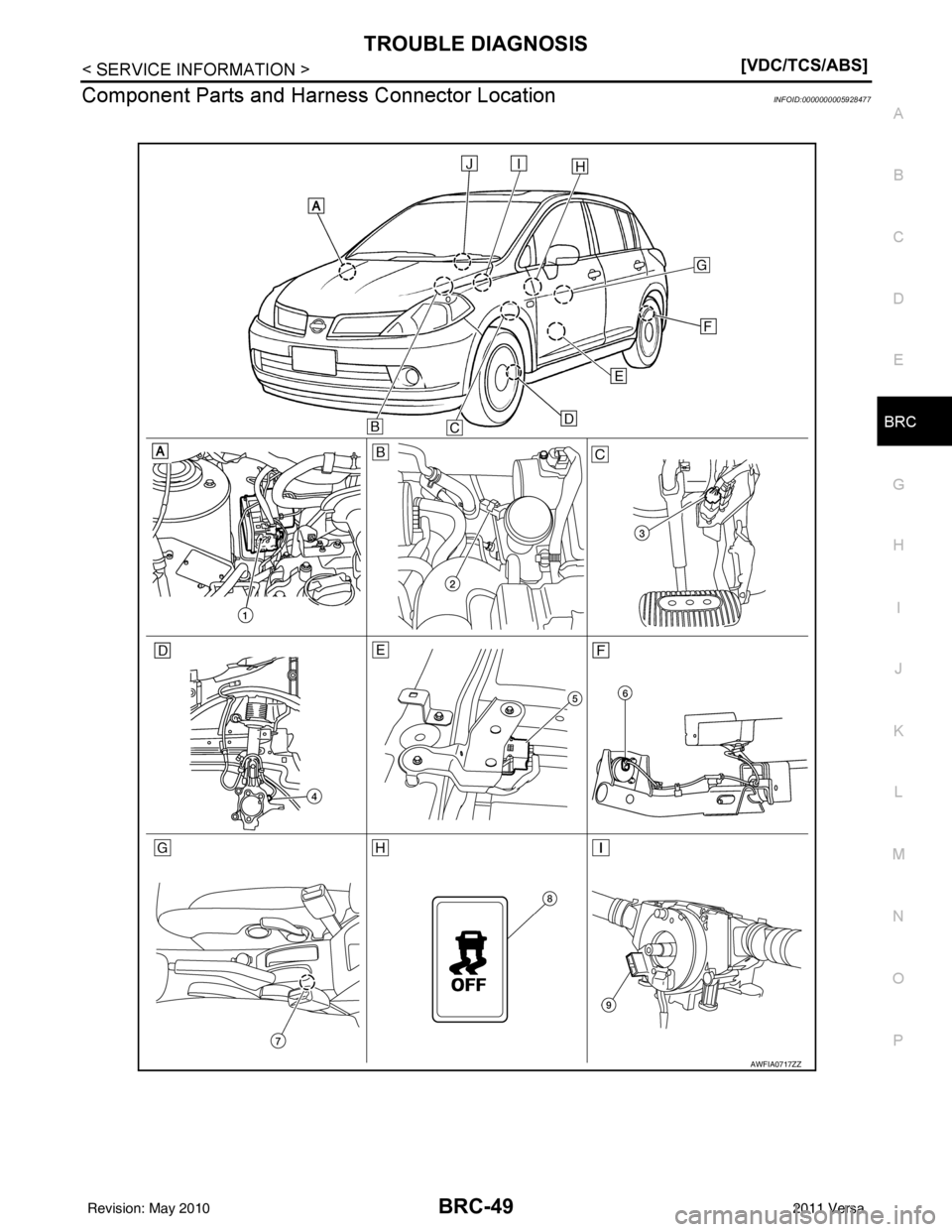

Component Parts and Har ness Connector LocationINFOID:0000000005928477
AWFIA0717ZZ
Revision: May 2010 2011 Versa
Page 939 of 3787
BRC-50
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
ALFIA0188ZZ
1. ABS actuator and electric unit (control
unit) E33 2. Brake fluid level switch E40 3. Stop lamp switch E13
4. Front wheel sensor LH E51 Front wheel sensor RH E52 5. Yaw rate/side/decel G sensor B3
(driver seat and carpet removed for
clarity) 6. Rear wheel sensor LH B123
Rear wheel sensor RH B124
7. Parking brake switch M17 8. VDC OFF switch M349. Steering angle sensor M64 (steering
wheel removed for clarity)
10. Combination meter M24
Revision: May 2010 2011 Versa
Page 940 of 3787
TROUBLE DIAGNOSISBRC-51
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P

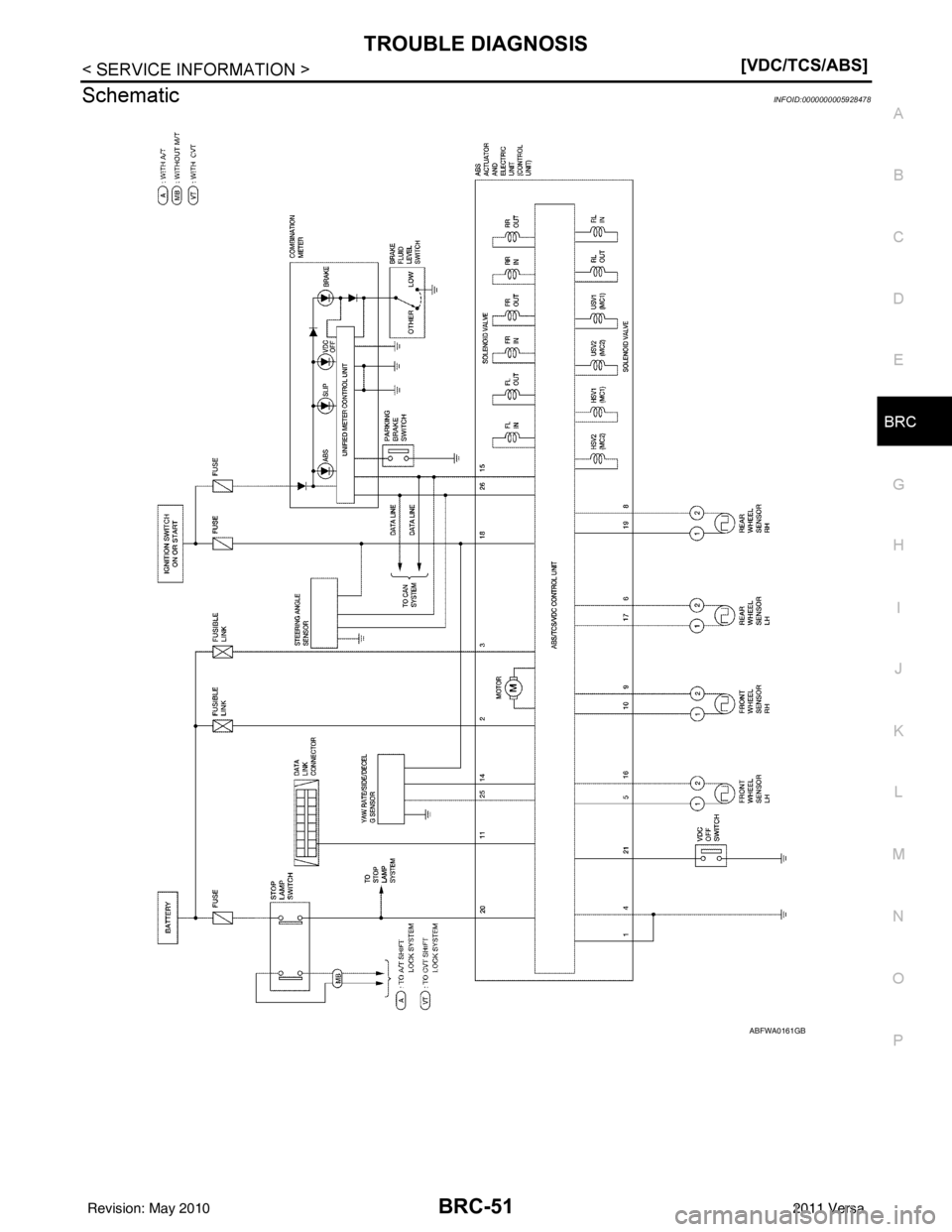

SchematicINFOID:0000000005928478
ABFWA0161GB
Revision: May 2010 2011 Versa
Page 941 of 3787
BRC-52
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS

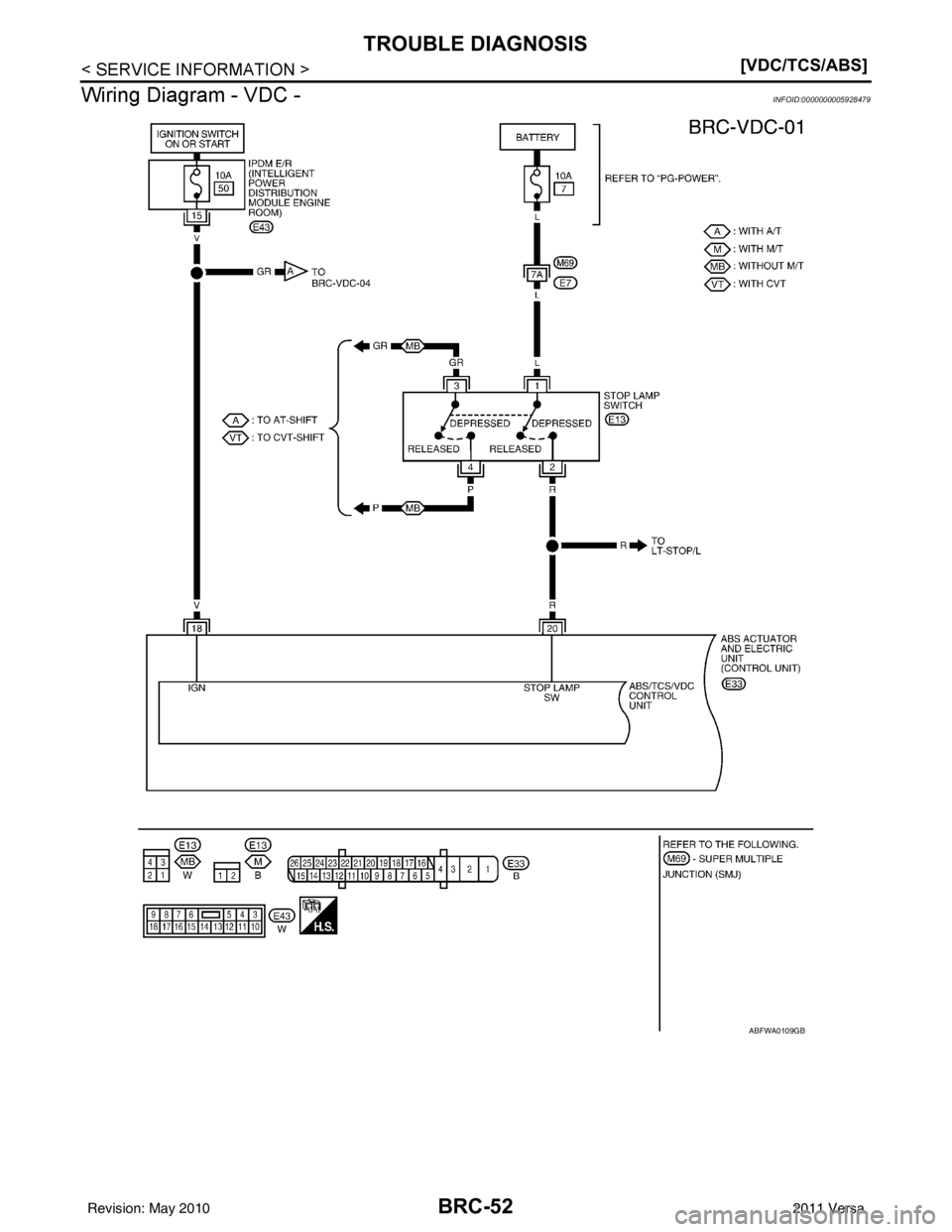

Wiring Diagram - VDC -
INFOID:0000000005928479
ABFWA0109GB
Revision: May 2010 2011 Versa
Page 942 of 3787
TROUBLE DIAGNOSISBRC-53
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P

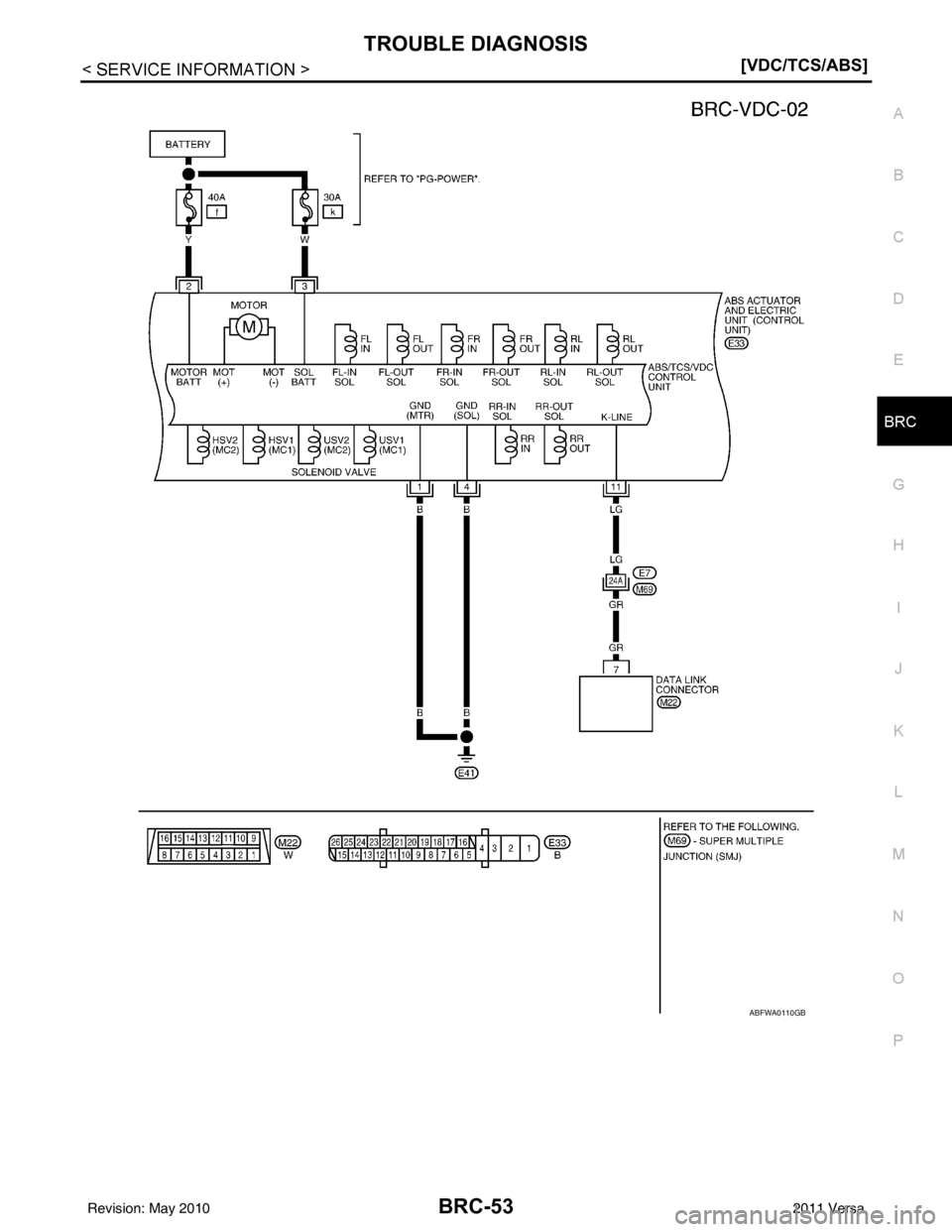

ABFWA0110GB
Revision: May 2010 2011 Versa
Page 943 of 3787
BRC-54
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS

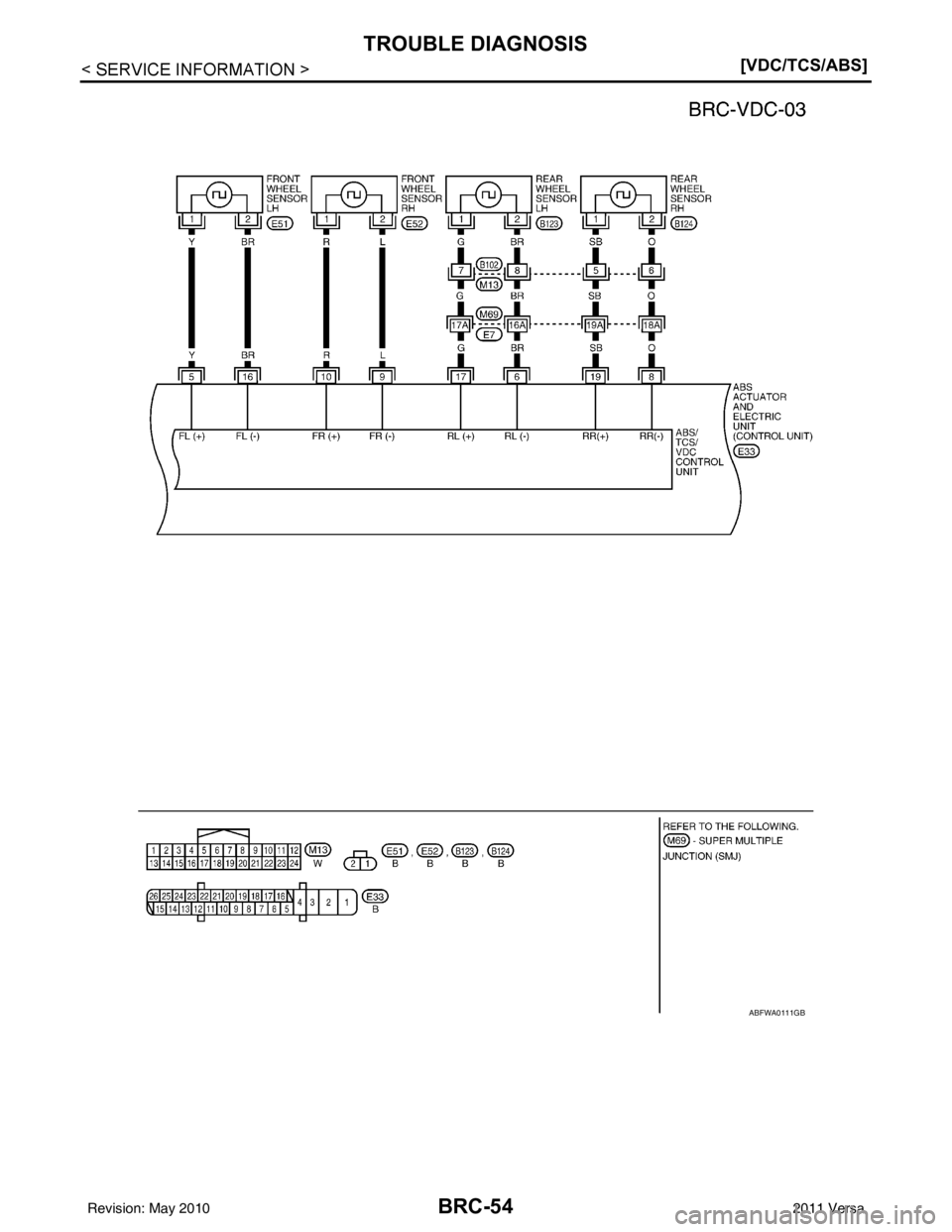

ABFWA0111GB
Revision: May 2010
2011 Versa
Page 944 of 3787
TROUBLE DIAGNOSISBRC-55
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P

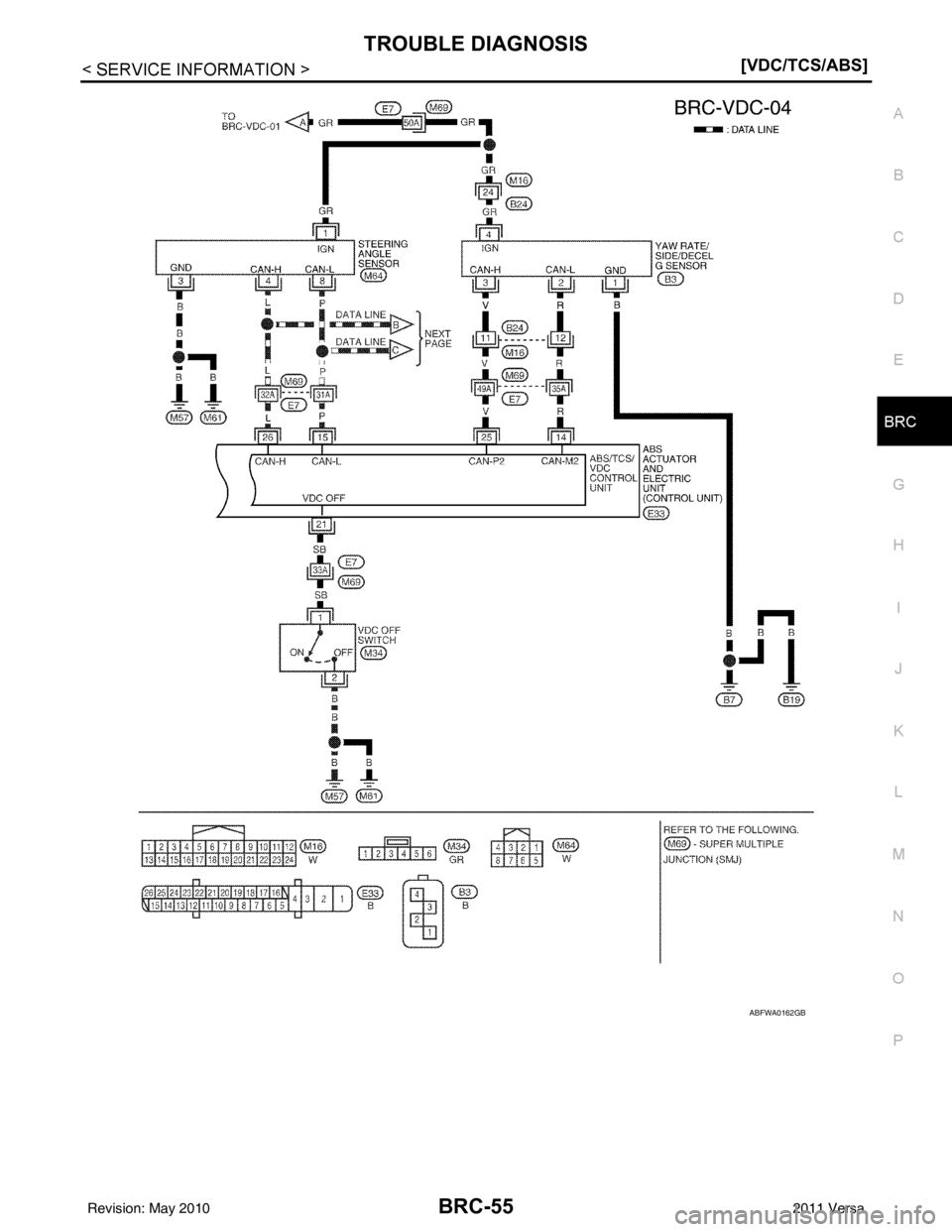

ABFWA0162GB
Revision: May 2010 2011 Versa
