Page 1657 of 3787

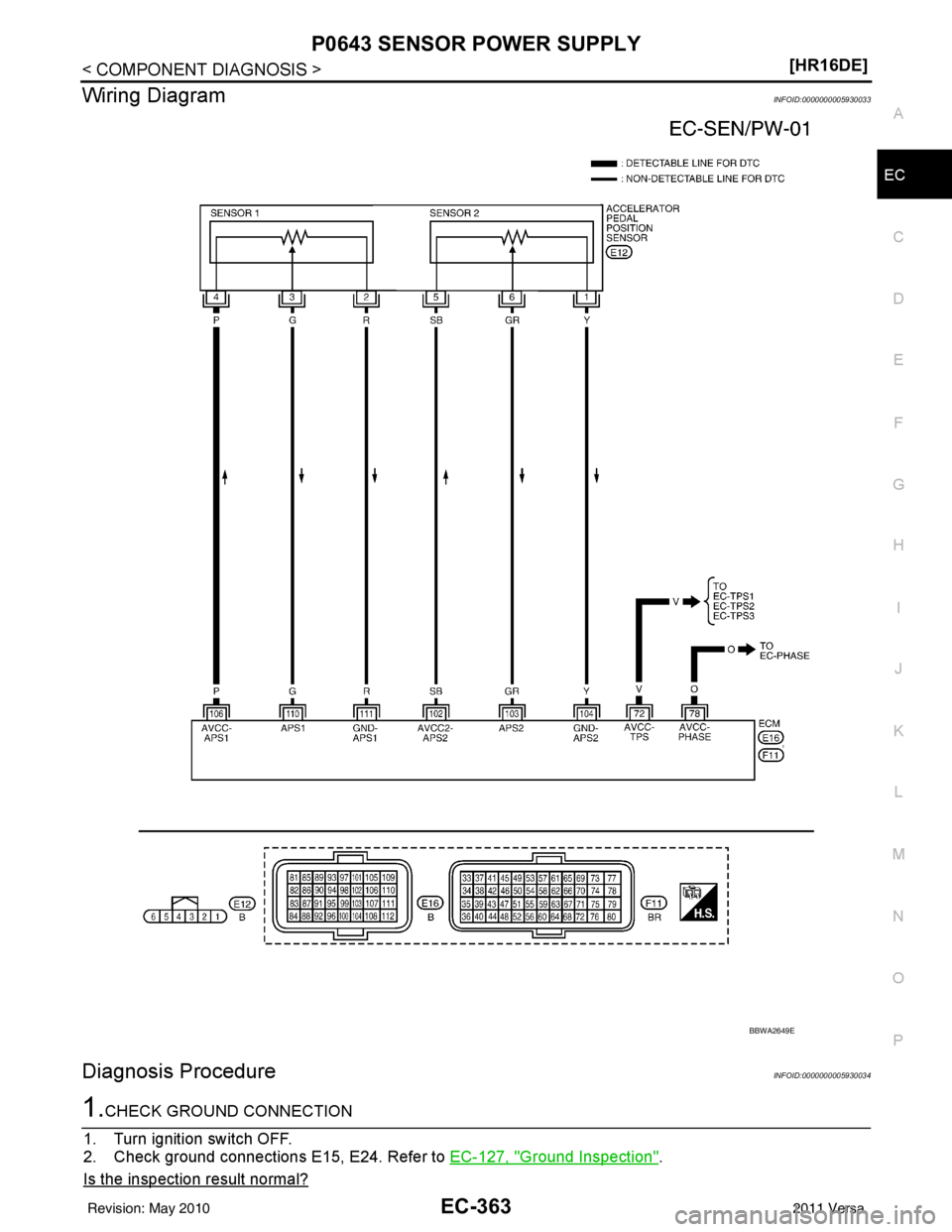

NISSAN LATIO 2011 Service Repair Manual P0643 SENSOR POWER SUPPLYEC-363 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O Wiring DiagramINFOID:0000000005930033 Diagnosis ProcedureINFOID:0000000005930034 1.CHECK GROUND CONNECT

Page 1658 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-364 < COMPONENT DIAGNOSIS >[HR16DE] P0643 SENSOR POWER SUPPLY YES >> GO TO 2. NO >> Repair or replace ground connection. 2.CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT 1. Disconn

Page 1659 of 3787

NISSAN LATIO 2011 Service Repair Manual P0643 SENSOR POWER SUPPLYEC-365 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O 8.REPLACE ACCELERATOR PEDAL ASSEMBLY 1. Replace accelerator pedal assembly. Refer to EM-27, " Exploded

Page 1660 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-366 < COMPONENT DIAGNOSIS >[HR16DE] P0850 PNP SWITCH P0850 PNP SWITCH DescriptionINFOID:0000000005930035 When the shift lever position is Neutral, pa rk/neutral position (PNP) switch is ON. (M/T) W

Page 1661 of 3787

NISSAN LATIO 2011 Service Repair Manual P0850 PNP SWITCHEC-367 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O 4. Check 1st trip DTC. Is 1st trip DTC detected? YES >> Go to EC-368, "Diagnosis Procedure". NO >> INSPECTION EN

Page 1662 of 3787

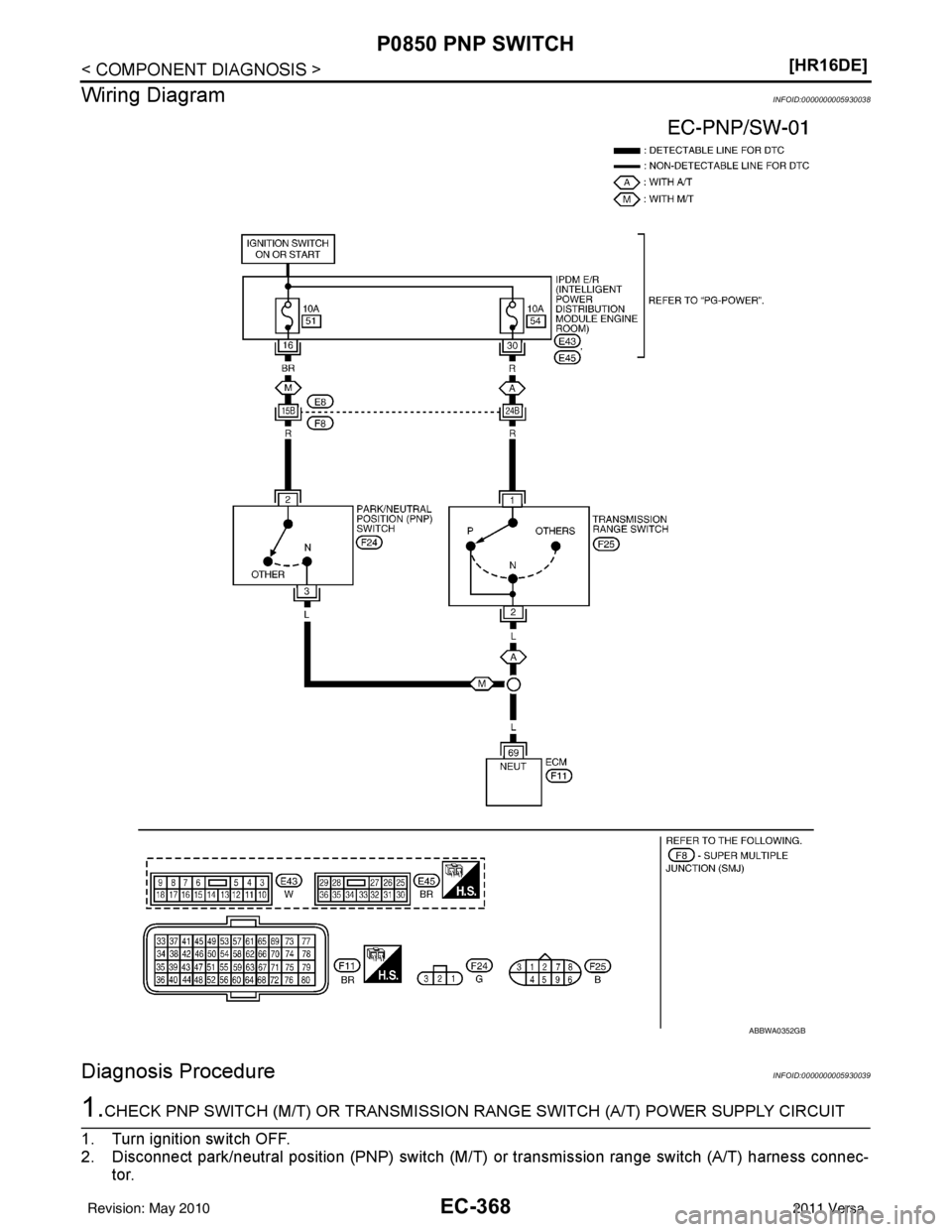

NISSAN LATIO 2011 Service Repair Manual EC-368 < COMPONENT DIAGNOSIS >[HR16DE] P0850 PNP SWITCH Wiring Diagram INFOID:0000000005930038 Diagnosis ProcedureINFOID:0000000005930039 1.CHECK PNP SWITCH (M/T) OR TRANSMISSION RANGE SWITCH (A/T)

Page 1663 of 3787

NISSAN LATIO 2011 Service Repair Manual P0850 PNP SWITCHEC-369 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O 3. Turn ignition switch ON. 4. Check the voltage between PNP switch (M/T) or transmission range switch (A/T) har

Page 1664 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-370 < COMPONENT DIAGNOSIS >[HR16DE] P0850 PNP SWITCH Refer to AT-94, "Component Inspection" (A/T) or MT-13, "Checking" (M/T). Is the inspection result normal? YES >> GO TO 5. NO >> Replace PNP sw
