NISSAN LATIO 2011 Service Repair Manual P0442 EVAP CONTROL SYSTEMEC-291
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Does water drain from the EVAP canister?
Does water drain from
the EVAP canister?
YES >> GO TO 9.
N

Page 1586 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-292
< COMPONENT DIAGNOSIS >[HR16DE]
P0442 EVAP CONTROL SYSTEM
YES >> GO TO 14.
NO >> Repair or reconnect the hose.
14.CHECK EVAP CANISTER PURGE VO
LUME CONTROL SOLENOID VALVE
Refer to EC-300, "
Co

EC-292
< COMPONENT DIAGNOSIS >[HR16DE]
P0442 EVAP CONTROL SYSTEM
YES >> GO TO 14.
NO >> Repair or reconnect the hose.
14.CHECK EVAP CANISTER PURGE VO
LUME CONTROL SOLENOID VALVE
Refer to EC-300, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 15.
NO >> Replace EVAP canister purge volume control solenoid valve. Refer to EM-27, "
Exploded View".
15.CHECK FUEL TANK TEMPERATURE SENSOR
Refer to EC-248, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 16.
NO >> Replace fuel level sensor unit, fuel filter and fuel pump assembly. Refer to FL-6, "
Removal and
Installation".
16.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-316, "
DTC Logic".
Is the inspection result normal?
YES >> GO TO 17.
NO >> Replace EVAP control system pressure sensor. Refer to FL-15, "
Exploded View".
17.CHECK EVAP PURGE LINE
Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks or improper connection.
Refer to EC-79, "
System Description".
Is the inspection result normal?
YES >> GO TO 18.
NO >> Repair or reconnect the hose.
18.CLEAN EVAP PURGE LINE
Clean EVAP purge line (pipe and rubber tube) using air blower.
>> GO TO 19.
19.CHECK EVAP/ORVR LINE
Check EVAP/ORVR line between EVAP canister and fuel tank for clogging, kink, looseness and improper con-
nection. For location, refer to EC-453, "
Description".
Is the inspection result normal?
YES >> GO TO 20.
NO >> Repair or replace hoses and tubes.
20.CHECK RECIRCULATION LINE
Check recirculation line between fuel filler tube and fuel tank for clogging, kink, cracks, looseness and
improper connection.
Is the inspection result normal?
YES >> GO TO 21.
NO >> Repair or replace hose, tube or fuel filler tube.
21.CHECK REFUELING EVAP VAPOR CUT VALVE
Refer to EC-456, "
Component Inspection (Refueli ng EVAP vapor cut valve)".
Is the inspection result normal?
YES >> GO TO 22.
NO >> Replace refueling EVAP vapor cut valve with fuel tank.
22.CHECK FUEL LEVEL SENSOR
Refer to DI-17, "
Fuel Level Sensor Signal Inspection".
Is the inspection result normal?
Revision: May 2010 2011 Versa

Page 1587 of 3787

NISSAN LATIO 2011 Service Repair Manual P0442 EVAP CONTROL SYSTEMEC-293
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 23.
NO >> Replace fuel level sensor unit, fuel filter and fuel pump assembly. Refer to FL-

Page 1588 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-294
< COMPONENT DIAGNOSIS >[HR16DE]
P0442 EVAP CONTROL SYSTEM
4. Blow air into port A and check t
hat it flows freely out of port B.
5. Block port B.
6. Blow air into port A and check that there is

Page 1589 of 3787

NISSAN LATIO 2011 Service Repair Manual P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-295
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0443 EVAP CANISTER PURGE VOLU
ME CONTROL SOLENOID VALVE
DescriptionINFO

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-295
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0443 EVAP CANISTER PURGE VOLU
ME CONTROL SOLENOID VALVE
DescriptionINFOID:0000000005929960
The EVAP canister purge volume control solenoid valve is used to
control the flow rate of fuel vapor from the EVAP canister. The EVAP
canister purge volume control solenoid valve is moved by ON/OFF
pulses from the ECM. The longer the ON pulse, the greater the
amount of fuel vapor that will flow through the valve.
DTC LogicINFOID:0000000005929961
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
• Perform “DTC CONFIRMATION PROCEDURE” when the fuel level is between 1/4 and 3/4 full, and
vehicle is placed on flat level surface.
• Always perform test at a temperature of 5 to 60 °C (41 to 140 °F).
• Cool the vehicle so that engi ne coolant temperature becomes same level as ambient temperature.
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 4.
2.PERFORM DTC CONFIRMATION PROCEDURE A
With CONSULT-III
1. Turn ignition switch ON.
2. Check that the following condition are met. FUEL T/TMP SE: 0 - 35 °C (32 - 95° F)
3. Start engine and wait at least 60 seconds.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-297, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE B
JMBIA0069ZZ
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0443 EVAP canister purge
volume control solenoid
valve A
The canister purge flow is detected during
the vehicle is stopped while the engine is
running, even when EVAP canister purge
volume control solenoid valve is complete-
ly closed. • EVAP control system pressure sensor
• EVAP canister purge volume control so-
lenoid valve
(The valve is stuck open.)
• EVAP canister vent control valve
• EVAP canister
• Hoses (Hoses are connected incorrectly or
clogged.)
B
The canister purge flow is detected during
the specified driving conditions, even
when EVAP canister purge volume control
solenoid valve is completely closed.
Revision: May 2010
2011 Versa

Page 1590 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-296
< COMPONENT DIAGNOSIS >[HR16DE]
P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch

Page 1591 of 3787

NISSAN LATIO 2011 Service Repair Manual P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-297
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

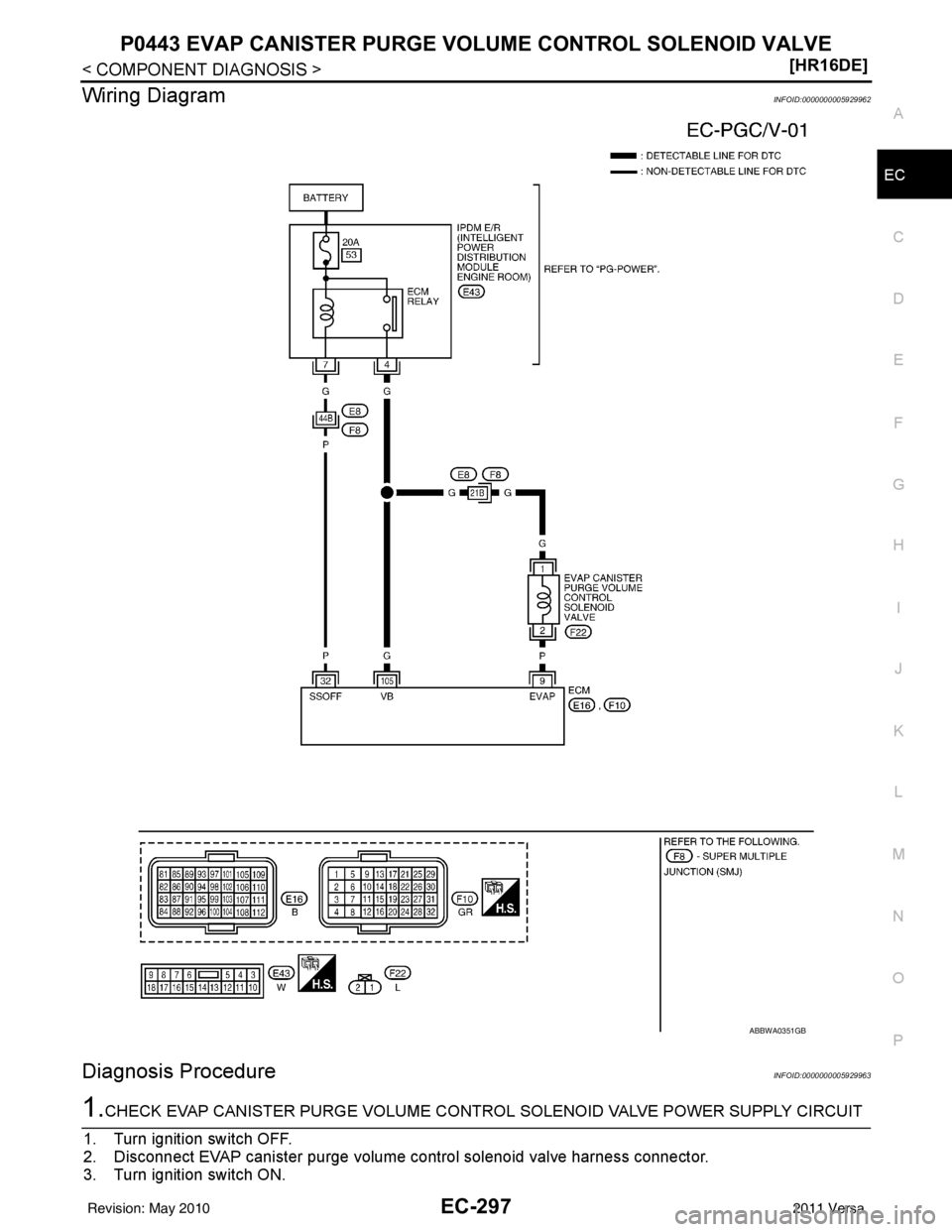

Wiring DiagramINFOID:0000000005929962
Diagnosis ProcedureINFOID:00000000

Page 1592 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-298
< COMPONENT DIAGNOSIS >[HR16DE]
P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
4. Check the voltage between EVAP canister purge volume control
solenoid valve harness connector and grou

EC-298
< COMPONENT DIAGNOSIS >[HR16DE]
P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
4. Check the voltage between EVAP canister purge volume control
solenoid valve harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• IPDM E/R harness connector E43
• Harness for open or short between EVAP canister purge volume control solenoid valve and IPDM E/R
• Harness for open or short between EVAP canister purge volume control solenoid valve and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK EVAP CANISTER PURGE VOLUME CONTRO L SOLENOID VALVE OUTPUT SIGNAL CIRCUIT
FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EVAP canister purge volume control solenoid valve harness connector and
ECM harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR
1. Disconnect EVAP control system pressure sensor harness connector.
2. Check connectors for water.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace EVAP control system pressure sensor. Refer to FL-15, "
Exploded View".
5.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-318, "
Component Inspection".
Is the inspection result normal?
YES-1 >> With CONSULT-III: GO TO 6.
YES-2 >> Without CONSULT-III: GO TO 7.
NO >> Replace EVAP control system pressure sensor. Refer to FL-15, "
Exploded View".
6.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
With CONSULT-III
1. Turn ignition switch OFF.
EVAP canister purge volume
control solenoid valve Ground Voltage
Connector Terminal
F22 1 Ground Battery voltage
PBIB0080E
EVAP canister purge volume
control solenoid valve ECM
Continuity
Connector Terminal Connector Terminal
F22 2F10 9Existed
