2011 NISSAN LATIO Service Repair Manual

change language key battery navigation system tire pressure reset warning manual transmission

Load previous 8 pages

Page 1745 of 3787

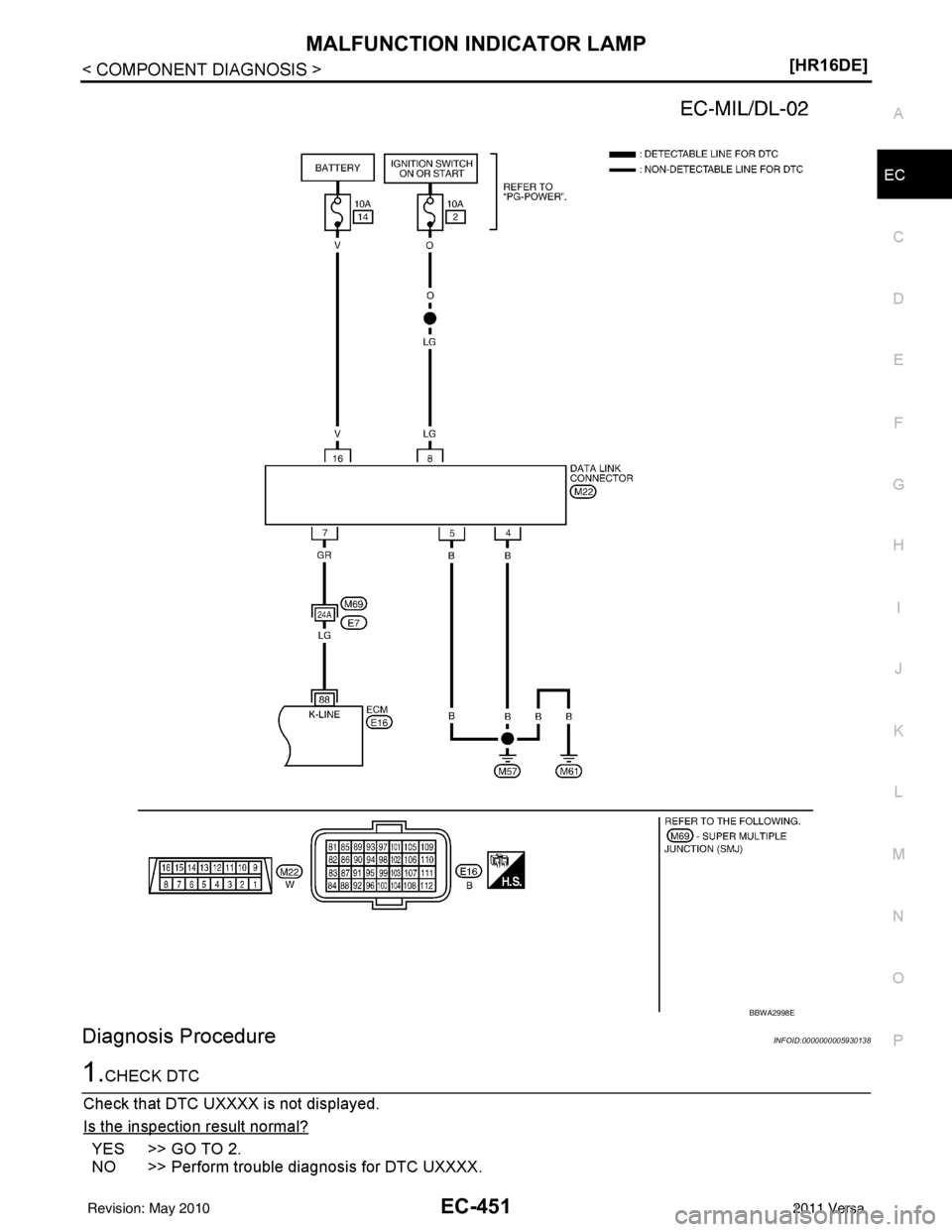

NISSAN LATIO 2011 Service Repair Manual MALFUNCTION INDICATOR LAMPEC-451
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000005930138
1.CHECK DTC
Check that DTC UXXXX is not displayed.
Is the i

Page 1746 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-452
< COMPONENT DIAGNOSIS >[HR16DE]
MALFUNCTION INDICATOR LAMP
2.CHECK DTC WITH METER
Refer to DI-13, "
CONSULT-III Function (METER/M&A)".
Is the inspection result normal?
YES >> GO TO 3.
NO >> Re

Page 1747 of 3787

NISSAN LATIO 2011 Service Repair Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-453
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
DescriptionINFOID:0000000005930139
From the beg

ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-453
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
DescriptionINFOID:0000000005930139
From the beginning of refueling, the air and vapor insi
de the fuel tank go through refueling EVAP vapor cut
valve and EVAP/ORVR line to the EVAP canister. The v apor is absorbed by the EVAP canister and the air is
released to the atmosphere.
When the refueling has reached the full level of the fuel tank, the refueling EVAP vapor cut valve is closed and
refueling is stopped because of auto shut-off. The vapor which was absorbed by the EVAP canister is purged
during driving.
WARNING:
When conducting inspectio ns below, be sure to observe the following:
• Put a “CAUTION: FLAMMABL E” sign in workshop.
• Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.
• Be sure to furnish the workshop with a CO
2 fire extinguisher.
CAUTION:
• Before removing fuel line parts, carry out the following procedures:
- Put drained fuel in an explosion-proof containe r and put lid on securely.
- Release fuel pressure from fuel line. Refer to FL-5, "
Checking Fuel Line".
- Disconnect battery ground cable.
• Always replace O-ring when the fu el gauge retainer is removed.
• Do not kink or twist hose and tube when they are installed.
• Do not tighten hose and clamps excessively to avoid damaging hoses.
• After installation, run engine and check for fuel leaks at connection.
• Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically.
Continued refueling may cause fuel overflow, resulting in fuel spray and possibly a fire.
Component Function CheckINFOID:0000000005930140
1.CHECK ORVR FUNCTION
Check whether the following symptoms are present.
• Fuel odor from EVAP canister is strong.
• Cannot refuel/Fuel odor from the fuel filler opening is strong while refueling.
Is any symptom present?
YES >> Go to EC-453, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000005930141
1.INSPECTION START
Check whether the following symptoms are present.
A: Fuel odor from EVAP canister is strong.
JMBIA1930GB
Revision: May 2010 2011 Versa

Page 1748 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-454
< COMPONENT DIAGNOSIS >[HR16DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
B: Cannot refuel/Fuel odor from the fuel
filler opening is strong while refueling.
Which symptom is present?
A>>GO TO 2

Page 1749 of 3787

NISSAN LATIO 2011 Service Repair Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-455
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 9.
NO >> GO TO 10.
9.CHECK IF EVAP CANISTER
IS SATURATED WITH WATER
Check

Page 1750 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-456
< COMPONENT DIAGNOSIS >[HR16DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
17.CHECK ONE-WAY FUEL VALVE-I
Check one-way valve for clogging.
Is the inspection result normal?
YES >> GO TO 18.
NO >>

EC-456
< COMPONENT DIAGNOSIS >[HR16DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
17.CHECK ONE-WAY FUEL VALVE-I
Check one-way valve for clogging.
Is the inspection result normal?
YES >> GO TO 18.
NO >> Repair or replace one-way fuel valve with fuel tank. Refer to FL-10, "
Removal and Installation".
18.CHECK ONE-WAY FUEL VALVE-II
1. Make sure that fuel is drained from the tank.
2. Remove fuel filler tube and hose.
3. Check one-way fuel valve for operation as per the following. When a stick is inserted, the valve should open, when removing
stick it should close.
Do not drop any material into the tank.

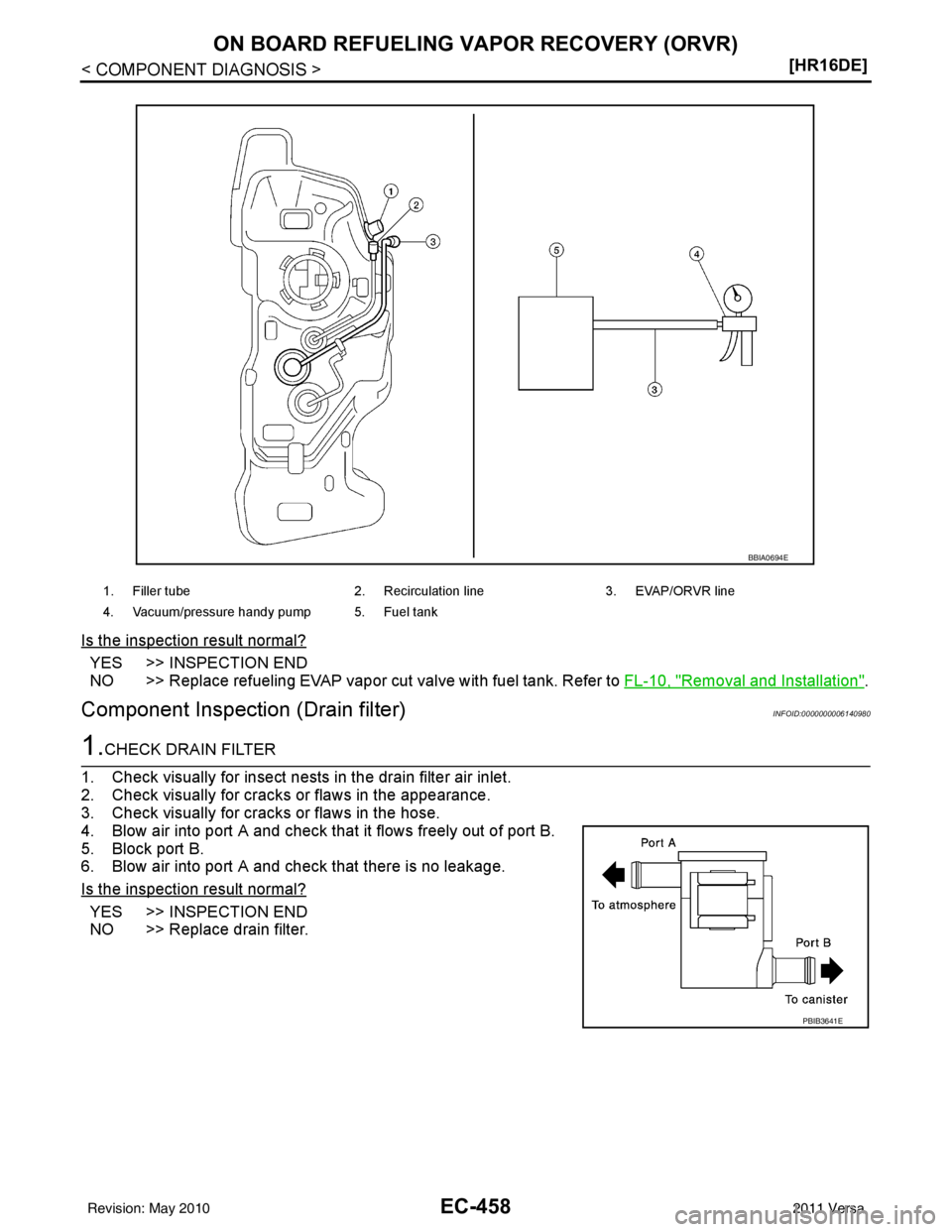

Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace fuel filler tube or replace one-way fuel valve with fuel tank. Refer to FL-10, "
Removal and Installa-
tion".
Component Inspection (Refueling EVAP vapor cut valve)INFOID:0000000005930142
1.INSPECTION START
Do you have CONSULT-III?
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK REFUELING EVAP VAPOR CUT VALVE
With CONSULT-III
1. Remove fuel tank. Refer to FL-10, "
Removal and Installation".
2. Drain fuel from the tank as per the following:
- Remove fuel feed hose located on the fuel gauge retainer.
- Connect a spare fuel hose, one side to fuel gauge re tainer where the hose was removed and the other
side to a fuel container.
- Drain fuel using “FUEL PUMP RELAY” in “ACTIVE TEST” mode with CONSULT-III.
3. Check refueling EVAP vapor cut valve for being stuck to close as per the following.
Blow air into the refueling EVAP vapor cut valv e (from the end of EVAP/ORVR line hose), and check that
the air flows freely into the tank.
4. Check refueling EVAP vapor cut valve for being stuck to open as per the following.
- Connect vacuum pump to hose end.
- Remove fuel gauge retainer with fuel gauge unit. Always replace O-ri ng with new one.
- Put fuel tank upside down.
- Apply vacuum pressure to hose end [ −13.3 kPa ( −0.136 kg/cm
3, −1.93 psi)] with fuel gauge retainer
remaining open and check that the pressure is applicable.
SEF665U
Revision: May 2010 2011 Versa

Page 1751 of 3787

NISSAN LATIO 2011 Service Repair Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-457
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace refueling EVAP vapo

Page 1752 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-458
< COMPONENT DIAGNOSIS >[HR16DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace refueling EVAP vapor cut valve with fuel tank. Refe
