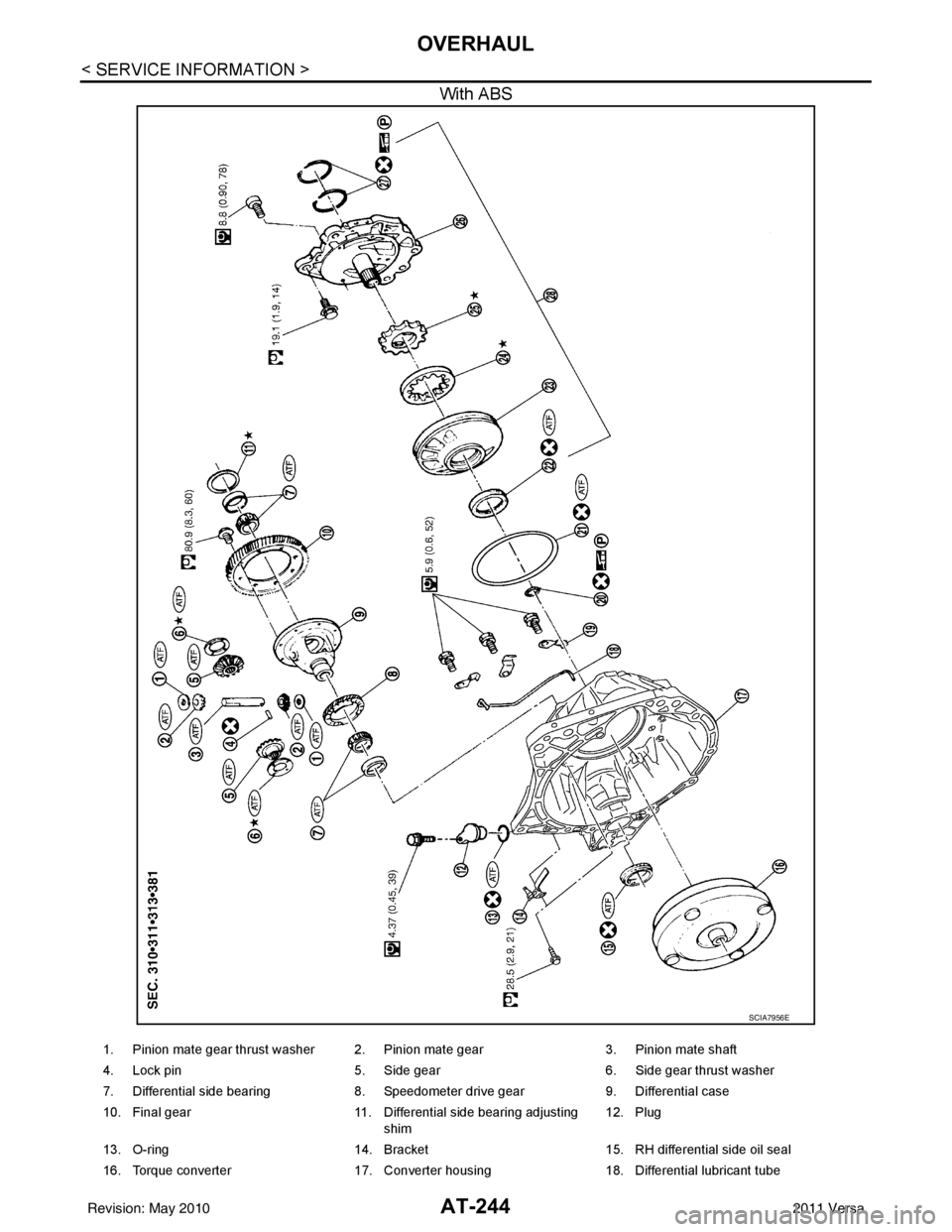

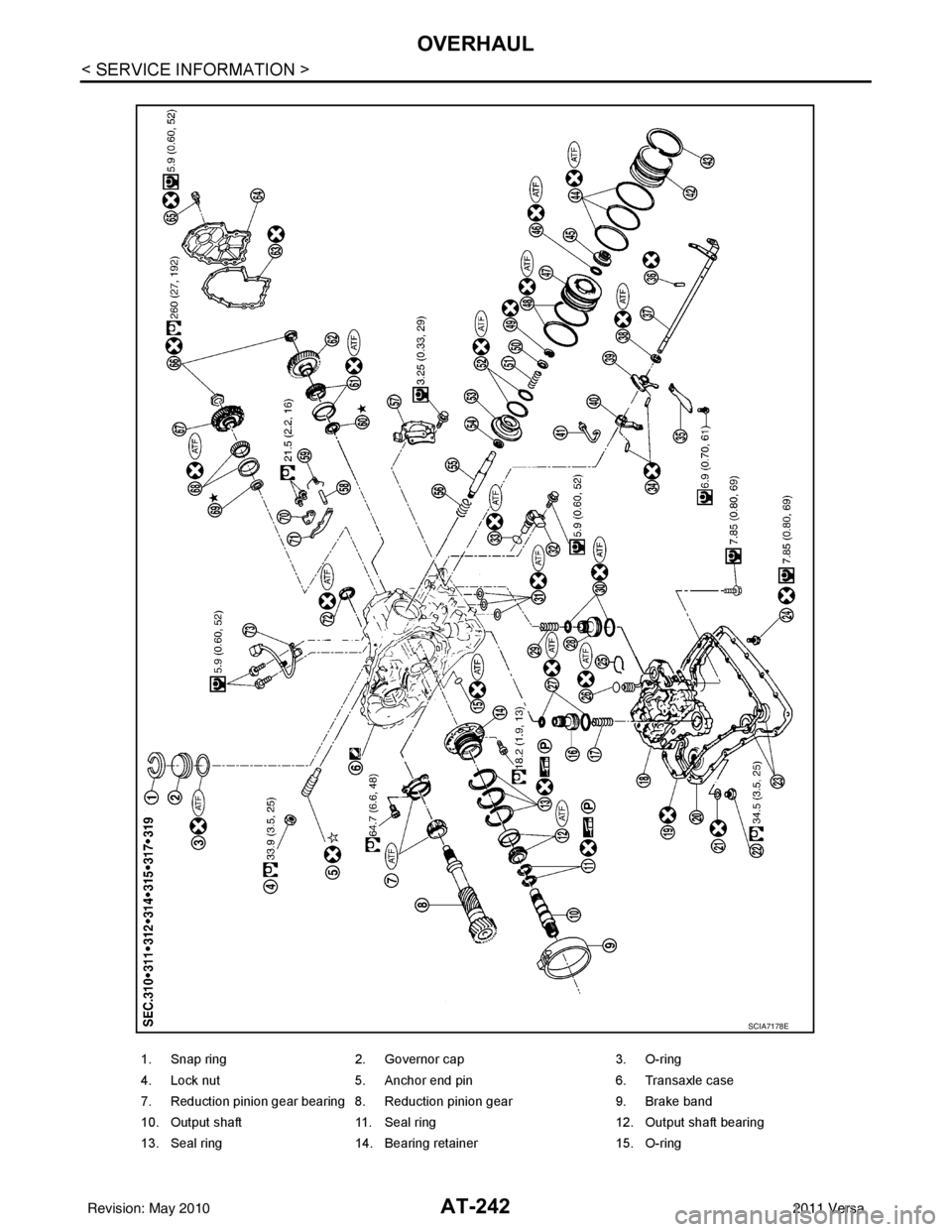

NISSAN LATIO 2011 Service Repair Manual AT-240 < SERVICE INFORMATION > OVERHAUL 19. Clip20. O-ring 21. O-ring 22. Oil pump housing oil seal 23. Oil pump housing 24. Outer gear 25. Inner gear 26. Oil pump cover 27. Seal ring 28. Oil pump ass

Page 258 of 3787

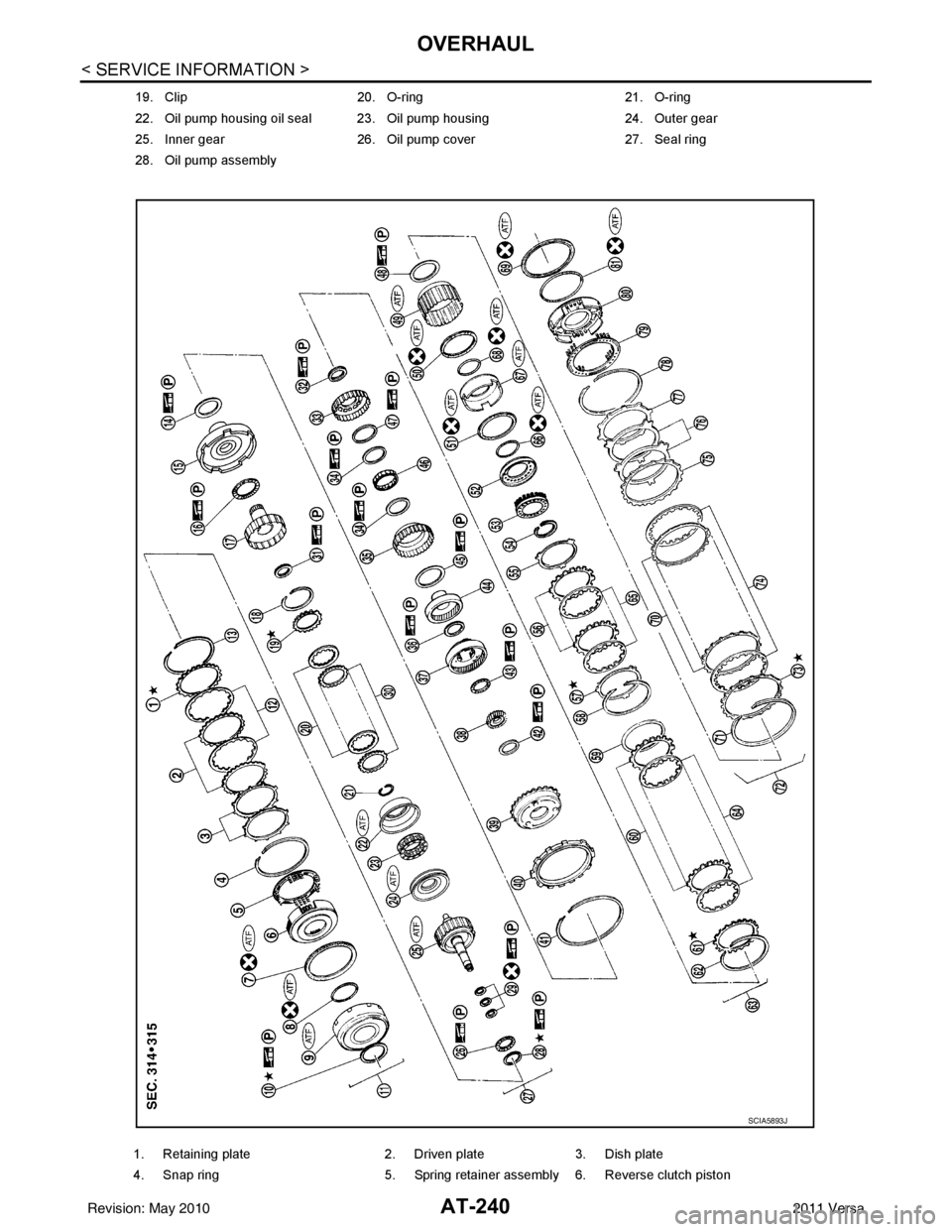

NISSAN LATIO 2011 Service Repair Manual OVERHAULAT-241 < SERVICE INFORMATION > DE F G H I J K L M A B AT N O P 7. Seal lip 8. D-ring9. Reverse clutch drum 10. Thrust washer 11. Reverse clutch assembly 12. Drive plate 13. Snap ring 14. Needl

Page 259 of 3787

NISSAN LATIO 2011 Service Repair Manual AT-242 < SERVICE INFORMATION > OVERHAUL 1. Snap ring2. Governor cap 3. O-ring 4. Lock nut 5. Anchor end pin 6. Transaxle case 7. Reduction pinion gear bearing 8. Reduction pinion gear 9. Brake band 10

Page 260 of 3787

NISSAN LATIO 2011 Service Repair Manual OVERHAULAT-243 < SERVICE INFORMATION > DE F G H I J K L M A B AT N O P MR18DE ENGINE MODELS 16. Servo release accumulator piston 17. Return spring 18. Control valve assembly 19. Oil pan gasket 20. Oi

Page 261 of 3787

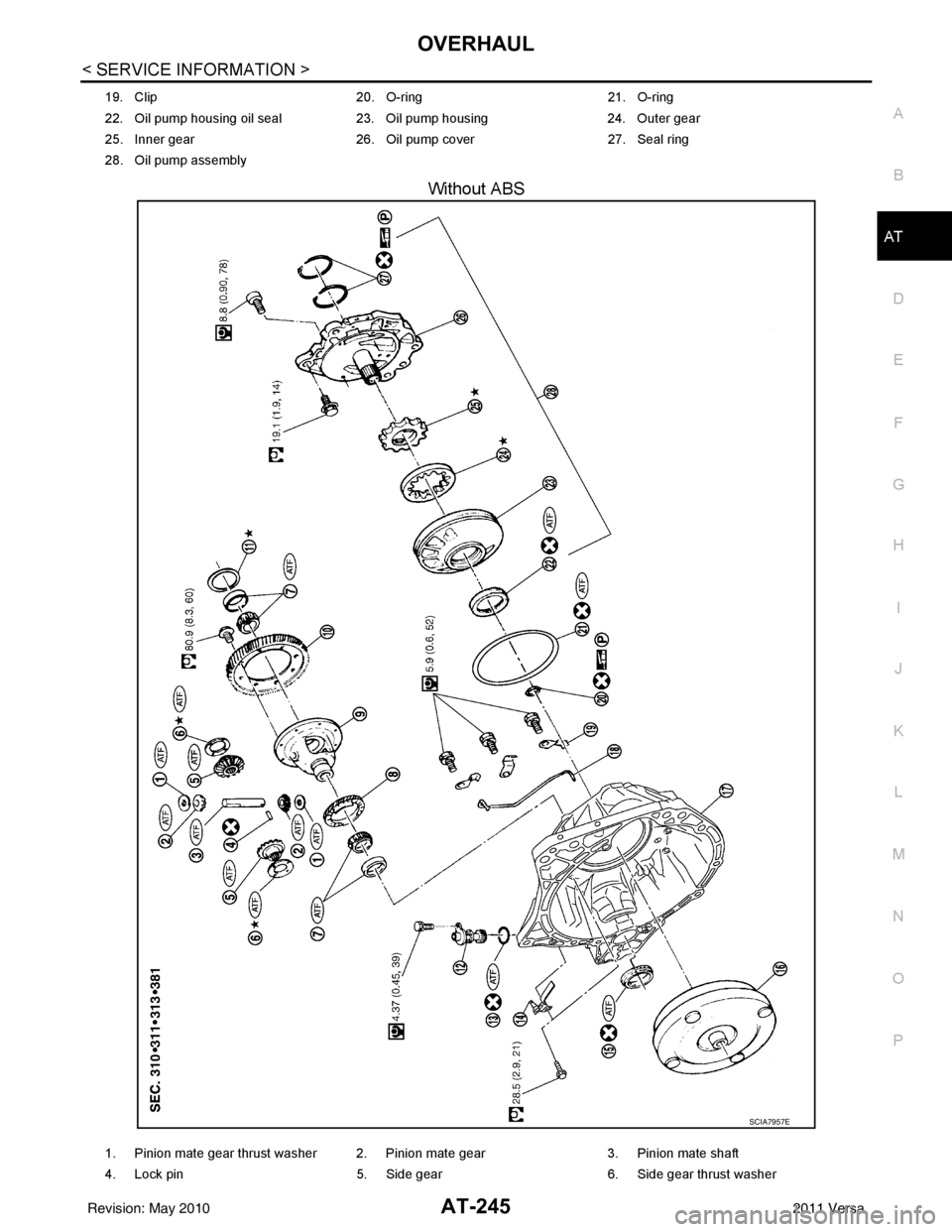

NISSAN LATIO 2011 Service Repair Manual AT-244 < SERVICE INFORMATION > OVERHAUL With ABS SCIA7956E 1. Pinion mate gear thrust washer 2. Pinion mate gear3. Pinion mate shaft 4. Lock pin 5. Side gear 6. Side gear thrust washer 7. Differential

Page 262 of 3787

NISSAN LATIO 2011 Service Repair Manual OVERHAULAT-245 < SERVICE INFORMATION > DE F G H I J K L M A B AT N O P Without ABS 19. Clip 20. O-ring21. O-ring 22. Oil pump housing oil seal 23. Oil pump housing24. Outer gear 25. Inner gear 26. Oil

Page 263 of 3787

NISSAN LATIO 2011 Service Repair Manual AT-246 < SERVICE INFORMATION > OVERHAUL 7. Differential side bearing8. Speedometer drive gear9. Differential case 10. Final gear 11. Differential side bearing adjusting shim 12. Speedometer pinion 13

Page 264 of 3787

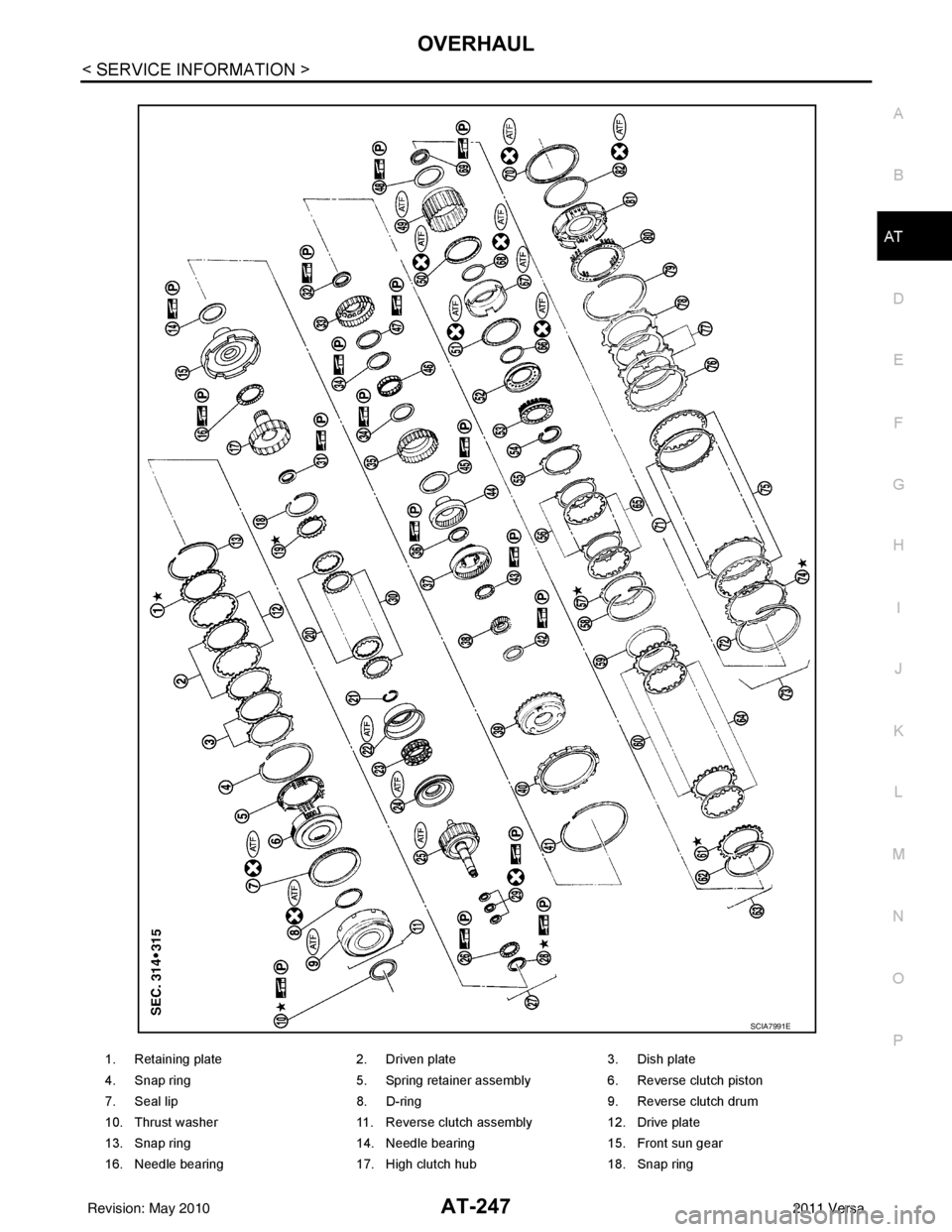

NISSAN LATIO 2011 Service Repair Manual OVERHAULAT-247 < SERVICE INFORMATION > DE F G H I J K L M A B AT N O P 1. Retaining plate 2. Driven plate3. Dish plate 4. Snap ring 5. Spring retainer assembly6. Reverse clutch piston 7. Seal lip 8. D
